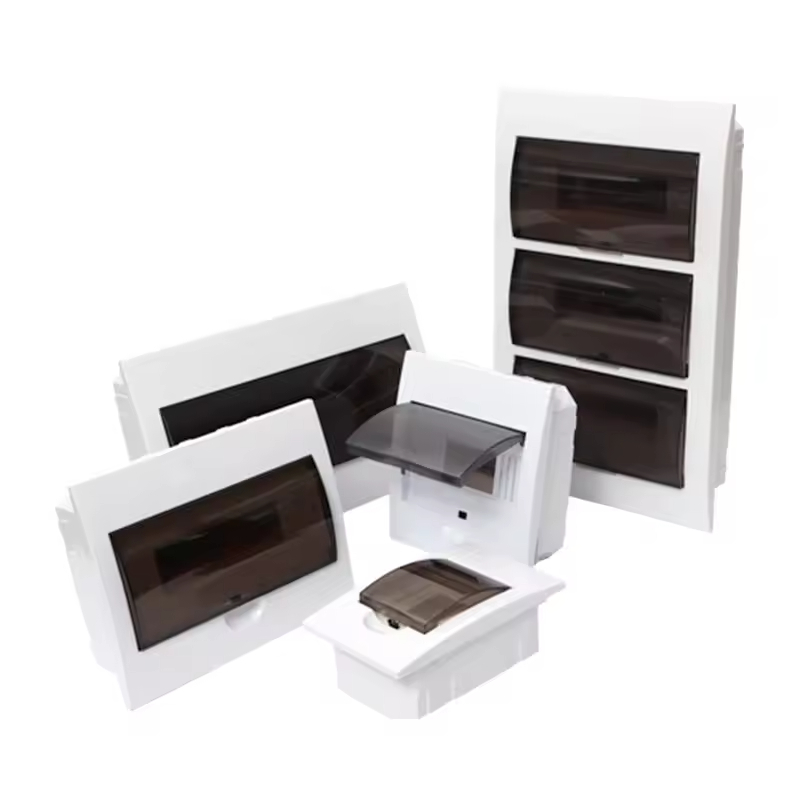

PS-MF ABS Circuit Breaker Distribution Box IP50 Outdoor Box Mcb 36 Group from China manufacturer

Quick Details

Place of Origin: Guangdong, China (Mainland)

Model Number: PS-MF

Product Name: waterproof distribution box

Type: electrical box

Material: ABS+PC

Color: Grey

Application: Electric Power Transmission

Standard: IEC60529 EN60309

Certificate: CE

IP Protection: IP50

Protection: waterproof,dustproof,corrosionproof

Installation: Flush type distribution box

Packaging & Delivery

Selling Units: Single item

Single package size: 34X29X11 cm

Single gross weight: 1.6 kg

Package Type: Export standard carton box 10PCS/CTN G.W.:16KGS/CTN N.W.:12.5KGS/CTN CTN Size:53.5*34.5*56.5cm

Lead Time :

Quantity(Piece)	1 - 500	501 - 1500	1501 - 3000	>3000
Est. Time(day)	7	15	25	To be negotiated

TSM Plastic Flush Wall Mounting Distribution Box Core Functions Multiple Advantages Strict Selection Of Materials Consistent Quality Full Range Of SpecificationsFully Stocked Professional Manufacturer With Many Years Of Production Experience Product Details Application

bsw

IP50-TSM-36ways-flush-type-waterproof-Plastic1

PS-MF-36WAYS Flush type

Name: Waterproof distribution box

Model: PS-MF-36WAYS Flush type

Color: Grey body&Tea color transparent cover

Product performance: Moisture-proof&waterproof

Outer size: 300*484*94mm

Net weight:2.06KGS

Material:ABS body +PC cover

Body material: ABS

Transparent door: PC

Earth/Natural bars: Brass

Material characteristics: Impact,heat low temperature and chemical resistance excellent electrical performance and surface gloss etc.

Certificates : CE,ROHS

Protection grade: IP50

Application :Suitable for indoor and outdoor electric,communication,fire fighting apparatus,iron and steel smelting,petrochemical industry ,electrionc,power system,railway,building ,min,air and sea port hotel,ship ,works waste water treatment equipment environmental equipment and so on

Installation 1.Inside:There are din rail inside for din-rail type circuit breakers,earth bar and natural bar for cable connection

2.Outside:The products canbe directly fixed on the wall or other flat boards with screws or nails via the screw holes in the base

Outlet hole: The plastic plate in the hole can be knocked off for cables

bsw

IP50-TSM-36ways-flush-type-waterproof-Plastic2

Internal structure

35MM din rail for fixing terminal block ,circuit breaker,household contactor,make the installation more easy and simple

Earth/Natural bars:Brass

Cover design

Easy to fixed the circuit breaker,contactors and so on

Window design

PC transparent material flip window, more intuitive, better sealing.

Flush install

Smooth and beautiful appearance, no coloured spots

Inlet and outlet hole

The box is provided with reserved holes for customers' convenient connection.
Practical and convenient

Can use PG13.5,PG21,PG29 cable glands


Model	Product's size (mm)	NO.of circuit breaker(pole)	Net Weight (kg)
HA-4WAYS	140210100	4	0.52
HA-8WAYS	215210100	8	0.78
HA-12WAYS	300260140	12	1.46
HA-18WAYS	410285140	18	1.93
HA-24WAYS	415300140	24	2.34
HT-5WAYS	12016095	5	0.34
HT-8WAYS	20015595	8	0.53
HT-12WAYS	250195110	12	0.84
HT-15WAYS	310195110	15	0.9
HT-18WAYS	365195110	18	1.07
HT-24WAYS	360280110	24	1.35
HK2-5WAYS	140140100	5	0.40
HK-8WAYS	195195103	8	0.65
HK-12WAYS	270195103	12	0.80
HK-18WAYS	375195103	18	1.10
GDB-04	21292107	4	0.34
GDB-06	220165100	6	0.80
GDB-09	220219100	9	0.95
GDB-12	230273110	12	1.35
GDB-18	230381110	18	1.90
GDB-24	380273110	24	2.1
GDB-36	380381110	36	2.7
56CB4N	100210110	4	0.50
56CB8N	200210110	8	1.00

bsw

Q1. Can I have a sample order for distrubition box?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for distribution box order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for distribution box?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on distribution box product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

SKU:
Availability:

Quantity:



Waterproof mcb Distribution Box Plastic Model:PS-MF Color: Grey body Tea color transparent cover Product performance: Moisture-proof waterproof Material:ABS body +PC cover
