PS-EC02
BSUMWELL/OEM
$6.2 - $9.8
| SKU: | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Availability: | |||||||||
| Quantity: | |||||||||
| Zigbee 3.0 smart curtain switch (1/2 Gang, 100-240V, 3A) supports Tuya APP/voice control (Alexa/Google Home), timer & scenes. Compact size fits most mounting boxes (needs Zigbee hub). | |||||||||
Wifi Tuya Smart Life Curtain Switch Module for Roller Shutter Blind Motor with Alexa Google Home
Multi-Way Intelligent Control: Supports Tuya Smart/Smart Life APP remote control (available anywhere), voice control via Alexa/Google Home (hands-free operation), and manual control (compatible with mechanical rocker, touch, and push-button switches) for flexible use.
1/2 Gang Flexible Selection: 1 Gang version controls 1 curtain motor (max load 3A); 2 Gang version controls 2 independent motors (max load 2×3A), meeting single or multi-curtain management needs.
Timer & Scene Linkage: Set custom timing (e.g., 8:30 AM open 100%, 21:00 PM close) to fit daily routines; link with smart sensors (temp/humidity, door sensor) to trigger "Go Home Mode" or "Sleep Mode" for automated curtain movement.

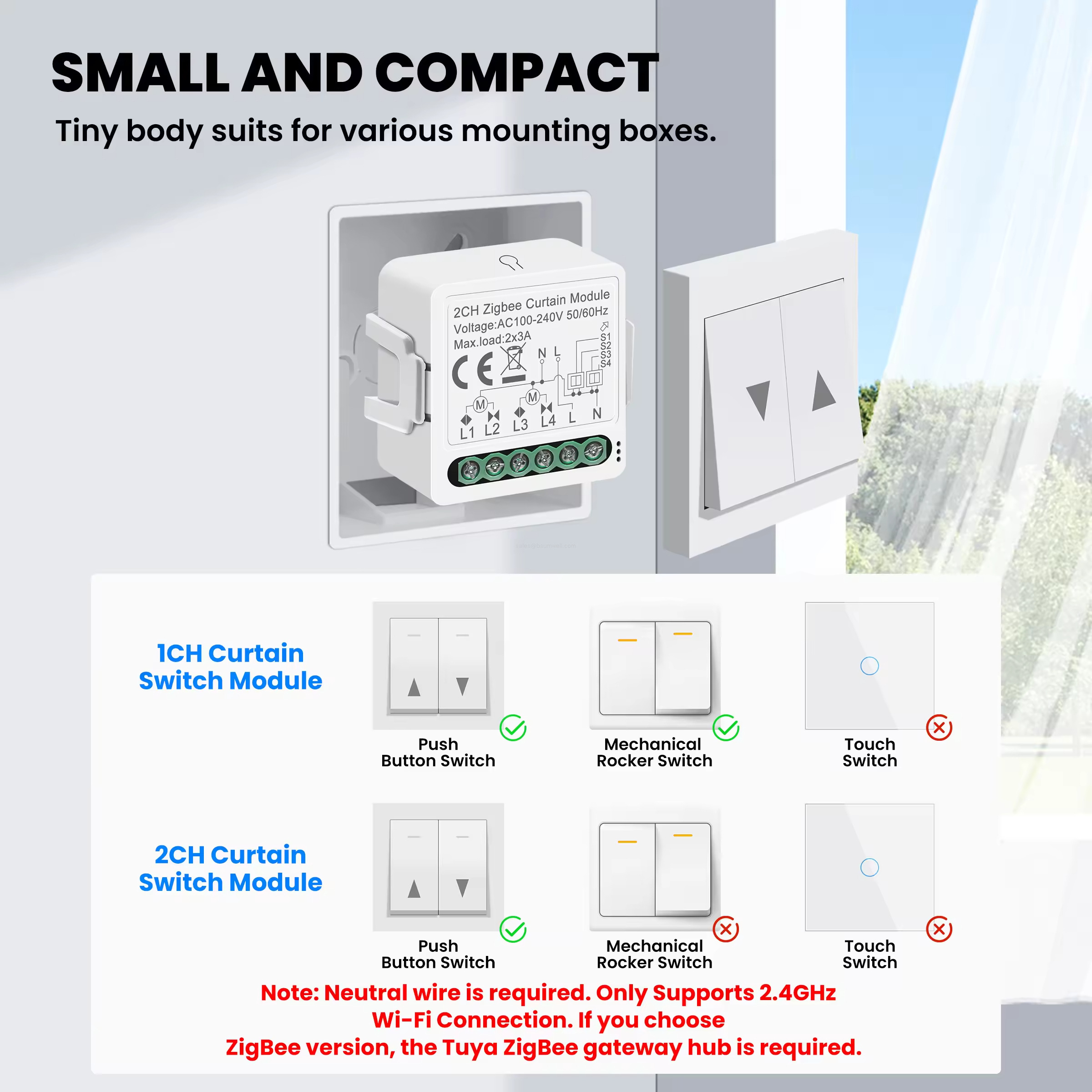

Compact & Wide Compatibility: Mini size (39.2×39.2×20mm) fits 98% of standard curtain switch boxes; AC 100-240V wide voltage adapts to global residential power grids, no voltage mismatch issues.
Stable & Safe Performance: Adopts Zigbee 3.0 protocol (IEEE 802.15.4) for anti-interference and stable connection; IP20 protection level (dustproof, suitable for indoor use), CE/RoHS certified, with 10-year mechanical life for long-term reliability.
Residential Spaces: Bedrooms (timed opening to wake with sunlight), living rooms (voice control while relaxing), home theaters (auto-close when starting a movie), and study rooms (adjust light intake via APP).
Smart Life Needs: Simulate occupancy (auto-open/close) during travel for home security; link with temperature sensors to adjust curtains and reduce air conditioning energy consumption.
Retrofit & New Decoration: Easy to install in existing curtain switch boxes, no need to replace the entire curtain motor system, suitable for both home renovation and new home decoration.
Q: Can it control different types of curtain motors?
A: It is compatible with most electric roller blind and shutter motors, as long as the motor load does not exceed the module’s max load (1 Gang: 3A; 2 Gang: 2×3A).Q: Is a neutral wire needed for installation?
A: Yes, the module requires a neutral wire for power supply. Please confirm the presence of a neutral wire in your curtain switch box before installation.Q: Can multiple family members control the curtains at the same time?
A: Yes, the APP supports device sharing—you can invite family members to access the module via the APP, so everyone can control it without repeated pairing.Q: What should I do if the curtain moves in the opposite direction of the APP command?
A: You can enter the APP’s "More Settings" and select the "Motor Reversal" option to adjust the direction, which is simple and does not require re-wiring.Selling Units:Single item
Single package size: 5X5X5 cm
Single gross weight:0.150 kg
