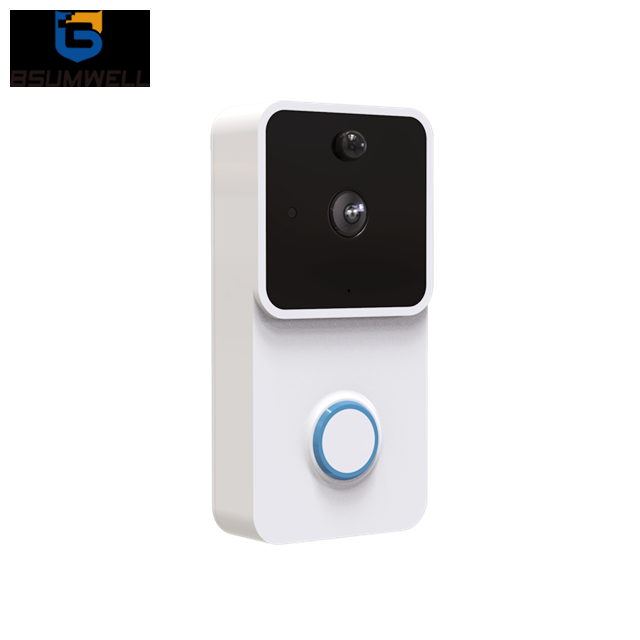

Wifi Video Doorbell VD-08

Product Category

Related Products

Share to:

Model Number：VD-08
720P HD Wifi Security Camera Video Doorbell With Real Time Two Way Talk PIR Motion Detection

bsw

Wifi Video Doorbell

1.2.4GHZ Wi-Fi connection

2.Remote view and Real Time Two Way Talk

3.Wide-angle camera lens

4.Support IR Night vision 16ft

5. PIR Motion Detection

6.It can be standby for 6 months with two 18650 batteries

7.With 433MHZ Ding Dong bell

8.Support TF card

9.Support tuya APP 、XSH CAM APP and Tosee APP

Main Processor	Hi3518EV200
Sensor	1/4 COMS OV9732
Video	1280*720@25fps
	H.264 Bitrate self-adaptive
	Suitable for changeable network environments(3G,4G or WIFI)
Audio	Two-way voice & Support echo cancellation
	Built-in speaker
	Built-in Microphone
View Angle	166 degree Horizontal
Day & Night	IR-CUT double filter automatically switches
	6pcs infrared LED 850mm
	Min Illumination:1 Lux
Connection	Support WiFi 2.4 GHz, IEEE 802.11 b\g\n
	AP Hot spot
	Scan QR code
Storage	Support Cloud storage function
Recording	Support smart phone local record, records video playback
	Optional recording time setting between 15s-45s, once doorbell triggered
Screen Shot	Support Smart phone screen shots
Working Condition	Press Button DirectlyPIR detection triggeredMobile phone Control

Running up	System running up in millisecond
Inform	Push message within 1s-2s
Motion Detection	PIR motion detection, sensitivity High(2s)/ Medium(within 5s)/ Low (within 10 s)
Scene Mode	Backlight compensationInfrared night visionQuick movementHLCD-WDR
Share	Support QR code share(one-click generates QR-code, share to othersTo add your doorbell devices, join in remote control. Maximum supports 7 authenticated users, supports users 3 view at the same time
Battery	3.7V, 2pcs 18650 battery, Rechargeable or (14V~24V AC charging)
Power Consumption	Working 170mA, Standby 160μA

Main Processor	Hi3518EV200
Sensor	1/4 COMS OV9732
Video	1280*720@25fps
	H.264 Bitrate self-adaptive
	Suitable for changeable network environments(3G,4G or WIFI)
Audio	Two-way voice & Support echo cancellation
	Built-in speaker
	Built-in Microphone
View Angle	166 degree Horizontal
Day & Night	IR-CUT double filter automatically switches
	6pcs infrared LED 850mm
	Min Illumination:1 Lux
Connection	Support WiFi 2.4 GHz, IEEE 802.11 b\g\n
	AP Hot spot
	Scan QR code
Storage	Support Cloud storage function
Recording	Support smart phone local record, records video playback
	Optional recording time setting between 15s-45s, once doorbell triggered
Screen Shot	Support Smart phone screen shots
Working Condition	Press Button DirectlyPIR detection triggeredMobile phone Control

Running up	System running up in millisecond
Inform	Push message within 1s-2s
Motion Detection	PIR motion detection, sensitivity High(2s)/ Medium(within 5s)/ Low (within 10 s)
Scene Mode	Backlight compensationInfrared night visionQuick movementHLCD-WDR
Share	Support QR code share(one-click generates QR-code, share to othersTo add your doorbell devices, join in remote control. Maximum supports 7 authenticated users, supports users 3 view at the same time
Battery	3.7V, 2pcs 18650 battery, Rechargeable or (14V~24V AC charging)
Power Consumption	Working 170mA, Standby 160μA
