Design Guidelines for Heat Dissipation and Anti-condensation of Charging Pile Housings - From Passive Heat Dissipation to Active Thermal Management

This article covers the following content

This article is aimed at charging pile R&D engineers, technical leaders, CPO technical teams, and EPC designers, helping you systematically grasp the design key points of charging pile casing heat dissipation and anti-condensation in 20 minutes:

1. The deadlock between waterproofing and heat dissipationWhy is it that the higher the IP rating, the more difficult it is to dissipate heat?

2. Passive cooling designHow can an AC slow charger casing dissipate heat without a fan?

3. Active cooling design-- Fan cooling and ventilation structure of DC fast charging casing

4. Anti-condensation and microenvironment controlHow to solve the internal condensation caused by the "breathing effect"?

5. Selection Decision Tools— Quickly match solutions based on power level and installation scenario

This article was written by the BSUMWELL technical team. We are a source manufacturer specializing in outdoor waterproof housings for charging piles. Our products cover two main solutions: passive heat dissipation (ABS sealed housing) and active heat dissipation (metal/ABS with fan ventilation structure). We support customized heat dissipation configurations according to power level and installation scenario.

1. Why are "waterproofing" and "heat dissipation" such a deadlock on the casing of charging piles?

If you've ever disassembled an outdoor charging station that's been in operation for several years, you might see something like this: the outer casing is still intact, and the IP rating is fine, but the internal contactors are burnt out, the capacitors on the circuit board are bulging, and the busbar connections are blackened.

The casing wasn't wet, but the device still broke. Why?

Because the heat wasn't released.

1.1 The "heat trap" of the sealed enclosure—the higher the IP rating, the more difficult it is to dissipate heat.

There is a physical contradiction in the design of the charging pile casing: waterproofing relies on "sealing," while heat dissipation relies on "circulation"—the two are naturally opposed.

The higher the IP rating (IP65→IP66→IP67), the better the sealing performance, but the more difficult it is for internal heat to dissipate. This is the physical contradiction that the design of charging pile casings must face.

Heat within a sealed enclosure is primarily dissipated through conduction via the enclosure walls and radiation from the enclosure surface, which is far less efficient than convection. Without airflow, heat accumulates inside and cannot escape.

The combined effects of high summer temperatures, direct sunlight, and internal heat can cause the temperature inside the sealed casing to reach 60-70°C (based on industry-standard data from charging pile thermal testing). At this temperature, the lifespan of electrolytic capacitors may be shortened by more than 50% (based on industry-standard estimates using the Arrhenius equation), the contact resistance of contactors increases, and the bolt torque at busbar connections decreases.

Our charging station casings are designed and selected with a full consideration of the balance between waterproofing and heat dissipation—offering complete options for passive cooling and active thermal management based on project power requirements.

1.2 AC Slow Charging vs DC Fast Charging – Heat Generation Difference of Hundreds of Times, Completely Different Solutions

The heat generation of AC slow charging and DC fast charging differs greatly, and their casing design concepts are also completely different.

• AC slow charging (7kW/22kW): The internal heat generation is typically <30W (industry-standard data based on AC slow charging station efficiency). At this heat level, passive cooling is sufficient—no fan or vents are needed, and the casing can be completely sealed.

• DC fast charging (60kW-350kW): The internal heat generation can reach 500W-5kW (industry-standard data based on DC fast charging pile efficiency). At this heat level, active cooling is necessary—without fans and ventilation structures, the heat simply cannot escape.

The difference in heat generation dictates that the design concepts for the casing are completely different:

A common selection mistake is applying the design principles of AC charging pile casings to DC fast charging – this will cause the equipment to overheat and reduce power frequently, or even shut down.

Our charging station casings offer tiered heat dissipation solutions based on power rating—passive cooling (white ABS casing, sunlight reflection + surface heat dissipation) is available for AC slow charging, while active cooling (metal or ABS casing + 12V cooling fan + louvered ventilation structure) is available for DC fast charging, customized to your specific power requirements. [View the charging pile casing product series]

2. Passive heat dissipation casing design – a heat dissipation solution for AC slow charging and low-power scenarios.

AC slow charging is the most numerous category in the charging station market. Most AC slow charging projects do not require fans or ventilation vents; passive cooling is sufficient.

The problem is that, even with the same "passive cooling" approach, different design philosophies can produce vastly different results.

2.1 Casing Material and Surface Treatment – ​​Optimizing Heat Dissipation from a Material Perspective

The heat dissipation path of a sealed enclosure is: heat from internal components → conduction to the inner wall of the enclosure → through the enclosure wall → dissipation from the surface of the enclosure into the environment.

Every step on this path can be optimized.

Material selection affects thermal conductivity:

• Metal (steel plate/aluminum alloy): High thermal conductivity (approximately 50 W/m·K for steel plates and approximately 237 W/m·K for aluminum alloys), allowing heat to be quickly conducted to the surface.

• Engineering plastics (ABS/PC): It has a low thermal conductivity (approximately 0.2 W/m·K), but this can be compensated for by optimizing wall thickness and surface design.

Surface color affects radiative heat dissipation and external heat load:

White/light-colored surfaces reflect sunlight, reducing external heat load; dark-colored surfaces have higher radiative heat dissipation efficiency, but also absorb more solar heat. For outdoor charging stations, white is a more reliable choice.

Our ABS engineering plastic shell is made of high-quality ABS material. The natural white material provides built-in thermal stability—it can reflect strong solar radiation and effectively reduce the surface temperature of the shell in high-temperature environments in summer, preventing the material from physical yellowing, deformation or aging in strong monsoon rains and cold winters.

2.2 Internal heat conduction path design – allowing heat to “find an outlet”

The key to passive heat dissipation is not only the casing material, but also how the heat from the internal components is transferred to the casing surface.

The three essential elements of a heat conduction path:

1. Touch: There should be good thermal contact between the heating element and the casing. If the element is suspended in the air, heat can only be conducted through the air (which is extremely inefficient), and the casing will not get hot while the inside is already hot.

2. Conduction: Choose materials with better thermal conductivity. Metals are better than plastics, and thicker walls are better than thinner walls.

3. Diffusion: Heat diffuses from the contact point to the entire surface of the casing. The larger the contact area, the higher the heat dissipation efficiency.

Common problem: Internal components are suspended in the air, causing heat to accumulate inside the casing → the outer shell is not hot, but the inside is already very hot. Touching the outer shell and feeling it's not hot leads to the assumption that heat dissipation is fine—this is the most common misjudgment.

Our enclosure features a modular mounting hardware kit—multi-configuration grid mounting plates, standard aluminum DIN rails, and heavy-duty steel backplate shelves. This not only facilitates component placement but also optimizes airflow paths and reduces heat buildup through rational internal space planning. Heat-generating components can be mounted close to the enclosure walls, shortening the heat conduction path.

3. Active Cooling Fan System Design – A Heat Dissipation Solution for DC Fast Charging and High-Power Scenarios

DC fast charging generates a lot of heat, and passive cooling is insufficient; active cooling is necessary.

The most mature and commonly used active cooling solution is fan cooling—which uses a fan to force airflow and carry away internal heat.

The following section introduces two active heat dissipation housing solutions with different design concepts.

3.1 Option 1: Active fan cooling + fine dust filtration

• Applicable Scenarios: Sensitive wireless hardware, routers, power supplies, and smart IoT devices.

• Core Design：

• Cooling fan: Built-in 12V DC cooling fan (2.4×2.4 inches / approx. 61×61mm) continuously drives airflow.

• Double louver ventilation path: The bottom air intake and the side double ventilation hoods create a continuous airflow channel.

• Fine dust filtration: The louvered ventilation path is embedded with a specially made fine mesh dustproof screen—which can achieve continuous forced air cooling and completely capture dust, debris and insects brought by the wind.

• Material advantages: Made of high-quality ABS engineering plastic, its natural white color reflects sunlight radiation, reducing external heat load.

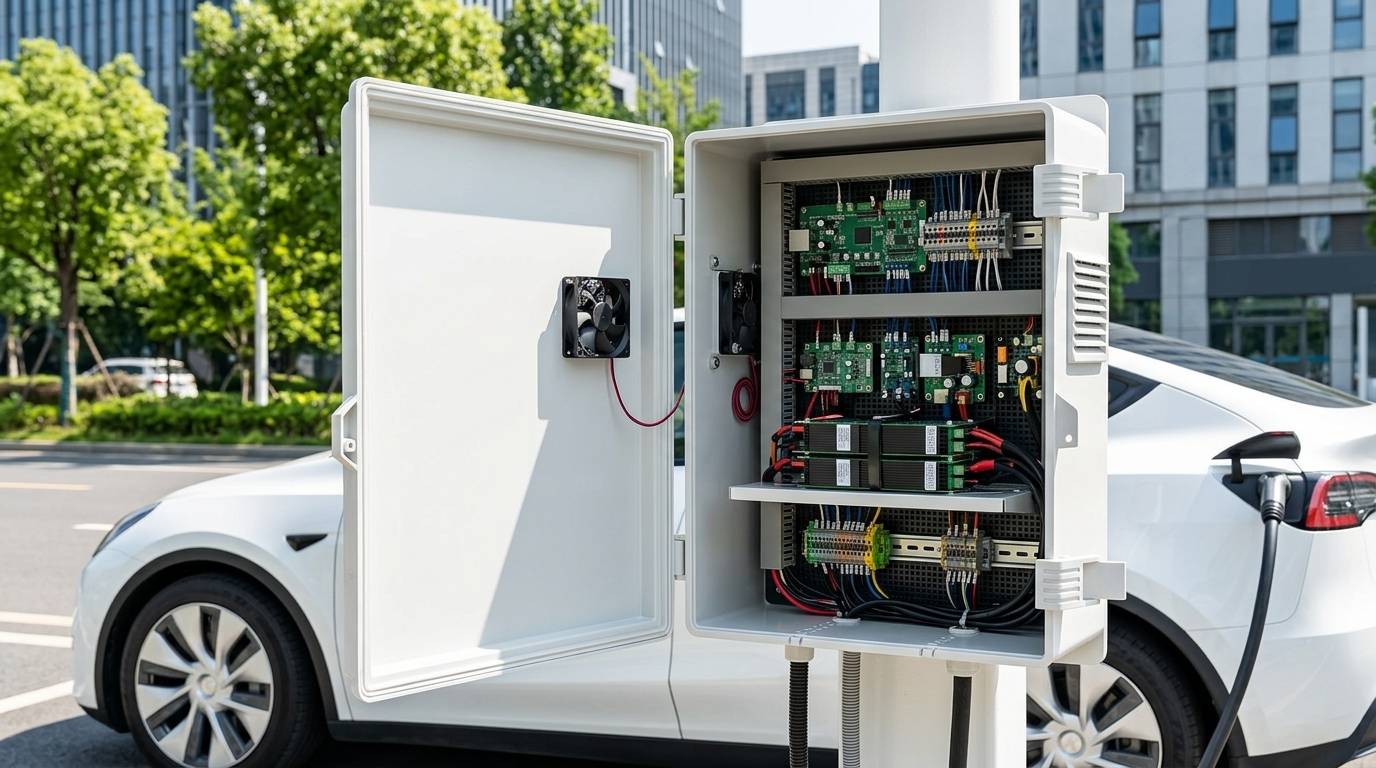

Our active cooling housing features a 12V DC cooling fan (2.4 x 2.4 inches) and a dual-louver ventilation structure, with bottom intake and side exhaust creating a continuous airflow channel. An internal fine-mesh dust screen prevents dust and insects from entering while maintaining efficient heat dissipation. The white ABS material reflects sunlight radiation, further reducing external heat load.

3.2 Option 2: Dual ventilation structure + continuous airflow

• Applicable Scenarios: DC fast charging stations, solar inverters, and industrial network equipment.

• Core Design：

• Cooling fan: Integrated 80×80mm 12V active cooling fan.

• Ventilation layout: Protected air inlet at the bottom + dual ventilation hoods on the sides – fresh air enters from the bottom and hot air is exhausted from the sides.

• Continuous airflow layout: It prevents heat buildup and significantly reduces the operating temperature of internal high-performance components (charging piles, inverters, network switches).

• Material advantages: 1.1mm thick cold-rolled steel sheet, multi-layer industrial matte gray powder coating - corrosion resistant, UV resistant, and salt spray resistant.

• Size: 400×300×200mm（15.75"×11.81"×7.87"）。

Our metal active cooling housing features a dual-ventilation design—a protected bottom air intake combined with dual side ventilation shrouds creates a continuous airflow layout. An integrated 80×80mm 12V active cooling fan effectively prevents heat buildup and significantly reduces the operating temperature of high-performance components inside the charging station. Multi-layer anti-corrosion coating ensures long-term reliable operation in high-humidity environments such as coastal areas. [Learn more about the active cooling charging pile casing]

3.3 Passive Cooling vs. Active Cooling – A Table to Help You Choose

Our product line covers both passive cooling (ABS sealed housing) and active cooling (metal/ABS with fan ventilation structure), which can be flexibly selected according to project power requirements and environmental conditions.

4. Anti-condensation and microenvironment control – the “invisible defense” of the charging pile casing

Heat dissipation is a visible problem—if the temperature is too high, the equipment will alarm and reduce power.

Condensation is an invisible problem—it won't shut down the equipment immediately, but it will slowly corrode the circuits, rust the terminals, and blur the windows until one day the equipment suddenly breaks down.

Condensation is harder to detect than water ingress because it doesn't "leak" in; it "transforms" into something else.

4.1 How is condensation formed? The physical principle of the "respiration effect"

Typical phenomenon:

Upon opening the casing of a charging station that had been in operation for several years, water droplets were found inside, white corrosion marks appeared on the circuit board, the inside of the viewing window was blurry and the readings were illegible, and there were rust spots on the metal parts. The casing was not broken, the sealing ring was not damaged, and the IP rating test was passed, but there was still water inside.

The problem isn't the leak, it's the condensation.

Water is "transformed" from the air, not seeped in from the outside.

Physical principle (based on the ideal gas law $PV=nRT$):

1. Daytime: Sunlight exposure → outer shell heats up → internal air expands → some air "exhales" out from the sealed gaps.

2. Night: The temperature drops suddenly, causing the internal air to contract and creating negative pressure, which then draws in external moisture through the sealed gaps.

3. Repeating the cycle: Internal moisture accumulates continuously → when it reaches the dew point → it condenses into water on the cold surface.

Key Insights: The root cause of condensation is not "insufficient sealing," but rather "too good a seal" combined with "too large a temperature difference." If the outer casing were completely unsealed, allowing free airflow, condensation would not occur—because the humidity and temperature inside and outside would be balanced. However, the charging station's outer casing must be sealed (waterproof), making condensation a problem that must be specifically addressed.

Our sealed housing reduces the risk of condensation at the source through a combination of structural sealing design and optional intelligent temperature and humidity control.

4.2 Sealing Design and Cable Joints – The First Line of Defense Against Water and Condensation

The root cause of condensation is the "breathing effect," and the channel for the breathing effect is tiny gaps that are not properly sealed.

To reduce the respiratory effect at its source, the first line of defense is to seal the gaps.

• High-quality sealing rings: The sealing ring between the door frame and the cabinet is the largest potential gap. A continuous gasket structure ensures even compression, leaving no dead corners.

• The sealing quality of the cable gland: The cable inlet is the second largest potential gap. Ordinary cable joints may loosen after long-term thermal expansion and contraction, creating tiny gaps. Liquid-tight NPT cable joints provide a more reliable seal.

• Installation quality control: Cleaning the sealing surface, tightening screws in a star-shaped sequence (instead of turning them clockwise in circles), and tightening cable connectors to the recommended torque—these installation details directly determine the actual sealing effect.

Our housing features continuous heavy-duty structural gaskets and liquid-tight NPT cable connectors to ensure uniform compression of the sealing surface. Heavy-duty structural gaskets are used around the door frame, along with a double-action integrated snap-locking device, ensuring durable and reliable weatherproofing.

4.3 Intelligent Temperature and Humidity Control – An Advanced Microenvironment Management Solution

In high-humidity areas (coastal areas, and the rainy season in the south), simply "blocking" is not enough—moisture will always find a way to enter. In these cases, proactive microenvironment control is necessary.

Working principle of intelligent temperature and humidity control: Real-time monitoring of temperature and humidity inside the chamber → If humidity exceeds the threshold, dehumidification/heating is activated → The environment is kept above the dew point → Water vapor will not condense.

Why is "smart" necessary?: If the heater is left on all the time, it consumes a lot of electricity and shortens its lifespan; if it's never turned on, it's useless. Intelligent control automatically starts and stops based on real-time data, working only when needed.

The evolution of charging pile casing design is moving from "physical barriers" to "intelligent microenvironment control." This is a worthwhile investment to consider for projects in high-humidity areas.

For charging pile projects in coastal or high-humidity areas, our casing can be equipped with an intelligent temperature and humidity control system—which monitors the internal environment in real time and automatically adjusts the temperature and humidity to create a stable operating environment for sensitive electronic components.

5. Selection Decisions for Heat Dissipation and Anti-condensation – Matching Power, Scenario, and Solution

5.1 Quick Reference Table of Heat Dissipation Solutions by Power Level

How do I use this table?

1. Confirm the power rating of the charging station (7kW/22kW/60-150kW/150-350kW+).

2. Find the corresponding heat output and recommended cooling solutions in the table.

3. Select the specific housing type (ABS sealed/metal fan/ABS fan) based on the installation environment.

Our product line covers both passive cooling (ABS sealed housing) and active cooling (metal/ABS with fan ventilation structure). [For specific project-specific heat dissipation solution design, please contact our technical team for a free consultation.]

5.2 Selection Recommendations Based on Installation Scenarios

Our white ABS active cooling housing features a fine mesh dustproof screen, making it ideal for roadside/dusty environments; the metal active cooling housing has an anti-corrosion coating, making it suitable for coastal/high humidity environments.

5.3 Common Design Pitfalls (3 Most Common Mistakes)

• Myth 1: Sacrificing dust protection for heat dissipation

• As a result of : Thinking that "opening vents for heat dissipation is enough" → Dust gets in, causing component failure → Equipment is scrapped prematurely.

• Correct approach : The ventilation openings must be equipped with dust filters or louver structures to allow air to enter while preventing dust from entering.

• Myth 2: Ignoring the impact of solar radiation

• As a result of : Only internal heat was calculated, while external sun exposure was forgotten → The actual temperature was much higher than the calculated value.

• Correct approach : For outdoor casings, light-colored (white) materials are preferred to reflect sunlight radiation and reduce external heat load.

• Myth 3: Heat dissipation design only considers "full load".

• As a result of : Only the maximum heat output is calculated, ignoring partial load conditions → excessive heat dissipation (waste of energy) at low power, and insufficient heat dissipation at high power.

• Correct approach : Design an adjustable heat dissipation solution – fan speed control and intelligent control – automatically adjust the heat dissipation intensity according to the actual heat generation.

Our casing is designed to simultaneously address dust protection (fine mesh dustproof screen) and sunlight radiation (white material for reflection), avoiding sacrificing long-term reliability for heat dissipation.

❓ Common Design Questions (FAQ)

Q1: When is active cooling (fan) necessary, and when is passive cooling sufficient?

A：Consider the heat generation. AC slow charging (7kW/22kW) typically generates less than 30W of heat, which passive cooling is sufficient. DC fast charging (60kW-350kW) can generate 500W-5kW of heat, requiring active cooling. If you are unsure about the specific heat generation of your project, you can estimate it based on the charging station's rated power and efficiency, or consult our technical team directly.

Q2: Will adding a fan and vents lower the IP rating?

A：Yes. Fully sealed enclosures can achieve IP65/IP66, while enclosures with ventilation structures typically achieve IP54/IP55. However, this is a necessary trade-off for active cooling. The key is that the ventilation openings must be equipped with dust filters or louvered structures to prevent dust and insects from entering. Our active cooling enclosures come standard with a fine-mesh dust screen.

Q3: Can the condensation problem be solved by adding a waterproof and breathable valve?

A：Waterproof and breathable valves are one effective way to solve condensation, but they are not a panacea. They reduce the "breathing effect" by balancing the pressure difference between the inside and outside, thereby reducing moisture absorption. In high-humidity areas (coastal areas, the rainy season in the south), waterproof and breathable valves alone may not be enough; it is recommended to use them in conjunction with intelligent temperature and humidity control (heater + sensor). Our housings can be equipped with a complete intelligent microenvironment control system.

Q4: Is there a difference in lifespan between passive and active cooling casings?

A：Under proper usage, both can reach their designed lifespan. The difference lies in maintenance frequency—the dust filter of an active cooling housing requires regular cleaning or replacement (typically checked every 6-12 months), while a passive cooling housing is essentially maintenance-free. If an active cooling housing is used in a dusty environment without regular filter maintenance, its cooling efficiency will rapidly decline, impacting the equipment's lifespan.
