1. Basic Product Information
Brand: BSUMWELL (a professional manufacturer with many years of production experience, identified as a "Source Manufacturer").
Series Name: PS-RT Series (focuses on waterproof electrical junction boxes for power-related scenarios).
Product Type: Waterproof & moistureproof electrical junction box (used for protecting circuit connection nodes in power transmission).
Supply Capacity: 10,000 pieces per week, capable of meeting both small-batch trial and large-scale procurement needs.
Packaging & Delivery:
Packaging: Export-standard carton boxes (1 junction box per carton for basic packaging); outer box size of electric waterproof distribution boxes supports customization.
Delivery Ports: Shenzhen, Ningbo, Shanghai (flexible choice of logistics routes).
Inventory Status: Fully stocked (e.g., the PS-RT 20107G model has 1,000 pieces in stock), ensuring fast delivery without long production waits.
Price Range: Factory-direct prices, economical (e.g., the PS-RT 20107G model is priced at $0.6-$1.53), reducing procurement costs.
2. Detailed Product Specifications
2.1 Core Material
Main materials: ABS, PC, or ABS+PC composite; all materials feature high temperature resistance, low temperature resistance, and robust durability, adapting to diverse environmental conditions (e.g., outdoor humidity, workshop temperature fluctuations).
2.2 Protection Level
Two grades available:

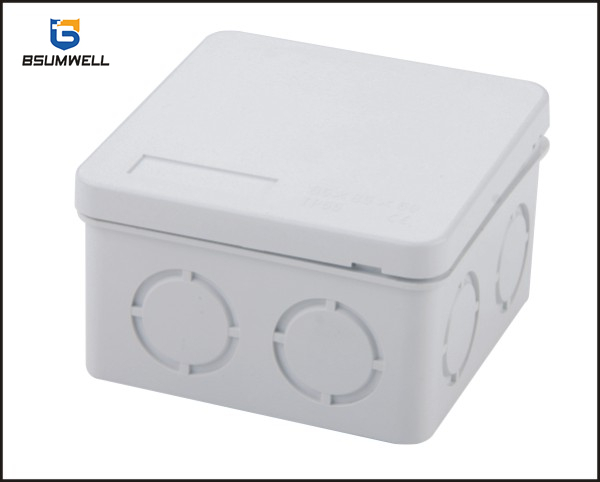

IP55 (for small-size models like PS-RT 50x50, PS-RT 80x50, suitable for general dustproof and splash-proof scenarios).

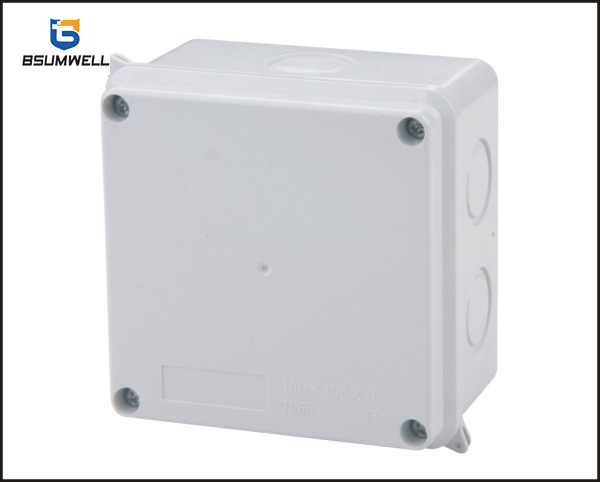

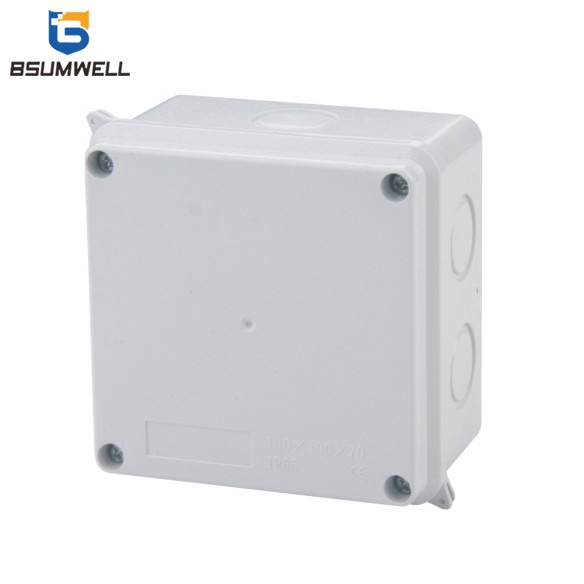

IP65 (for most models like PS-RT 100x100x70, PS-RT 400x350x120, enabling effective waterproof and moistureproof performance, applicable to outdoor or humid environments).
2.3 Size & Structural Parameters

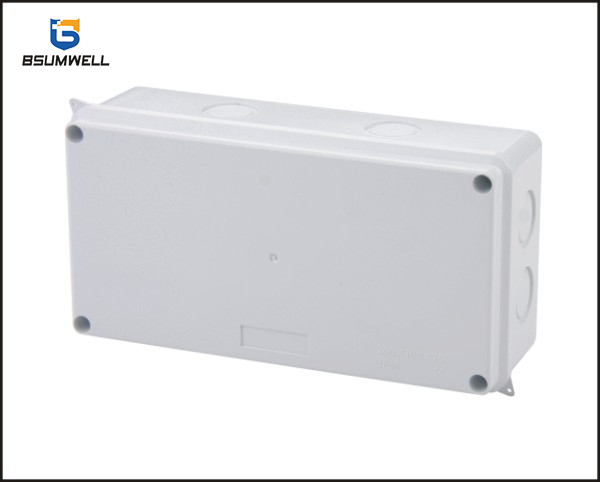

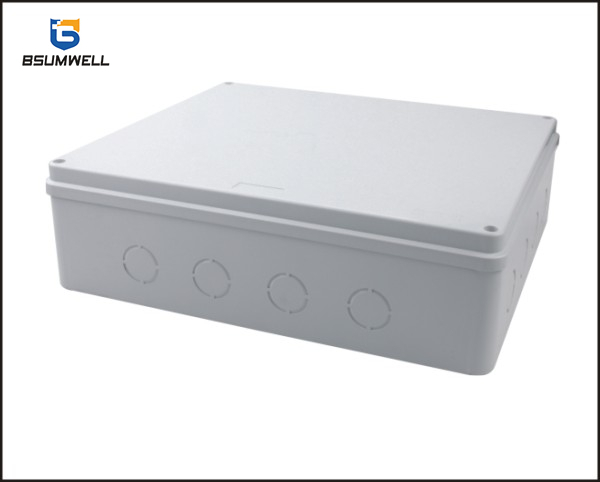

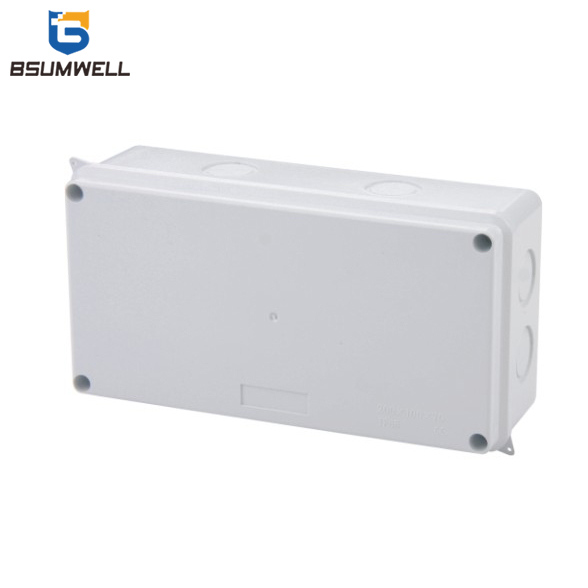

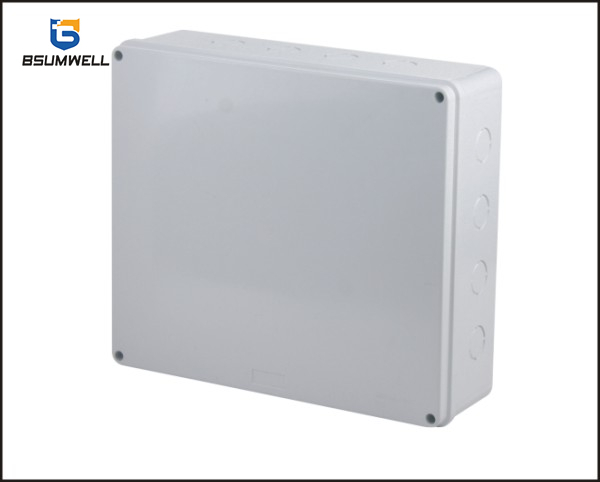

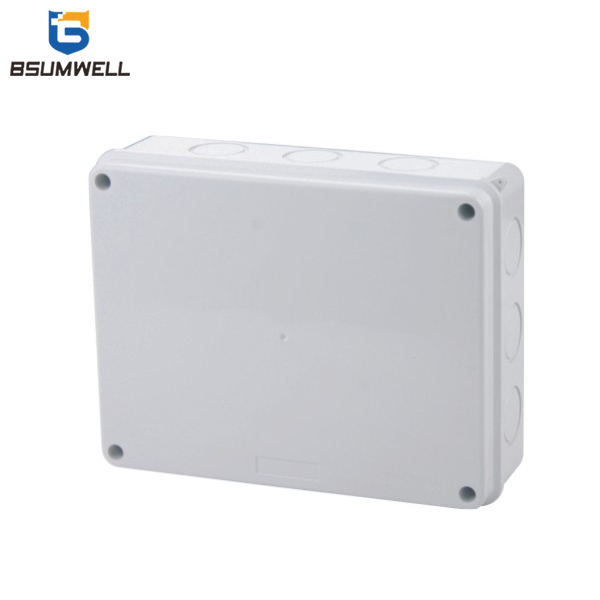

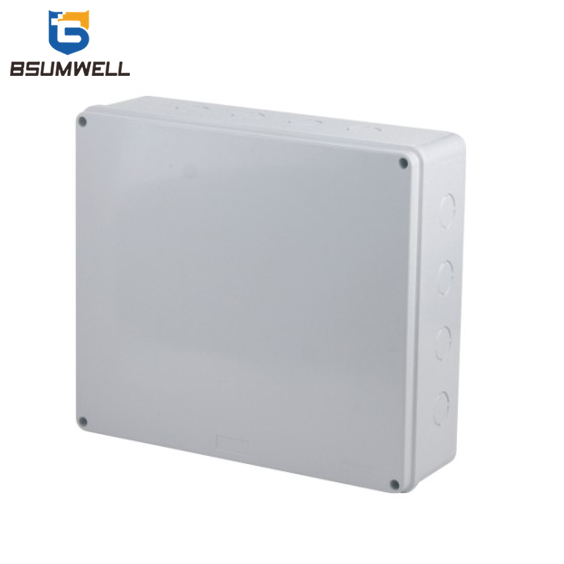

Size range: Covers 13+ specifications, with external dimensions from 50×50mm (smallest, PS-RT 50x50) to 400×350×120mm (largest, PS-RT 400x350x120); representative models include PS-RT 200x100x70 (200×100×70mm) and PS-RT 255x200x80 (255×200×80mm).
Hole specifications:
Hole quantity: 4-16 holes (e.g., 4 holes for PS-RT 50x50, 16 holes for PS-RT 400x350x120).

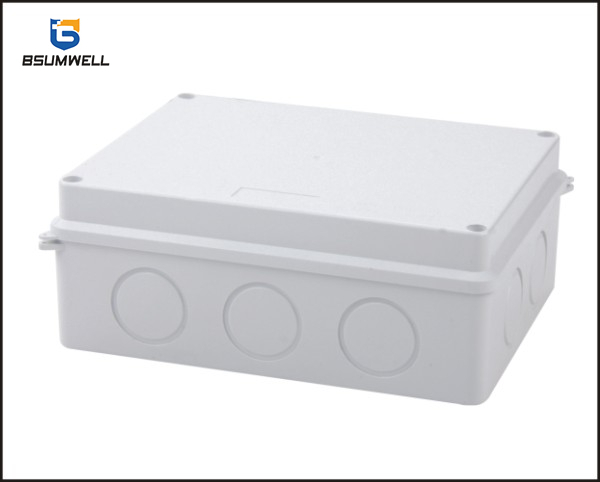

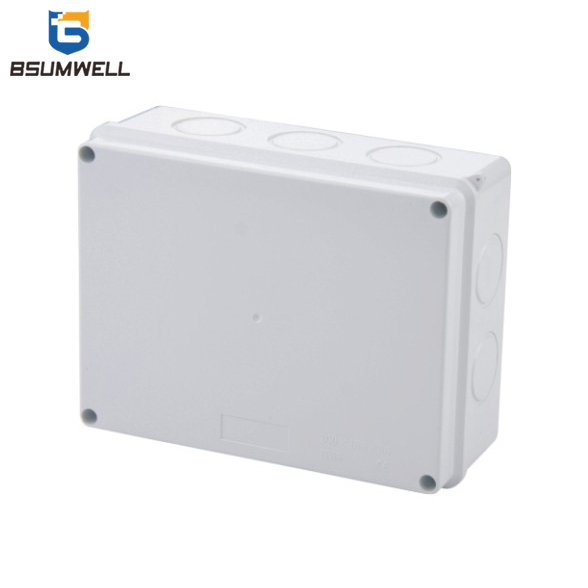

Hole diameter: 25mm (for most small/medium models) or 36mm (for large models like PS-RT 200x155x80).
Weight & packaging quantity:
Gross weight (G.Weight): 12.9-19.8KG per carton; net weight (N.Weight): 11.7-18.0KG per carton.
Quantity per carton: 10-300 pieces (e.g., 300 pieces for PS-RT 50x50, 10 pieces for PS-RT 400x350x120).
2.4 Certification & Standard
Certifications: CE (safety certification) and ROHS (environmental protection certification), complying with international safety and environmental requirements.
Compliance standard: IEC60439 (international standard for low-voltage switchgear and controlgear assemblies), ensuring product reliability in power transmission.
2.5 Installation Design
External design: Equipped with mounting holes for easy fixing on walls, equipment, or other surfaces.
Internal design: Includes tabs for stably mounting circuit boards, preventing 晃动 (shaking) during use.
Wire connection: Configured with waterproof clamping connectors, adaptable to different wire sizes to enhance waterproof performance at wire inlets/outlets.
3. Core Features & Advantages
3.1 Comprehensive Specification Coverage
Covers multiple dimensions (size, hole quantity, protection level) to meet diverse needs: small models for compact equipment, large models for multi-wire connections, IP55 for dry indoor scenarios, and IP65 for harsh outdoor/humid environments.
3.2 High-Quality & Durable Materials
Adopts genuine ABS, PC, or ABS+PC materials, with resistance to high/low temperatures and impact; avoids inferior substitutes, ensuring long service life even in complex working conditions (e.g., outdoor sunlight, workshop mechanical vibration).
3.3 Reliable Protection Performance
IP55/IP65 protection levels effectively isolate dust, water, and moisture; matched with waterproof clamping connectors, they prevent short circuits or equipment damage caused by water/dust entering the junction box, safeguarding circuit operation.
3.4 Convenient Installation & Use
External mounting holes simplify fixing; internal tabs enable quick circuit board installation, reducing on-site construction time.
Waterproof connectors adapt to different wire sizes, eliminating the need for additional waterproof processing, improving installation efficiency.
3.5 Cost-Effective & Efficient Supply
Factory-direct pricing (e.g., $0.6-$1.53 for representative models) reduces intermediate circulation costs, suitable for mass procurement.
Sufficient stock (e.g., 1,000 pieces in stock for hot-selling models) and weekly supply capacity of 10,000 pieces ensure fast delivery, shortening procurement cycles.
3.6 Strict Quality Control
As a professional manufacturer with years of experience, the brand implements strict quality control at every production step (from material selection to finished product inspection), ensuring consistent product quality and reducing after-sales risks.
4. Main Application Scenarios
4.1 Electric Power Industry
Used in power transmission systems, such as protecting junction nodes of outdoor power distribution lines, indoor distribution boxes, or rural power grid lines; IP65 models are particularly suitable for outdoor rainy or humid environments to prevent circuit failures caused by water ingress.
4.2 Railway Industry
Applied to electrical equipment along railway lines, such as junction protection for signal control circuits, trackside power supply circuits, or train maintenance station electrical systems; durable materials and reliable protection adapt to the harsh outdoor environment of railways (e.g., temperature changes, wind and rain).
4.3 Architecture Industry
Integrated into building electrical systems, including indoor lighting circuit junctions, outdoor wall-mounted power sockets, or basement waterproof distribution boxes; moistureproof performance meets the humidity requirements of basements or outdoor building facades.
4.4 Factory & Industrial Workshops
Used for junction protection of workshop equipment circuits, such as assembly line electrical connections, mechanical equipment power supply nodes, or high-temperature workshop auxiliary circuits; high/low temperature resistance and impact resistance adapt to the complex environment of industrial workshops (e.g., temperature fluctuations, mechanical collision).
It matters, and the choice depends on the application scenario—the PS-RT series plastic boxes are more targeted for waterproof, humid, or corrosion-prone environments.
For the PS-RT series’ core use cases (e.g., outdoor power lines, railway trackside equipment, basement electrical connections): Plastic boxes avoid rusting (a common issue with metal boxes in humid conditions) and have better insulation. Their integrated waterproof design (matching IP65 protection and waterproof clamping connectors) also simplifies moistureproofing.
Metal boxes are more suitable for high-temperature, high-impact, or strong electromagnetic interference scenarios. If your project is in a dry, indoor, or high-load environment, metal boxes may be an option; but for the waterproof and corrosion-resistant needs that the PS-RT series focuses on, plastic is more cost-effective and practical.
Q2: How to run a small wire into a waterproof enclosure like the PS-RT series?
The PS-RT series is designed with wire entry convenience and waterproofing in mind, and you can follow these steps:
Select a matching waterproof clamping connector (the series is equipped with adapters for different small wire diameters by default).
Pass the small wire through the through-hole of the connector, then tighten the connector’s locking nut to fix the wire—this step ensures the wire is stable and prevents water from seeping in through the gap.
Insert the assembled connector (with the wire) into the pre-reserved hole on the PS-RT junction box, and fasten the connector to the box body (using screws or snap-in design, depending on the model).
After completing the internal wiring, close the box cover and tighten the cover screws to ensure the overall IP65 protection level is not damaged.
Q3: How to waterproof outdoor electrical connections?
Using the PS-RT series junction box is a direct and effective solution, and the specific waterproofing logic includes three core points:
Rely on the box’s inherent IP65 protection level: The PS-RT series’ shell is tightly structured, and the cover and body are sealed with gaskets (some models) to prevent rainwater or splashes from entering the interior.
Use dedicated waterproof clamping connectors: As mentioned in Q2, these connectors form a "double waterproof barrier" with the box body—they not only fix the wire but also block water from the wire entry point (the most vulnerable part of outdoor connections).
Avoid improper installation: Ensure the box is mounted in a non-ponding outdoor location (e.g., 30cm above the ground); after wiring, confirm the cover is fully closed and the screws are tightened. For extreme rain scenarios, you can add an additional waterproof cover (compatible with the PS-RT series’ external dimensions) without affecting the box’s normal use.
