1. ISO 9223 Corrosion Class Explained:What does C1 to CX mean?

2. NEMA 4X salt spray test:How long does 200-500 hours represent in a real-world environment?

3. System-level corrosion protection:Fasteners, sealing strips, and electrochemical corrosion—the "hidden blind spots" in casing corrosion protection.

4. Anti-corrosion inspection checklist:Ensure no aspect is overlooked in the selection process.

This article was written by the BSUMWELL technical team. We are a manufacturer and wholesaler specializing in waterproof electrical enclosures. Our products cover three major material series: stainless steel, aluminum, and PC/ABS plastic, with protection levels ranging from IP67 to IP68. We also support OEM/ODM customization.

1. ISO 9223 Corrosive Environment Classification – The “New Common Language” for EPC Bidding

In the previous two articles, we discussed "IP is not equal to corrosion resistance" and "how to choose among the three main materials." However, one crucial question remains unanswered: how do we determine which corrosion level a project belongs to?

The answer is ISO 9223:2012.

What is ISO 9223?

ISO 9223:2012 is an atmospheric corrosivity classification standard published by the International Organization for Standardization. It classifies the global atmospheric environment into six levels according to their corrosivity, from low to high.

The importance of this standard lies in: It is becoming the "new common language" for EPC bidding.

More and more tender documents for coastal projects, chemical projects, and offshore wind power projects no longer vaguely state "corrosion protection requirements," but instead directly state "the casing must meet ISO 9223 C5 level" or "select according to CX level."

If you can understand ISO 9223, you can identify the correct material direction in advance during the bidding stage.

C1 to CX – Detailed Explanation of 6 Corrosion Levels

How do I use this table?

1. Confirm the project's geographical location and environmental characteristics (distance from the coastline, presence of chemical gases).

2. Find the corresponding ISO 9223 corrosion rating in the table.

3. Check the corresponding housing selection recommendations.

4. If you are unsure of the specific level, please contact our technical team for assistance in the assessment.

Coastal projects typically fall under the C5 or CX category:

• Land-based projects within 2 kilometers of the coastline → C5

• Offshore wind power platforms, island projects, offshore facilities → CX

The corrosion level in a chemical plant depends on the specific medium:

• External area of ​​a general chemical plant → C4

• Core production area of ​​chemical plant (containing acidic gases) → C5

Practical application of ISO 9223 in bidding and tendering

More and more EPC tender documents are being written like this:

"All outdoor electrical enclosures must meet ISO 9223 C5-M requirements and be made of 316 stainless steel or higher."

If you can proactively provide selection advice according to ISO 9223, you will have a significant advantage over suppliers who "only talk about IP ratings" in bidding.

We can provide material selection recommendations based on the project's ISO 9223 corrosion rating. The higher the corrosion rating, the more stringent the material requirements—choosing the right rating prevents premature failure. [View the full range of shell products]

2. NEMA 4X salt spray test – how long does 200-500 hours represent in a real environment?

As mentioned in previous articles, NEMA 4X is an important reference standard for measuring the corrosion resistance of enclosures in the North American market. Its core verification method is the ASTM B117 salt spray test.

What is the ASTM B117 salt spray test?

ASTM B117 is the internationally recognized standard method for salt spray testing.

• Test conditions: 5% NaCl solution, 35°C, continuous atomized spray (according to ASTM B117 standard)

• Test subject: Complete casing or material sample

• Judgment criteria: Observe whether the base metal shows signs of corrosion (red rust, pitting, blistering, etc.).

NEMA 4X requirements: The casing must show no substrate corrosion after 200-500 hours of testing in ASTM B117.

How long does 200-500 hours represent in a real-world environment?

This is the question most frequently asked by purchasing personnel.

Key Data Interpretation

• 200-500 hours of salt spray testing ≈ 3-10 years of natural exposure in coastal environments

• Acceleration factor is usually15-25 times (Based on ASTM B117 standard and industry-standard acceleration models, this acceleration ratio is calculated based on the difference between salt spray concentration and chloride ion deposition rate in the natural environment. The specific value varies depending on environmental conditions.)

(Note: The above is an industry-standard accelerated conversion reference based on ASTM B117 salt spray test and exposure to coastal natural environments. Actual lifespan is affected by factors such as temperature, humidity, installation orientation, and local microclimate.)

What does this mean for the selection process?

• C5 Coastal Project: It is recommended to use materials that have passed more than 500 hours of salt spray testing (316 stainless steel).

• CX Offshore Project: We recommend using materials that have passed over 1000 hours of salt spray testing (316 stainless steel + complete system accessories).

• If the supplier cannot provide salt spray test data: Cautious cooperation—this is the fundamental proof of its ability to prevent corruption.

3. System-level corrosion protection – the “weakest link” effect

In the previous two articles, we focused on the selection of "shell material"—stainless steel, aluminum, and PC/ABS. However, there's an easily overlooked truth about corrosion resistance selection:

Just because the outer casing material is right doesn't mean the entire system is corrosion resistant.

This is the "weakest link" effect—the lifespan of the entire anti-corrosion system depends on its weakest link.

3.1 Fasteners, hinges, and latches—the “invisible blind spots” for casing corrosion protection

The following are common real-life situations that occur in coastal projects:

Industry Truth: Many projects choose 316 stainless steel for the outer casing, but use 304 stainless steel for the screws and galvanized steel for the hinges—a few years later, the outer casing is intact, but the screws rust and break, the hinges fall off, and the entire casing is scrapped.

Root cause: Galvanic corrosion

When two different metals come into direct contact in an electrolyte (salt spray), the potential difference causes the more reactive metal to corrode more rapidly. The potential difference between stainless steel and galvanized steel is significant—the galvanized steel will act as a sacrificial anode and corrode rapidly.

Golden Rule

The material of the accessories must be of the same or higher grade as the outer shell material.

If the casing is made of 316 stainless steel, all fasteners, hinges, latches, and lugs must also be made of 316 stainless steel. Confirming only the casing material during procurement is far from sufficient; the material of the entire set of accessories must be confirmed.

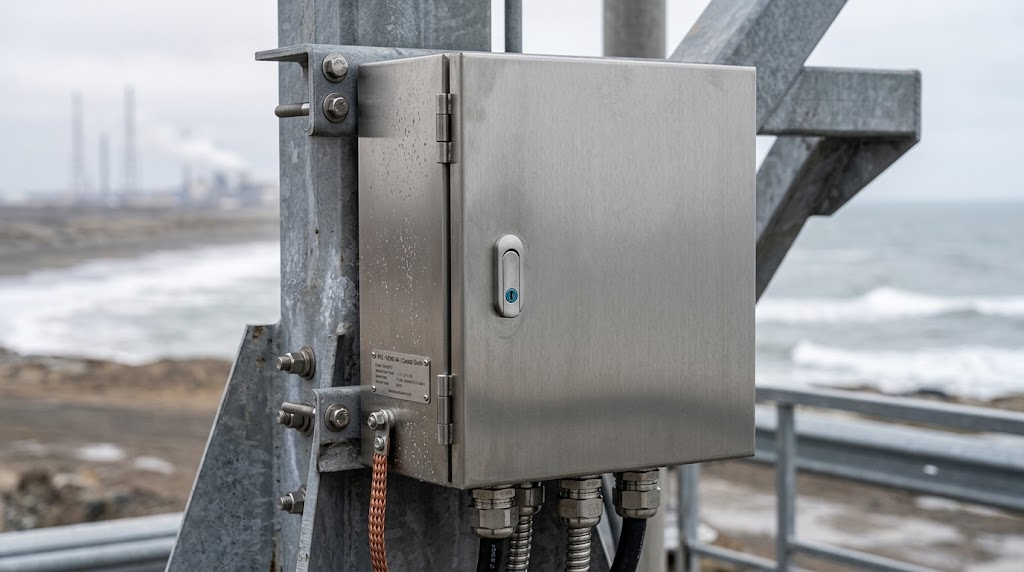

Our products not only focus on the enclosure itself, but also emphasize comprehensive corrosion protection throughout the entire system—the stainless steel shell comes standard with 316 stainless steel fasteners and hinges, and the PC/ABS shell comes standard with UV-resistant sealing strips. Please confirm the material specifications of all accessories when purchasing. [[Understand the complete system corrosion protection solution]

3.2 Sealing strips – the “first line of defense” in salt spray environments

The sealing strip is the "first line of defense" against corrosion of the outer casing. Salt spray attacks the sealing strip first, and after the strip fails, the salt spray enters the interior of the enclosure and corrodes the components.

Corrosion resistance performance of sealing strips made of different materials:

Selection Recommendations Summary

• Coastal Projects → Select Silicone The sealing ring offers optimal UV resistance and temperature resistance.

• Chemical plant project → Select FKM (Fluororubber) Sealing rings have the best resistance to chemical solvents.

• Should be avoided → Ordinary PU sealing rings have the shortest lifespan in outdoor environments.

Our housing products can be equipped with silicone or FKM sealing rings depending on the project environment, ensuring that the sealing system and housing material have the same level of corrosion resistance. The sealing rings can be replaced individually, reducing maintenance costs.

3.3 Electrochemical Corrosion of Dissimilar Metal Contacts – An Easily Overlooked Design Detail

Electrochemical corrosion occurs when stainless steel and aluminum come into direct contact and salt spray is present as an electrolyte.

• Aluminum has a lower potential than stainless steel → Aluminum becomes a "sacrificial anode".

• Aluminum corrodes faster near the contact surface → "powdering" and loosening around the screw holes of the aluminum casing.

Solution:

1. Use insulating washers/insulating sleeves to isolate dissimilar metal contact surfaces.

2. Ensure all exposed metal parts are made of the same material (stainless steel with stainless steel, aluminum with aluminum).

3. The coating covers the contact surface (adding an extra protective barrier).

In our OEM/ODM customization services, we provide insulating gaskets and dissimilar metal isolation solutions to avoid potential electrochemical corrosion risks.

4. System Corrosion Protection Checklist

Before completing the selection and procurement, go through the following checklist to ensure nothing is missed:

Checklist for Corrosion Protection Selection of Electrical Enclosures in Coastal Projects

outer shell body

• [ ] Material selection matches ISO 9223 corrosion rating.

• [ ] The protection rating (IP67/IP68) meets the installation location requirements.

• [ ] Salt spray test data is available (ASTM B117).

Fasteners and mounting accessories

• [ ] The fastener material is the same as the shell material (316 for 316, 304 for 304).

• [ ] The hinge and latch materials are the same as the shell material.

• [ ] The mounting ear material is the same as the shell material.

Sealing system

• [ ] The sealing strip material is suitable for coastal environments (silicone is recommended).

• [ ] The sealing strip can be replaced separately.

• [ ] Unused cable inlets have waterproof plugs.

Electrochemical corrosion protection

• [ ] No direct contact with dissimilar metals, or with insulating gaskets for isolation.

accessories

• [ ] Cable Gland uses corrosion-resistant materials (stainless steel or UV-resistant).

• [ ] Grounding terminals and grounding markings are complete (metal casing)

For the complete "Selection and Installation Checklist for Corrosion Protection of Electrical Enclosures in Coastal Projects," please contact customer service. [Contact the technical team to obtain the complete checklist.]

Summary of the key points of this article

1. ISO 9223 is the "new universal language" for EPC bidding. Coastal projects are typically classified as C5, while offshore projects are classified as CX.

2. 200-500 hours salt spray test of NEMA 4X — Approximately equivalent to 3-10 years of natural exposure in a coastal environment (acceleration factor 15-25 times).

3. "The weakest link in the barrel" effect —If the outer shell material is right, the fasteners, hinges, and sealing strips must also be up to standard.

4. A complete system is the final step in selecting corrosion protection solutions — Ensure there are no "hidden blind spots".
