From Raw Materials To Finished Products: A Comprehensive Quality Control System for Electrical Enclosure Manufacturing Plants

This article covers the following content

If you are an electrical wholesaler or EPC buyer evaluating the quality capabilities of an enclosure manufacturer, this article will help you understand:

1. What does the quality control system look like in a shell manufacturing plant?

2. What do the four stages of IQC, IPQC, FQC, and OQC inspect respectively?

3. Why do some factories have perfect samples but fail to deliver the final product?

4. How does your quality control system ensure that every batch you receive is consistently reliable?

This article is byBSUMWELLWritten by our technical team, we are a manufacturer specializing in waterproof electrical enclosures. Our products cover three major material series: PC/ABS plastic, stainless steel, and aluminum enclosures, with protection levels ranging from IP67 to IP68. We support OEM/ODM customization.

1. Overview of Electrical Enclosure Quality Control System – Four Lines of Defense: IQC → IPQC → FQC → OQC

1.1 Why do some factories have perfect samples but fail in bulk production? — The "black box" problem of the quality control system.

If you've ever done bulk purchasing of electrical enclosures, you've likely encountered this situation:

The sample sent by the supplier was impeccable—beautiful appearance, precise dimensions, and passed the waterproof test. You were very satisfied and placed a bulk order. However, upon receiving the goods, you discovered—burrs, shrinkage, poor sealing, misaligned screw holes…

This isn't just "bad luck." It's a typical symptom of a lack of quality control system.

The quality of a sample depends on the factory's "upper limit"—they can spend time meticulously crafting a sample. But the quality of the bulk order depends on the factory's "lower limit"—without a systematic quality control system to ensure consistency in every batch, each batch is like a "lottery."

The value of a quality control system is not to "detect defective products", but to prevent defective products from being produced.

Our quality control system covers the entire process from raw material intake to finished product delivery. It's not just about random sampling, but about process control—ensuring that every batch is stable and reliable.

1.2 IQC→IPQC→FQC→OQC—Four Lines of Defense to Safeguard the Bottom Line of Quality

How should we interpret this table?

1. IQC (Initial Quality Control) controls the quality of raw materials. — Make sure the incoming materials are correct.

2. IPQC controls the "production process". — Ensure the production process is stable.

3. FQC (Factory Quality Control) oversees the quality of finished products. — Ensure that the products produced are up to standard.

4. OQC (Original Quality Control) ensures quality control before shipment. — Make sure that what is sent out is complete.

Four lines of defense, with checks at every level. It's not about "finishing it and then picking it out again," but about controlling every step from the raw materials.

We implement four quality control lines for each batch of products—from raw materials to finished products, with each step carefully checked. It's not just about "randomly sampling a few items," but about systematic process control.

Frequently Asked Questions Quick Answers

Q: The sample was perfect, but the bulk shipment turned out badly - what caused this?

A：The root cause lies in the lack of a quality control system. Samples are meticulously crafted in the factory, representing the factory's "upper limit"; without systematic process control (IPQC) for bulk orders, each batch is like a "lottery." Our quality control system covers the entire process from raw materials to finished products, ensuring that every batch is stable and reliable.

Q: What is the difference between random sampling and full inspection in IP67/IP68 waterproof testing?

A：Random sampling only verifies that "a portion" of the products pass the test, while full inspection verifies that "every single" product passes. Many factories only sample 5%-10%, meaning that out of 1000 casings you receive, only 50-100 have actually undergone water testing. We perform full inspection—ensuring that even the "worst one" meets the standards.

Q: Why is the sealing strip a key part of quality control?

A：Sealing strips are the "first line of defense" for IP rating. Many factories do not inspect sealing strips during incoming material inspection; samples are made of silicone, and the bulk order uses PU—they may pass the factory IP test, but after six months they harden and crack, allowing moisture to seep into the enclosure. Our incoming material inspection for sealing strips includes material confirmation, hardness testing, and resilience testing to ensure that the material is consistent with the bulk order.

2. Incoming Quality Control (IQC): The starting point for the quality of waterproof junction box housings

2.1 Plastic Particles – Not all “the same type of plastic” are the same.

Quality control for PC/ABS plastic casings begins the moment the materials arrive at the factory.

Even though they are both called "PC/ABS", different batches can be vastly different:

• Virgin material vs. recycled/blended material: A price difference of 30%-50% (common industry data) can result in vastly different aging performance after 3 years.

• UL94 flame retardant rating: The V-0 rating for each batch must be verified—not "this material can pass V-0," but "this entire batch can pass V-0."

• UV-resistant additive ratio: Outdoor materials must be verified for UV stabilizer content.

What the purchaser cannot see is: Many factories use pure virgin materials for samples, but mix recycled materials into the bulk products. This is invisible to the naked eye and cannot be detected during acceptance testing. After six months, the outer shell turns yellow, becomes brittle, cracks, and leaks.

The core of incoming material inspection is to plug this loophole of "substituting materials".

Our PC/ABS plastic casings are made from virgin materials. Each batch undergoes UL94 flame retardancy testing and UV resistance verification to ensure batch-to-batch material consistency. [View our PC/ABS plastic housing product series]

2.2 Stainless Steel/Aluminum Materials – Material Certificates Are Not Just a Piece of Paper

For stainless steel and aluminum casings, the Material Certificate (MTC - Mill Test Certificate) serves as a quality "identity card".

• Incoming inspection of stainless steel: Verify that the chemical composition (chromium, nickel, molybdenum content) in the material certificate meets the 304 or 316 standard. Especially 316—customers pay a high price for 316, but if the actual material received is 304, the entire project will fail upon acceptance.

• Incoming inspection of aluminum materials: Verify that the coating thickness meets the standard. Marine-grade coatings require 80-120μm, while inferior coatings may only be 30-40μm thick—undetectable during acceptance testing, but pitting corrosion will begin six months after installation.

• Plate thickness verification: Nominally 2mm, but actually 1.8mm—this is a common "material-saving" tactic in the industry. Incoming material inspection can easily detect this with a micrometer.

Our stainless steel casings undergo material certification (MTC) verification for each batch to ensure the material composition matches the purchased specifications. The coating thickness of our aluminum casings is fully inspected to ensure corrosion resistance meets standards. [View our stainless steel/aluminum casing product series.]

2.3 Sealing strips – the “invisible defense” overlooked by most factories

Sealing strips are the "first line of defense" for IP rating, and also the most easily overlooked part of incoming material inspection in most factories.

Differences between sealing strips made of different materials:

Industry unspoken rules: The sample used silicone, but the bulk shipment used PU. They were indistinguishable from the outside, and passed factory IP testing, but after six months the sealing ring hardened—moisture began to seep into the enclosure, and the components slowly corroded.

Incoming inspection of sealing strips must include: material confirmation (infrared spectroscopy verification), hardness testing (Shore A), and resilience testing.

Our incoming inspection of sealing strips includes material confirmation, hardness testing, and resilience testing to ensure that every batch of sealing strips meets weather resistance requirements. We promise that the materials are consistent with the bulk order and we will never substitute any materials.

Selection Recommendations Summary

• Coastal/Outdoor Projects → Select Silicone The sealing ring offers optimal UV resistance and temperature resistance, with a lifespan of over 10 years.

• Chemical plant project → Select FKM (Fluororubber) Sealing rings have the best resistance to chemical solvents.

• Should be avoided → Ordinary PU seals harden and fail in outdoor environments within 6-12 months.

3. IPQC process inspection: How to ensure consistent quality of each batch of electrical enclosures

3.1 First Article Confirmation – The “Pass” for Every Step of Production

First confirmation is the "first line of defense" for IPQC.

What is first-item confirmation?

1. After each startup, mold change, and material change, produce 2-3 samples first.

2. Perform full-size inspection on the samples—appearance, critical dimensions, and performance indicators.

3. Mass production only begins when all parts are 100% qualified; if any part fails to meet the requirements, adjustments must be made and a new first piece must be produced.

Why is first-piece confirmation necessary?

• To prevent batch defects caused by "minor mold changes", "batch material differences", and "process parameter drift".

• Intercept the problem before it occurs—instead of discovering the size is off after completing 1000 units.

We strictly implement the first-piece confirmation system on our production line.

3.2 Inspection – every 2 hours, not a "check and go home" schedule.

The first piece passing inspection only means that the production status is good "at this moment." During the production process, process parameters may drift, molds may wear out, and there may be slight differences between batches of materials.

• Inspection frequency: Once every 2 hours.

• Inspection contents:

• Appearance defects: Flakes, shrinkage, scratches

• Key dimensions: Installation dimensions and hole positions

• Process parameters: Mold temperature, injection pressure, holding time

Why is the frequency of inspections important?

• Too infrequent: Problems are only discovered after they've already occurred in large numbers—resulting in significant losses.

• Too high a frequency: impacts production efficiency – impractical

• A frequency of once every 2 hours is the industry-recognized equilibrium point.

Key monitoring parameters for quality control of injection molded parts:

• Mold temperature → Determines the surface quality and internal stress of the outer casing

• Injection pressure → Determines product density and dimensional stability

• Pressure holding time → Determines the degree of shrinkage and the distribution of internal stress

Our production line is inspected every 2 hours to monitor key process parameters such as mold temperature and injection pressure, ensuring the stability of the production process.

3.3 Different Materials, Different Defenses—Quality Control Differences Between Injection Molding/Stamping/Die Casting

Different materials require different manufacturing processes, and the focus of process inspection also differs:

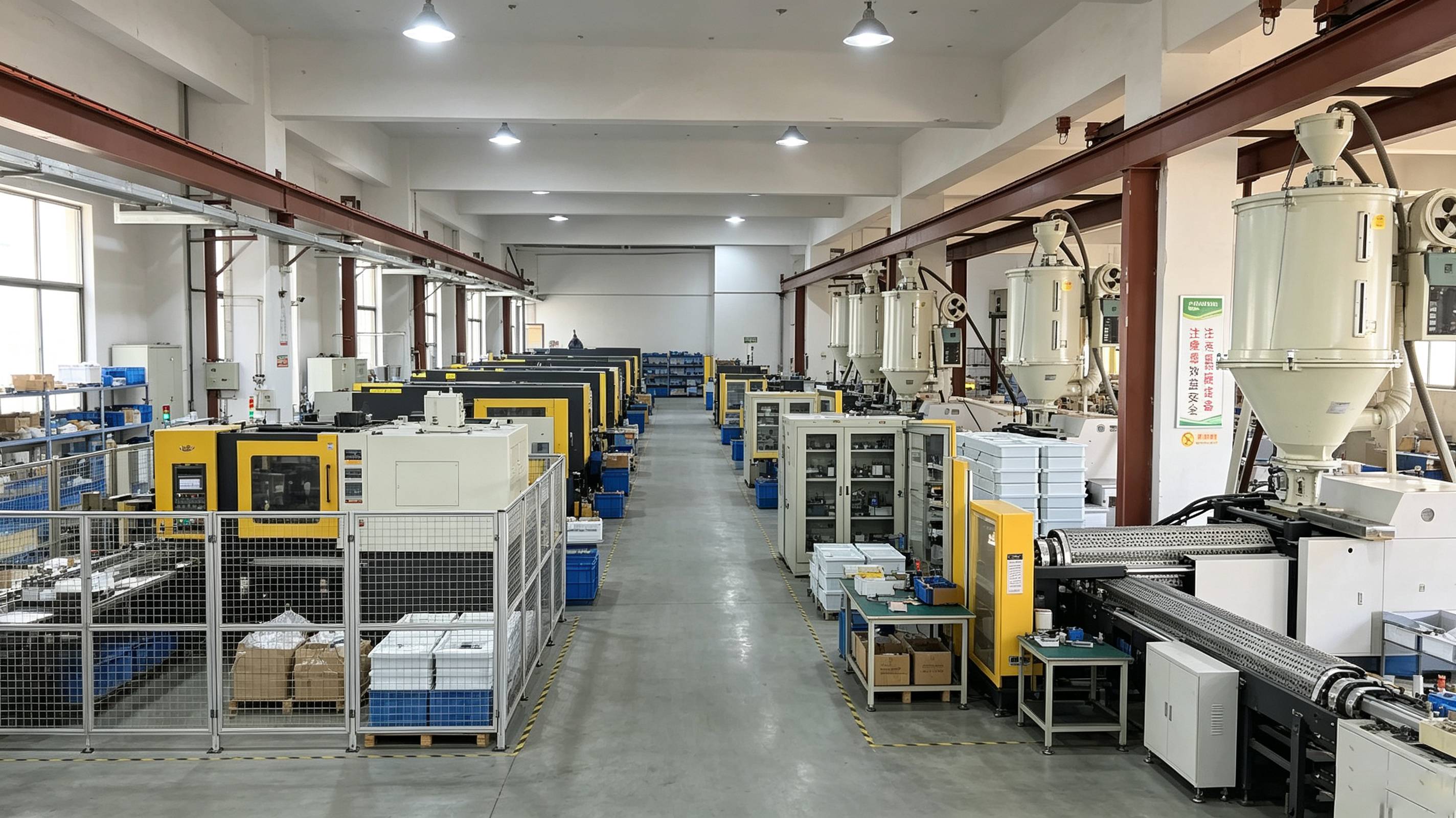

Our quality control system covers three major processes: injection molding, stamping, and die casting, and sets up dedicated monitoring nodes for different material characteristics.

4. Final Quality Control (FQC) Inspection: Quality verification of IP67/IP68 waterproof enclosures before they leave the factory.

4.1 IP67/IP68 Waterproof Testing – Not “Random Inspection,” but “Full Inspection”

IP67/IP68 waterproof testing is a core indicator of casing quality. However, many factories only conduct waterproof testing on 5%-10% of their units—out of 1000 casings you receive, only 50 have actually been tested underwater.

Our approach: IP67/IP68 waterproof testing involves full inspection – every casing undergoes waterproof testing and verification before leaving the factory.

Specific test conditions:

• IP67 test: Each casing is immersed in 1 meter of water and pressurized for 30 minutes (according to IEC 60529 standard).

• IP68 test: Execution is carried out according to the depth and time required by the customer, with each enclosure independently verified.

• Judgment criteria: No internal water leakage was found after testing, and the function is normal.

The value of full inspection: Ensure that even the "worst one" meets the IP rating requirements—not that the "best one" can meet them.

Our IP67/IP68 waterproof testing involves full inspection—every casing undergoes waterproof testing before leaving the factory to ensure that even the "worst one" meets the standard. [Learn more about IP67/IP68 waterproof testing]

4.2 Final Inspection of Appearance and Dimensions – Dual Protection of Manpower and Equipment

In addition to waterproof testing, each batch of products also needs to undergo a final inspection of appearance and dimensions:

• Visual inspection:

• Scratches, bumps, burrs

• Color difference (compared with standard color swatch)

• Surface particles, bubbles, flow marks

• Size inspection:

• Key installation dimensions (mounting hole spacing, opening size)

• Flatness (fit between cover and housing)

• Hole position accuracy (to ensure no interference during on-site assembly)

Our final inspection process includes 100% visual inspection and full inspection of critical dimensions. High-precision components are verified using a coordinate measuring machine.

5. Outgoing Quality Control (OQC) Inspection: The final line of defense for waterproof electrical enclosures before they leave the factory.

5.1 Parts completeness check – no missing parts, no wrong parts

Shell products are rarely shipped individually—screws, sealing rings, mounting lugs, cable glands, waterproof plugs…each box contains a variety of accessories.

The most easily overlooked quality control aspects: missing or incorrectly installed parts.

• Common customer complaints: "One pack of screws is missing," "The sealing ring is the wrong model," "Insufficient number of mounting lugs."

• Source: It wasn't that the outer casing was damaged, but rather that something leaked during packaging—this was entirely a management issue, not a technical one.

Our OQC process includes checking the completeness of parts—every box shipped is checked against the BOM list item by item to prevent missing or incorrect parts.

5.2 Batch traceability – tracing the source when an incident occurs

Even the best quality control system cannot guarantee 100% zero defects. The real difference lies in whether you can quickly locate and resolve problems when they occur.

Batch traceability system

Each batch of products has a unique batch code (format: YYMMDD-serial number), which records:

• Production date and shift

• Injection molding machine number / stamping equipment number

• Raw material batch number (plastic particles, stainless steel sheets, sealing rings, etc.)

• Operator signature

• Key process parameter records

If a customer reports a problem with a particular batch, we can retrieve the complete production records within 24 hours to quickly pinpoint which stage the problem occurred in and whether it affects other batches.

Each batch of our products has a unique batch code, which can be traced back to the production date, machine, and raw material batch—allowing us to quickly pinpoint the root cause of any problems.

Summary of the key points of this article

1. Quality control is not about "detecting defective products," but about "preventing defective products from being produced." — Four lines of defense, namely IQC, IPQC, FQC, and OQC, ensure quality control at every level.

2. Incoming material inspection is the starting point of quality. — The batch consistency of each material, including plastics, metals, and sealing strips, needs to be verified.

3. IPQC inspections are key to error prevention. — First-piece confirmation + regular inspections eliminate problems on the production line.

4. IP67/IP68 waterproof testing involves full inspection. — It's not just one sample that passes, but every single one.

5. Batch traceability system — Being able to trace the source when something goes wrong is the foundation of long-term cooperation.

(Next article preview: After standard product quality control, let's explore the special quality control requirements for OEM/ODM customized products—how to ensure quality in areas like openings, CNC machining, and customized dimensions. Please read the second article in this series, "Quality Control for OEM/ODM Customized Shells: Openings, CNC Machining, and Customization Verification.")
