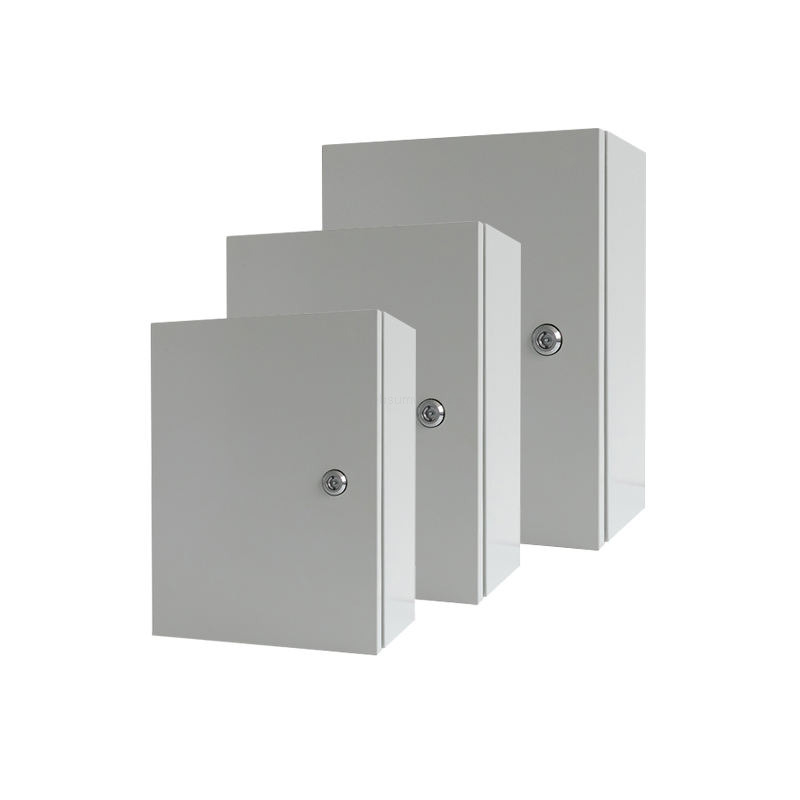

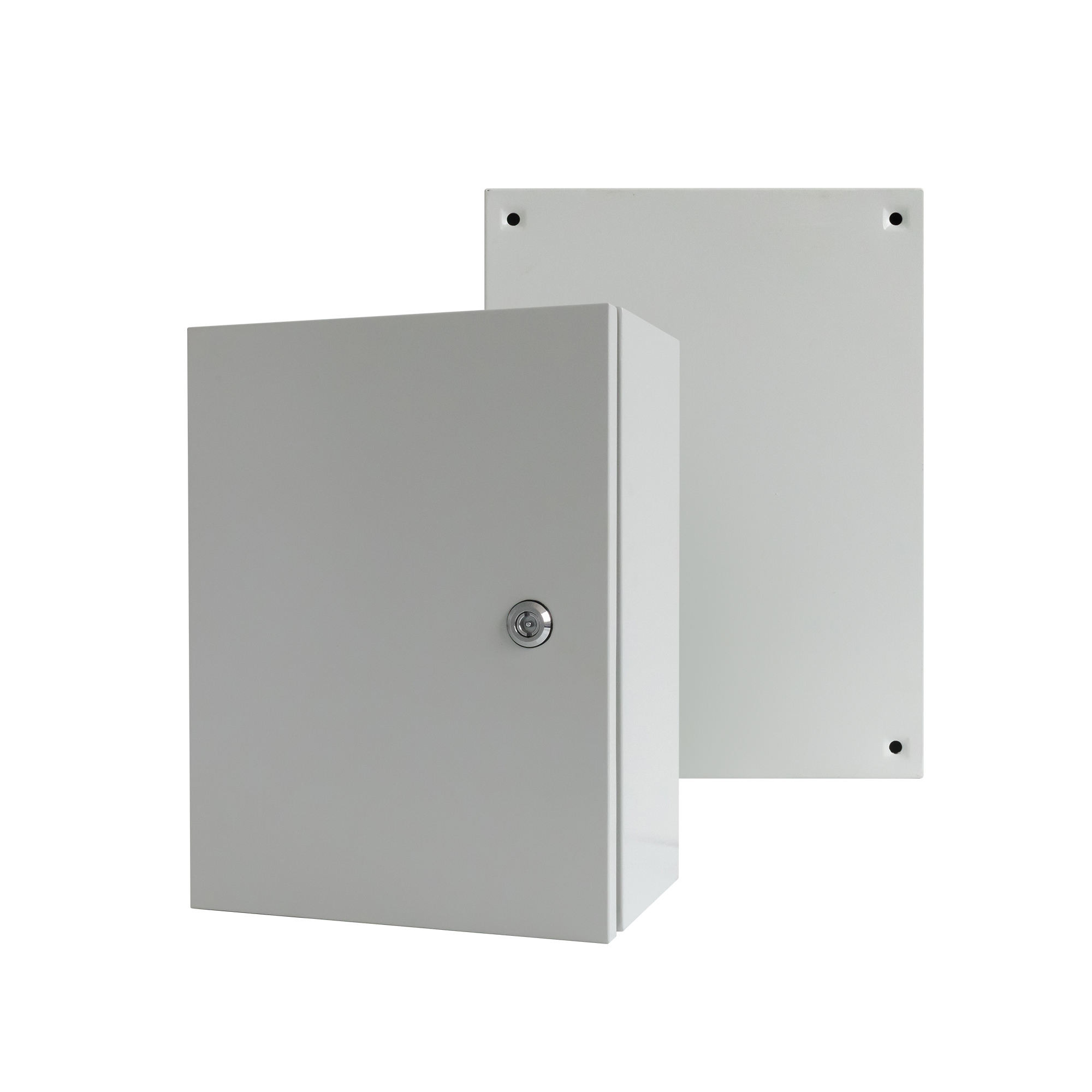

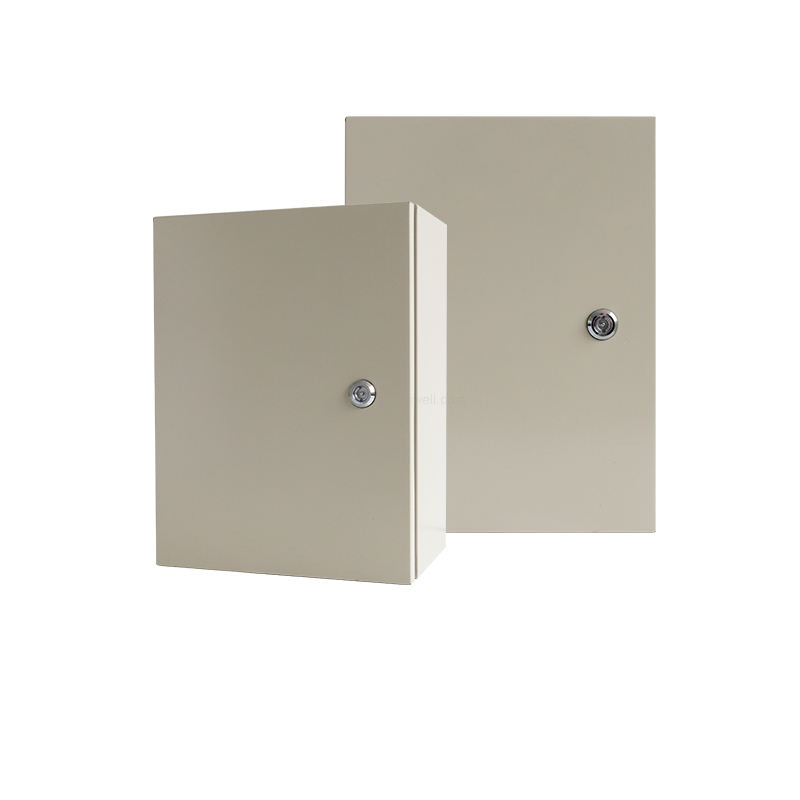

High Precision Electrical Distribution Box Outdoor Indoor Control Panel Enclosure Steel Sheet Power Allocation Case for Circuit Breakers

High-Precision Engineering and Structural Tolerances

Manufactured using advanced CNC laser cutting and automated bending technology, this electrical distribution box boasts high-precision structural alignment. The perfect fit between the door and the main body eliminates gaps, ensuring uniform pressure across the sealing gaskets. This precision engineering guarantees that internal components, such as DIN rails, circuit breakers, and busbars, align flawlessly for rapid, error-free field wiring.

Multi-Layer Corrosion Resistance for Indoor and Outdoor Longevity

Built to withstand harsh industrial environments and volatile outdoor weather, the enclosure is constructed from premium-grade sheet metal treated with a multi-stage conditioning process. It undergoes phosphate washing to remove impurities, followed by an electrostatic thermosetting epoxy powder coating. This creates a hard, scratch-resistant exterior layer that prevents rust, oxidation, and degradation from UV exposure or chemical vapors.

Advanced Thermal Dynamics and Safety Architecture

• Optimized Internal Spatial Design: Engineered with ample clearance around the breaker mounting areas to promote passive convection, reducing heat buildup caused by high-load power distribution.

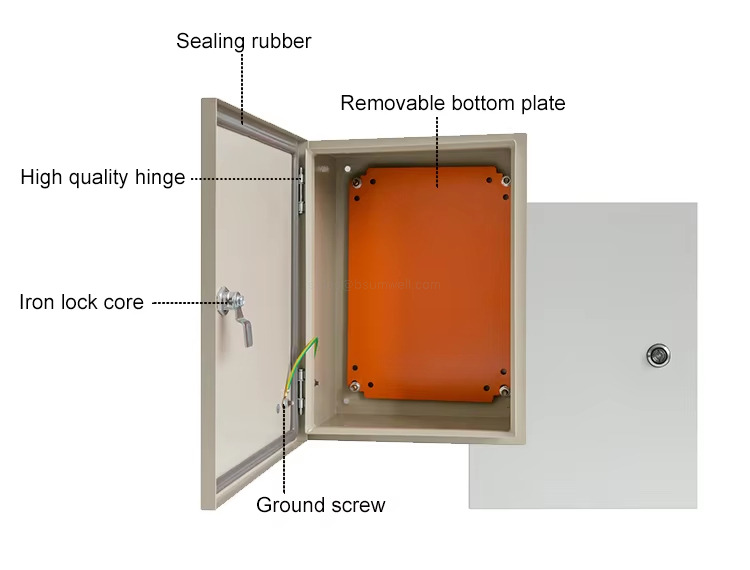

• Integrated Grounding Safety Network: Features factory-installed, high-conductivity copper grounding studs on both the enclosure body and the door, ensuring complete electrical continuity and robust fault-current protection.

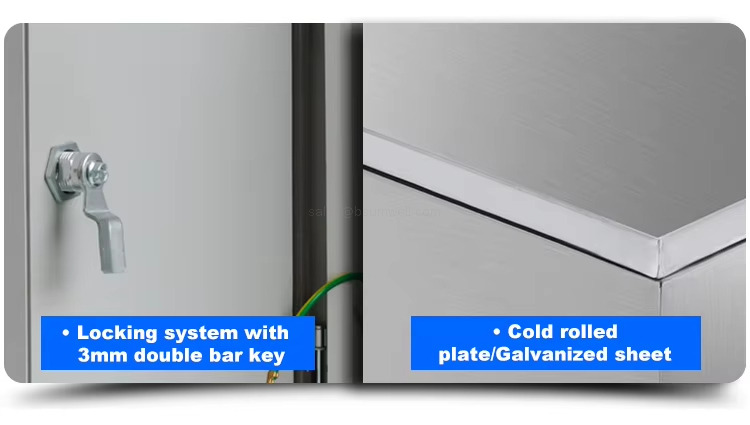

• Ergonomic Transparent or Solid Door Options: Designed with heavy-duty, industrial-grade hinges that allow a wide 180-degree door opening for unhindered maintenance access, paired with a secure, vibration-resistant locking system.

Frequently Asked Questions (FAQ)

What types of circuit breakers or electrical components fit inside this distribution box?

This distribution panel is equipped with a standard internal adjustable DIN rail framework, making it universally compatible with modular electrical components. It seamlessly accommodates miniature circuit breakers (MCBs), molded case circuit breakers (MCCBs), residual current devices (RCDs/RCCBs), surge protection devices, and industrial terminal blocks.

How does this panel box maintain its weatherproof rating in outdoor environments?

The box features an integrated rain shield lip that sheds water away from the door seam, combined with a continuous, poured-in-place polyurethane foam gasket. When the heavy-duty door latch is engaged, the gasket compresses tightly against the enclosure rim, creating an airtight and watertight barrier against driving rain, snow, and fine dust.

Can the door hinge configuration be swapped from left to right side opening?

Yes, the precision-engineered modular hinge system allows the door to be easily reversed. Technicians can switch the door swing orientation from left-opening to right-opening during installation to accommodate specific spatial constraints or layout requirements on site.

Does the enclosure feature pre-punched cable entry knockouts?

To preserve maximum installation flexibility and structural integrity, the box is designed with a removable bottom gland plate. This allows installers to easily drill exact-diameter holes for specific cable conduits and cable glands on a workbench before attaching the plate back to the sealed enclosure.
