How Australian Solar Farms Improve Power Generation Efficiency with 500V High-Voltage Waterproof Sockets: A Real Case Study

In Queensland's Sunshine Farm, a solar power facility once experienced an annual power loss of 3% due to socket deterioration; in coastal projects in New South Wales, conventional 250V sockets frequently tripped during the rainy season—these situations highlight the latent power supply challenges faced by Australian solar farms in extreme environments. Drawing from the transformation practices of Melbourne XX Energy, this article delves into how 500V high-voltage waterproof sockets achieve dual improvements in power generation efficiency and reliability through technical adaptation and solution optimization.

I. Three Environmental Hurdles: The "Invisible Threats" to Australian Solar Power Supply

1. Material Degradation Crisis under High Temperature and Radiation

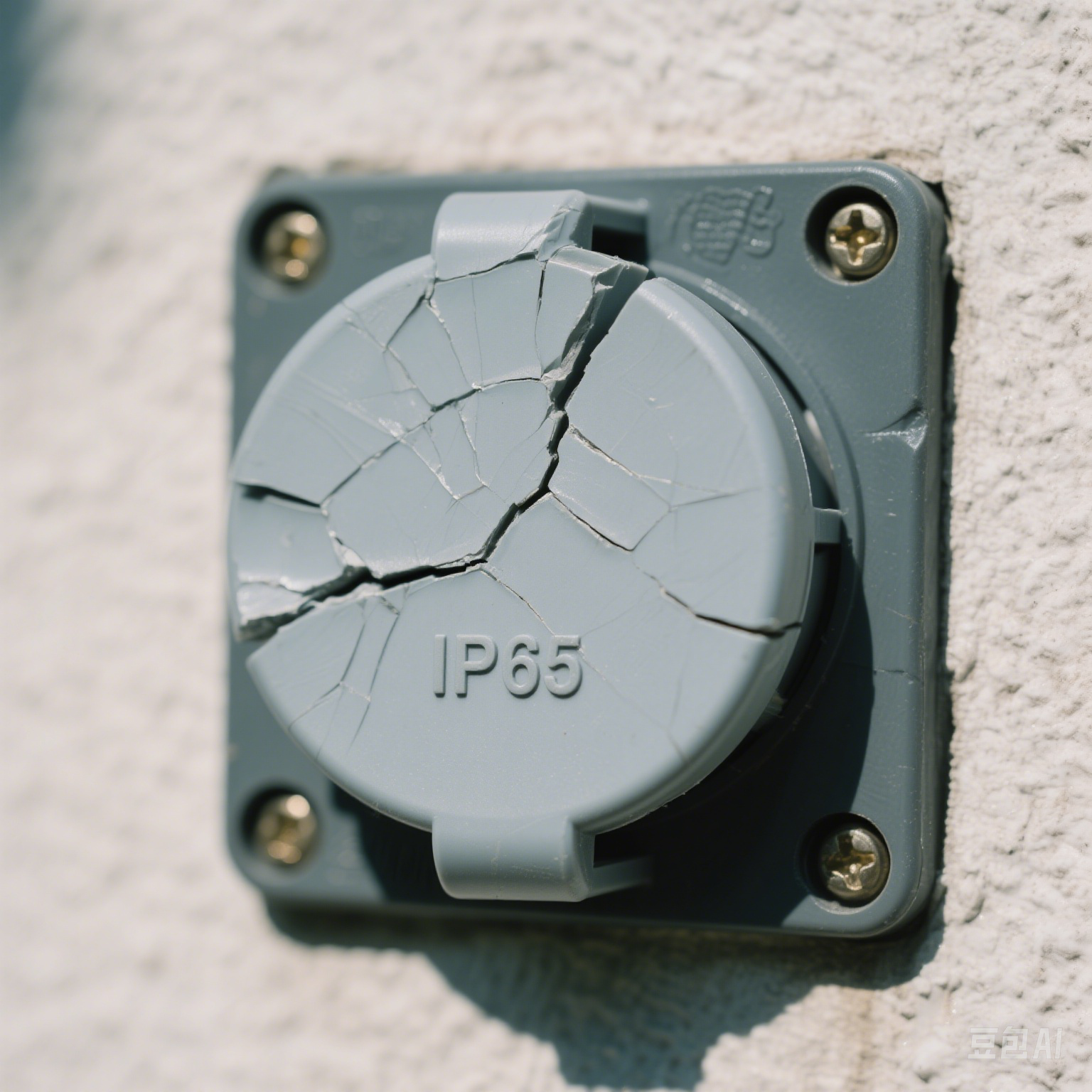

In regions with over 3,000 annual sunshine hours (such as Queensland and Western Australia), the embrittlement rate of standard ABS socket casings can reach 40% within 12 months under prolonged UV exposure (Bsumwell laboratory simulation data). Casing cracks not only allow rainwater infiltration but may also trigger arc discharges, directly endangering equipment safety.

2. Dual Challenges of Heavy Rain and Salt Spray Corrosion

In coastal areas of New South Wales with annual precipitation exceeding 1.5 meters, the water ingress failure rate of IP65-rated sockets is 25% higher than that of IP66 products (2024 Report by the Australian Solar Energy Association); in salt spray environments, corrosion of metal contacts increases contact resistance by 15%, leading to reduced power transmission efficiency and equipment overheating.

3. The Efficiency-Safety Dilemma in High-Voltage Transmission

Traditional 250V sockets cause up to 8% line loss in long-distance transmission (e.g., field cabling in agrivoltaic projects); upgrading to a 500V system reduces this loss to 3% with the same cable specification, yet industry discussions persist on whether "high-voltage sockets elevate installation risks."

II. Technical Innovations: How 500V High-Voltage Sockets Address Industry Challenges

▎Three Core Parameter Adaptation Principles

1. Protection Rating: From "Splash-Resistant" to "Water Immersion-Resistant"

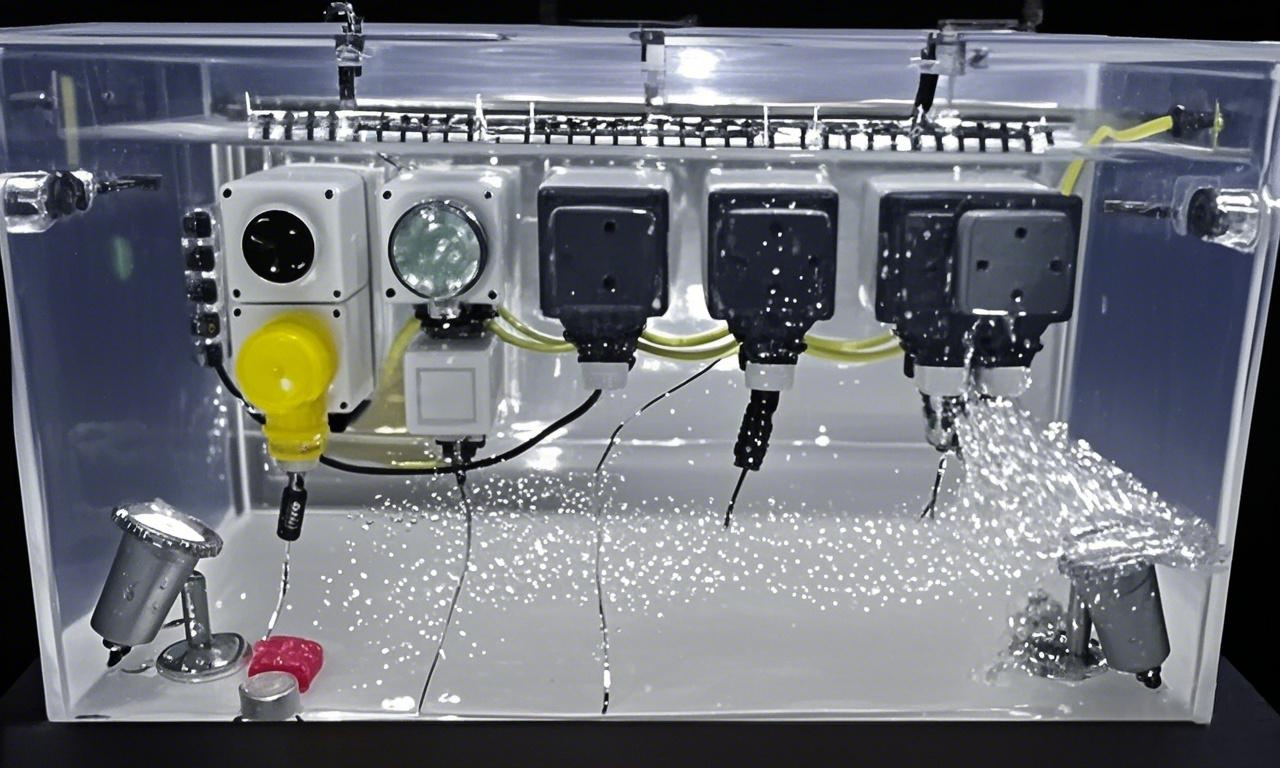

SAA-certified IP66-rated sockets (Australian Safety Certification) can withstand continuous scouring (12.5mm/min heavy rain) as proven by third-party waterproof test videos, completely blocking dust intrusion. Take Melbourne XX Energy’s coastal project as an example—after switching to IP66 sockets, the rainy-season failure frequency dropped from 3 times monthly to 0.5 times.

2. Material Selection: Virgin PC Material for Extreme Climates

Unlike low-cost products using recycled materials, Bsumwell sockets employ German-imported virgin PC material. After 1,000 hours of UV aging testing certified by TUV, the strength retention rate remains 85% (TÜV Rheinland 2024 test report), offering a service life of over 10 years in high-sunshine regions like Queensland—40% longer than ordinary ABS materials.

3. Voltage Matching: From "Adequate" to "Efficient"

The 500V rated voltage design is precisely tailored for mainstream solar inverters (e.g., the SMA Sunny Tripower 500V series), supporting 25A instantaneous overload current. It meets the peak demand during component startup while reducing material costs by 40% through smaller cable cross-sections (actual measurement data from Sydney XX Solar Project).

▎Competitor Analysis: Why Local Adaptation Outperforms International Brands?

III. Practical Implementation: Melbourne XX Energy’s Efficiency Overhaul

▶ Project Context

Commissioned in 2024, the 30MW agrivoltaic project is situated along Port Phillip Bay, with an annual precipitation of 1.2 meters and a salt spray corrosion grade (ISO 9223-CX). The original 250V, IP65 socket solution caused 12 shutdowns in the first year due to water ingress and contact corrosion, resulting in approximately 500,000 kWh of power loss.

▶ Transformation Strategy

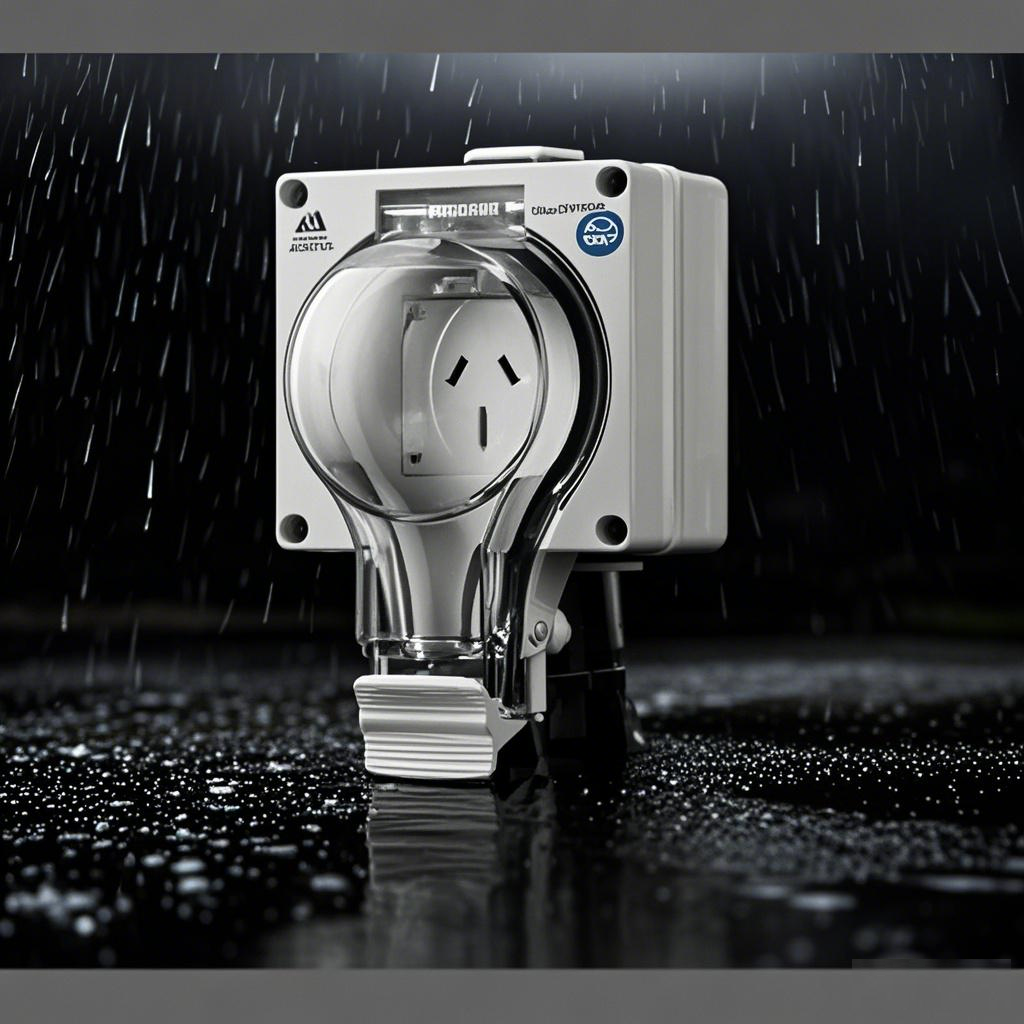

1. Hardware Upgrade: Replace all sockets with Bsumwell 500V high-voltage waterproof sockets (PC material, SAA-certified), featuring a 1-outlet-3-position wiring layout to reduce parallel connection losses;

2. Process Enhancement: Adopt an "inverter-socket-module" direct connection scheme to shorten wiring distance and apply anti-salt spray coating (Bsumwell custom service).

▶ Transformation Outcomes

• Reliability: Zero shutdowns in 12 months, 45% lower O&M costs;

• Efficiency Gain: Transmission loss reduced from 7.8% to 2.9%, annual power generation increased by 2.3% (SCADA system data);

• Cost Savings: $12,000 saved per 10MW in cable procurement costs, 3-year free replacement warranty (1 year longer than industry average).

Discover More: 《Case library of photovoltaic projects along the coast of Australia》 includes 20+ real transformation cases

IV. 5-Step Selection Framework: Designing Customized Power Supply Solutions for Australian Solar Farms

1. Environmental Evaluation: Precise Need Definition

Download the 《Australian Solar Environment Parameters Self-Check List》 to record project location parameters such as precipitation, salt spray concentration, and maximum temperature. For instance:

• Coastal high-salt zones (e.g., Gold Coast): Prioritize IP66+PC material+anti-salt spray coating;

• Inland high-temperature regions (e.g., Darwin): Focus on PC material’s temperature resistance (-40℃~90℃).

2. Parameter Filtering: Three Essential Factors

• Voltage Compatibility: Choose specifications based on the inverter’s DC side voltage (300-500V common), recommend 6mm²+ cables for 500V systems;

• Certification Compliance: Ensure SAA certification (AS/NZS 61535:2017) and verifiability on the Australian Energy Market Operator website;

• Structural Design: For multi-module parallel scenarios, recommend "1-outlet-3-position" or 5-hole sockets to minimize terminal counts.

3. Case Benchmarking: Leveraging Localized Expertise

Refer to regional cases like 《Power Distribution Solution for Agrivoltaic Projects in New South Wales》, focusing on protection rating selection, wiring layout optimization, and fault management in similar environments.

4. Sample Testing: Three Critical Tests

• Salt Spray Test: Simulate 300 hours of coastal conditions to observe contact corrosion (Bsumwell provides free test reports);

• Plugging Durability: 100,000 fault-free operations (in-house lab data), exceeding the industry average of 80,000 cycles;

• Temperature Rise: Surface temperature ≤60℃ under full load for 2 hours (TUV thermal safety certification), preventing insulation failure due to overheating.

5. After-Sales Security: Mitigating Long-Term Risks

• Warranty Clarity: Bsumwell offers 3-year free replacement for all faults (1 year beyond industry standard);

• Localized Service: Spare parts warehouse in Sydney, 48-hour maintenance response, and on-site installation guidance for remote areas.

V. Immediate Action: Two Exclusive Incentives to Expedite Project Execution

▶ Incentive 1: Free Application for Solar-Specific Socket Samples

The first 50 applying enterprises can receive 2 free 500V high-voltage waterproof socket samples (SAA-certified, value $80). Click here to apply in 10s.

▶ Incentive 2: Download the 《Australian Solar Power Distribution Standards Whitepaper》

Contains:

• Interpretation of AS/NZS 3000:2018 certification and compliance checklist;

• Differentiated selection tables for coastal/inland farms (with material and protection rating recommendations);

• Wiring diagrams for 3 typical projects (agrivoltaic, fishery-photovoltaic, ground-mounted).
  Download Now: Download Whitepaper

Frequently Asked Questions

Q1: Can socket dimensions be customized for existing inverters?

A: Customized dimensions for ABS material are supported (tolerance ±0.5mm). Provide CAD drawings or physical dimensions, with a 7-day sampling period. Note that the free sample policy applies to standard models (limit 2 pieces).

Q2: Is the SAA certification for 500V sockets valid across all Australian states?

A: The certification complies with AS/NZS 61535:2017, valid for all Australian solar projects. The certificate number can be verified on the Australian Certification Center website.

Q3: What support is available for technical issues during sample testing?

A: Bsumwell provides free technical support, including remote guidance by electrical engineers or on-site inspections (available for projects in NSW and VIC).

Conclusion

As Australia’s solar industry works toward the 2025 33% renewable energy target, the reliability and efficiency of power supply systems have become pivotal to project profitability. Choosing locally validated 500V high-voltage waterproof sockets is not only a proactive measure against extreme environments but also a strategic decision to reduce costs and enhance efficiency through technological upgrades. Apply for free samples or download the selection whitepaper today to let Bsumwell be your trusted partner in solar power distribution.
