How to Choose a Waterproof Junction Box for Outdoor Surveillance? – A Comparative Analysis and Selection Recommendations for B2B Procurement

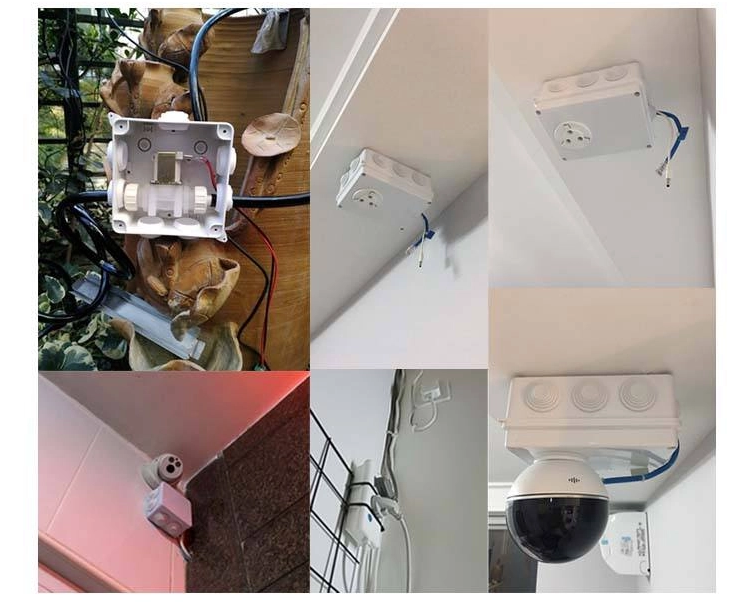

The stable operation of an outdoor monitoring system depends on the camera itself, which accounts for only half of the credit. The other half is due to various inconspicuous accessories—among which the junction box is the most easily overlooked but the most troublesome part to rework when problems occur.

We have handled numerous overseas security engineering projects and received many after-sales inquiries from clients: everything was fine when installed, but after the rainy season, frequent power outages, static on the screen, and even the entire circuit becoming unusable. Upon disassembly, the junction box was found to be full of moisture, or the power adapter was burnt black.

This article will skip the fluff and go straight to three representative junction boxes on the market—Dahua FABV5 Dedicated Model (DH-PFA130-E)、Spelsberg HP 80, as well as Universal large size IP6X waterproof model (215×150×80mm)—This article provides a practical comparison across five dimensions: materials, internal space, inlet sealing, certification and compliance, and overall cost. If you are currently selecting a junction box supplier for an overseas project, or have non-standard installation needs, this article should help you avoid some pitfalls.

First, let's talk about the materials – aluminum shell or plastic shell, which is better for outdoor use?

The first issue to consider when choosing a junction box is the material. There are two main types on the market: Die-cast aluminum and Engineering plastics Each has its own applicable scenarios; there is no absolute good or bad, but choosing the wrong one can have significant consequences.

1. Advantages and limitations of die-cast aluminum (such as FABV5).

The FABV5 uses ADC12 aluminum alloy die-casting, with an electrostatic powder coating (the white paint layer). The advantages of an aluminum shell are straightforward: Impact resistant, good heat dissipation, and non-flammable. If you're working on road surveillance, parking lot entrances/exits, or any location where the equipment might be subjected to external impacts, an aluminum casing is much stronger than a plastic casing.

However, aluminum casings also have limitations:

• Weight limitations: A single FABV5 weighs approximately 0.34 kg (nearly 7 ounces). If installed on a light steel keel plasterboard partition wall or an aging wooden eaves, the self-tapping screws may not be able to hold it in place, and over time they may loosen or even fall off.

• Limitations of corrosion resistance: Regular powder coating is sufficient for normal outdoor environments, but near the sea or chemical plants, chloride ions can slowly corrode the aluminum substrate through the coating's micropores. We have tested similar products, and in open coastal environments, the coating edges started to blister after about 18 to 24 months—this doesn't mean it's unusable, but rather that it's necessary to confirm whether the project environment falls under the "high salt spray" level.

2. Actual lifespan of the plastic casing (HP 80 and general ABS models)

The HP 80 uses polypropylene (PP), and its biggest drawback is... Not resistant to ultraviolet rays To put it simply, after two years of exposure to the sun, the molecular chains of PP will break, causing the surface to turn white and powdery, and then it will crack at the slightest touch. The original manufacturer, Spelsberg in Germany, also clearly states in its technical manual that this product is designed for "standard indoor installation or protected outdoor installation," meaning: do not expose it to direct sunlight.

The situation is slightly better with general ABS models, but it depends on whether UV-resistant additives have been added. The gray ABS junction boxes we've handled, without UV-resistant additives, became noticeably brittle after about 3 years of direct outdoor exposure. Black ABS junction box Because of the carbon black that blocks ultraviolet rays, the lifespan will be longer. If the project requires more than five years of maintenance-free operation, the plastic casing needs to be carefully evaluated.

3. Regarding flame retardancy: Metals are naturally superior to plastics, but not all plastics are the same.

Metal is non-flammable, but the flame retardancy of plastic casings varies greatly. Some general-purpose models on the market use ABS... UL94 V-2 None of them can be achieved.

Simple explanation: V-2 material self-extinguishes within 30 seconds in a vertical burning test, but burning droplets are allowed during the test. If these droplets ignite the cotton below, the risk is significant.

We have some PC/ABS alloy junction boxes in our own inventory, and they have passed testing. UL94 V-0 (Self-extinguishing within 10 seconds of vertical burning, with no dripping ignition). V-0 material is indeed more expensive than ordinary ABS, and we usually don't use V-0 in all regular products—because many customers are more concerned about the unit price, and the flame retardant rating is not their primary concern.

However, for projects requiring a built-in power adapter (with a continuous heat source), or projects with strict fire safety requirements, we directly recommend switching to a V-0 material solution. The price difference isn't significant, but the safety margin is considerably higher. If the customer has a UL yellow card or third-party test report to verify, we can also provide the corresponding material certification.

Depth Determines the Solution – “Whether the Power Adapter Can Be Fitted” is the Watershed.

This is one of the most easily overlooked details during installation, but it has the most serious consequences.

Background information: Surveillance cameras typically use 12V DC power. However, if the 12V power is directly drawn from the server room, the voltage drop becomes significant over a distance of more than 30 meters. At night, when the infrared lights are turned on and the current increases, the camera may repeatedly restart due to insufficient voltage. Therefore, the industry standard practice is to bring 220V AC power to the vicinity of the camera and place an AC-to-DC power adapter in the junction box to provide power to the camera locally by stepping down the voltage.

This raises a very practical question: can the adapter fit inside the junction box? We actually measured three products with calipers:

• FABV5 Special Edition: The outer thickness is 41mm. After deducting the wall thickness and internal reinforcing ribs, the usable depth is approximately... 33 to 34mm What does this mean? A typical 12V 2A power adapter is usually around 35mm thick, so it's impossible to even fit it inside. This box is only big enough to hold an RJ45 network cable connector and a BNC video adapter.

• HP 80 model: External height 42mm, internal usable depth approximately 38mm It's a little deeper than FABV5, but it still can't fit a standard adapter.

• General-purpose large size (215×150×80mm):External height 80mm, internal usable depth approximately 74mm Yes, it can definitely be stuffed in.

Therefore, if your solution requires AC to DC voltage reduction at the front end of the camera, neither the FABV5 nor the HP 80 can do it. You will have to hang a large distribution box on the pole, which adds an extra step, an extra leak point, and extra labor costs.

But the second pitfall I'm about to mention is even more hidden than "whether it can be stuffed in or not".

Third, being able to fit something in doesn't mean you can rest easy—heat dissipation is the real killer.

While the general-purpose large-size model offers ample space, Plastic has poor thermal conductivity.

Under direct summer sunlight, the surface temperature of the dark plastic casing can reach 60-70°C, and the internal temperature is often 20-30°C higher than the air temperature. The adapter itself has conversion losses (approximately 10%-15% of electrical energy is converted into heat), and this heat cannot dissipate inside the sealed plastic casing.

We've received feedback from more than one customer: after trying several different brands of adapters, problems arise after a few months—the camera image displays snowy stripes, the infrared lights don't activate at night, or the screen goes completely black. The adapter casing is so hot you can't even touch it.For every 10°C increase in the operating temperature of an electrolytic capacitor, its lifespan is reduced by approximately half.A capacitor with a nominal lifespan of 50,000 hours may not even last 10,000 hours in a 75°C box environment.

Therefore, if you really need a built-in adapter, in addition to considering whether it "can fit," you also need to consider whether it "can dissipate heat"—leaving enough space for heat dissipation and airflow for the adapter is far more important than forcing it in.

How can we help our clients solve this problem?

The two core problems mentioned above are: small, standard boxes can't fit the adapter, while larger boxes that can fit it lack proper heat dissipation. We have different solutions for these two situations.

Option 1: Standard depth (60-80mm), suitable for scenarios where a built-in adapter is not required.

If your solution uses PoE power, or the power adapter is located elsewhere, and the junction box only handles cable routing and connector storage—then our standard... 60-80mm depth That's sufficient. Pre-drill the PCD mounting holes and cable thread according to the hole spacing of your camera base, and you can install it directly without needing to drill holes on-site.

Option 2: Deeper version (100-120mm), suitable for scenarios requiring a built-in adapter.

If an adapter must be placed at the front end (for long-distance power supply and to avoid voltage drop), we recommend... 100-120mm depth The design is spacious enough to accommodate a standard 12V 2A adapter, while also allowing for cable bending radius and airflow, ensuring comfort and preventing overcrowding.

Option 3: Model with active cooling fan (for high-temperature exposure or high-power equipment)

For scenarios involving direct sunlight on rooftops, high-temperature summers in southern regions, or installations of high-power PTZ cameras, even with ample space, passive heat dissipation may still be insufficient—high internal temperatures can significantly reduce the lifespan of the adapter capacitors.

We have a portion of our inventory configured. A 12V DC cooling fan, combined with side louvered vents and a dust filter. It can actively expel hot air from inside the box.

In actual testing, under the same direct sunlight conditions, the temperature inside the fan-equipped box was 15-20°C lower than that inside the sealed plastic box. For surveillance projects that require 24/7 uninterrupted operation, this temperature difference means that the adapter and camera can last for several more years.

To be honest, a fan-equipped junction box isn't necessary in every scenario. If it's installed on the shaded side of a building, or if the device itself has very low power consumption (pure PoE power supply), a standard deep-mounted box is sufficient, and there's no need to spend extra money. Our approach is: you tell us what devices you need to install and in what environment, and we'll determine whether a fan-equipped solution is required. We'll help you save money where possible, and we won't compromise on anything that needs to be added.

One more thing to note: because fan-operated models have ventilation openings, their protection rating is usually IP54-IP65, making them unsuitable for installation in dusty environments or places frequently exposed to water spray. If your project is near the sea, a mine, or a car wash, we recommend using a fully sealed metal casing with a larger heat dissipation area to solve the problem, rather than using a fan.

Regardless of the chosen solution, the opening can be customized to your requirements.Customers only need to tell us the dimensions of the adapter, or send us a photo, and we will calculate the internal layout—ensuring sufficient space for the adapter, terminal blocks, and cable bending radii. No squeezing, no pressing, no bending.

in addition, Cable entry holes and mounting holes can also be customized according to customer requirements:

• No need for on-site construction team to temporarily enlarge the hole with electric drill.

• We can pre-drill the corresponding PCD mounting holes according to the hole spacing of the camera base.

• The inlet thread can be selected from G1/2, G3/4, M20, and PG21, so it can be installed directly after receiving it.

If the client has existing drawings, we can determine the structural solution in 1 to 3 rounds of communication.

Cable entry point and seal—this is where most waterproofing failures begin.

More than 90% of water ingress into junction boxes does not occur through gaps in the box itself, but rather through the cable inlet or the aging of the seal on the cover.

1. Actual experience with three incoming line methods

• G3/4 metal thread (FABV5 type): The most standard practice is to directly screw on galvanized pipes or explosion-proof flexible hoses, ensuring a reliable seal and conforming to the same standards as industrial distribution boxes. However, there are two disadvantages: firstly, the cost is high; secondly, if the thread specifications don't match, an adapter must be added, and each additional interface represents an additional potential hazard.

• M20 rubber step seal (HP 80 type): Running power cords and network cables is convenient, as the rubber diaphragm fits snugly against the cable's outer wall, requiring no additional accessories. However, the rubber diaphragm will age and harden after three or four years outdoors, gradually reducing its sealing effectiveness. Furthermore, if the wire diameter is too thin or too thick, the sealing ring may not deform sufficiently, allowing moisture to slowly seep in along the cable's outer sheath.

• Knockout hole + waterproof connector (universal type): It's the most flexible option, but the quality of the connectors varies drastically. A good imported waterproof connector costs over ten yuan, while a cheap plastic part costs only a few cents. It's difficult for the purchasing party to control what quality is used on-site.

2. The "torque problem" that is never mentioned in the instruction manual—the biggest headache for installation teams.

We've spoken with many installation foremen, and when asked how tight they tightened the cover screws, nine out of ten answered "by feel." The problem lies in this "by feel":

• Tightened too loosely: If the sealing ring is not properly compressed, micro-gaps will appear due to thermal expansion and contraction, allowing rainwater to be drawn into the box through capillary action. This is especially noticeable in areas with large temperature differences between day and night.

• Twisted too hard: For plastic boxes, screw studs may strip or crack longitudinally; for aluminum boxes, stainless steel screws and aluminum threads may seize up under excessive pressure (commonly known as "hooked threads"), making them impossible to remove later. Sealing rings themselves are also susceptible to overpressure—if pressed too tightly, they lose elasticity and leak even faster.

None of the instruction manuals or packaging of the three competing products listed the recommended torque value for the cover screws. But this is information we believe should not be omitted—it doesn't increase costs, but it provides a basis for determining installation quality.

Our approach:

When we ship goods to our customers ourselves, we will...Large volume customer ordersIncluded in the packagingsuperiorA simple torque reference card, with instructions clearly written in plain language, for example..."For M4 screws, the recommended tightening torque is 1.2-1.5 Nm. If you don't have a torque wrench, use a Phillips screwdriver to tighten until you feel a noticeable increase in resistance, then turn it another 90 degrees."Such guidance isn't high-tech, but at least the construction team has a reference point, preventing ten workers from twisting the screws to ten different tightnesses.

3. The materials used for sealing rings vary greatly.

Ordinary expanding foam strips will compress and permanently deform after about a year outdoors—they won't spring back after being compressed, and waterproofing thereafter depends entirely on luck. Our standard configuration is... EPDM (Ethylene Propylene Dioxide) or silicone rubber The sealing ring has better adaptability to high and low temperatures (it can be used from -40°C to 120°C). In the past few years of actual use, no customers have reported water ingress problems caused by sealing ring aging. If customers have special requirements (such as corrosion-resistant environments near chemical plants), we can also replace it with nitrile rubber or fluororubber.

What exactly constitutes "authentic and valid" certification?

Certification is an unavoidable issue in B2B procurement. But the world of certification is more complex than most people imagine.

1. CE and UL certifications: Don't just look for the logo.

• FABV5: It's an original equipment manufacturer (OEM) product from Dahua, and the CE certification is genuine. It complies with EU LVD and RoHS directives, there's no denying that.

• HP 80: It has German VDE certification, which is highly valued in the European industrial control field.

• (Note: Both certifications are genuine, but pay attention to their applicability—HP 80 explicitly states "UL Type Rating Unspecified," meaning it cannot be used in power distribution systems that have strict requirements for the North American UL50 standard.)

• General large size version: The biggest problem is that many of these products on the market bear "CE" printed on their casings, but very few have actually been sent to a third-party laboratory according to EU standards. Those in the industry know that "CE" is sometimes jokingly referred to as "China Export"—a label put on by the manufacturer and never verified. If such uncertified products are used in commercial buildings or government projects, the contractor will bear full responsibility if anything goes wrong; there is no safety net whatsoever.

When we connect with overseas clientsWill giveCNAS-accredited third-party testing reports and CE compliance declarations—while not as stringent as UL certification—are sufficient for routine commercial projects. If clients have stringent UL requirements for North American projects, we can assist by providing test samples and technical documents to help them navigate the certification process; we will clarify these details beforehand.

2. Salt spray test hours – the "lifeline" for coastal projects.

Our competitors advertise "basic protection" but never tell you the duration. We had it done by a third party ourselves. 48-hour neutral salt spray test (A report is available), simulating a humid coastal environment. This data isn't exaggerated, but it's sufficient for the purchaser to determine whether it's suitable for near-shore projects. If the client requires more (e.g., 96 hours), we can coordinate longer testing periods.

Beyond price—a closer look at the "overall cost" makes things clearer.

1. SingleindivualThe true range of purchase prices

Based on our sourcing channels and customer feedback, the approximate B2B price for these three products (for bulk orders of 1000) is...indivual(End)

• FABV5 Special Edition: Approximately $2.20 - $3.50 /indivual

• HP 80 model: Approximately $0.75 - $1.45 / indivual

• General large size version: Approximately $1.80 - $2.80 /indivual

But comparing prices alone is meaningless. Although the HP 80 is the cheapest, if it becomes brittle due to UV radiation after two years and water damage burns out the camera, the cost of replacing the camera would be enough to buy hundreds of camera boxes. "Low initial cost, high after-sales repair cost"  vs.  "Slightly higher initial cost, no need to worry for several years" —Every purchasing agent has their own judgment on this matter.

2. What can we offer?

As an independent station with direct source of production capacityfactorySeller, we do not go through multiple layers of traders. Regular items are in stock, and non-standard sizes can be customized.

• Size: From small junction boxes to large equipment enclosures, depth is freely selectable (60 / 80 / 100 / 120mm...).

• Material: Die-cast aluminum, ABS, flame-retardant PC, PP... We recommend materials based on project requirements. UL94 V-0 grade PC/ABS alloys are also available.

• Appearance: RAL color charts are available, and both powder coating colors and custom colors are possible.

• Opening: Pre-drill PCD mounting holes and cable inlets according to customer drawings, so it can be installed immediately upon receipt.

If we have suitable products in our standard selection, we can provide a quote as quickly as the same day; if needed...Production or Customization, generally 1 to 3 rounds of communication can determine the structure scheme, and the cost is reasonable and negotiable.

3. Two practical suggestions for buyers

If you are drafting technical specifications or screening suppliers, the following two simple criteria can be used as a reference. They cost little but can help you filter out many middlemen who only deliver goods and do not take responsibility:

① Request the supplier to provide "real photos of the casing product taken before shipment", with handwritten date labels and your company's order number. Suppliers who can go this far at least have stock on hand and physical contact with the goods, rather than scrambling to source inventory from the market after receiving an order. Purely reselling traders often haven't even been to a warehouse and can't take real photos with custom markings.

② Require suppliers to clearly specify "standard packaging method" in their quotations. (For example, each box is individually wrapped in a PE bag with an inner divider and a five-layer corrugated cardboard outer carton, or is it simply wrapped without any packaging) – it sounds basic, but many traders who only resell goods don't care about packaging details and can't give a standard answer. If a supplier can clearly state their packaging specifications, it means they have at least a stable track record of shipping and a fixed packaging process, and are not a itinerant trader who "gets goods wherever it's cheapest".

These two methods do not require any certification or incur additional costs, but they can help you filter out a group of middlemen who have no stock and no after-sales service.
