IP66 ABS Plastic Waterproof Junction Box AG/F Type with Mounting Ears & Custom Knockouts

AG/F Series IP66 Waterproof Plastic Junction Box: A Professional Protection Solution Designed for Harsh Environments

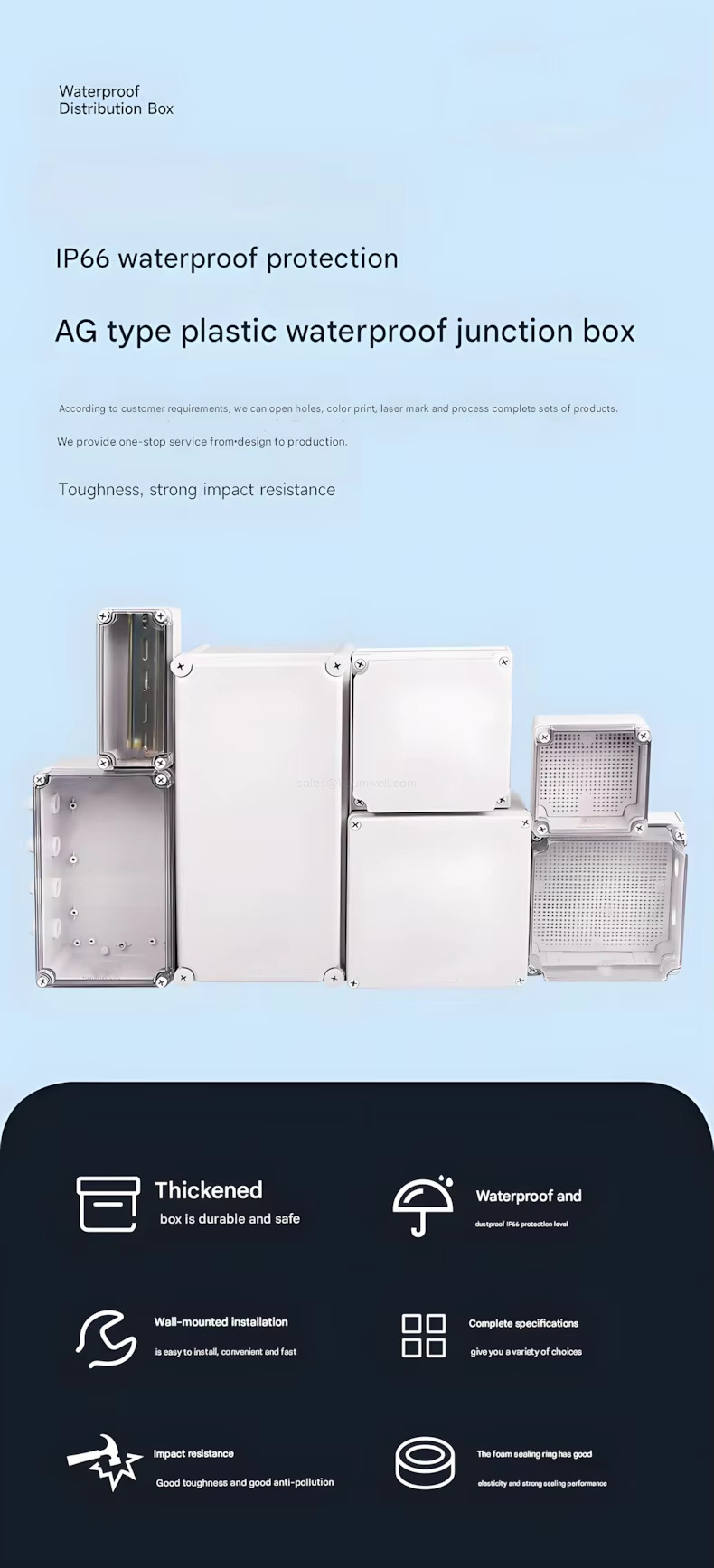

This product includes two main models: the AG type and the F type with mounting ears. It is a high-quality waterproof junction box manufactured from virgin ABS engineering plastic. Its core design objective is to provide IP66-grade reliable waterproofing, dustproofing, and shock protection for wire connections in scenarios such as industrial control, outdoor electrical, and communication equipment. The product comes in complete specifications and supports in-depth customization, meeting one-stop needs from standard installation to special projects.

Product Core Advantages & Selling Points

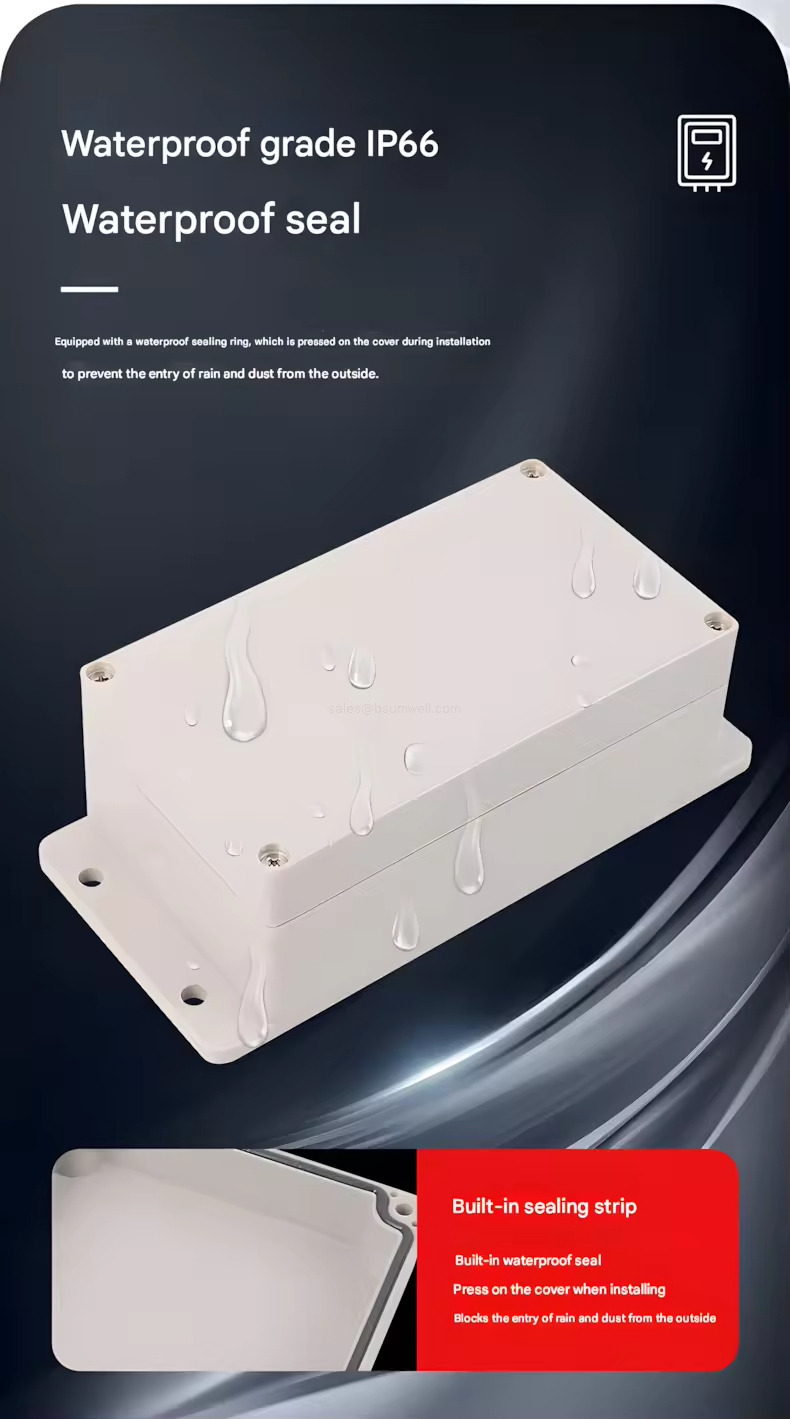

• Excellent Protective Sealing: The enclosure achieves an IP66 protection rating. Combined with an integral PU foam gasket, it effectively blocks rain, water jets, and dust ingress, ensuring the long-term safe operation of internal electrical connections in harsh outdoor environments that are damp, dusty, or wet.

• Sturdy & Durable Material & Structure:

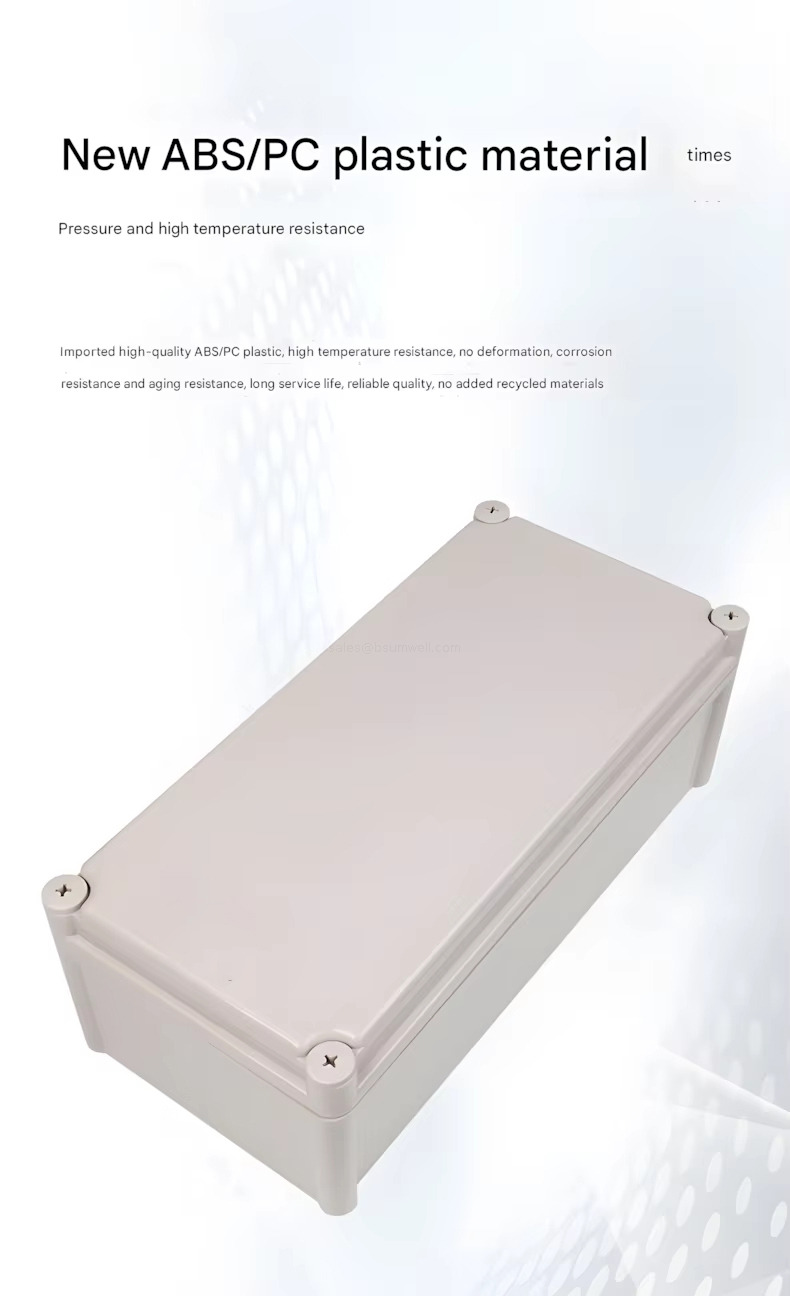

• Material: Made from virgin ABS engineering plastic with no recycled content. It possesses excellent compression resistance, impact resistance, corrosion resistance, aging resistance, and flame retardancy. Its dimensions are stable, and its service life far exceeds that of ordinary plastic housings.

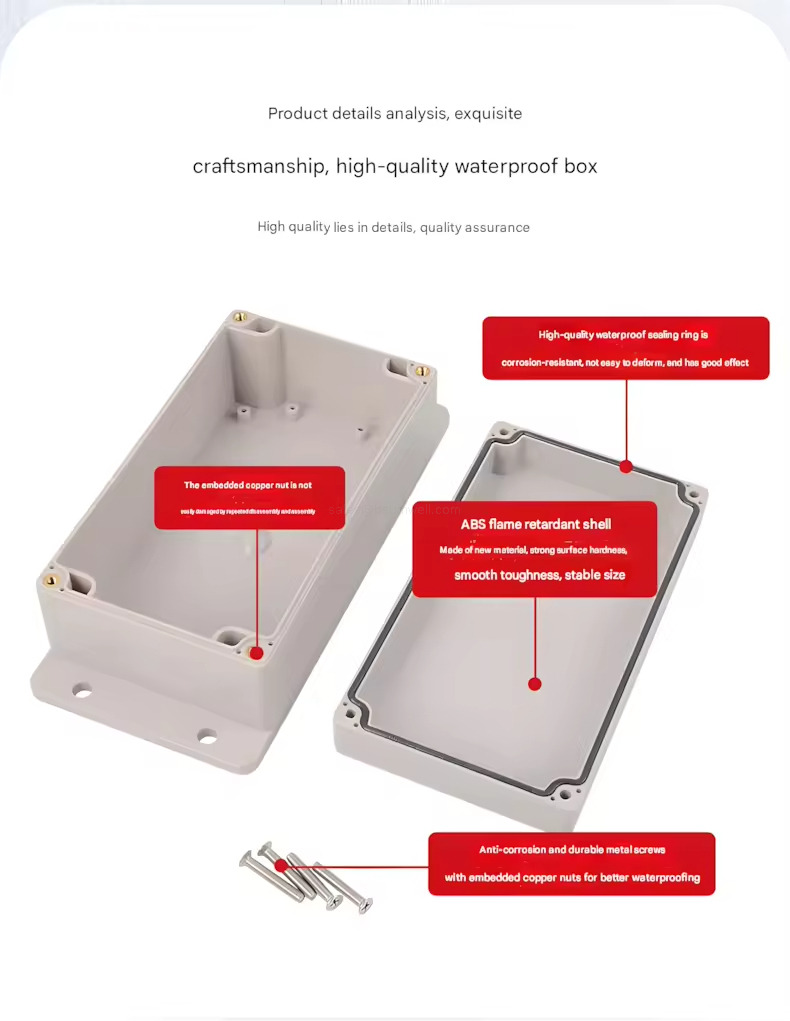

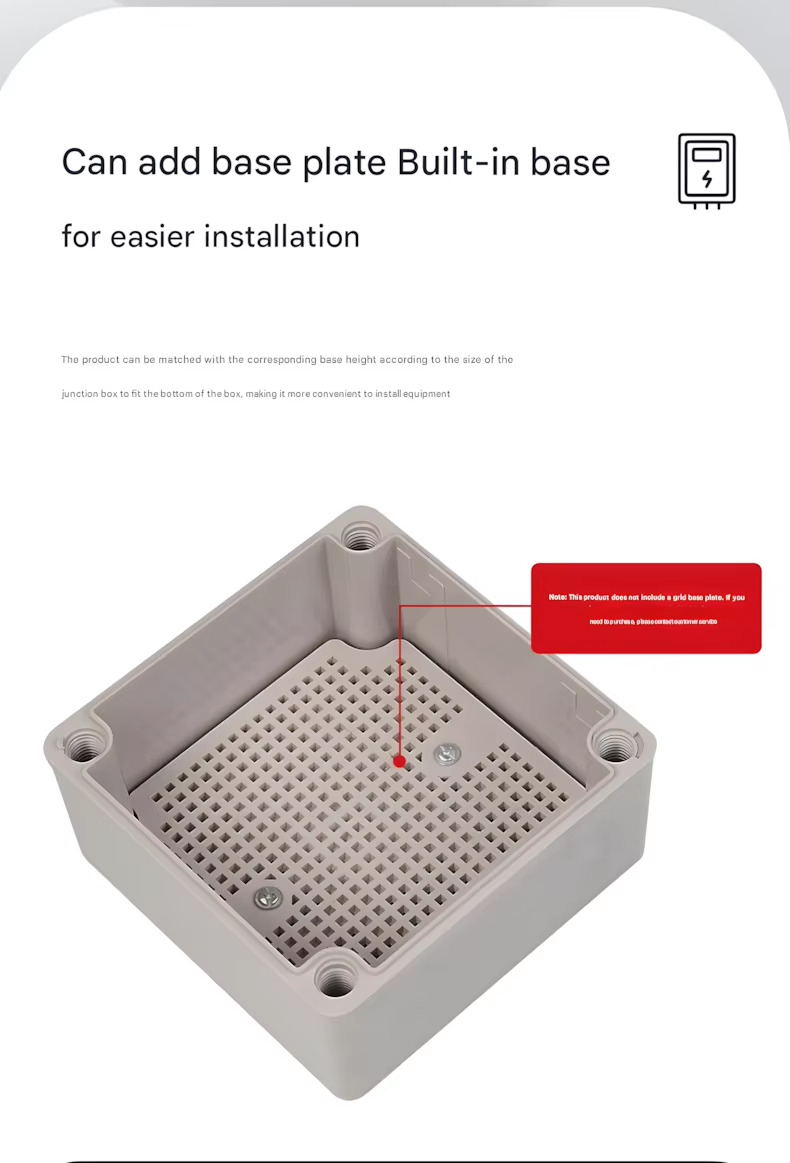

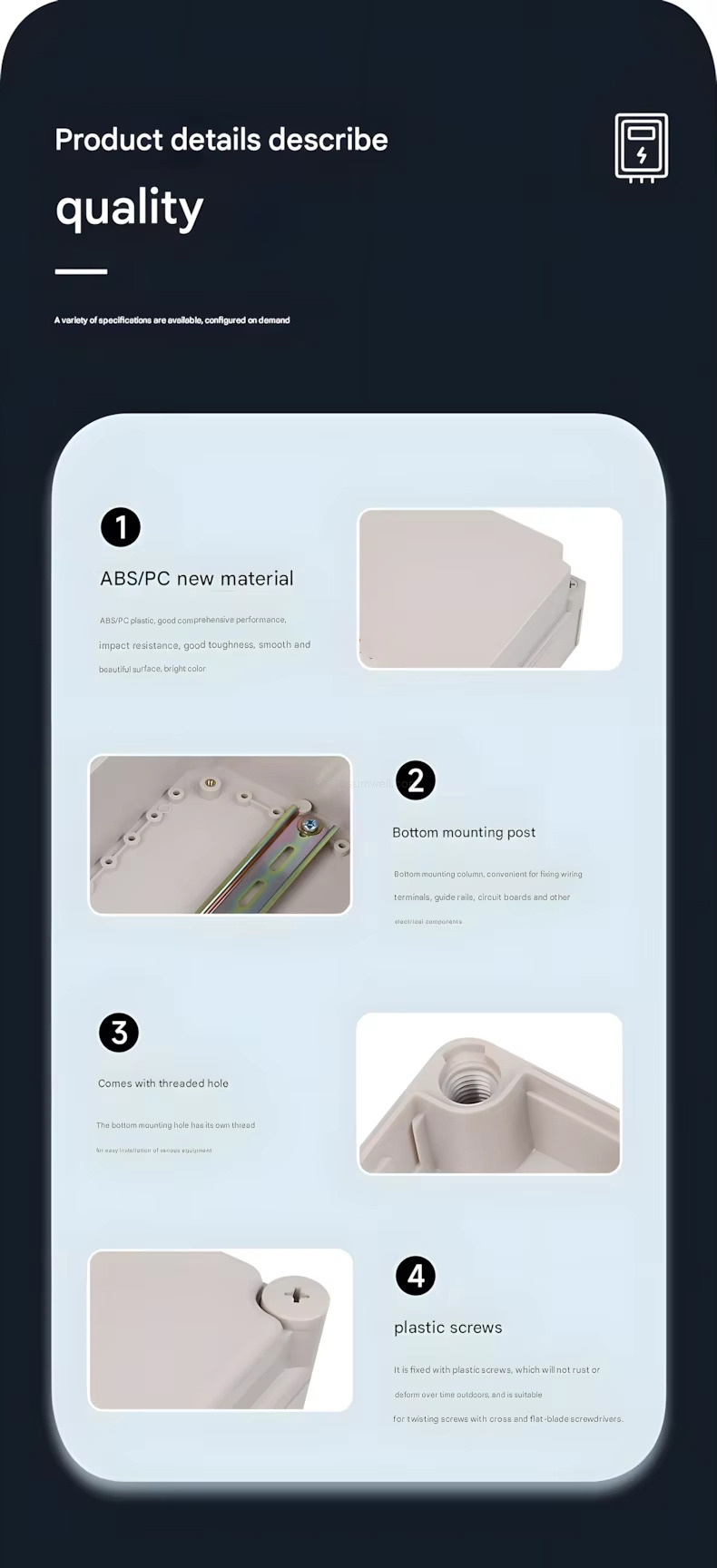

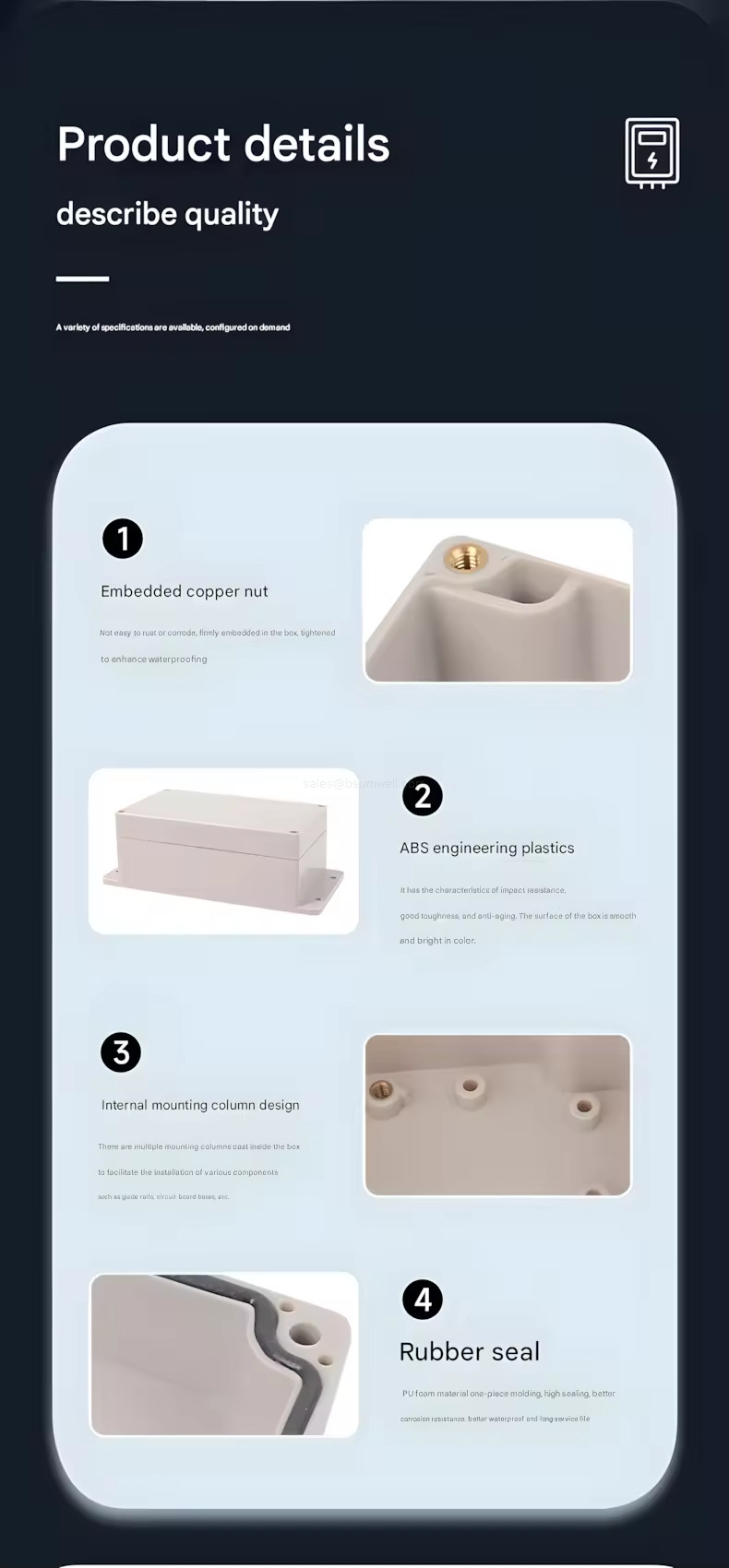

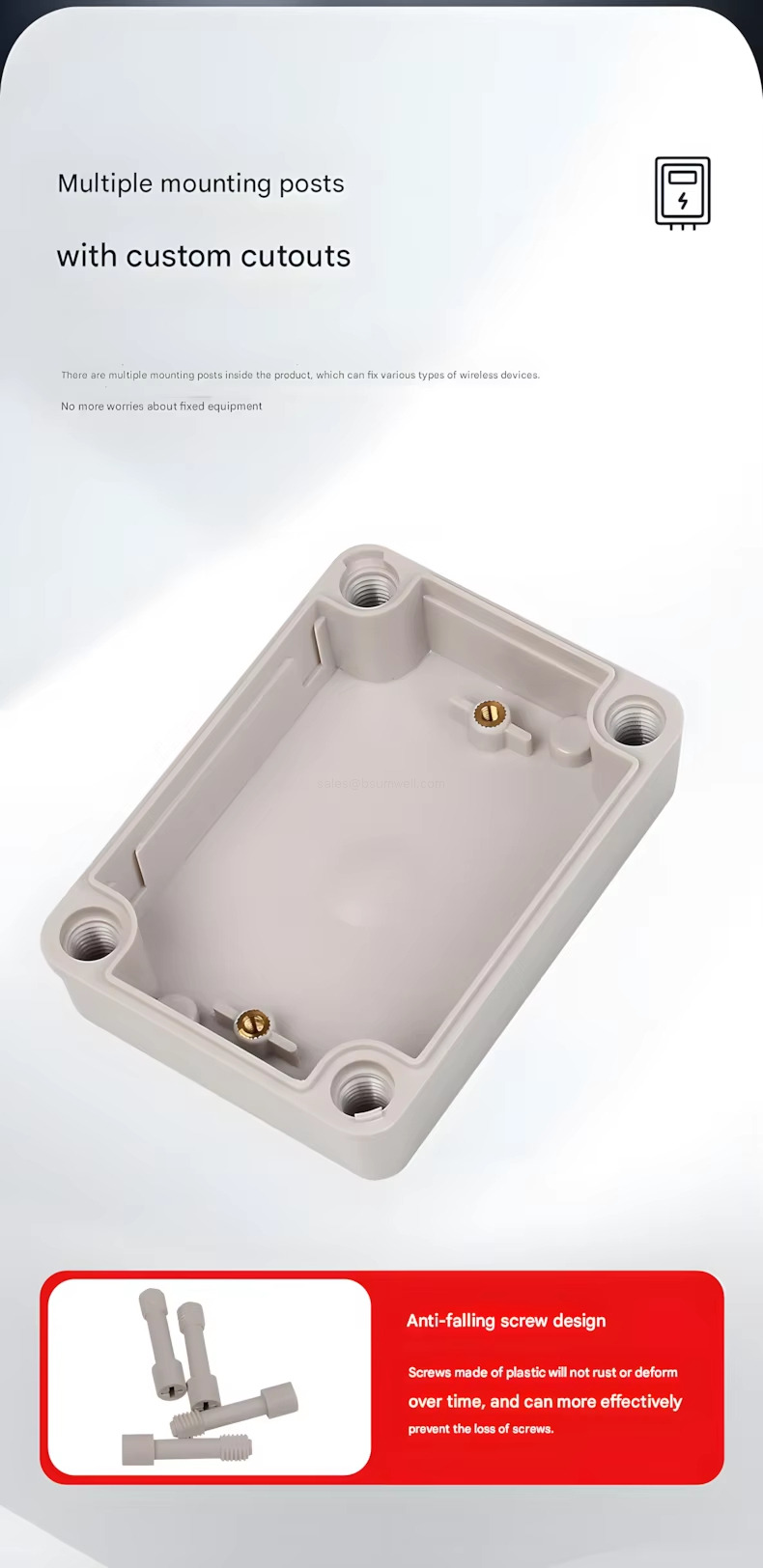

• Structure: Features an embedded brass insert design, preventing thread stripping and corrosion caused by screws directly tapping into plastic. Tightening enhances sealing. The box is cast with multiple internal mounting pillars for easy direct installation of terminal blocks, DIN rails, or circuit boards.

• Convenient Installation & Flexibility:

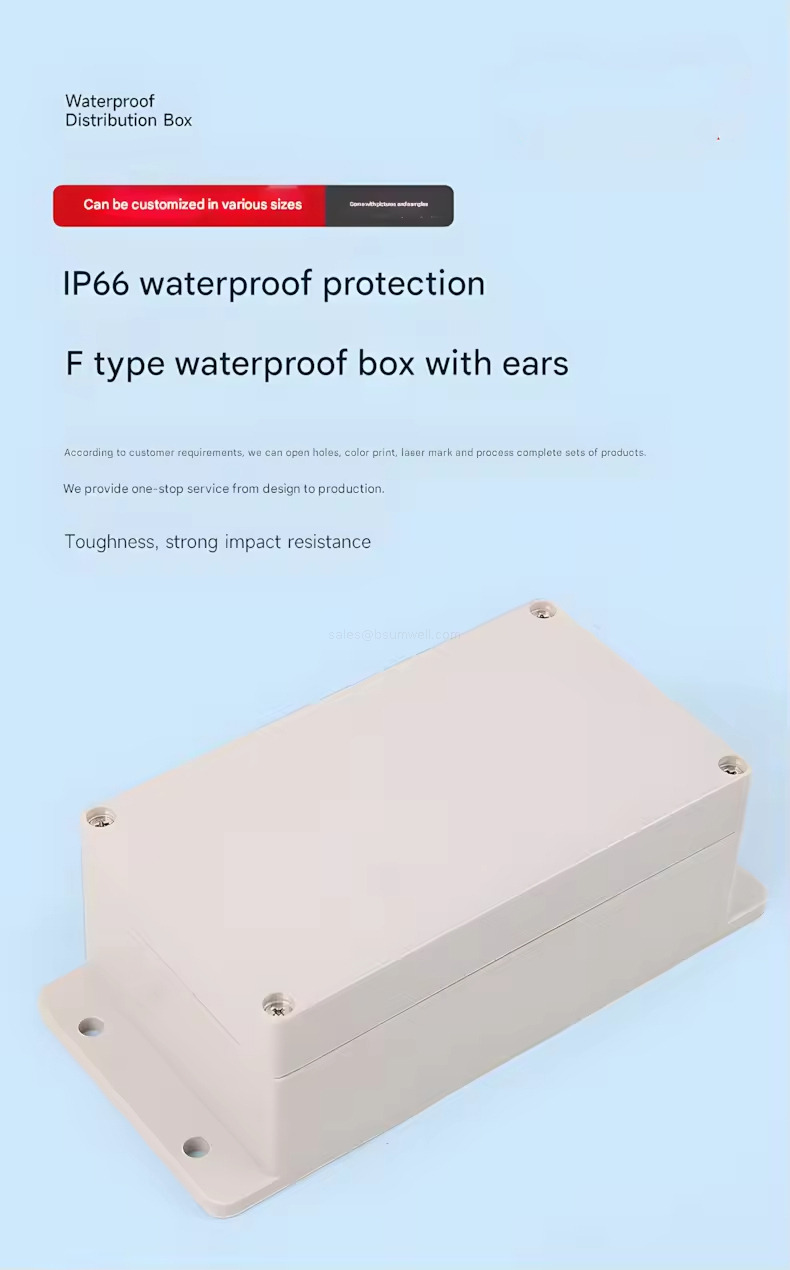

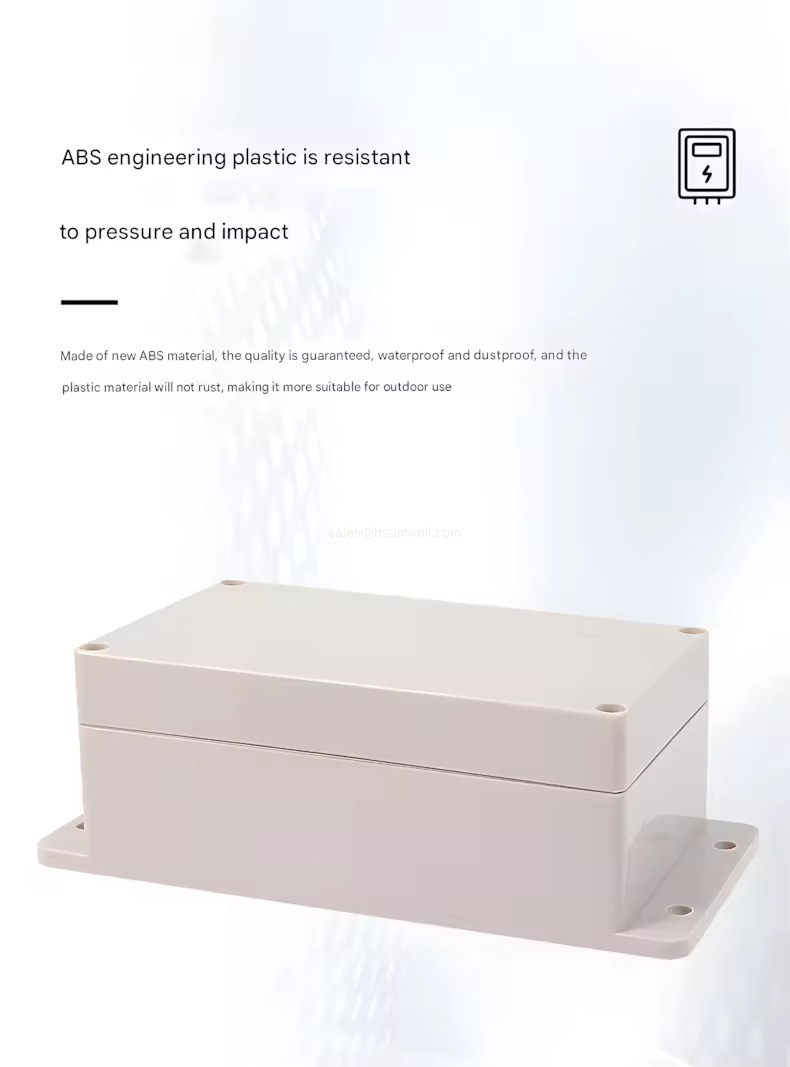

• The F-type with ears comes with built-in mounting ears (example ear width: 92mm), facilitating direct screw fixation for easy installation.

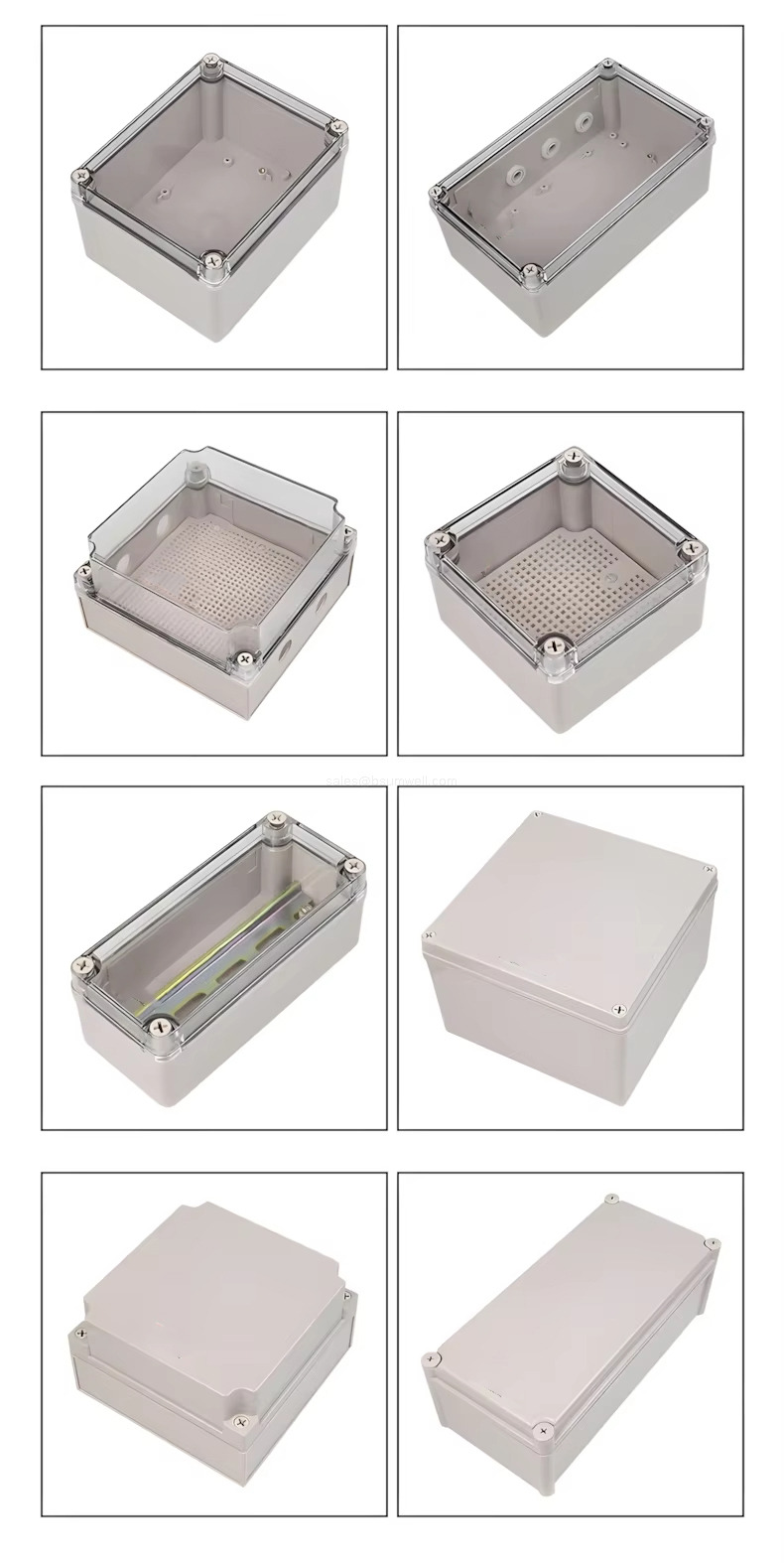

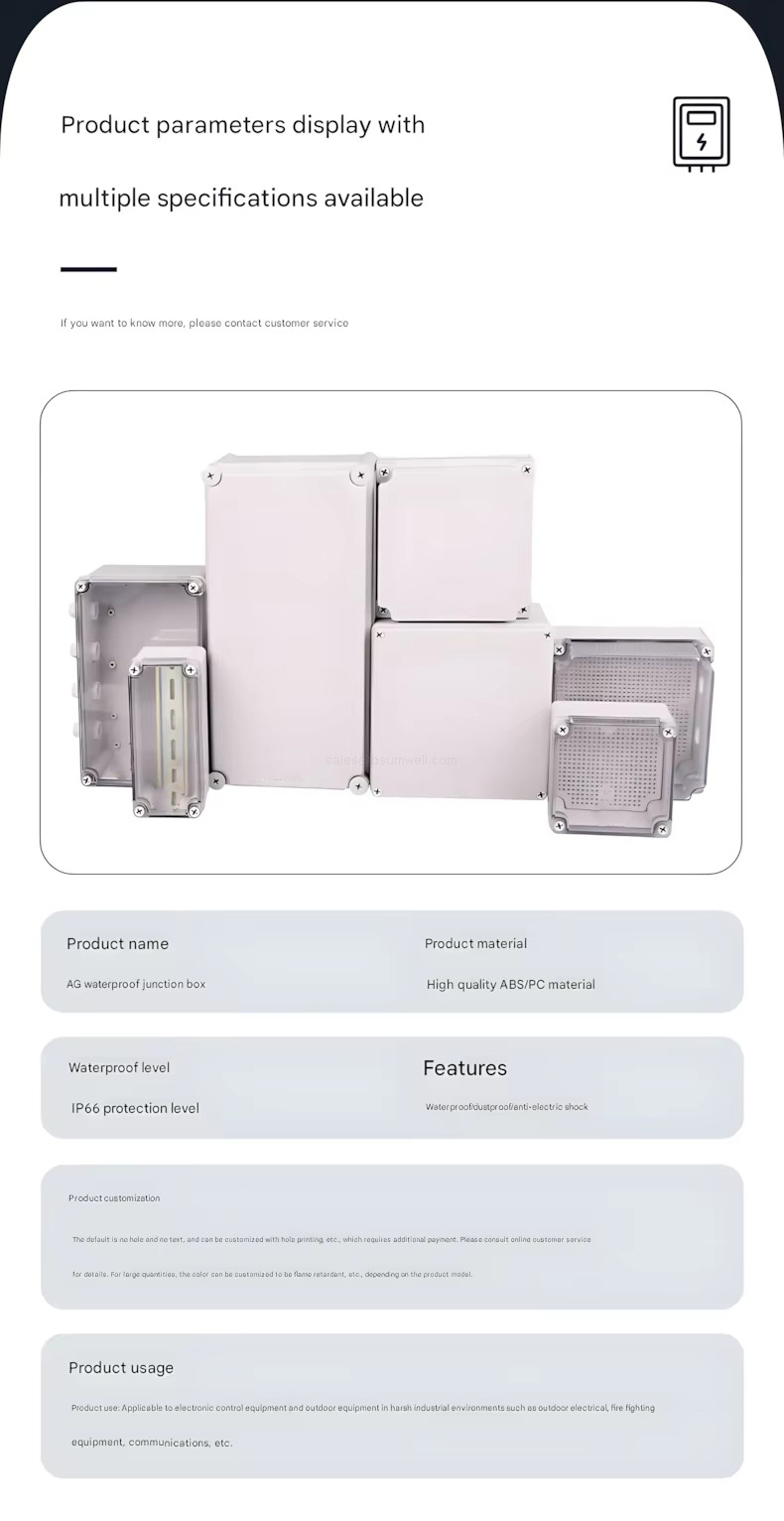

• Offers multiple specification and size choices and supports customized knockout creation based on customer requirements to meet different cable entry needs.

• Comprehensive Customization Service: We provide a one-stop service from design to production. In addition to standard products, we support post-processing such as knockouts, logo color printing, and laser marking. For large orders, customization of color, silk-screening, etc., can be negotiated to facilitate your brand integration and project implementation.

Detailed Technical Specifications

Typical Application Scenarios

This product is designed for occasions requiring high-reliability protection and is an ideal choice for the following applications:

• Industrial Automation Equipment: Production line control cabinets, external junction boxes for machine tools, sensor connection protection.

• Outdoor Electrical Facilities: Outdoor lighting control boxes, pump controllers, landscape electrical equipment protection.

• Infrastructure & Communications: Communication base station equipment boxes, fiber optic network terminal boxes, traffic signal control boxes.

• Fire & Security Systems: Fire alarm module boxes, security equipment junction boxes.

Procurement & Service Support

We are committed to being your reliable manufacturing partner:

• Quality Commitment: We insist on using virgin materials for production, ensuring every product possesses the promised mechanical strength and protective performance.

• Flexible Customization: With mature ODM/OEM experience, we can quickly respond to your customization needs, achieving a perfect match between the product and your project.

• Volume Support: We provide competitive tiered pricing, ensuring stable supply and delivery for large-volume orders.

Material ABS new material, good toughness, not fragile, smooth and glossy. screw Stainless screws for outdoor applications without rust and longer life.

Weatherstrip Use polyamine material to enhance sealing performance, so that the box waterproof effect is better. Inside screw The internal screws are made of copper teeth and repeatedly removed. The studs will not burst ODM Can open holes and supply accessory as you need.
