Core materials and protection
Crafted from new ABS material, this junction box boasts excellent impact resistance, toughness, and a smooth, burr-free surface. It achieves IP67 protection, effectively waterproof, dustproof, and anti-corrosion, ensuring reliable performance in both indoor and outdoor environments. The transparent cover (if chosen) is made of PC flame-retardant material.
Product Attributes:
Protection Functions: Waterproof, dustproof, anti-corrosion
Shell Material: ABS
Application Scope: Various indoor and outdoor places
Waterproof Rating: IP66
Flame Retardant & Fire-Resistant Property: V0
Design and Installation Advantages
· Robust Material & Structural Design: Crafted from new ABS engineering plastic, the control box boasts high impact resistance, excellent toughness, and a smooth, burr - free surface. The integrated polyurethane foam sealing ring ensures IP67 waterproof, dustproof, and anti - corrosion performance, making it suitable for harsh environments.

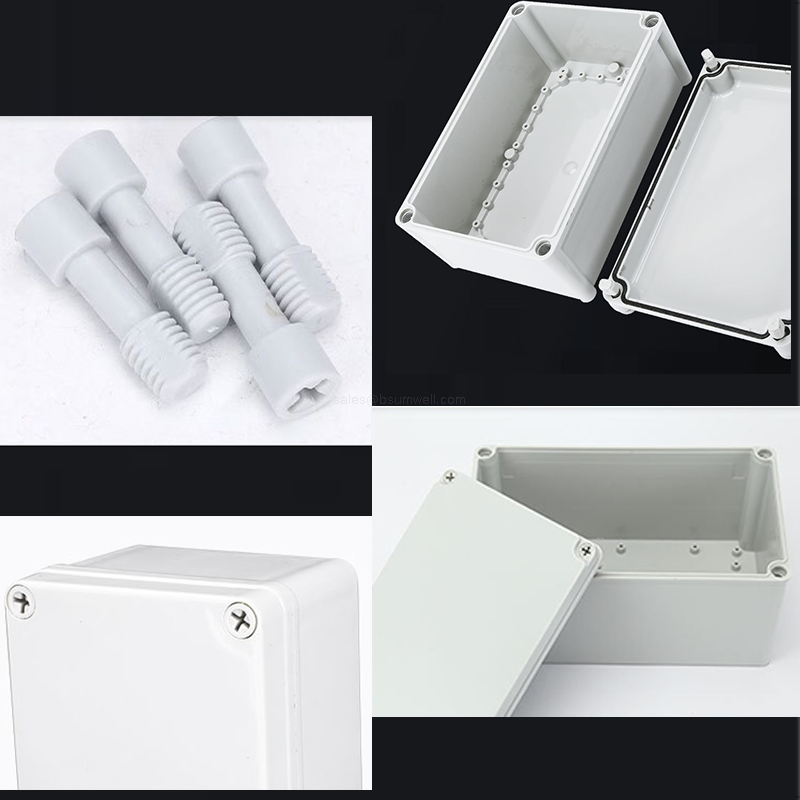

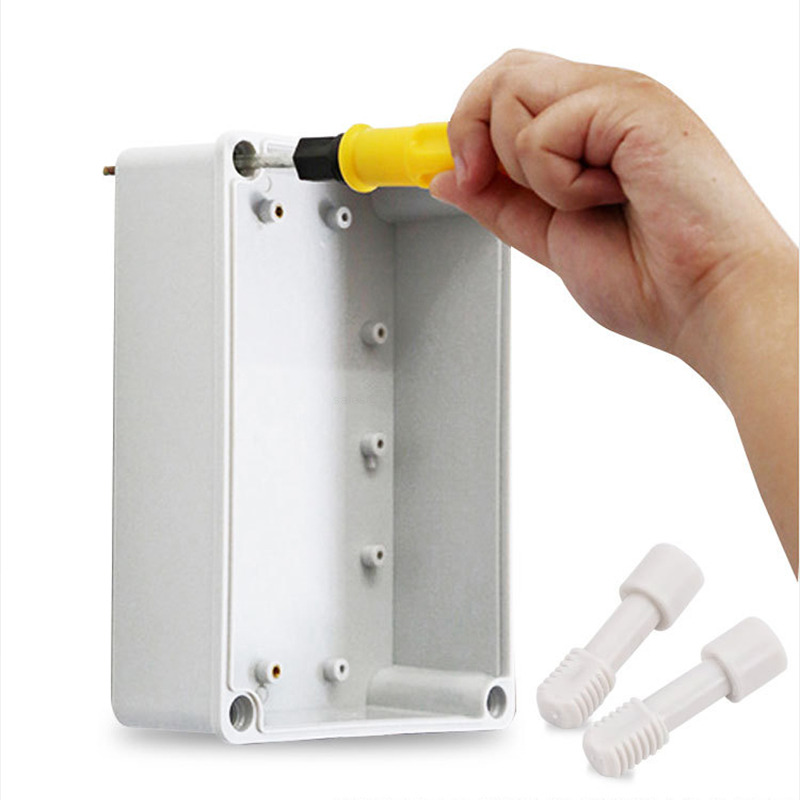

· User - Friendly Installation Features: Equipped with anti - falling plastic screws (4*25 self - tapping screws Through the base), which are rust - proof and easy to tighten with cross - head design, effectively preventing screw loss. Multiple internal mounting posts facilitate secure fixation of components like terminals and circuit boards. Supports both rail and base plate installation, with pre - threaded bottom holes for quick equipment assembly.
· Enhanced Safety & Durability: Flame - retardant (V0 grade) and insulation properties guarantee safe operation. The embedded installation design offers anti - rust and efficient heat dissipation, extending the service life in long - term use.
Customization and Specifications

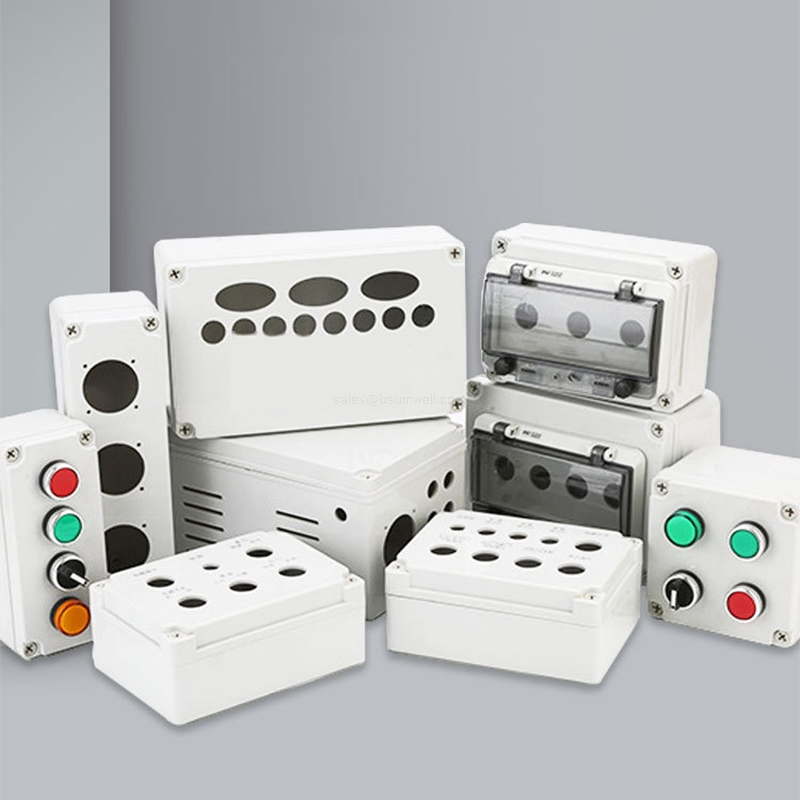

· Customization Options: Supports CNC precision drilling and laser engraving (available for gray covers) to meet specific component installation needs. Customizable hole positions and sizes are offered based on customer drawings or requirements.
· Key Specifications:
· Material: New ABS (gray cover); flame - retardant PC (transparent cover)
· Protection Rating: IP67

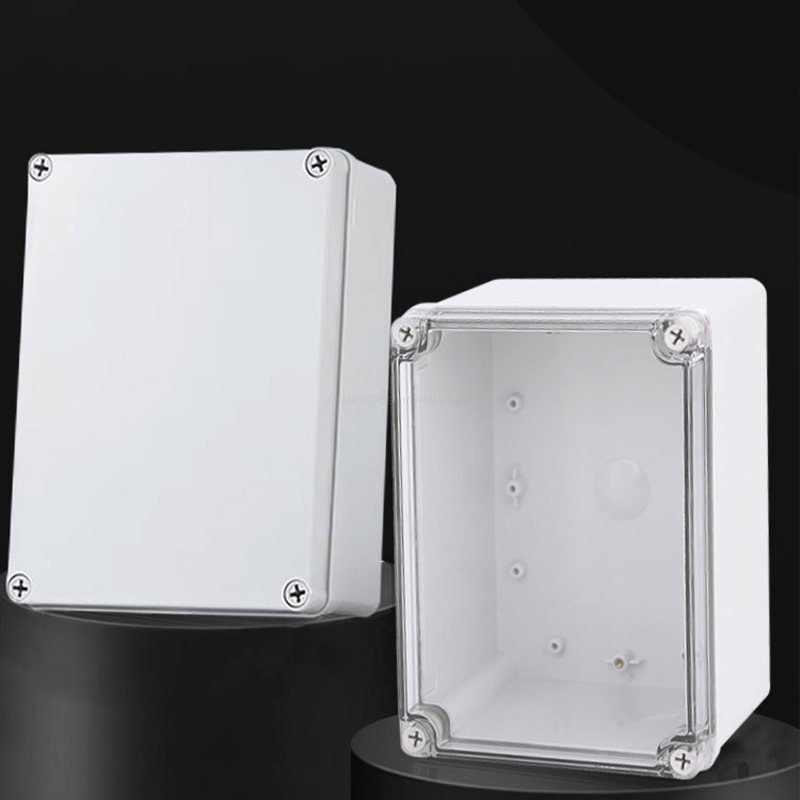

· Colors: Gray cover / transparent cover
· Installation Methods: Rail - mounted, base plate - mounted

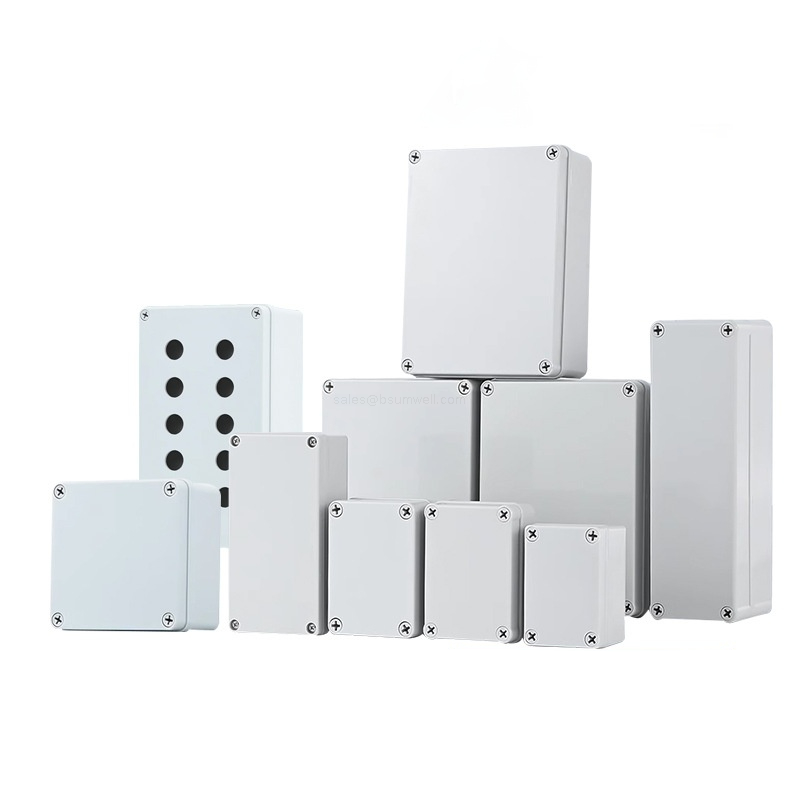

· Dimensions: Multiple specifications available (detailed parameters on request)
· Accessories: Equipped with anti - falling plastic screws; compatible with standard electrical components.
Wide Application Scenarios
· Industrial & Manufacturing: Ideal for control systems in factories, assembly lines, and machinery, protecting buttons and electrical components from oil, dust, and water.
· Infrastructure & Utilities: Widely used in power plants, water conservancy projects, and railway facilities for outdoor button control of pumps, valves, and monitoring devices.
· Commercial & Public Areas: Suitable for airports, docks, and construction sites, serving as weatherproof control boxes for lighting, security, and ventilation systems.
· Agricultural & Environmental: Applied in agricultural irrigation systems, chemical storage areas, and environmental monitoring stations, resisting corrosion from fertilizers, chemicals, and moisture.
FAQs
1. Q: What is the difference between IP66 and IP67 ratings for this control box?
A: The product meets IP67, which offers higher protection than IP66. IP67 ensures complete dust tightness and temporary immersion resistance (up to 1m for 30 minutes), while IP66 protects against powerful water jets.
2. Q: How long does the customization process take for drilling and engraving?
A: Typically 3 - 5 working days for standard customization. Complex designs may take 7 - 10 days, depending on the complexity of hole patterns or engraving content.
3. Q: Can the transparent cover model be laser engraved like the gray one?
A: No, laser engraving is only available for gray covers. The transparent PC cover is not suitable for laser processing to maintain its clarity.
4. Q: Are the internal mounting posts adjustable in position?
A: The mounting posts are fixed in position but support customized drilling to match specific component layouts, ensuring flexible fixation of various devices.

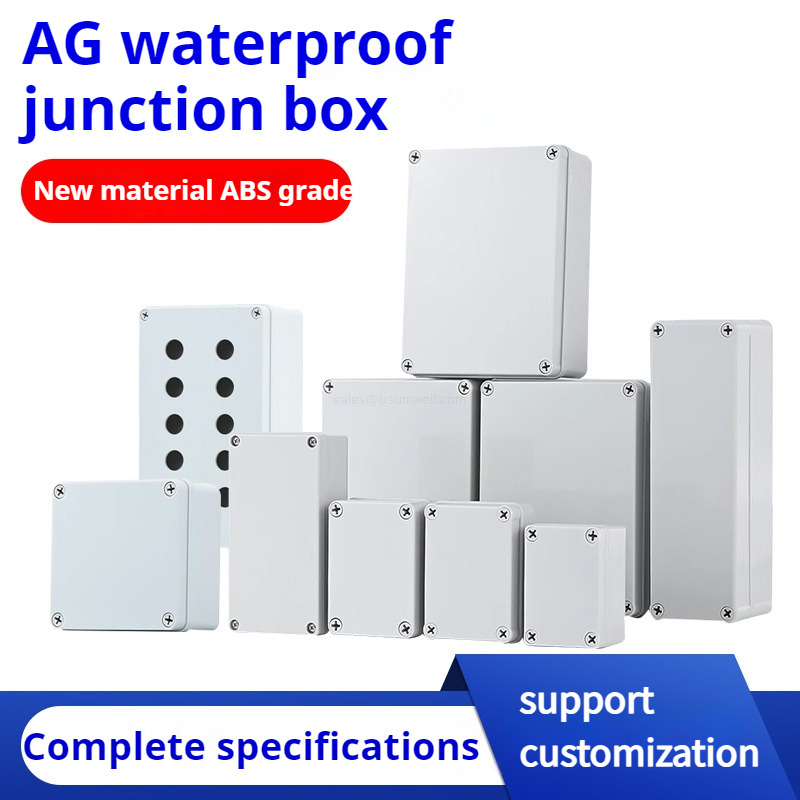

![AG Type New Material ABS Outdoor Waterproof Junction Box Indoor Monitoring Power Button Control Box Supporting Hole Opening]( "AG Type New Material ABS Outdoor Waterproof Junction Box Indoor Monitoring Power Button Control Box Supporting Hole Opening")

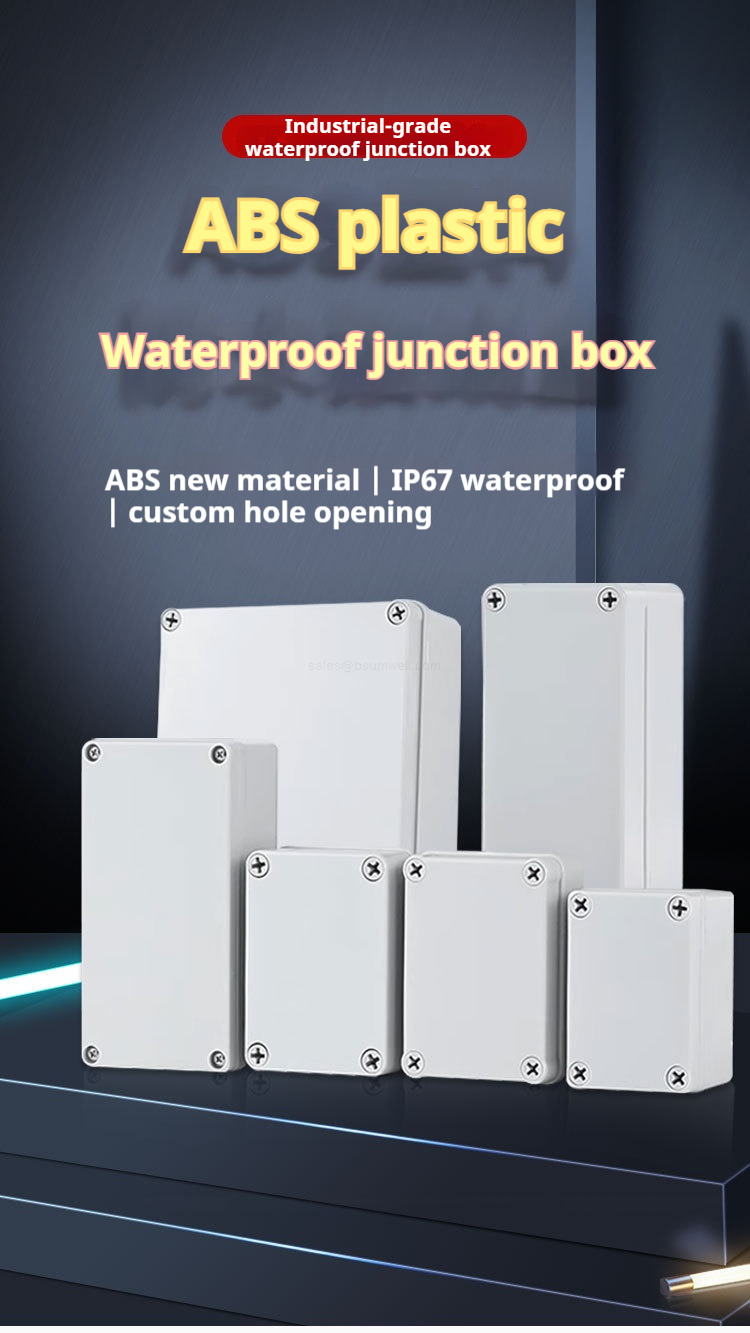

![Supporting Hole Opening Gray Cover/Transparent Cover]( "Supporting Hole Opening Gray Cover/Transparent Cover")
![Fire-Retardant & Flame-Resistant Anti-Corrosion & Rust-Proof Waterproof & Dustproof High-Quality Material Strong Pressure Resistance Professional Customization Flexible Hole Opening Complete Specifications Safe Protection]( "Fire-Retardant & Flame-Resistant Anti-Corrosion & Rust-Proof Waterproof & Dustproof High-Quality Material Strong Pressure Resistance Professional Customization Flexible Hole Opening Complete Specifications Safe Protection")

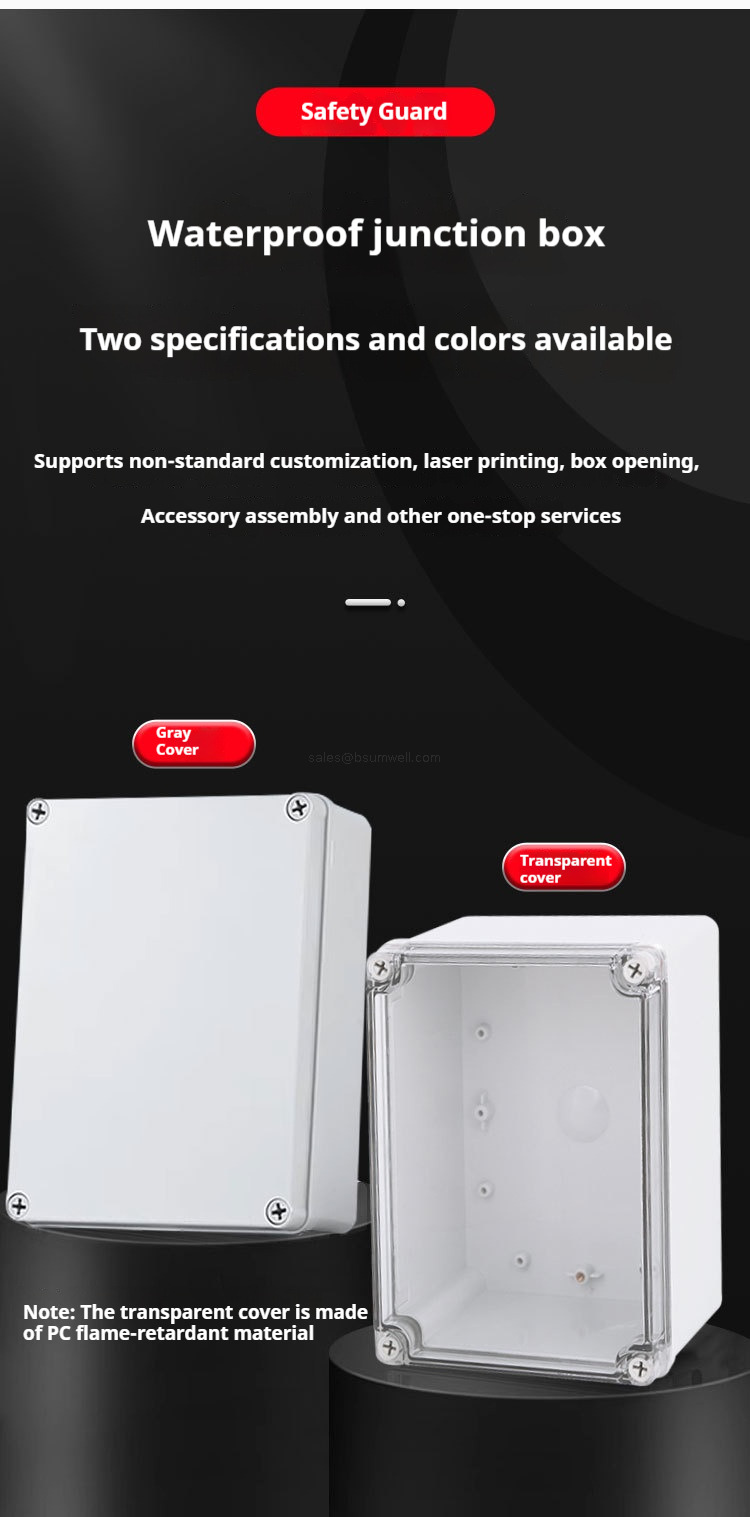

![Two specifications and colors available for the waterproof junction box Supporting one-stop services such as non-standard customization, laser printing, box hole opening, and accessory assembly Note: The transparent cover is made of PC flame-retardant material]( "Two specifications and colors available for the waterproof junction box Supporting one-stop services such as non-standard customization, laser printing, box hole opening, and accessory assembly Note: The transparent cover is made of PC flame-retardant material")

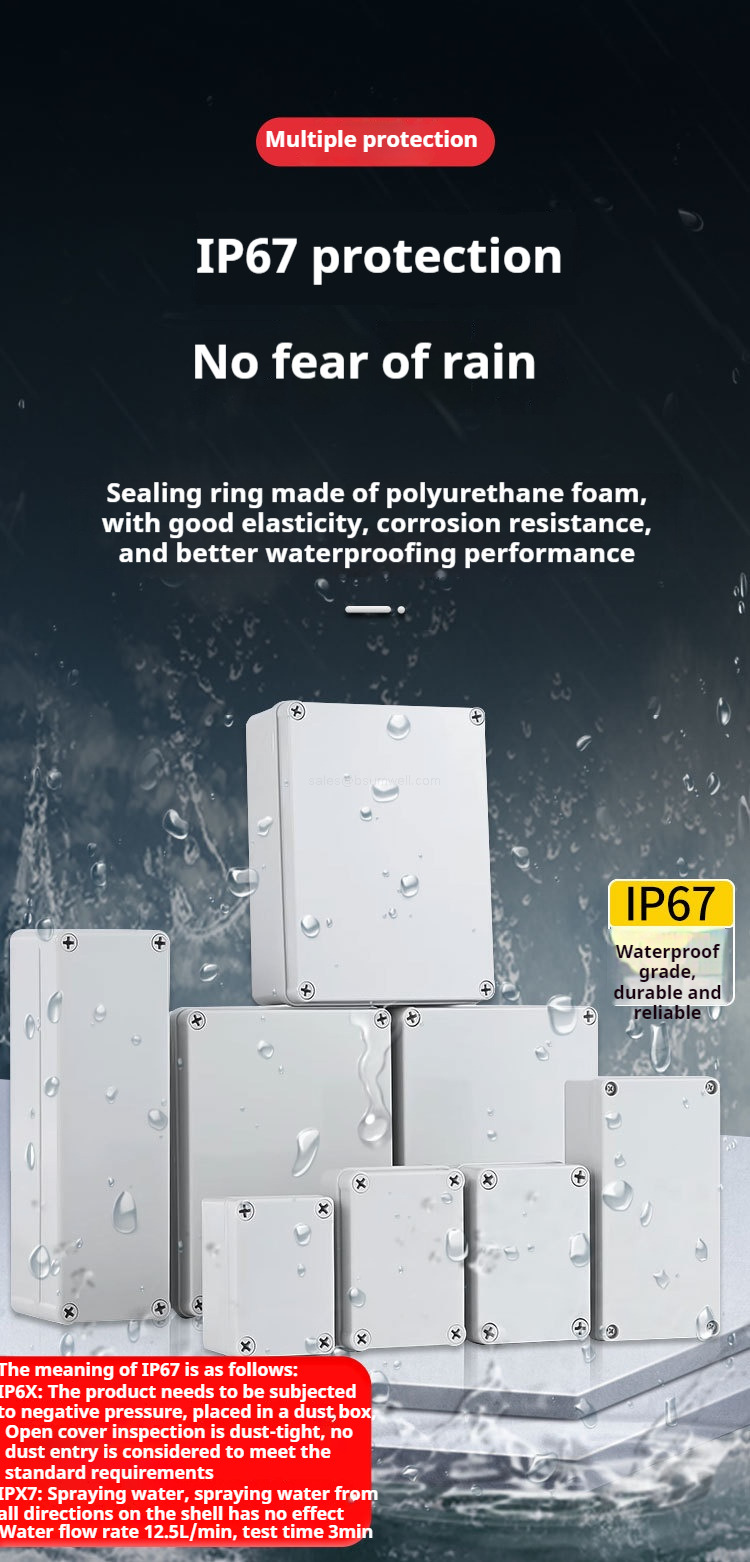

![Multiple Protections IP67 protection, unaffected by rain Adopting polyurethane foam-formed sealing rings with good elasticity and corrosion resistance, achieving better waterproof effect]( "Multiple Protections IP67 protection, unaffected by rain Adopting polyurethane foam-formed sealing rings with good elasticity and corrosion resistance, achieving better waterproof effect")
![Long Service Life ABS engineering plastic: pressure-resistant and impact-resistant Made of qualified ABS new material, with guaranteed quality, waterproof and dustproof]( "Long Service Life ABS engineering plastic: pressure-resistant and impact-resistant Made of qualified ABS new material, with guaranteed quality, waterproof and dustproof")

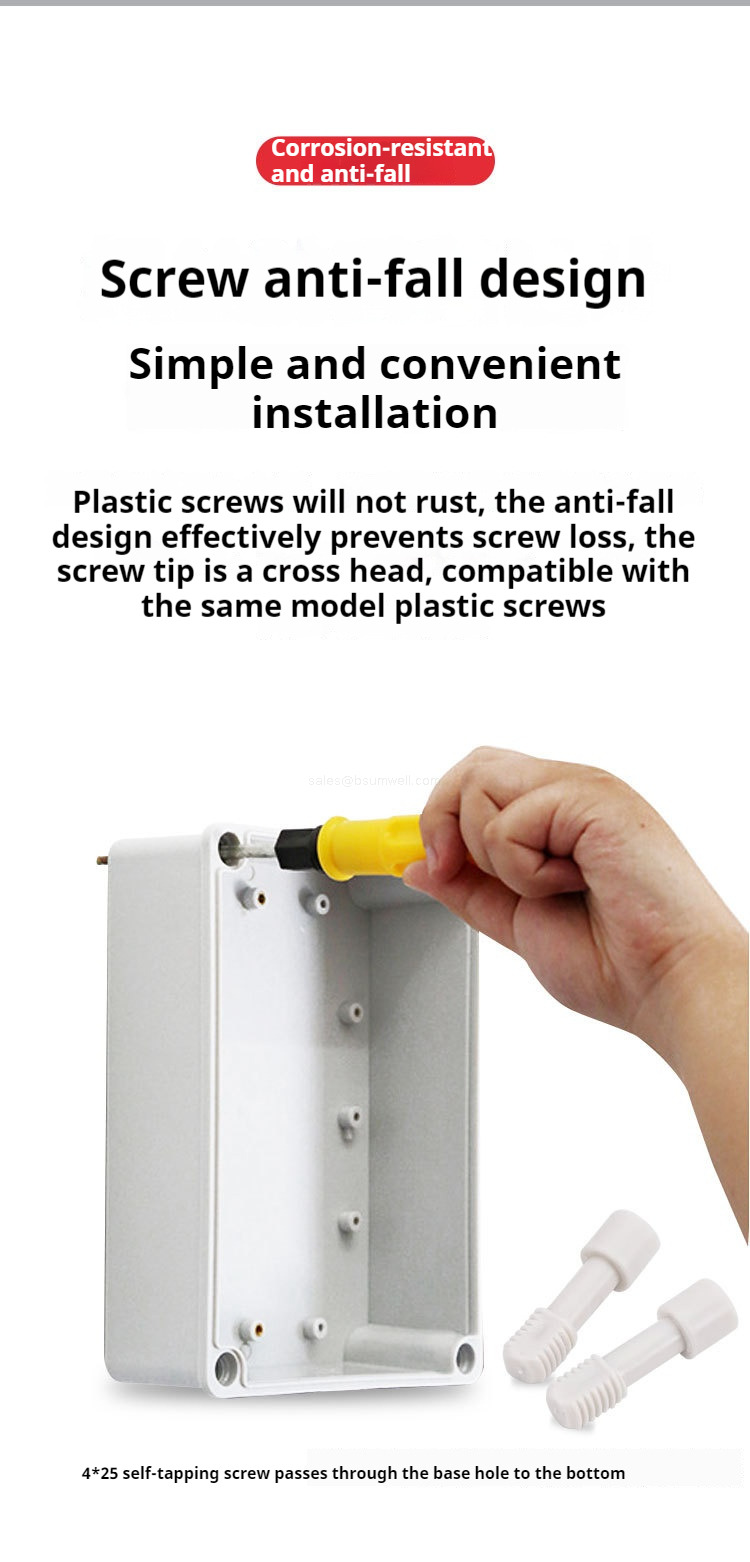

![Anti-Corrosion & Anti-Loosening Screw anti-loosening design for easy installation Plastic screws are rust-proof; the anti-loosening design effectively prevents screw loss. The screw ends are cross-headed, compatible with plastic screws of the same model.]( "Anti-Corrosion & Anti-Loosening Screw anti-loosening design for easy installation Plastic screws are rust-proof; the anti-loosening design effectively prevents screw loss. The screw ends are cross-headed, compatible with plastic screws of the same model.")

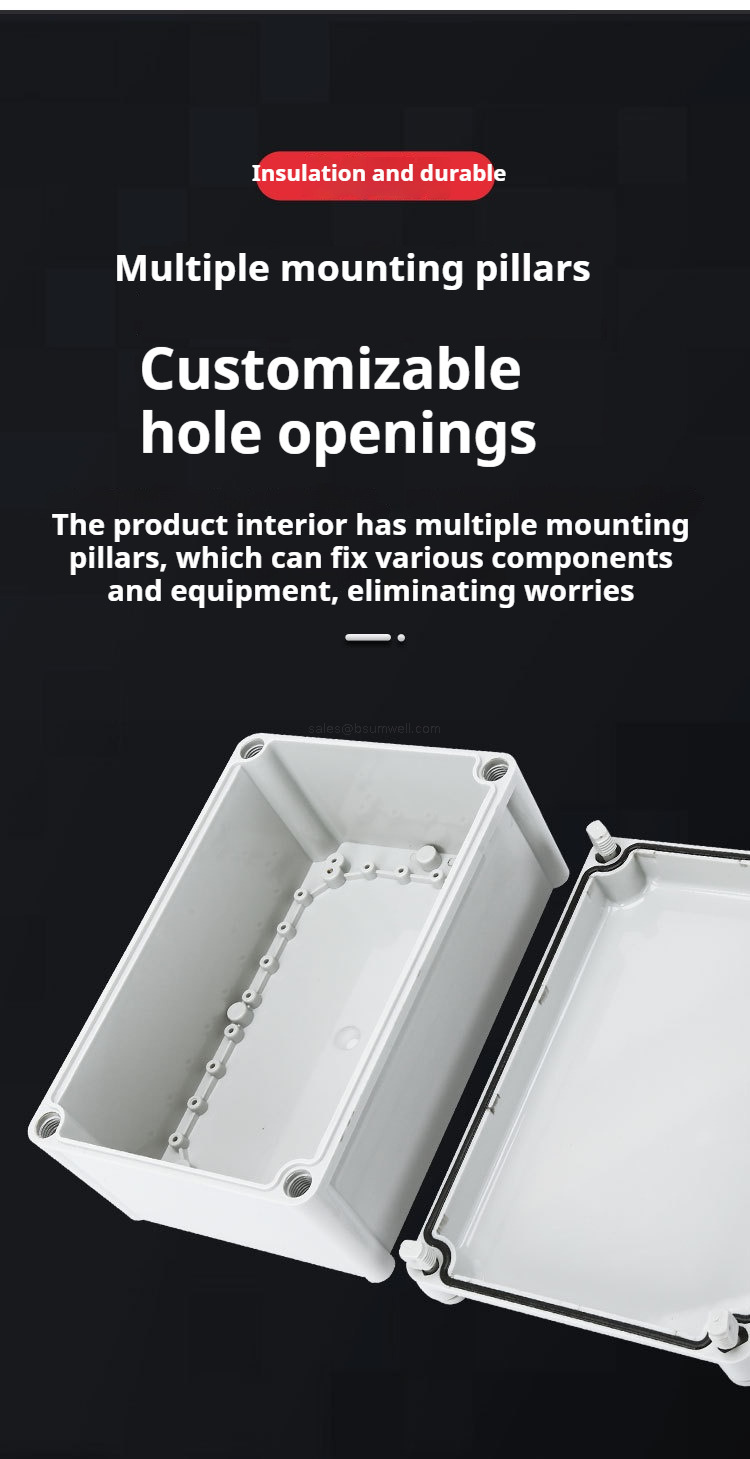

![Insulating & Durable Multiple mounting posts with customizable hole opening The product is equipped with multiple internal mounting posts to fix various components, eliminating troubles in equipment fixation Non-Standard Customization]( "Insulating & Durable Multiple mounting posts with customizable hole opening The product is equipped with multiple internal mounting posts to fix various components, eliminating troubles in equipment fixation Non-Standard Customization")
