IP68 Waterproof Junction Box Outdoor 3 Way T Type PA66 Nylon Electrical Cable Connector Sleeve External Splice Enclosure

Premium PA66 Nylon Compound with Certified Multi-Standard Compliance

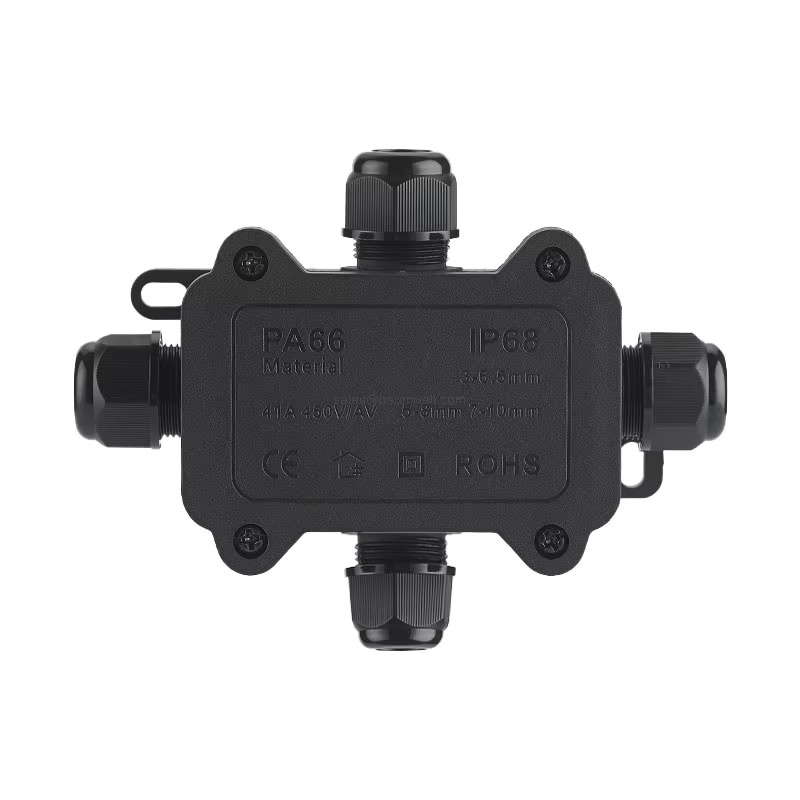

Engineered for highly critical commercial and industrial power distribution, this heavy-duty 3-way T-type junction box is molded from high-density PA66 nylon. This specialized material exhibits superior mechanical strength, long-term UV resistance, and rugged stability under harsh environmental shifts. The enclosure body is stamped with international regulatory compliance marks including CE, RoHS, and dual-insulation safeguards, ensuring it meets strict commercial fire-retardant and material safety benchmarks for high-voltage exterior deployments.

Certified IP68 Submersible Hermetic Protection

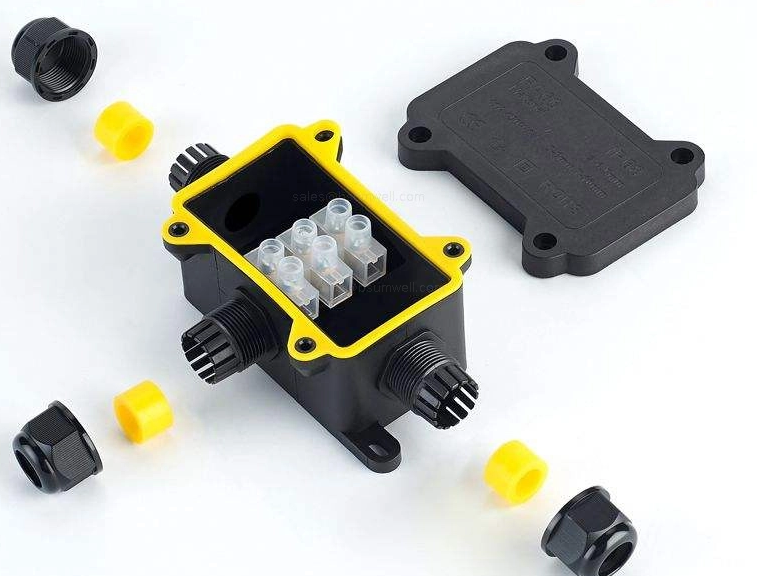

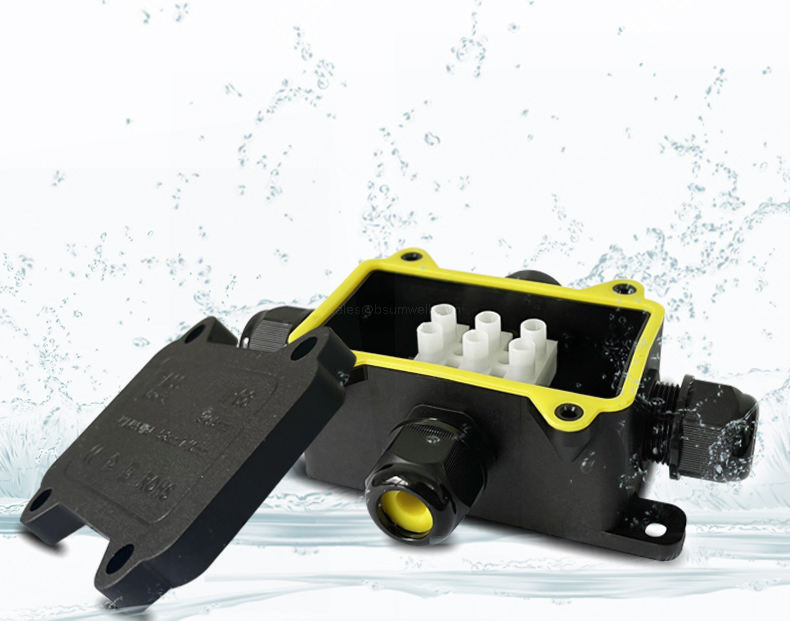

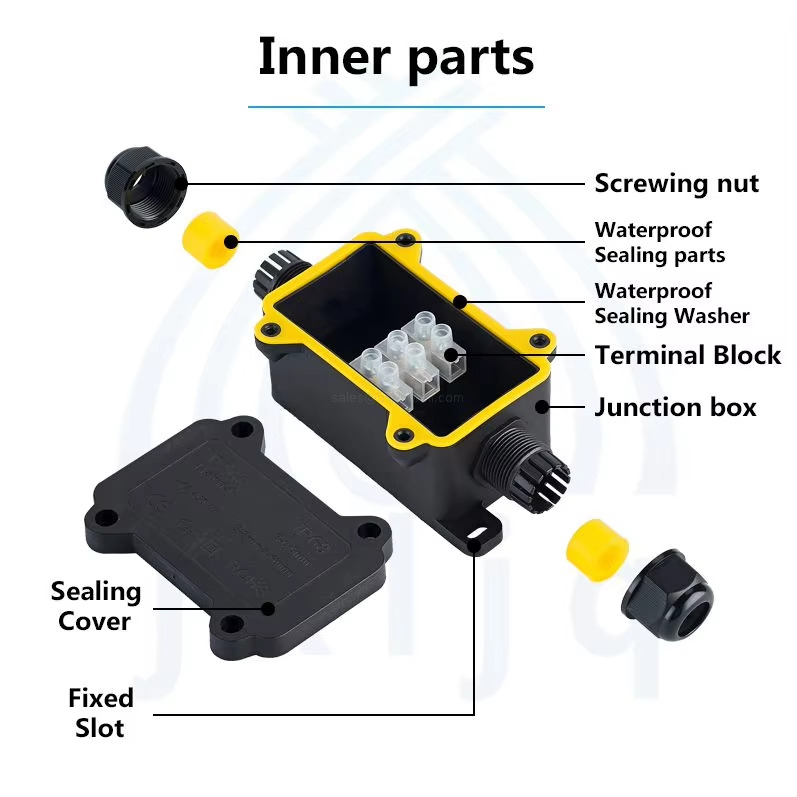

Specifically engineered to perform reliably under continuous fluid exposure, this electrical project case features an official IP68 waterproof rating. The internal perimeter uses an integrated high-visibility yellow silicone sealing gasket track that works in tandem with modular compression nuts and internal rubber sizing sleeves. This ensures a completely airtight, watertight hermetic seal capable of resisting deep moisture ingress. It provides reliable short-term submersion protection and a dustproof barrier against direct underground burial, monsoon rains, and rising groundwater.

Heavy-Duty Electrical Capacity and Integrated Terminal Block

Designed to handle intense electrical configurations without structural degradation, this connector provides robust operational specifications:

• High-Current Architecture: Rated for up to 41A and 450V AC/DC, making it highly reliable for high-power industrial lines, powerful exterior lighting, and sub-surface fountain pumps.

• Integrated 3-Pole Terminal Block: Internal cavity houses a pre-fitted, solid screw-clamping terminal strip that provides excellent electrical conductivity and vibration-resistant wire termination.

• Variable Cable Entry Sleeves: Equipped with interchangeable inner rubber rings to tightly seal around standard outdoor cable outer diameters ranging seamlessly from 5–8mm, 9–12mm, or 10–14mm.

Efficient Surface-Mount Layout with Reusable Mechanical Hardware

Unlike chemical-filled resin or one-time heat-shrink wire connections, this mechanical junction box features a fully reusable, modular engineering footprint. The enclosure base features built-in external mounting flanges with pre-drilled eyelets, allowing field technicians to screw-anchor the splice assembly securely onto flat concrete walls, exterior wooden structures, or sub-grade panels. The top service plate is fastened with four anti-corrosive steel machine screws, enabling fast inspection, routine multi-meter testing, or complete system rewiring without having to destroy the outer casing.

Frequently Asked Questions (FAQ)

Q1: Can this IP68 junction box be safely buried directly underground or submerged in a pond?

A: Yes, this T-type junction box is specifically rated for IP68 ingress protection, meaning it is engineered to be dust-tight and completely protected against continuous immersion in water. It is ideal for direct burial underground or submersion in outdoor ponds and fountains. For proper performance, ensure the cable gland sizes match your outer wire jacket diameters and that all structural casing screws are torqued down securely to maintain the yellow silicone seal interface.

Q2: What are the voltage and amperage limits for this electrical splice sleeve?

A: This robust inline splice enclosure is built for high-capacity workflows, safely carrying a maximum current capacity of up to 41A and an operating voltage threshold of up to 450V AC or DC. This makes it suitable for residential landscape lighting arrays as well as heavy-duty industrial exterior power distribution cables, sub-surface pumps, and solar panel collection grids.

Q3: How do the different cable diameters work with the included compression nuts?

A: The unit uses modular cable entry ports designed with interchangeable inner rubber sealing sleeves. The housing supports various wire specifications, adapting cleanly to handle wire outer diameters across popular categories including 5–8mm, 9–12mm, and 10–14mm. When you tighten the external dome nut, it compresses the inner rubber sleeve evenly around the wire jacket to lock out moisture and secure the line against tension.

Q4: Is the internal terminal block included, and can it be removed for custom wiring?

A: Yes, a heavy-duty 3-pole screw terminal block comes pre-fitted inside the internal chamber of the box. This allows for quick line, neutral, and ground splicing right out of the box. If your project utilizes specialized inline wire levers or custom terminal configurations, the internal terminal block can be unscrewed and removed to provide an empty, spacious weatherproof enclosure.
