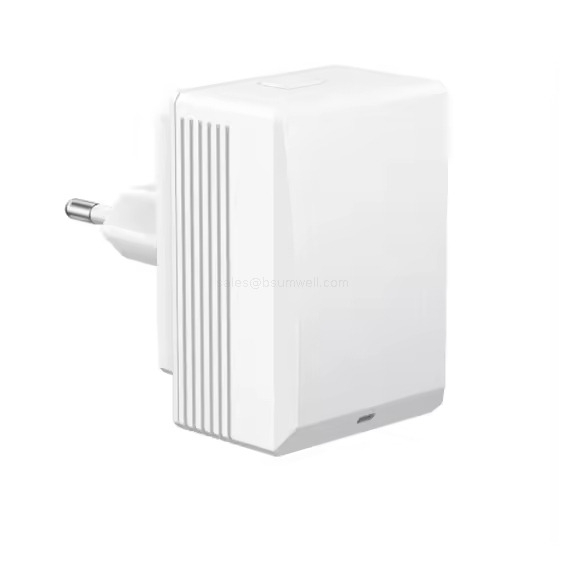

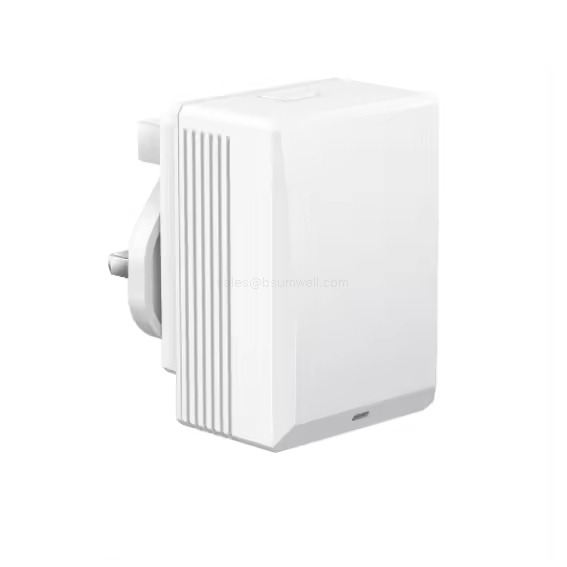

Mini Smart IoT Gateway BLE WiFi Dual Mode 130m Scanning Indoor Positioning Solution Multi Plug Type OTA Upgrade

Model:
BLE WiFi IoT Gateway
Brand:
Bsumwell
Price:
$19 - $28

SKU:
Availability:

Quantity:



Compact dual-mode IoT gateway with BLE WiFi supports indoor positioning industrial monitoring and asset tracking 130m scanning range 150 times/s rate multi-plug design OTA upgrade and customization for global use
Inquire Add to Basket

Chipset

ESP32

Application

indoor positioning solution

Place of Origin

Shenzhen,China

Model Number

PS-mini

Brand Name

BSUMWELL

Supplier Type

Original

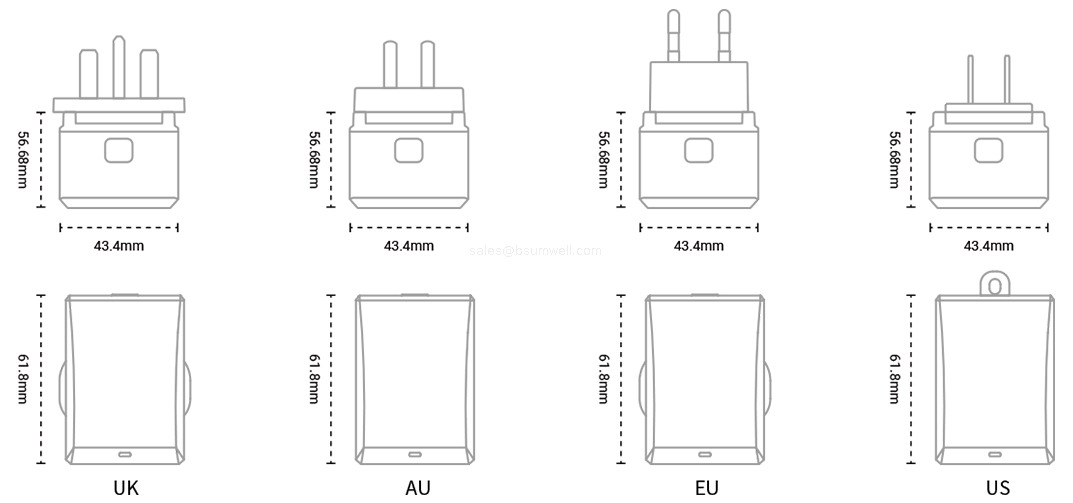

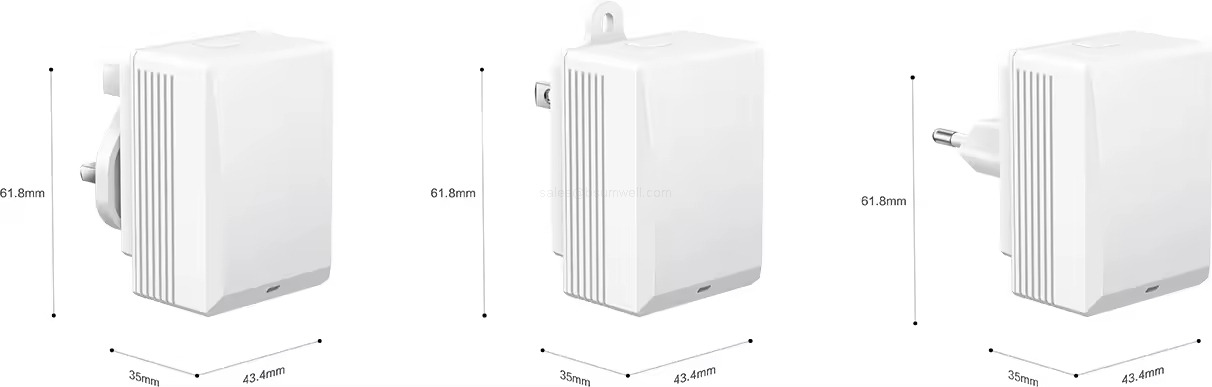

Dimensions

62mm*43.5mm*35.2mm

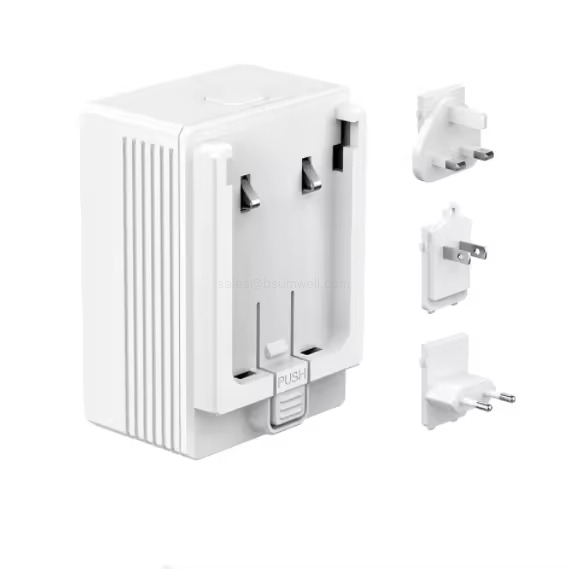

Plug Type

US/EU/UK/FR

Wireless technology

BLE&WIFI

Input Voltage

90V-240VAC

Frequence band

2.4GHz-2.5Ghz(2400MHz-2483.5MHz)

WIFI protocol

802.11b/g/n

Max scanning distance

130m(Open and no shielding space)

Bluetooth standard

Bluetooth V4.2

Bluetooth scanning rate

150 times/s(Quantity of broadcast frames scanned per second

1. Overview

This compact dual-mode smart IoT gateway integrates BLE and WiFi communication functions, built on the ESP32 chip. It enables efficient relay transmission of Beacon data to cloud servers, supporting a 130m long-distance scanning range and 150 times/second high-speed data collection. With multi-standard plug compatibility, it is widely used in indoor positioning, equipment monitoring, asset tracking and other scenarios, featuring easy deployment, high security and customizable options.

2. Core Advantages

Dual-Mode Communication: BLE V4.2 is compatible with various BLE tags such as iBeacon and Eddystone. WiFi supports 2.4GHz frequency band for stable and efficient data transmission.
Superior Performance: 130m scanning coverage in open areas and 150 times/second high-speed data collection ensure real-time data acquisition.

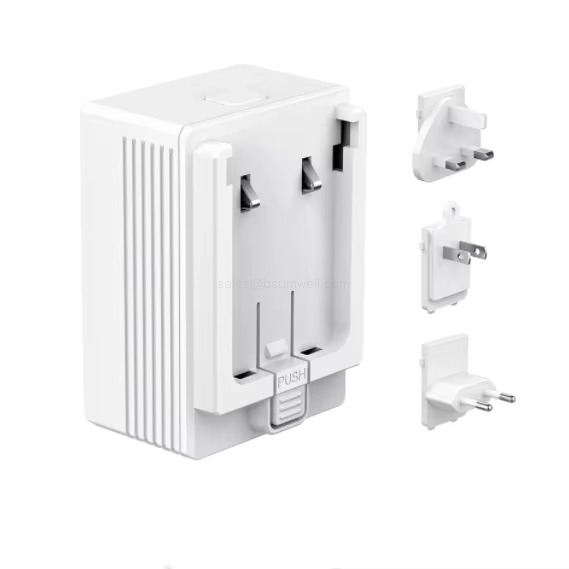

Global Compatibility: Multi-spec plugs (US/EU/UK/FR, etc.) plus wide voltage input (90V-240VAC) meet the needs of global markets.

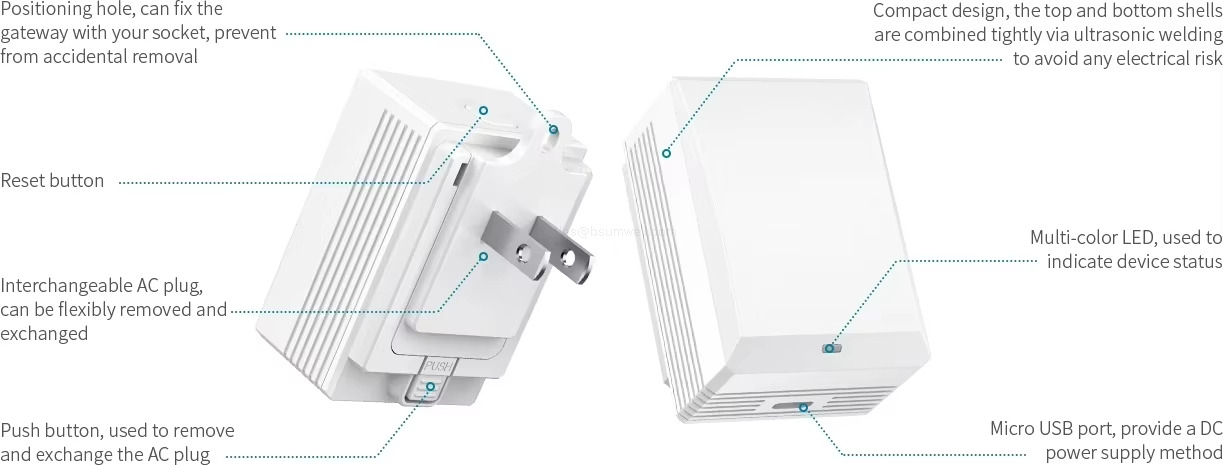

Safe and Reliable: TLS V1.2 encrypted transmission and ultrasonic welded shell eliminate electrical risks.
Flexible Customization: Supports firmware, APP, packaging and logo customization. Provides SDK and schematic diagrams to facilitate secondary development.

3. Typical Application Scenarios

Indoor Positioning: Precise navigation and location services in large buildings like shopping malls, hospitals and parking lots.
Industrial Monitoring: Real-time monitoring of equipment operating status, asset tracking and management.
Environmental Monitoring: Collection and upload of indoor temperature, humidity and air quality data.

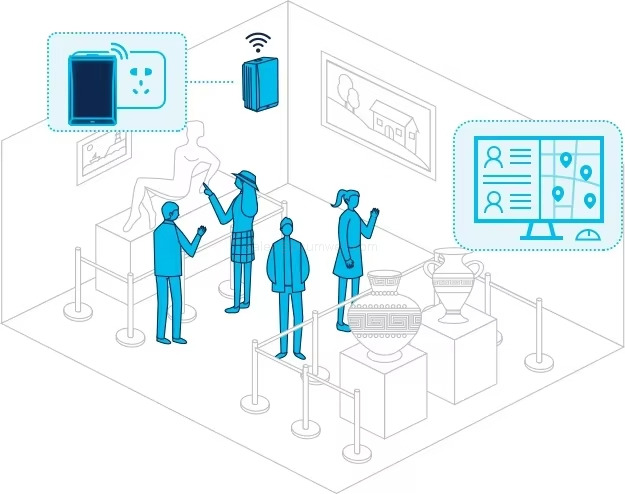

Proximity Marketing: Targeted information push in scenarios such as museums and exhibitions.

4. Frequently Asked Questions (Q&A)

Q: What communication protocols does the gateway support?

A: It supports MQTT V3.1.1 protocol and TLS V1.2 transport layer encryption, compatible with mainstream cloud platforms for secure data transmission.

Q: How is the gateway powered and what plug types are available?

A: It supports 90V-240VAC AC power supply and 5V Micro USB DC power supply, with US, EU, UK, FR and other global universal plug types.

Q: Can the gateway be customized for secondary development?

A: Yes, it provides iOS and Android SDK, schematic diagrams, and supports firmware customization to meet personalized development needs.

Q: What is the operating environment range of the gateway?

A: It operates in temperatures ranging from 0℃ to 40℃ and humidity from 0% to 95% (no condensation), suitable for most indoor and partial outdoor scenarios.

Q: Does the gateway support OTA firmware upgrade?

A: Yes, it supports OTA firmware upgrade, allowing you to update the device system and functions without disassembling it.
