Outdoor Waterproof Electrical Enclosures Selection Guide – Material, Protection Rating, and Compliance Standards Interpretation

This article was written by the BSUMWELL technical team. We are a source factory specializing in outdoor waterproof electrical enclosures. Our products cover waterproof junction boxes, distribution boxes, and indoor and outdoor sockets made of materials such as ABS/PC, stainless steel, and cast aluminum, with full IP65/IP67/IP68 coverage.

Why can't general tutorials guide industrial-grade procurement decisions?

If you are an electrical wholesaler or engineering procurement officer, what do you see when you search online for "how to choose a waterproof junction box"?

It's most likely a home improvement website like The Spruce, Bob Vila, or Family Handyman. Clicking through, the content is well-written, and the steps are clear, but something just feels off.

The problem is that these tutorials are written for homeowners, not for industry buyers.

Homeowners are concerned with "whether this box can be used today after it's installed," while you're concerned with "whether this box can withstand 10 years of wind and rain outdoors without problems, whether it can pass inspection, and whether the supplier can reliably supply it." These two dimensions are completely different.

Home Improvement Tutorials vs. Industrial-Grade Procurement – ​​A Comparison of Key Considerations:

what does that mean?

This means that over 80% of the free content available on the market is practically useless for your purchasing decisions. It doesn't mention UL certification, NEMA ratings, UV resistance, or material certifications—because these aren't things homeowners need to care about. And these are precisely the issues that wholesalers and contractors face every day.

As the original manufacturer, our product logic has been designed from the very beginning around industrial-grade lifespan—5-year warranty, design life of more than 10 years—rather than "good enough".

When serving wholesale clients, we often encounter this scenario: a contractor working on a photovoltaic project needs a batch of combiner box housings, requiring IP66, UV resistance, and UL94 V-0 flame retardancy. He had previously searched online for a lot of "guides," but ultimately had to contact the factory directly—because those tutorials didn't contain the certification information and technical parameters he needed.

Our clients include those who manufacture photovoltaic combiner boxes, those who make waterproof sockets for charging piles, and those who make outdoor communication cabinets—these are not areas that home improvement tutorials can cover.

Therefore, this guide is specifically written for industry buyers. We don't teach you "how to tighten screws," we help you figure out what materials to choose, what parameters to look at, and what certifications to recognize.

Material Decisions – B2B Selection Logic for Plastic vs. Metal

The first question when choosing a casing is usually: plastic or metal?

There's no single right answer to this question—it's more about "which project is better suited to you." Below, we'll use a simple decision-making logic to help you quickly pinpoint the direction.

Selection Decision Tree – 4 Steps to Determine Material Direction

Ask yourself these four questions in order, and the answers will naturally emerge:

• Step 1: Is the installation environment coastal, with high humidity, or containing corrosive gases?

• ✅ Yes → Skip to the next section and go directly to the next one. Stainless steel (304 or 316) Or UV-resistant engineering plastics

• ❌ No → Proceed to Step 2

• Step 2: Is it in a location exposed to direct sunlight outdoors?

• ✅ Yes → must UV-resistant plastic or stainless steel

• ❌ No → Standard ABS plastic or cast aluminum are both acceptable

• Step 3: Is there a high risk of impact (industrial vehicles passing by, or objects falling from heights)?

• ✅ Yes → Select Metal (Cast Aluminum/Stainless Steel) or High impact resistant PC

• ❌ No → Standard materials are sufficient

• Step 4: Is it necessary to frequently open the cover for maintenance (e.g., to open it for inspection every month)?

• ✅ Yes → plastic Lighter and easier to operate with one hand

• ❌ No → Metal More durable, more cost-effective in the long run

Simply put:

• Coastal/Chemical Environment → Stainless steel

• Direct sunlight outdoors → UV-resistant plastic or stainless steel

• High impact risk → Metal

• Frequent opening of the lid → plastic

Our Product Line It covers three major material series: UV-resistant and flame-retardant engineering plastics, 304 stainless steel, and cast aluminum. Wholesalers can flexibly combine and purchase according to different project needs—there is no need to change suppliers for a small project; one factory can provide all material options.

UV resistance to aging – a key indicator for coastal/high-altitude scenarios

The biggest enemy of plastic shells outdoors is not rain, but the sun.

Ultraviolet (UV) radiation causes ordinary plastics to slowly degrade — first, the surface discolors (turns yellow or white), then tiny cracks appear, and finally the entire surface crumbles and breaks easily. The UV resistance of different materials varies greatly.

• Standard ABS: Under direct sunlight outdoors, it will begin to change color and develop a chalky surface within 1-2 years.

• UV-resistant engineering plastics: It can extend the aging time to 5-8 years.

• 304 stainless steel: Zero maintenance costs and a service life of over 20 years — although expensive, it's a mandatory option for coastal projects.

Coastal high-salt fog environment + strong UV = double blow. Salt spray accelerates the chemical degradation of plastics, and UV rays damage the surface structure of materials. Combined, ordinary ABS may develop problems within a year. This is why more and more tender documents for engineering projects in coastal areas directly specify "stainless steel shell material" or "UV-resistant engineering plastics".

Our UV-resistant engineering plastics series is designed for outdoor direct sunlight environments; our 304 stainless steel series is designed for coastal environments with high salt spray. Buyers can flexibly select the appropriate options based on their project budget and environmental requirements.

Although the specific aging rate varies depending on the usage environment, UV-resistant materials typically have a lifespan 3-5 times longer than standard ABS in direct outdoor sunlight.

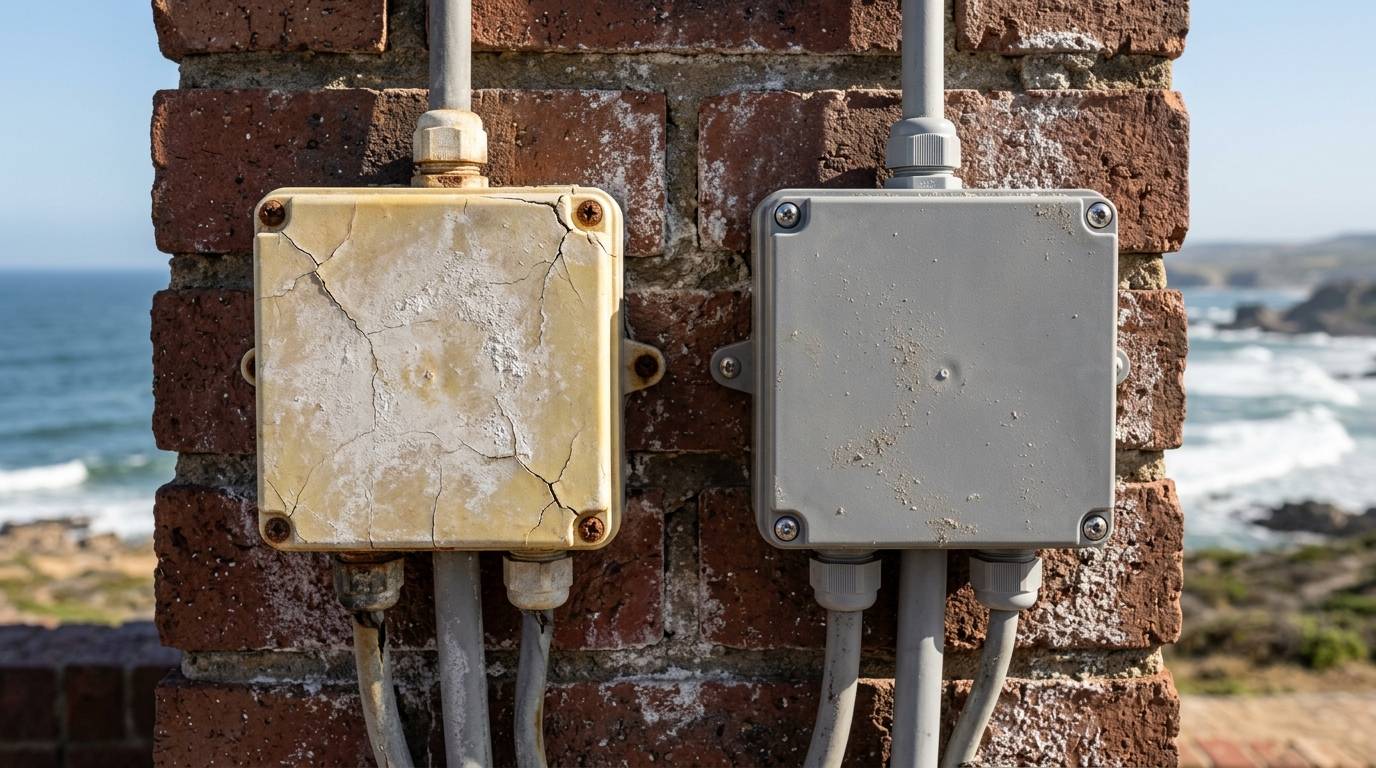

(Real case photos of coastal projects: Comparison of UV-resistant products vs. ordinary ABS products after 2 years of installation)

UL94 V-0 flame retardant rating – a mandatory threshold for electrical enclosures

What does UL94 V-0 mean?

Simply put: when the material is lit vertically, it will automatically extinguish within 10 seconds, and no burning droplets will fall during the burning process (this is very important - burning droplets may ignite other materials below).

This is not a "bonus point," it's the bottom line for safety.

The NEC (National Electrical Code) clearly stipulates that electrical enclosure materials must be flame-retardant. Non-V-0 materials can turn "a fault" into "a fire" in the event of a short circuit or overload.

For wholesalers, this issue is more practical:

If the casing of the products you sell isn't UL94 V-0 flame retardant, and an electrical accident occurs during the project, and the fire investigation finds that "the casing material contributed to the fire," your customer may face the risk of having their product liability insurance claim denied. They lose money, you lose that customer, and your reputation is ruined.

Our ABS and PC series plastic housing parts It has passed UL94 V-0 flame retardant certification. The certification certificate can be downloaded from the official website's information page. Click the chat window on the right to get the download link.

(Flame retardant test video:) Click to view the UL94 V-0 vertical burning test process. —The sample self-extinguishes within 10 seconds of ignition, with no burning droplets.

304 vs 316 Stainless Steel – Material Selection for Coastal/Chemical Projects

Stainless steel is not the same as "stainless steel".

304 stainless steel It is the most common type of industrial stainless steel, suitable for most general outdoor environments. It has sufficient corrosion resistance and the cost is relatively controllable.

316 stainless steel The addition of molybdenum (Mo) to the 304 stainless steel significantly enhances its resistance to chloride ion corrosion—simply put, it is more salt-resistant.

When is it necessary to go to 316?

• Coastal environment (within 5 kilometers of the coastline)

• The area around a chemical plant (where the air contains corrosive gases).

• Along roads where de-icing agents are used (salting in winter).

• Any scenario with high humidity and high salt spray

In coastal salt spray environments, the corrosion resistance life of 304 stainless steel is generally 5-10 years, while 316 stainless steel, due to the presence of molybdenum, has significantly enhanced resistance to chloride ion corrosion and a service life of more than 20 years.

Another easily overlooked point is the material of the installation accessories.

We've seen many cases where the box is made of 304 stainless steel, but the fixing screws are galvanized—and five years later, the box is intact, but the screws are rusted beyond recognition, and the entire device falls off the wall.

We offer 304 and 316 stainless steel. Stainless steel Two material options are available, and Material Certificates (MTCs) can be provided as required by the project. For coastal or chemical projects, we recommend prioritizing 316 stainless steel, and all fasteners must also be made of stainless steel.

Compliance Interpretation – Technical Parameters Buyers Must Understand

This section provides a quick overview of three compliance parameters you must understand before making a purchase.

• IP Level → Determine whether the box is waterproof. IP66 protects against strong water jets, while IP67 protects against short-term immersion. For wall mounting, IP66 is usually sufficient, but IP67 is recommended for low-lying areas or coastal typhoon zones.

• NEMA rating → A "passport" to the North American market. NEMA 4 ≈ IP66, NEMA 4X = IP66 + additional corrosion protection. North American tender documents often use NEMA; if you don't recognize it, you'll lose the project.

• UL certification → The "birth certificate" for the project. Without the UL mark, fire safety inspections will fail and insurance claims will be rejected. In the North American market, it's not a "can" requirement, but a "must".

If you're targeting the North American market, there are three parameters you can't avoid: IP, NEMA, and UL.

These three factors don't directly determine whether a product is "good" or "bad," but they directly determine whether a product "can be included in a project." Below, we'll use... SimplewayUnderstandWhat does each parameter mean, and what should wholesalers pay attention to?

Q: What's the difference between IP66 and IP67? Which one should I choose for wall mounting?

A：IP (Ingress Protection) rating is an internationally recognized protection rating standard.

• IP66: Resistant to high-pressure water jets (12.5mm nozzle, 100L/min flow rate), suitable for most outdoor wall mounting applications.

• IP67: Protects against short-term flooding (1 meter deep, 30 minutes), suitable for low-lying areas prone to flooding or coastal typhoon areas.

For wall mounting, IP66 is usually sufficient, but if the project is located in a low-lying area or an area prone to typhoons and rainstorms, IP67 is a safer choice.

The most common pitfalls that buyers fall into are: Choosing the wrong option increases procurement costs, while choosing the wrong option results in failure to pass acceptance.

Our product line covers three levels: IP65, IP66, and IP67, which can be flexibly selected according to project requirements.  Click here to contact our technical team and get free selection advice for your project.

Q: What is the NEMA rating? Why do North American projects recognize it?

A: NEMA (National Electrical Manufacturers Association) ratings are the most frequently cited enclosure standards in US engineering projects. In North American engineering project tender documents, you rarely see the term "IP66"—they directly write "NEMA 4" or "NEMA 4X". Without understanding NEMA ratings, you can't even understand the tender documents.

Quick comparison (approximate correspondence, not precise conversion):

NEMA and IP cannot be precisely converted – NEMA also covers more stringent requirements such as “anti-icing” and “anti-spraying from hoses”.

What does this mean for wholesalers?

If your client is an engineering contractor in the North American market, they will specify in their tender documents that "the enclosure must comply with NEMA 4X standards." If your product does not have the corresponding NEMA design and testing, you won't even be eligible to bid.

Our products are designed and tested to NEMA standards, and NEMA declarations of conformity can be provided upon request. If your customers require NEMA 4X rating in their tenders, our 304 stainless steel series is a direct match option.

North American project case studies:

A telecommunications operator in the Midwestern United States deployed an outdoor 5G communication base station in Illinois, with a power distribution junction box installed on the rooftop. Local winter temperatures can reach -25°C, and summers are characterized by intense sunlight. The tender required compliance with NEMA 4X standards. The project successfully passed acceptance testing, using stainless steel junction boxes with an IP66 protection rating and standard stainless steel mounting lugs.at presentIt has been running continuously for 14 months without any maintenance records.

Q: What is UL certification? Can't I sell my products without the UL mark?

A: UL (Underwriters Laboratories) is the most authoritative product safety certification organization in the US market.

The status of UL certification in the North American market: It's not a "suggestion," it's a "must have."

What are the risks of products without the UL mark?

• The project failed the fire safety inspection.—During fire safety inspections, directly check if there is a UL mark on the casing.

• Electrical safety inspection failed. The same principle applies during building inspections and insurance checks.

• Product liability insurance may refuse to pay.— After an accident, the insurance company discovered that a non-UL product was used and immediately refused to pay the claim.

What makes UL certification so valuable?

UL certification is not a "one-time exam." After obtaining the certificate, UL will conduct surprise inspections at the factory from time to time to confirm that the mass-produced products are consistent with the samples submitted for testing. This is the Follow-Up Service—meaning that products with the UL mark represent "consistent and stable quality," not just "the sample submitted for testing was well done."

Our products have passed UL 50E (enclosure standard) and UL 746C (polymer material standard) certifications. For certification certificates, please click the chat window on the right to contact our customer service.

(Note: UL 50E is a general safety standard for housings, while UL 746C is a specific safety standard for plastic materials—together, they represent "electrical safety of the housing itself" + "fire resistance/weather resistance safety of the material itself.")

Quick Selection Checklist – Find the Right Shell for Your Project in 3 Steps

3-Step Quick Selection:

1️⃣ Confirm the environmental conditions of the installation location (Is there rain protection? How far is it from the sea? Are there any corrosive gases?)

2️⃣ Find the corresponding recommended materials and IP ratings in the table below based on the environmental conditions.

3️⃣ For special requirements (NEMA 4X, etc.), please contact customer service to confirm the replacement plan.

Our product line covers all material and grade combinations listed in the table above—ABS, UV-resistant PC, cast aluminum, 304 stainless steel, 316 stainless steel; IP65, IP66, and IP67 are all covered.

Wall installation scenario × Material × Protection level selection matrix

How do I use this table?

• first step: Confirm the environmental conditions of the installation location.

• Step Two: Based on the environmental conditions, find the corresponding recommended materials and IP ratings in the table above.

• Step 3: If the project has specific requirements (such as specifying NEMA 4X instead of IP), contact customer service to confirm the alternative solution.

Our product line covers all material and grade combinations listed in the table above. Click to view our full product line。

For special scenarios not covered in the table, our products also support OEM customization.

Common mistakes in product selection (3 most common pitfalls)

• Pitfall 1: The coastal project selected ordinary ABS.
  Ordinary ABS ages, powders, and cracks within 1-2 years under direct sunlight and salt spray conditions. Coastal projects should choose either UV-resistant PC or stainless steel. Our UV-resistant engineering plastics series is specifically designed for outdoor direct sunlight scenarios, and its service life is typically 3-5 times that of standard ABS.

• Pitfall 2: Not distinguishing between IP66 and IP67
  I chose IP66 and installed it in a low-lying, flooded area. After a heavy rain, the box was submerged in water – water directly entered. IP66 is usually sufficient for wall mounting, but if the installation location is in a low-lying area or where typhoons and heavy rains are frequent, IP67 is a safer choice.

• Pitfall 3: Ignoring the material of the installation accessories
  This is the most easily overlooked aspect. The box is made of 304 stainless steel, but the fixing screws are galvanized carbon steel—five years later, the box remains intact, but the screws rust and break, causing the entire device to fall off the wall. Our products come standard with stainless steel mounting ears and fasteners, avoiding the embarrassing situation of "the box isn't damaged, but the screws rust first." Please be sure to confirm the material of all accessories when purchasing.

For assistance with specific project selection, please contact our technical team for professional advice.

Technical Information and Next Steps

By now, you should understand:

• The fundamental differences between industrial-grade sourcing and home improvement guidelines

• Plastic vs. Metal Selection Logic

• The practical significance of the three compliance parameters: IP, NEMA, and UL.

• Recommendations for materials and protection levels for different scenarios

Here are the things you can do next.

Technical Data Download

If you require other technical information, please contact us. Feel free to contact us anytime.

Get selection support

If you are working on a specific project and need targeted selection advice, please provide us with the following information:

• Installation environment (outdoor wall/coastal/chemical plant/industrial park/other)

• Protection rating requirements (IP66/IP67/NEMA rating – if unsure, please tell us the project type and location).

• Estimated quantity

• OEM customization is required (if so, please specify your customization requirements: color/silk screen printing/hole opening/size, etc.)

Submission method:

Unsure which level to choose? Our product line Highest cover IP68. The grade can be flexibly selected according to project requirements. Click here to submit basic project information. Our business team will recommend the most suitable solution for you within one business day — free, unobtrusive, and without sales pitches.  Click to get free selection advice

(Next article preview: Completed technology selection? Next, to understand market trends and bulk purchasing policies, please read "Wholesaler Purchasing Decision Guide - Newest Outdoor Waterproof Housing Market Trends and Supplier Selection")
