Outdoor Waterproof Socket Installation: Pre‑Installation Insights, Hardware Selection, Step‑by‑Step Process, Compliance, and 2026 Trends

1. Before You Start: Why Ordinary Covers Fail to Fit Modern Plugs

1.1 The Space Challenge Posed by Smart Devices and EV Chargers

Our research, along with discussions on Reddit's r/HomeImprovement and Amazon reviews, reveals a frustratingly common scenario: users install a weatherproof cover, but the plug is too large, preventing the cover from closing completely. One user noted that with a traditional shallow cover, their outdoor WiFi smart plug pushed the lid open by about 2 cm, completely defeating the waterproofing. Similar complaints appear with portable EV chargers - the heavy- duty strain relief makes the plug tail so bulky that even a standard “bubble cover” cannot close properly, potentially loosening the plug and creating an arc- fault hazard.



This mismatch stems from the diversity of modern electrical devices. Smart home adapters, landscape lighting transformers, and EV charging plugs are no longer confined to the flat profile of traditional two- or three-prong plugs; they have grown larger and more feature- rich. Yet many low- cost covers still use shallow-cavity designs from a decade ago, ignoring the fundamental requirement of NEC 406.9(B)(1) for “in-use covers”: the enclosure must remain weatherproof whether or not an attachment plug is inserted.



So what structural solution meets this challenge?



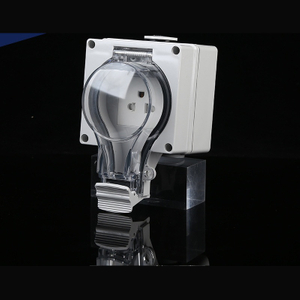

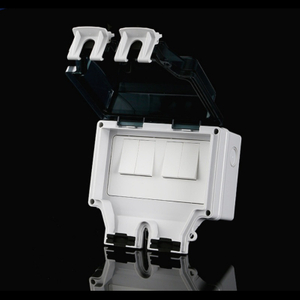

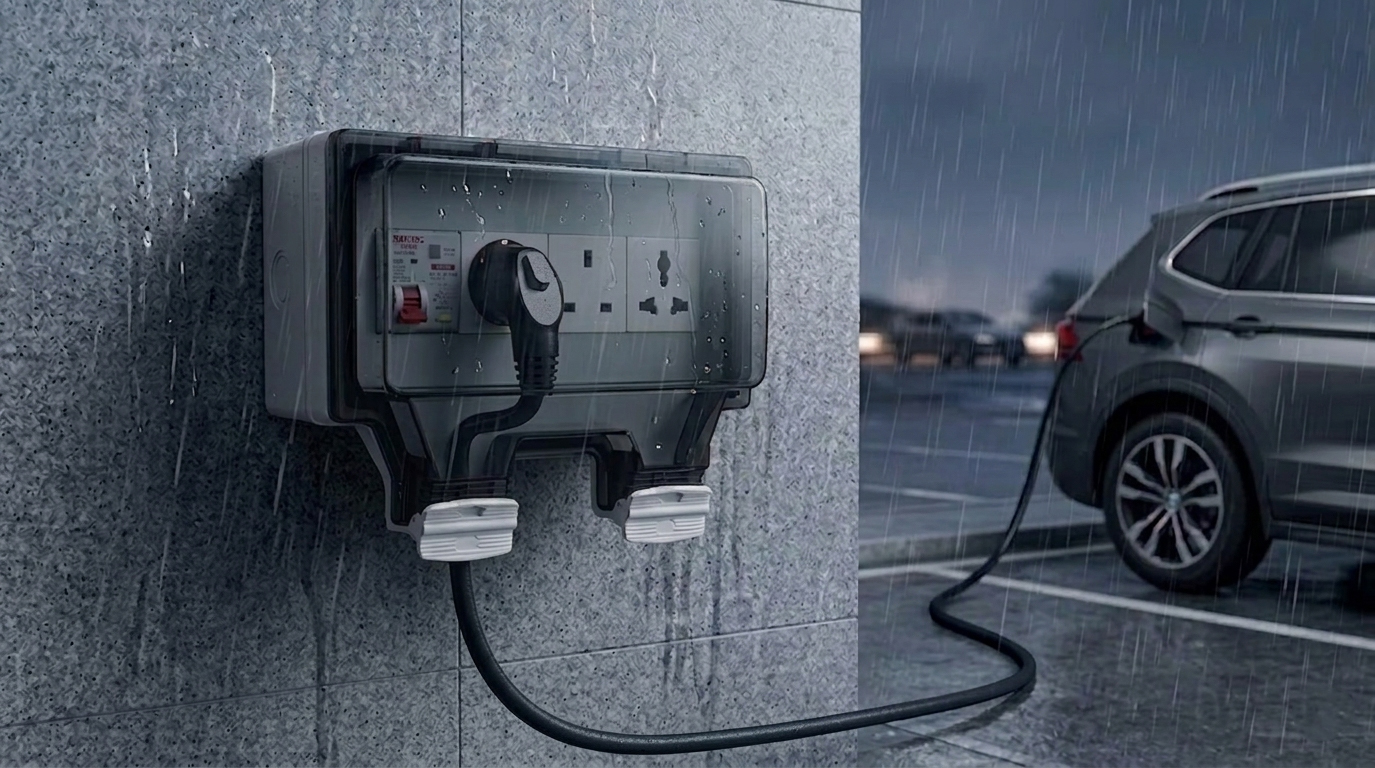

Deep- cavity flip cover and self- locking latch

We tested several bulky plugs, including the TP-Link Kasa smart plug, a Level 2 portable EV charger, and a landscape light adapter with a right- angle head. As shown in Figure M1 (deep- cavity compatibility - TP-Link smart plug and EV charger fully enclosed), a deep-cavity cover increases internal depth by about 40% compared to traditional designs. It comfortably accommodates the plug body and thick cable tail, leaving at least 5 mm of clearance between the closed cover and the receptacle face, ensuring uniform compression of the gasket.

Even more important is the self-locking latch. Ordinary clips can spring open under wind or vibration, but the self- locking latch provides a distinct “click” upon closure and maintains constant locking force. Even when the cavity is fully occupied by a large plug, the latch keeps the gasket properly compressed. This design not only solves the “won't close” problem but also gives users audible feedback that the protection is secure.



1.2 The Hidden Killer at the Cable Entry: Reverse Water Flow and Its Dangers

After “cover won't close,” the next most frequent complaint is water intrusion at the cable entry. One Amazon reviewer wrote: “After a heavy rain, I opened the cover and found the receptacle sitting in a pool of water - luckily the GFCI tripped.” The root cause is that many covers focus only on the wall- to- cover seal while ignoring the cable opening.



When rain falls on a cable, water runs down the outer sheath. If the cable enters the enclosure horizontally or at an upward angle, the water is channeled directly into the box. Worse, cheap covers often have only a crude notch at the bottom, with no elastic sealing and no accommodation for different cable diameters. Even if a thin foam pad is present, it soon deforms or ages, leaving gaps.

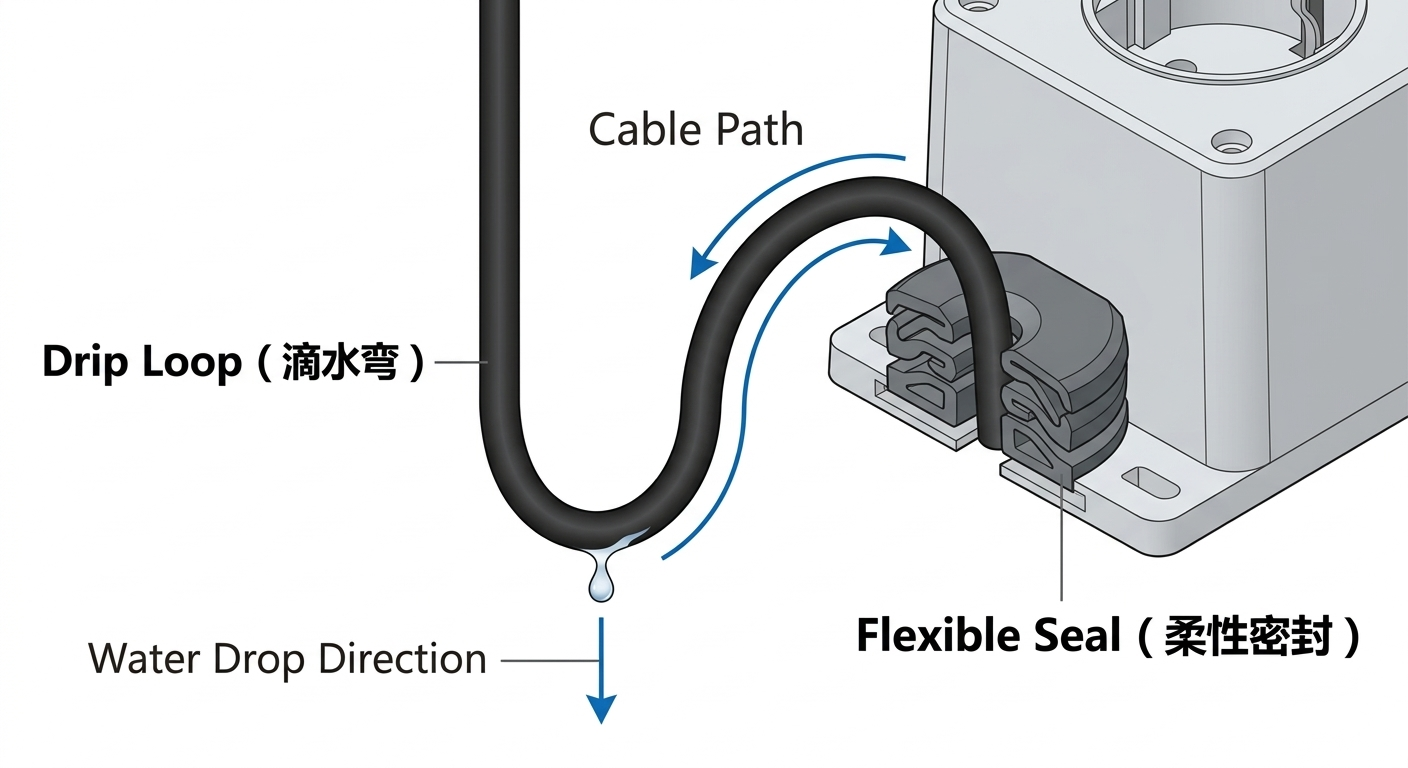

The winning combination: flexible sealing + drip loop

True waterproofing requires two layers of defence. First, flexible sealing: a high- elasticity silicone or rubber gasket at the cable exit that conforms to the cable diameter. Our specially designed flexible gasket was tested to IP66 - a 12.5 mm nozzle, 100 kPa water jet directed at the cable entry for three minutes - with no visible water ingress. The multi- lip structure hugs the cable tightly, maintaining the seal even if the cable is jolted.



Second, a physical barrier: no matter how good the seal, the cable must form a downward drip loop before entering the cover. As shown in Figure M2 (drip loop and sealing gasket relationship), the cable first dips down 5- 10 cm, then curves upward into the seal. Any water running along the cable drips off at the lowest point instead of being forced into the enclosure. This simple practice, repeatedly emphasised in electrician codes, is often overlooked by DIYers.

Combining a flexible seal with a drip loop completely eliminates reverse water flow. In the installation section later, we detail how to create the drip loop correctly and how to inspect the gasket compression.



1.3 Material Embrittlement and Mechanical Damage: Covers That Crumble in Two Years

A Reddit user in coastal Florida shared photos: their transparent plastic cover, less than two years old, had turned yellow, become chalky, and crumbled at a light touch. An electrician in the comments replied, “That's UV degradation. Cheap plastics without UV stabilisers won't survive one summer here.”



This highlights another hidden requirement: outdoor covers must resist sunlight, extreme temperature swings, and accidental impacts. Ordinary polycarbonate or ABS, without UV stabilisers, undergoes chain scission under prolonged sunlight, becoming brittle, discoloured, and weak. Meanwhile, in a yard or industrial setting, a stone thrown by a lawnmower, a cart bump, or even hail can shatter a fragile cover.



UV resistance and IK rating: from lab to field

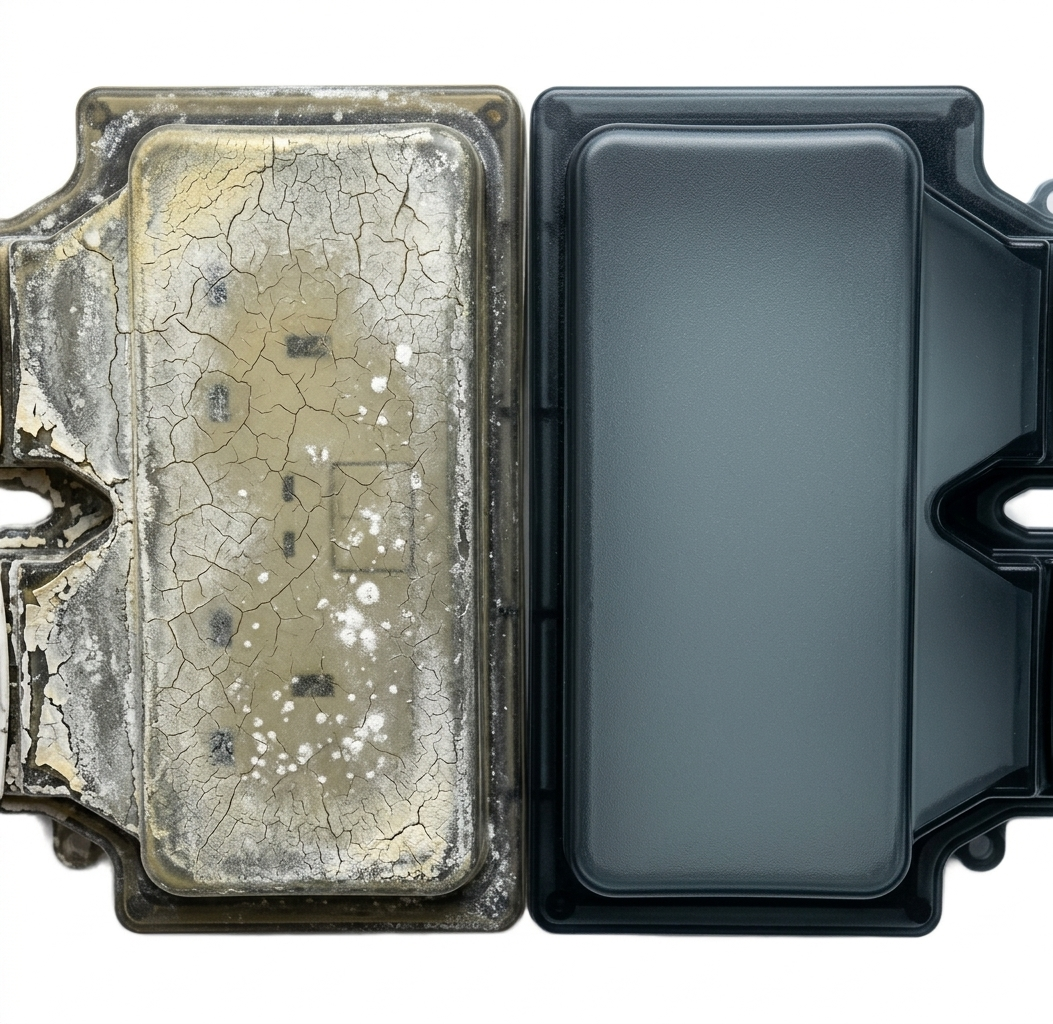

We verified material durability through accelerated ageing tests. As shown in Figure M3, after 1,000 hours of UV exposure (equivalent to about two years outdoors) in a QUV tester, standard PC developed visible cracks and a ΔE colour difference >5. In contrast, our UV- stabilised material (with hindered amine light stabilisers) showed almost no change, and internal tests confirmed far superior ageing resistance.



For impact resistance, our cover is designed to meet IEC 62262 IK10 - the ability to withstand a 20- Joule impact (equivalent to a 1 kg mass dropped from 40 cm). This is achieved through a high- impact polymer shell and generously rounded corners (large- radius fillets), which both improve structural strength and eliminate stress- concentration points. For receptacles in public areas or industrial environments, this level of protection prevents safety incidents caused by accidental damage.



2. Core Hardware Preparation: Selecting the Right Receptacle, Cover, and Seals

Before touching any tools, understand this: outdoor waterproofing is a system, and the cover is only the final layer. If the receptacle itself is not weather- resistant, or if the sealing materials are inadequate, even the best cover will not ensure long- term safety. This section breaks down the selection logic for the three essential hardware components.



2.1 The Receptacle Must Satisfy: WR + TR + GFCI

A common DIY mistake is installing an ordinary indoor receptacle outdoors and then covering it with a waterproof lid. However, NEC 406.9(A) explicitly requires that 15 A or 20 A receptacles installed in damp or wet locations be Weather- Resistant (WR).



What makes a WR receptacle different? Metal parts (terminals, mounting yokes) are typically nickel- shielded or chrome- plated to resist corrosion; the housing uses UV- stabilised engineering nylon that does not become brittle under direct sunlight. Mechanically, WR receptacles maintain impact resistance even at low winter temperatures.



In addition, TR (Tamper- Resistant) is mandatory for residential installations. TR receptacles have spring- loaded shutters that open only when both prongs of a plug are inserted simultaneously, preventing children from inserting metal objects.



The ultimate safety net for any outdoor circuit is GFCI (Ground- Fault Circuit Interrupter) protection. A GFCI continuously monitors the current difference between hot and neutral. If it detects a difference of about 5 mA (roughly the threshold of human perception), it cuts power in about 0.025 seconds - fast enough to prevent a lethal shock.



Three GFCI architectures exist, each with trade- offs:







Professional recommendation: For residential outdoor outlets, prefer the indoor - GFCI + outdoor- WR- receptacle combination. Surveys of homes over 25 years old show that outdoor-installed GFCI receptacles fail roughly 40% faster than their indoor counterparts due to moisture and UV exposure. Keeping the sensitive electronics inside a weather-resistant receptacle dramatically improves overall reliability.



2.2 Cover Depth and Type: How to Choose an In- Use Cover

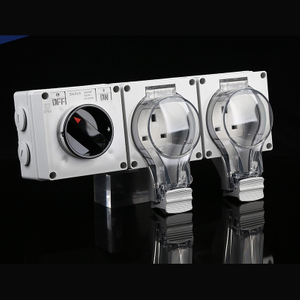

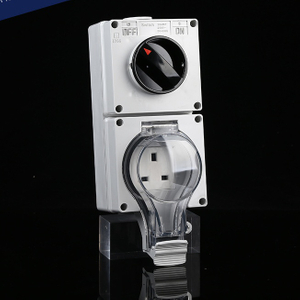

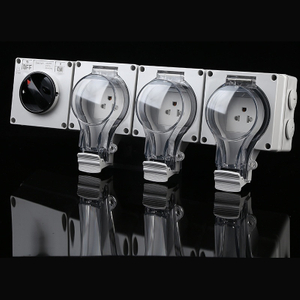

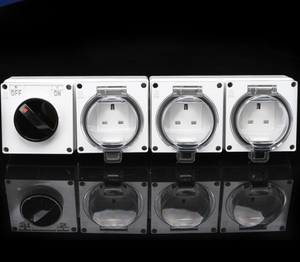

NEC 406.9(B)(1) states: “Receptacles of 15 and 20 amperes, 125 and 250 volts installed in a wet location shall have an enclosure that is weatherproof whether or not the attachment plug cap is inserted.” This directly prohibits old- style flat covers that are only weatherproof when nothing is plugged in, and mandates an In- Use Cover (often called a “bubble cover”).



But not all in- use covers are equal. Standard ones have an internal depth of only 20- 25 mm - fine for a basic two- prong plug, but useless for smart adapters or plugs with integral strain relief. A deep- cavity flip cover extends internal depth to more than 40 mm, so even bulky plugs fit completely, allowing the gasket to be uniformly compressed.



Also pay attention to mounting orientation. For vertical mounting, the hinge must be at the top; for horizontal mounting, the hinge should be at the upper side. This uses gravity to assist drainage. If you need to accommodate multiple plugs, choose a cover with a multi- configuration plate so one plug does not block adjacent openings.



2.3 The Two Pillars of the Sealing System: Perimeter Gasket and Flexible Cable Seal

A weatherproof cover relies on two independent but complementary seals: the perimeter gasket between the cover base and the wall, and the flexible cable seal at the cable entry. Failure of either compromises the entire system.



Perimeter gasket - the first defence against water seeping behind the base. Ordinary foam gaskets can take a permanent compression set over time, losing resilience and leaving gaps, especially on uneven walls. High- performance foam sealing strips (e.g., EPDM or neoprene) retain elasticity much longer. Under the pressure of the latch, they are uniformly compressed to form a continuous watertight barrier. For rough walls (stone, stucco, textured concrete), professionals add an extra bead of outdoor- rated silicone caulk around the outside of the gasket - a second line of defence.

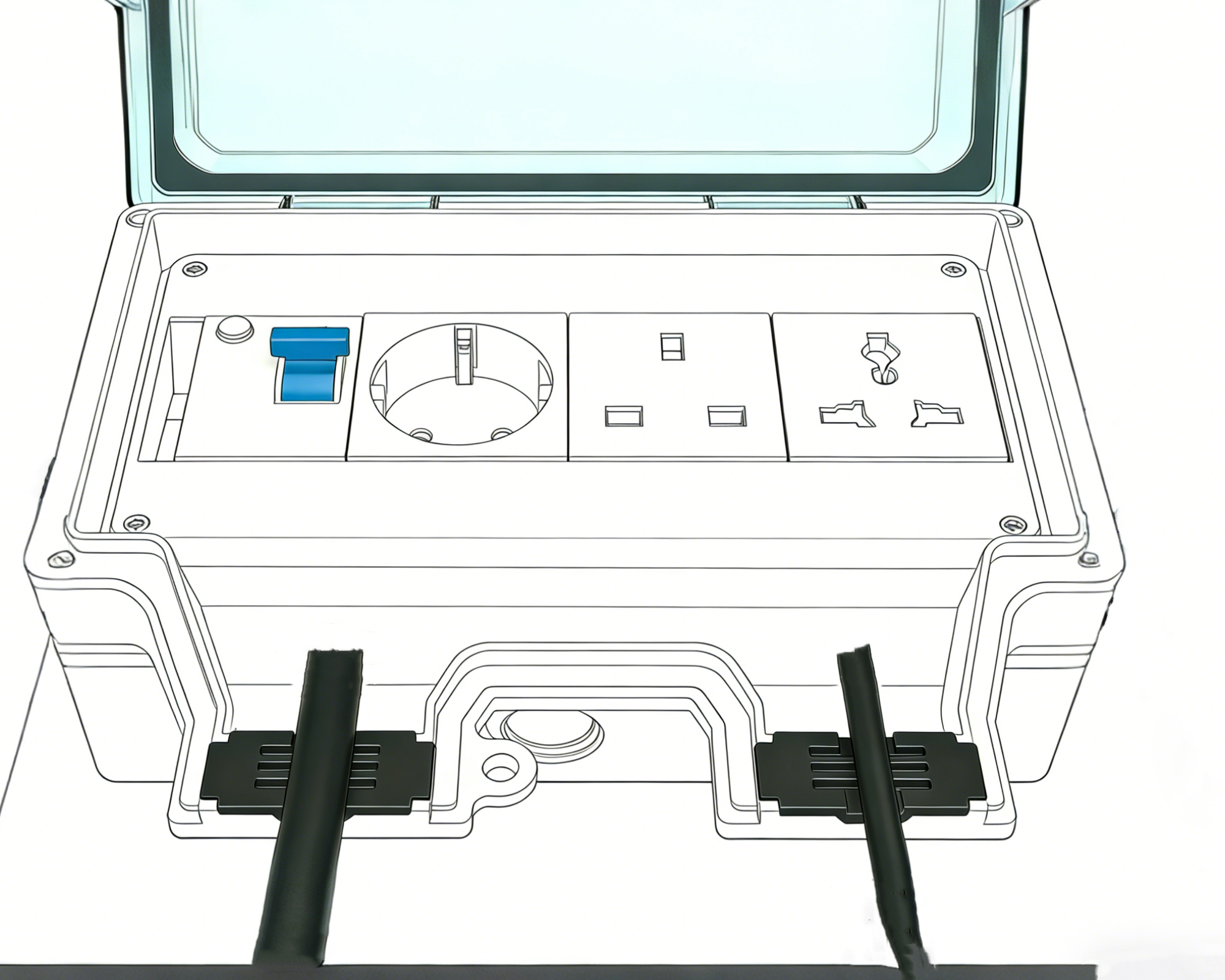

Flexible cable seal - the core solution for water tracking along the cable. As shown in Figure M4, the cable exit uses a special silicone gasket that elastically deforms to fit the cable diameter. Whether the cable is 14/3, 12/3, or 10/3 AWG, the multi- lip structure hugs the cable tightly after compression, preventing reverse water flow. Our IP66 test  - a 12.5 mm nozzle at 100 kPa directed at the cable entry for three minutes - confirmed no water ingress, proving the dynamic sealing capability.

Even the best seals cannot replace correct installation. Later sections explain how to control screw torque for optimum gasket compression and why a drip loop is mandatory - these details turn hardware potential into real- world protection.



3. Standardised Installation Process: From Power- Off to Final Seal

Installing an outdoor waterproof cover is not a simple “screw it on” task - it is a systematic process involving electrical safety, sealing technology, and mechanical precision. The following procedure is based on industry standards and years of field experience; every step directly affects the final protection level.



3.1 Site Survey and Safety Preparation

Power verification - Before touching any electrical device, confirm the circuit is de- energised. Ideally, locate the corresponding breaker in the main panel, switch it to OFF, and tape it to prevent accidental re- energisation. In older buildings where labels may be missing or incorrect, use a non- contact voltage tester at the receptacle to verify zero voltage - even if the breaker is off.



Environment assessment - Check whether the existing junction box is securely embedded in the wall. If the box is recessed more than 1/4 inch (about 6.4 mm) behind the siding or masonry, you must install a listed box extender so that the cover base can sit flush against the wall. Also note the wall material: smooth wood or cement board is straightforward; rough stucco or stone requires extra sealing treatment.



Safety note - Wear safety glasses and gloves during installation to protect against tool slips or debris. If you see green corrosion (verdigris) on the existing wires, that indicates prolonged moisture inside the box - you must have a licensed electrician replace the receptacle before installing the cover.



3.2 Old Cover Removal and Base Adaptation

Clean off old sealant - After removing the old cover, use a utility knife or scraper to carefully remove old silicone, foam gasket residue, or paint from the wall and the junction box edge. On painted surfaces, score around the cover perimeter with a knife before prying to avoid tearing off large paint chips.

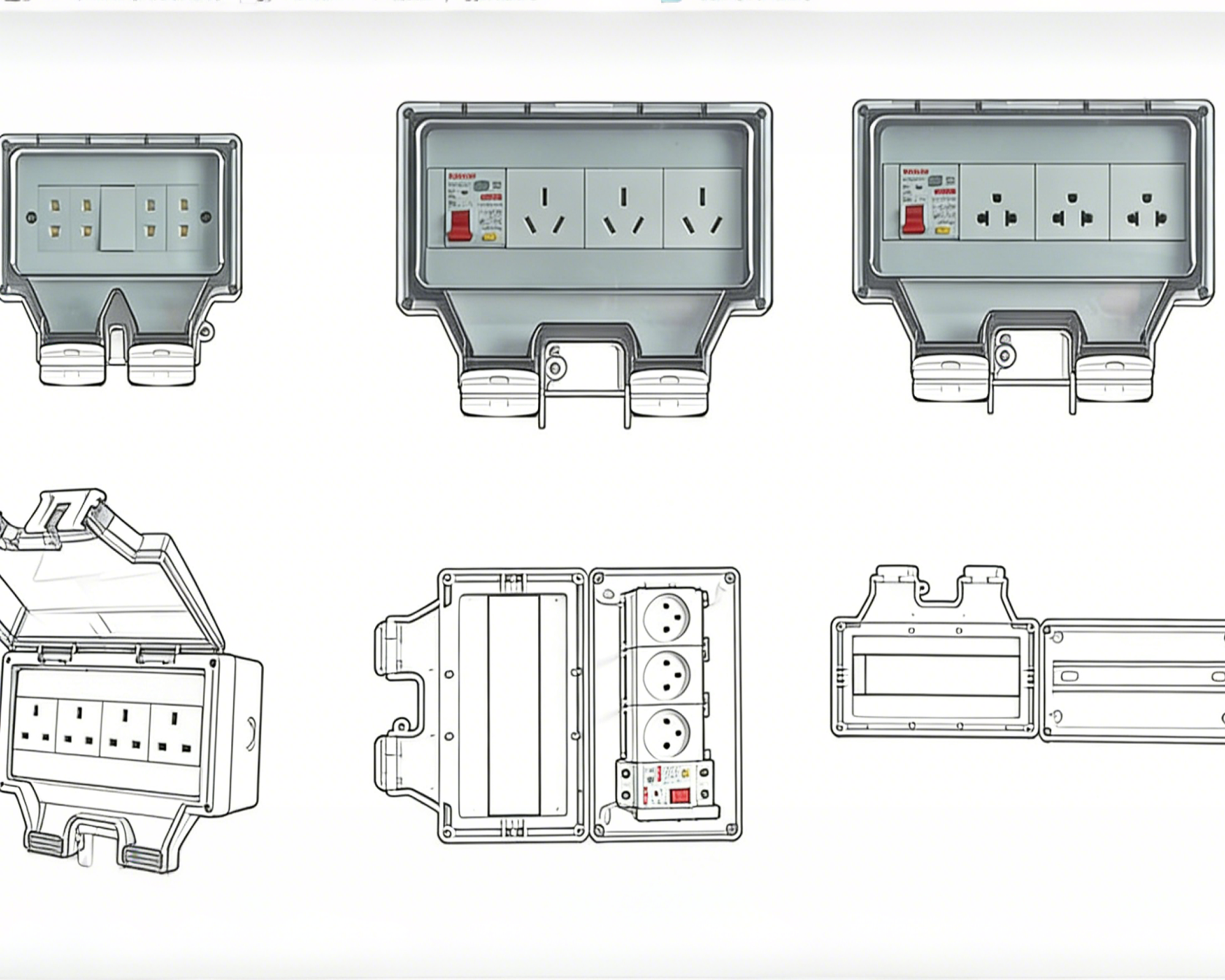

Multi- configuration plate - Modern waterproof covers typically include a “multi- in- one” adapter plate to fit different receptacle styles. As shown in Figure M5 (multi- configuration socket box), our product comes with a built- in multi- configuration plate that adapts to common Duplex, Decora, or single round receptacles. Select the correct insert based on your receptacle type, snap it into the cover base, and ensure the receptacle face is fully exposed without obstruction.

Base positioning - Align the cover base with the junction box, checking that the screw holes align with the yoke holes of the receptacle. If there is a gap between the base and the wall, the wall is uneven or the box is not flush; use shims or a box extender as needed.



3.3 Critical Sealing Techniques: Gasket, Silicone, and Torque Control

Gasket placement - Place the supplied closed- cell foam gasket on the back of the base. If the mounting surface is extremely uneven (rough concrete or stone), apply an extra bead of outdoor silicone caulk around the outside edge of the gasket - a second sealing line. Be careful not to let silicone squeeze into the box interior where it could interfere with electrical connections.



Screw torque management - Insert the base screws through the yoke holes of the receptacle and into the junction box threaded holes. The key is torque control: over- tightening can cause stress cracks in a polycarbonate base or over- compress the gasket, deforming it and destroying the seal; under- tightening fails to compress the gasket sufficiently, leaving gaps. The correct method is to tighten evenly by hand until the gasket is compressed to about half its original thickness and the base sits flush against the wall without warping. For stainless steel screws, a dab of anti- seize compound can prevent corrosion- induced seizing later.



Orientation check - Before final tightening, verify the cover orientation. For vertical mounting, the hinge must be at the top; for horizontal mounting, the hinge must be at the upper side. This ensures the weep hole is at the lowest point so condensation can drain naturally. The product already has a pre- formed weep hole at the bottom - make sure it is not blocked by silicone.



3.4 Cable Entry and the Physical Barrier of a Drip Loop

Prepare the cable entry - Depending on the number and diameter of cables, use the supplied flexible gasket. The gasket usually has concentric rings that can be peeled to match the cable size. Push the cable through the gasket, then seat the gasket into the cable entry slot of the base.



Form a drip loop - Even with the most advanced flexible seal, follow this basic electrician's rule: the cable must form a downward U- shaped loop before entering the cover. As illustrated in Figure M2, the cable drops down about 5- 10 cm, then curves upward into the seal. Any rainwater running along the cable will drip off at the lowest point instead of being forced into the enclosure. This physical barrier, combined with the flexible seal, provides dual protection.



Compress the gasket - Fully seat the flexible gasket into the base slot, ensuring it fits snugly around the cable. For thinner cables, you may carefully cut an inner ring, but maintain sufficient coverage. The elasticity of the gasket automatically compensates for slight diameter differences, creating a circumferential seal.



3.5 Cover Closure and Functional Tests

Self- locking latch confirmation - Close the flip cover. You should hear a distinct “click” indicating the latch is engaged, and the cover should not be easily pulled open. If closing is difficult or the click is not clear, check whether the plug is too large or the gasket is misaligned.



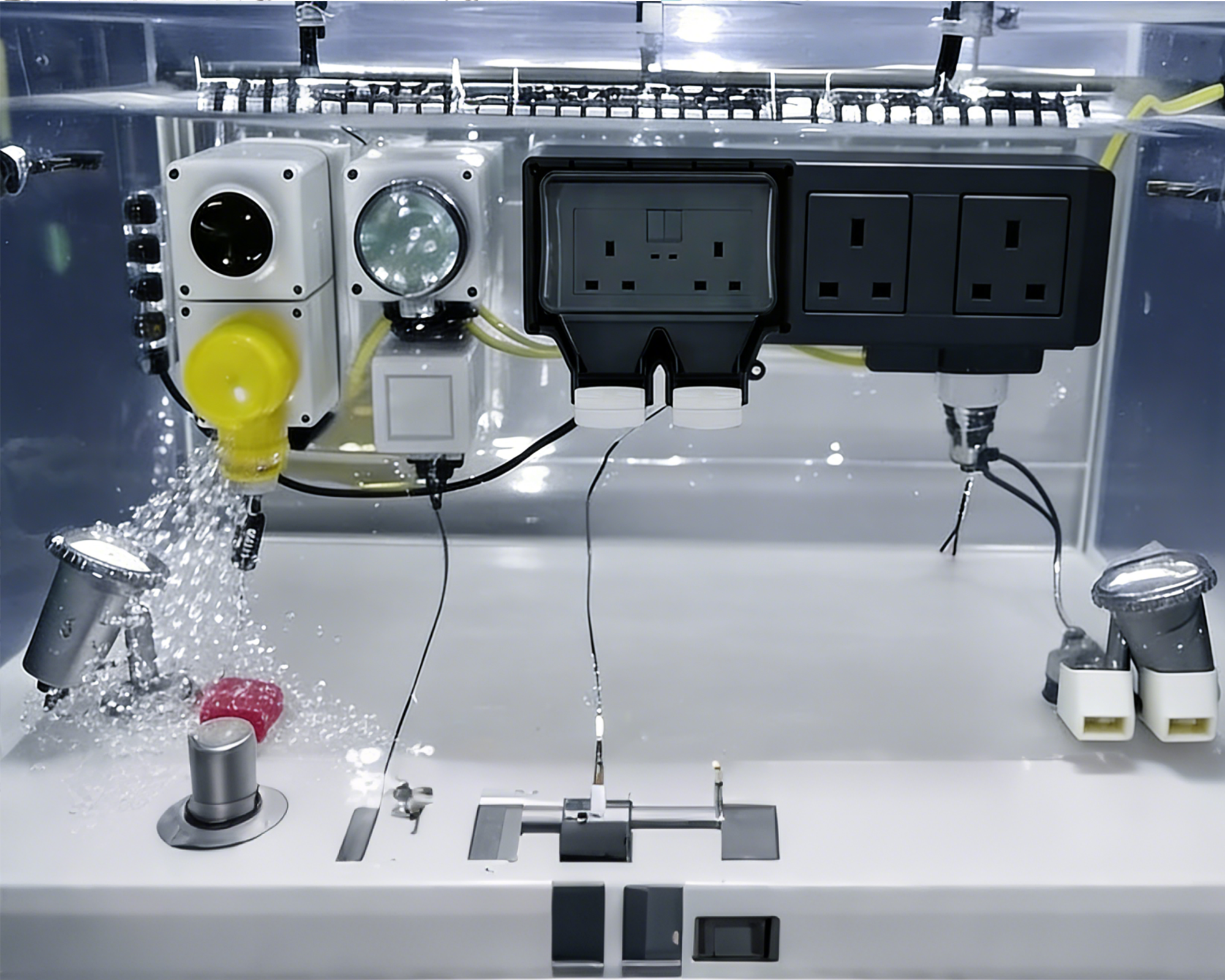

Spray test - After installation, perform a simple water test: use a garden hose sprayer or a watering can to spray the closed cover from above for 1- 2 minutes, paying attention to the cable entry and hinge areas. Then open the cover and inspect for any moisture inside. As M6 shown in the fully sealed water immersion test in the figure, the correct installation method can ensure that the interior is completely dry and guarantee the normal operation of the circuit. This test not only verifies the seal but also catches any installation defects early.

GFCI test - If the circuit includes GFCI protection, press the TEST button - the receptacle should lose power (confirm with a phone charger or voltage tester). Press RESET to restore power. This confirms the GFCI is functioning correctly.



4. Compliance and Safety Deep Dive: GFCI and Certification Systems

Outdoor electrical compliance is not optional - it is a legal and life- safety requirement. This section explains the three GFCI architectures and the key certifications that determine product longevity.



4.1 Comparison of Three GFCI Architectures

A GFCI is the last line of defence for an outdoor circuit. It continuously monitors the current difference between hot and neutral. When the difference exceeds 5 mA (roughly the threshold of human perception), it trips in about 0.025 seconds - fast enough to prevent fatal shock.



Professional recommendation: For residential outdoor outlets, prefer the indoor- GFCI + outdoor- WR- receptacle combination. Surveys of homes over 25 years old show that outdoor- installed GFCI receptacles fail roughly 40% faster than their indoor counterparts due to moisture and UV exposure. Keeping the sensitive electronics indoors dramatically improves system reliability.



4.2 Key Certifications Explained: IP66, IK10, UV Stability

The durability of outdoor electrical products is quantified through standardised tests. Three certifications directly determine whether a product can survive harsh environments.



IP66 (powerful water jets) - Per IEC 60529, IP66 requires the enclosure to withstand 100 litres per minute of water from a 12.5 mm nozzle at 100 kPa pressure from a distance of 3 metres for at least 3 minutes. For an outdoor cover, this means not only the lid seal but also the cable entry must have a multi- lip flexible gasket. Our product has passed IP66 testing - under simulated heavy rain and high- pressure jets, no water entered the box.



IK10 (mechanical impact) - Per IEC 62262, IK10 requires the enclosure to withstand a 20- Joule impact - equivalent to a 5 kg steel mass dropped from 40 cm. This level ensures that even if the cover is struck by a stone from a mower, a cart, or an accidental blow, it will not develop a penetrating crack, and internal electrical connections remain protected.



UV stability (ageing resistance) - Per ASTM D4329, accelerated ageing uses fluorescent UV lamps to simulate solar UV. As shown in Figure M3, after 1,000 hours of UV exposure (equivalent to about two years outdoors), standard PC shows significant chalking and cracking, while our UV- stabilised material (with hindered amine light stabilisers) remains visually unchanged, retaining >90% of its tensile strength.



4.3 Installation Compliance Checklist

After completing the installation, use this checklist for final verification:

Is the receptacle a WR (Weather- Resistant) type?

Is GFCI protection provided (indoor GFCI receptacle, GFCI breaker, or outdoor GFCI receptacle)?

Is the hinge oriented correctly (top for vertical, upper side for horizontal)?

Is the weep hole at the bottom and unblocked?

Does the cable have a downward drip loop before entering the cover?

Is the flexible cable gasket fully seated and snug around the cable?

Are screws tightened properly (gasket compressed ~50%, base not warped)?

Does the cover produce a distinct click when closed, and can it be easily pulled open when latched?

Has a spray test and GFCI test been performed?

Maintenance recommendation: Perform an annual inspection - clean the weep hole, check gasket elasticity, and re- tighten screws (refer to the installation instructions for torque values). For a downloadable maintenance checklist PDF, contact customer service.



5. 2026 Trend Outlook: How to Get Installation Right the First Time

The evolution of outdoor electrical protection is shifting from "passive defence" to "proactive adaptation." With extreme weather events becoming more frequent, smart home proliferation, and the rise of high- end outdoor living, 2026 installation requirements will go beyond simple waterproofing. Products must also address thermal management, aesthetic integration, and specialised scenarios. The following three trends will shape outdoor receptacle installation over the next two years.



5.1 Addressing the “Heat Hacking” Challenge: Balancing Ventilation and Waterproofing

Trend background - Summer temperatures are breaking records worldwide, putting outdoor equipment under severe heat stress. At the same time, high- power smart plugs and EV chargers generate their own heat. If sealed inside a small waterproof box, heat buildup can shorten component life or even cause thermal runaway. Users are beginning to search for terms like “ventilated weatherproof cover” and “outlet cooling box,” hoping to maintain IP protection while allowing heat to escape.



Product response - Traditional waterproofing treated “sealing” as the only goal, but over- sealing exacerbates heat accumulation. New designs must balance waterproofing with ventilation. Although our current product does not include dedicated cooling vents (to avoid lowering the IP rating), we address heat through two approaches:



Material thermal optimisation - The housing is made of V- 0 flame- retardant polymer, with a heat deflection temperature far higher than ordinary plastics. Under prolonged high- power use or direct summer sun, it remains dimensionally stable and does not soften.



Large cavity natural convection - The deep- cavity design provides ample space around the plug, allowing weak natural convection. Together with the pre- formed weep hole at the bottom, limited hot air can escape under non- spray conditions.



For users who need more aggressive cooling, we recommend installing the receptacle on a shaded, well- ventilated wall, or leaving the cover slightly open when using high- power devices (note that this compromises waterproofing). We are also evaluating future models with hidden cooling fins or one- way breathable valves to more actively address the heat- hacking trend.



5.2 “Rugged Luxury” Aesthetics in Installation

Trend background - Outdoor spaces have evolved from utility areas to extensions of lifestyle. Consumers are no longer satisfied with cheap transparent plastic “bubble covers”; they expect electrical fixtures to harmonise with architectural design. According to the WGSN 2026 trend report, “Rugged Luxury” is a key direction - combining industrial durability with premium material textures to achieve “no compromise on function, no sacrifice on beauty.”



Product response - We have integrated this philosophy into our design.

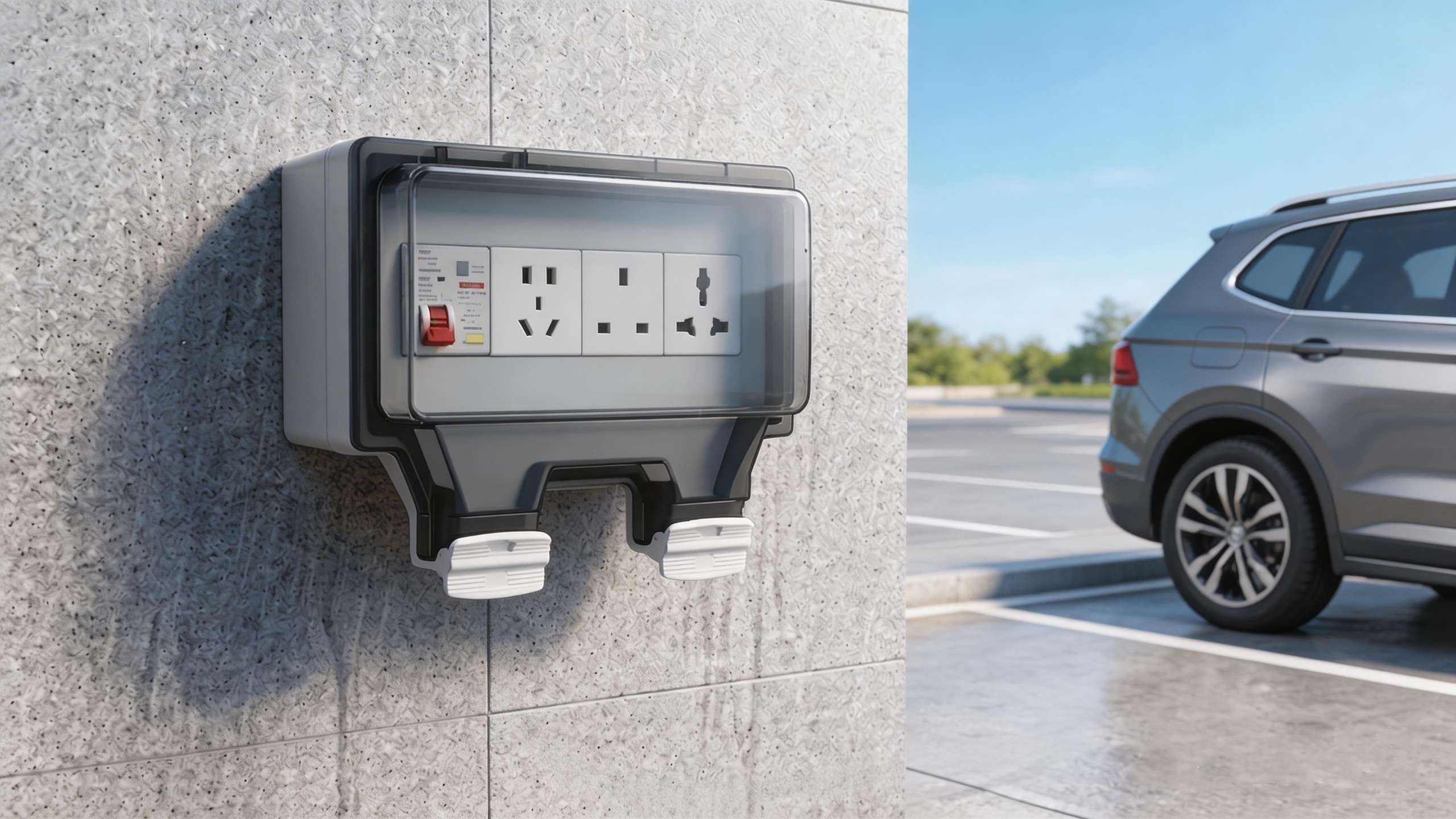

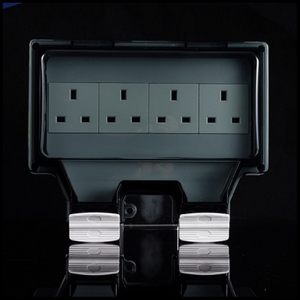

Cool grey matte finish - As shown in Figure M1 (real installation - cool grey housing paired with high- end stone), the housing uses a dark grey matte coating that blends harmoniously with natural stone, dark wood veneer, or fair- faced concrete. Unlike transparent or white covers, it does not create visual clutter; instead, it becomes part of the architectural language.

Rounded corners and fine workmanship - All edges feature generously radiused (large- R) fillets, which both improve impact strength (contributing to the IK rating) and soften the visual appearance, avoiding sharp lines that disrupt architectural beauty. The mould surface is finely polished with no flash or burrs, conveying a refined industrial feel even up close.



Hidden installation details - The screw covers on the back of the base and the reinforcing ribs ensure a level, warp- free installation. On high- end projects, installers can even align the screw holes with stone joints for a nearly invisible finish.



For those pursuing ultimate aesthetics, we offer an optional screwless face cover (professional installation required), hiding all fasteners for a seamless architectural look.



5.3 Special Installation Points for Wellness Facilities (Saunas / Cold Plunges)

Trend background - “Cold plunge” and “outdoor sauna” have become hot search terms for 2026 residential landscaping. These high- humidity, high- use environments demand special electrical safety features: not only reliable waterproofing but also performance under frequent plugging/unplugging, wet- hand operation, and extreme temperature/humidity cycles.

Self- locking latch for high- frequency use - In a wellness facility, users may plug and unplug aroma diffusers, music systems, or massage equipment many times each day. Ordinary clips can loosen after repeated cycles, but the self- locking latch provides consistent locking force and is optimised for one- handed operation. The distinct click gives a clear confirmation of secure closure - especially important when wet hands reduce tactile feedback.



Flexible seal stability under extreme humidity - Receptacles near saunas must withstand hot steam and condensation without losing sealing. Our flexible gasket uses high- temperature silicone elastomer that remains elastic from -30°C to +120°C, unaffected by thermal expansion/contraction. The IP66 rating ensures reliability even under powerful spray, easily handling occasional splashes or steam condensation in a sauna area.



Safety redundancy - For wellness facilities, we recommend using indoor GFCI protection (e.g., fed from a bathroom or laundry GFCI circuit) to keep sensitive electronics dry. Additionally, the self- locking latch includes a hasp for a padlock, allowing the cover to be locked when not in use to prevent child tampering.



For commercial wellness centres (hotel spas, etc.), we recommend the die- cast alloy version, which withstands even higher usage frequency and the mechanical stress of regular cleaning.



6. Post- Installation Testing and Long- Term Maintenance

Completing the installation does not mean the job is done forever. Proper functional testing and periodic maintenance are the final barriers to long- term safety. This section provides a simple acceptance and maintenance procedure to minimise the risk of failure.



6.1 Functional Tests: GFCI Trip and Cover Closure

GFCI verification

Regardless of which GFCI architecture you used, perform this test after installation:



Press the TEST button on the GFCI receptacle or breaker - you should hear a “click” and power should be lost (verify with a phone charger or voltage tester).



Press the RESET button - power should be restored.



If the GFCI does not reset, there is a wiring error or a ground fault - call an electrician immediately.



Simulated rain test

Don't wait for the first storm to find problems. Use a garden hose sprayer or a watering can to spray the closed cover from various angles for 2- 3 minutes, paying special attention to the cable entry and hinge gaps. Then open the cover and check for any water inside. If you find any moisture, re- inspect the gasket seating, screw torque, and drip loop.



Cover closure and latch test



Close the cover - you should hear a distinct “click” indicating the latch has engaged. Gently pull on the cover; it should not open easily.



Open the cover - the hinge should move smoothly without binding. When not latched, the cover should stay in the open position (for easy access).



6.2 Annual Maintenance Checklist

Outdoor covers are exposed to sun, wind, and rain year- round. An annual inspection can dramatically extend service life.







Maintenance checklist PDF download - We have prepared a detailed annual maintenance checklist (PDF format) with step- by- step instructions and a log sheet. Please contact us or scan the QR code at the bottom or visit our official website to download it. Regular use of the checklist will keep your protection system in optimal condition.
