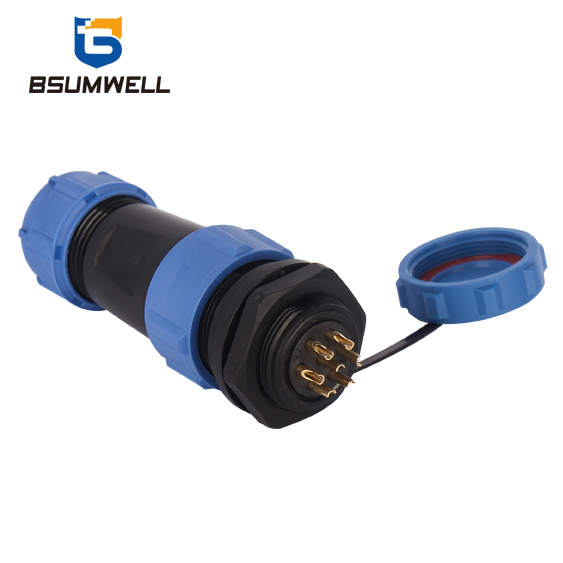

PS17H Rear Mount Series Nylon PA66 IP68 Waterproof Connector

Color:black&blue
Usage:Automobile connector
Suit for:LED Waterproof connector
Waterproof connector:Industrial machine
  • PS17H Rear Mount Series

  • BSUMWELL

  • IP68

Availability:
Quantity:

bsw


  • PS17D In-line Aeronautical waterproof connector

9芯

PS13D PIN


PS13D In-line Aeronautical waterproof connector

PS17D female seat size


  • PS17H Rear Mount Series

    5芯

    PS17H PIN


    PS13H Rear Mount Series

    PS17H Rear nut Shape size




  • Solder contact arrangement and spec

         Contact diameter

Number of contact 2 3 4 5 6 7 9

Malc contact face view

Malc contact face view1 Malc contact face view2 Malc contact face view3 Malc contact face view4 Malc contact face view5 Malc contact face view6 Malc contact face view7

Rated current(A)

10A

10A

5A

5A

5A

5A

5A

   Contact diameter

Φ1.5x2

Φ1.5x3

Φ1x4

Φ1x5

Φ1x6

Φ1x7

Φ1x9

          Working voltage (AC.V)

500v

500v

500v

400v

400v

400v

400v

       1 min  Testvoltage (AC.V)1 second

1500v

1500v

1500v

1200v

1200v

1200v

1200v

Contact resistance MΩ 2.5 2.5 5 5 5 5 5

         2/AWG  Wire size mm2/AWG

≤2/14

≤2/14

≤0.785/18

≤0.785/18

≤0.785/18

≤0.785/18

≤0.785/18

More new products, so stay tuned !

Look forward to working with you !


bsw


Factory Directly plastic connectors pin connector pa66 for sale

2019 hot-sell high quality IP68 Waterproof PA66 Rear Mount Series

Product details

Insert material                     PPS
Shell Material                     PA66
Contact material                     Copper Gold Plated
Pin                     2-12PIN
Connector type                     Circular Connectors
Termination                     Solder Terminal
Color                     black&blue
Usage                     Automobile connector
Suit for                     LED Waterproof connector
Waterproof connector                     Industrial machine
Product Keywords                     plastic connectors,pin connector,pa66 connector

Product structure  characteristics

1.Waterproof、dustproof、oil-proof

Tail locking claw design, the wire through  the tail after just tightening the nut will  automatically lock, with waterproof seal,  waterproof, dust-proof, oil-proof

2.Do not hurt the wire

The tail locking nut is convenient and  practical. The arc design of the hole  does not hurt the wires.

3.Waterproof cover

The head of the fitting socket has a  waterproof cover to prevent water and  dust from entering the socket when it is  not connected.

waterproof

waterproof cover

Do not hurt the wire


bsw


Company show


Office     Testing workshop2
Office


Production Workshop1            Production Workshop
Production Workshop


Testing workshop            Testing workshop1              Testing workshop2
Testing workshop


Production tools              Production tools1              Production tools2
Production tools




bsw


Q

How can I get the sample to check your quality?

A

After price confirmation, you can require for samples to check our product’s quality. If you just need a blank sample to check the design and quality. We will provide you sample for free as long as you afford the express freight.

Q

What can I get the price?

A

We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.

Q

What is your term of delivery?

A

We accept EXW, FOB Shenzhen or FOB Guangzhou. You can choose the one which is the most convenient or cost effective for you.

Factory Directly plastic connectors pin connector pa66 for sale
Q

What about the lead time for the mass production?

A

Honestly, it depends on the order quantity and the season you place the order.



bsw


Application area  of aviation waterproof connector

Automobile Connector

Automobile Connector

Professional for automotive manufacturers,  automotive security monitoring (camera) and  other high-end product design and production  of waterproof connectors, products using  environmentally friendly, cold-resistant, high-  temperature material production, IP65-IP68  waterproof standard.


Led waterproof connector       LED waterproof connector

Suitable for outdoor application of various LED  products, such as LED lights, LED spotlight, LED wall  wash landscape lighting, LED advertising lighting,  LED floodlight, LED street lighting and LED outdoor  display screen.


Industrial waterproof connector

Industrial waterproof connector

It is suitable for industrial automation equipment,  film and television lighting and sound equipment and  engineering. For example: injection molding machine,  extruder, power generation equipment, packaging  machinery (heat shrinkable packaging machine)  air conditioning units, lighting, energy generation,  refrigerated containers, etc.
