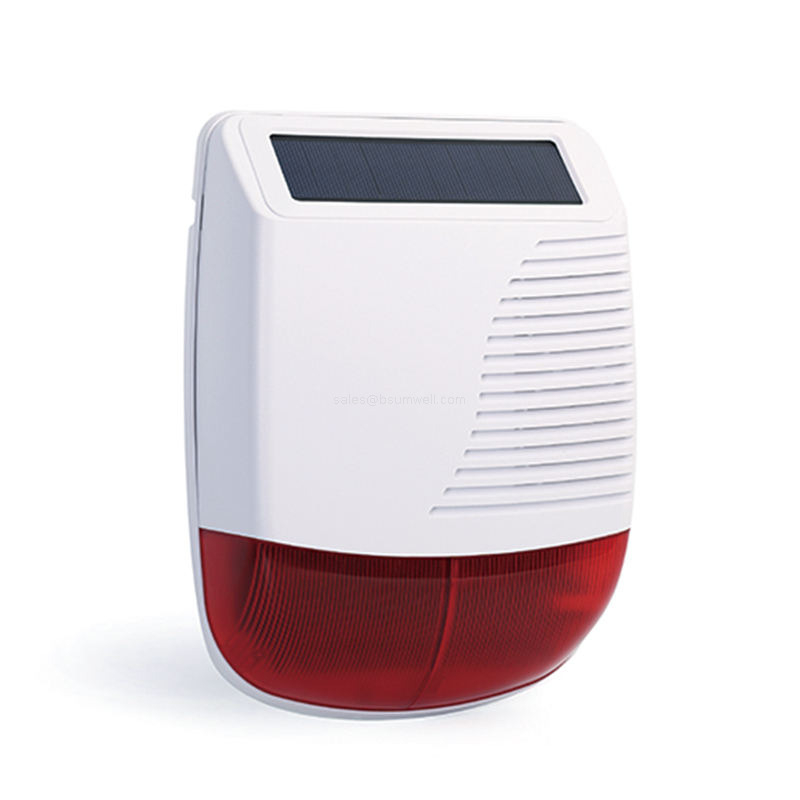

RF433 Wireless Outdoor Sound Strobe Light Siren Solar Home Piezo Security Alarm System

High-Decibel Deterrence & Visual Strobe Architecture

Designed for perimeter defense, residential boundary protection, and commercial asset security, this wireless outdoor siren combines a high-decibel $110\text{ dB}$ audio siren with a high-intensity red LED flash array. Upon activation, the combined acoustic-optic output creates an immediate localized deterrent against unauthorized intrusion while delivering visual signal identification across long line-of-sight distances.

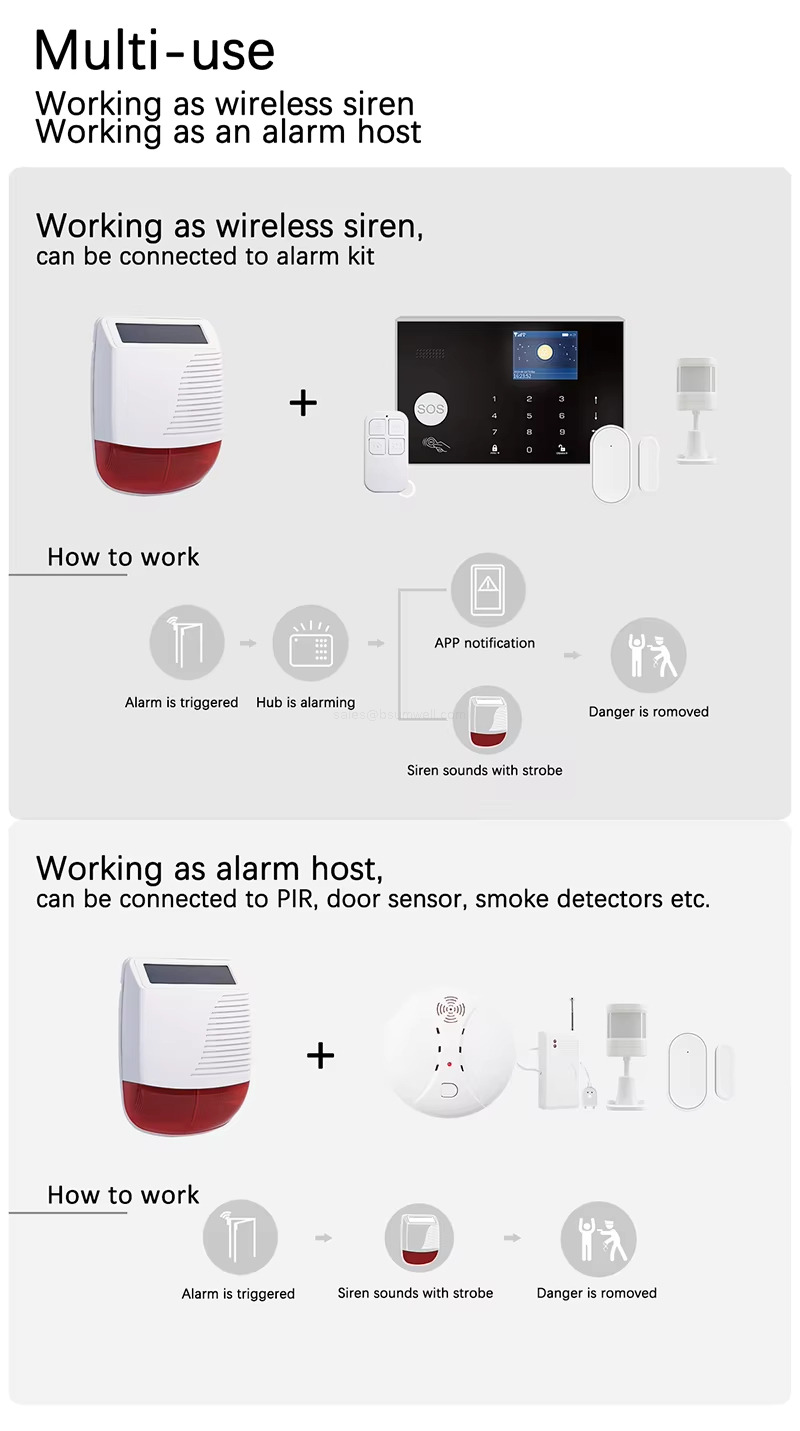

Dual Operational Architecture (Standalone Host & External Siren)

• Standalone Alarm Host Mode: Functions as an independent control hub capable of directly learning and processing RF signals from up to 50 wireless defense zones (PIR motion detectors, magnetic door/window contact sensors, smoke detectors, and remote keyfobs) alongside 2 dedicated wired defense zones (Z0, Z1).

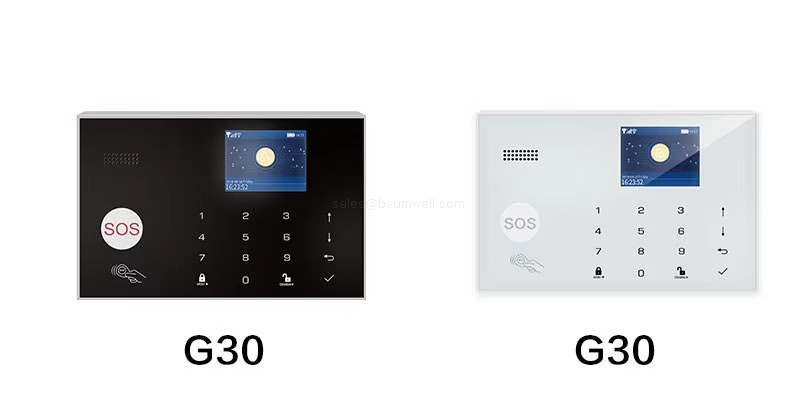

• Wireless External Siren Mode: Connects seamlessly to existing 433MHz master security alarm control panels and smart hubs, acting as a high-output outdoor extension unit to propagate panel-triggered alerts.

Enclosure Durability & RF Specifications

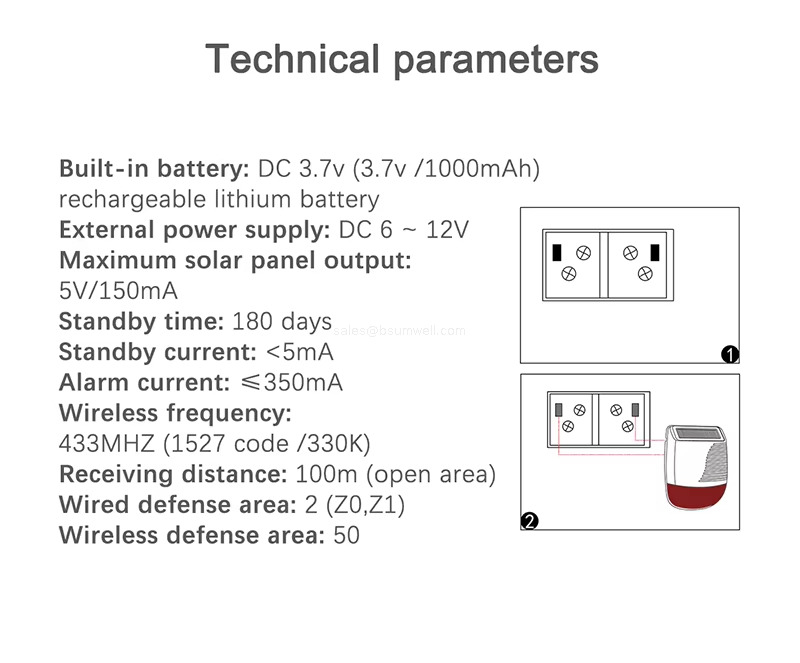

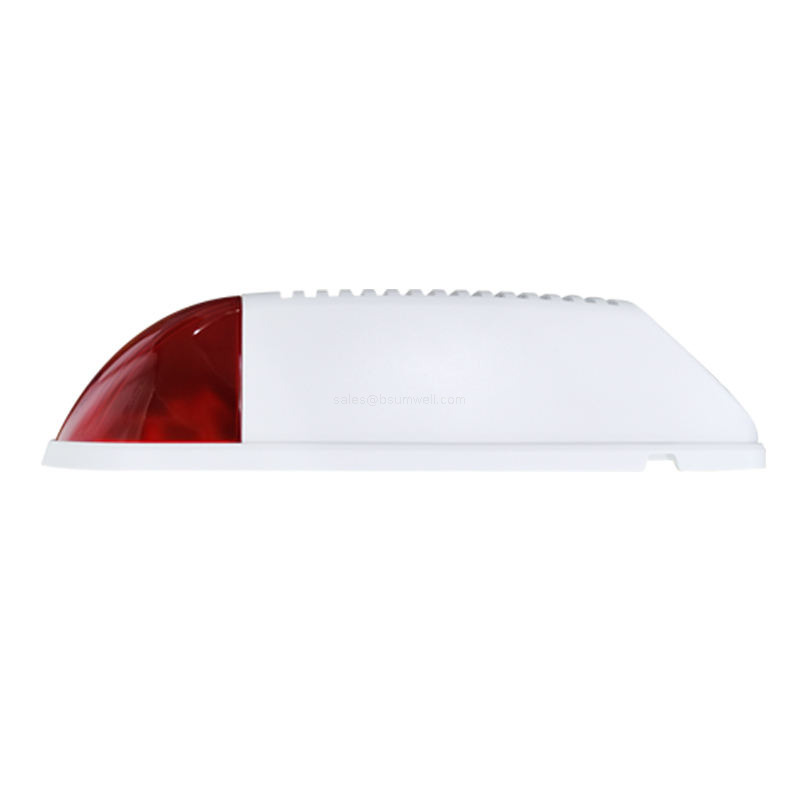

Constructed with a weather-resistant housing, the chassis incorporates an integrated anti-tamper switch mechanism that instantly triggers the alarm if unauthorized dismounting or physical enclosure opening occurs. The unit utilizes a 433MHz RF wireless module (1527 learning code format / 330K oscillation resistance), achieving an open-field wireless receiving range of up to $100\text{ m}$.

Frequently Asked Questions (FAQ)

Q1: How does the dual-function system operate as both a siren and an alarm host?

The device operates in two distinct modes based on setup preference. In standalone host mode, wireless sensors (such as door contact switches, smoke sensors, or motion detectors) pair directly to the siren without requiring a central panel. When a paired sensor triggers, the siren sounds immediately. In external siren mode, the unit pairs to a centralized security hub and activates only when instructed by the primary control panel.

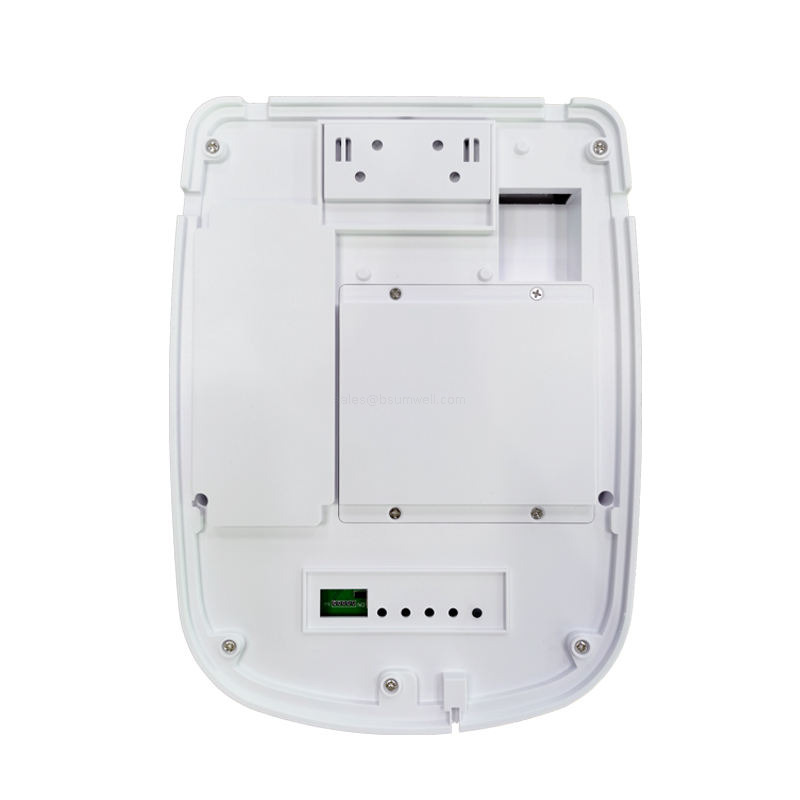

Q2: How does the anti-tamper protection feature function?

The back assembly includes an anti-tamper microswitch mechanism that engages when mounted flush against a wall or mounting surface. If an intruder attempts to remove, pry off, or dismantle the siren while the system is armed, the anti-tamper switch instantly activates the 110 siren and red strobe flash.
