During heavy rain, outdoor smart sockets frequently disconnect or even burn out. What's wrong with them?

Actually, most of the problems with the pot aren't on the circuit board, but in the outer casing. Many IP54 casings on the market claim to be rainproof—but in reality, they can only block splashes. In the event of continuous high-pressure downpours, rainwater can seep in through three places: gaps in the sealing ring, cable entry points, and the water film on the antenna cover.

A shell that can truly withstand extreme weather must simultaneously achieve the following: IP66/IP67 sealing, UV aging resistant, water-free radome, and prevents internal condensation. It also has to meet the requirements NEC 2023 specification.

From the factory's perspective, we'll break it down step by step using actual test photos, customer feedback, and certification data.

Core Definition

• IP66 (IEC 60529 standard): It is completely dustproof and can withstand strong water spray—about 100 liters per minute from a 12.5mm nozzle, sprayed from 3 meters away, and not a single drop of water gets in for at least 3 minutes.

• IP67：It has one more capability than IP66 – it can withstand being submerged in 1 meter of water for 30 minutes without any problems.

• NEC 406.9(B): A strict requirement in US electrical codes is that outdoor outlet casings must be "Extra-Duty" rated. What does that mean? It means that after the plug is inserted, the cover must be able to close completely and must be shock-resistant.

Don't be fooled by "IP54": it's really not enough for heavy rain.

We've spoken with many brands, and they're having a major headache: even though their sockets are labeled IP54, the return rate skyrockets within a week of Florida's summer storms. One user even complained, "When I unplugged it, there was a puddle of water inside, and the circuit board was all burnt."

Why? The "4" in IP54 only protects against splashes. Sustained high-pressure downpours, especially the kind of rain with wind pressure like a hurricane, can force water through the seal.

Solution

Therefore, when we made IP66/IP67 casings, we used these methods:

1. Double-layer silicone sealing ring: The compression ratio is controlled between 25% and 30%, and it can withstand a water pressure of nearly 100 kPa – roughly 10 meters of water column.

2. A drainage channel was added to the bottom: Even if there's a little bit of condensation, it will flow out on its own.

3. Deep cavity flip cover: After the plug is inserted, the cover can still be completely closed, preventing rainwater from entering through the socket.

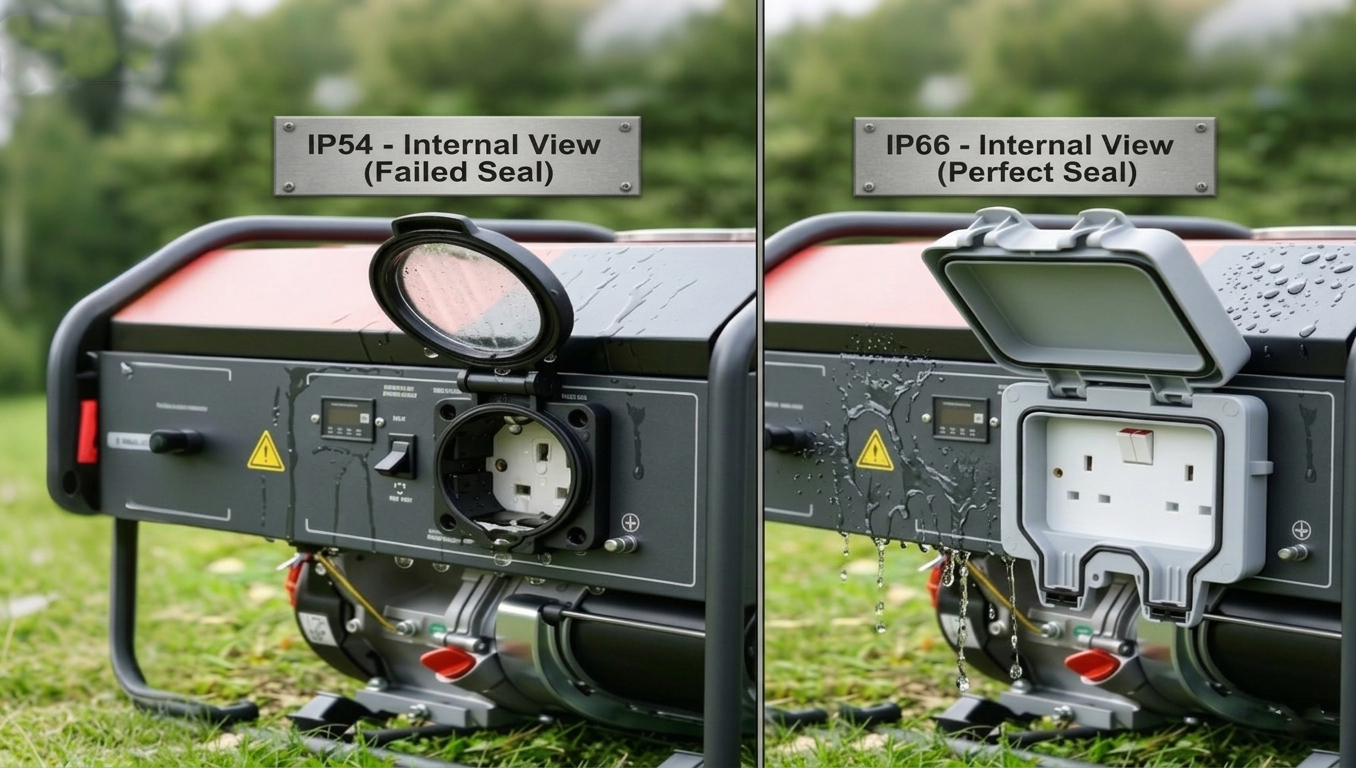

See this real-life comparison photo: On the left is an IP54 enclosure, which was sprayed with strong water for half an hour, and the inside is completely soaked; on the right is our IP66 enclosure, which is perfectly dry inside. Regarding certifications, we have third-party test reports for CE, IP66, and IP67 (I can send them to you if you're interested).

IP66 vs IP54: Internal condition comparison after 30 minutes of intense spraying

Shell material: It becomes brittle after a year? That's because it didn't contain UV protectant.

End users often complain, "The casing turns yellow after only a year, and it cracks with the slightest tap." The reason is actually quite simple: ultraviolet rays from the sun b reak the molecular chains of the plastic, creating a bunch of microcracks. Water slowly seeps in through these invisible cracks, eventually causing a short circuit.

Solution

We use UV-resistant PC/ABS alloy。

• With the addition of light stabilizer (HALS), the supplier's outdoor accelerated aging data states that it is equivalent to being exposed to the sun in Florida for 5 years, and the impact strength can still be retained by more than 70%.

• Before injection molding, the raw material must be vacuum dried for 4 hours to completely remove the moisture—otherwise, the plastic will hydrolyze at high temperatures, and its insulation performance will be ruined.

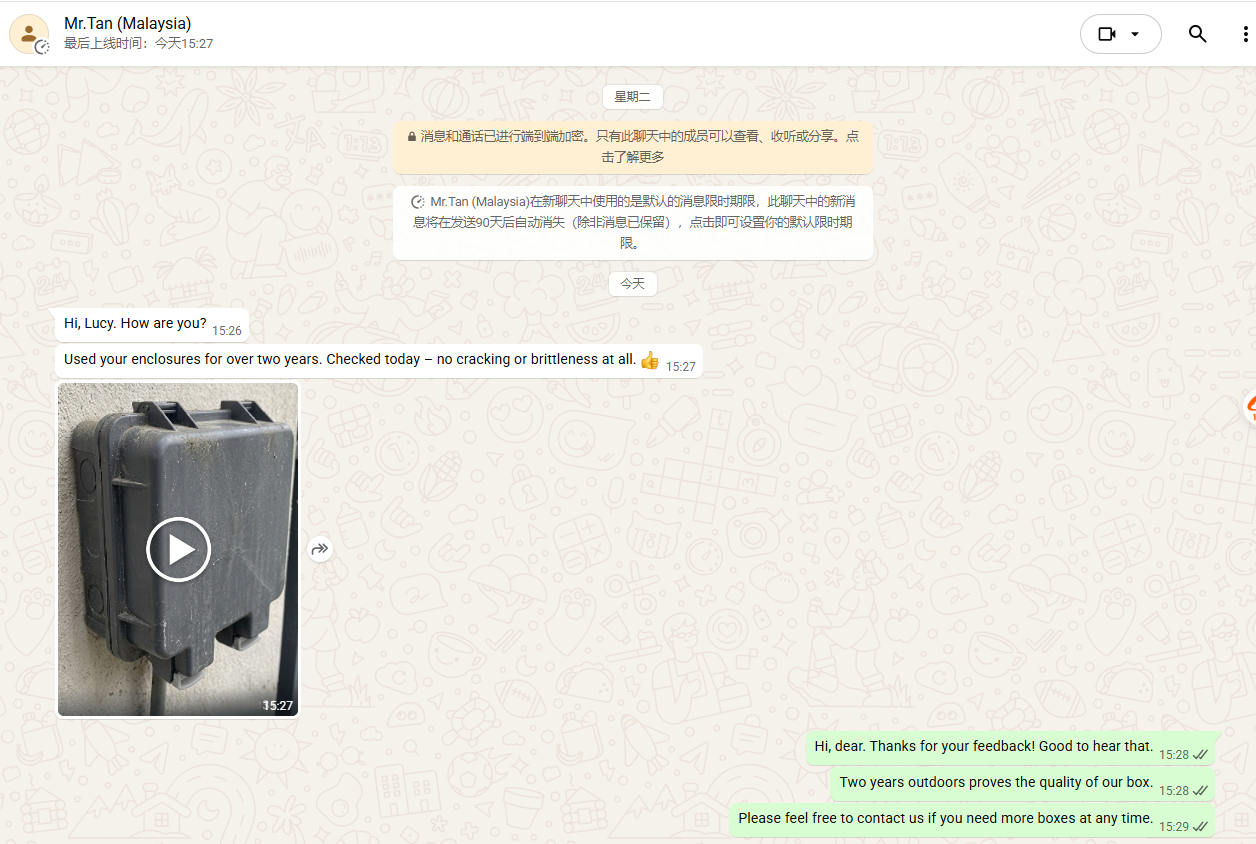

A Southeast Asian customer has been using our casings for over two years, and we've taken photos: the exterior hasn't shown any obvious signs of brittleness or cracking. Although we haven't conducted ASTM aging tests ourselves, the raw material itself meets the requirements. ASTM G155 The standard is recognized throughout the industry.

Water accumulation in the antenna radome: Internet disconnection whenever it rains? The problem lies in the water film.

Many users have reported: "It's strange, the Wi-Fi drops when it rains, but it works again as soon as the rain stops." We consulted an RF engineer and discovered the truth: the continuous water film on the surface of the casing is the culprit. Water has a dielectric constant of nearly 80, which can "deflect" the antenna, reducing the effective communication distance by more than half.

Solution

We applied a double hydrophobic treatment to the outer casing surface:

1. Hydrophobic coating: Water droplets with a contact angle exceeding 110° will roll off like lotus leaves and will not form a film.

2. Micron-level flow-guiding texture: This disrupts the surface tension of the water, allowing the water droplets to flow away along the grooves.

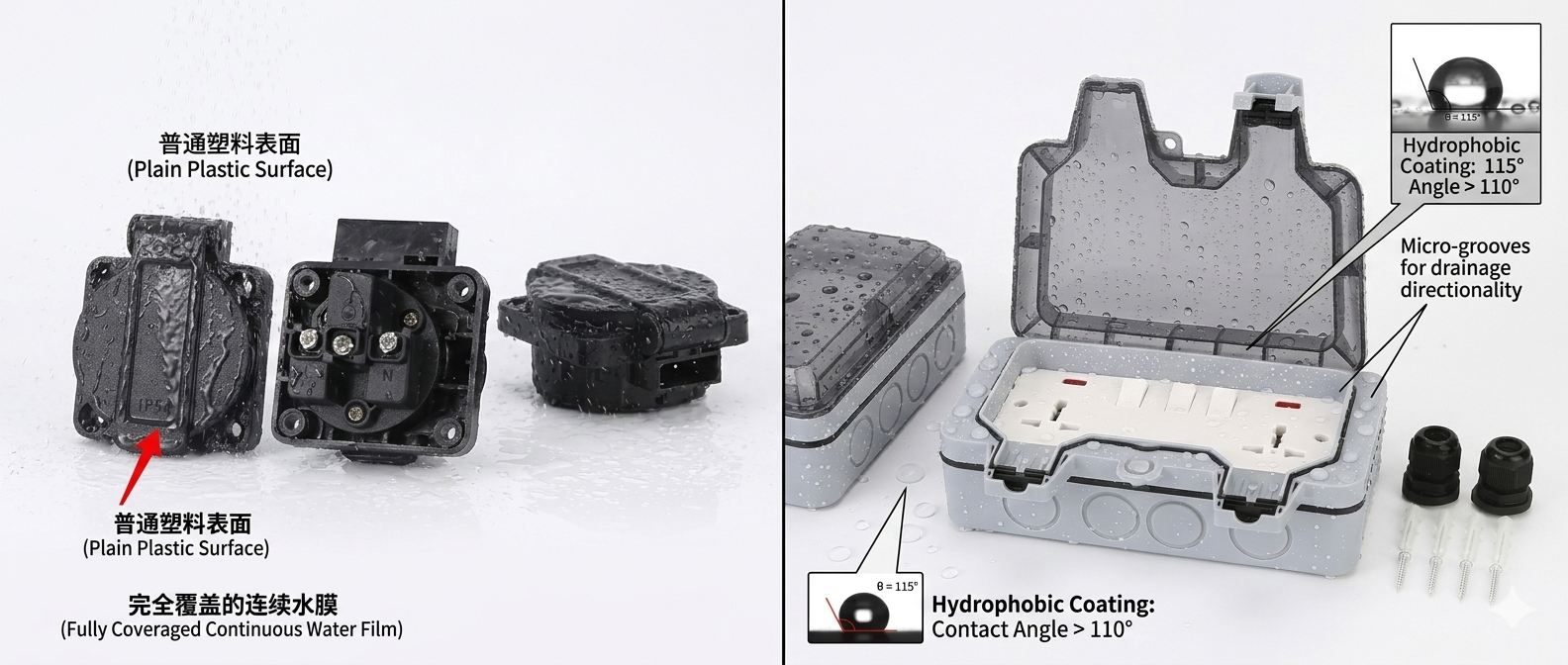

The comparison image is very intuitive: on the left, the ordinary surface is covered with a water film; on the right, our casing, water droplets roll off one by one. Customer test data: for the same 2.4G antenna, the RSSI dropped by nearly 18dB when exposed to rain using the ordinary casing; with our casing, it only dropped by about 3dB.

Condensation and Electron Migration: Tripping the Power Even When It's Not Raining? It's Because Something's Growing Inside!

A user told us, "On a sunny day, the power outlet suddenly tripped the circuit breaker. When I opened it up, there was a layer of white powder on the circuit board." This stuff is called... Electrochemical migration (ECM) —Moisture gets into the casing and slowly grows metal dendrites between the two solder joints on the PCB, like growing hair, eventually leading to leakage or even short circuit.

Solution

1. Conformal coating pre-coating: Before assembly, a layer of conformal coating is sprayed on the inside of the casing, with a thickness of about 50 to 80 micrometers, which meets the IPC-CC-830 standard.

2. Embedded breathable membrane: Install a kind of on the outer shell wall ePTFE film Water vapor can escape, but liquid water cannot enter, and it can also balance the internal and external air pressure.

A customer in Northern Europe who manufactures outdoor lighting saw their repair rate drop from 12% per year to less than 1% after using our breathable membrane shell in a high-humidity environment.

Comparison table: IP54 vs IP66/IP67

Extreme cold and extreme heat: Can your outer shell withstand -30 degrees Celsius?

A Canadian customer reported that their power outlet stopped working when the temperature dropped to -25 degrees Celsius. Upon inspection, it was found that the low temperature caused the equivalent resistance of the electrolytic capacitors to increase dramatically, and the ordinary seals had frozen and lost their elasticity, leading to water ingress.

Solution

• Wide temperature range customization: The seals can be replaced with silicone rubber (-50°C to 200°C).

• Low-temperature resistant PC: The outer shell does not crack when subjected to a drop ball impact test at -30 degrees Celsius.

NEC 2023 to CE: A compliance checklist can save you months of certification time.

B2B buyers are most afraid of their exported complete machines being detained due to non-compliance with local regulations, especially the US NEC 406.9(B) requirements.

Solution

Our casing design standards:

• UL 50E / UL 94 V-0 (flame retardant rating)

• IEC 60529 IP66/IP67 (CE certified)

• WR (weather resistant) structure: thickened walls, stainless steel hinges

Selling the casing isn't just about selling the casing: we even draw out how to install the "drip ring" for you.

Even with an IP67 casing, water can still get in if it's installed incorrectly. 80% of water ingress is due to users inserting the cable from above, allowing water to flow into the interior through the cable sheath.

Solution

• Mistake-proof design: The entrance is uniformly located at the bottom, labeled "Entrance facing down".

• Drip Ring Guide: The cable is guided to form a U-shaped bend, allowing the moisture to drip off naturally.

Customization and mass production services

• OEM/ODM Support: The mold can be modified to add antenna windows, ventilation membrane holes, PCB slots, etc.

• Free samples: Standard products are available for free sample (freight collect).

• Minimum order quantity: Standard orders start from 100 pieces, while custom orders start from 1000 pieces.

• Production capacity: Daily production capacity is 20,000 units, and regular orders are shipped within 7 days.

FAQ module

Q1: Can your IP66 casing really withstand hurricane-level rain?

A: Tested according to IEC 60529 standard: 12.5mm nozzle, 100 liters of water per minute, 3 meters away, full angle spray for 3 minutes without water entering.

Q2: If I don't get the whole machine NEC certified, can I just buy your casing and sell it directly to the US?

A: The casing structure complies with NEC 406.9(B), but the complete unit requires the cooperation of other components. We can provide a compliance declaration to help you pass the review.

Q3: Can you customize the openings according to my PCB board?

A: No problem. For custom orders of 1000 pieces or more, we will provide 3D schematics free of charge.
