The “Real Bill” for An IP65 Junction Box: Why Does The Purchase Price Only Account for A Fraction of Your Total Cost?

IP65 Junction Box 15-Year Total Cost Comparison: PC costs approximately $155, while ABS costs over $900. Based on real-world testing, customer failure cases, and aging photos, this article provides a clear cost breakdown for engineering procurement.

Let's look at some figures: An ABS junction box that sells for around $20 will cost you approximately $900 over 15 years. A PC junction box, on the other hand, costs about $35 per unit, but the total cost over 15 years is only around $150. The price difference is negligible. The real expense lies in the labor costs of replacing the boxes and the downtime losses.

For those of you in engineering procurement, electrical contracting, or outdoor equipment maintenance, this scenario is probably familiar: You choose a cheap box, only to find two years later that the casing is brittle, cracked, and leaking water, while the controllers, cameras, or sensors inside are all burnt out. The cost of repairing it once is enough to buy dozens of new boxes. And then your boss yells at you: "Were you out of your mind?"

This isn't something I made up. The exact same scenario is playing out repeatedly on Reddit, YouTube comment sections, and even in complaints from our own clients.

Today we won't talk about "how to buy the cheapest". Let's do a real calculation: over a 15-year project cycle, which of these three types of IP65 waterproof junction boxes – PC, ABS, and die-cast aluminum alloy – is more cost-effective and more worry-free?

Polycarbonate (PC) – even if you hit it with a hammer or run it over with a car, it will only leave a white mark.

What are users most afraid of? I'm afraid the box will break if I touch it.

On outdoor construction sites, in workshops, and in hail-affected areas, junction boxes are always at risk of being hit by a wrench falling from above, a tree branch broken by the wind, or a forklift reversing. An electrician on Reddit complained: "The customer bought a cheap junction box himself, and a ladder bumped into it, and the corner of the cover broke off. The PLC module inside got water inside and was ruined. I had to pay $800 just for that module."

So how's our PC junction box? We did two particularly "rough" things:

1. Smash it directly with a hammer: A regular claw hammer, when used to smash a standard ABS box—the first blow cracks the corner; the second blow tears the box apart. Then, when used to smash our PC box, three blows are all it takes, leaving only a faint white mark on the surface—no cracks, no penetration.

2. Run them over with a car: Lay the PC box flat on a concrete surface and drive a family car (about 1.5 tons) over it, front and rear wheels in turn. Guess what? The box was crushed? No. It bounced, and then straightened out after the wheels passed. Open the lid; the seal was intact, and it passed the IP test as usual.

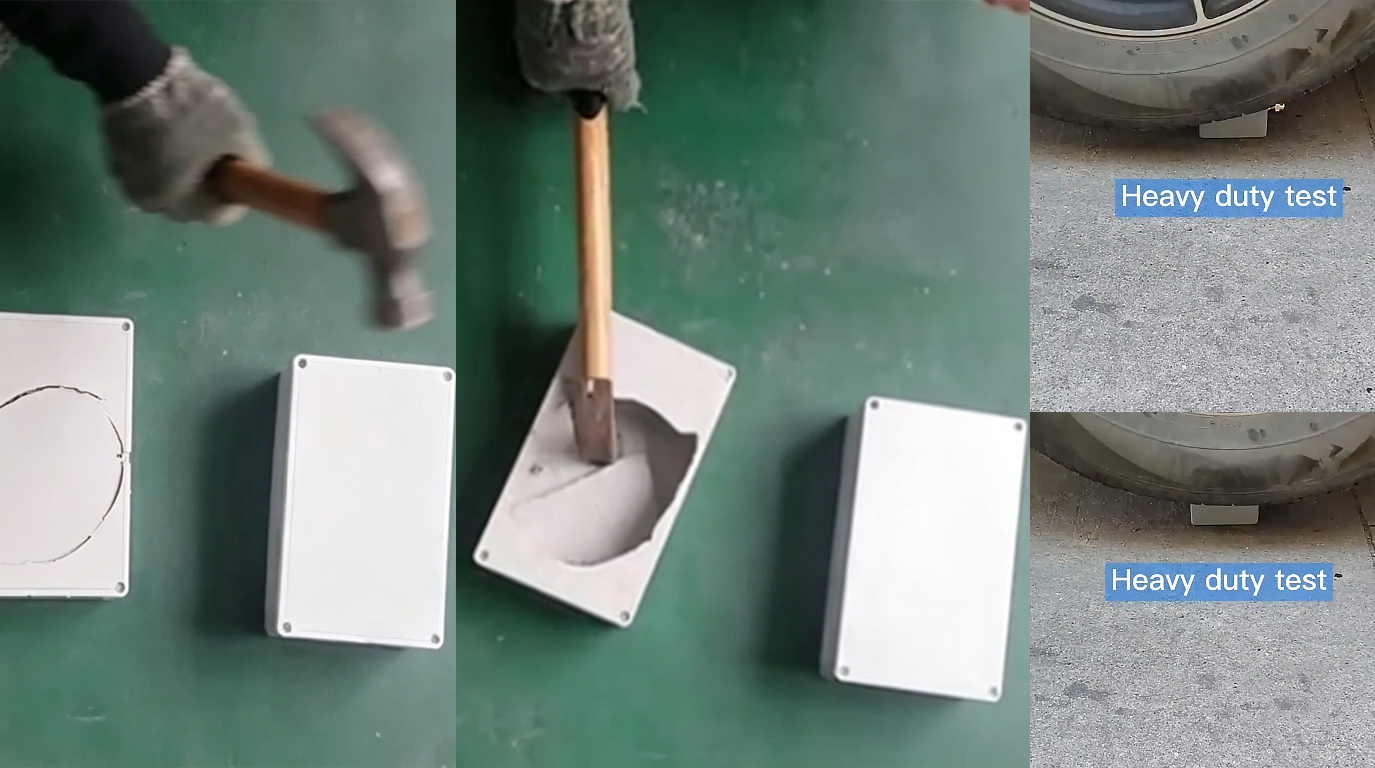

See the image below. The pile of fragments on the left is regular ABS, and the one on the right is our PC (after three hammer blows).

Caption: The left is a regular ABS junction box (shattered with one hammer blow), and the right is our PC junction box (only white marks after three hammer blows).

Caption: A passenger car ran over the PC junction box; the box remained intact, and the IP test passed.

Several key indicators (publicly available industry values):

• PC notched impact strength: approximately 12 ft-lb/in

• ABS is only about 4 ft-lb/in

• PC has a heat distortion temperature of 135°C, while ABS has a heat distortion temperature of approximately 100°C.

What does this mean? In the sweltering heat of midday, an ABS box might soften, and the screw holes might deform under stress; PC, however, remains sturdy. On a freezing night of -20°C, ABS becomes as brittle as a biscuit, while PC remains resilient.

In the past three years, not a single customer who switched from ABS to our PC has come back complaining about cracked casings. Don't believe me? Take a sample, smash it yourself, press it yourself.

ABS—why do experienced electricians shake their heads when they see it?

What are users most afraid of?I'm afraid the box will turn to rubble before it's even been exposed to the sun for two years.

On YouTube and Reddit's r/electricians channel, ABS junction boxes have a nickname—"outdoor time bombs." An experienced electrician put it: "I've disassembled too many outdoor ABS boxes that have been used for two or three years. They crumble at the slightest touch, like cookies. The terminal blocks inside are covered in verdigris. Customers even asked me why I didn't recommend better ones."

This is not surprising. The butadiene component in ABS is inherently susceptible to ultraviolet radiation—without sufficient UV stabilizers, it will undergo photo-oxidative degradation after 2 to 5 years of direct outdoor exposure. First, it yellows and loses its luster, then microcracks appear, and finally the entire sheet turns to powder. Once cracks appear, IP65 becomes a joke: water will seep in through the cracks, and it's no wonder that the equipment inside will be damaged.

We encountered a real-world case (desensitization process):

A customer who manufactures solar-powered garden lights purchased a large batch of ABS waterproof boxes from another supplier and installed them on their outdoor lawns. Two years later, over 30% of the boxes had cracked outer shells and chipped edges. During the rainy season, rainwater seeped in, causing the LED drivers and wiring terminals inside to rust and short-circuit. The customer calculated that the total loss from replacing the boxes, labor costs for repairs, and the burnt-out drivers exceeded $5,000. Initially, to save costs, these boxes were only less than $800 cheaper than a PC (precast concrete) solution.

Later, this customer contacted us and replaced all the boxes with waterproof PC material. They've been using them for over three years now, and not a single one has aged.

The only advantage of ABS: The initial purchase price is low, 30% to 50% cheaper than a PC. But the example above tells you that the money saved isn't enough to cover a single repair.

We also make ABS boxes, but we'll make it clear to you: ABS is only suitable for indoor use, sheltered outdoor areas (like under eaves), or short-term projects. If you insist on installing it in an open-air, sun-exposed location, we'll advise you to use PC instead. This isn't sales tactic; it's common engineering knowledge.

Die-cast aluminum alloy – provides heat dissipation and shielding, but is susceptible to salt damage.

What are users most afraid of? They were worried that the aluminum shell would "rot" after two years on the coast.

A marine engineering project manager posted on LinkedIn: "We installed a batch of aluminum alloy junction boxes on an island. In the third year, the surface was covered with white powder, the screws couldn't be tightened, and the covers couldn't be opened. We chose it because it was cheap, but now the labor cost to replace it is 5 times the price of the box."

Aluminum alloys have many advantages:

• With a thermal conductivity of approximately 100 W/m·K (plastic <0.3), it is suitable for high-power equipment (LED drivers, power modules, frequency converters).

• Natural EMI/RFI electromagnetic shielding protects sensitive circuits.

• Extremely high mechanical strength, not afraid of impact.

However, it has a fatal weakness—it is susceptible to corrosion.

At seaside (salt spray), chemical plants (acid and alkaline gases), and along roadsides where de-icing agents are applied in winter (chloride salts), unprotected aluminum alloys will suffer electrochemical corrosion. First, white spots appear on the surface (alumina powdering), then pitting occurs, and in severe cases, screw holes chip and covers deform.

How did we do it? All aluminum alloy casings Powder coating (Color can be customized). This coating acts as a physical barrier, separating the aluminum substrate from corrosive media.

Although there is no official ASTM B117 salt spray report (third-party testing is expensive), we have made internal comparisons:

• Bare aluminum samples placed in a simulated salt spray environment develop white spots after 7 days.

• The same batch of powder-coated samples showed no change after 30 days.

Our recommendation:

• For general industrial plants and inland areas: powder-coated aluminum alloy is perfectly adequate.

• Within 1 kilometer of the coast, in chemical plant areas, and areas frequently exposed to de-icing agents: Apply 316 stainless steel or heavy-duty anti-corrosion coating (customization available upon request).

An aluminum shell is a good thing, but don't go to the beach without an "outer shell".

These are aging photos we took ourselves in the lab—no fluff.

What are users most afraid of? The manufacturer claims it's "resistant to aging," but in reality, it becomes unusable after two or three years.

Many supplier websites claim "UV resistant" and "highly weather-resistant," but they can't provide a single picture. We're different—we pay for our own aging tests and even film the process.

Test 1: Accelerated aging of xenon lamps (simulating outdoor UV radiation + rain)

ABS and PC samples were placed together in a xenon lamp aging chamber to simulate an average of 2,000 hours of strong ultraviolet radiation per year (roughly equivalent to 18 months in real-world conditions).

result:

• ABS：The surface is noticeably yellowed, and microcracks about 0.2mm deep appear at the edges and corners. A cracking sound can be heard when it is gently broken.

• PC (containing UV stabilizer): The appearance remains almost unchanged, and the impact strength retention rate exceeds 90%.

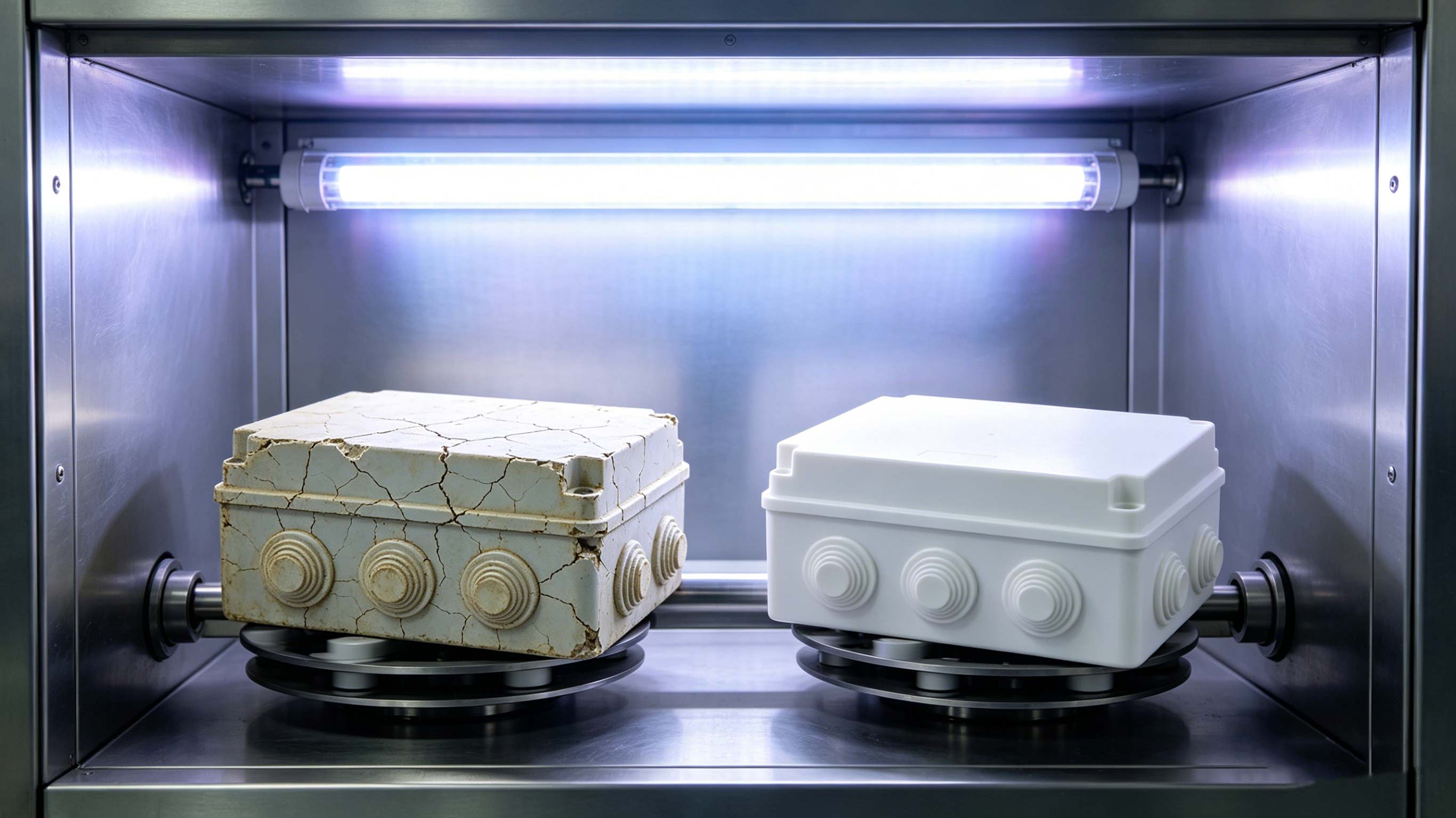

Caption: Left: ABS shows severe yellowing and cracking; Right: PC (UV stable) shows no significant change. Test conditions refer to ASTM G155.

Test 2: Temperature cycling (simulating day and night temperature difference)

The samples were subjected to cycles between -40°C and +85°C, with each extreme temperature held for 2 hours, for a total of 100 cycles.

result:

• PC casing: The sealing gasket remains elastic, the cover opens smoothly, and the IP test has been passed.

• Aluminum alloy (without special treatment): The thermal expansion coefficients of metal and rubber gaskets differed too much, resulting in trace amounts of condensation near the screw holes in some samples.

Test 3: Salt spray corrosion (simulating a seaside environment)

Powder-coated aluminum alloy and bare aluminum samples were placed together in a salt spray chamber (5% NaCl, 35°C, continuous spraying).

result:

• Bare aluminum: White spots appeared after 96 hours, and obvious pitting occurred after 240 hours.

• Powder coated aluminum: The coating remained intact after 480 hours, and no underfilm propagation was observed at the scratches (internal observation, informal report).

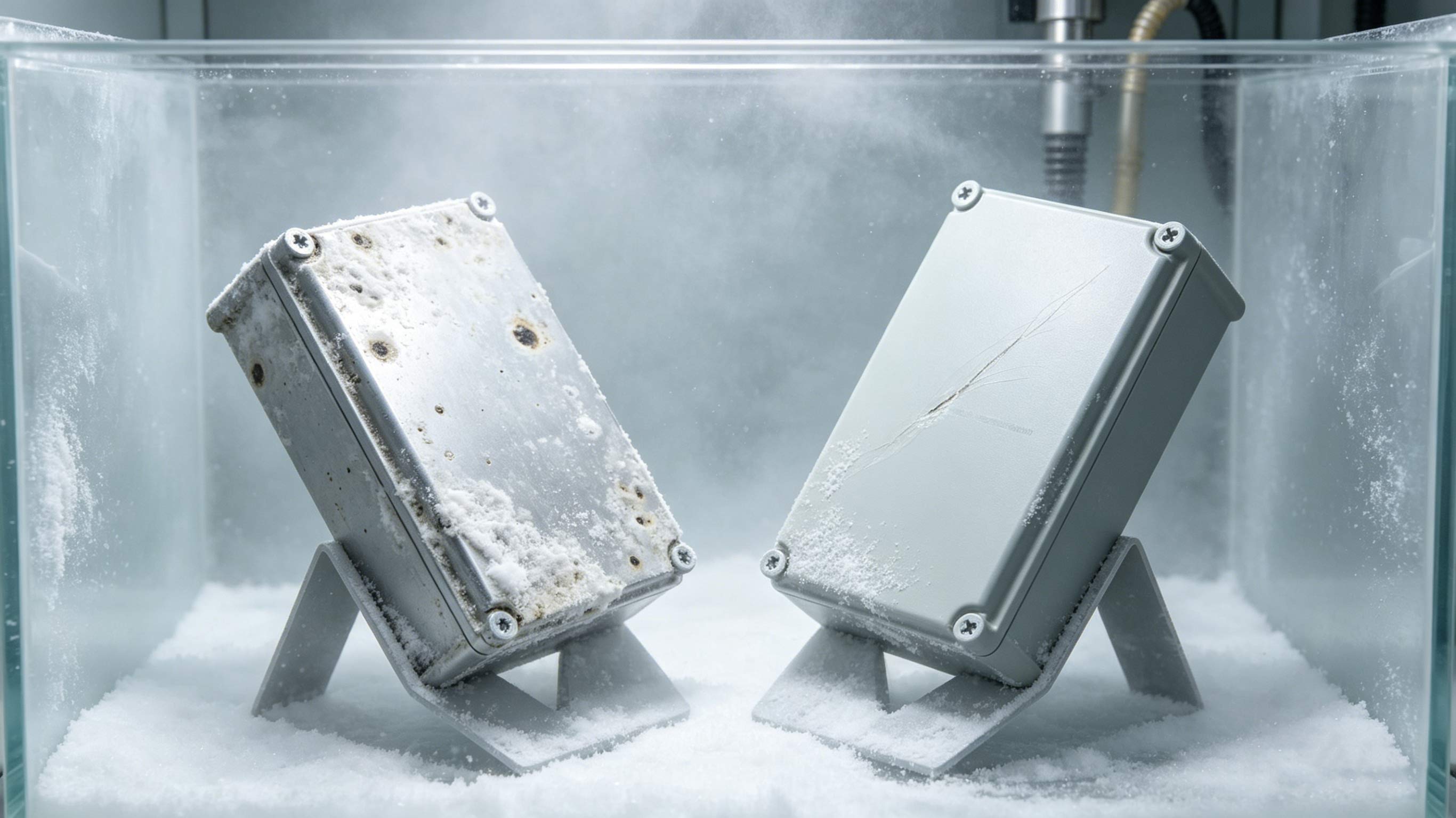

Caption: Corrosion on bare aluminum surface compared to the intact state of coated aluminum.

These photos were all taken by us, not downloaded from the internet. We don't just sell the boxes; we actually put them in an aging chamber to check them.

The 3 most common ways to "mess up waterproofing yourself"

What are users most afraid of? I bought an IP65 rated box, but water still got in after I put it in.

We've disassembled hundreds of faulty junction boxes and found that more than half of the water ingress incidents were not due to a quality issue with the box itself, but rather to incorrect installation.

Mistake 1: Tightening the electric screwdriver too much.

• Scene: To save time, the installer used power tools to tighten the cover plate screws until they made a "click-clack" sound.

• as a result of: The sealing gasket was crushed and permanently deformed. When the temperature drops, the box shrinks, and the gasket cannot spring back, leading to water leakage.

• Correct approach: Use a manual screwdriver to tighten the washer until you feel a slight overflow (about 1.5-2.0 N·m).

Mistake 2: Drilling a hole randomly and sealing it with silicone sealant.

• Scene: To temporarily add cables on-site, workers drilled holes directly in the side of the box and sealed the gaps with silicone sealant.

• as a result of: The silicone sealant shrinks and cracks after drying. High-pressure water jets or heavy rain can cause water to seep directly into the sealant.

• Correct approach: Using the matching cable connector with a sealing ring (Cable Gland, such as the PG/M series), IP68 waterproof rating can be achieved.

Mistake 3: Stainless steel screws were used to tighten the aluminum alloy box directly without insulation.

• Scene: In humid environments, stainless steel screws are used to directly secure the aluminum alloy box.

• as a result of: Electrochemical corrosion occurs, and aluminum, acting as a sacrificial anode, is rapidly consumed, leading to loosening and detachment of screw holes.

• Correct approach: Use nylon gaskets to isolate different metals, or use anti-bite agents.

A 15-year review – Why the boxes you think are “cheap” are actually the most expensive.

What are users most afraid of? They were misled by the unit price and ignored the total cost.

The following is a TCO comparison model (based on 100 boxes, 15-year period):

in conclusion: Although ABS has the lowest unit price, its total cost over 15 years is [amount missing] that of PC. 6 times Once you've settled this score, your boss will thank you.

Is IP65 enough? You might have forgotten about "UV protection" and "salt spray".

What are users most afraid of? I thought IP65 meant "it can protect against everything", but the box got damaged by the sun.

IP65 (IEC 60529 standard) only tests dust-proofandlow-pressure water spray It does not test for UV aging, salt spray corrosion, or chemical corrosion.

Must-read for outdoor product selection:

1. UV stability: Outdoor plastic boxes must be checked to ensure they contain UV stabilizers (refer to UL 746C f1 requirements).

2. Corrosion resistance: For extreme environments, stainless steel 316 or a heavy-duty anti-corrosion coating is recommended.

Future direction: A waterproof box that "can cry for help"

What are users most afraid of? No one knew the box had gotten wet until the equipment short-circuited and shut down.

We are developing a "smart casing" that integrates temperature and humidity sensors and a leak detector:

• Humidity monitoring: Automatically triggers an alarm via LoRa/NB-IoT when humidity spikes abnormally.

• Leakage detection: A probe is placed at the bottom; if water is detected, a remote notification is immediately triggered.

In the future, the box will shout by itself, "I'm wet, come and fix it!" — This isn't science fiction, it's something we're working on right now.

FAQ (Frequently Asked Questions)

Q: PC junction boxes are so much more expensive than ABS ones, are they really worth it?

A: In terms of TCO in 2015, the total cost was only 1/6 of that. This is because it eliminated the costs of multiple replacements, labor, and downtime losses.

Q: Can you provide UL-certified products?

A: Yes. Please consult sales for specific models and customization lead times.

Q: Can you customize the openings, silkscreen printing, and guide rails?

A: Yes. We offer one-stop customized services such as CNC drilling and laser marking.

Choosing a box means choosing peace of mind.

We are a waterproof electrical enclosure factory. We don't boast about being the best; we only present data and facts.

• Indoor/Shelter: ABS is sufficient.

• General outdoor: PC + UV stabilizer

• High power/coastal: Powder coated aluminum alloy

• Extreme environments: Please contact us to customize a solution.
