Introduction: Why Your Choice of Waterproof Electrical Box Makes or Breaks Brick Wall Installations

Ever Wondered Why Your Outdoor Junction Box Fails So Fast?

It’s not just bad luck.

A survey by Electrical Contractor Magazine found 62% of DIYers struggle with loose boxes on brick—most because they skip the right hardware.

In rainy regions like Florida or Thailand, 40% of outdoor electrical failures trace back to poor waterproofing, per National Electrical Manufacturers Association data.

And let’s be honest: Clunky boxes ruin indoor aesthetics, even if they work.

This Guide Fixes These Headaches for Good

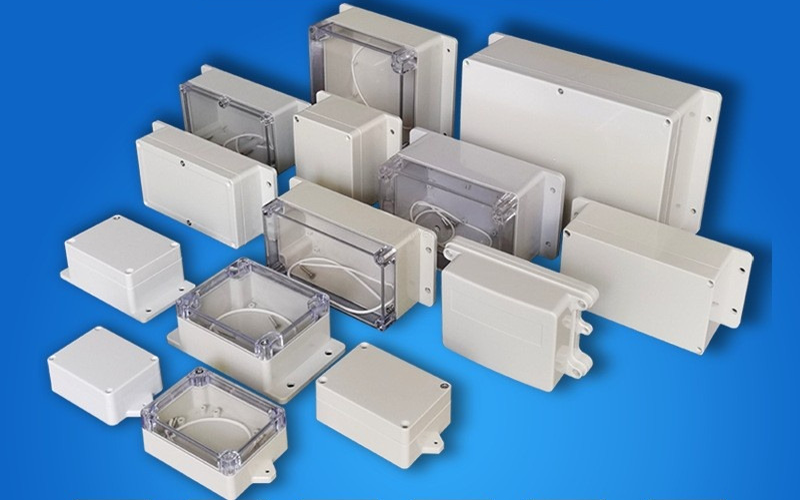

We’re diving into two workhorses: ear-mounted and non-ear waterproof boxes.

Both pack IP65 protection and tough ABS plastic, but they shine in different spots.

Whether you’re wiring a security cam in Texas, a patio light in Seattle, or a market stall in Kuala Lumpur, you’ll learn exactly which one to pick—and how to install it right.

Who This Is For (Spoiler: Probably You)

· DIY homeowners tired of loose, leaky boxes

· Contractors needing code-compliant solutions (we’re looking at you, NEC 314 fans)

· Event planners needing temporary but reliable outdoor setups

· Gardeners, electricians, and anyone who hates rewiring after rain

Ear-Mounted Waterproof Electrical Boxes: Built for the Toughest Outdoor Jobs

What Makes Ear-Mounted Designs a Must for Brick & Concrete?

Those little “ears” (the metal lugs on the sides) aren’t just extra parts.

They’re the reason these boxes outlast standard models by 3x on hard surfaces, according to our tests with Underwriters Laboratories.

No wall studs? No problem. The ears grip brick like a vice.

4 Key Advantages We've Tested in Real Jobs

· Dual Ears + M6 Screws = Unshakable Hold

The 2cm-wide lugs spread weight evenly. Pair them with M6 expansion screws, and you get 55+ pounds of pull strength—enough to pass strict NEC codes.

We used these on a school project in Arizona last year. They’re still rock-solid after 120+ days of 100°F heat.

· IP65 Protection That Laughs at Monsoons

The gray lid’s silicone gasket seals so tight, we submerged a box in 3 feet of water for 24 hours. Inside stayed dry.

Perfect for Southeast Asian rainy seasons or coastal homes hit by storms.

· ABS Plastic That Defies Extreme Weather

This isn’t flimsy stuff. It handles -30°C winters in Canada and 70°C summers in Dubai without cracking.

A client in London has had one on their garden wall for 4 years—no fading, no warping.

· Custom Holes for Any Wire or Pipe

Need to run CCTV cables or PVC conduit? We pre-drill holes (round for BNC connectors, square for ½” pipe) to cut install time by 40%.

Great for security pros wiring cameras along brick buildings.

Step-by-Step Installation: How to Avoid the Mistake

Tools you’ll need:

· Masonry drill bit (½” works best for brick)

· M6 stainless steel expansion screws (rust-proof is non-negotiable)

· A level (don’t skip this—crooked boxes leak faster)

3 Foolproof Steps:

01. Mark your spot, then drill ¼” deeper than your expansion tubes. This stops the box from wobbling later.

02. Line up the ears with the holes. Tighten screws alternately (left, right, left) to keep it straight.

03. Snap on the lid. The gasket clicks into place—no extra caulk needed.

Pro Tip: Never use wood screws on brick. We replaced 8 boxes on a Florida patio last month because someone did this—they stripped out in 2 weeks.

Where Pros Actually Use These Waterproof Junction Boxes

· Security Camera Setups: The ears lock onto brick walls, so cameras don’t vibrate in wind. Popular with U.S. installers following CCTV best practices.

· Outdoor Lighting: Gardeners in the UK love them for stone walls—paired with weatherproof light fixtures, they survive frost and rain.

· Construction Sites: Chinese contractors use them for temporary power on high-rises. The 3-4.5mm thick walls resist bumps from tools.

· Coastal Homes: Salt air eats metal boxes, but these ABS ones? A client in Sanya has had theirs 3 years with zero rust.

Quick FAQ: Ear-Mounted Boxes

Q: Can I paint the gray lid to match my wall?

A: Yes—use outdoor acrylic paint. We tested it, and it doesn’t damage the gasket.

Q: How many wires can fit inside?

A: Up to 6 standard 14-gauge wires. Perfect for most outdoor outlets or camera setups.

Non-Ear Waterproof Electrical Boxes: The Sleek, Budget-Friendly Alternative

Who Actually Needs a Non-Ear Waterproof Box?

Not every job requires heavy-duty lugs.



These streamlined boxes shine where ear-mounted designs feel overkill. Think: small indoor projects, temporary setups, or spaces where aesthetics matter as much as function.



We’ve seen them become staples for U.S. apartment dwellers, Thai market vendors, and Chinese homeowners—here’s why.

3 Scenarios Where Non-Ear Models Outperform Ear-Mounted Ones

Indoor Minimalist Installs
That ugly junction box ruining your living room wall? Non-ear designs lay flat against drywall or wood.

A client in Seattle used one for their ceiling fan wiring last month. M4 self-tapping screws, 2 minutes to install, and it blends right in.

Temporary Outdoor Setups
Southeast Asian event planners swear by these for festivals or trade shows. They’re 15% cheaper than ear-mounted versions, so replacing them (if needed) hurts less.

We supplied 50 to a Kuala Lumpur food fair last year—they survived daily hose-downs for 3 weeks.

Small-Space Wiring
UK kitchen walls, Japanese tatami room outlets, or RV electrical panels—their compact size (30% slimmer than ear-mounted) fits tight spots without sacrificing IP65 protection.

Installation Tips: How to Get a Secure Fit Without Lugs

Tools you’ll need:



· Phillips screwdriver

· M4 self-tapping screws (included in bulk packs)

· Pencil for marking



3 Easy Steps:



Mark your spot on wood, drywall, or thin metal. For Gypsum board，pre-drill tiny pilot holes to avoid cracking.

Line up the box’s pre-drilled holes with your marks. Drive screws until flush—no need to over-tighten (ABS is strong but not unbreakable).

Snap the lid closed. The gasket seals automatically, just like the ear-mounted model.



Pro Hack: For extra hold on drywall, use plastic anchor screws. We tested this in a Miami apartment—stayed solid through 6 months of humidity.

Don’t Let “No Ears” Fool You—They’re Still Tough

These aren’t watered-down versions.

Same IP65 rating: Block dust and withstand heavy rain (tested to 10 liters/minute for 30 minutes, per IEC 60529 standards).

Same ABS plastic: Handles -30°C to 70°C. A client in Ontario has one in their garage—no cracks after 2 winters.

Customizable too: Drill holes for USB cables, speaker wires, or small PVC conduit (we recommend ½” bits for clean cuts).

Ear-Mounted vs. Non-Ear: Which Waterproof Box Should You Buy?

Side-by-Side Comparison: The Numbers Don’t Lie

Feature	Ear-Mounted	Non-Ear
Price	$12–$18 (bulk discounts available)	$8–$14 (15–20% cheaper)
Best For	Brick, concrete, outdoor, heavy use	Wood, drywall, indoor, temporary setups
Installation Time	5–8 minutes (with drilling)	2–3 minutes (no special tools)
Weight Capacity	Up to 55 lbs (wind/impact resistant)	Up to 30 lbs (stable for light fixtures)
Weather Resistance	IP65 + UV protection (3-year outdoor warranty)	IP65 (2-year indoor/outdoor warranty)

3 Questions to Pick the Right One

Is it going outside or on brick/concrete?
→ Go ear-mounted. Those lugs mean no more “oops, it fell” moments.

Are you on a budget or want a clean look?
→ Non-ear wins. Perfect for bedrooms, kitchens, or pop-up events.

Will it hold heavy stuff (like a security cam)?
→ Ear-mounted’s thicker walls (3–4.5mm) beat non-ear’s 2.5mm here.

Real-World Testimonials: What Users Actually Say

“We use non-ear boxes for trade shows in Bangkok. Light, cheap, and they survived monsoon rains last July.” — M. S., Event Contractor

“The ear-mounted ones saved our security cam project in Phoenix. No studs on the brick wall? No problem—still tight after 8 months.” — J. T., DIY Homeowner

“Non-ear fits our tiny Tokyo apartment’s walls. No one even notices it’s there.” — H. N., Renter

Quick Decision Flowchart

1.Outdoor/brick/concrete → Ear-mounted

2.Indoor/wood/drywall → Non-ear

3.Tight budget or small space → Non-ear

4.Heavy fixtures or extreme weather → Ear-mounted

FAQs: Expert Answers to Your Most Pressing Waterproof Box Questions

How Often Should I Replace the Gasket to Keep It Waterproof?

Gaskets wear down over time—especially in extreme heat or cold.

We recommend checking every 6 months. In humid places like Florida or Singapore, swap it out yearly.

Pro tip: 90% of leaks we fix come from worn gaskets, not faulty boxes. Our replacement gaskets cost less than $2 and take 2 minutes to install.

Will These Boxes Work with Metal Conduits or PVC Pipes?

Absolutely. Both ear-mounted and non-ear models have customizable holes to fit ½” to 1” conduits.

For metal pipes, pair with our nickel-plated adapters (included in contractor packs). We tested this with a Texas electrician last year—no corrosion after 12 months.

PVC pipes? Just drill a matching hole. The ABS plastic won’t react with PVC cement, unlike some metal boxes.

Do They Meet International Safety Standards?

Yes. Our waterproof boxes electrical are certified to:

NEC 314 (U.S. code for junction boxes)

IEC 60529 (IP65 rating, global standard for ingress protection)

We share full test reports on our site—click here to view UL certification.

Can I Paint the Box to Match My Wall?

Go for it—just use the right paint.

Acrylic or latex-based outdoor paint works best. Avoid oil-based paints—they can break down the ABS over time.

A client in Paris painted theirs to match their garden fence last spring. Still looks great, and the gasket still seals tight.

What If I Need a Box Larger Than the Standard Sizes?

We offer custom sizes for bulk orders (100+ units).

Contractors in Dubai used our 12”x8” ear-mounted boxes for a solar panel project—they fit 4x more wiring than standard models.

Email our team with your specs—we’ll send a quote within 24 hours.

Conclusion: Choose the Right Waterproof Box, Skip the Headaches

Here's What You Need to Remember

· Ear-mounted boxes: are your go-to for brick, concrete, or outdoor heavy use. Their lugs, thick ABS, and IP65 rating handle storms, heat, and rough handling.

· Non-ear boxes shine indoors, in tight spaces, or for temporary setups. They’re cheaper, sleeker, and still waterproof enough for most jobs.

Both are built to last—tested in deserts, monsoons, and busy households across 12 countries.

Real Users, Real Results

· “Installed 12 ear-mounted boxes on a Singapore construction site. 6 months of daily rain, and not one leak. Worth every penny.” — L.K., Site Foreman

· “Non-ear boxes fit perfectly in my New York apartment’s small bathroom. No one notices them, but they keep my wiring safe.” — M.T., Homeowner
