What is the Function of the Photovoltaic Combiner Box?

In the ever - evolving solar energy landscape, the photovoltaic (PV) combiner box operates behind the scenes as a critical backbone for efficient power management. Far from being a mere junction box, it orchestrates energy flow, safeguards systems, and simplifies operations. Let’s delve into its roles, classifications, and significance.

1. Core Function: Power Aggregation (Sungrow Smart Combiner Box Case Study)

At its essence, a solar pv combiner box centralizes power collection.

For DC Systems: Solar panels generate direct current (DC). In large - scale installations, dozens of panels are grouped into “strings.” A combiner box gathers DC power from these strings, reducing a complex web of wiring to a single output line. This streamlines connections to inverters (which convert DC to AC).

For AC Systems: After inverters do their job, alternating current (AC) also needs coordination. An AC combiner box collects AC power from multiple inverters, preparing it for grid integration or on - site use (such as powering a building).

2. Protection Mechanisms

Combiner boxes serve as guardians against electrical hazards:

a. Overcurrent Protection: Fuses or circuit breakers prevent surges (caused by cloud cover, panel defects, or wiring issues) from damaging panels, inverters, or the grid.

b. Overvoltage Defense: They shield systems from voltage spikes that can occur during storms or grid fluctuations.

Optional Lightning Protection: Models like our DC Solar PV Combiner Box add this crucial layer — vital for outdoor setups exposed to the elements.

3. System Monitoring & Management

Modern combiner boxes are not just passive connectors; they are smart monitors:

Many come with sensors to track the power output from individual strings or inverters. If one string underperforms (due to shading, a faulty panel, or dirt), the box flags the issue. This enables operators to fix problems quickly, maximizing energy production.

4. Classification: DC vs. AC Combiner Boxes

The most significant distinction among combiner boxes lies in their voltage type:

a. DC Combiner Boxes

DC combiner boxes act as the first - stage hub in a solar system, directly handling the low - voltage DC power generated by solar panels. They are essential for organizing multiple panel strings (series - connected panels) and often include string fuses or circuit breakers to protect individual strings from short circuits or overloads. For instance, our DC Solar PV Combiner Box is engineered for outdoor durability — its IP65 rating means it resists dust and water ingress, making it perfect for exposed rooftop or ground - mount systems.

b. AC Combiner Boxes

AC combiner boxes come into play after inverters convert DC to AC. They aggregate AC power from multiple inverters, streamlining grid connection or on - site distribution. Unlike DC boxes, they focus on managing higher - voltage AC circuits, so features like AC - rated circuit breakers and surge protection are key. Our AC Combiner Box is a prime example — with a rugged 201/304 stainless - steel shell and a customizable 3 - circuit design, it balances protection and flexibility for commercial or residential setups.

5. Environmental Adaptability

PV combiner boxes must endure the elements:

IP Ratings (Ingress Protection) define their resistance to dust and water. A DC box with an IP65 rating can withstand heavy rain and dust, while an IP63 - rated AC box is suitable for drier or sheltered environments.

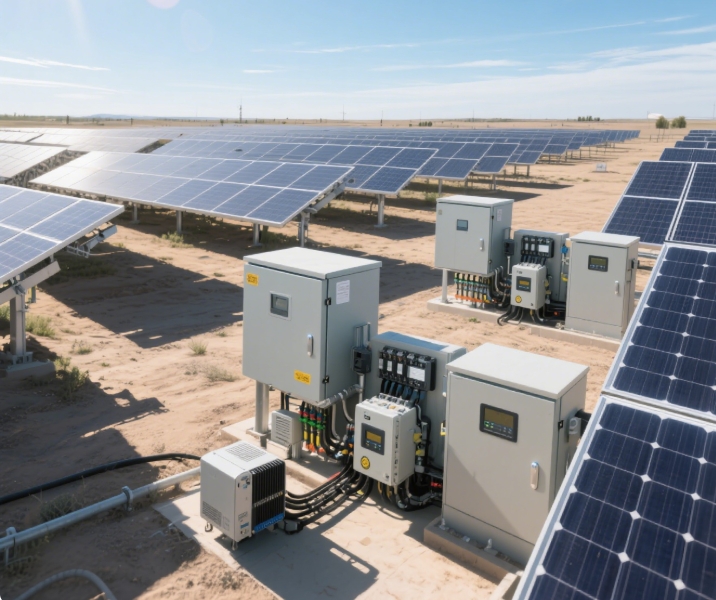

Materials also matter: DC boxes often use rugged PC plastic for cost - effective durability, while AC boxes may opt for stainless steel for long - term corrosion resistance.

Why It All Matters

Without a combiner box, solar systems would be a chaotic tangle of wires, vulnerable to damage, and difficult to monitor. Whether you’re installing a home rooftop system or a utility - scale farm, choosing the right type (DC or AC) and model (like our rugged, purpose - built options) ensures:

a. Efficient power flow

b. Long - term system protection

c. Easy maintenance and troubleshooting

In short, the PV combiner box is the unsung hero that keeps solar energy systems running smoothly — turning scattered sunlight into reliable, organized power.
