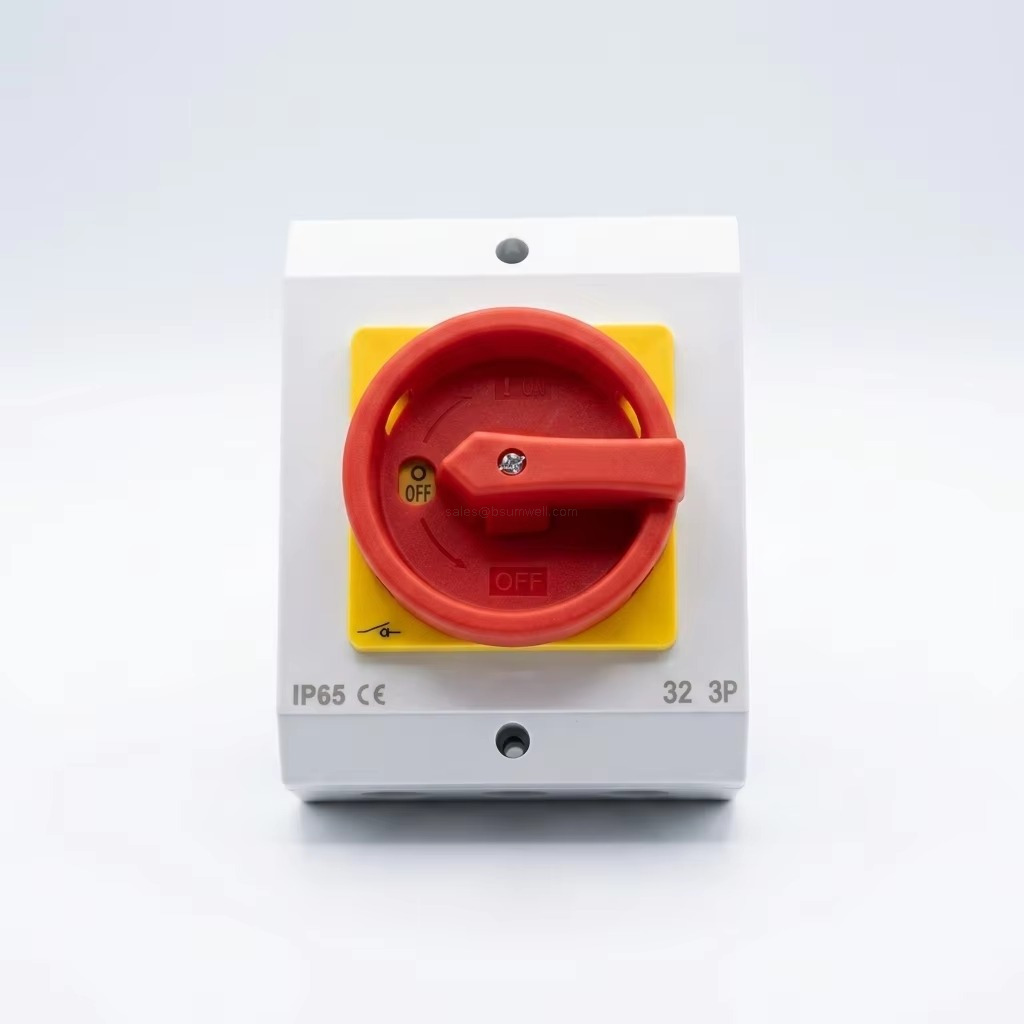

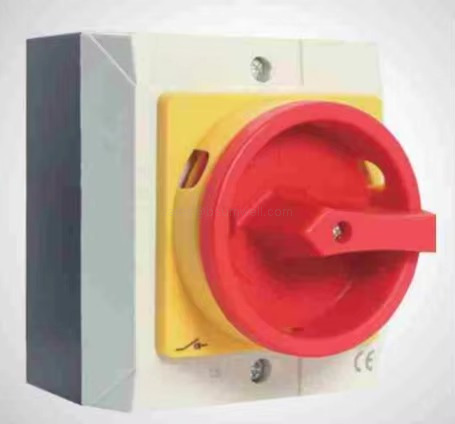

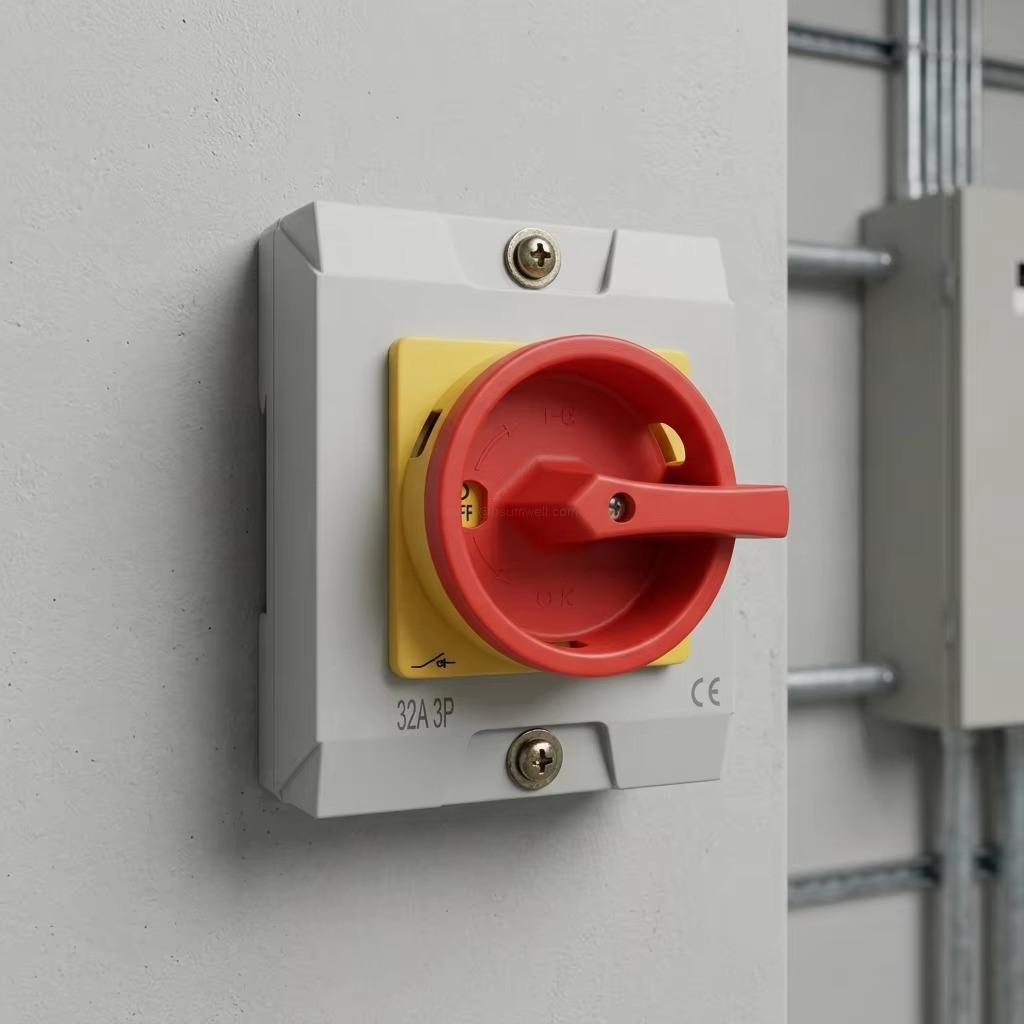

32A IP65 Weatherproof Rotary Isolator Switch 3 Phase Main Disconnect Load Break Suitable for HVAC Outdoor Units and Industrial Equipment

Robust IP65 Weatherproof Enclosure

Equipped with heavy-duty silicone sealing gaskets and secure cable entry points, the unit guarantees reliable IP65 ingress protection against heavy rain, dust, moisture, and debris. This ingress rating prevents moisture accumulation and contact oxidation, extending internal contact longevity in demanding environments like rooftop HVAC plants, refrigeration units, solar PV installations, and marine air conditioning applications.

Tested Electrical Reliability & Operational Integrity

Featuring high-conductivity silver-alloy contact points, the internal mechanism offers minimal contact resistance, low thermal dissipation, and exceptional arc-quenching performance during full-load switching. The handle mechanism supports multiple padlock placement options in the OFF position, meeting OSHA and global industrial safety standards for maintenance safety.

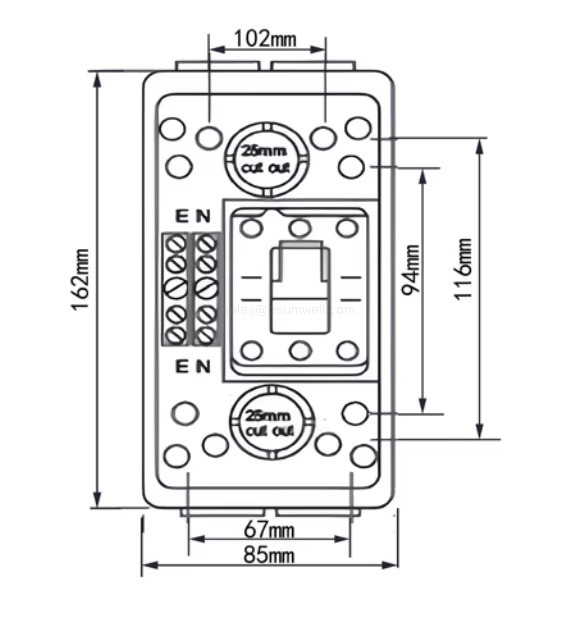

Versatile Installation & Technical Specifications

• Rated Current: 32A

• Operating Voltage: 230V / 400V / 440V AC

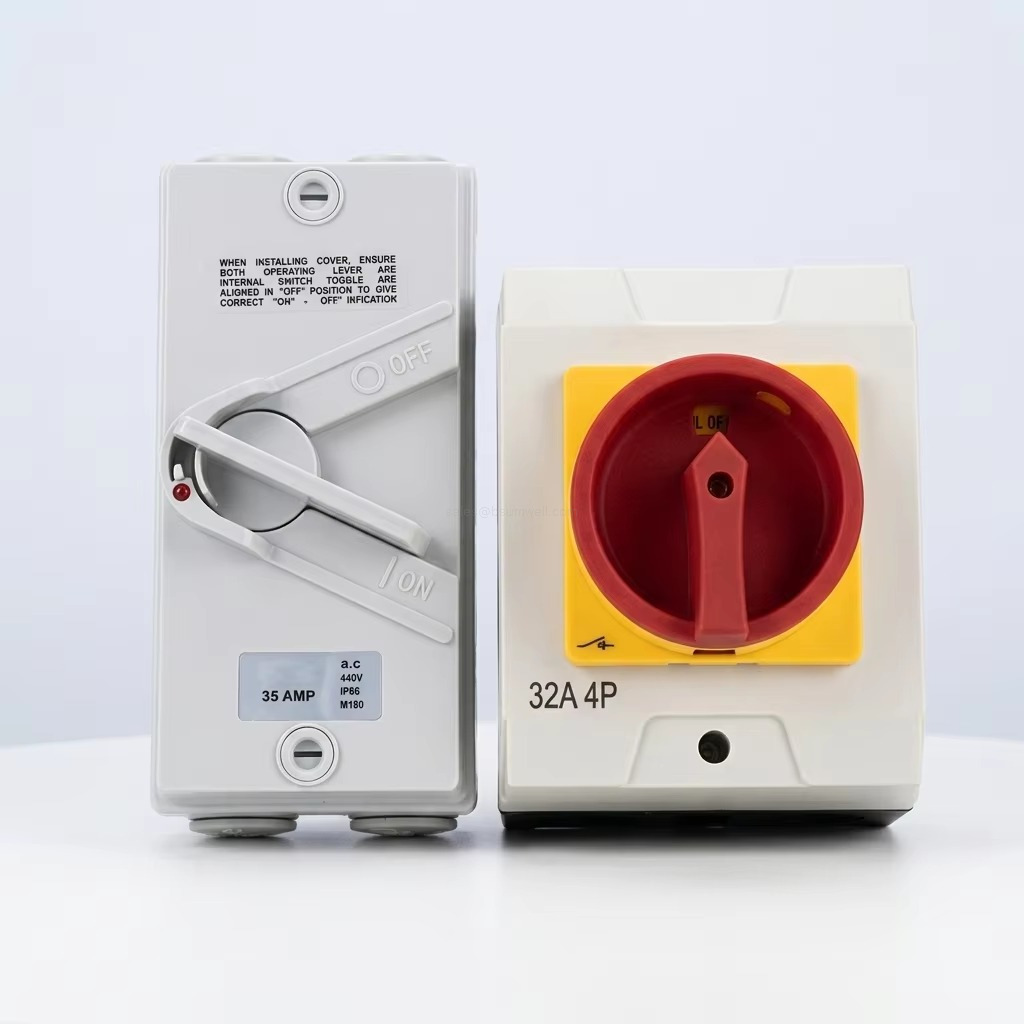

• Poles Options: 3P / 4P

• Protection Class: IP65 Waterproof & Dustproof

• Material Grade: Fire-Retardant Polycarbonate Housing, Silver Alloy Contacts

• Operating Temperature: -25°C to +60°C

• Compliance Standards: CE Certified, IEC/EN 60947-3 Compliant

Frequently Asked Questions (FAQ)

Q1: What makes an IP65 rotary isolator switch essential for outdoor HVAC installations?

An IP65 rating ensures complete protection against dust ingress and low-pressure water jets from any direction. Outdoor HVAC equipment, condenser units, and rooftop chillers are constantly exposed to rain, humidity, and temperature fluctuations. Using an IP65 rated rotary isolator ensures safe local power isolation during maintenance without risk of electrical shorts or enclosure degradation.

Q2: Can this isolator switch be locked during maintenance procedures?

Yes. The ergonomic red rotary handle features integrated lockout apertures that accept standard safety padlocks in the OFF position. This design complies with standard Lockout/Tagout (LOTO) procedures, ensuring power cannot be accidentally re-energized while technicians service connected equipment.

Q3: What is the difference between a standard toggle switch and a rotary load break isolator?

A rotary load break isolator switch is specifically engineered to safely interrupt full rated operating current under electrical load. Unlike basic power switches, isolators provide visible contact separation, higher arc-suppression capabilities, higher short-circuit withstand capacity, and rugged industrial housings designed specifically for main power disconnect applications.

Q4: Is this 32A isolator switch suitable for both single-phase and three-phase power systems?

Yes. Available in both 3-pole and 4-pole configurations, it supports 3-phase Delta and Wye electrical systems, as well as single-phase configurations with neutral switching requirements, depending on the wiring layout and system requirements.
