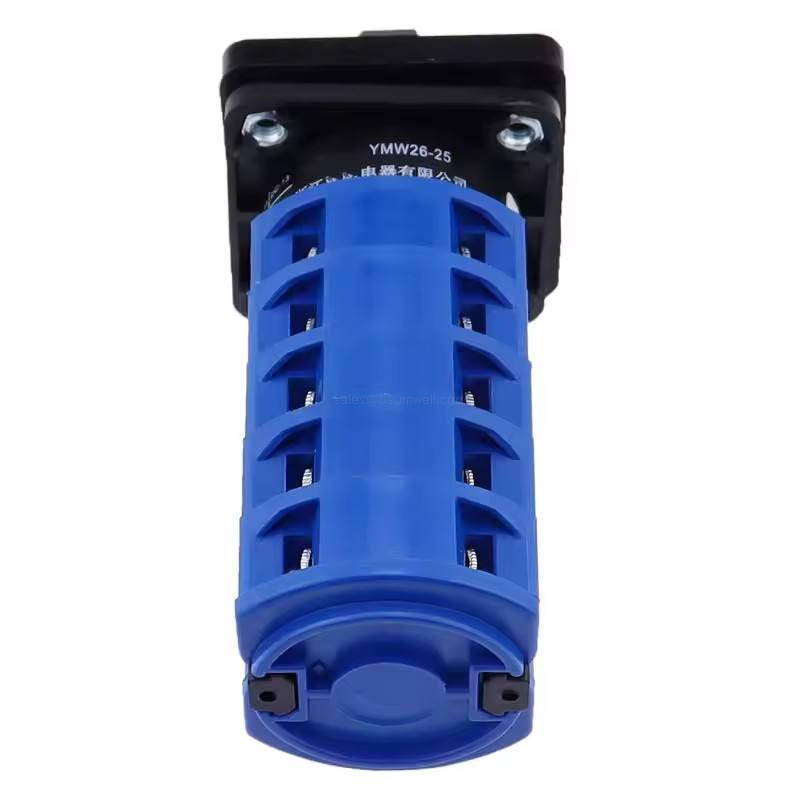

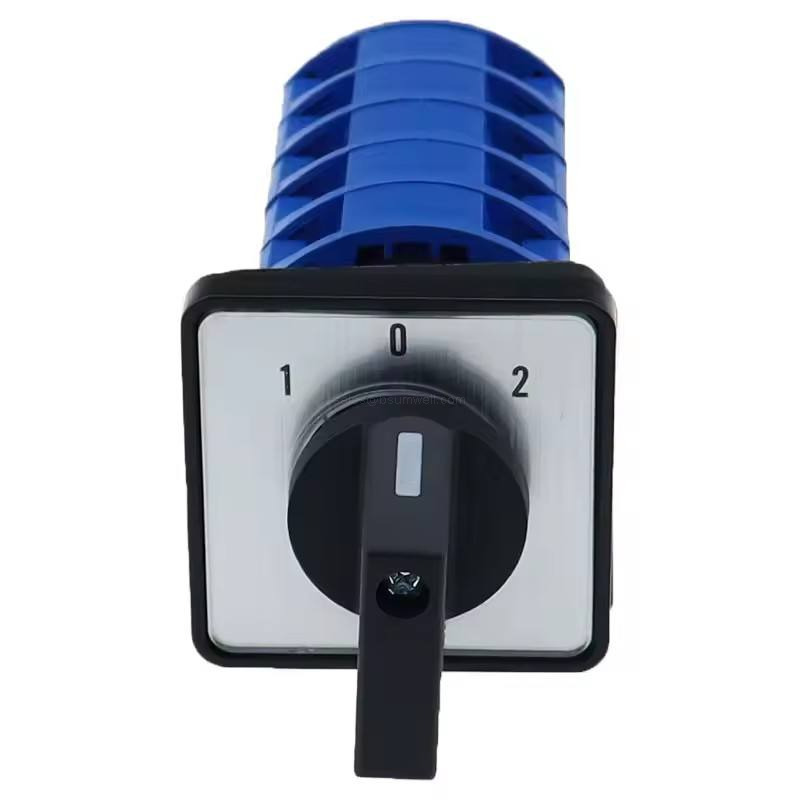

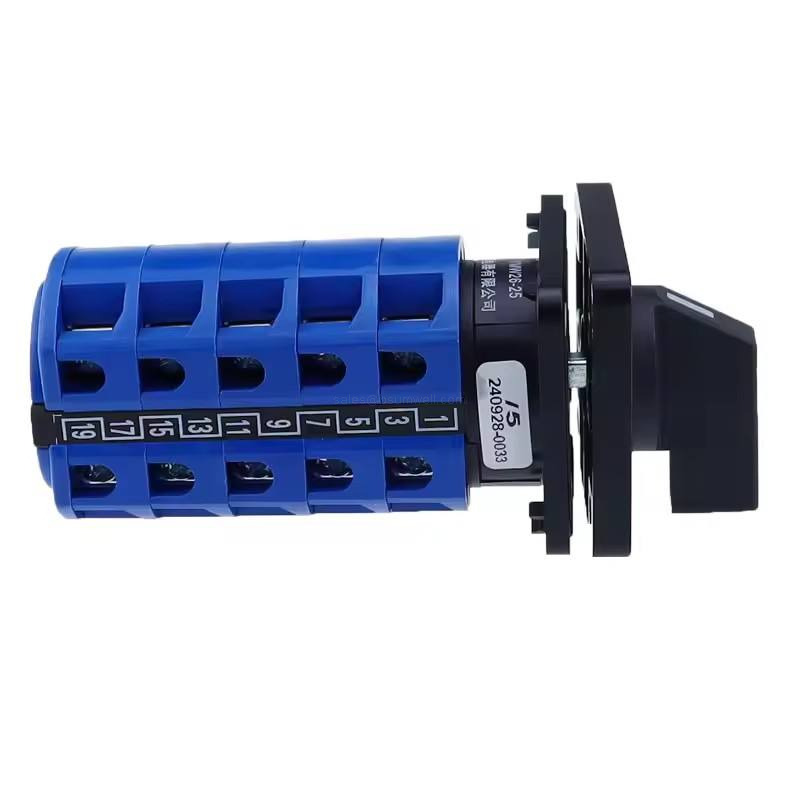

Multi Pole 25A 690V Silver Contact Rotary Cam Switch Universal 3 Position Electrical Selector Box

Superior Electrical Conductivity & Silver Contact Reliability

Engineered for high-performance circuit control, this rotary cam switch integrates high-purity silver alloy contacts to ensure exceptional electrical conductivity, minimal contact resistance, and superior arc suppression. The premium silver contact architecture dramatically reduces thermal buildup during continuous operations, extending the mechanical and electrical lifespan of the unit even under frequent switching cycles in demanding industrial environments.

Versatile Pole & Position Configuration Architecture

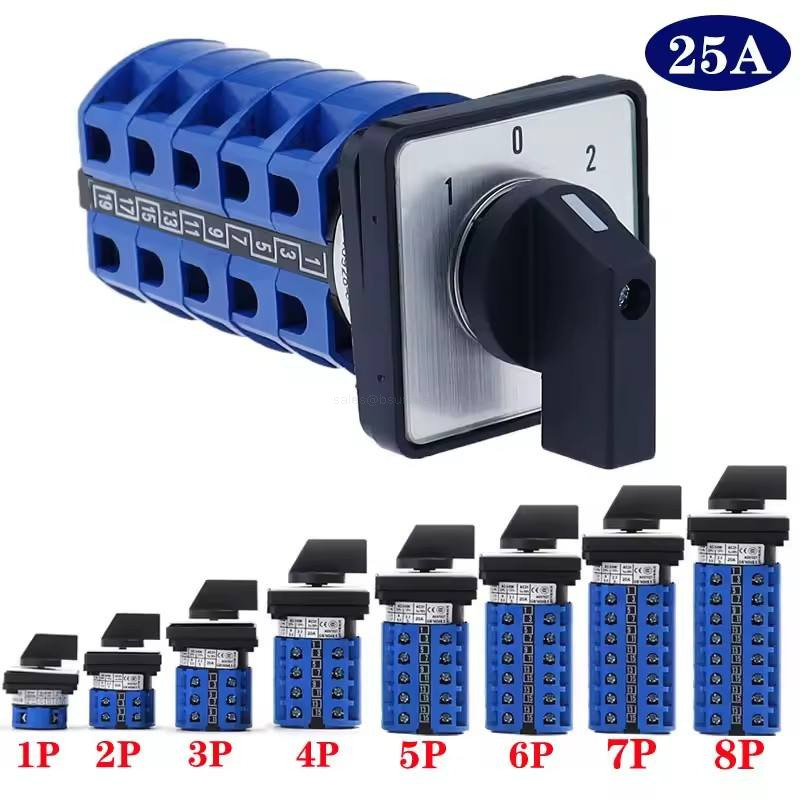

Designed to accommodate diverse wiring requirements, the switch supports flexible configurations ranging from 1 to 8 poles with precise 3-position rotational control. Rated for up to 25A current capacity and 690V maximum voltage, it handles complex control logic, multi-circuit switching, and motor reversing applications with high precision. Robust modular terminals and secure screw mountings ensure stable wire retention and vibration-resistant performance.

Industrial Application Versatility

Built to meet the rigorous demands of modern electrical engineering, this universal changeover switch is widely deployed across multiple commercial and industrial sectors. Typical applications include:

• Industrial Control Panels: Serving as main power disconnects, circuit transfer switches, or auxiliary command routers.

• Motor Control Systems: Facilitating smooth start, stop, speed regulation, or directional changeover for machinery.

• Power Distribution Equipment: Managing backup generator transfers and multi-source electrical routing safely.

Key attributes

FAQ

Q: What are the primary electrical ratings for this rotary cam switch?A: This switch is rated for a maximum current of 25A and supports up to 690V working voltage, making it ideal for standard industrial power distribution and motor control circuits.

Q: Why are silver contacts used in this changeover switch?A: High-grade silver contacts provide superior electrical conductivity, reduce energy loss and heat generation, and offer excellent resistance to oxidation and electrical wear over hundreds of thousands of switching cycles.

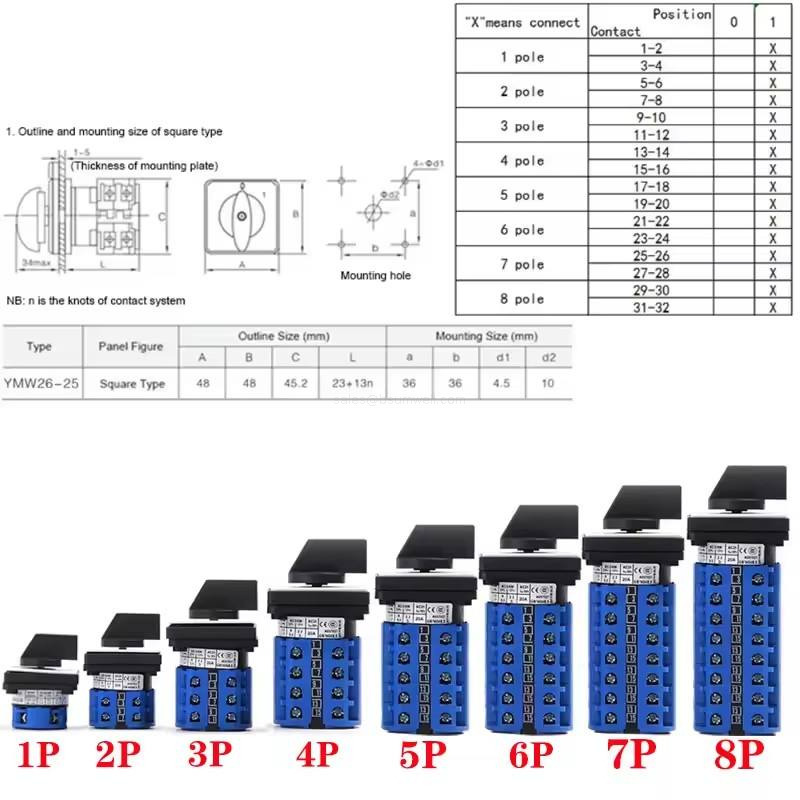

Q: How many poles and operating positions can be configured?A: The switch supports a versatile modular design ranging from 1 to 8 poles with a standard 3-position rotary selection mechanism to match custom wiring and control logic requirements.

Q: What are the typical use cases for this type of universal selector switch?A: It is commonly utilized in industrial machinery control panels, HVAC systems, electrical distribution boxes, and manual power transfer setups between primary and auxiliary lines.
