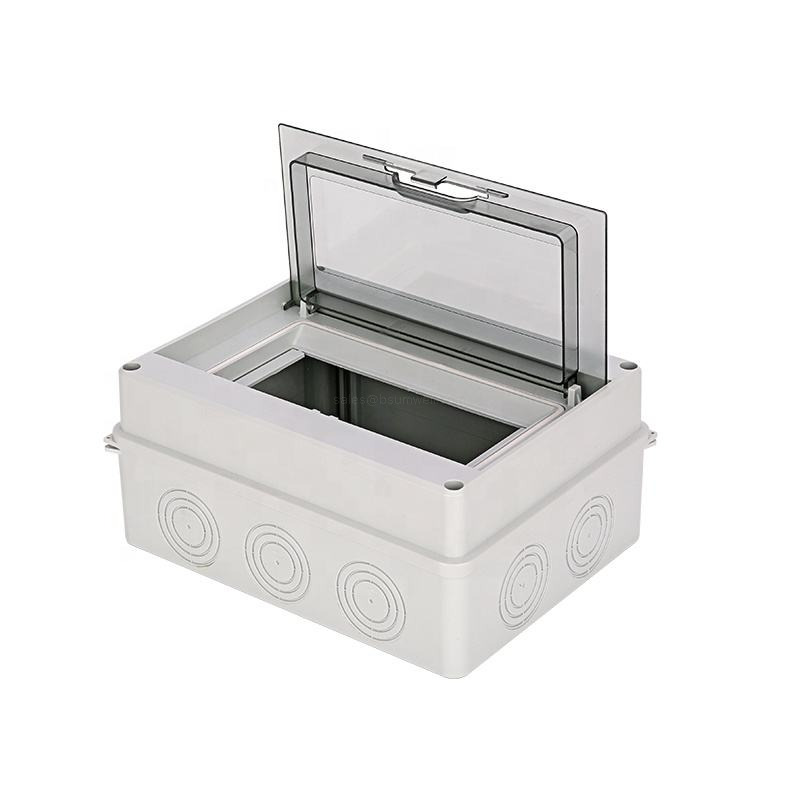

4 Way IP66 Waterproof Power Distribution Box with 63A Circuit Breaker

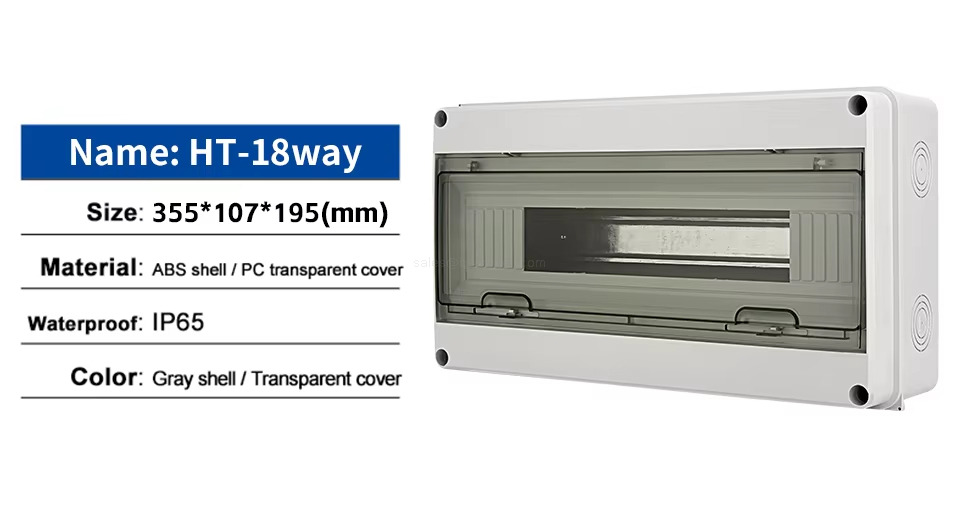

PS-HT-18WAYS Name:Waterproof distribution box Model:PS-HT-18WAYS Net weight:1.07KGS Material:ABS body +PC cover No.of breaker(pcs):18WAYS Outer size:365mm*195mm*110mm Color:Grey body&Tea color transparent cover Product performance:Moisture-proof&waterproof

Body material:  ABS

Transparent door: PC

Material characteristics: Impact,heat low temperature and chemical resistance excellent electrical performance and surface gloss etc.

Certificates : CE,ROHS

Protection grade: IP65

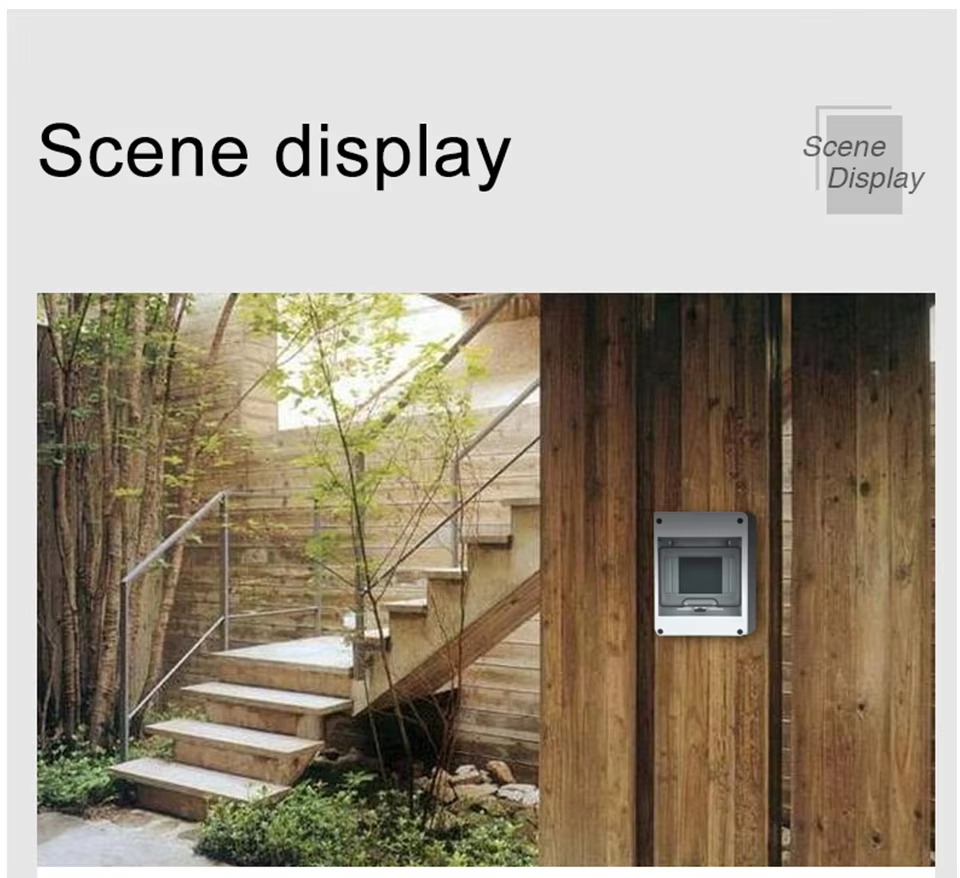

Application : Suitable for indoor and outdoor electric,communication,fire fighting apparatus,iron and steel smelting,petrochemical industry ,electrionc,power system,railway,building ,min,air and sea port hotel,ship ,works waste water treatment equipment environmental equipment and so on

Installation: 1.Inside:There are din rail inside for din-rail type circuit breakers,earth bar and natural bar for cable connection

                   2.Outside:The products canbe directly fixed on the wall or other flat boards with screws or nails via the screw holes in the base

Outlet hole: The plastic plate in the hole can be knocked off for cables

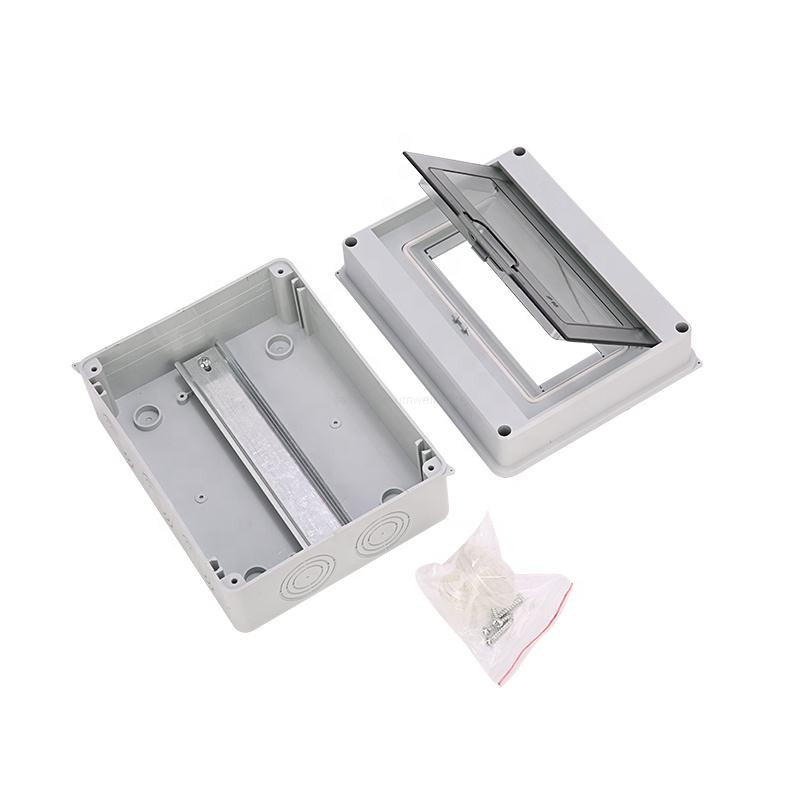

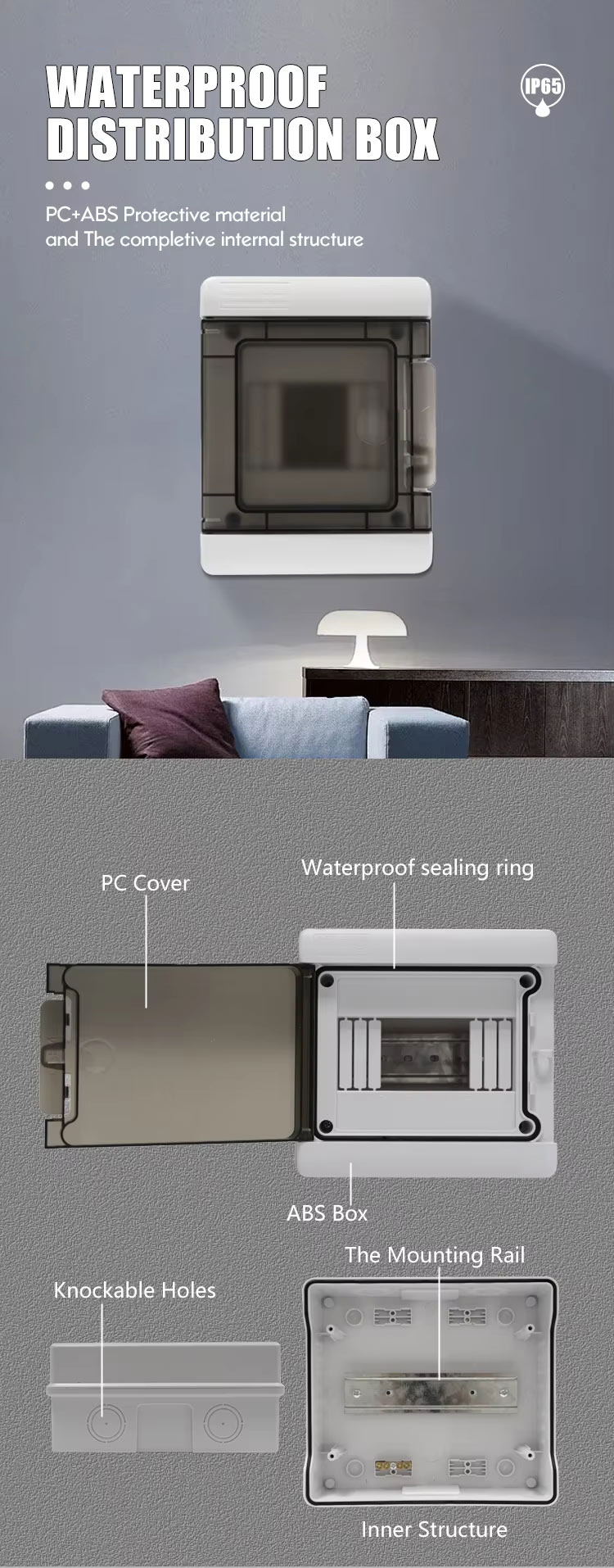

Internal structure 35MM din rail for fixing terminal block ,circuit breaker,household contactor,make the installation more easy and simple Seal ring Made of polyamic acid material, high corrosion resistance, more waterproof and longer life.

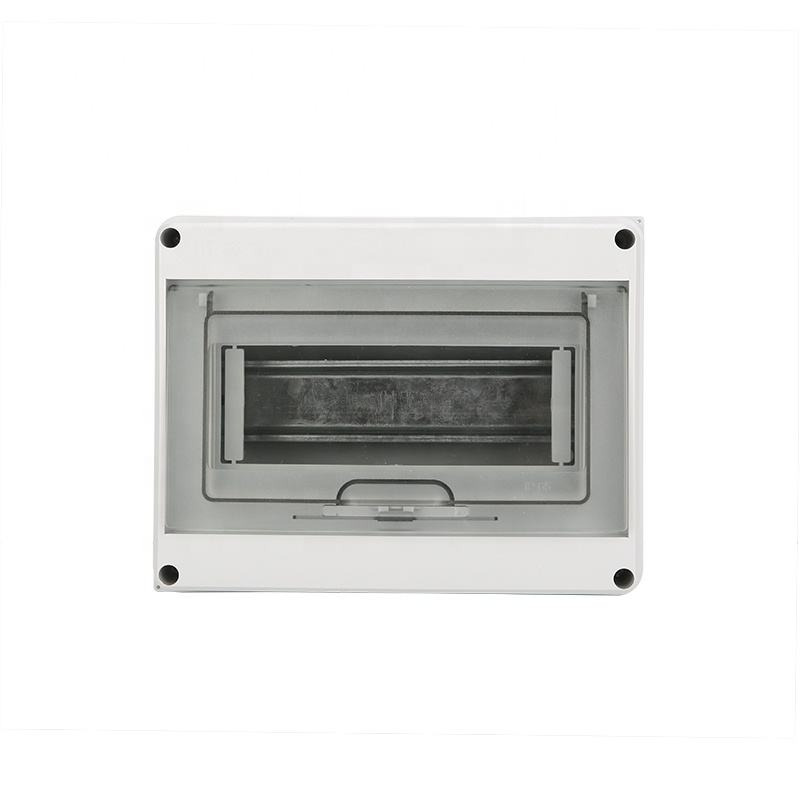

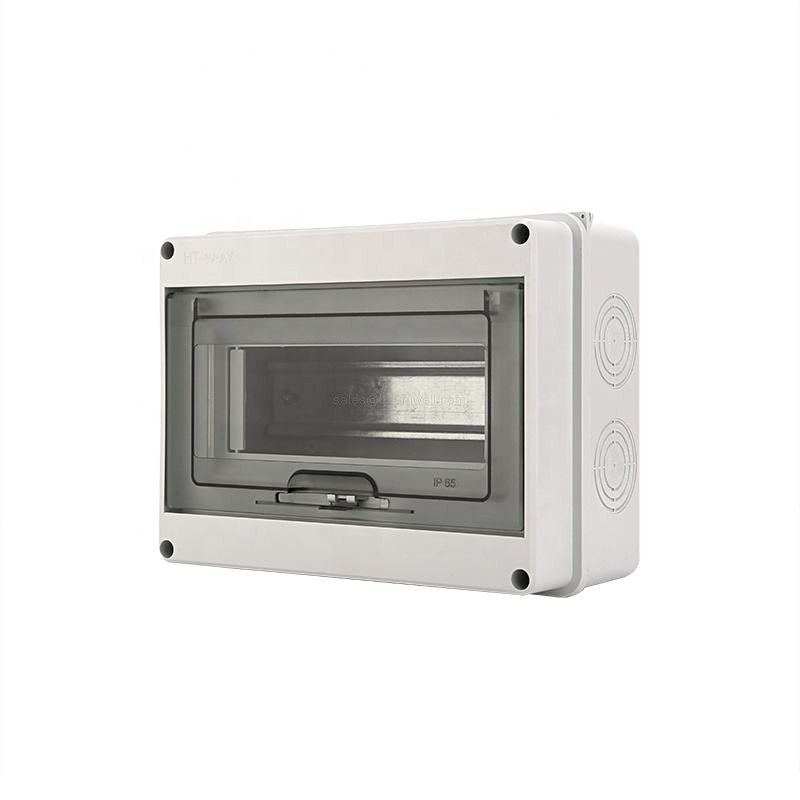

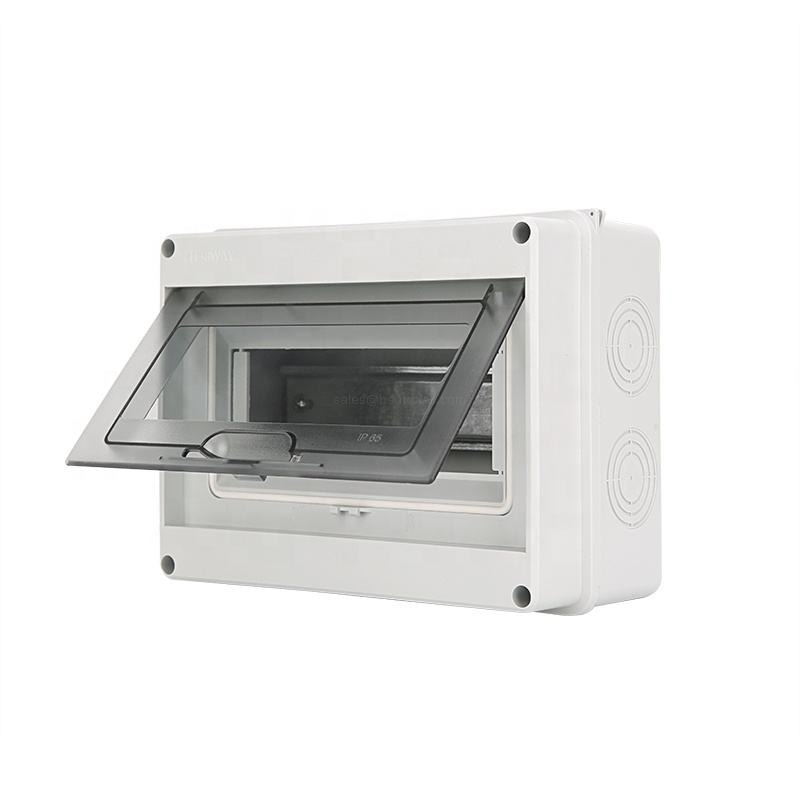

Window design PC transparent material flip window, more intuitive, better sealing. Surface install Smooth and beautiful appearance, no coloured spots Inlet and outlet hole The box is provided with reserved holes for customers' convenient connection. Practical and convenient Can use PG13.5,PG21,PG29 cable glands

FAQ

Q1: What is the primary difference between the IP65 and IP66 ratings for this distribution box?

A: Both ratings provide excellent protection against dust. IP65 protects against low-pressure water streams, while IP66 offers a higher level of protection, specifically engineered to withstand heavy seas or powerful water jets. This makes our box superior for areas prone to extreme storm conditions or industrial wash-down environments.

Q2: Can I install this 4-way distribution box in direct sunlight?

A: Yes, our enclosures are constructed from UV-stabilized industrial-grade ABS and PC materials. These materials are specifically selected to resist degradation, brittleness, and color fading when exposed to prolonged direct sunlight, ensuring a long service life for outdoor installations.

Q3: How does the integrated 63A circuit breaker enhance safety?

A: The pre-installed 63A circuit breaker acts as a primary safety mechanism, automatically cutting power during an overload or short-circuit event. By integrating this into the junction box, we reduce installation time and ensure that the breaker is housed within the same high-security, waterproof environment as the wiring, minimizing the risk of electrical failure.

Q4: Is the material impact-resistant enough for industrial construction sites?

A: Absolutely. Our enclosures are built to high impact-resistance standards (IK rating compliance). The rigid, high-density plastic construction prevents cracks and structural failure caused by accidental physical impact or vibration, making it a reliable choice for demanding construction and industrial site utility power.
