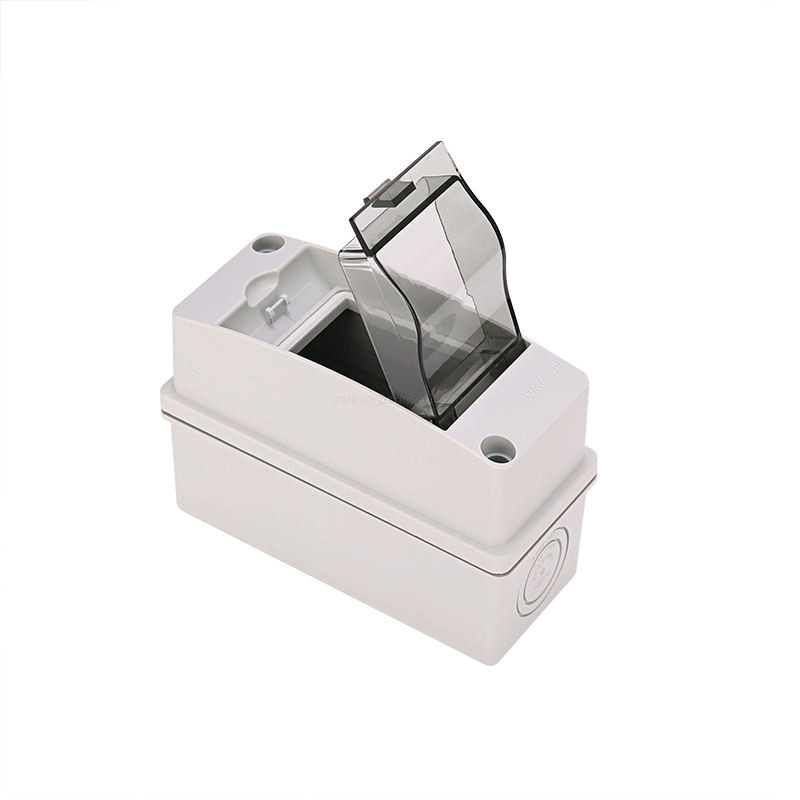

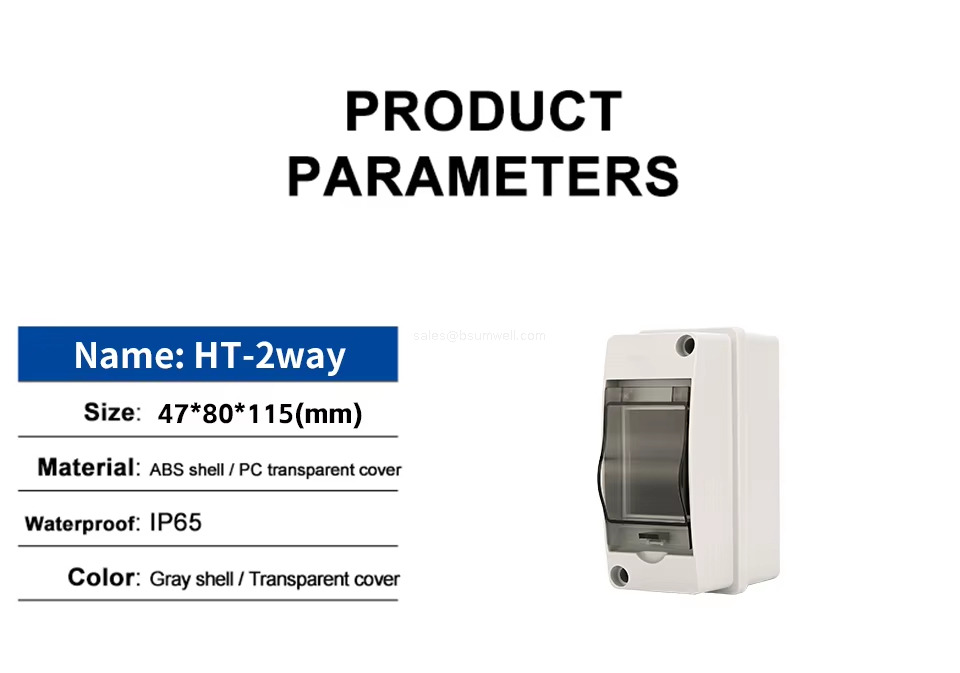

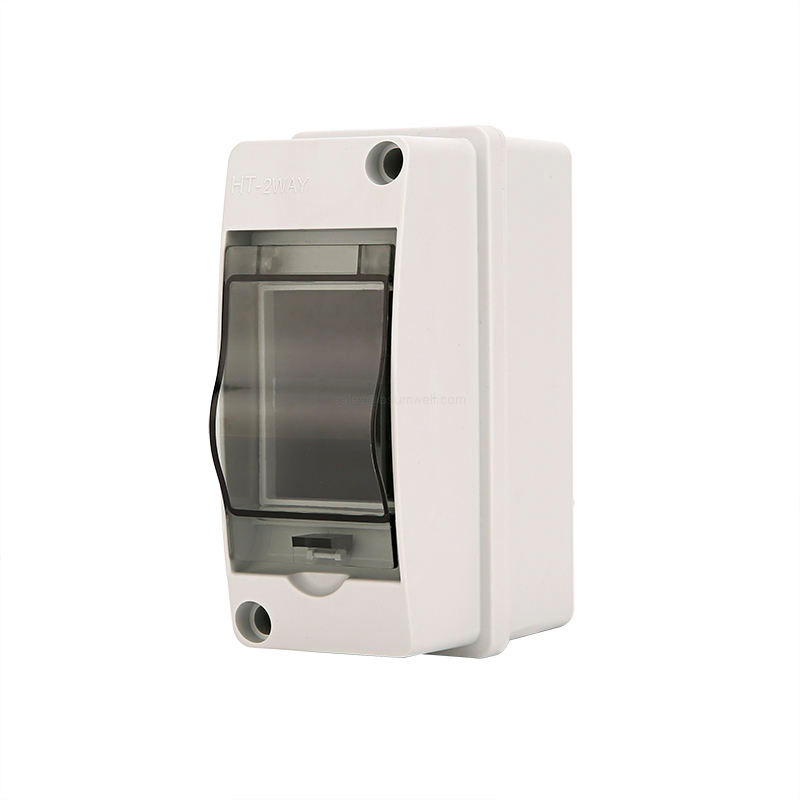

IP65 Plastic Enclosure Circuit Breaker Electrical Panel Box Surface Mount MCB Consumer Unit with Internal DIN Rail and Transparent Window

Industrial-Grade ABS Plastic Housing with Enhanced Weatherproofing

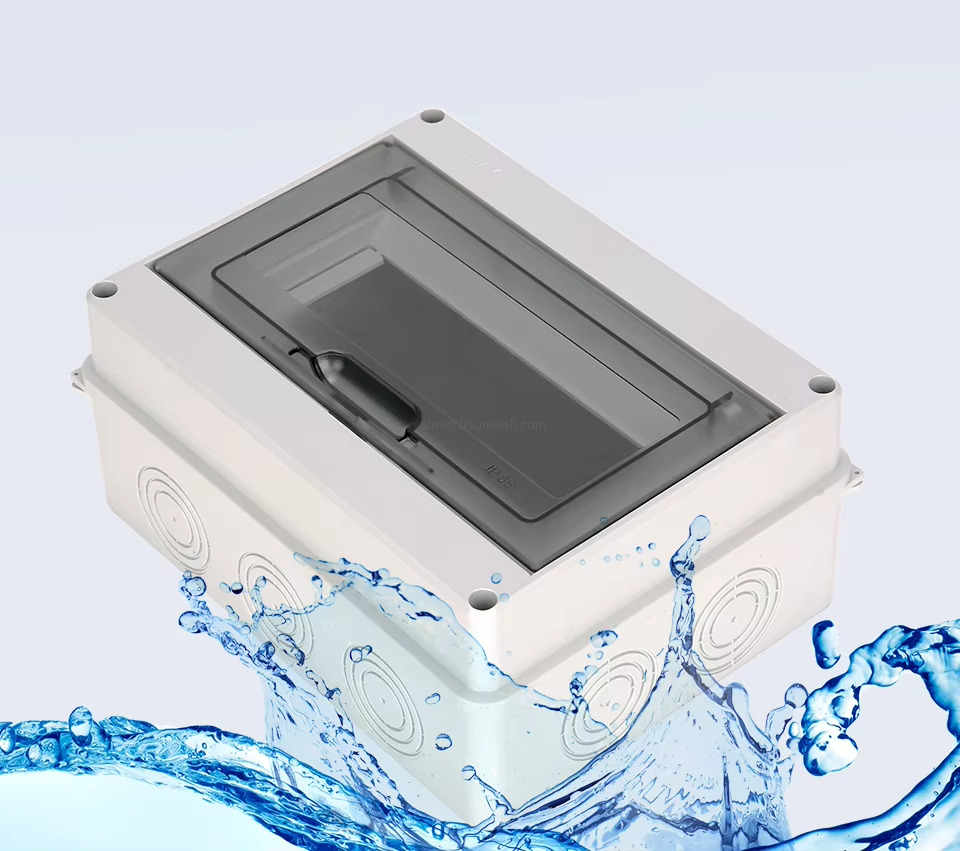

Engineered for reliable outdoor electrical sub-distribution, this compact consumer unit is manufactured from premium, high-impact ABS plastic. The structural shell features excellent flame retardancy, impact resistance, and specialized UV stability, preventing the material from yellowing or warping over long-term exposure to direct sunlight. This compact panel box provides dependable dust-proof and moisture-proof protection, shielding internal miniature circuit breakers (MCBs) or switches from heavy rains, humidity, splashing water, and drifting atmospheric dust.

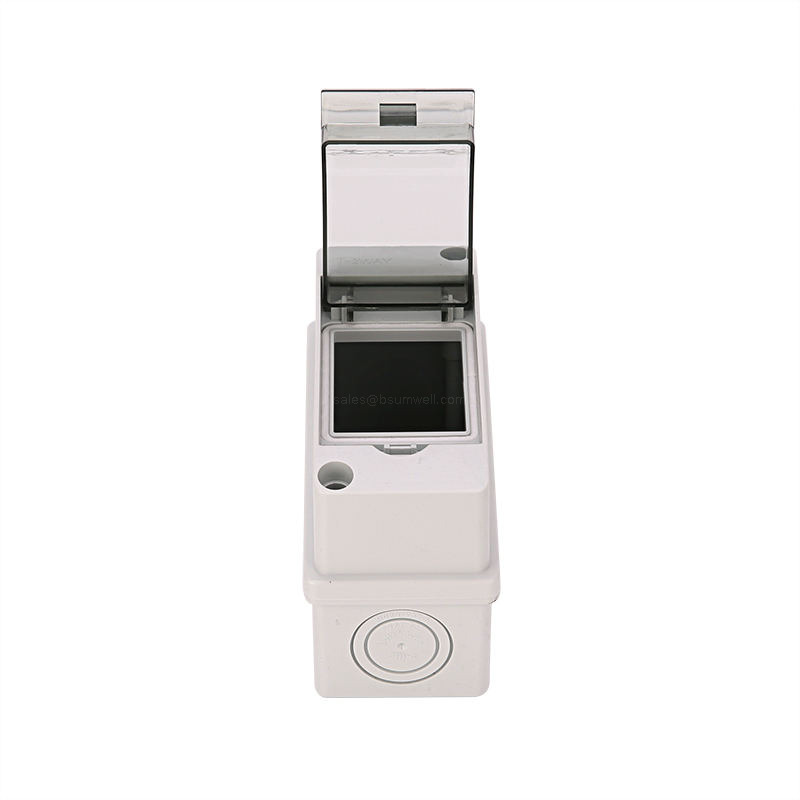

Transparent Polycarbonate Protective Window with Secure Snap Latch

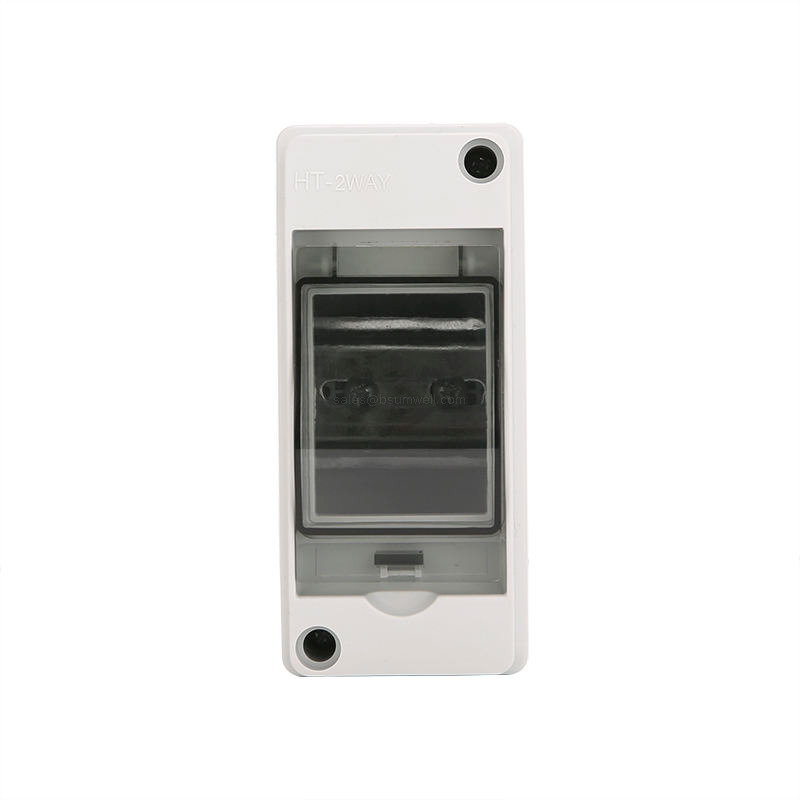

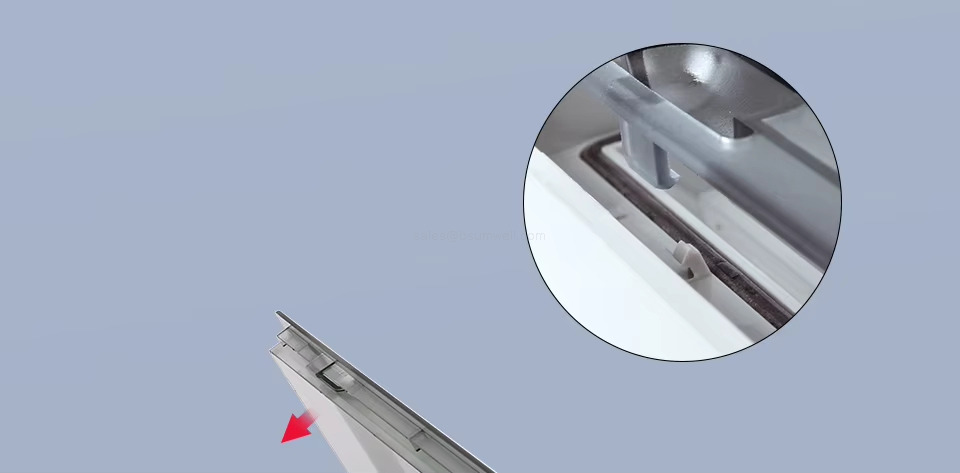

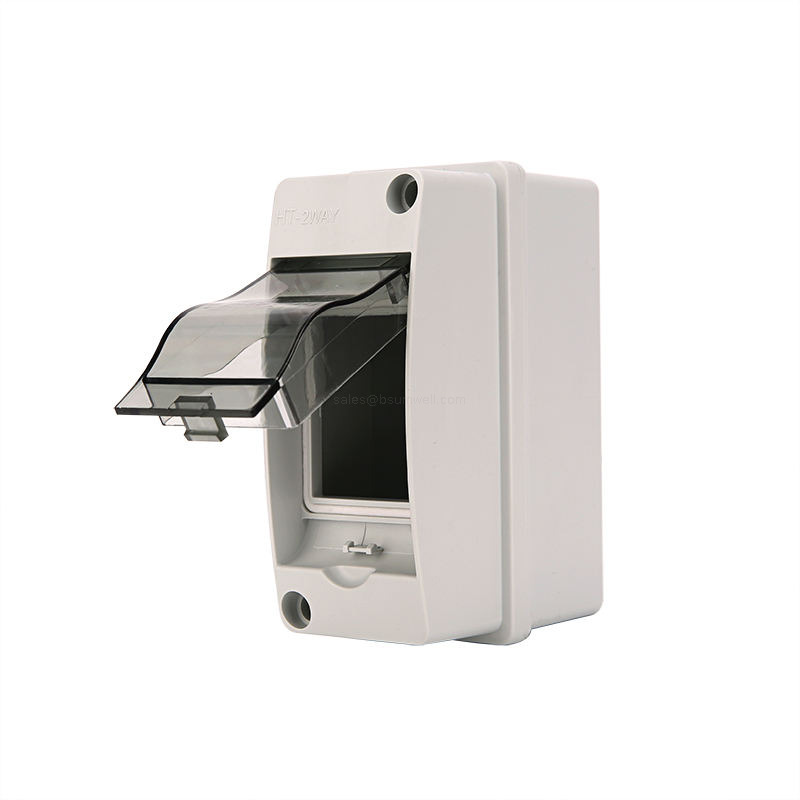

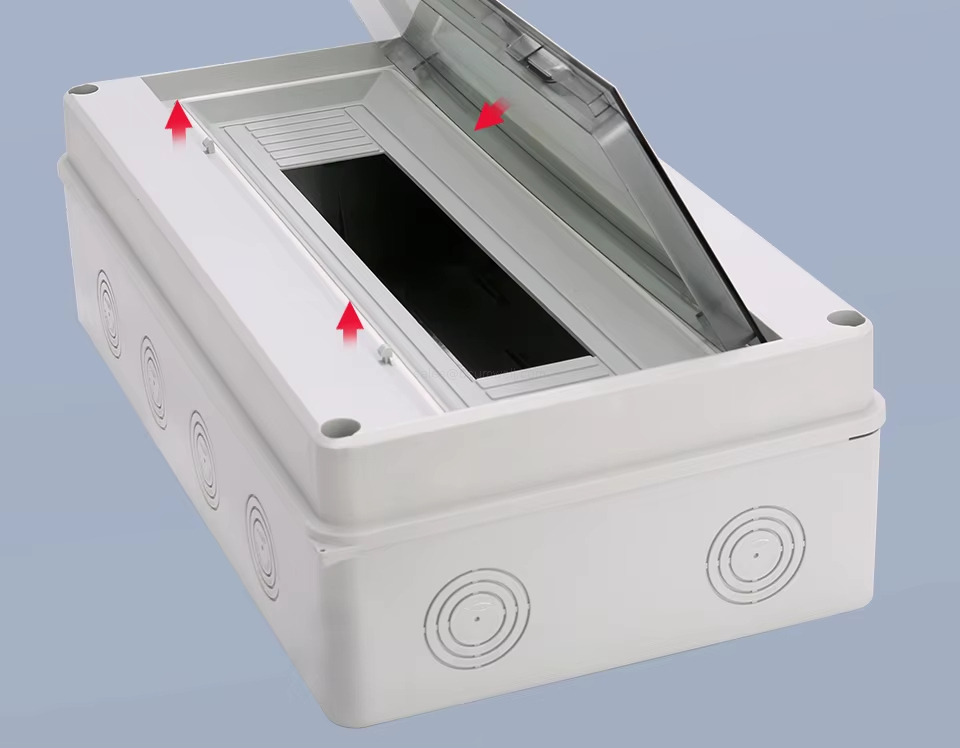

The unit is integrated with an ergonomic, smoked-transparent polycarbonate window door. This flip-up cover grants quick visual inspection of the breaker status without requiring the user to expose the entire internal electrical terminal grid to moisture or wind. The spring-loaded door mechanism uses an integrated heavy-duty bottom snap latch to seal firmly against the inner rubber gasket track, keeping the internal environment completely sealed when closed.

Pre-Installed Galvanized DIN Rail System

The interior chassis comes pre-fitted with a heavy-duty, corrosion-resistant galvanized steel DIN rail system. This internal architecture is precisely sized to accommodate up to two standard single-pole miniature circuit breakers (MCBs), a 2-way residual current device (RCD), or basic inline isolation toggle switches. The sturdy metal rail ensures a secure, slip-free structural snap-lock interface, allowing electrical technicians to wire, mount, or swap electrical switches effortlessly during initial installation or system upgrades.

Simplified Field Installation and Integrated Knockouts

The rear housing is engineered with user-friendly installation elements designed to streamline workflow for field contractors:

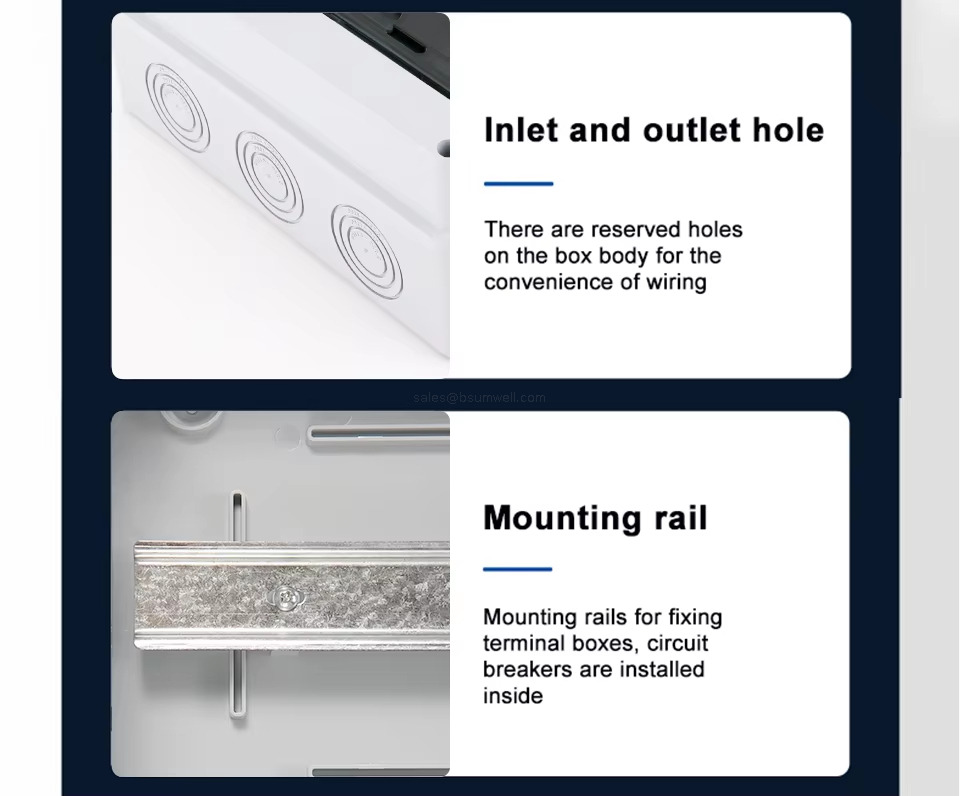

• Pre-Formed Conduit Knockouts: The top and bottom walls are molded with concentric round knockouts that can be tapped open instantly, providing clean entry points for wire routing conduits.

• Hermetic Fastener Caps: The kit includes dual expansion wall plugs, heavy-duty mounting screws, and specialized watertight silicone screw caps to seal the front corner assembly holes, ensuring the completed installation retains its airtight integrity.

• Spacious Internal Clearances: The deep bottom-box layout leaves ample room for feeding heavy-gauge wires underneath and around the installed DIN rail, ensuring a clean bend radius and preventing dangerous thermal bottlenecks.

Frequently Asked Questions (FAQ)

Q1: Can this 2-way enclosure box be installed directly in an unsheltered outdoor area?

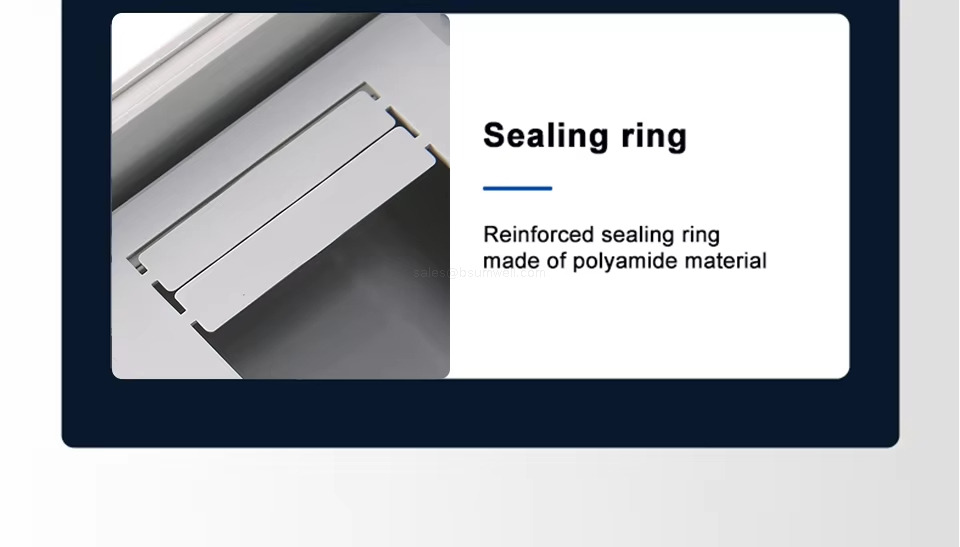

A: Yes, this electrical distribution enclosure is engineered with an IP65 ingress protection architecture, making it suitable for fully exposed outdoor installations. The main perimeter joint features a dedicated tongue-and-groove track lined with a high-elasticity rubber seal. This design reliably blocks direct rainstorms, water sprays, and wind-blown dust, making it an excellent choice for exterior lighting zones, solar panel setups, and vehicle charging sub-circuits.

Q2: Does the unit come with the internal circuit breakers or switches pre-installed?

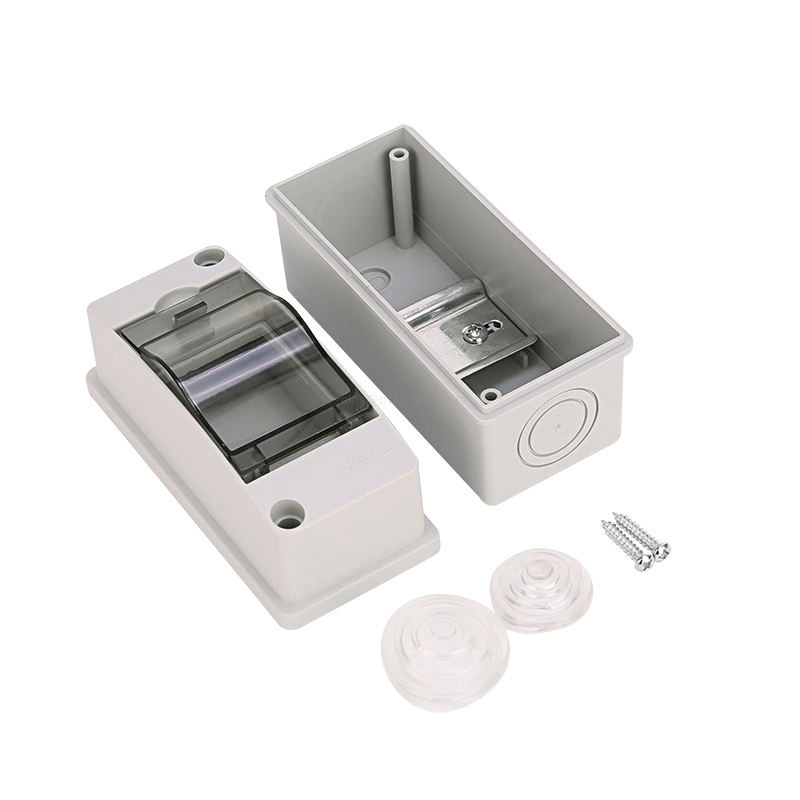

A: No, the package includes the complete weatherproof ABS enclosure shell, a pre-mounted galvanized DIN rail, front panel assembly screws, and silicone sealing plugs. It does not include miniature circuit breakers (MCBs) or switches. This empty 2-way configuration allows electrical contractors the freedom to choose and install their own breakers or relays depending on their project requirements.

Q3: What are the best practices for passing wires into the box while maintaining its waterproof rating?

A: To preserve the waterproof and dustproof seal, technicians should use the pre-formed circular wire knockouts at the top or bottom of the chassis. Do not leave the knocked-out holes open; instead, install liquid-tight nylon cable glands or flexible conduit adapters that match your wire size. This compresses tightly around the jacket and ensures no water or humidity can travel along the cables into the box.

Q4: How durable is the transparent flip-up window door under heavy everyday use?

A: The transparent window is molded from reinforced polycarbonate plastic, chosen specifically for its high impact strength and resilience compared to brittle acrylics. It features integrated, heavy-duty pivoting hinges that resist cracking or coming loose during repetitive operations, providing clear component visibility and simple access for years.
