Contractor's Guide: How to Install a Waterproof Junction Box on Brick, Concrete & No-Stud Walls Without Breaking the IP67 Seal

About the author

This article was written by the BSUMWELL technical team. BSUMWELL is a manufacturer specializing in the research and development and production of outdoor waterproof electrical enclosures. Their products include IP66/IP67 waterproof junction boxes, metal distribution boxes, and stainless steel enclosures, serving North America, the European Union, and other regions.Asia PacificElectrical wholesalers and engineering contractors in the market.

Key Takeaways from This Article

Before you begin reading, take 30 seconds to understand what problem this article can help you solve:

• Wall recognition: Brick walls, concrete walls, hollow brick walls, and walls without framing—different wall types require different anchor bolts, but the anchor boxes are interchangeable.

• Drilling holes in brick walls: Using a carbide drill bit at a low speed (800-1000 RPM), first drill a pilot hole and thoroughly clean away the dust.

• Waterproof core: Drilling holes in the enclosure is strictly prohibited. You must use the pre-installed cable inlet and the matching Cable Gland.

• Sealing ring torque: 25%-35% compression ratio, M4 approximately 1.0-1.5 N·m, star-shaped sequential fastening.

• Long-term maintenance: Install with the inlet facing downwards; for scenarios with large temperature differences, an optional vent valve can be used.

• The complete SOP manual can be downloaded at the end of this article: During on-site construction, check against the instructions to avoid omissions.

Key Decisions Before Installing Waterproof Junction Boxes – Wall Type Determines Your Construction Plan

Three on-site methods for quickly identifying wall materials

Before picking up the drill, figure out what kind of wall you're dealing with. Different wall materials require completely different fixing methods—if you choose the wrong anchors, what you install will eventually fall off.

• Method 1: Tapping method. Gently tap the wall with a hammer or screwdriver handle. A solid wall (concrete or solid brick) will produce a dull, solid sound; a hollow wall (hollow brick or lightweight block) will sound hollow and resonant. This is the quickest and least tool-intensive way to determine the wall's structure.

• Method 2: Drilling test. If you're unsure, you can try drilling in an inconspicuous spot with a small drill bit (e.g., 3/16 inch). Solid concrete: There's a lot of drilling resistance, and the dust is fine sand-like; Solid brick: There's some resistance, and the dust is reddish or yellowish; Hollow brick: After drilling through the surface, you'll suddenly "drop" into the hollow, and you can clearly feel the drill bit entering the cavity.

• Method 3: Observation method. Check the wall for exposed brick joints or construction seams. Red brick walls have regular brick joint lines; concrete walls are usually cast in one piece, with a smoother surface and more uniform color; hollow bricks (cement blocks) have holes or are lightweight and porous.

Finding out what material the wall is made of will make the rest of the work easier.

Quick reference table of fixing methods for different wall types

Once you've identified the wall type, the next step is to choose the right fixing method. Using the wrong anchors will result in the box being installed loosely. Below are standard fixing solutions for different wall types:

Here's a key point: different wall types require different types of anchors, but the junction box itself doesn't need to be changed. Our waterproof junction boxes come standard with stainless steel mounting lugs—whether it's a brick wall, concrete, or hollow brick, the lugs can be used with the corresponding anchors for secure fixing. You don't need to prepare different models of boxes for different wall surfaces; one box with different anchors can handle all scenarios. Inventory pressure is reduced, and on-site selection is faster. View our range of surface-mounted waterproof junction boxes

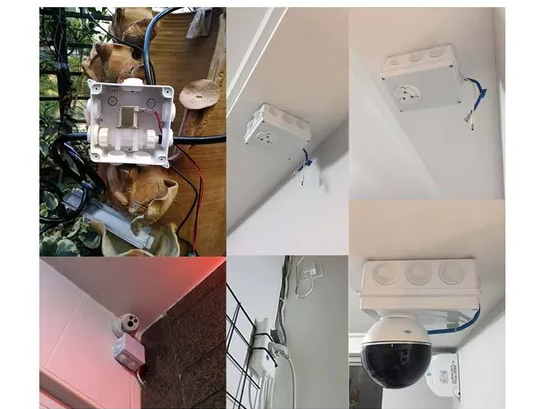

——Typical installation scenarios:There are standard installation photos for brick walls, concrete walls, and hollow brick walls for reference (see details).Product PageInstallation diagrams).

Standard procedure for brick wall installation – professional techniques to avoid edge chipping.

The "chipping" principle of drilling holes in brick walls—why DIY tutorials often damage the wall surface.

Brick walls may look hard, but they are actually quite "brittle." Sintered bricks have a relatively high surface hardness, but their impact resistance is limited—which is why you often see people drilling a large hole in a brick wall in DIY videos.

There are three fundamental reasons for edge collapse:

1. The impact was too great. The electric hammer was turned on too hard; it shattered the brick surface before the drill bit even engaged.

2. The feed rate is too fast. Pushing the drill bit in forcefully, the brick surface couldn't withstand the pressure and broke off from the edge.

3. No directional drill was used. If you use a large drill bit directly, the drill bit will slip and bounce on the smooth brick surface, and if it deviates, it will chip off the corner.

Old brick walls are even more troublesome—after years of wind and sun exposure, the surface of the bricks has become brittle, and the mortar has aged, so they crumble as soon as you drill into them.

The professional practice is as follows: First, gently tap a small indentation at the drilling location with a center punch to give the drill bit a "foothold" and prevent slippage. Then, slowly pre-drill a pilot hole with a small-diameter drill bit (such as 3/16 inch) before switching to the final-size drill bit. Another old-fashioned method taught by electricians is to apply a piece of electrical tape to the drilling location before drilling; the tape provides lateral restraint and reduces surface peeling of the brick.

Drill bit selection and drilling parameter control

Drilling holes in brick walls is a waste of time if you don't choose the right tools.

• The drill bit must be a carbide drill bit. Ordinary high-speed steel drill bits will break after a couple of turns on a brick wall. It's best to use a hammer drill or a rotary hammer drill; a regular electric drill simply won't cut through it.

• How to choose the drill bit diameter? The basic principle is to use a drill bit slightly smaller than the anchor bolt diameter. For example, if you're using a 3/16-inch screw, a 5/32-inch or 1/8-inch drill bit will suffice. If the drill bit is too large, the anchor bolt will wobble in the hole; if the drill bit is too small, the anchor bolt won't fit.

• Speed ​​control is a crucial aspect that many people overlook. Most rotary hammer drills have two speed settings—a low speed for high-torque tasks (screwing screws, heavy-duty drilling) and a high speed for low-torque, fast drilling. Drilling in brick walls requires a low-speed, high-torque setting; 800-1000 RPM is generally sufficient. Too high a speed will only burn out the drill bit and make the brick surface more prone to chipping.

• Drilling depth: It should be at least 1/2 inch deeper than the anchor bolt. The anchor bolt should be completely buried without protruding, and some space should be left at the bottom for the expansion joint to unfold.

• Don't skip the step of cleaning the holes. After drilling, use a blower or compressed air to blow away the dust from the hole. Even if you're using a power drill, you still need to clean it. Don't underestimate this layer of dust—a thin layer can significantly reduce the anchor's grip strength. A more professional approach is to first brush the inner wall with a hole brush before blowing air to ensure full contact between the anchor and the brickwork.

Contractor's practical experience (based on extensive on-site construction experience):

• Red brick wall: Set the electric hammer speed to 800-1000 RPM and maintain a uniform, light thrust (approximately 5-8 kg). When the drill bit's "biting" sound becomes sharper, it indicates that the thrust speed is too high; immediately reduce the thrust.

• Old brick wall: Reduce the rotation speed to 600-800 RPM. First, use the center punch to create a pit to prevent slippage. Start drilling with very light thrust, and gradually increase the thrust after the drill bit is fully inside the brick.

• Drill bit ejection techniques: After drilling is complete, slowly withdraw the drill bit while keeping it rotating, and do not pull it out directly—this can reduce the damage to the hole wall caused by brick chips getting stuck between the hole wall and the drill bit.

A tip from the factory:

We ship thousands of boxes every day, and the most common installation error we see in customer feedback is insufficient drilling depth. The anchors aren't fully embedded in the wall, and the box wobbles when installed—so we decided to print "Drilling depth at least 1/2 inch deeper than the anchor embedment" directly on the first page of the installation instructions on the product packaging. Next time you install it, just glance at the instructions; that number is there.

Anchor Bolt Embedment Depth and Torque Control Standards

After drilling the holes and cleaning the dust, the next step is to install the anchor bolts and secure the box.

• Anchor bolt embedment depth: Anchor bolts must be completely embedded in the wall and not protrude from the wall surface. Exposed anchor bolts are not only unsightly, but the screws also cannot be tightened properly.

• Torque control is where many people stumble. Anchor bolts should not be tightened too much. The correct approach is to tighten them until the outer sleeve of the anchor bolt fully expands. Over-tightening can cause the anchor bolt to spin freely in the hole or even crack the brickwork.

General torque reference values ​​(applicable to most mechanical anchors):

• M6 anchor bolt: Approximately 10⁻¹⁵ N·m

• M8 anchor bolt: Approximately 20-25 N·m

• M10 anchor bolt: Approximately 35-40 N·m

It's best to use a torque wrench, not by feel. Feel can vary greatly depending on how well you tighten the screws; a good feel today and a bad feel tomorrow can produce vastly different results.

By the way: our Waterproof junction box installation kit The box comes pre-installed with matching anchor bolts and gaskets. You don't need to spend ages searching for the right size at a hardware store – it's ready to use right out of the box. The anchor bolts are a perfect match, preventing any awkward situations like "anchor bolts that are too long and puncture the box" or "anchor bolts that are too short and can't hold the load."

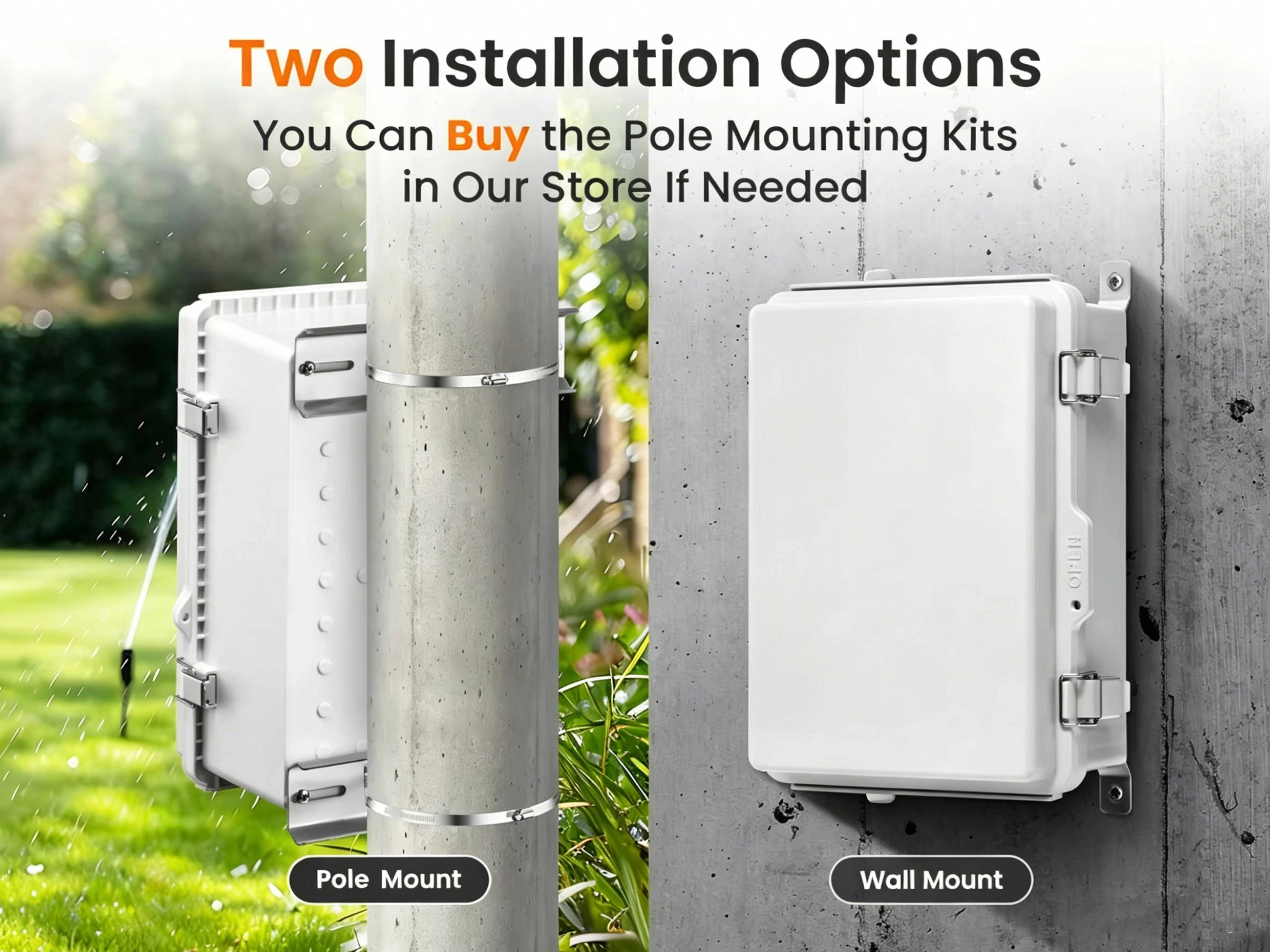

Key points for anchor selection and fixing of junction boxes on concrete and hollow brick walls

Concrete Walls - Selection Criteria for Impact Drills vs. Hammer Drills

Concrete walls are much harder than brick walls, and the choice of tools directly determines whether you can finish the job.

• Light workload (occasionally drilling a few holes): A hammer drill is sufficient. It rotates while simultaneously hammering, making it suitable for most concrete walls.

• Heavy workload (frequent drilling or drilling large diameter holes): A rotary hammer is a must. The impact mechanism of a rotary hammer differs from that of an impact drill—it's piston-driven, with much greater impact force, making drilling concrete as easy as drilling tofu. If you're drilling dozens of holes a day, using a handheld impact drill will exhaust you.

• Drill bit size: Electrical installations typically require drill bits ranging from 3/8 inch to 1/2 inch. The exact size depends on the specifications of the anchors you use.

Comparison of Concrete Wall Anchor Types – Sleeve Anchors vs. Chemical Anchors

There are two main types of anchors commonly used on concrete walls; choosing the right one will make all the difference.

• Sleeve Anchor: After inserting the anchor bolt into the drilled hole and tightening the nut, the internal wedges will expand the outer sleeve, allowing it to fit 360° against the hole wall. Installation is simple and fast, suitable for scenarios with normal loads.

• Chemical Anchor: Resin or epoxy is injected into the drilled hole, and the threaded rod is inserted. After the adhesive cures, it forms an extremely strong grip. Installation is slightly slower (it requires time to cure), but the strength is much higher than that of sleeve anchors, making it especially suitable for heavy-duty applications or situations where the distance to the drilled hole edge is insufficient.

How to choose? Consider three points: load size (use tubing for light loads, chemical solutions for heavy loads), edge distance (too far or too close to the wall? Chemical solutions are more flexible), and whether frequent disassembly and assembly are required (tubing is more convenient for frequent disassembly and assembly).

For heavy-duty equipment such as large control boxes and distribution boxes, our products offer pre-drilled holes. Combined with chemical anchors, this achieves the highest level of fixation strength—especially suitable for outdoor environments with strong winds or frequent vibrations. The pre-drilled holes are pre-designed in location and size, allowing for direct alignment and installation on-site without the need for temporary measurements or on-site drilling.

Reference values ​​for pull-out strength of concrete anchors (based on ACI 318 standard and data from general anchor manufacturers):

Actual strength depends on substrate strength, construction quality, and curing conditions. It is recommended to perform on-site pull-out tests after critical installations.

The "Hollow Dilemma" of Hollow Bricks/Cement Blocks—Why Ordinary Expansion Bolts "Can't Hold" Them.

Hollow bricks (also called cement blocks) look quite sturdy, but they are actually hollow inside—with a hard outer shell and an empty cavity inside.

Why do ordinary expansion bolts not work on hollow bricks? Because expansion bolts need to fit 360° against the hole wall to generate gripping force, but on hollow bricks, after the drill bit penetrates the surface, it enters the cavity—the expansion part of the anchor bolt cannot expand in the cavity at all, which is equivalent to not being fixed.

What should we use? Must use Hollow Wall Anchor or Toggle Bolt. The design principle of these two types of anchors is to "unfold" or "lock" in the cavity of the hollow brick, rather than relying on expansion to fit the hole wall.

Here's some good news: Our Waterproof junction box The standard configuration includes one-piece cast mounting lugs, allowing you to use any fixing method. Whether it's a hollow-type anchor, a flip bolt, or a chemical anchor, the lug design ensures a perfect fit. You don't need to buy a special box for hollow bricks; simply use our box with the corresponding anchor.

How to fix a junction box on a wall without a joist – surface-mounted mounting solution

Limitations of the Old Work Box – Not suitable for outdoor waterproof applications.

Some electricians are used to working indoors and want to take shortcuts when they go outdoors—by using old work boxes.

The principle of the old work box: make a hole in the wall, put the box in, tighten the screws to make the flipper on the back of the box pop open and clamp the back of the drywall.

It sounds convenient, but it has two fatal problems:

1. It is not load-bearing. The flip clamp only held a layer of plasterboard, which couldn't support any weight. With even a little weight, the entire box and the equipment fell off.

2. It is not waterproof. The old work box was designed for indoor use and lacked a sealed structure. When installed outdoors, rainwater seeped in through the gaps.

An electrician on Reddit's r/electricians shared a real-life example: He took on a backyard light repair job. The previous electrician had used an old work box to install the light on an outdoor drywall wall—six months later, the entire light fixture, box and all, fell off the wall, and the flipper completely tore the drywall apart. To make matters worse, rainwater seeped into the wall through the screw holes, causing a short circuit.

Outdoor environments require a surface-mounted, waterproof case with mounting ears. Don't take shortcuts; shortcuts often lead to backtracking.

Industrial-grade solution – Fixing logic of surface-mounted lugs + chemical anchors

When there is no keel to provide leverage, surface-mounted ear loops combined with chemical anchors are the most reliable combination.

What are mounting ears? They are the tabs that extend from the sides of the box, with mounting holes on them. Simply stick the box to the wall, screw the screws into the wall through the holes on the mounting ears—it's that simple, straightforward, and highly adaptable.

What are the advantages of ear loops?

1. It does not rely on the keel. The mounting ears are directly fixed to the wall surface, and it doesn't matter whether there is a keel inside the wall.

2. High tolerance for error. Was the hole drilled slightly off-center? The mounting holes on the lugs usually have a slight amount of play to compensate for a few millimeters of deviation. You don't need to redo the drilling just because it's 0.5 centimeters off-center.

3. Quick installation. A good hanging ear design can reduce installation time by about 40%—no need to measure, no need to make a bracket, no need to repeatedly align, just put the box on the wall and tighten the screws.

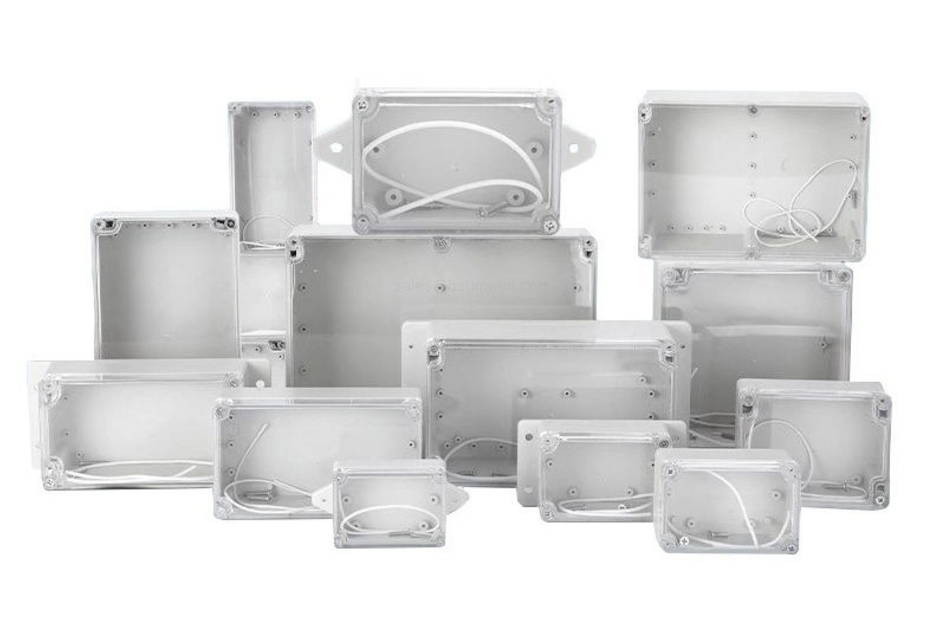

Our The latest IP66 UL94 V0 waterproof junction box comes standard with a hanging ear. —It is highly flame-retardant, corrosion-resistant, and strong, and will not rust in outdoor environments. The position and number of the hanging ears have been optimized to ensure that the box is as stable as a rock on any wall.

(For detailed photos/engineering drawings of the ear loop design, please see the product page.)

Different fixing strategies for light vs. heavy equipment

Not all equipment is secured in the same way. The securing strategies for light equipment and heavy equipment are different.

• Lightweight equipment (cameras, sensors, small lights): Two lugs and two anchor bolts are sufficient. Both standard expansion anchor bolts and hollow anchor bolts will suffice.

• Heavy equipment (distribution boxes, control cabinets, large industrial lighting fixtures): It must be secured at four points—four lugs and four anchor bolts, and the anchor bolts should be large-diameter chemical anchor bolts. If the equipment is particularly heavy or installed in a windy outdoor area, additional support brackets may be required for reinforcement.

How do you determine whether it's a light or heavy-duty machine? Look at the weight of the equipment, the installation height (the higher the installation, the greater the wind load), and whether there is vibration (e.g., if there is large equipment nearby).

Different box sizes are suitable for different load scenarios. If you are unsure which size to use for a particular project, please contact our technical support team. We can help you with the selection calculation based on the specific installation environment and equipment weight.

How to ensure that the IP67/IP66 protection rating is not compromised during installation?

IP66 and IP67 protection ratings are based on IEC 60529 (EU) and NEMA (North America) standards. According to UL 50E (enclosure standard), these certifications require that the enclosure be intact and unmodified. Any unauthorized openings in the field are equivalent to voluntarily forfeiting the product's protection certification.

The most common mistake – drilling holes randomly at the back/bottom of the enclosure to insert cables.

This is the most frequent and heartbreaking mistake we saw on site.

Here's the scenario: The contractor brings the box to the site and discovers that the location of the pre-buried conduit doesn't match the cable inlet on the box. What to do? Simply drill a hole in the back or bottom of the box, thread the cable through it—problem solved.

This seemingly casual action was a major mistake: every hole you drilled in the enclosure directly damaged the sealed cavity. The IP67/IP66 protection rating is based on an "intact sealed enclosure"—if you make a hole in the sealed enclosure, the waterproofing is gone.

Even more serious is that this hole was drilled on-site without any sealing treatment. Water will flow directly into the box through this hole, causing anything from a short circuit and tripping the circuit breaker to burning out the equipment.

According to NEC Clause 300.15, all electrical connections must be located inside an accessible junction box. Drilling holes in the enclosure not only violates this specification but also directly invalidates the IP67 certification (IEC 60529 standard).

Correct practice – Use the pre-installed cable connector inlet + matching waterproof connector

There is only one correct approach: The factory-preset cable gland inlet must be used. The factory-preset cable inlet is designed to be sealed. When tightened with the waterproof connector (Cable Gland), water cannot get in.

Our waterproof junction boxes come pre-installed with cable inlets in multiple directions and come with a corresponding number of waterproof cable grates. Once you arrive on site, simply select the appropriate inlet based on the pipe direction—no additional drilling is required, and IP67 sealing is guaranteed from the factory to installation.

The installation steps are simple but important:

1. Run the cable through Cable Gland

2. Screw the Cable Gland into the pre-installed cable inlet of the housing.

3. Tighten the Cable Gland sealing nut so that the sealing ring is tightly against the cable sheath.

4. Unused cable inlets must be sealed with a blank plug.

Note: Cable Gland's sealing ring must match the cable's outer diameter—too loose and water will seep in, too tight and the cable will be damaged. When selecting a model, use the actual measured cable diameter as the reference; the sealing ring compression should reach 25%-35% to ensure waterproofing.

Cable Gland Selection Guide (Based on IEC 62444 Standard):

Our products come standard with the required number of Cable Glands and waterproof plugs—ready to use out of the box, no need to purchase accessories separately. A complete package means that on-site delays won't be caused by missing even a small part, which is one of the most important indicators contractors consider when evaluating a product.

A tip from the factory:

During our pre-shipment airtightness testing, we discovered that over 80% of IP67 failures were not due to defects in the cable box itself, but rather to improper tightening of the cable glands during field installation—the seals were not fully compressed, leaving micron-sized gaps. To help contractors avoid this problem, we pre-install a marker ring at the root of the threads on each cable gland. When you tighten the nut until the marker ring is flush with the seal base, the torque falls exactly within the recommended range—allowing for proper tightening without a torque wrench.

Pressure control of the gasket – too tight and it deforms; too loose and water will get in.

The gasket between the box lid and the box body is the last line of defense against water damage.

The working principle of the sealing ring: The cover plate presses the sealing ring tightly, causing it to deform and fill the gap between the cover plate and the housing. Compression ratio is crucial—too little compression results in a weak seal, while too much will damage the sealing ring. The optimal compression ratio for typical elastomeric seals is between 25% and 35%.

• Insufficient compression ratio (e.g., only 15%): There is a tiny gap between the sealing ring and the box body → water will slowly seep in.

• Excessive compression ratio:Excessive deformation or even extrusion of the sealing ring leads to permanent failure, preventing it from ever springing back.

Correct approach:

• Use a torque wrench to tighten to the recommended torque value.

• Tighten the cover plate screws evenly in a star-shaped sequence (diagonally alternating) – do not tighten them clockwise one turn at a time, as this will cause uneven stress on the sealing ring.

Universal torque reference values ​​(for most IP67 rated panel mounts):

• M4 screws: Approximately 1.0-1.5 N·m

• M5 screws: Approximately 2.0-3.0 N·m

Professional contractors know that torque control of the sealing ring is crucial to successful waterproofing. Our product manuals specify the recommended torque range for the sealing ring cover—this is the fundamental difference between professional-grade and consumer-grade products. Follow the instructions, and you can't go wrong.

Long-term maintenance tips – How to avoid condensation inside junction boxes

Choose the appropriate direction for the cable inlet to prevent rainwater from flowing back into the cable.

Waterproofing is not just about "keeping the box from leaking," but also about "preventing water from flowing into the box along the cables."

The simplest principle: install with the cable inlet facing downwards.

The cable enters from the bottom of the box, and as water flows down the cable, it drips at the lowest point—preventing it from entering the box. This is a zero-cost water-proofing measure.

If site conditions do not allow for bottom entry (e.g., side entry is required): Before the cable enters the box, a drip loop is made – the cable hangs down first and then goes up into the box, so that water drips at the lowest point and does not flow down the cable into the box.

Our products offer multi-directional preset cable inlets—top, bottom, and side—allowing you to flexibly choose the optimal orientation based on site conditions. Choosing a downward-facing cable inlet proactively minimizes the risk of water ingress from the installation stage.

(For a detailed diagram showing the orientation of the cable inlet, please refer to the product installation instructions.)

Breathing Valve Selection Recommendations – For Outdoor Scenarios with Large Temperature Differences

Some malfunctions are not caused by water ingress, but by condensation.

How does condensation occur? During the day, the sun shines, causing the temperature inside the box to rise and the air to expand. At night, the temperature drops sharply, causing the air to contract and creating negative pressure inside the box, which draws in moisture from outside. This moisture condenses into water droplets, which drip onto the circuit board and cause a short circuit.

This isn't because the box wasn't sealed properly—even the best seal can't prevent the breathing effect caused by changes in air pressure.

Solution: Breathing Valve (Pressure Equalization Valve). This small accessory helps maintain pressure balance between the inside and outside of the box, while preventing moisture from getting in. Even with significant temperature differences, moisture won't "breathe" into the box.

Applicable scenarios:Ventilation valves are recommended for places with large temperature differences between day and night, such as coastal areas, deserts, and high-altitude regions.

We also offer Metal distribution box junction box with fan This is suitable for scenarios requiring active heat dissipation. If the project environment is particularly harsh (high temperature, high humidity, high dust), our ventilation and heat dissipation solution can be selected.

Contractor FAQs

Q: If the location of the inlet and the pipeline do not match, can I drill a hole myself?

A：Absolutely not. Drilling holes in the enclosure will directly damage the IP67 sealed cavity. According to NEC 300.15 and IEC 60529 standards, this will invalidate the product certification. Our boxes have pre-installed cable inlets in multiple directions; please select the matching pre-installed inlet when using the Cable Gland.

Q: How tight should the screws on the sealing ring be tightened?

A：The sealing ring needs a compression ratio of 25%-35% to be effectively waterproof. The recommended torque for M4 screws is 1.0-1.5 N·m, and for M5 screws, 2.0-3.0 N·m. Too loose and water will get in; too tight and the sealing ring will be damaged. Use a torque wrench to tighten in a star-shaped sequence.

Q: Can old work boxes be used outdoors?

A：No. The flip clips on old junction boxes are only suitable for indoor drywall walls; they are neither load-bearing nor waterproof. For outdoor use, a surface-mounted waterproof junction box with stainless steel lugs is required. There are numerous real-life examples on the Reddit electrical forum of equipment falling due to the use of old junction boxes outdoors.

Q: The box is sealed so well, why are there still water droplets inside?

A：That's condensation, not a leak. The temperature difference between day and night causes the air inside the box to condense into water. The solution is to install a vent valve to balance the internal and external air pressure, or to choose a metal distribution box with a fan for active cooling.

Q: Does the cable inlet have to face downwards? Is it okay to install it on the side?

A：Preferably with the cable facing down. If the side is the only option, the cable must have a drip bend—so that water drips at the lowest point and doesn't run down the cable into the box.

Contractor Self-Inspection Checklist (Download Attached)

Don't rush off after you finish your work. Take two minutes to go through this checklist; it will save you the trouble of having to come back and redo it later.

Pre-installation inspection

• Have you confirmed the wall material? (Brick/Concrete/Hollow Brick/No Frame → Have you selected the correct anchors?)

• Have you brought all your tools? (Electric hammer/impact drill, correct drill bits, torque wrench, spirit level, air blower/hole brush)

• Has the product been inspected? (Are the sealing rings damaged? Are there enough preset cable inlets?)

Installation check

• Was the drilling depth sufficient? (At least 1/2 inch deeper than the anchor bolt burial depth)

• Was the inside of the hole cleaned? (Brush it once, then blow it out again)

• Is the anchor bolt torque compliant? (Don't rely on feel; use a torque wrench.)

• Is the box level? (Use a spirit level to check)

• Was the sealing ring cover tightened in a star-shaped sequence? Is the torque within the recommended range?

Post-installation check

• Are all cable inlets sealed? (The cable glands in use are tightened, and those not in use are sealed with plugs.)

• Is the cable inlet facing downwards? (If not, was a drip bend installed?)

• Has grounding been done? (If the product requires grounding)

Download the "Standard Operating Procedure (SOP) Manual for Waterproof Junction Box Wall Installation"

The list above is a simplified version. The complete "Standard Operating Procedure (SOP) Manual for Waterproof Junction Box Wall Installation" includes more detailed step-by-step illustrations, installation comparison tables for various wall surfaces, and troubleshooting guides for common problems.

Click to contact us and send us your SOP manual. —The manual contains a complete product series comparison table and technical support contact information. If you encounter any problems during construction, please feel free to contact our technical team.

Next episode preview: If you are a wholesaler or purchasing decision-maker and want to understand the differences in weather resistance costs of different materials in coastal environments, the differences in acceptance between IP67 and NEMA 4X, and preferential policies for bulk purchases, please pay attention to our "Wholesaler and Engineering Procurement Guide - Selection, Certification and Market Trends of Outdoor Waterproof Shells".
