PSC5-86
BSUMWELL/OEM
$4.3 - $6.7
| Quantity: | |||||||||
|---|---|---|---|---|---|---|---|---|---|

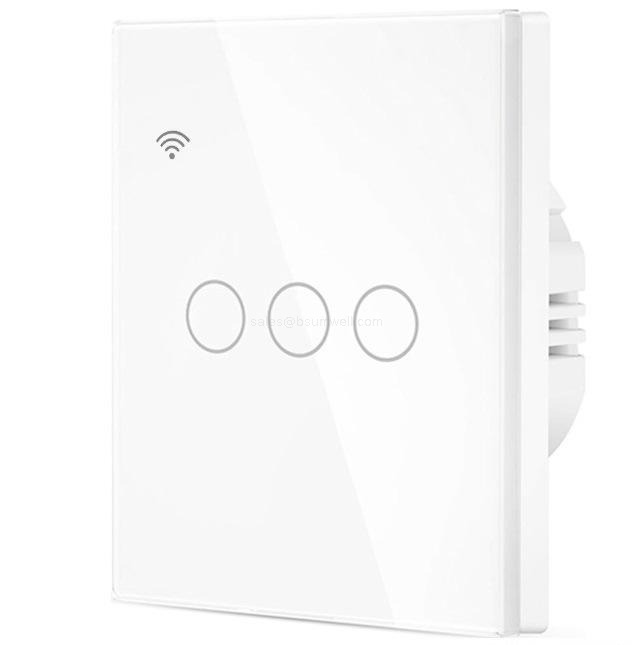

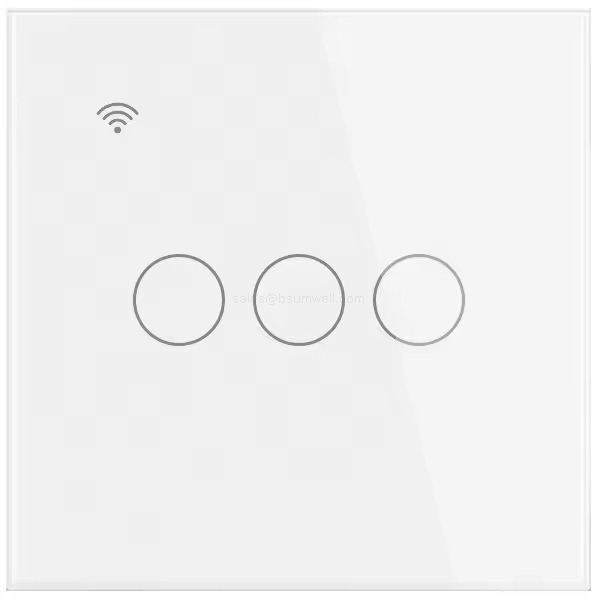

EU Standard 86mm Touch Smart Switch supports 1-4 GANG Have/No Neutral wiring. WiFi/ZigBee/BLE enabled works with Tuya Smart Life Alexa Google. Timing sharing function ideal for home smart lighting control. | |||||||||

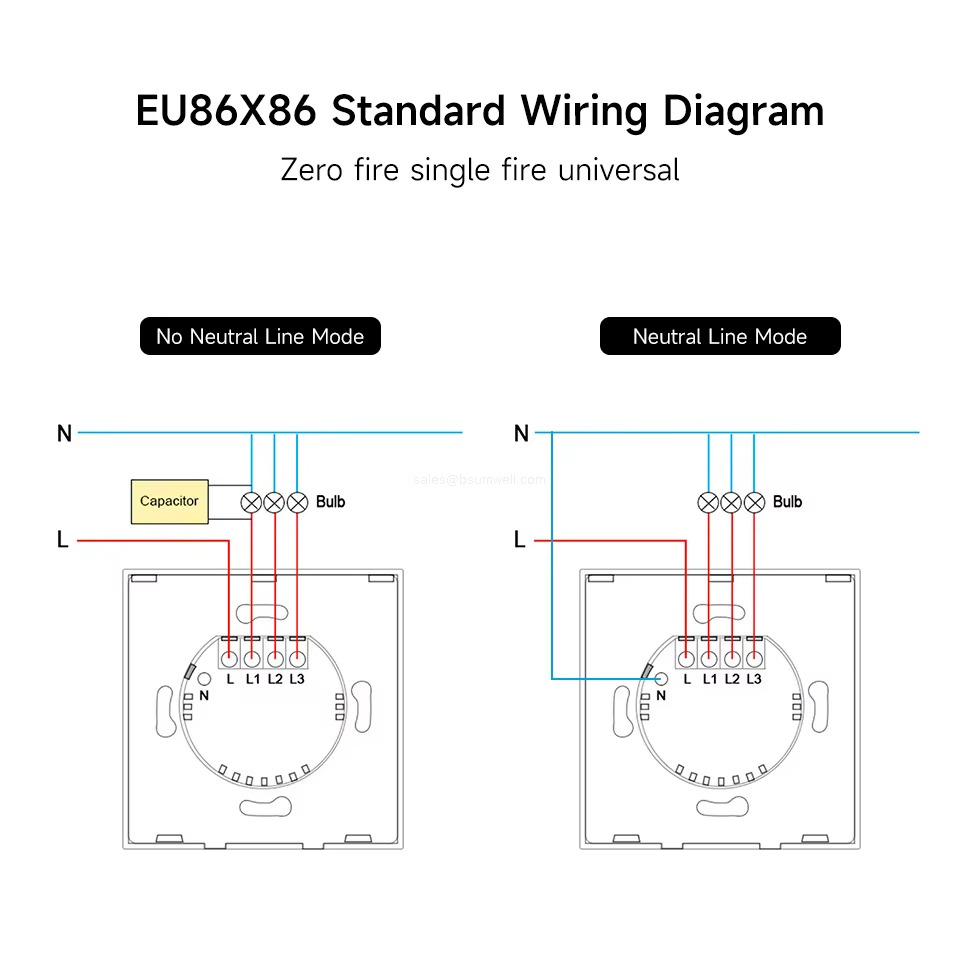

Dual Wiring Compatibility: Supports both "Have Neutral" and "No Neutral" wire modes, suitable for new decoration and old house retrofitting without rewiring.
Multi-Control Modes:
Intuitive touch control with sensitive response and no mechanical wear;

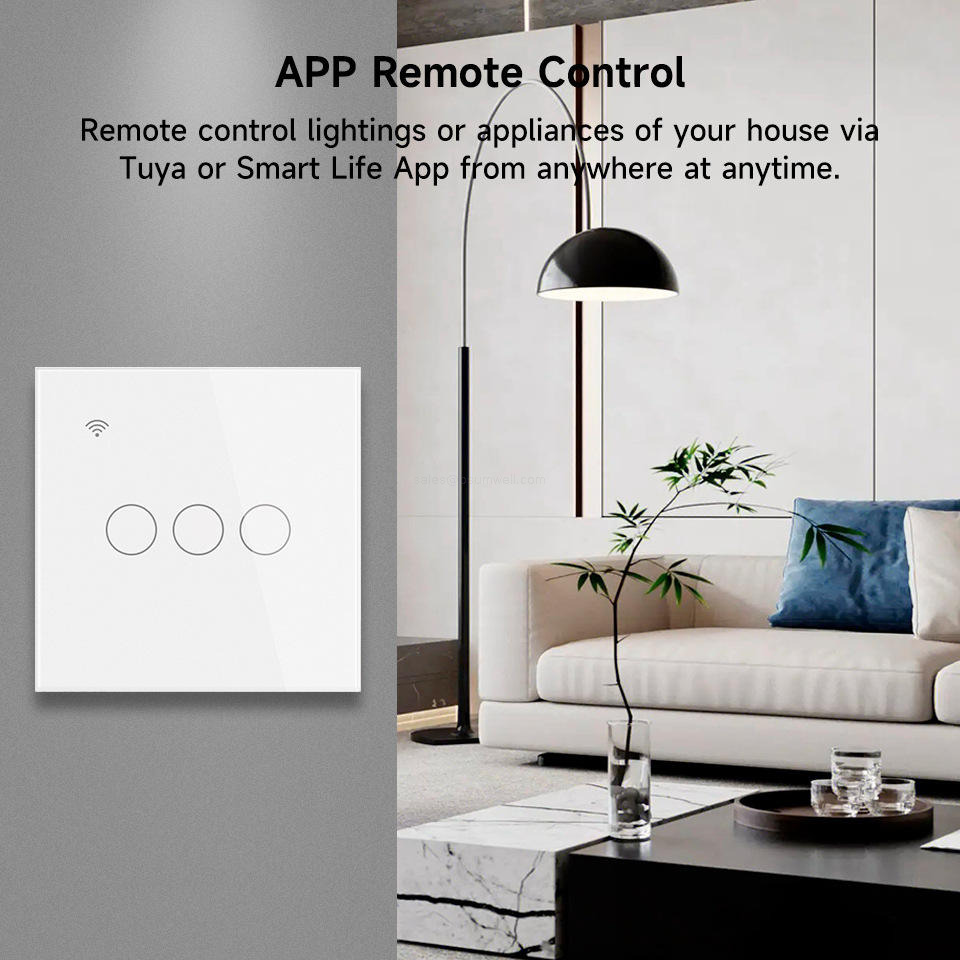

APP remote control via Tuya/Smart Life (anytime, anywhere with network);

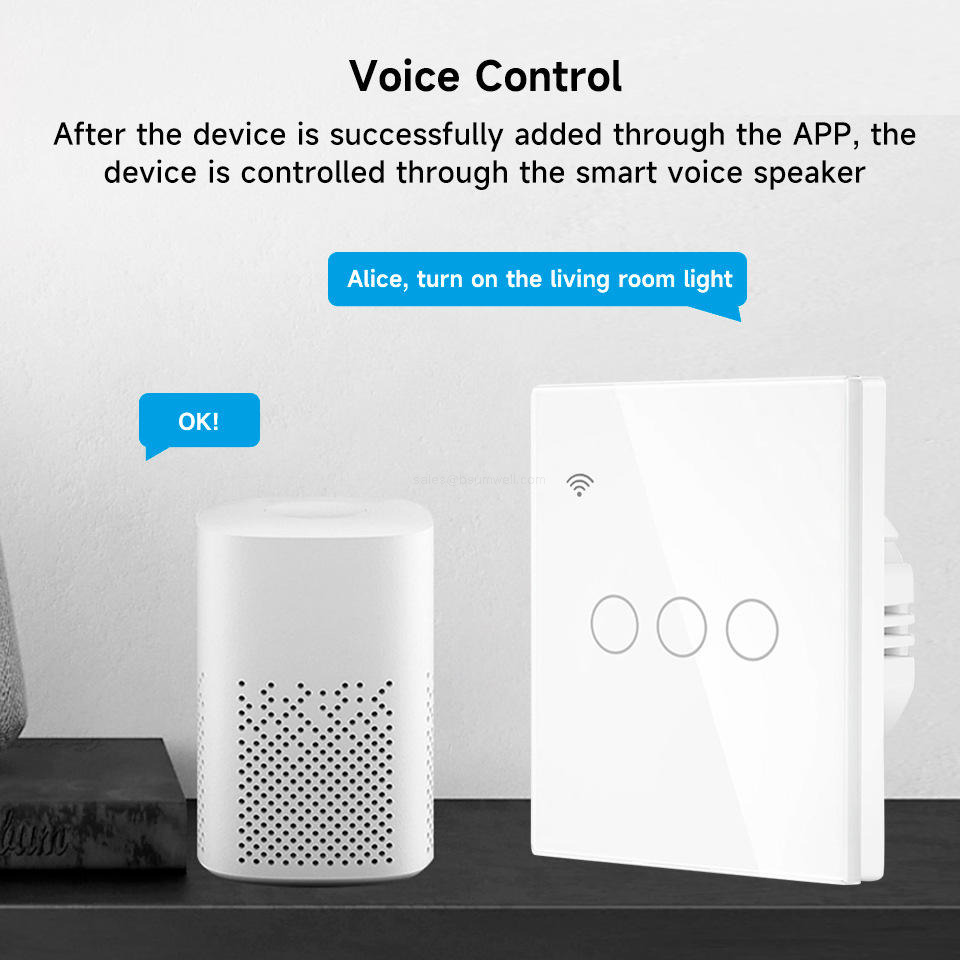

Voice control compatible with Alexa and Google Assistant for hands-free operation.
Practical Smart Functions: Customizable timing (one-time/cyclic) and countdown settings; device sharing with family members for joint management; group control of multiple switches.

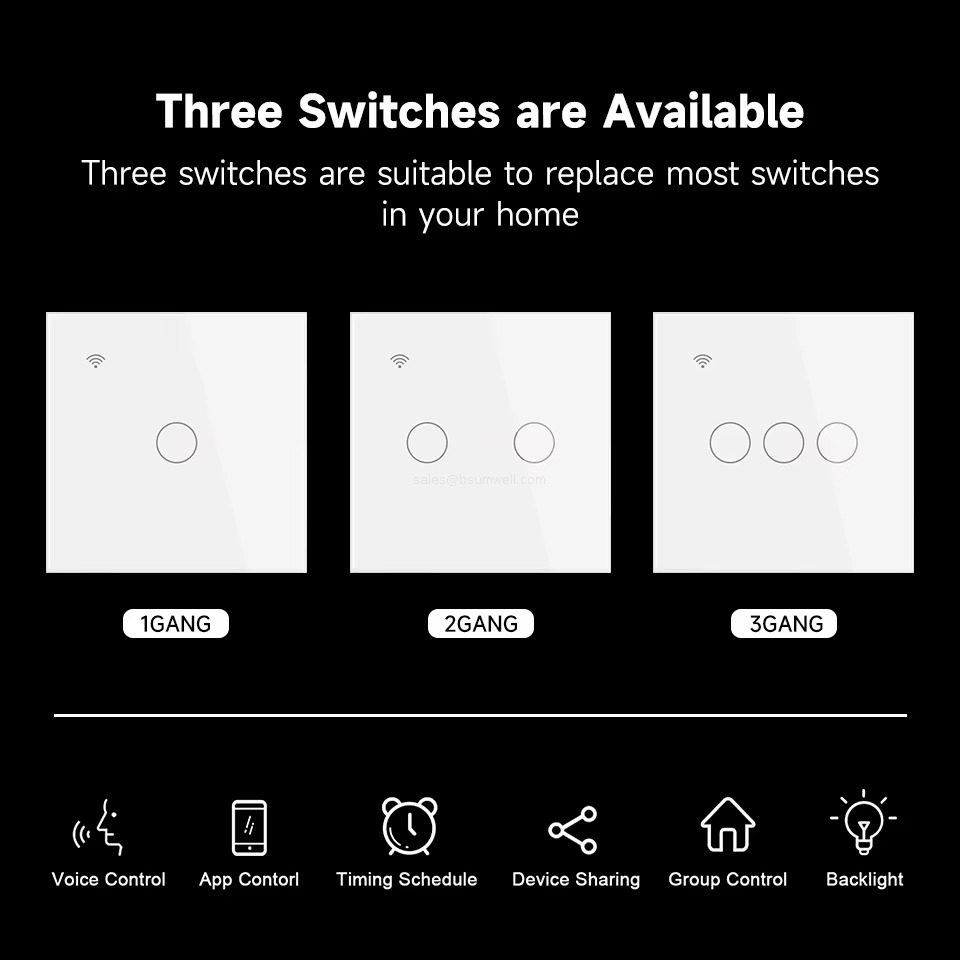

Flexible GANG Options: 1/2/3/4 GANG choices to control single or multiple lights/appliances separately, meeting diverse home layout needs.
Durable & Reliable: Made of glass + ABS material with 40000-time mechanical life; IP11 protection level; 10A max current (2000W load at 220V) for stable use.
Multi-Wireless Protocols: Supports WiFi 2.4GHz/ZigBee 3.0/BLE, adapting to different smart home ecosystem requirements.

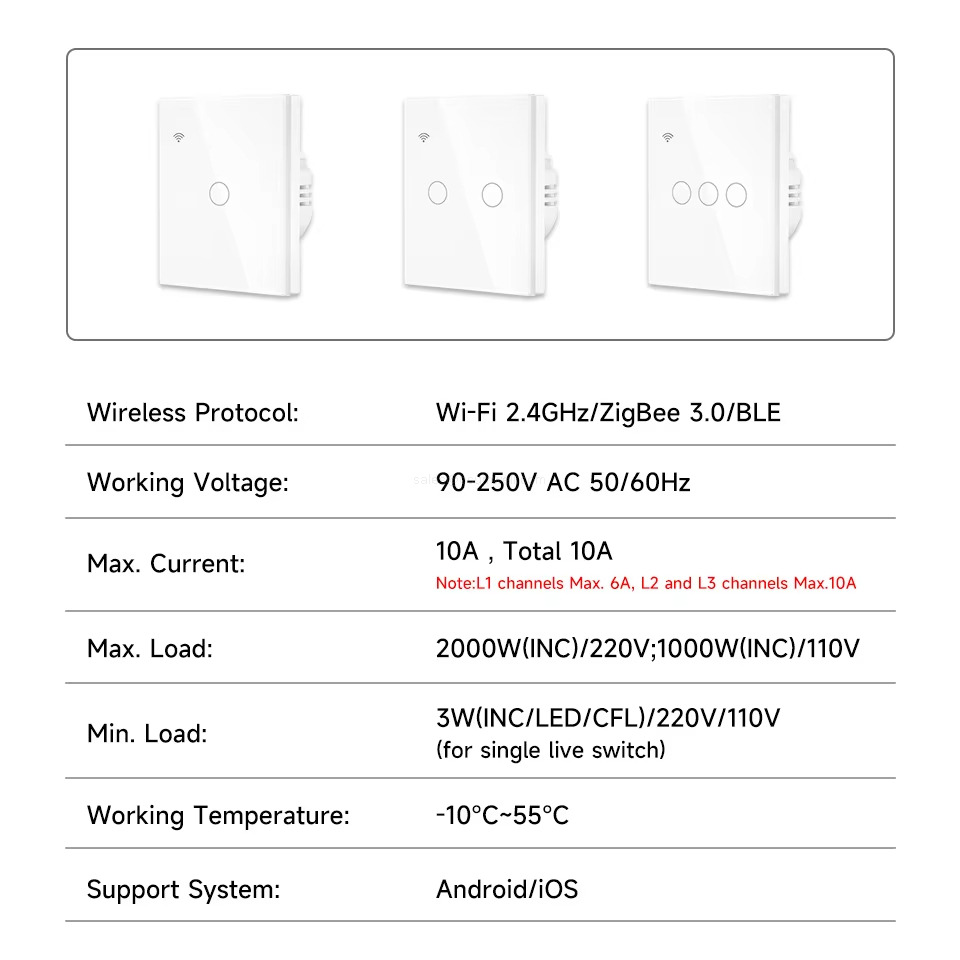

| Parameter | Details |
|---|---|
| Standard | EU Standard |

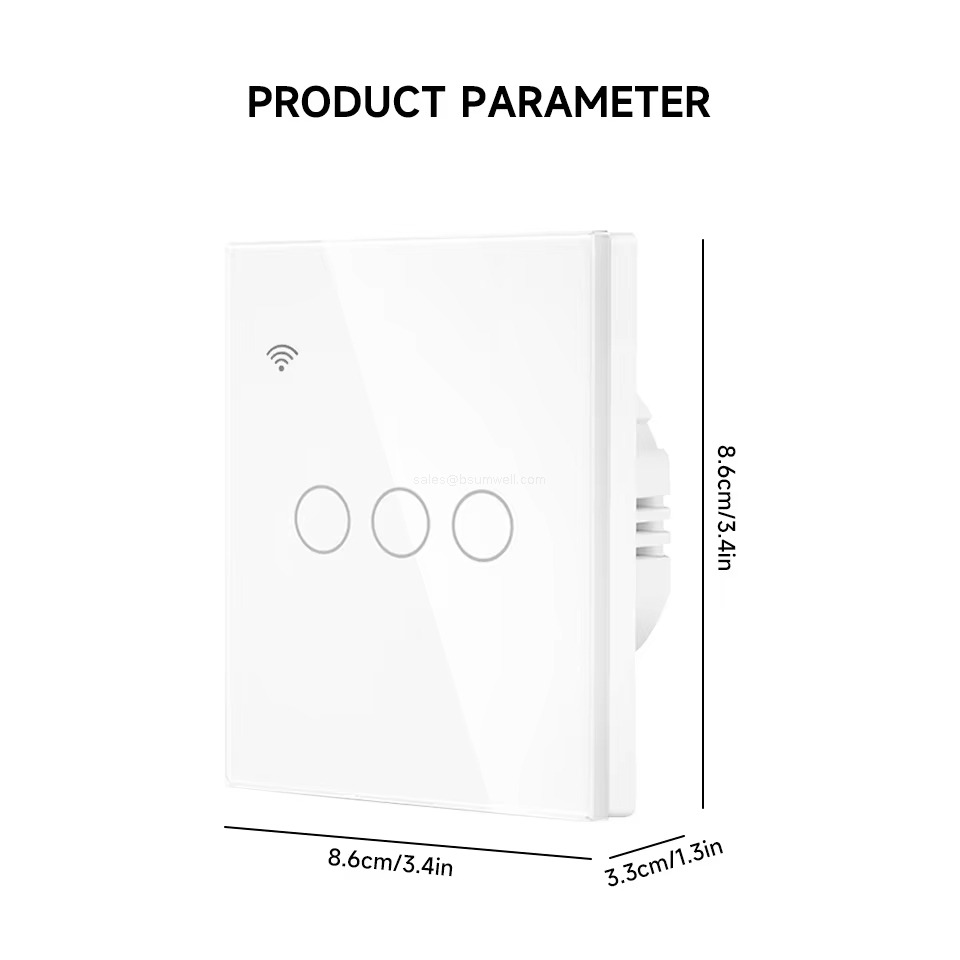

| Product Size | 86mm×86mm |
| GANG (Key Count) | 1/2/3/4 GANG |
| Wiring Mode | Have Neutral Wire / No Neutral Wire (universal) |
| Wireless Protocol | WiFi 2.4GHz / ZigBee 3.0 / BLE |
| Working Voltage | 90-250V AC 50/60Hz |
| Max. Current | 10A (L1: 6A max; L2/L3: 10A max) |
| Max. Load | 2000W (INC)/220V; 1000W (INC)/110V |
| Min. Load (Single Fire) | 3W (INC/LED/CFL)/220V/110V |
| Material | Glass + ABS |
| Mechanical Life | 40000 times |
| Protection Level | IP11 |
| Operating Temperature | -10°C ~ 55°C |
| Compatible Systems | Android / iOS |
| Compatible APP | Tuya, Smart Life |
Q: Do I need a neutral wire to install this switch?
A: No. It supports both neutral and non-neutral wire wiring—choose the mode based on your home’s electrical layout, no need for rewiring.
Q: What’s the difference between WiFi, ZigBee, and BLE modes?
A: WiFi enables direct remote control via APP; ZigBee is suitable for large smart home systems with gateways; BLE facilitates quick device pairing during setup.

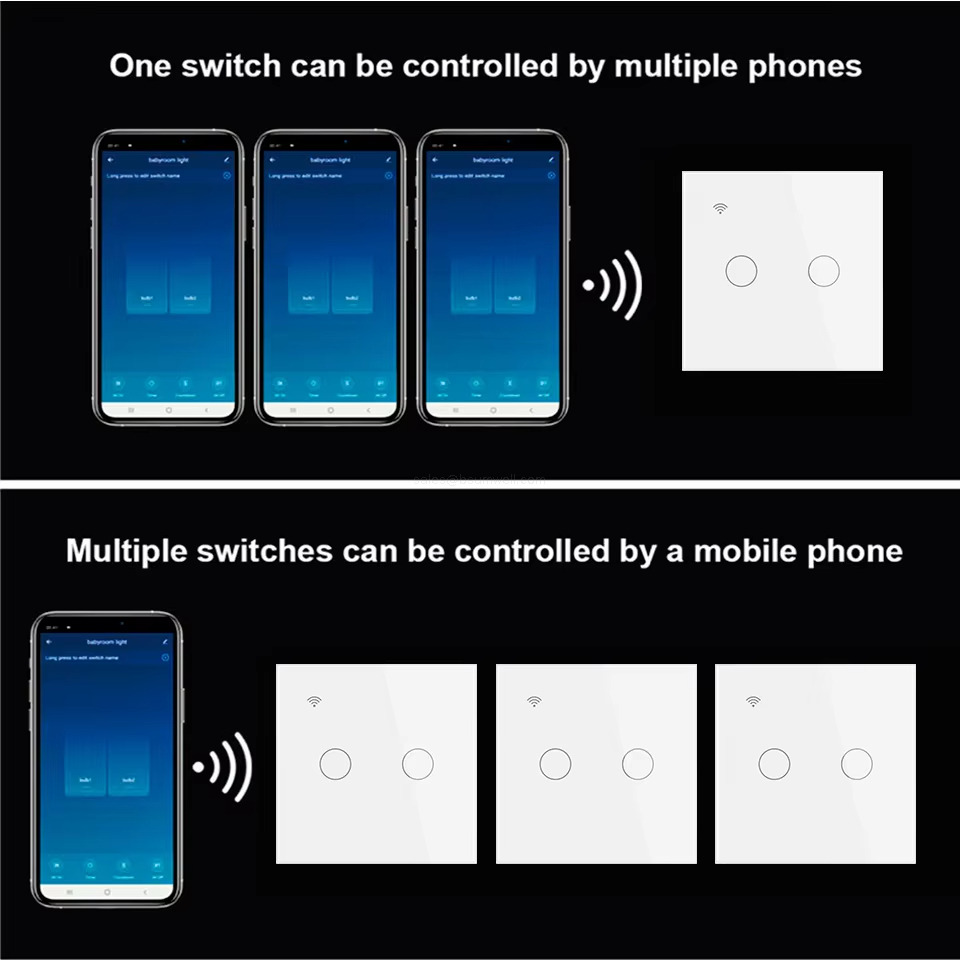

Q: Can I control multiple switches with one phone?
A: Yes. You can add multiple switches to the Tuya/Smart Life APP, control them individually, or set group scenes for simultaneous operation.
Q: Is it compatible with LED bulbs?
A: Yes. The minimum load for single fire mode is 3W, which works with most low-power LED/CFL bulbs and incandescent lamps.
Q: How to share the switch with family members?
A: After adding the device to your APP, find the "Device Sharing" function, enter family members’ APP accounts, and they can control it directly on their phones.
