Easy Installation Extendable Automatic Motorized Curtain Track - 80kg Load, Alexa/Google Voice Control, Custom 3-8M Size

  • PS-EX

  • BSUMWELL

  • $23.81 - 39.9

SKU:
Availability:
Quantity:
Extendable Motorized Curtain Track: Free extendable, measurement-free, 80kg load. Supports Alexa/Google voice control & Tuya system. Aluminum alloy, custom 3-8M size, compatible with all motors—ideal for smart homes.

EXTENDABLE MOTORIZEDCURTAIN TRACK Telescopic Suit. Free extendable Measurement free. Intelligent voice control | Compatible with all types motor.

Name: Extendable Motorized Curtain Track

Colour: Electrophoresis ivory white

Material: Aluminium alloy

Max load: 80kg

Hand-pull resistance: 1.2N.m

Compatibility: All types motor of Teritex Track

Installation method: Default top mounting, please contact customer servicefor others

Size:

Installation space: 10cm

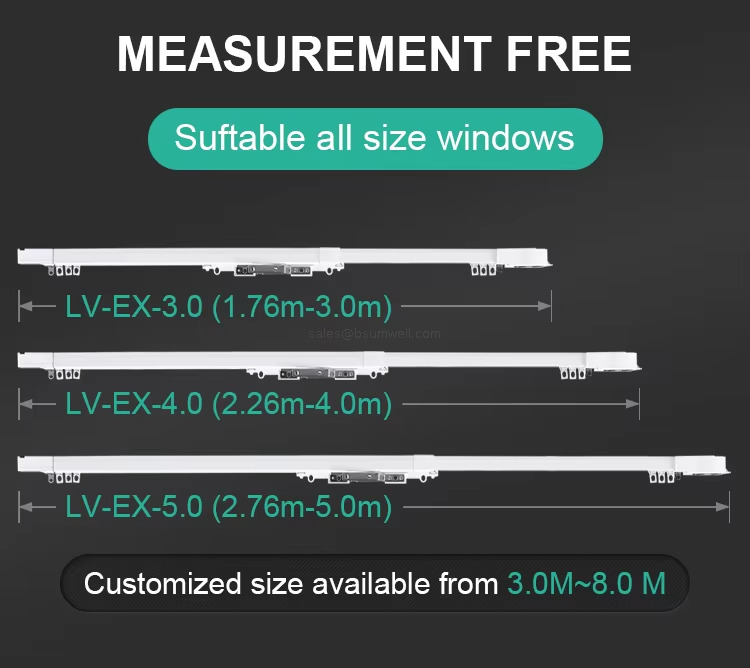

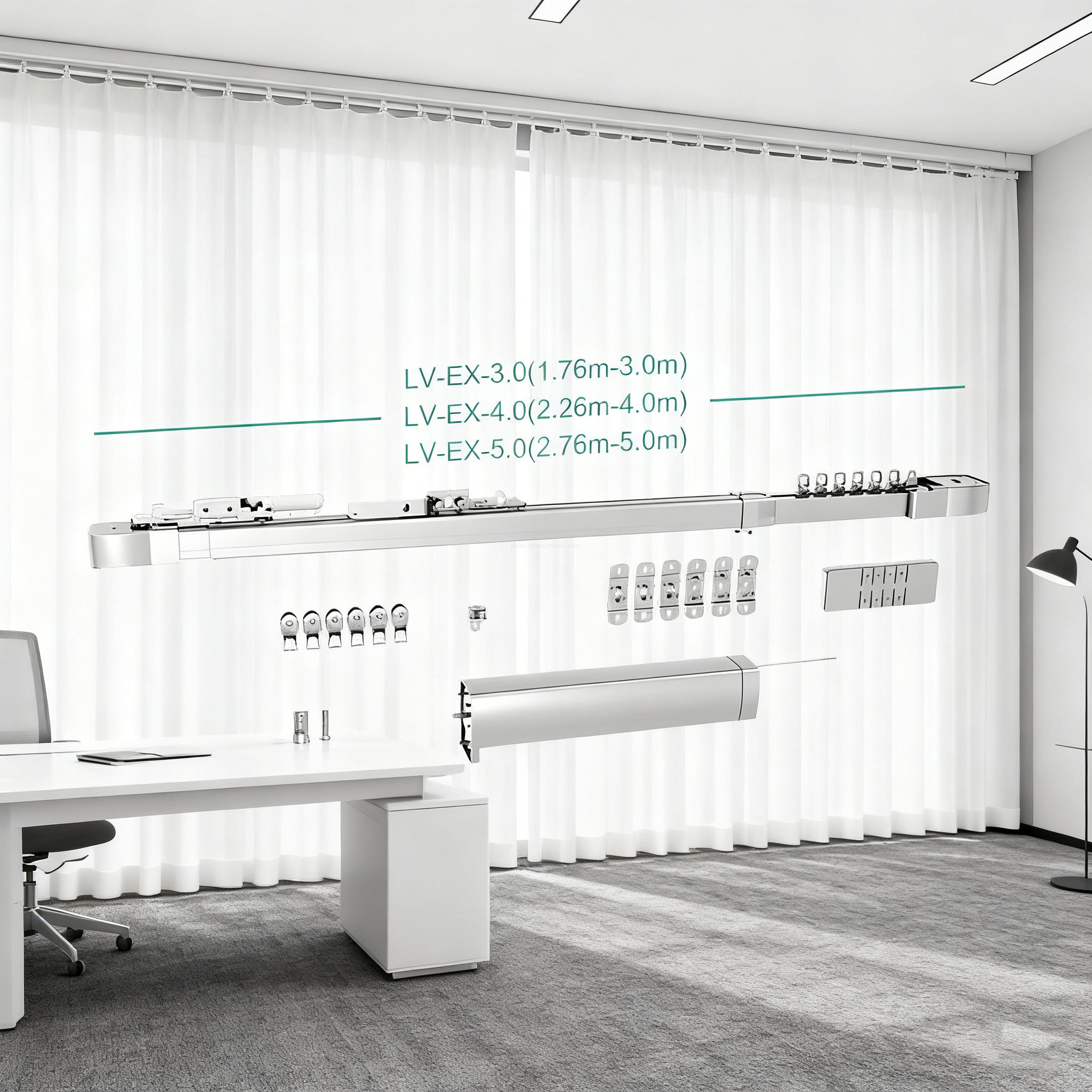

LV-EX-3.0(1.76m-3.0m)

LV-EX-4.0(2.26m-4.0m)

LV-EX-5.0(2.76m-5.0m)

Customized size available from 3.0M~8.0 M

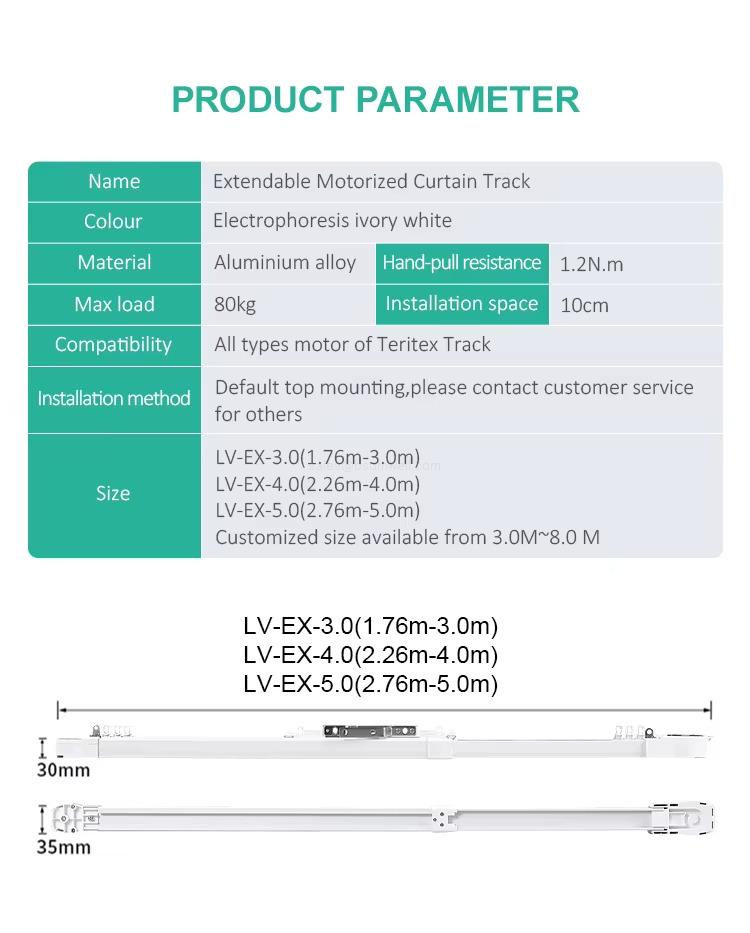

PRODUCT PARAMETER

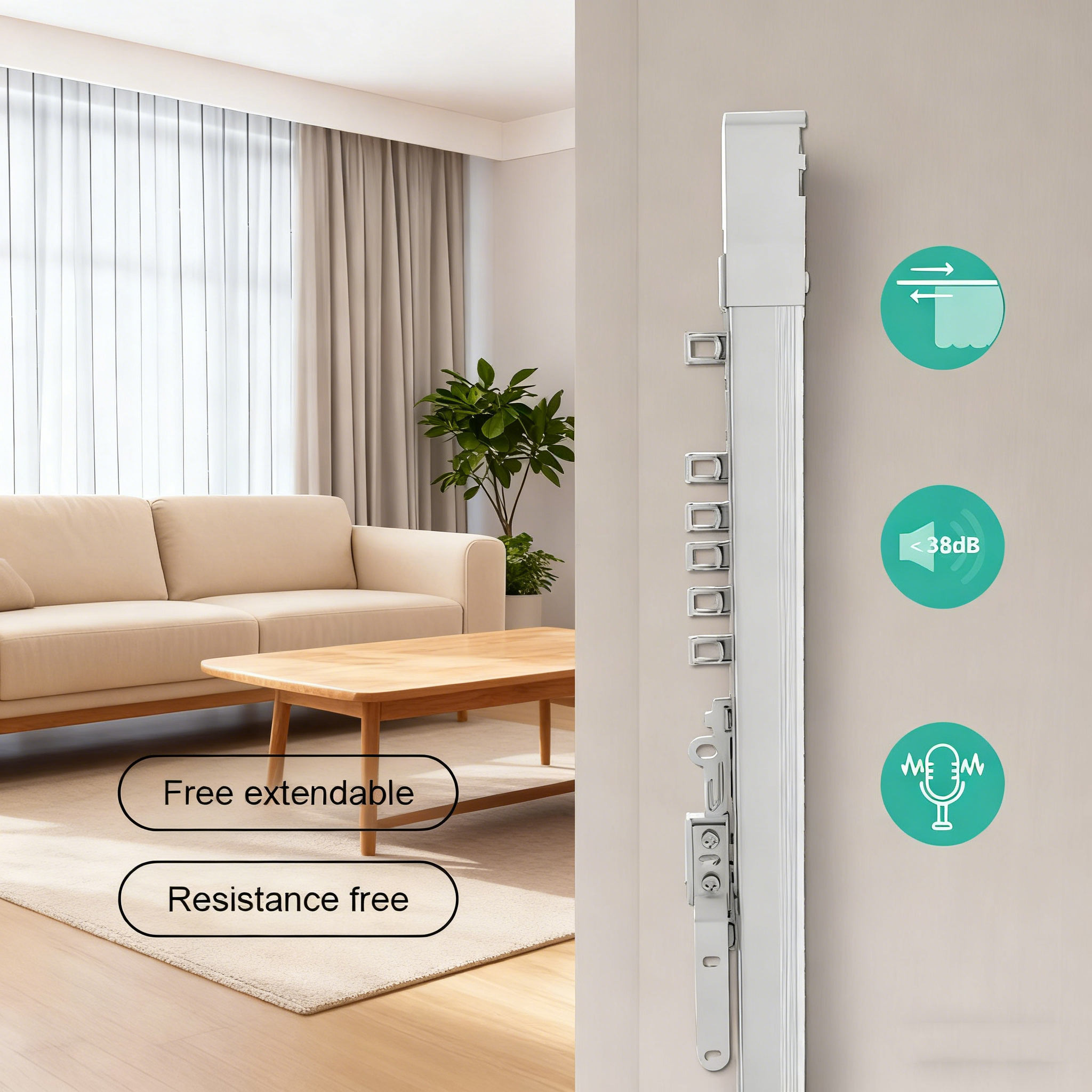

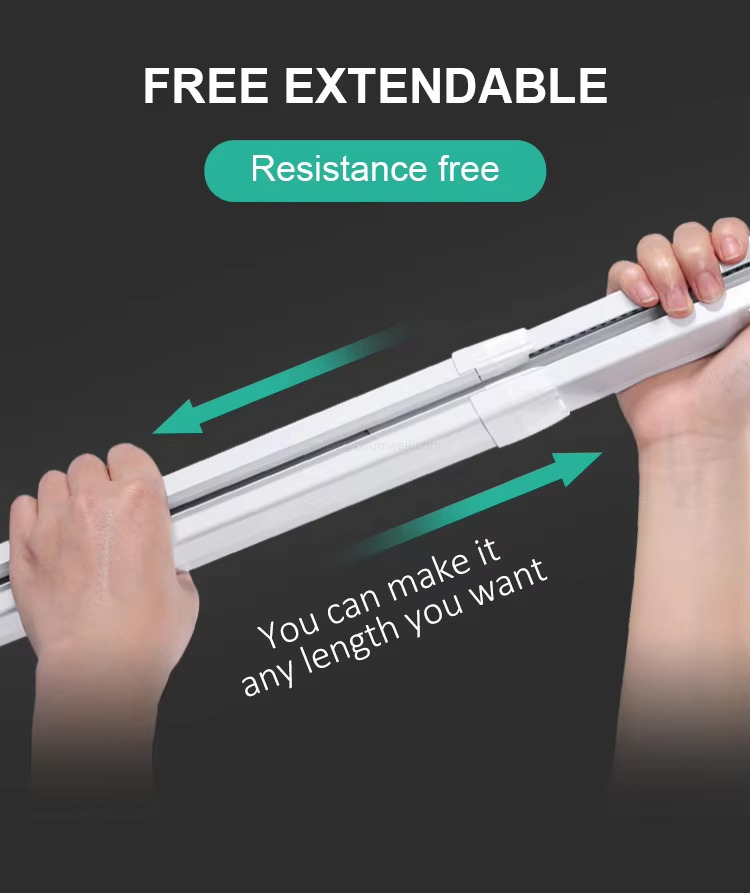

FREE EXTENDABLE Resistance freeMEASUREMENT FREE Suftable all size windows

Customized size available from 3.0M~8.0 M

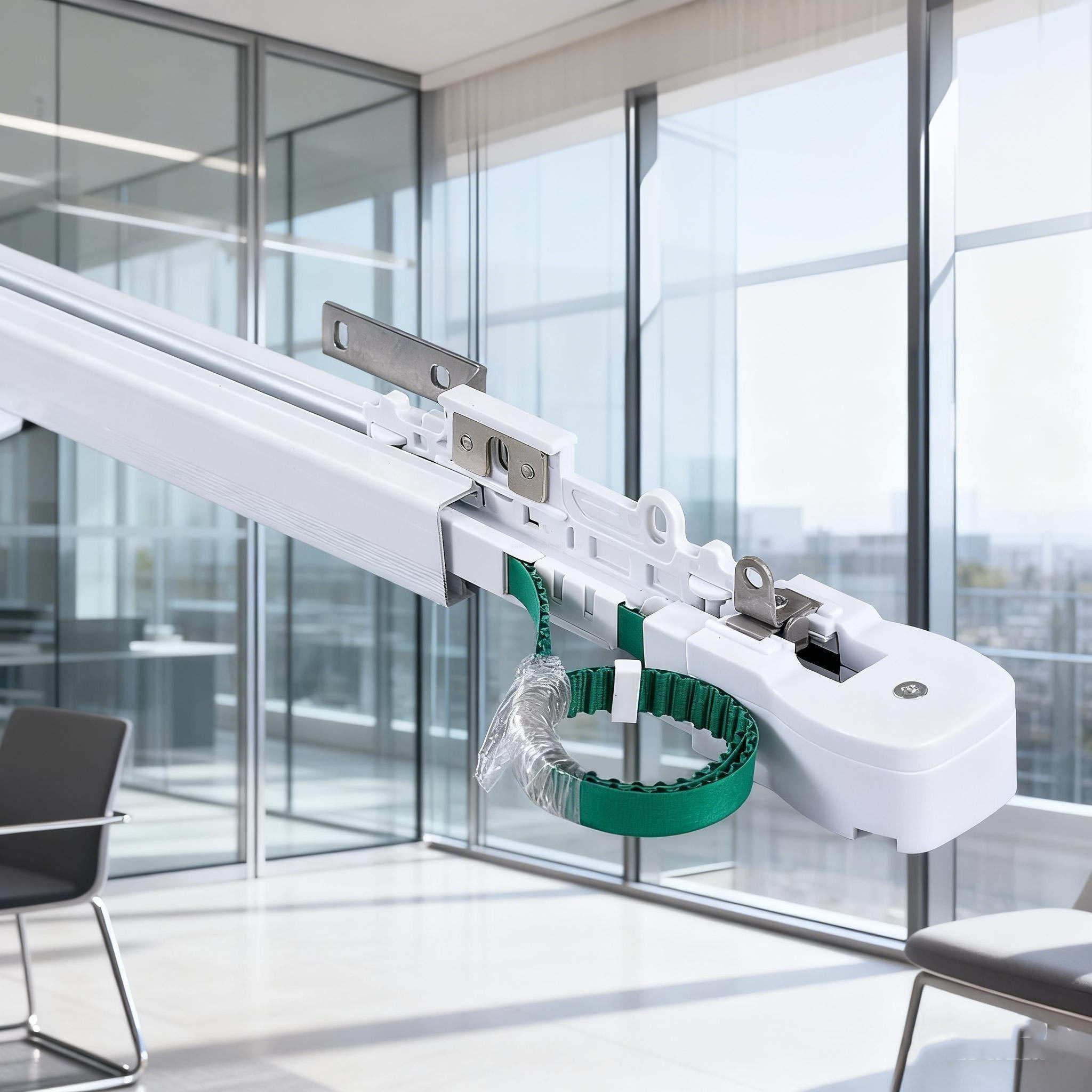

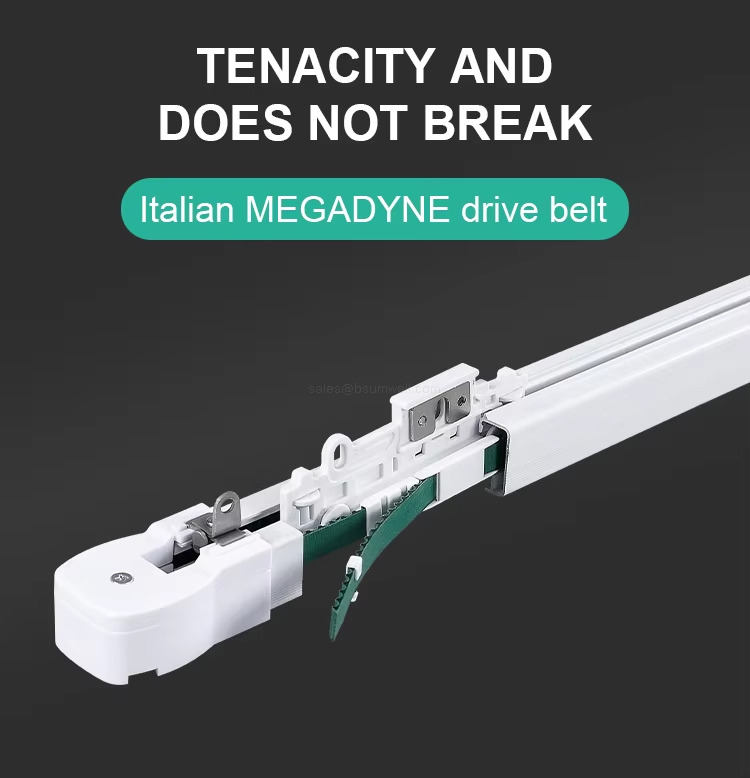

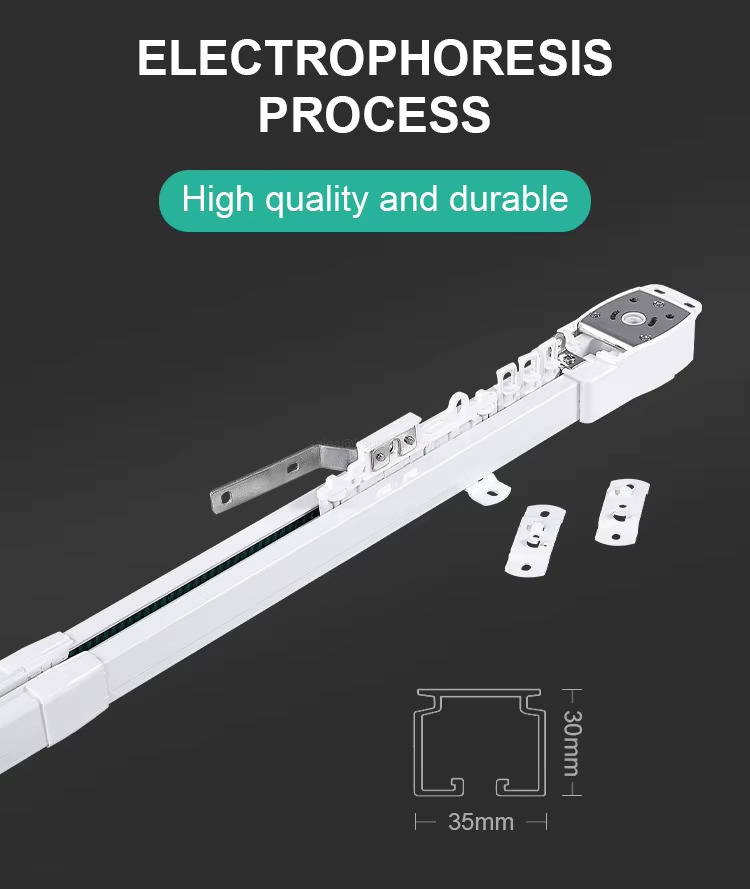

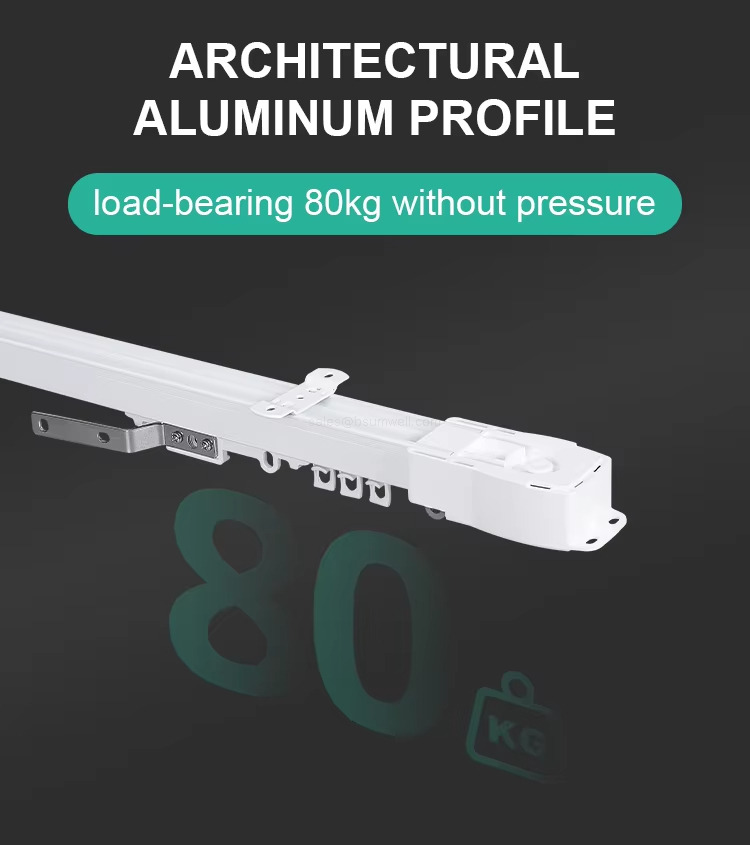

ARCHITECTURALALUMINUM PROFILE load-bearing 80kg without pressureELECTROPHORESISPROCESS High quality and durableTENACITY ANDDOES NOT BREAK Italian MEGADYNE drive beltNTELLIGENT SYSTEM Support Intelligent Voice Control

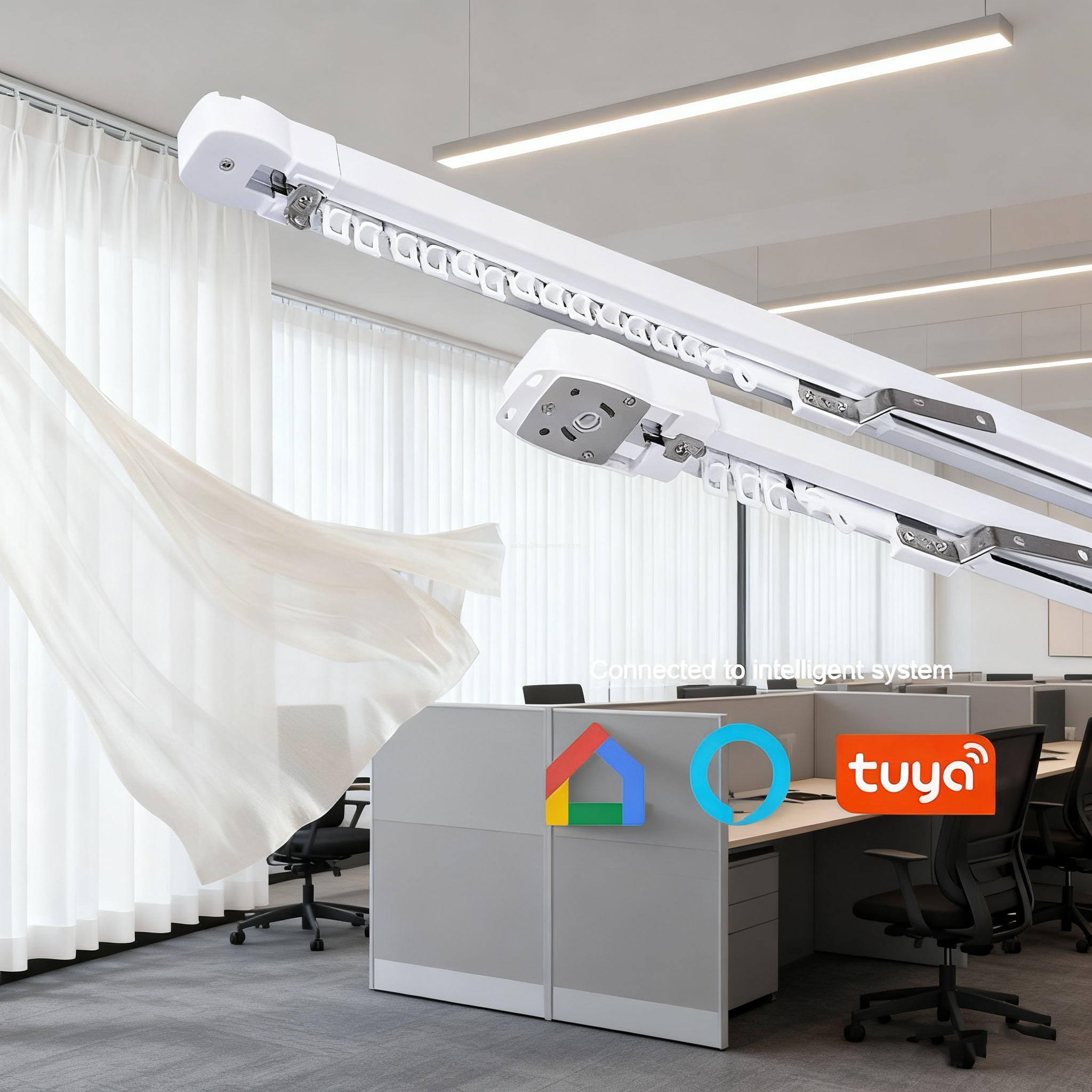

*control system:tuya, Google home, Amazon alexa.

Voice Control; Remote Control; Timing Control; Intelligent Limit %.

Block-to Stop Function; Manual Operation;Smart Home; Scene Linkage.

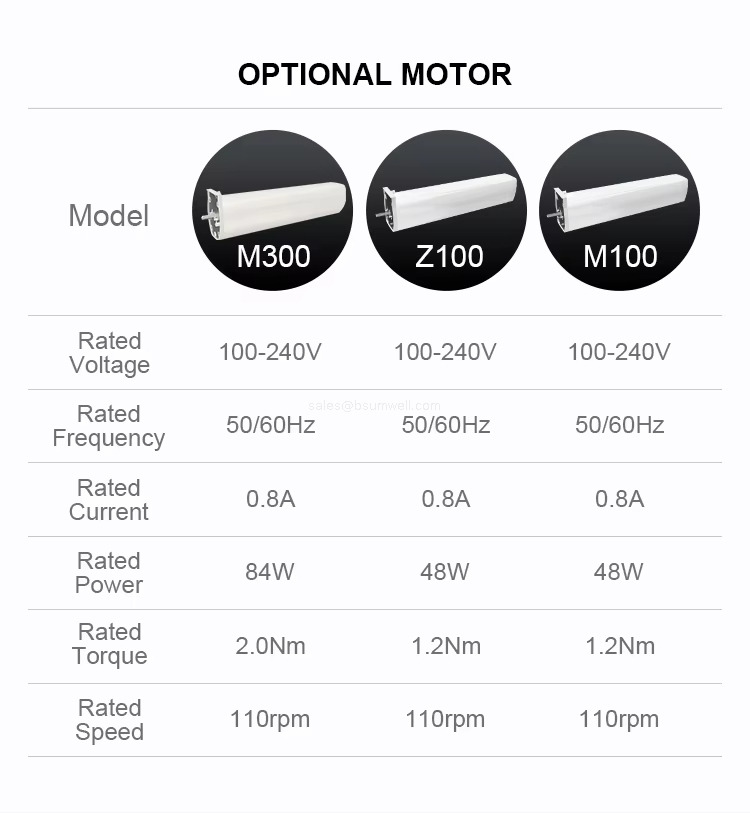

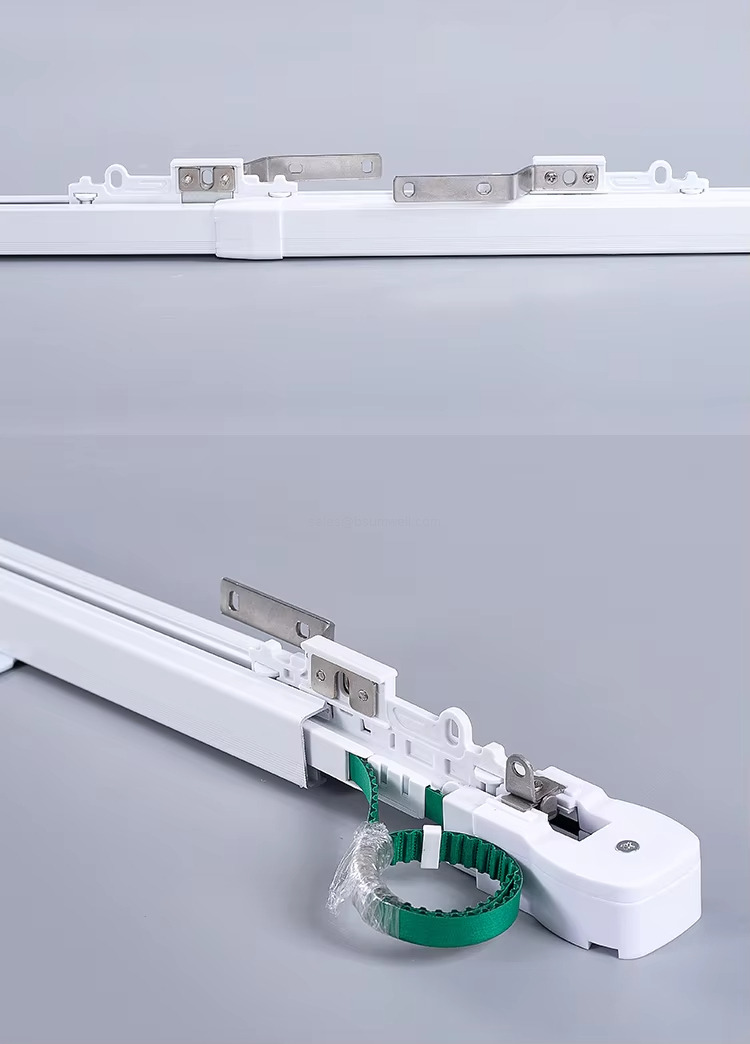

COMPATIBLE MOTOR Compatible With All Types MotorOPTIONAL MOTORPRODUCT DISPLAYPRODUCT DISPLAYINSTALLATION STEPSINSTALLATION STEPS

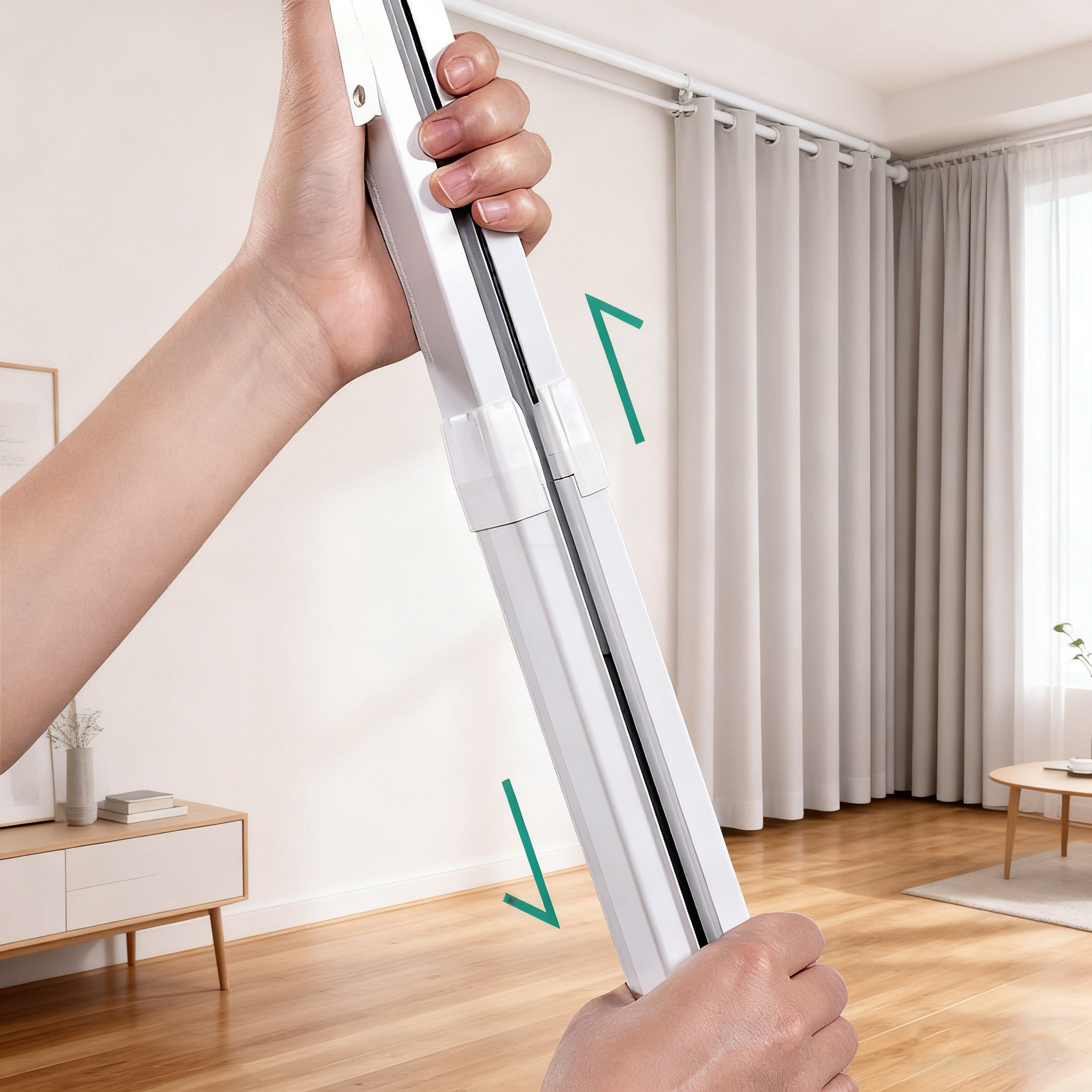

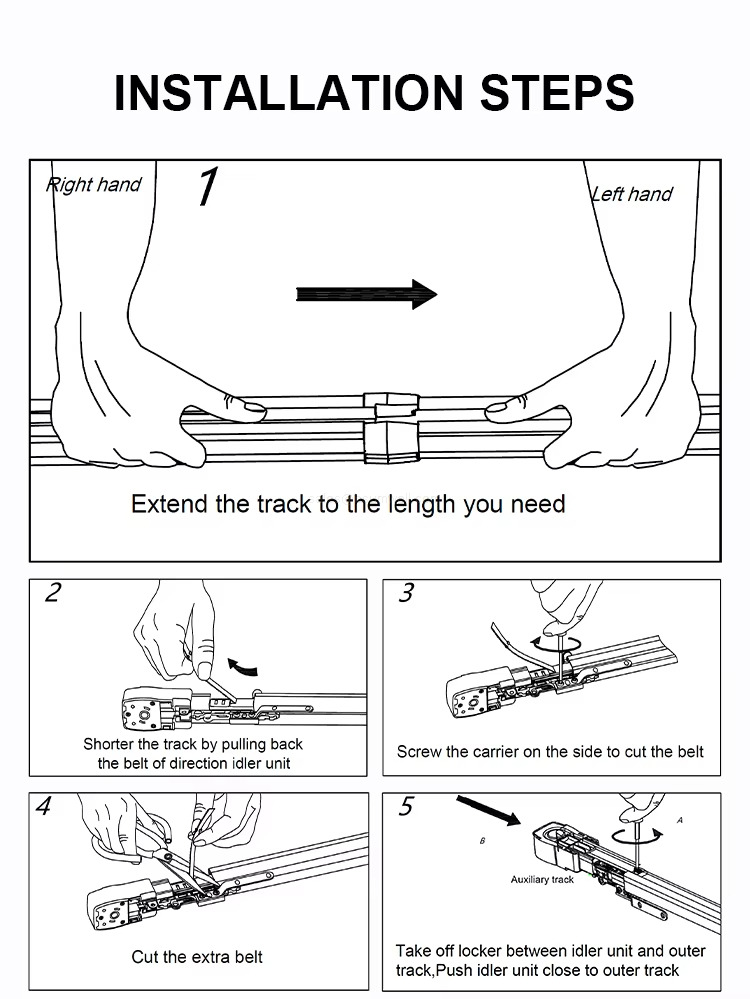

1 Extend the track to the length you need
2 Shorter the track by pulling back the belt of direction idler unit

3 Screw the carrier on the side to cut the belt

4 Cut the extra belt

5 Take off locker between idler unit and outer track,Push idler unit close to outer track

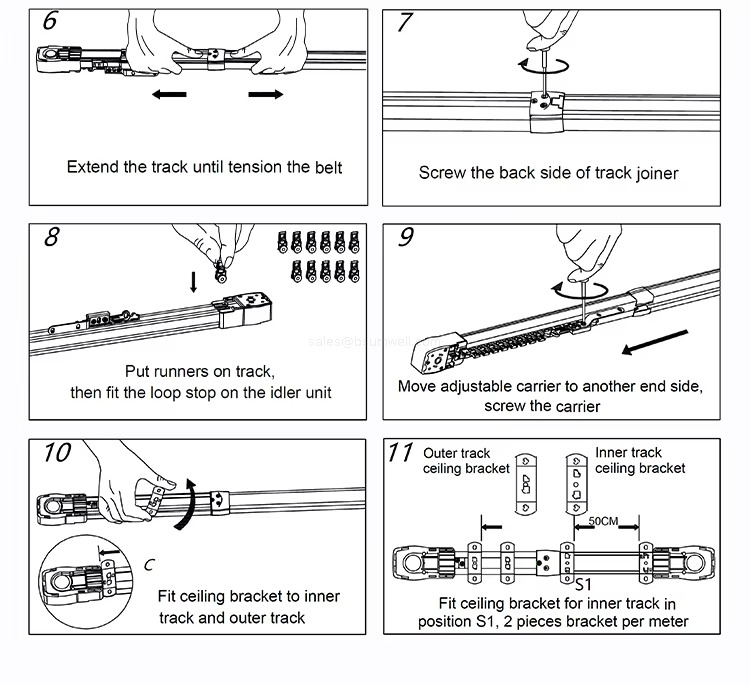

6 Extend the track until tension the belt

7 Screw the back side of track joiner

8 Put runners on trackthen fit the loop stop on the idler unit

9 Move adjustable carrier to another end side.screw the carrier

10 Fit ceiling bracket to innertrack and outer track

11 Fit ceiling bracket for inner track inposition S1, 2 pieces bracket per meter

type
Single
design style
Contemporary
occasion
none
Style
Modern
Feature
Convenient, Easy Installation, Eco-Friendly
Diameter
no
Shape
Long
curtain poles, tracks & accessories type
Curtain Accessories
material
Metal
length
Long Curtain Rod
Accessories
wall brackets
Power Source
no
Recommended Room
Living Room
Battery Type
no
Plug Type
no
Place Of Origin
Guangdong, China
brand name
LVTEON
model number
PS-EX
Product Name
Extendable curtain track
Brand
BSUMWELL
Model
PS-EX
Type
Curtain Poles, Tracks & Accessories
MOQ
10
Keywords
Extendable curtain track
Length
Customized max size 2M-8M
Function
Remote/App/GoogleHome/Alexa
Application
Home. Hotel. Hospital. Cafe. Office.School

Extendable Motorized Curtain Track: Smart, Durable & Custom-Fit for Every Window

Upgrade your home’s curtain system with our Extendable Motorized Curtain Track—a blend of flexibility, durability, and smart technology designed to fit any window size and integrate seamlessly with your smart home setup.


1. Free Extendable & Custom Size: No More Measurement Hassles

Forget the trouble of precise window measurement—this track supports free 伸缩 (retraction) to match your window length, with standard sizes covering 1.76m-5.0m. Need a longer track? We offer custom sizes from 3.0M to 8.0M, perfect for large windows, sliding glass doors, or open-concept spaces. Adjust the track length in minutes with simple manual operation—no professional tools required.


2. 80kg High Load & Premium Durability

Crafted from high-grade aluminum alloy with an electrophoretic finish (ivory white), the track resists rust, scratches, and fading for long-term use. It features an Italian MEGADYNE drive belt—tough, stretch-resistant, and quiet—supporting a maximum load of 80kg. Whether you have heavy blackout curtains or light sheer drapes, this track handles weight without bending or breaking.


3. Smart Control: Voice, Remote & Timing—All in One

Experience ultimate convenience with multi-mode smart control:


  • Voice Control: Connect to Amazon Alexa, Google Home, or Tuya system to open/close curtains with simple voice commands (e.g., “Alexa, close the living room curtains”).

  • Remote & Timing: Use the remote control for instant operation, or set timers to align with sunrise/sunset—wake up to natural light or secure your home automatically.

  • Scene Linkage: Sync with other smart devices (e.g., smart lights, thermostats) to create custom scenes (e.g., “Movie Night” mode: close curtains + dim lights).

  • Manual Backup: If power fails, easily pull the curtains by hand—no motor resistance to hold you back.


4. Wide Compatibility & Easy Installation

Designed to work with all types of Teritex Track motors, this track fits most standard curtain motors—no need to replace your existing motor. Installation is a breeze:


  • Default ceiling mounting (top mounting) saves wall space; contact customer service for wall-mount or other options.

  • Follow 11 simple steps to adjust the track length, cut excess belt, and install ceiling brackets (2 brackets per meter for stability). Runners and loop stops are included for quick assembly.


5. Ideal for Every Space

Whether you’re upgrading a bedroom, living room, home office, or commercial space (hotels, offices), this track adapts to your needs. Its sleek ivory white finish matches most interior styles, while the 80kg load capacity works for heavy-duty curtains (e.g., blackout curtains for bedrooms) or light drapes (e.g., sheer curtains for dining rooms).


Choose our Extendable Motorized Curtain Track for a hassle-free, smart, and durable solution—where flexibility meets technology.


bsw


Q1. Can I request samples of waterproof aluminum enclosures before bulk ordering?
A: Absolutely. We encourage sample orders for quality validation and even accept mixed samples. While standard samples are provided free of charge for qualified clients, custom samples may incur a nominal fee that will be credited toward future orders.


Q2. What is your production lead time?
A: Our streamlined process ensures:

  • Samples: 3-5 working days (expedited service available)

  • Mass production: 1-2 weeks for orders exceeding 1,000 units
    Note: Lead times may vary for complex customization projects.


Q3. Is there a minimum order quantity (MOQ) for waterproof enclosures?
A: We prioritize flexibility for our partners:

  • Sampling: MOQ 1 unit for quality verification

  • Bulk orders: Competitive MOQ starting at 500 units, with tiered pricing for volume orders


Q4. What shipping methods do you offer for international orders?
A: We provide end-to-end logistics solutions:

  • Express: DHL/UPS/FedEx (3-5 days, door-to-door tracking)

  • Air freight: 5-7 days for urgent bulk shipments

  • Sea freight: Economical option for full-container loads (FCL)
    Customs clearance support included for all shipments.


Q5. What is the standard ordering process?
A: Our 5-step streamlined workflow:

  1. Technical consultation (application scenarios/IP rating requirements)

  2. DFM analysis & formal quotation

  3. Sample approval & 30% deposit payment

  4. Production with weekly progress reports

  5. Final inspection & balance payment


Q6. Can you apply custom branding to the products?
A: Yes, we offer value-added OEM services:

  • Logo engraving/pad printing (provide vector files in .ai/.eps format)

  • Custom packaging solutions
    Design proof must be approved 72hrs before production commencement.


Q7. What quality assurance do you provide?
A: Our commitment includes:

  • Product warranty: 2-year limited warranty (extendable)

  • Certifications: IP68/IP69K compliant, RoHS & REACH certified

  • Testing reports: Third-party lab reports available upon request


Q8. How are quality issues handled?
A: Our zero-defect protocol ensures:

  1. Prevention: ISO 9001:2015 certified production with automated optical inspection

  2. Resolution:

    • Single-unit defects: Replacement within 48hrs (NCR report provided)

    • Batch issues: Full root-cause analysis + 3 resolution proposals within 72hrs

    • Critical defects: On-site technical support available
