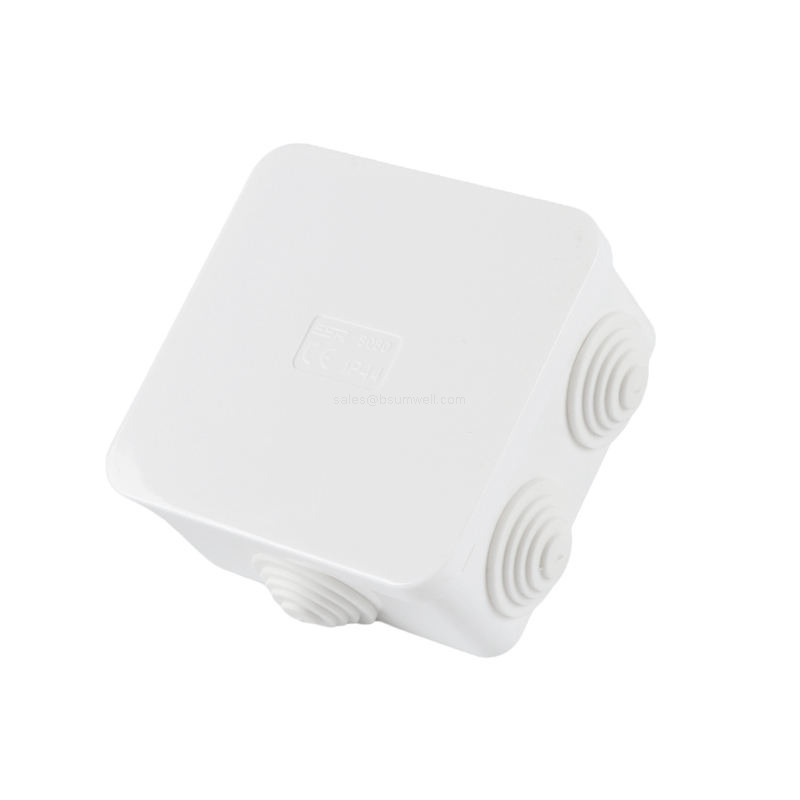

IP44 Waterproof Electrical Junction Box Plastic Surface Mount Terminal Wire Connector Cable Splice Enclosure Case

Industrial-Grade Thermoplastic Build with Certified Safety Engineering

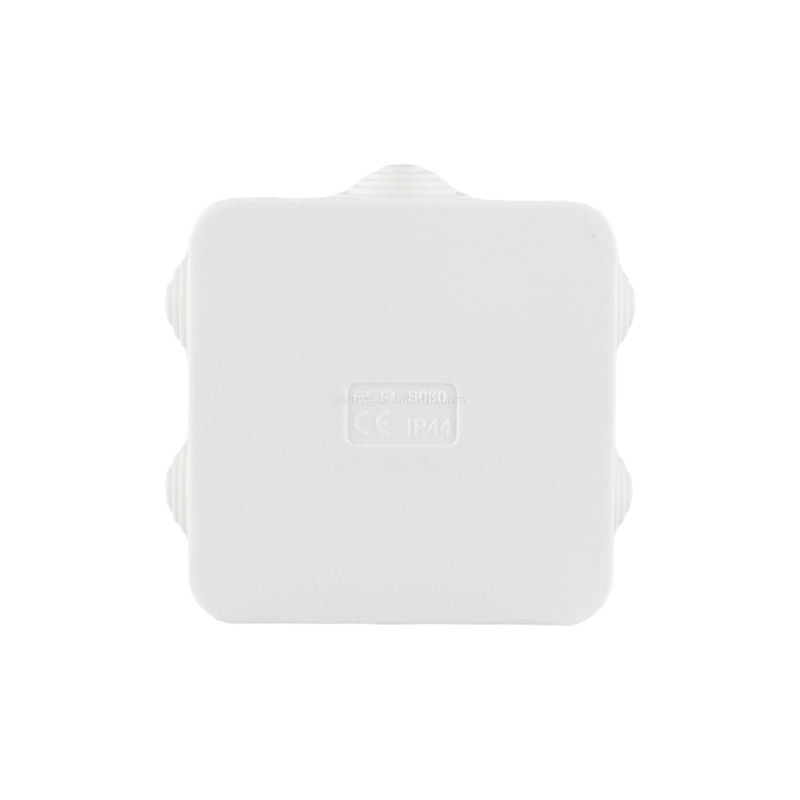

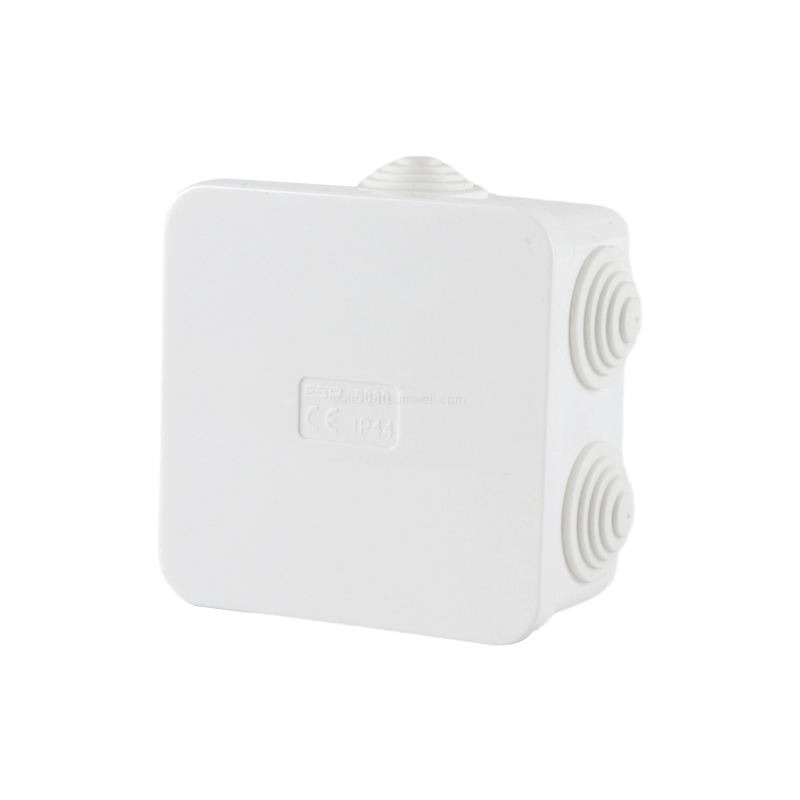

Engineered for reliable everyday electrical isolation and branch connections, this compact surface-mount junction box is molded from premium, high-impact thermoplastic material. The structural chassis offers outstanding electrical insulation properties, excellent flame retardancy, and resilient thermal stability under fluctuating workloads. The unit is physically molded with official CE regulatory safety compliance symbols and an IP44 engineering stamp, verifying that its mechanical design fulfills rigorous third-party criteria for workplace safety and material consistency.

Splash-Proof IP44 Enclosure for Multi-Directional Damp Protection

This junction box features an IP44 ingress protection rating, making it highly effective at sealing internal wire splices against common environmental hazards:

• Solid Particle Barrier: Effectively prevents tools, large wires, and solid foreign debris greater than 1mm from pushing through into the electrical terminal section.

• Splash-Resistant Sealing: Provides proven safety against water splashing from any angle, making it an ideal choice for high-humidity indoor basements, utility rooms, wash facilities, or sheltered outdoor soffits.

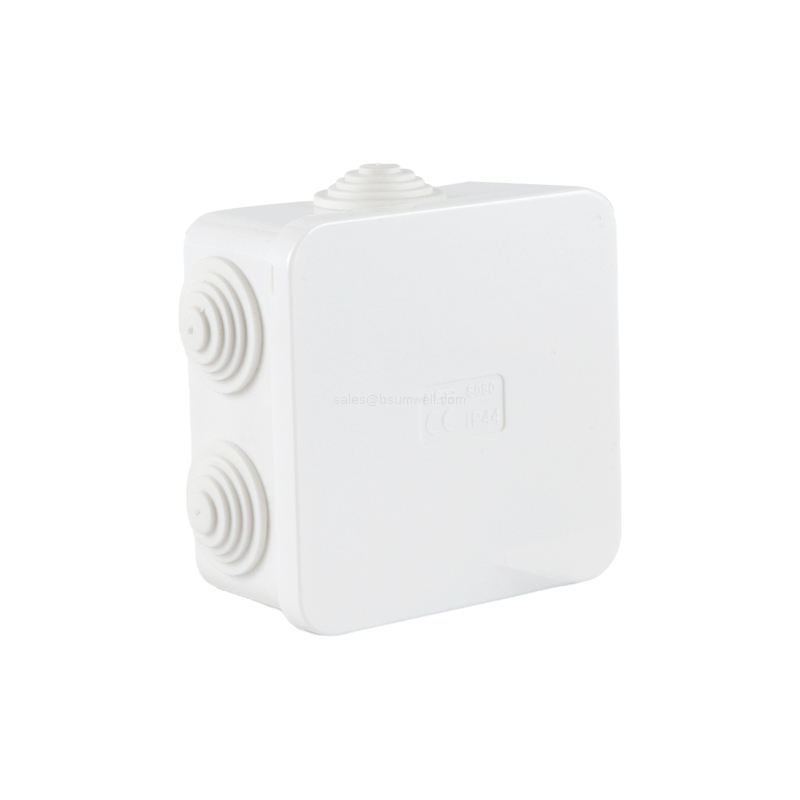

Integrated Stepped Rubber Cable Gland Entry Ports

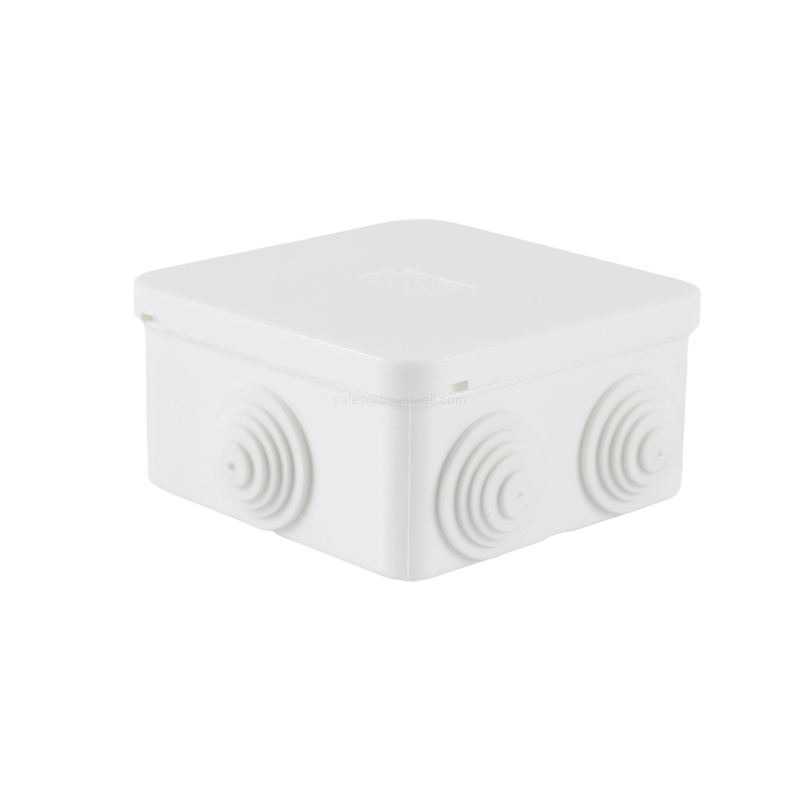

The side walls of this square distribution enclosure are equipped with integrated, flexible stepped rubber grommet seals. These multi-tiered conical glands allow electrical installers to trim or pierce the rubber precisely to match the exact outer diameter of incoming power cables. This close-fitting design ensures the cable entry point stays snugly sealed against dust entry and moisture tracking without needing to buy separate, expensive nylon compression fittings.

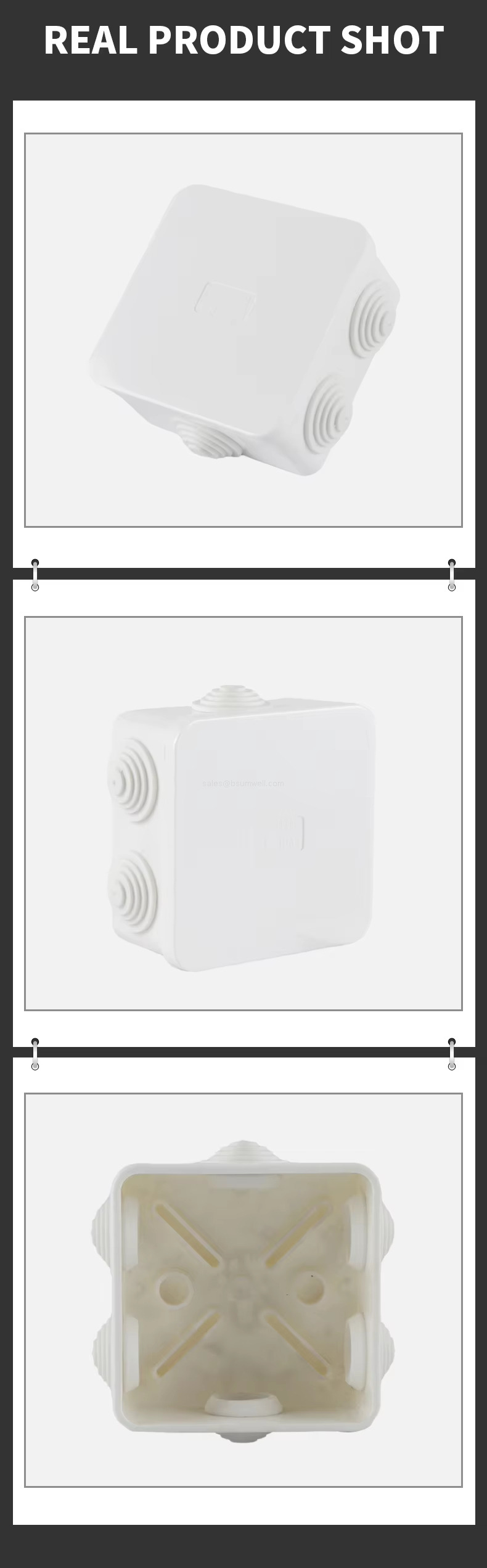

Spacious Internal Layout with Tool-Free Snap-On Closure

The unit's interior configuration is optimized to maximize workspace for field electricians:

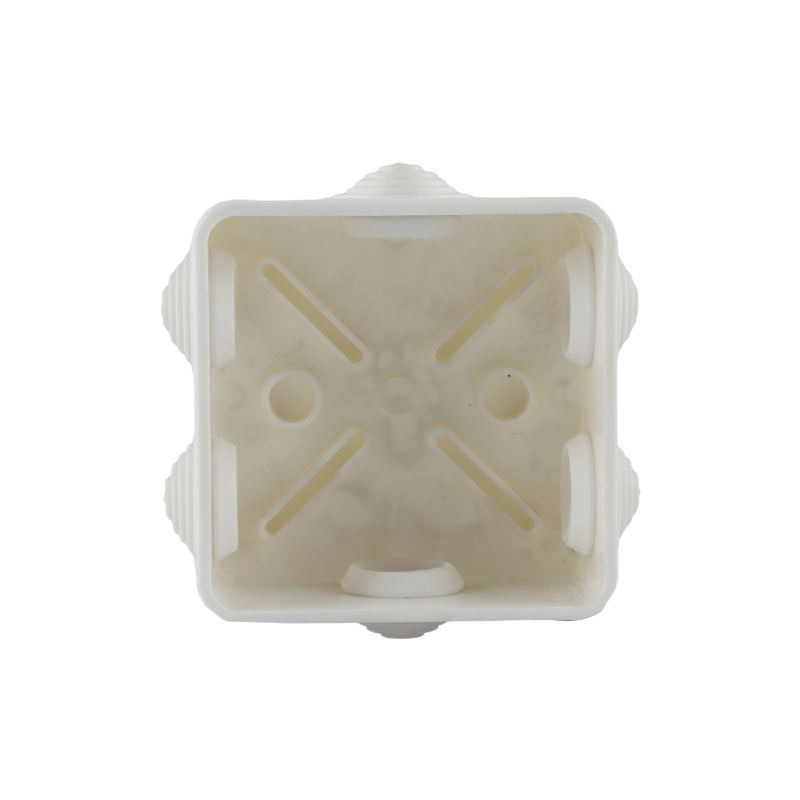

• X-Pattern Internal Tracks: The bottom floor plate features molded structural ribs and dedicated mounting slots, providing flexible anchors for securing mini terminal strips, grounding bars, or PCB modules.

• Pre-Punched Conduit Openings: The internal walls line up smoothly with the external stepped grommets, ensuring bare wires or insulated bundles slide through easily without catching.

• Efficient Snap-Fit Top Cover: The lid uses tight snap-lock fastening lips along the rim, enabling secure, tool-free closure and quick access for subsequent voltage testing or system troubleshooting.

Frequently Asked Questions (FAQ)

Q1: Can this IP44 electrical box be installed outdoors in fully open areas?

A: This junction box carries an IP44 rating, meaning it is thoroughly certified to withstand water splashes from any direction and solid dust particles. It is ideal for damp indoor spaces, industrial workshops, and sheltered outdoor spots (such as under patio roofs, porch ceilings, or roof overhangs). For completely exposed locations facing direct downpours or high-pressure water washdowns, an upgraded enclosure with a minimum rating of IP65 or IP66 is recommended.

Q2: How do I feed cables through the stepped rubber glands while keeping the seal tight?

A: The side grommets are designed with concentric, stepped sizing rings to handle a variety of wire thicknesses. When installing, simply use a utility knife or punch tool to cut away the tip of the rubber cone to create an opening slightly smaller than your actual cable diameter. Forcing the wire through this tight cutout creates a natural elastic seal that hugs the wire jacket and blocks out moisture.

Q3: Does the box feature pre-installed internal wire terminals or screw blocks?

A: No, this enclosure is shipped as an open, empty junction box. This design gives installers the flexibility to choose their own connecting hardware—such as inline lever nuts, twist-on caps, or multi-pin barrier terminal strips—based on the specific wire counts and wire gauges of the project.

Q4: Is the top cover screwed down, or does it use a snap-on mechanism?

A: The cover is designed with an integrated snap-fit lip mechanism. This allows the top lid to press firmly onto the main base housing and lock securely without needing separate metal screws. This design ensures quick, tool-free access whenever you need to inspect connections or test circuits down the line.
