IP65 Waterproof Plastic Junction Box Model F Compact Outdoor Electrical Enclosure for Cable & Terminal Protection

Model F Integrated Terminal Waterproof Junction Box: A Professional Connection Solution Designed for Harsh Environments

This product is an innovative, high-protection-grade waterproof junction box with pre-installed terminals. It fundamentally transforms traditional methods like tape wrapping or simple connectors by integrating IP67/IP68-grade sealing protection with modular, quick-connect terminals. It is specifically designed for outdoor, industrial, and infrastructure applications that demand reliable, durable, and standardized electrical connections.

Product Core Positioning & Value

The core value of this junction box lies in providing "ready-to-use," all-weather connection protection. It is no longer just an empty shell but comes with built-in standard terminals. Users simply need to feed in the cables and tighten the waterproof glands to create a fully protected, rainproof, and dustproof connection point. We support providing complete invoices to meet the compliance requirements of project procurement.

Product Core Structural Advantages: Quadruple Protection Design

The product ensures long-term, stable performance through precision engineering across four key dimensions:

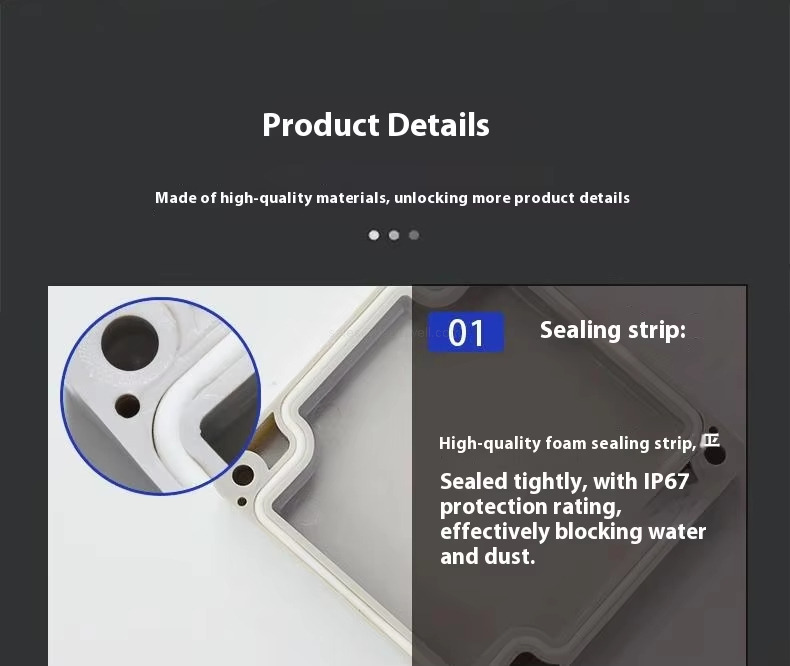

1. Enclosure Seal: High-Quality Sealing Gasket

• A high-quality foam sealing gasket is installed between the cover and the base, forming a tight barrier when compressed.

• Combined with the precisely interlocking enclosure structure, it achieves an overall IP67 protection rating for the box, effectively blocking water, moisture, and dust.

2. Cable Entry: Professional Grade Waterproof Glands

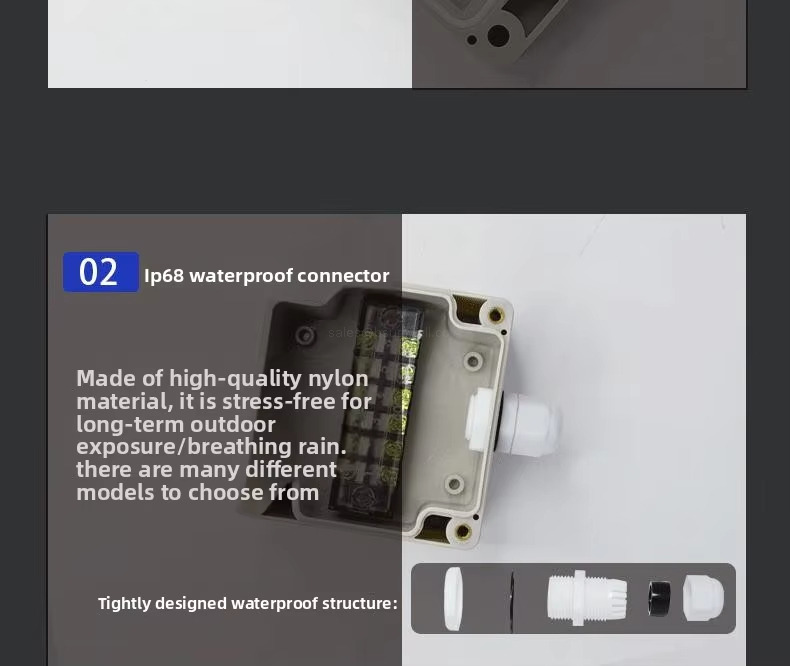

• It comes standard with IP68-rated nylon waterproof glands, which are crucial for long-term outdoor use.

• A variety of models from M12 to M36 are available to accommodate different cable diameters, ensuring the highest standard of waterproof and dustproof protection at every entry and exit point.

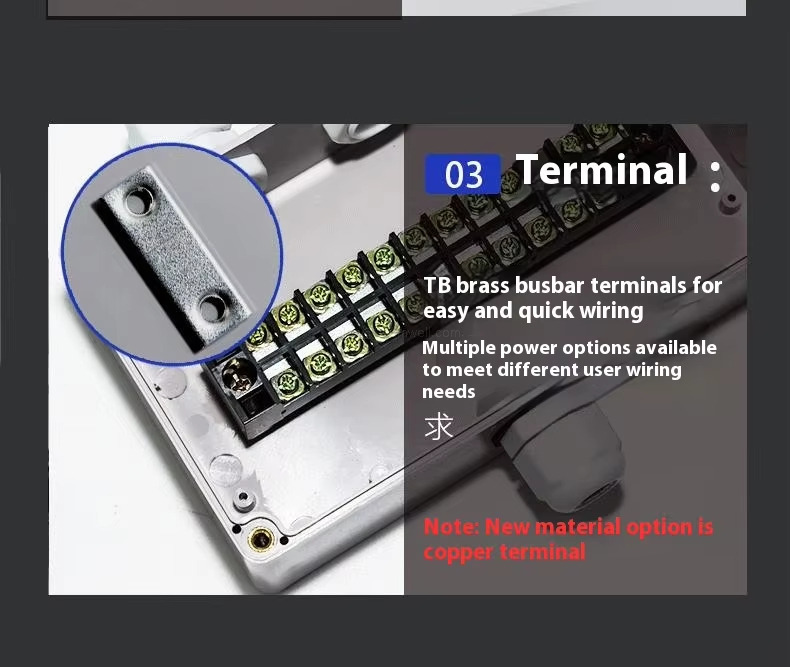

3. Electrical Connection: Fast & Reliable Terminal Block

• The box is equipped with a standard TB series brass busbar terminal block, offering good conductivity and quick wiring (pure copper terminals are available for higher requirements).

• The terminal block supports multiple power rating options to match different wire gauges and current needs, enabling tidy, standardized, and safe internal wiring.

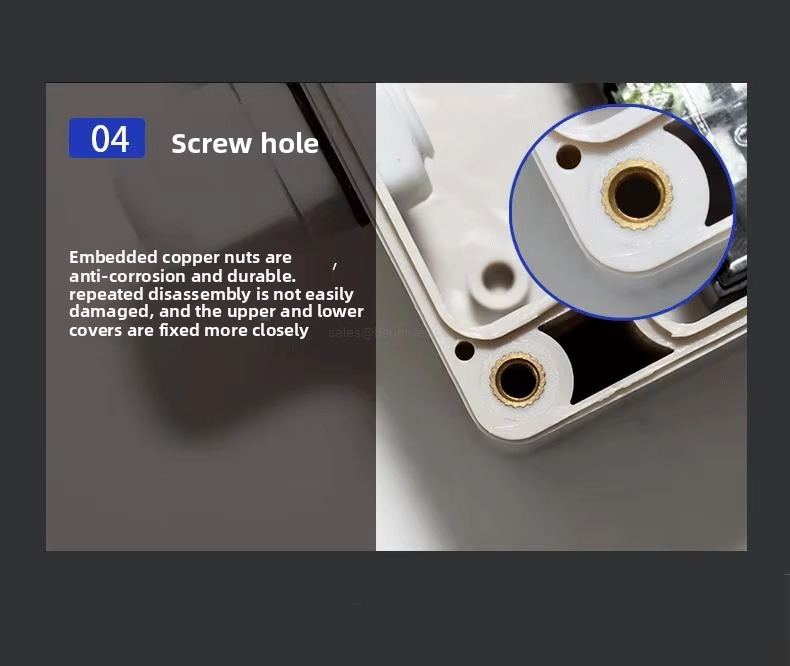

4. Structural Stability: Durable Embedded Brass Inserts

• All screw fixation holes feature an embedded brass insert design. Compared to threading directly into plastic, this design effectively prevents stripping and corrosion.

• It ensures a tight fit between the cover and base, withstands repeated assembly and disassembly, and significantly enhances product lifespan and maintenance convenience.

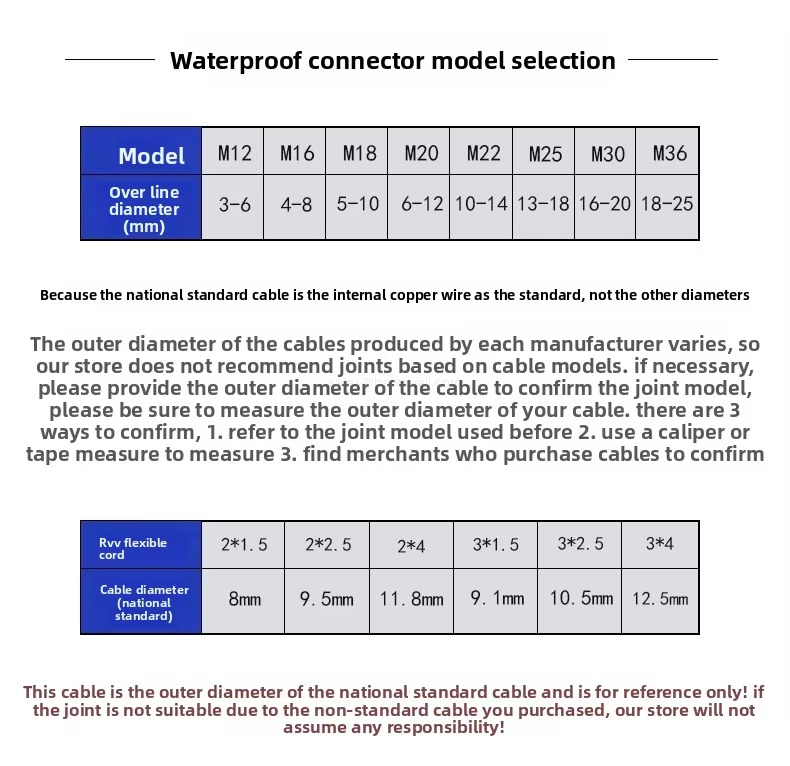

Waterproof Gland Model Selection Guide

Correctly selecting the waterproof gland model is key to ensuring protection. Please match according to your cable's outer diameter (O.D.):

Important Notes:

• The above compatibility ranges are general guidelines. You must make your selection based on the actual outer diameter of the cable you are using.

• For national standard flexible cables, the O.D. may be slightly larger than that of rigid cables with the same cross-section. Please verify before ordering.

• For non-standard size or specially structured cables, we recommend sending samples for compatibility testing. Responsibility for waterproof failure due to non-standard cables lies with the buyer.

Flexible Installation Methods

The product offers two installation schemes to adapt to different on-site mounting needs:

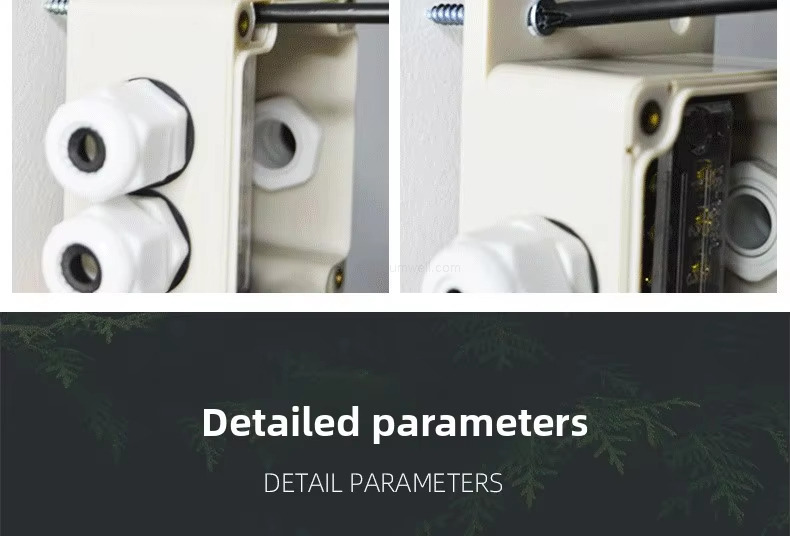

• Flange-less Mounting: The back of the box is flat, allowing for fixation via drilling or adhesive, suitable for space-constrained or concealed installations.

• Flanged Mounting: The box features mounting lugs on the sides or base, enabling direct screw fixation to walls, poles, or racks for a more secure and convenient installation.

Why Choose It? Move Beyond Traditional Tape

"Stop using electrical tape for connections!"-Traditional tape ages and cracks easily outdoors, leading to risks of leakage, short circuits, or even fire. This product offers a safe, standardized, and lasting alternative.

• Enhanced Safety: The fully sealed structure prevents moisture ingress, and insulated terminals avoid exposed wire ends.

• Guaranteed Reliability: IP67/IP68 protection ensures connection points remain stable long-term in rain, dust, and corrosive environments.

• Easier Maintenance: The modular design facilitates inspection and future circuit modifications, far superior to one-time tape wrapping.

• More Professional Appearance: The neat and standardized junction box significantly improves the overall professional image of equipment and projects.

Procurement & Service Support

As your professional manufacturing partner, we not only provide this high-performance product but also offer:

• Flexible Customization: Support for customizing terminal configuration, gland models, and exterior markings within OEM/ODM frameworks.

• Compliance Assurance: We can provide all necessary invoice specifications required for your project, ensuring smooth procurement.

• Technical Support: Our team is available to assist with product selection and installation guidance.

Upgrade your connection standard now and provide fortress-level protection for every outdoor connection point.
