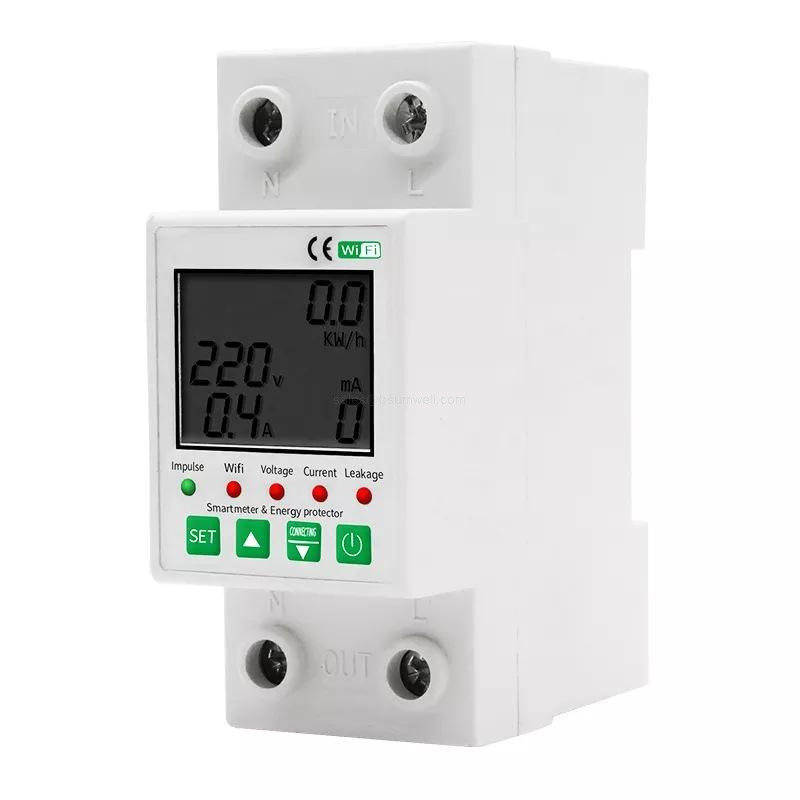

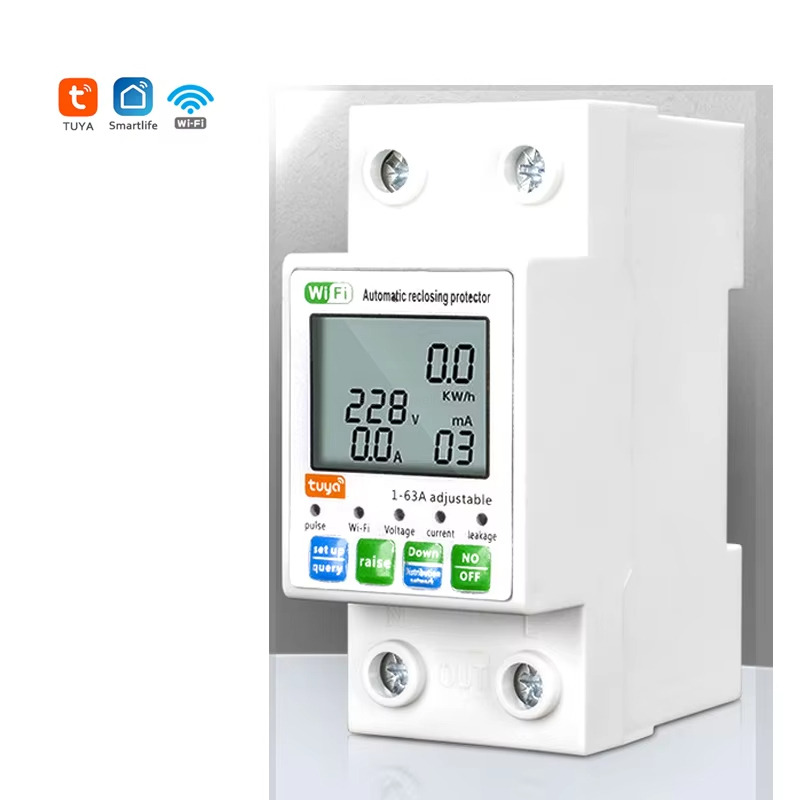

Multi-Pole Smart WiFi Circuit Breaker – All-Scenario Electrical Safety and Intelligent Management Solution

I. Product Positioning

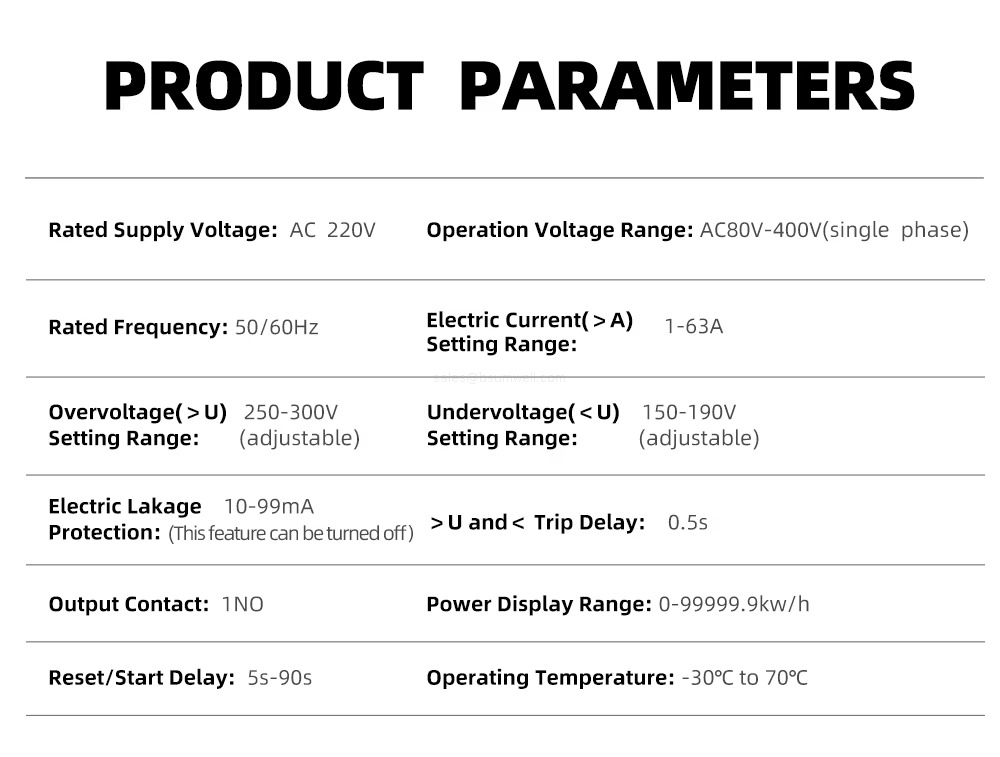

II. Core Parameters (Key Specifications)

• Pole Configuration Options: 2P/3P/4P (adapting to different circuit topology requirements)

• Rated Current: 1-63A (adjustable, compatible with diverse loads)

• Rated Voltage: 90-265V AC 50/60Hz (wide voltage compatible with most regions worldwide)

• Safety Performance: 6kA breaking capacity, Type C short-circuit protection curve, 6-in-1 safety protection

• Communication Method: WiFi 2.4G, compatible with Smart Life/Tuya ecosystem and mainstream voice assistants

• Operating Environment: -30~70℃ (wide temperature adaptation to extreme climates)

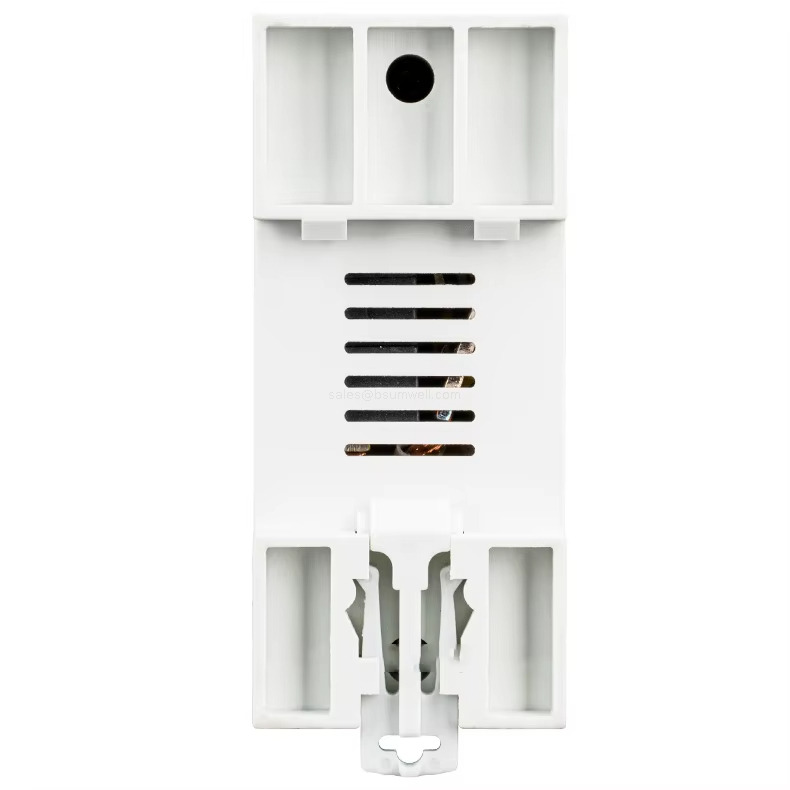

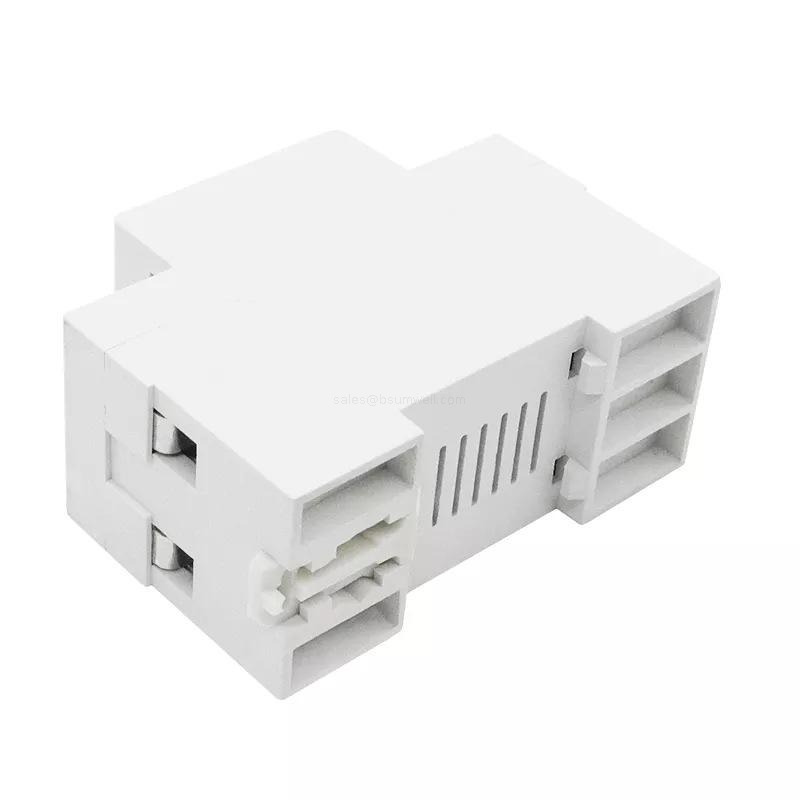

• Installation Method: 35mm standard DIN rail mounting

• Material: PC flame-retardant material (high-temperature resistant and flame-retardant)

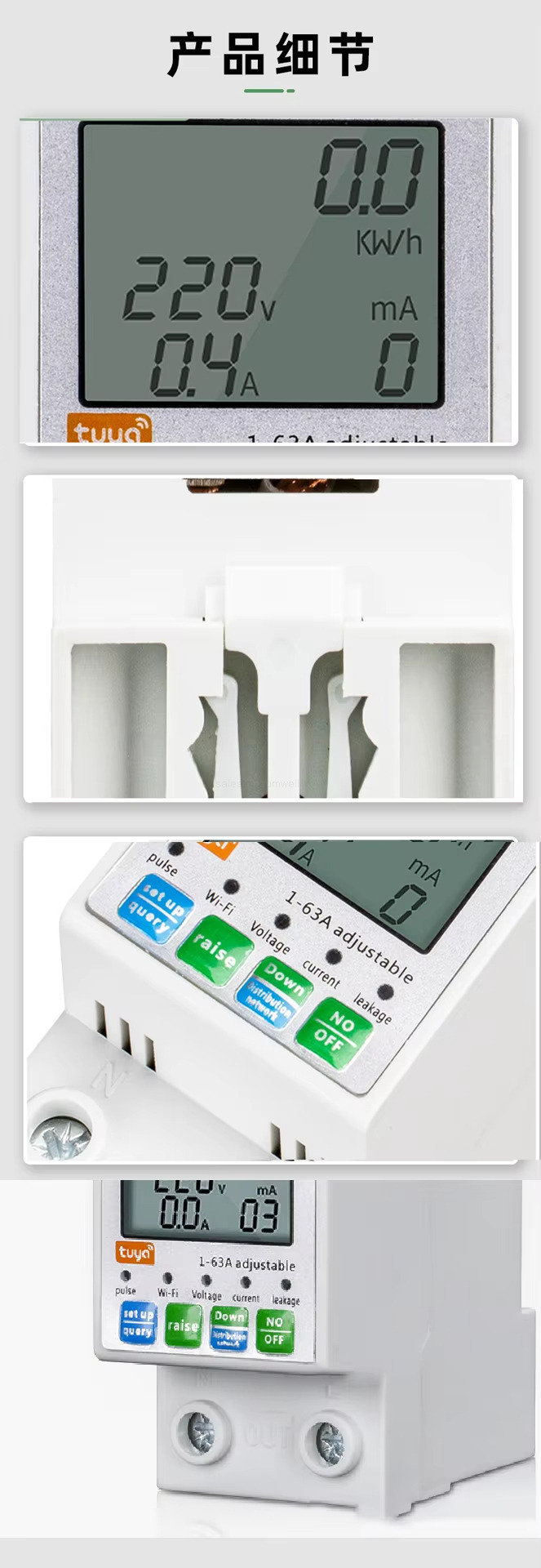

• Display Configuration: LCD large screen (real-time display of core electrical data and fault information)

• Certifications: CE, RoHS, UKCA

• Warranty: 12 months

III. Core Functions

1. Multi-Mode Intelligent Control, Conveniently Covering All Scenarios

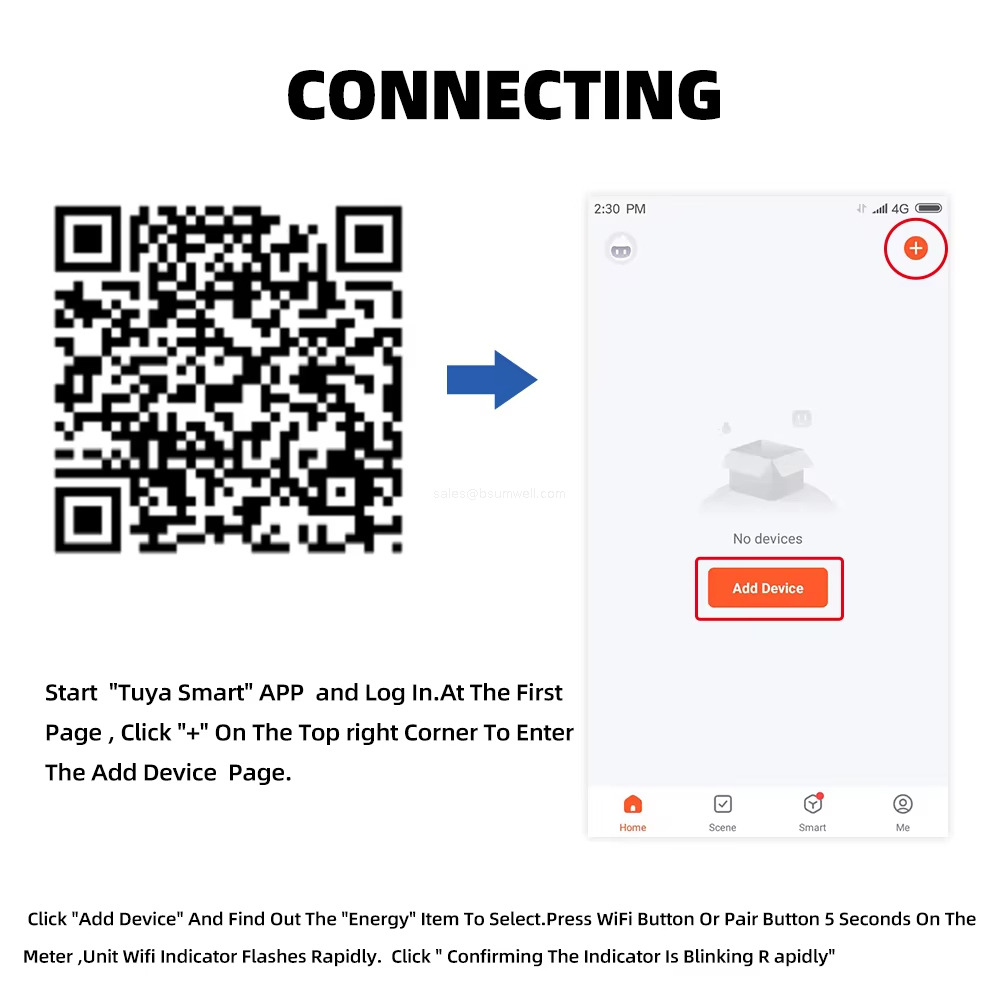

• Remote + Local Dual Control: Realize off-site remote switching, parameter adjustment, and energy consumption query via Smart Life/Tuya APP; support local manual operation to cope with emergency scenarios such as network outages, ensuring continuous use with double protection.

• Voice Control for Hands-Free Operation: Compatible with Google Assistant and Amazon Alexa voice assistants, enabling circuit start and stop with voice commands. Suitable for scenarios where hands are busy, such as cooking and working, enhancing operational convenience.

• Timing + Energy-Saving Management: Support scheduled on/off programming (e.g., setting automatic start and stop times for devices), combined with energy consumption statistics to help scientifically plan electrical usage periods and reduce invalid energy consumption.

2. Visual and Precise Metering, Transparent and Controllable Energy Consumption

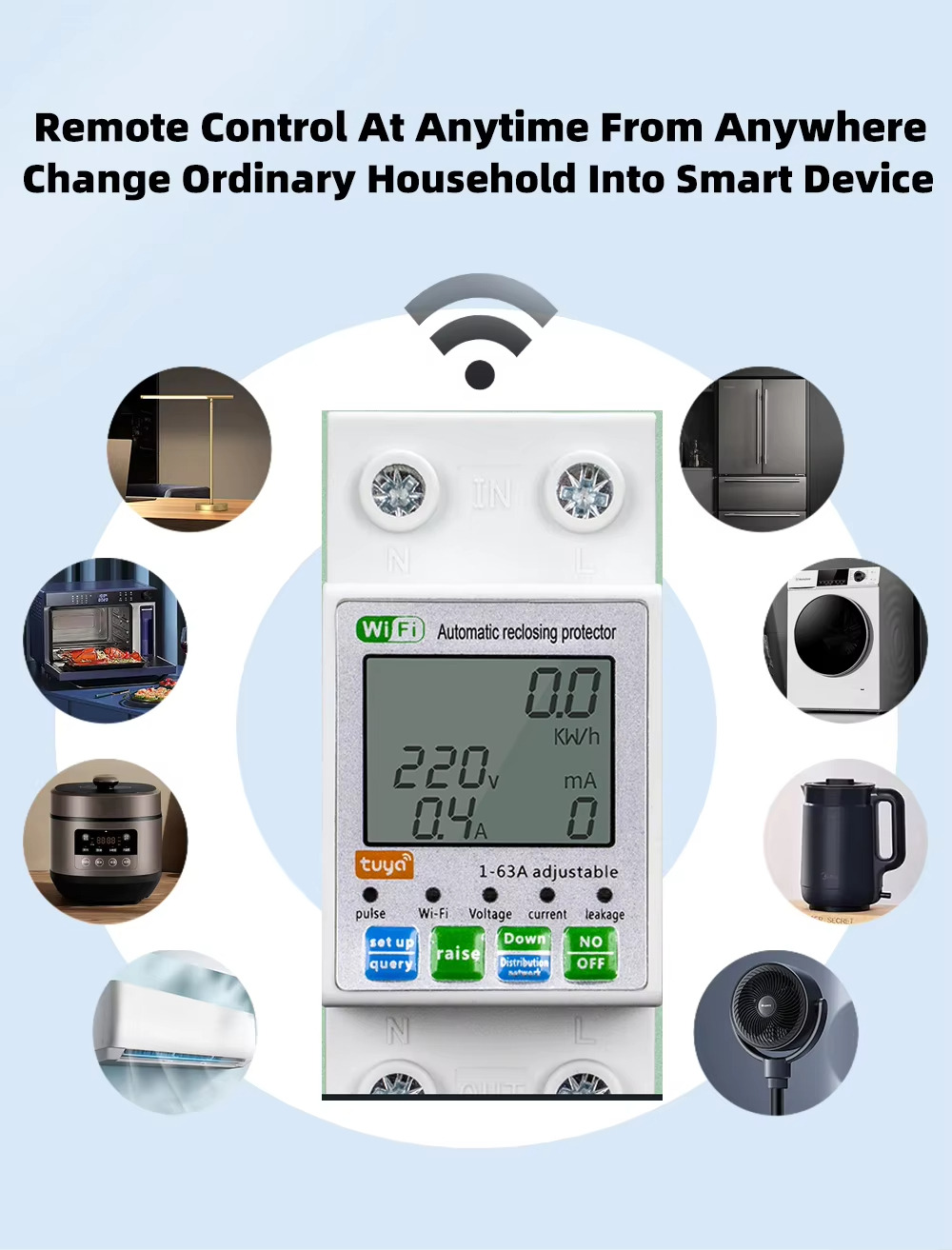

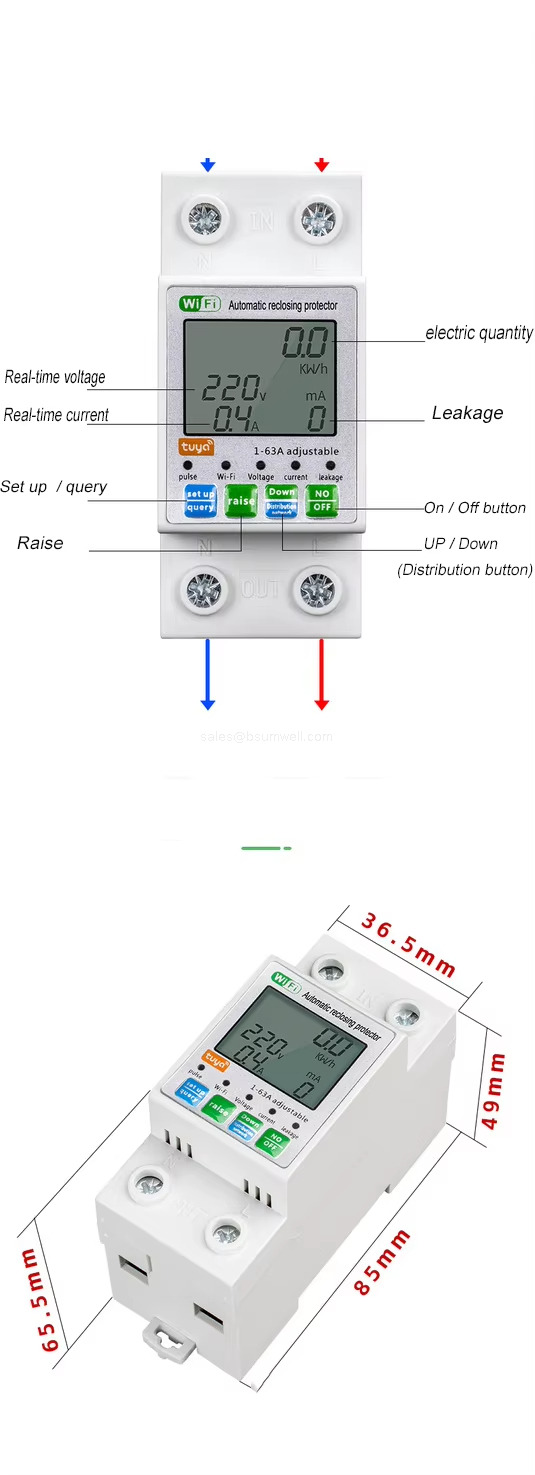

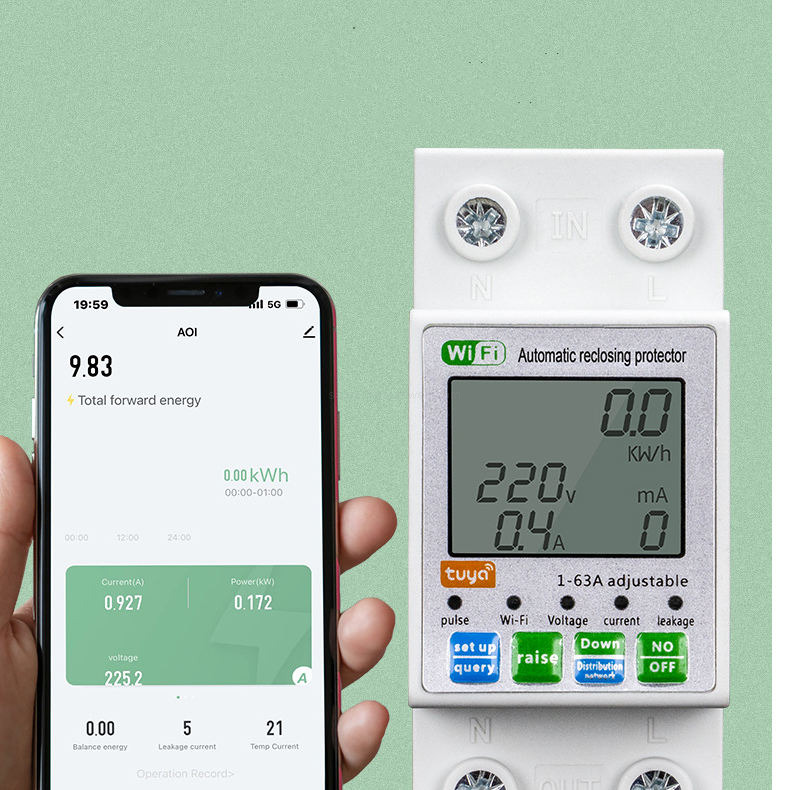

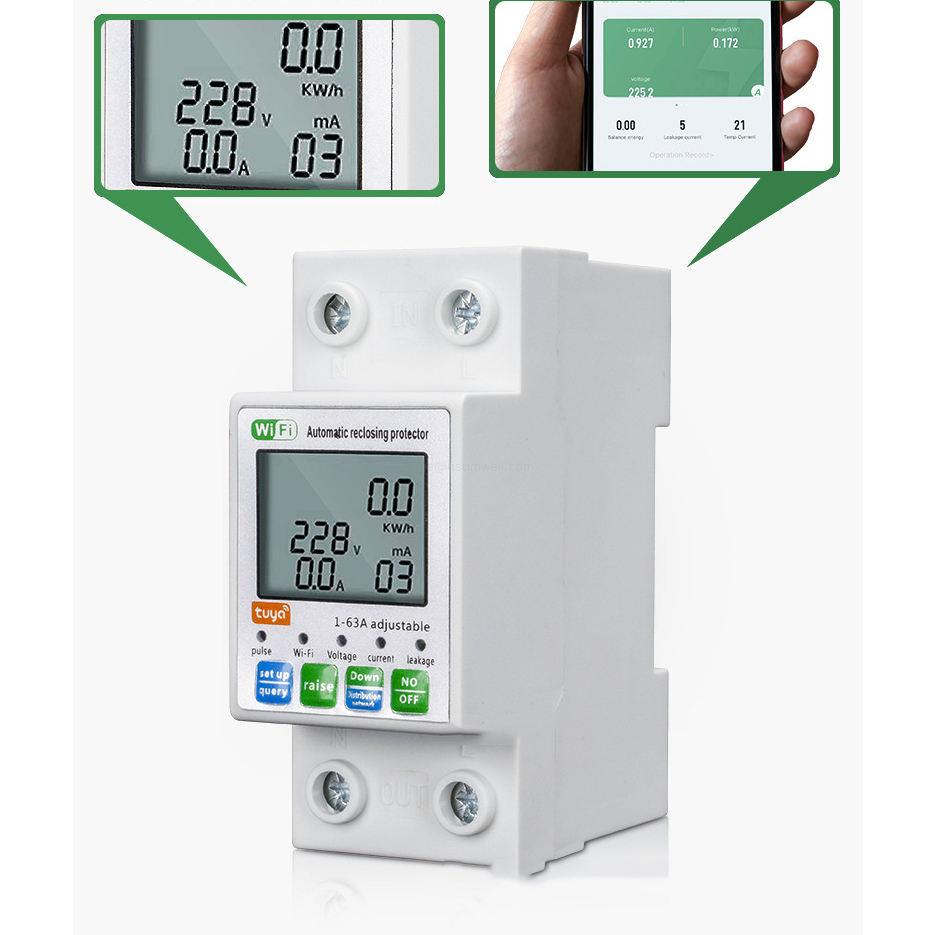

• Real-Time LCD Large Screen Display: Intuitively present core data such as voltage, current, power, and cumulative power consumption. Synchronously display abnormal types when faults occur, allowing quick grasp of circuit status without the need for an APP.

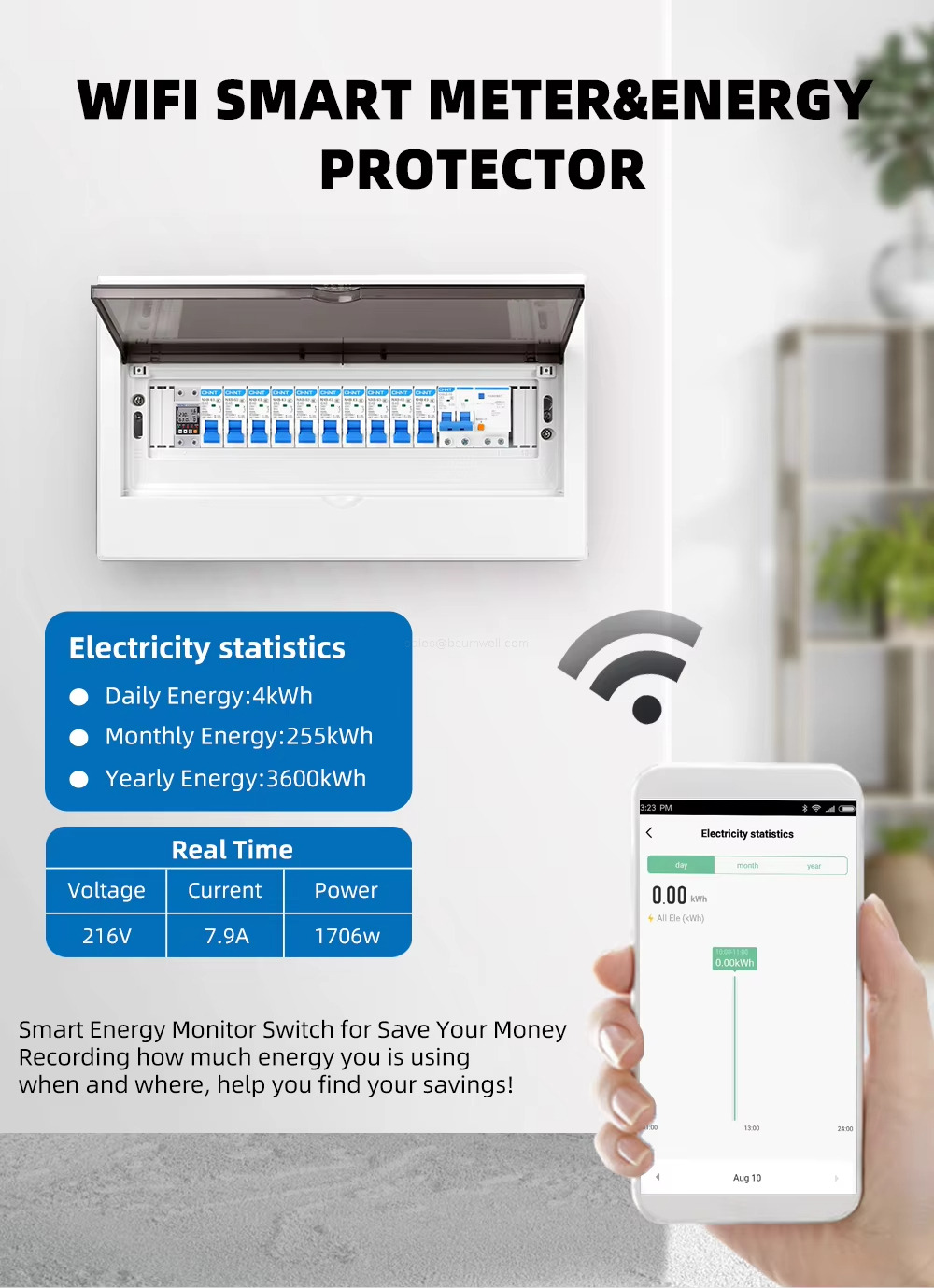

• Multi-Dimensional Energy Consumption Statistics: Automatically generate daily, monthly, and annual electricity consumption reports, clearly tracing energy consumption changes during different periods and providing data support for energy-saving optimization.

3. 6-In-1 Protection + Intelligent Reclosing, All-Round Safety

• Full-Scenario Protection: Built-in 6-in-1 protection (overvoltage, undervoltage, overload, short circuit, leakage, high temperature), covering all risk points in the entire electrical process, with instantaneous power cutoff in abnormal situations.

• Adjustable Protection Thresholds: Overvoltage/undervoltage thresholds, leakage operating current, and other parameters can be adjusted via APP or local operation, adapting to the electrical characteristics of different devices (such as home appliances and photovoltaic modules).

• Automatic Reclosing: Automatically restore power after fault elimination, reducing manual intervention and ensuring continuous electrical supply (e.g., no manual restart required for home lighting and small computer room equipment).

4. Multi-Pole Adaptation, Flexibly Matching Scenarios

IV. Advantages and Features

1. Full Coverage of Multi-Pole Configurations: 2P/3P/4P optional, adapting to single-phase and three-phase different circuit architectures, meeting the diverse needs of residential, commercial, and small industrial scenarios.

2. Excellent Visual Experience: LCD large screen displays core data and fault information in real time, with clear operating status, making it easy for the elderly and novices to use.

3. Precise Protection: 6-in-1 protection + adjustable threshold design, which can be targeted to adapt to the electrical needs of different devices, avoiding false triggers caused by "one-size-fits-all" protection.

4. Strong Environmental Adaptability: -30~70℃ wide temperature range, capable of withstanding extreme climates such as severe cold in northern regions and high temperatures in southern regions, and can operate stably in both indoor and outdoor scenarios.

5. Flexible Customization: Support LOGO engraving, multi-language manuals, and customized packaging services, adapting to brand promotion or regional market adaptation needs.

6. Reliable Quality: PC flame-retardant material + international certifications + 12-month warranty, stable mechanical and electrical performance, and reliable long-term use.

V. Scenario Applications

1. Intelligent Management of Residential Electricity Use

2. Precise Control of Commercial Scenarios

3. Small Computer Room/Industrial Auxiliary Scenarios

4. Supporting Protection for Photovoltaic Systems

5. Adaptation to Extreme Environment Scenarios

VI. Quality Assurance
