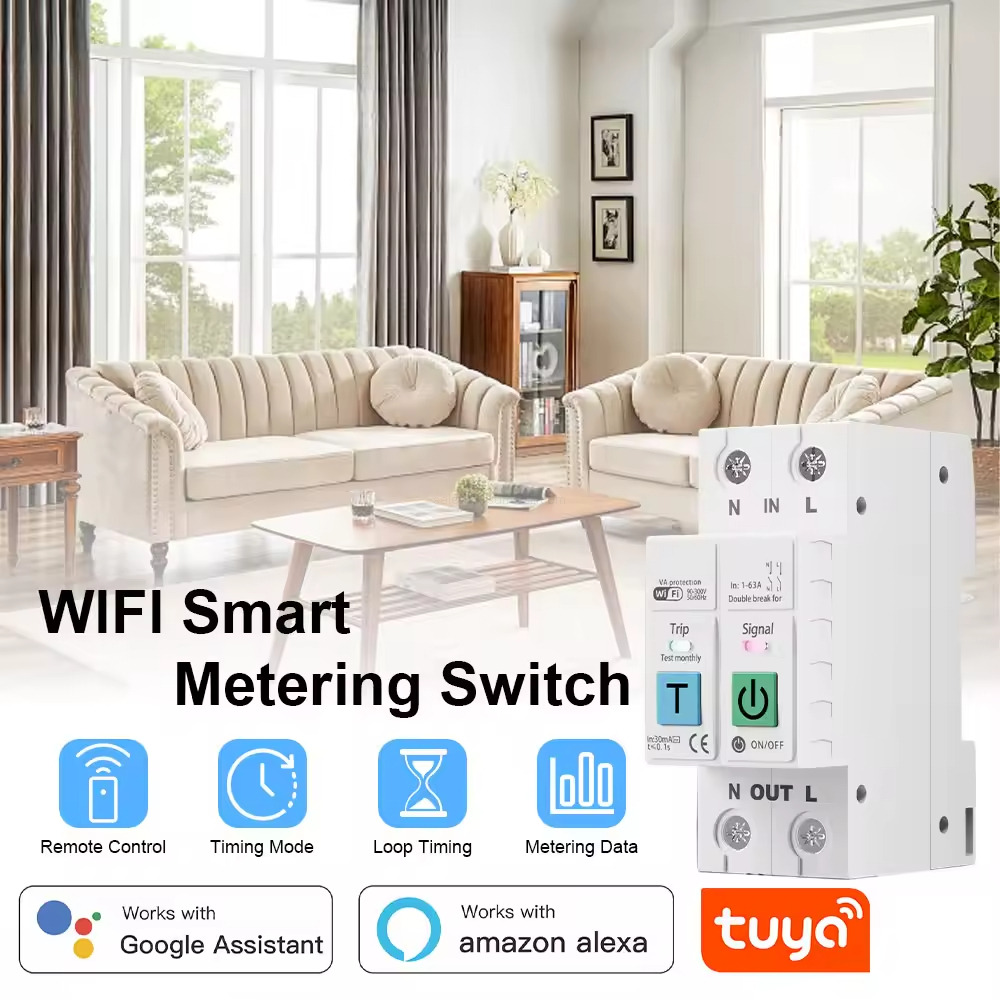

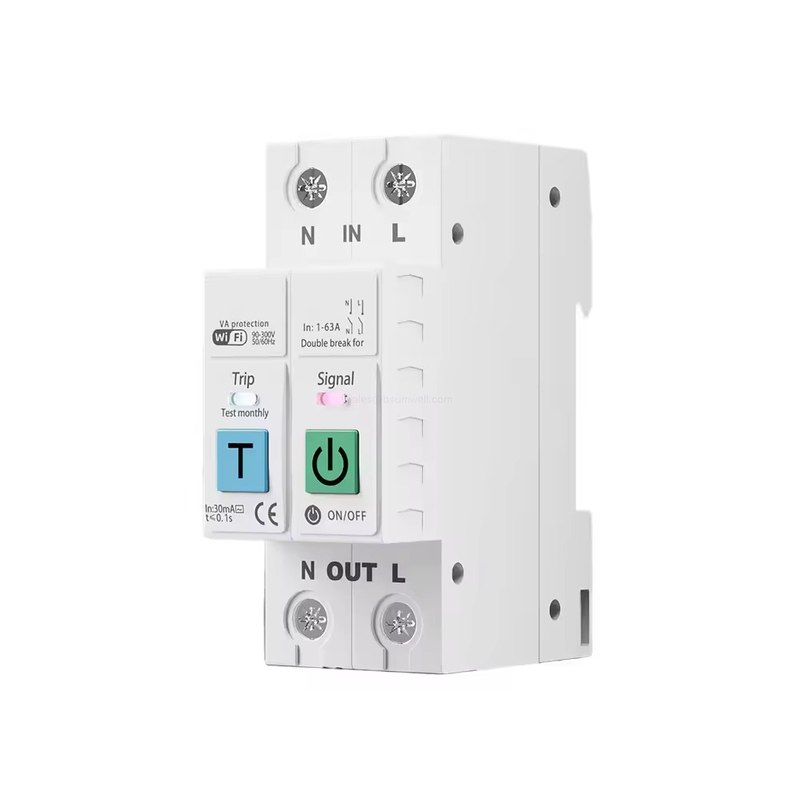

Smart WiFi Residual Current Circuit Breaker – All-Round Solution for Home Electrical Safety and Convenience

I. Product Positioning

II. Core Parameters (Key Specifications)

• Type: Intelligent Residual Current Circuit Breaker (RCBO)

• Pole Number: 2P

• Rated Current: 1-63A (adjustable)

• Rated Voltage: 90-265V AC 50/60Hz (wide voltage adaptation)

• Breaking Capacity: 6kA

• Short-Circuit Protection Characteristic: Type C curve

• WiFi Standard: IEEE 802.11 b/n/g 2.4GHz

• Leakage Protection: Operating current 30mA, operating time ≤0.1s

• Installation Method: Rail mounting

• Material: PC V0 flame-retardant material

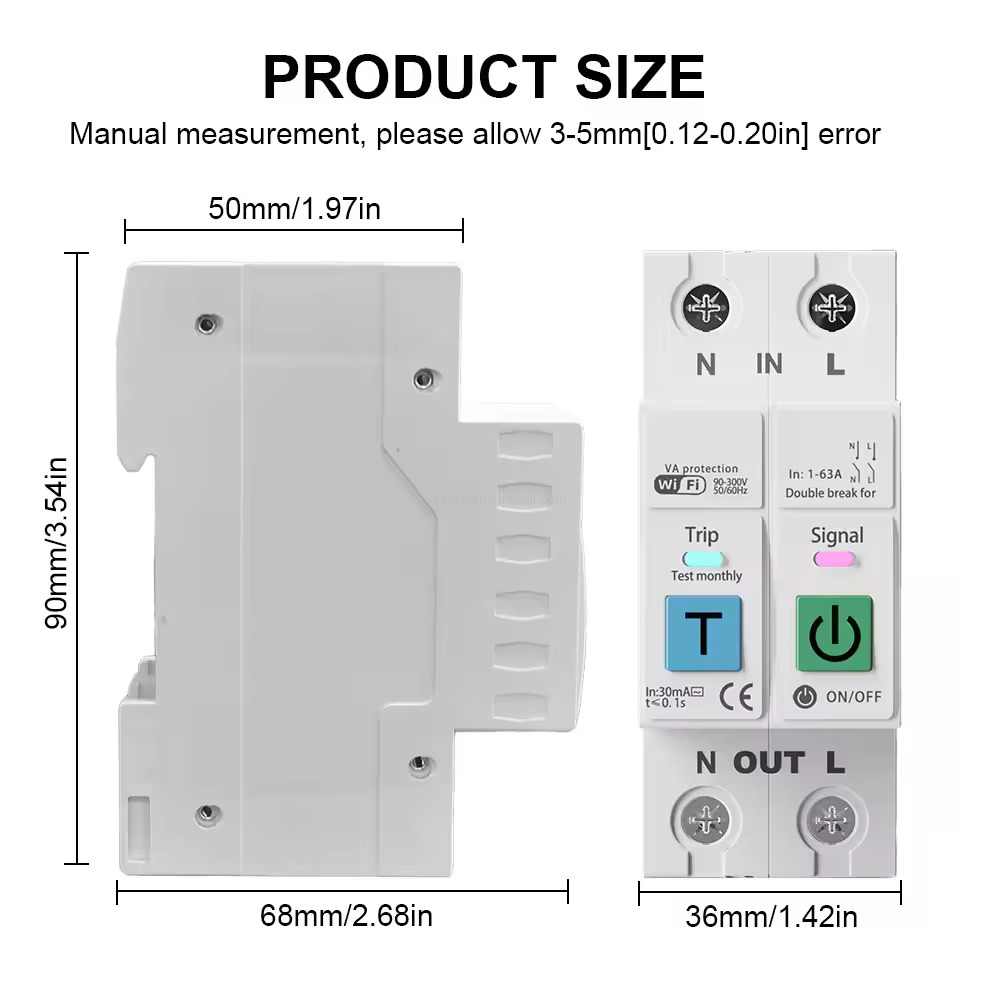

• Dimensions: Approximately 68mm×50mm×36mm (3-5mm error allowed for manual measurement)

• Net Weight: 0.25kg

• Certifications: CE, RoHS, UKCA

• Warranty: 12 months

III. Core Functions

1. Multi-Mode Intelligent Control, Covering All Scenarios Conveniently

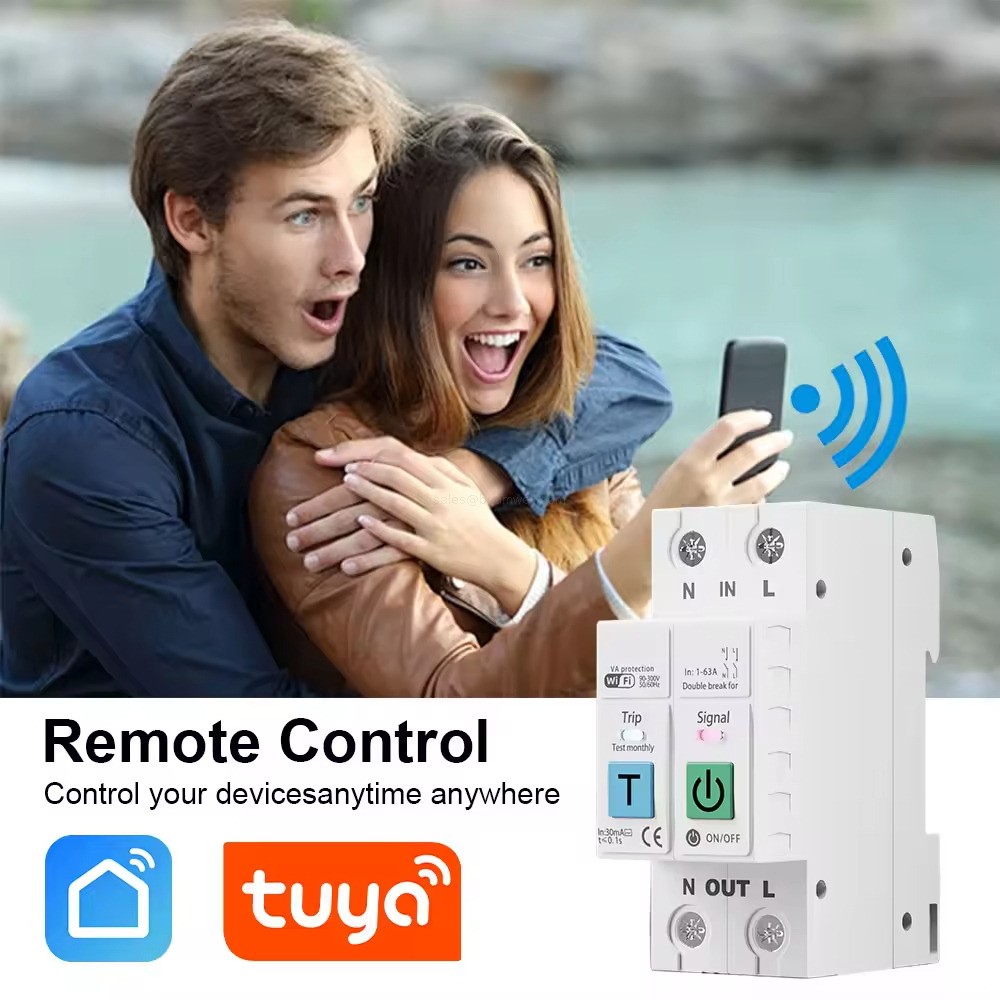

• Remote Off-Site Control: Relying on 2.4GHz WiFi connection, it enables switching circuits and querying device status anytime and anywhere via a smart APP. Even when away from home, you can accurately manage home electricity use, avoiding safety hazards and energy waste caused by forgotten devices.

• Voice Control for Hands-Free Operation: Compatible with mainstream voice assistants, it allows device activation and deactivation with voice commands, eliminating the need for manual operation. It is suitable for scenarios where hands are busy, such as cooking and cleaning, enhancing home operational convenience.

• Dual Modes: Timing + Countdown: Supports scheduled on/off programming, allowing you to set automatic start and stop times for lighting and appliances as needed (e.g., automatically turning on the water heater when getting up and the air conditioner before returning from work). The countdown function enables "delayed shutdown" (e.g., turning off the desk lamp 20 minutes after falling asleep), balancing practicality and energy efficiency.

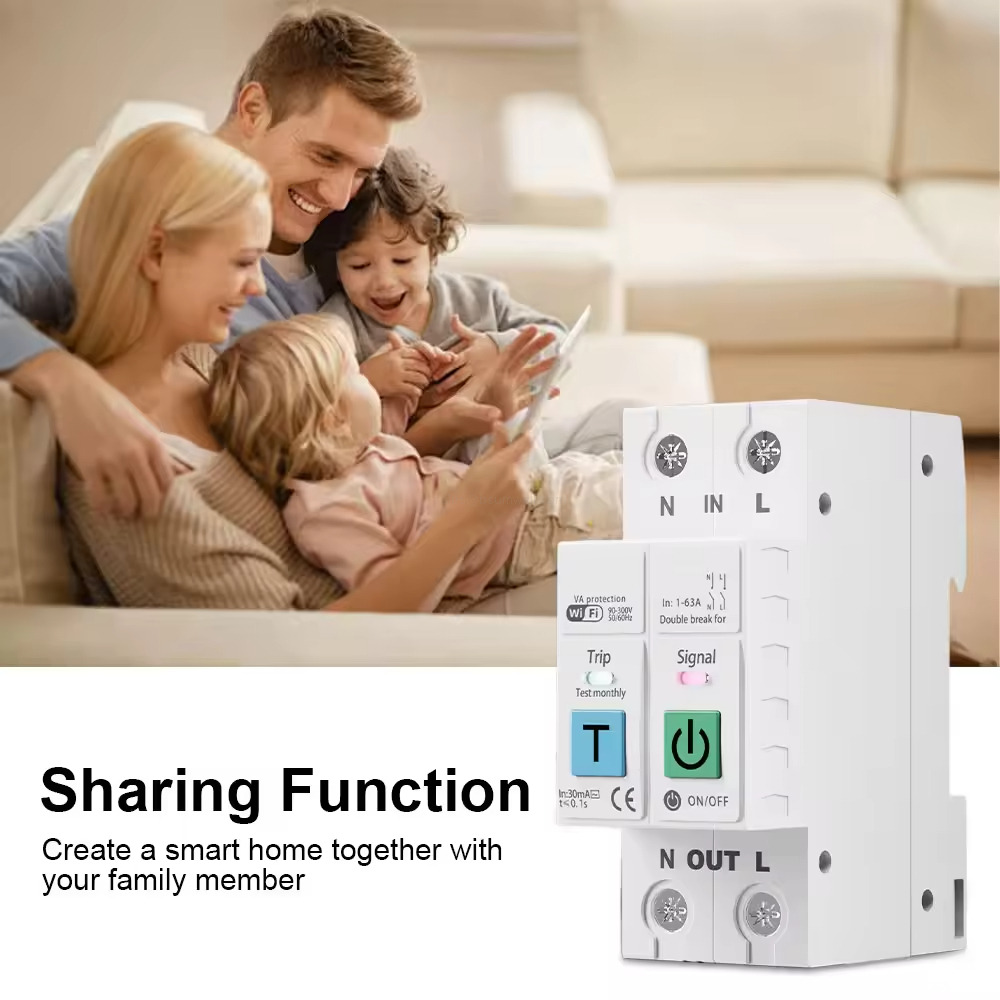

• Multi-Person Sharing Management: Supports device sharing, allowing family members to jointly participate in circuit management without repeated binding, meeting the usage needs of different family members.

2. Precise and Visualized Metering, Enabling Scientific Energy Management

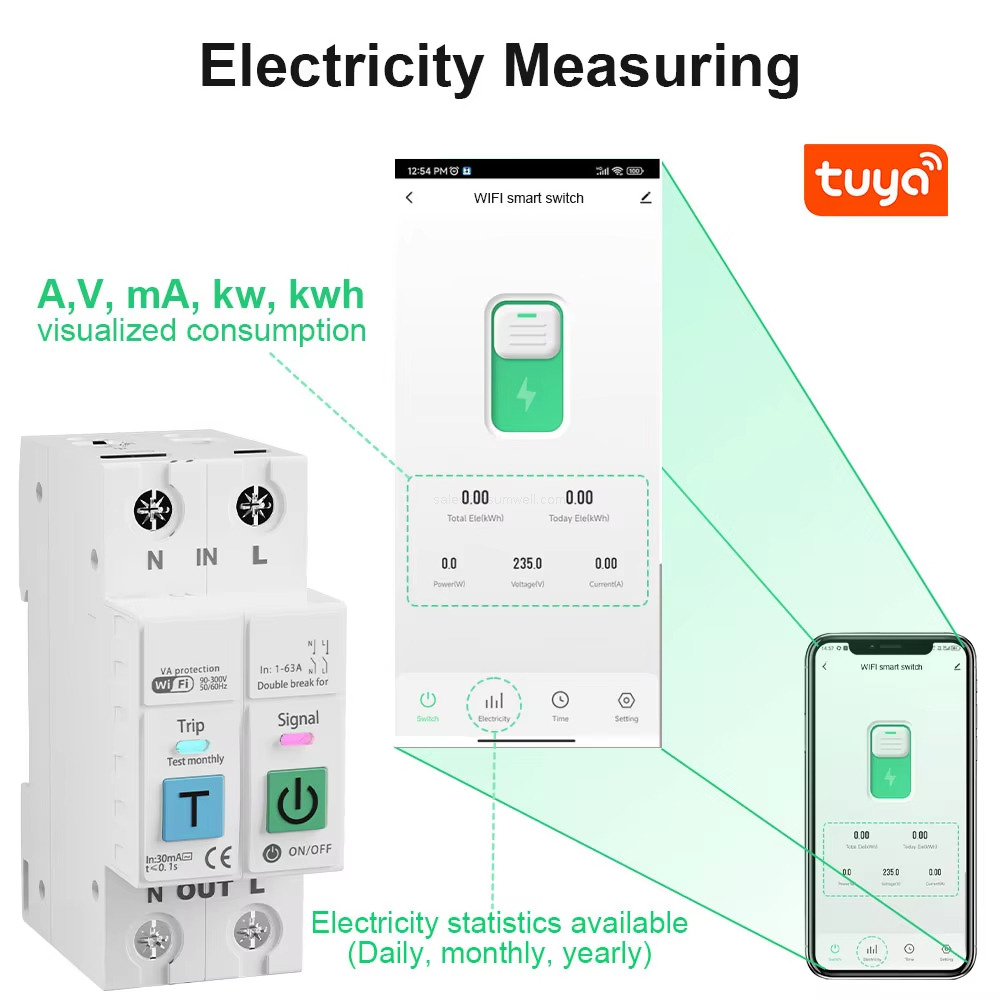

• Real-Time Data Monitoring: The smart APP intuitively displays core electrical parameters such as voltage, current, power, and power consumption. All data is presented accurately, making the home electrical status clear at a glance.

• Multi-Dimensional Energy Consumption Statistics: Automatically generates daily, monthly, and annual electricity consumption reports, clearly tracing energy consumption during different periods and for different devices. It helps users identify electricity waste points and formulate scientific energy-saving plans.

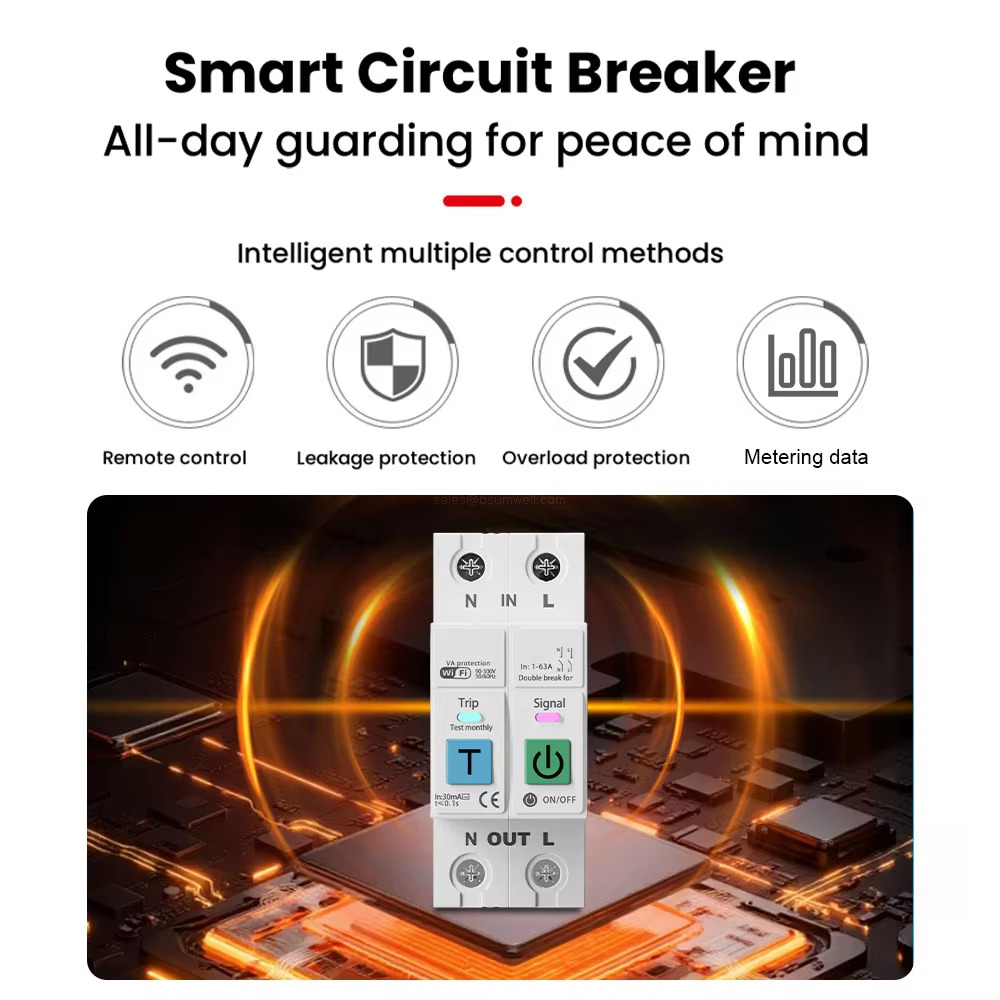

3. Multiple Safety Protections, Building a Solid Line of Defense for Home Electricity Use

• Rapid Leakage Protection: When leakage occurs in the circuit (reaching the 30mA operating current), the power is cut off instantly within ≤0.1s, quickly avoiding electric shock risks, especially protecting the electricity safety of the elderly and children.

• Overload Protection: When the circuit load exceeds the rated current, it automatically cuts off the power to prevent damage to electrical appliances due to overheating or safety accidents such as line short circuits and fires.

• Double-Break Point Design: The neutral wire and live wire are disconnected simultaneously, cutting off the circuit more thoroughly. It avoids residual voltage risks that may be caused by a single break point, further improving electrical safety.

• Regular Self-Test Function: Supports monthly manual testing of trip signals to verify whether the protection function is operating normally, identifying potential faults in advance and preventing hazards.

IV. Advantages and Features

1. Safe Material + Authoritative Certifications: Adopts PC V0-grade flame-retardant material, which is high-temperature resistant and flame-retardant, effectively reducing fire risks. It has passed multiple international certifications such as CE, RoHS, and UKCA, complying with international standards in production and quality, ensuring safe use.

2. Wide Adaptability and Strong Compatibility: The 90-265V wide voltage range is suitable for household voltage standards in most regions around the world. The 1-63A adjustable current can meet the electrical needs of different devices from lighting (low power) to air conditioners and water heaters (high power).

3. Simple and Easy to Operate: The smart APP has a concise and user-friendly interface with clear function classification, enabling the elderly and children to quickly master the operation. It also supports local manual switching to cope with emergency scenarios such as network outages, providing double protection for usability.

4. Compact and Space-Saving + Easy Installation: Adopts a rail mounting design with a compact size, not occupying too much space in the distribution box, and is suitable for the conventional distribution layout of most families. The installation process is simple and can be completed without professional and complex operations.

5. Flexible Packaging Options: Supports neutral packaging or customized packaging, meeting the needs of individual users for personal use and commercial scenarios for bulk purchases, with stronger practicality.

6. Long-Term Stability and Durability: Uses high-quality electronic components and precision structural design, ensuring stable mechanical and electrical performance. Coupled with a 12-month warranty service, it provides more assurance for long-term use. It supports remote APP upgrades, enabling continuous optimization of functional experience in the future.

V. Scenario Applications

1. Intelligent Management of Home Lighting

2. Safe Control of High-Power Appliances

3. Convenient Control of Small Household Appliances

4. Safety Protection in Special Areas

5. Electrical Optimization for Rental Housing/Apartments

VI. Quality Assurance
