PS-HT-15
BSUMWELL
IP65
| Availability: | |
|---|---|
| Quantity: | |
Quick Details
Place of Origin: Guangdong, China (Mainland)
Model Number: PS-HT
Product Name: Electrical Distribution Box for mcb
Material: ABS+PC
IP Protection: IP65
Color: Grey
Function: waterproof and moistureproof
Type: mcb box
Certificate: CE
Application: Electric Power Transmission
Rated current: 63A
Supply Ability
Supply Ability: 5000 Piece/Pieces per Week ip65 waterproof box
Packaging & Delivery
Packaging Details：Export standard carton box.
Waterproof power Junction box package:1 pvc waterproof box in 1 carton
Electric waterproof distribution box package size:customized
Port：Shenzhen,Ningbo,Shanghai
Quick Details
Place of Origin: Guangdong, China (Mainland)
Model Number: PS-HT
Product Name: Electrical Distribution Box for mcb
Material: ABS+PC
IP Protection: IP65
Color: Grey
Function: waterproof and moistureproof
Type: mcb box
Certificate: CE
Application: Electric Power Transmission
Rated current: 63A
Supply Ability
Supply Ability: 5000 Piece/Pieces per Week ip65 waterproof box
Packaging & Delivery
Packaging Details：Export standard carton box.
Waterproof power Junction box package:1 pvc waterproof box in 1 carton
Electric waterproof distribution box package size:customized
Port：Shenzhen,Ningbo,Shanghai

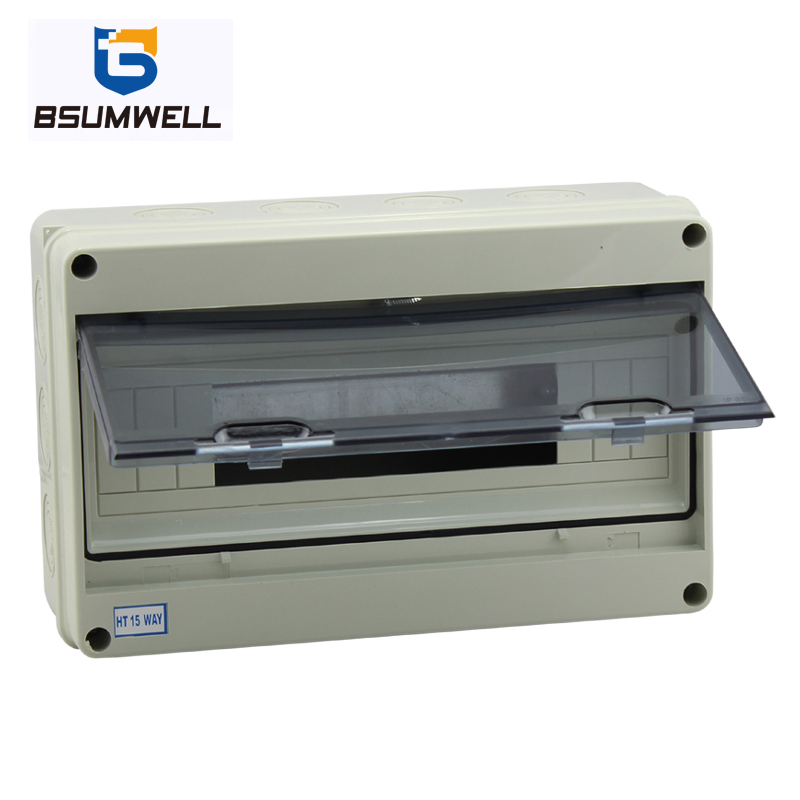

 PS-HT-15WAYS Name:Waterproof distribution box Model:PS-HT-15WAYS Net weight:0.90KGS Material:ABS body +PC cover No.of breaker(pcs):15WAYS Outer size:310mm*195mm*110mm Color:Grey body&Tea color transparent cover Product performance:Moisture-proof&waterproof |
Body material: ABS
Transparent door: PC
Material characteristics: Impact,heat low temperature and chemical resistance excellent electrical performance and surface gloss etc.
Certificates : CE,ROHS
Protection grade: IP65
Application : Suitable for indoor and outdoor electric,communication,fire fighting apparatus,iron and steel smelting,petrochemical industry ,electrionc,power system,railway,building ,min,air and sea port hotel,ship ,works waste water treatment equipment environmental equipment and so on
Installation: 1.Inside:There are din rail inside for din-rail type circuit breakers,earth bar and natural bar for cable connection
2.Outside:The products canbe directly fixed on the wall or other flat boards with screws or nails via the screw holes in the base
Outlet hole: The plastic plate in the hole can be knocked off for cables
PS-HT-15WAYS Name:Waterproof distribution box Model:PS-HT-15WAYS Net weight:0.90KGS Material:ABS body +PC cover No.of breaker(pcs):15WAYS Outer size:310mm*195mm*110mm Color:Grey body&Tea color transparent cover Product performance:Moisture-proof&waterproof |
Body material: ABS
Transparent door: PC
Material characteristics: Impact,heat low temperature and chemical resistance excellent electrical performance and surface gloss etc.
Certificates : CE,ROHS
Protection grade: IP65
Application : Suitable for indoor and outdoor electric,communication,fire fighting apparatus,iron and steel smelting,petrochemical industry ,electrionc,power system,railway,building ,min,air and sea port hotel,ship ,works waste water treatment equipment environmental equipment and so on
Installation: 1.Inside:There are din rail inside for din-rail type circuit breakers,earth bar and natural bar for cable connection
2.Outside:The products canbe directly fixed on the wall or other flat boards with screws or nails via the screw holes in the base
Outlet hole: The plastic plate in the hole can be knocked off for cables
 Internal structure 35MM din rail for fixing terminal block ,circuit breaker,household contactor,make the installation more easy and simple
Seal ring Made of polyamic acid material, high corrosion resistance, more waterproof and longer life. |
 Window designPC transparent material flip window, more intuitive, better sealing. Surface install Smooth and beautiful appearance, no coloured spots Inlet and outlet hole The box is provided with reserved holes for customers' convenient connection. Can use PG13.5,PG21,PG29 cable glands |
 |
|  |  |
| Model | Product's size (mm) | No.of breaker(pole) | Net Weight (kg) |
| HA-4WAYS | 140*210*100 | 4 | 0.52 |
| HA-8WAYS | 215*210*100 | 8 | 0.78 |
| HA-12WAYS | 300*260*140 | 12 | 1.46 |
| HA-18WAYS | 410*285*140 | 18 | 1.93 |
| HA-24WAYS | 415*300*140 | 24 | 2.34 |
| HT-5WAYS | 120*160*95 | 5 | 0.34 |
| HT-8WAYS | 200*155*95 | 8 | 0.53 |
| HT-12WAYS | 250*195*110 | 12 | 0.84 |
| HT-15WAYS | 310*195*110 | 15 | 0.9 |
| HT-18WAYS | 365*195*110 | 18 | 1.07 |
| HT-24WAYS | 360*280*110 | 24 | 1.35 |
| HK2-5WAYS | 140*140*100 | 2-5 | 0.40 |
| HK-8WAYS | 195*195*103 | 8 | 0.65 |
| HK-12WAYS | 270*195*103 | 12 | 0.80 |
| HK-18WAYS | 375*195*103 | 18 | 1.10 |
| GDB-04 | 212*92*107 | 4 | 0.35 |
| GDB-06 | 220*165*100 | 6 | 0.80 |
| GDB-09 | 220*219*100 | 9 | 0.95 |
| GDB-12 | 230*273*110 | 12 | 1.35 |
| GDB-18 | 230*381*110 | 18 | 1.90 |
| GDB-24 | 380*273*110 | 24 | 2.10 |
| GDB-36 | 380*381*110 | 36 | 2.70 |
| 56CB4N | 100*210*110 | 4 | 0.50 |
| 56CB8N | 200*210*110 | 8 | 1.00 |
Internal structure 35MM din rail for fixing terminal block ,circuit breaker,household contactor,make the installation more easy and simple
Seal ring Made of polyamic acid material, high corrosion resistance, more waterproof and longer life. |
Window designPC transparent material flip window, more intuitive, better sealing. Surface install Smooth and beautiful appearance, no coloured spots Inlet and outlet hole The box is provided with reserved holes for customers' convenient connection. Can use PG13.5,PG21,PG29 cable glands |
|
| | |
| Model | Product's size (mm) | No.of breaker(pole) | Net Weight (kg) |
| HA-4WAYS | 140*210*100 | 4 | 0.52 |
| HA-8WAYS | 215*210*100 | 8 | 0.78 |
| HA-12WAYS | 300*260*140 | 12 | 1.46 |
| HA-18WAYS | 410*285*140 | 18 | 1.93 |
| HA-24WAYS | 415*300*140 | 24 | 2.34 |
| HT-5WAYS | 120*160*95 | 5 | 0.34 |
| HT-8WAYS | 200*155*95 | 8 | 0.53 |
| HT-12WAYS | 250*195*110 | 12 | 0.84 |
| HT-15WAYS | 310*195*110 | 15 | 0.9 |
| HT-18WAYS | 365*195*110 | 18 | 1.07 |
| HT-24WAYS | 360*280*110 | 24 | 1.35 |
| HK2-5WAYS | 140*140*100 | 2-5 | 0.40 |
| HK-8WAYS | 195*195*103 | 8 | 0.65 |
| HK-12WAYS | 270*195*103 | 12 | 0.80 |
| HK-18WAYS | 375*195*103 | 18 | 1.10 |
| GDB-04 | 212*92*107 | 4 | 0.35 |
| GDB-06 | 220*165*100 | 6 | 0.80 |
| GDB-09 | 220*219*100 | 9 | 0.95 |
| GDB-12 | 230*273*110 | 12 | 1.35 |
| GDB-18 | 230*381*110 | 18 | 1.90 |
| GDB-24 | 380*273*110 | 24 | 2.10 |
| GDB-36 | 380*381*110 | 36 | 2.70 |
| 56CB4N | 100*210*110 | 4 | 0.50 |
| 56CB8N | 200*210*110 | 8 | 1.00 |
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
A: Low MOQ, 1pc for sample checking is available
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
A: Yes, we offer 1 year warranty to our products.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
A: Low MOQ, 1pc for sample checking is available
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
A: Yes, we offer 1 year warranty to our products.
