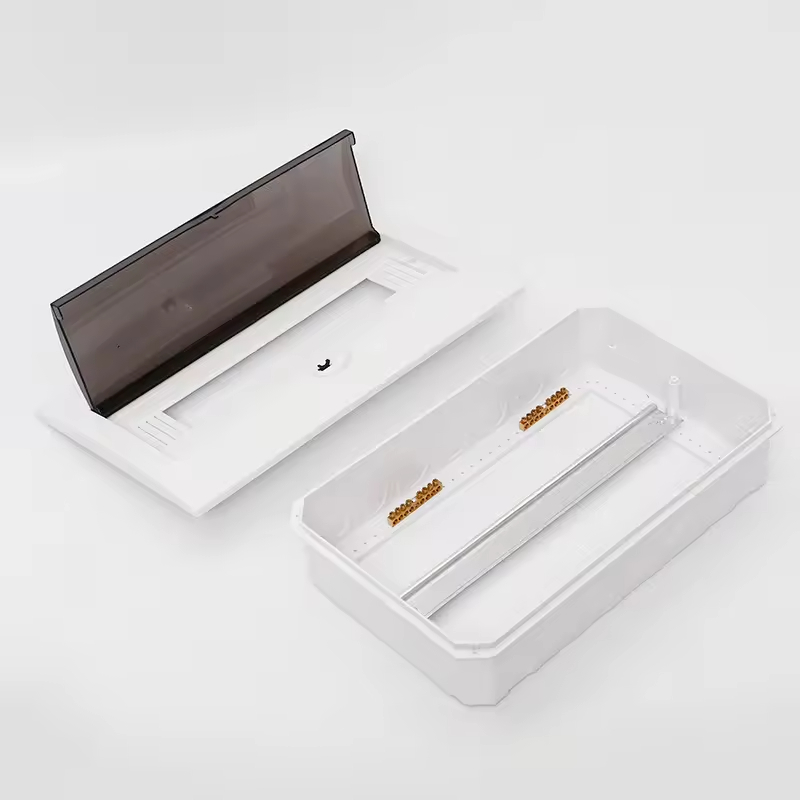

Internal structure
35MM din rail for fixing terminal block ,circuit breaker,household contactor,make the installation more easy and simple Earth/Natural bars:Brass
Cover design
Easy to fixed the circuit breaker,contactors and so on
|
![TSM-F 6WAYS DISTRIBUTION BOX (3)]() Window design
PC transparent material flip window, more intuitive, better sealing. Flush install
Smooth and beautiful appearance, no coloured spots
Inlet and outlet hole
The box is provided with reserved holes for customers' convenient connection.
Practical and convenient
Can use PG13.5,PG21,PG29 cable glands |
![TSM-F]()
![TSM-F 6WAYS DISTRIBUTION BOX (2)]() | Name | Waterproof distribution box |
| Model | TSM-F 6WAYS Flush type |
| Color | Grey body Tea color transparent cover |
| Product performance
| Moisture-proof
waterproof
|
| Outer size | 170*222*27mm |
| Net weight | 0.38KGS |
| Material | ABS body +PC cover |
Body material:ABS
Transparent door：PC
Earth/Natural bars: Brass
Certificates: CE,ROHS
Protection grade: IP50
Customization：Accept Enclosure Customized
Application：Outdoor Electronic Equipment
Material Characteristics：Impact,heat,low temperature and chemical resistance,excellent electrical performance and surface gloss,etc.
Application: Suitable for indoor and outdoor electric,communication,fire fighting apparatus,iron and steel smelting,petrochemical industry,electron,power system,railway,building,mine,air and sea port,hotel,ship,works,waste water treatment equipment,environmental equipment and so on.

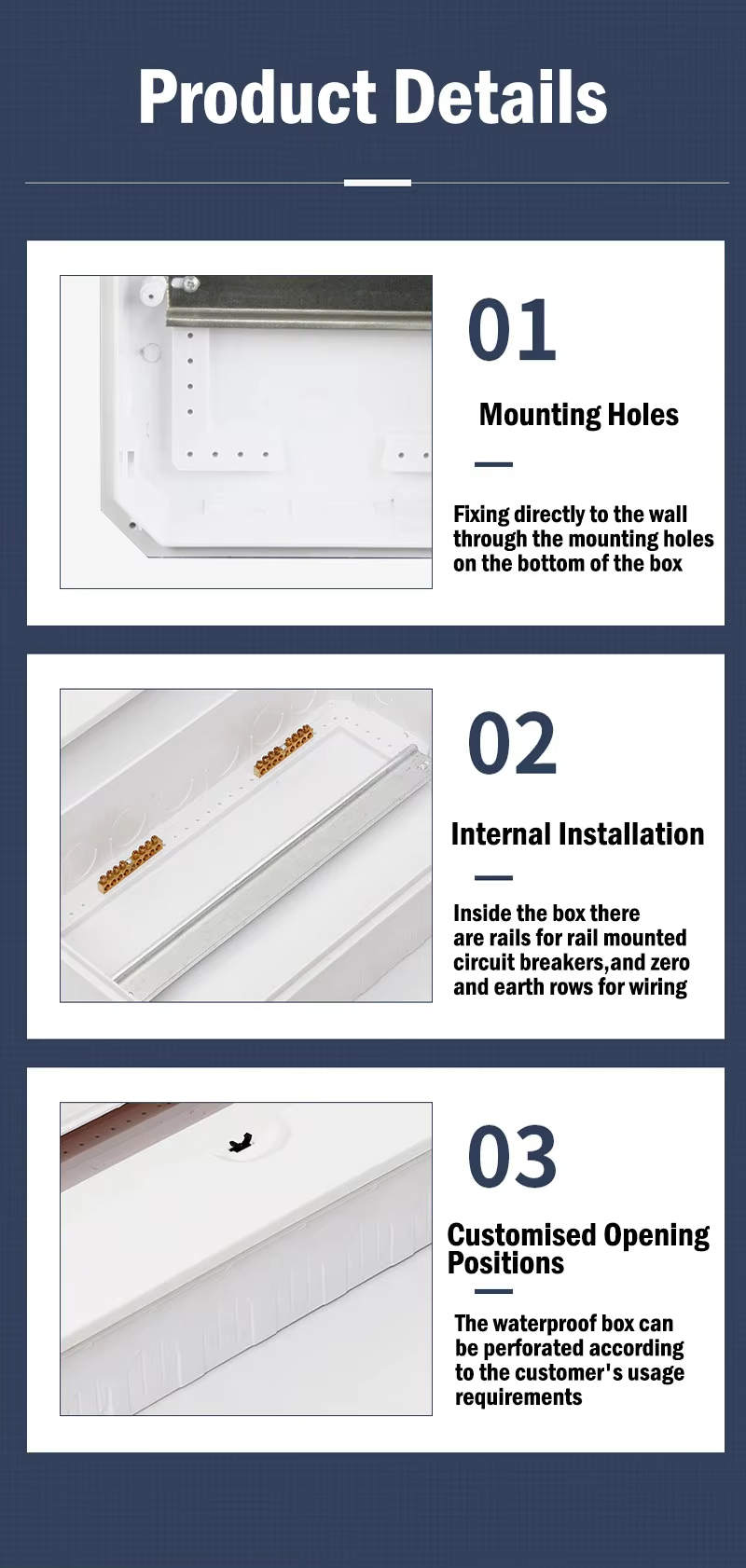

Installation:
1,Inside:There are din rail inside for din-rail type circuit breakers,earth bar and natural bar for cable connection.
2,Outside:The products can be directly fixed on the wall or other flat boards with screws or nails via the screw holes in the base.
Outlet hole: The plastic plate in the hole can be knocked off for cables.
