| Customized Metal Electrical Panel Boxes Stainless Steel Power Distribution Box Wall Mount Enclosure with IP54 Protection | |||||||||

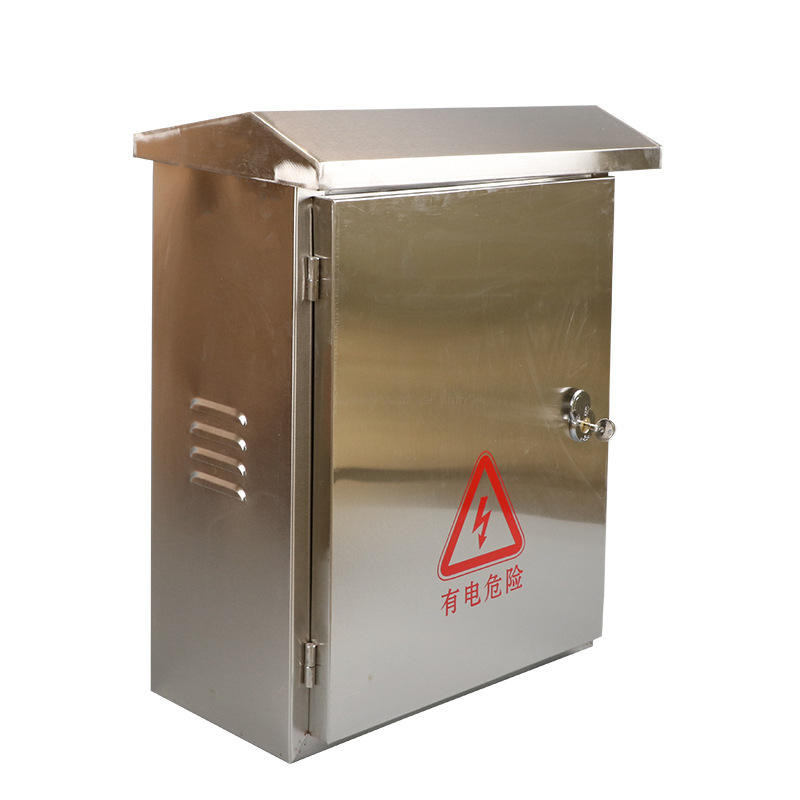

Engineered for demanding industrial, commercial, and marine environments, this premium power distribution enclosure is constructed from high-grade stainless steel. The material yields exceptional tensile strength and superior chemical resistance against aggressive environmental factors, salt spray, and corrosive washdown procedures. Unlike standard painted carbon steel boxes that prone to chipping and subsequent rust formation, this unpainted, brushed stainless steel chassis retains its structural and aesthetic integrity over decades of continuous exposure.
Designed to protect sensitive electrical control gear, components, and termination blocks from harsh ambient elements, this enclosure boasts a verified IP54 protection rating. The interior perimeter of the door features a professional, high-density continuous rubber sealing strip design that compresses uniformly when latched. This engineered barrier establishes a reliable seal against airborne dust particles, multi-directional water splashes, oil seeps, and ambient moisture, making it an excellent option for damp indoor plants or sheltered outdoor stations.

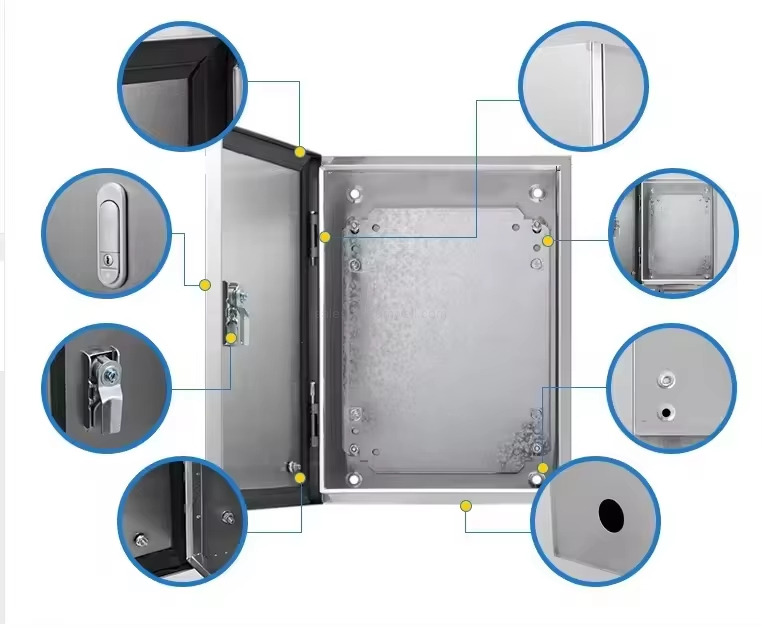

The enclosure is outfitted with industrial-grade, precision-machined mechanical hardware designed to withstand high operational cycles:

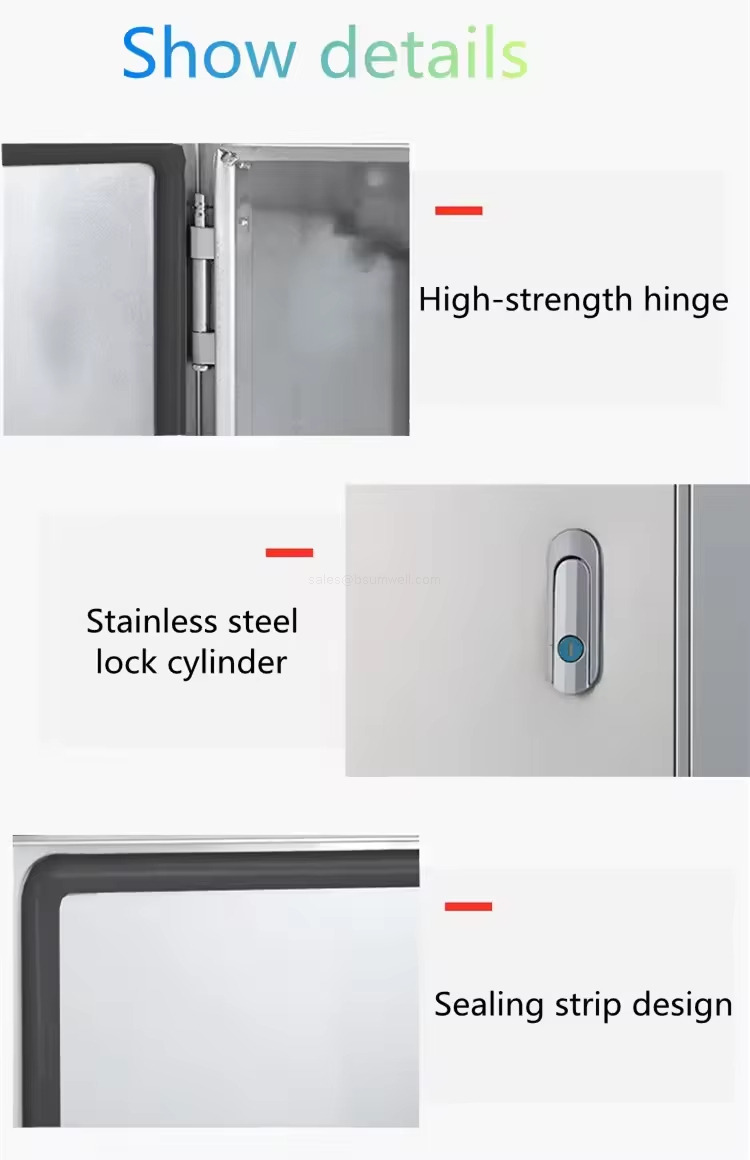

High-Strength Stainless Steel Hinges: Rugged, heavy-duty hinges support the structural weight of the door seamlessly, preventing sagging over time and ensuring precise door alignment during repetitive access.
Premium Stainless Steel Lock Cylinder: Equipped with an ergonomic, flush-mount quarter-turn lock mechanism featuring a secure stainless steel lock cylinder that prevents unauthorized tampering or accidental opening.
Safety Grounding System: Built-in dedicated ground screws are welded directly onto both the door and the main enclosure frame to ensure electrical continuity and reliable fault-current grounding protection.
Optimized for custom electrical assemblies, breaker panel wiring, and industrial control layouts, the enclosure features user-friendly internal architecture:

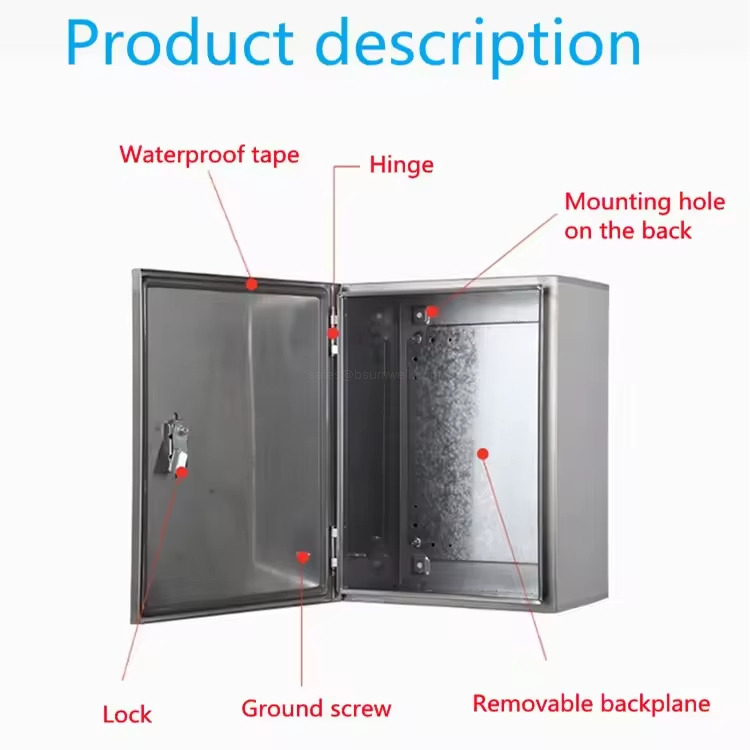

Removable Galvanized Backplane: Includes a heavy-gauge, corrosion-resistant removable backplate that provides a rigid surface for mounting DIN rails, relays, PLC modules, and power supplies prior to box installation.
Integrated Rear Wall Mount Holes: Features pre-machined mounting holes on the back wall of the chassis, facilitating straightforward flush-mount anchoring onto masonry, structural columns, or wood paneling.
Pre-Stamped Bottom Cable Knockouts: The bottom face includes clean cable entry access ports, allowing technicians to fit liquid-tight conduit connectors and compression glands without field drilling.
A: Yes. The high-grade stainless steel structure inherently resists rust and UV degradation, making it highly suitable for outdoor use. Its certified IP54 rating ensures full defense against dust accumulation and splashing water from any direction. For completely unsheltered, heavy rain zones where vertical driving rain or water pooling occurs, it is recommended to install a rain hood over the top or use matching liquid-tight conduit connectors on the bottom entry ports.
A: The heavy-duty removable backplane allows technicians to bench-assemble, layout, and wire all electrical components (such as circuit breakers, terminal blocks, or contactors) outside of the tight enclosure space. Once the internal layout is configured, the entire populated panel can be easily slipped into the box and secured onto the internal studs, drastically reducing field installation time and strain.
A: The door incorporates an advanced, continuous sealing strip design that runs along the entire inside lip. When the stainless steel handle lock is engaged, it pulls the door tight, compressing the high-elasticity rubber strip against the box's knife-edge flange. This continuous compression ensures no gaps are left for dust or humidity to penetrate, keeping your inner electronic components clean and dry.
A: Yes, this product line supports comprehensive sizing and feature customizations. You can modify the length, width, and depth boundaries of the enclosure to fit specific footprints. Additionally, specialized windows, cooling louvers, pre-punched circular knockouts, or custom brackets can be configured during the fabrication phase to align exactly with your electrical engineering blueprints.
