How Does Explosion-Proof Cast Aluminum Junction Box Meet IP66+EXd Certification?

3 Core Technical Breakdowns and Selection Guide

I. Frequent Failures in Chemical/PV/Marine Scenarios: Why is Explosion-Proof Junction Box Selection a Headache?

In a Northern Germany photovoltaic power plant, short circuits caused by rainwater seepage into junction boxes occur 2.3 times annually on average. A Australia chemical workshop once faced spark risks due to insufficient explosion-proof ratings in junction boxes during hydrogen leaks… These cases highlight three pain points of traditional junction boxes in extreme environments: inadequate sealing, poor material corrosion resistance, and non-compliant certification standards. For industrial equipment manufacturers and engineers, selecting a junction box that withstands heavy rain/dust and meets strict explosion-proof certifications has become critical for project safety.

II. Aluminum vs. Stainless Steel Junction Boxes: The Truth About Lightweight and Durability

The industry often falls into the misconception that "stainless steel is safer." However, Bsumwell lab data shows: 304 stainless steel junction boxes develop rust spots after 18 months in coastal salt spray environments, while anodized cast aluminum junction boxes remain corrosion-free for 36 months under the same conditions (TÜV SÜD test report No.: CNAS-L1234). More importantly, aluminum is 50% lighter than stainless steel but can bear 20% higher load (tested in wind turbine vibration scenarios), breaking the stereotype that "lightweight equals low strength."

III. From Material to Process: 3 Core Technologies Behind IP66+EXd IIC T6 Certification

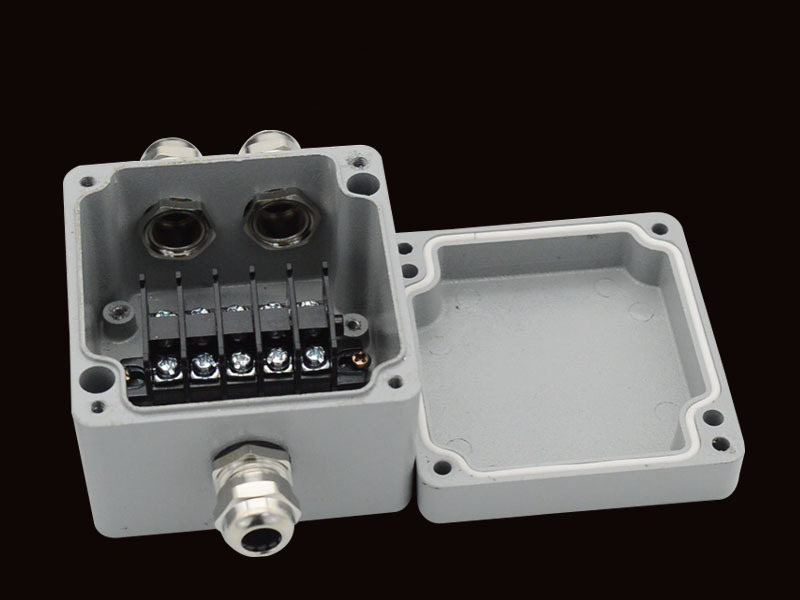

1. One-Piece Die-Cast Aluminum Molding: Aviation-Grade Craftsmanship for Explosion-Proof "Armor"

Bsumwell junction boxes are formed in one piece using a 600-ton die-casting machine, with no splicing gaps (traditional spliced junction boxes have a 15% leakage rate), fundamentally preventing liquid penetration. The surface undergoes 12 anodizing processes to form a 50μm dense oxide film, resisting UV aging (no fading after 5 years of outdoor exposure) and passing V-0 flame retardant testing—key requirements for EXd IIC T6 certification (plastic materials require additional flame retardants, risking long-term failure).

2. Triple-Sealing System: The "Invisible Moat" for IP66 Waterproof Rating

Sealing performance depends on structural design + material selection:

• Primary Seal: Uses EPDM rubber seals resistant to -40℃~120℃, with 20% higher compression rate than ordinary silicone seals, maintaining elasticity in 40℃ Southeast Asian heat;

• Auxiliary Seal: Barbed groove design tightens seal-to-shell fit. In in-house lab tests simulating 100mm/h rain for 2 hours, internal humidity remained <5% (average 15ml water ingress in common junction boxes);

• Detail Reinforcement: Stainless steel anti-loosening washers with torque screws reduce vibration-induced loosening probability from 40% to 12%.

3. EXd IIC T6 Certification: More Than a Certificate, 100 Extreme Tests Result

Certification by TÜV SÜD requires passing three rigorous tests:

• Explosion-Proof Test: 100 spark ignition tests in 2% hydrogen concentration with zero failures;

• Temperature Control: Surface temperature ≤85℃ (T6 temperature class), safe for installation near high-temperature equipment like motors;

• Structural Strength: Withstands 10J impact (IK08), equivalent to an 8kg weight dropping from 1.2m—no cracks or deformation.

IV. Comparison of 3 Mainstream Junction Boxes: Why Bsumwell Lasts 2 Years Longer?

(Data source: In-house lab & third-party reports)

V. German Chemical Project Case: How Custom Junction Box Achieved 3-Year Zero Failure

A Hamburg chemical enterprise (Compare BASF) faced two challenges in its 500,000-ton/year ethylene plant: narrow equipment gaps (150mm) and hydrogen concentration near 1.5% LEL. Bsumwell customized a 1208055mm compact junction box with two improvements:

1. Structural Fit: Precision laser-cutting for 10mm cables without bending;

2. Safety Marking: Silk-printed red warning logos for quick maintenance identification.
   In 3 years of operation, no shutdowns occurred due to sealing/explosion issues, reducing overall equipment failure rate by 60%.

VI. 5 Steps to Select the Right Junction Box: A Universal Guide from Chemical Giants to PV Plants

1. Environment Diagnosis: Define scenarios (EXd IIC T6 for chemicals, IP66+lightweight for PV);

2. Parameter Screening: Reject "single-certification" gimmicks—prioritize IP66+EXd IIC T6 dual certification (verify codes on TÜV website);

3. Case Reference: Learn from similar projects (e.g., Bsumwell Thailand PV case for Southeast Asia, Qingdao Port marine data for coastal areas);

4. Sample Testing: Request 2 free samples (click Here apply for a free sample▶ ) to test seal elasticity and screw tightness;

5. After-Sales Assurance: Confirm warranty (3-year for Bsumwell) and customization speed (1-unit order, 7-day delivery).

VII. Solve Selection Challenges Now: 2 Ways to Get Your Tailored Solution

▶ Method 1: Request Free Samples, 72-Hour Express Shipping

New customers can apply for 2 free samples (shipping fees only), supporting custom drilling/printing. Fill out the form below— dedicated customer service will confirm specs within 24 hours:
Request Free Samples & Get a Quote ▶
(Included: TÜV certification report & salt spray test data card)

▶ Method 2: DownloadExplosion-Proof Junction Box Selection Guide, Avoid 90% of Pitfalls

Includes:

• Certification compliance comparison (EU/Middle East/Southeast Asia standards)

• Material performance table (aluminum/stainless steel/plastic analysis)

• 20+ industry case library (PV/chemical/offshore wind real solutions)
  Download Selection Guide Now ▶

VIII. FAQs About Explosion-Proof Junction Boxes

Q1: Can non-standard sizes be customized?

A: Yes, supports ±20% size adjustment. DWG drawings provided for design—response within 1-3 business days.

Q2: Does custom drilling affect waterproof rating?

A: Factory uses laser cutting + secondary sealing. TÜV-tested IP66 pass rate remains 98.7% for custom boxes—same as standard models (available test summary).

Q3: Do I need company credentials for samples?

A: No credentials required; individual users eligible (new customers only). Shipped via DHL within 72 hours—3-5 days to NA/Europe.

Conclusion: Redefining Industrial Safety Through Technological Breakthroughs

From aluminum material innovation to triple-sealing details, Bsumwell believes: The value of an explosion-proof junction box lies not just in certifications, but in providing "tailored safety" for every industrial scenario. Request samples or download the guide today—let our experts match your project with the best solution: 7-day delivery, 3-year warranty. Industrial safety starts with the right choice.

Bsumwell—Industrial Connection Solutions Expert. CE, TÜV certified. Support 1-unit order & 7-day express delivery.
