Bsumwell infrared motion sensor
1. Product Overview

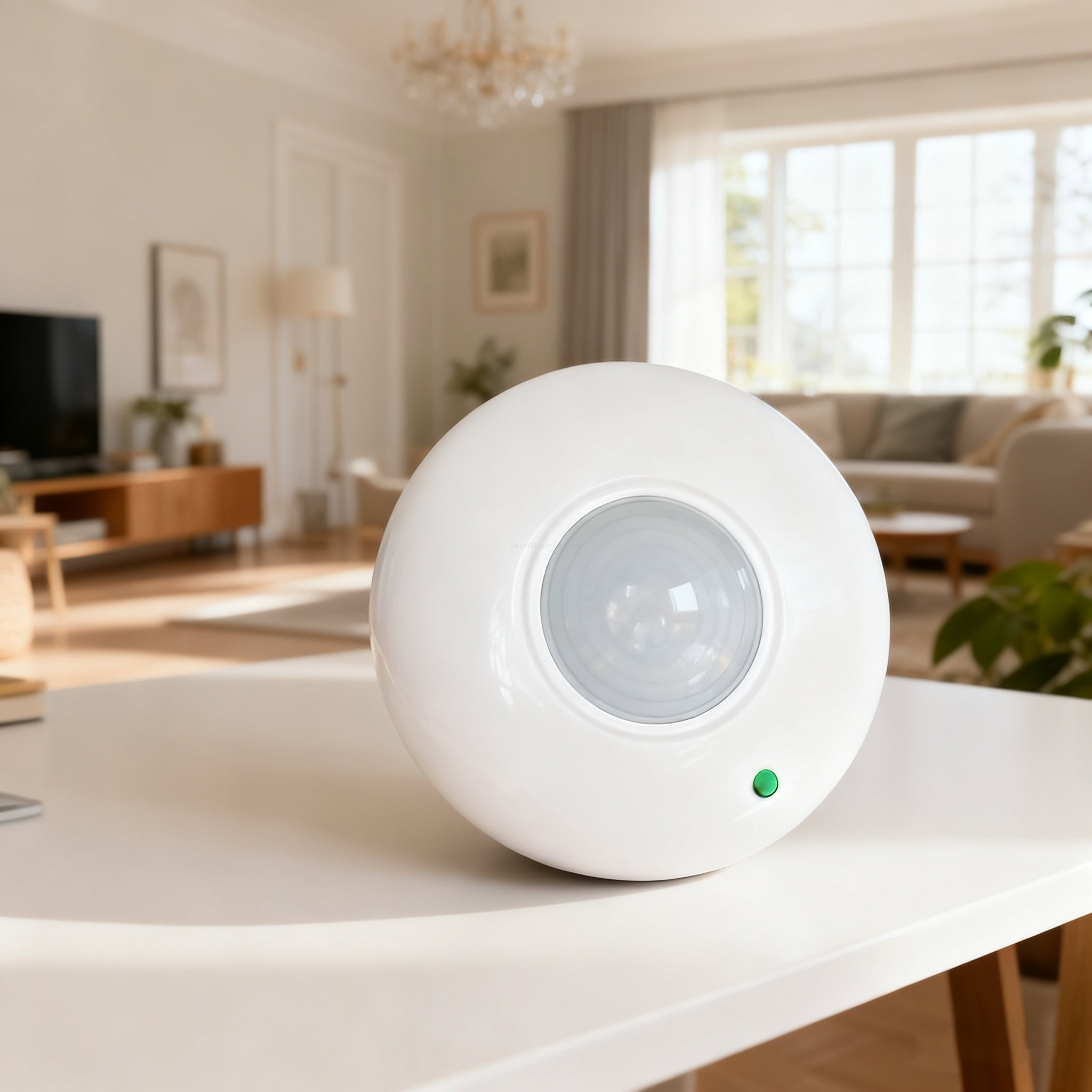

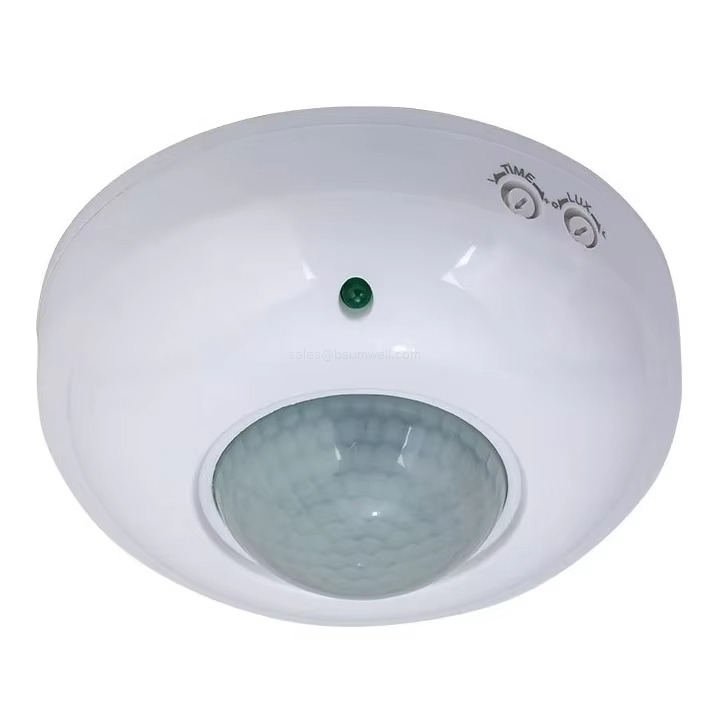

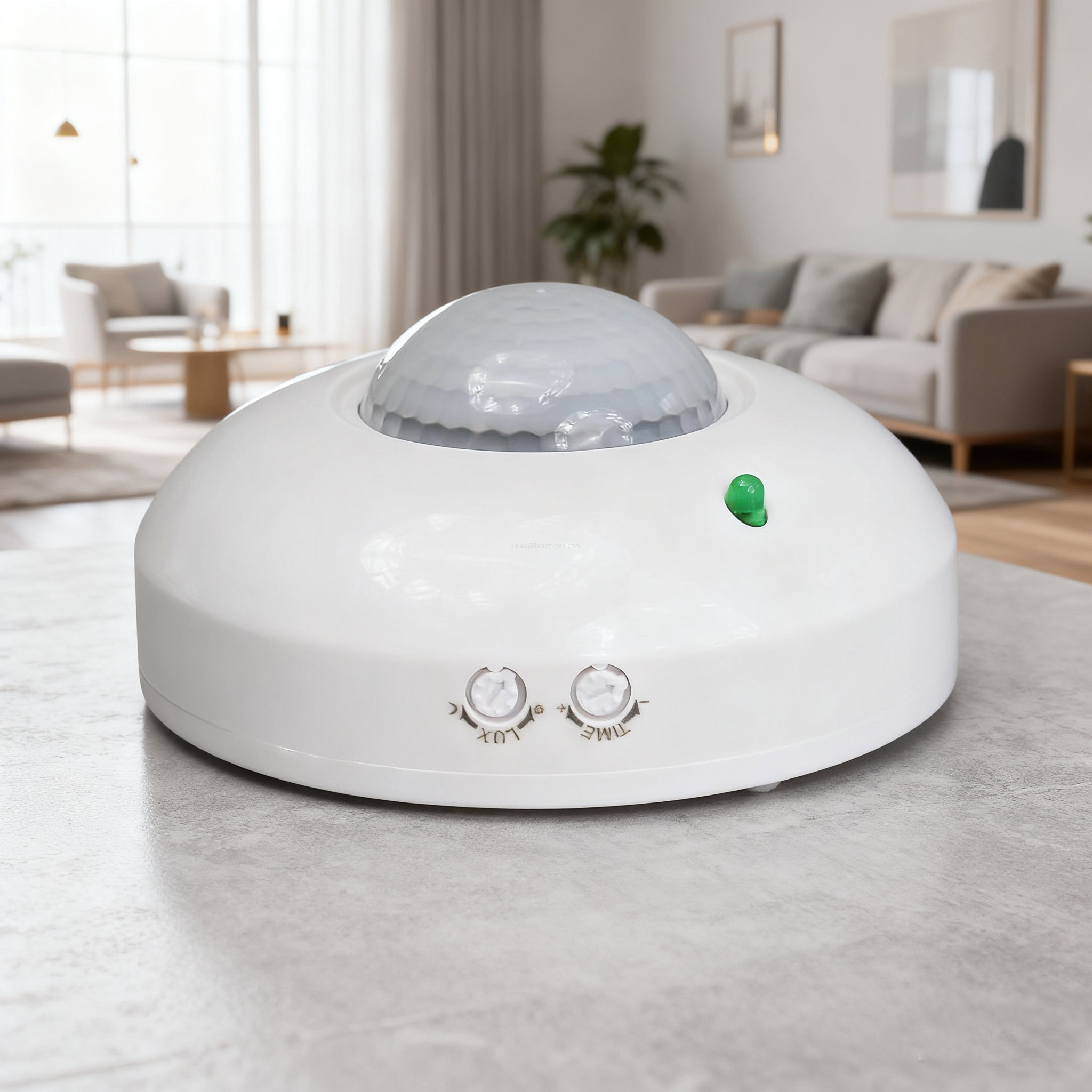

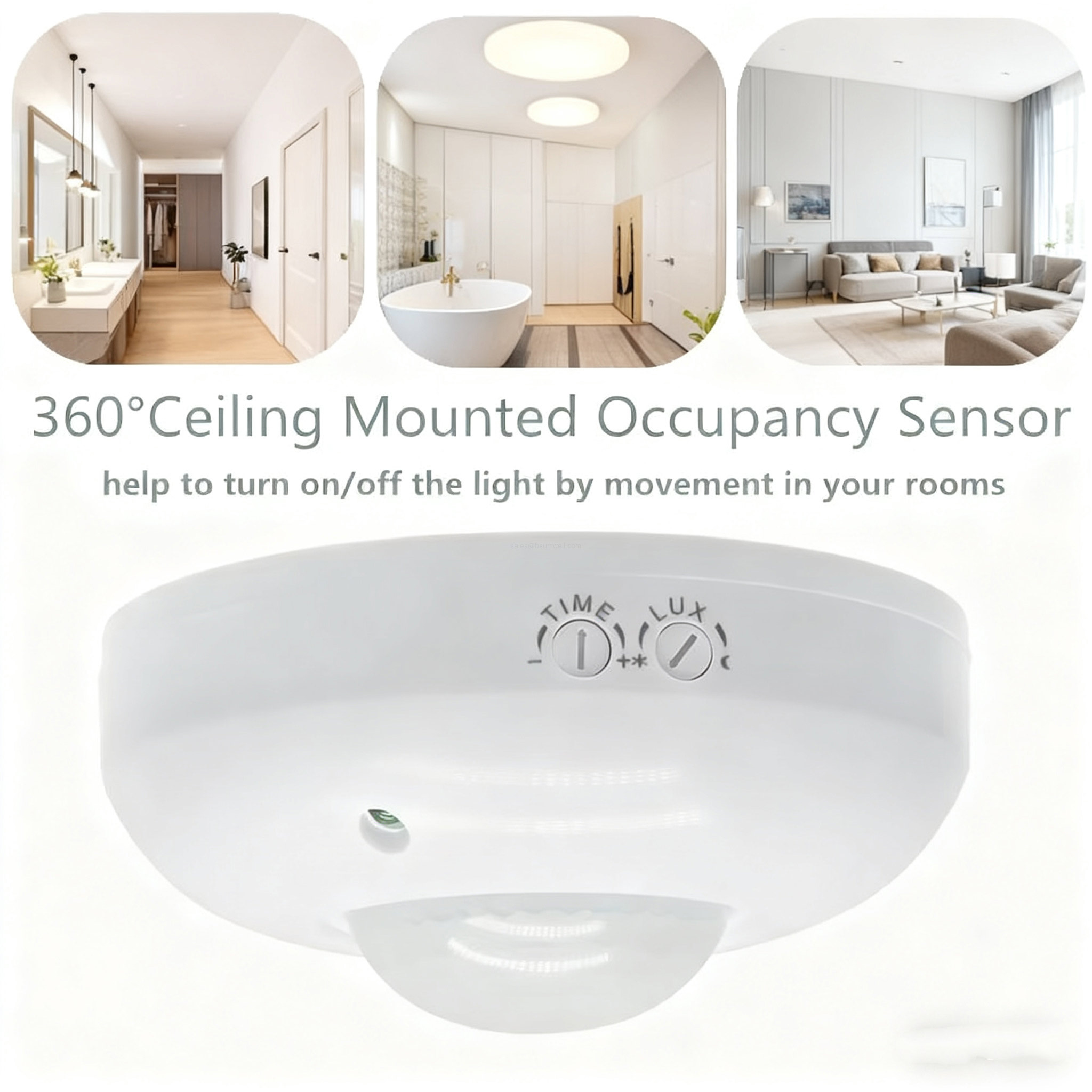

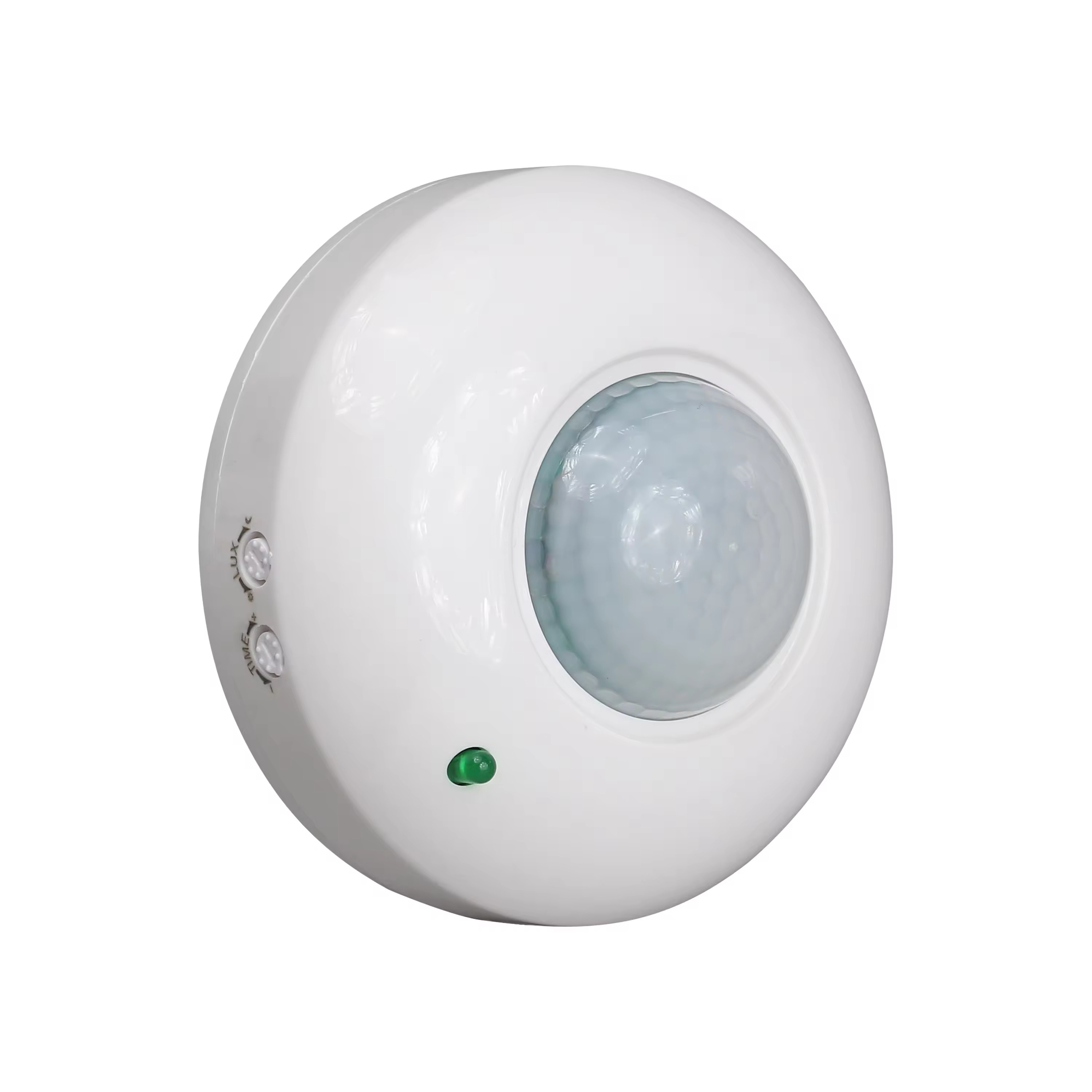

This product is a PIR Infrared Ceiling Mount Motion Sensor (Model: PS-S02), a high-performance motion sensor light control device designed to automate lighting switching. As a key type of motion sensor for lights, it integrates precise human motion detection and intelligent light-sensing functions, suitable for both indoor spaces and sheltered outdoor areas. It not only enhances daily convenience but also effectively reduces energy waste, making it an ideal choice for smart lighting control.
2. Core Functional Advantages
① 360° Full-Angle & Wide-Range Detection
Powered by advanced PIR technology, the sensor offers a 360° full-angle detection range and an 8-meter detection radius, significantly minimizing blind spots. It can accurately identify human movement to trigger lighting, ensuring reliable performance without false triggers or missed detections in target areas—perfect for spaces requiring comprehensive coverage.
② Intelligent Auto On/Off & Light Control

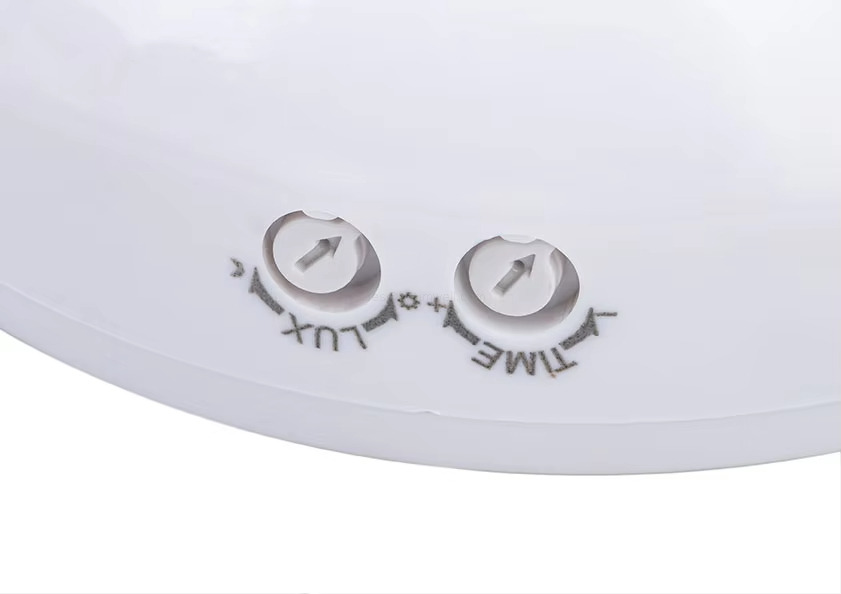

This motion sensor light realizes fully automated "human presence = light on, human absence = light off" operation: it turns on instantly when detecting motion and automatically shuts off after an adjustable delay (ranging from 8±3 seconds to 7±2 minutes), adapting to different usage needs. Additionally, it features a light control function—it only activates when ambient light intensity is ≤3lux (e.g., cloudy days, evenings, nights), avoiding unnecessary energy consumption in bright environments.
③ Wide Voltage Adaptation & Safety Certifications
It supports dual voltage specifications (100-130V/AC and 220-240V/AC) and a 50/60Hz power frequency, compatible with most regional power systems worldwide. The sensor has passed strict certifications including CE, RoHS, LVD, and EMC, meeting EU safety and environmental standards, ensuring safe and stable long-term use.
④ Easy Ceiling Installation & IP20 Protection

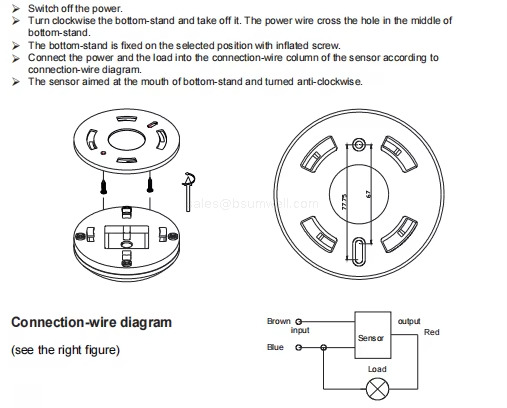

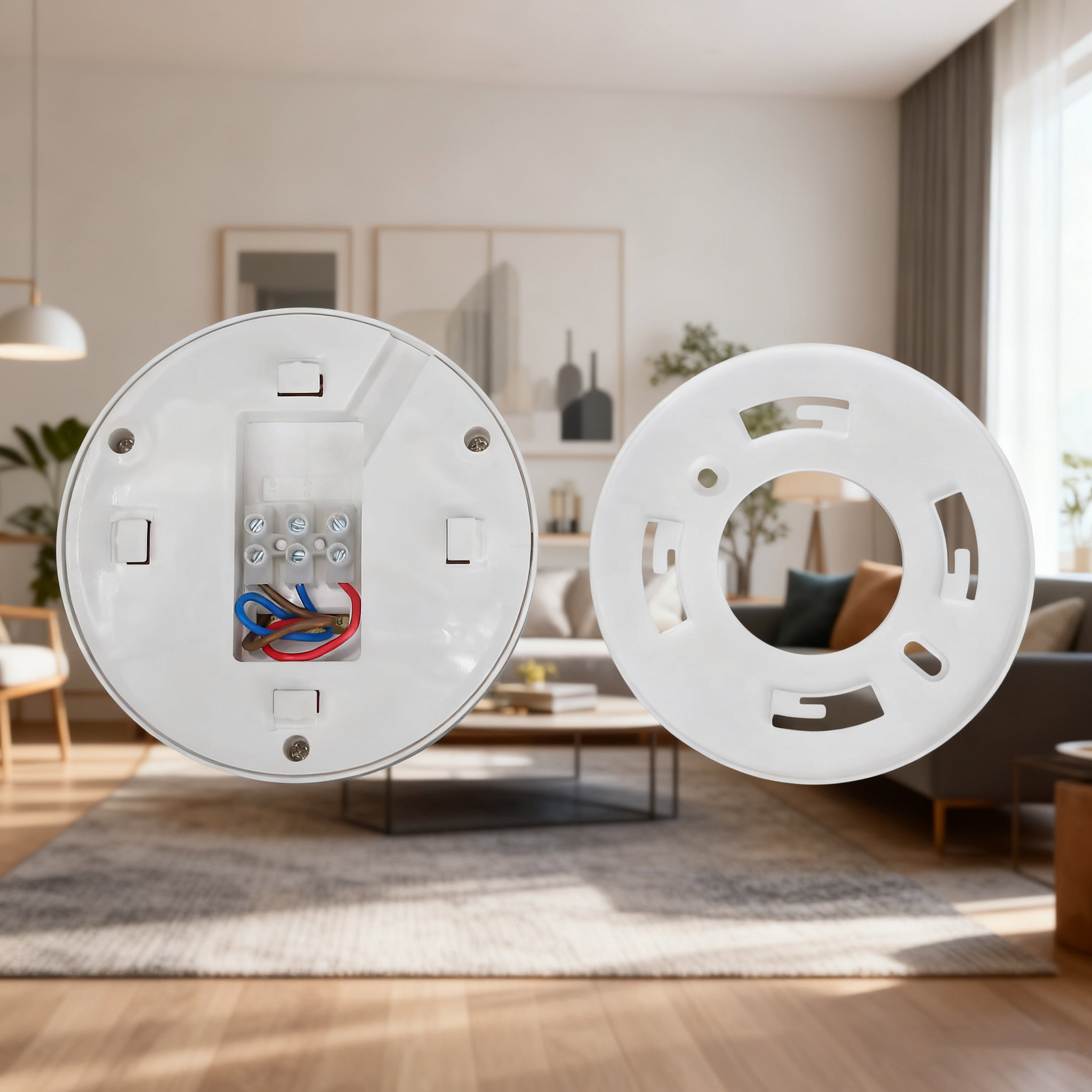

Designed for ceiling mounting, it is suitable for installation heights of 2.5-3.5 meters and adopts a "quick-installation" structure, simplifying the installation process and reducing construction time. With an IP20 protection level, it resists small dust intrusion and accidental finger contact, making it suitable for indoor spaces (e.g., living rooms, corridors) and sheltered outdoor areas (e.g., porches, balconies) without direct water exposure.
3. Applicable Scenarios
① Indoor Spaces
Residential areas: Ideal for living rooms, bedrooms, corridors, and kitchens. It eliminates the need for manual light switching, providing convenience for daily activities—especially useful for night trips (e.g., getting up at night) to avoid fumbling for switches.
Public & office areas: Suitable for office corridors, meeting rooms, and restrooms. It reduces the cost of manual lighting management and prevents energy waste caused by forgetting to turn off lights.
② Sheltered Outdoor Spaces
Perfect for residential porches, balconies, store entrances, and community duty room doorways. In low-light environments (≤3lux), it activates lighting immediately when detecting human movement to ensure safe passage, then automatically turns off after the set delay—balancing energy efficiency and practicality.
