Indoor and outdoor installations
PS-S06 infrared motion sensor
Bsumwell infrared motion sensor
control light switch on or off

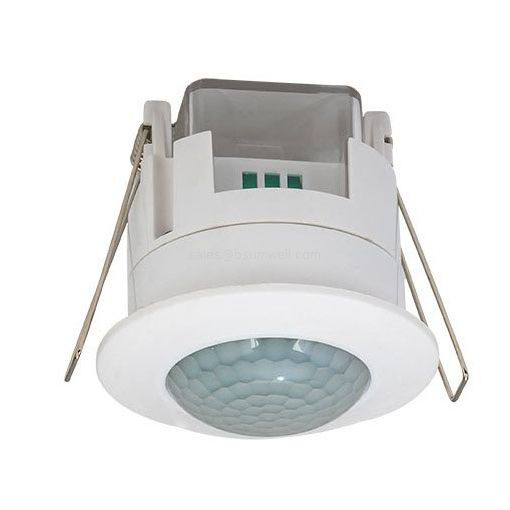

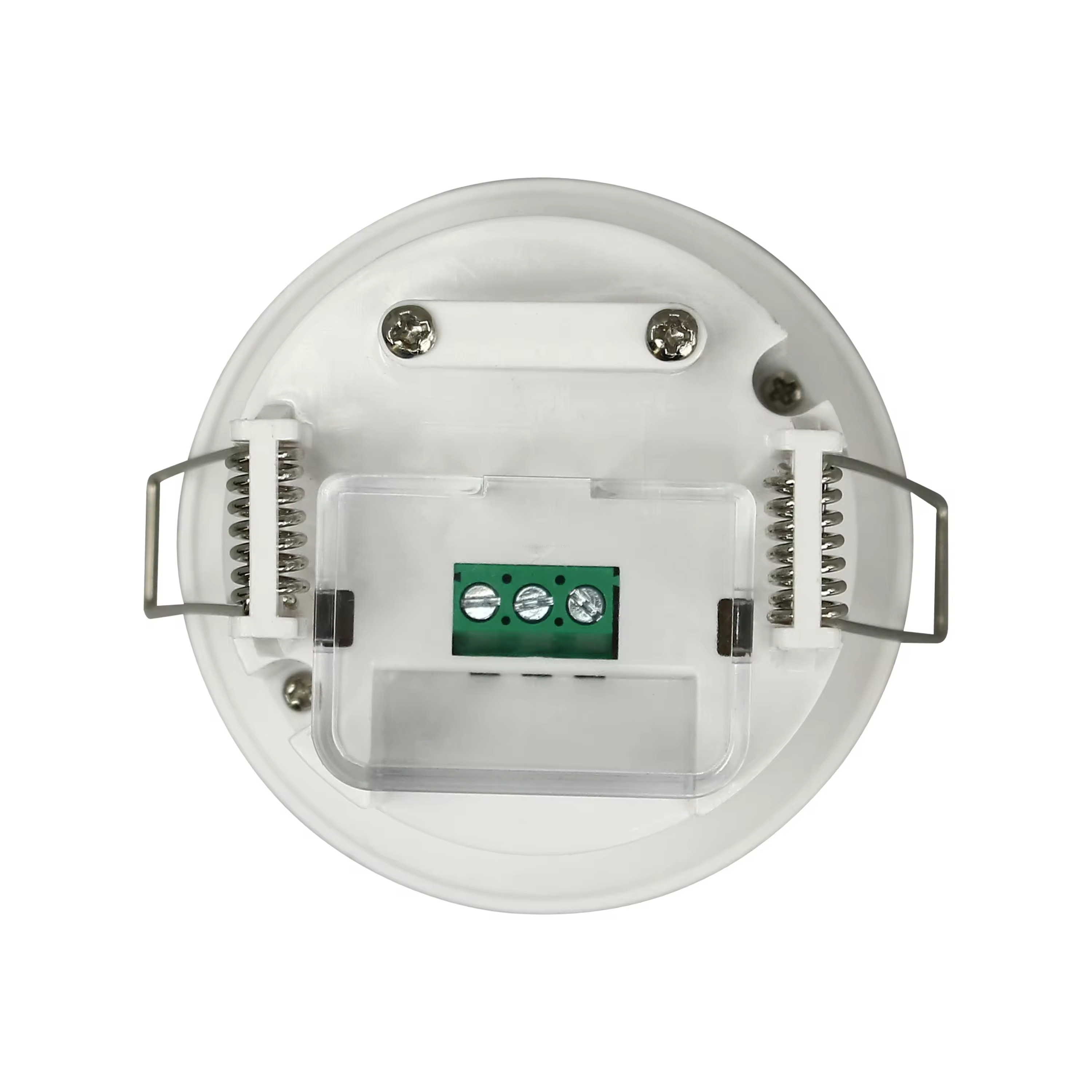

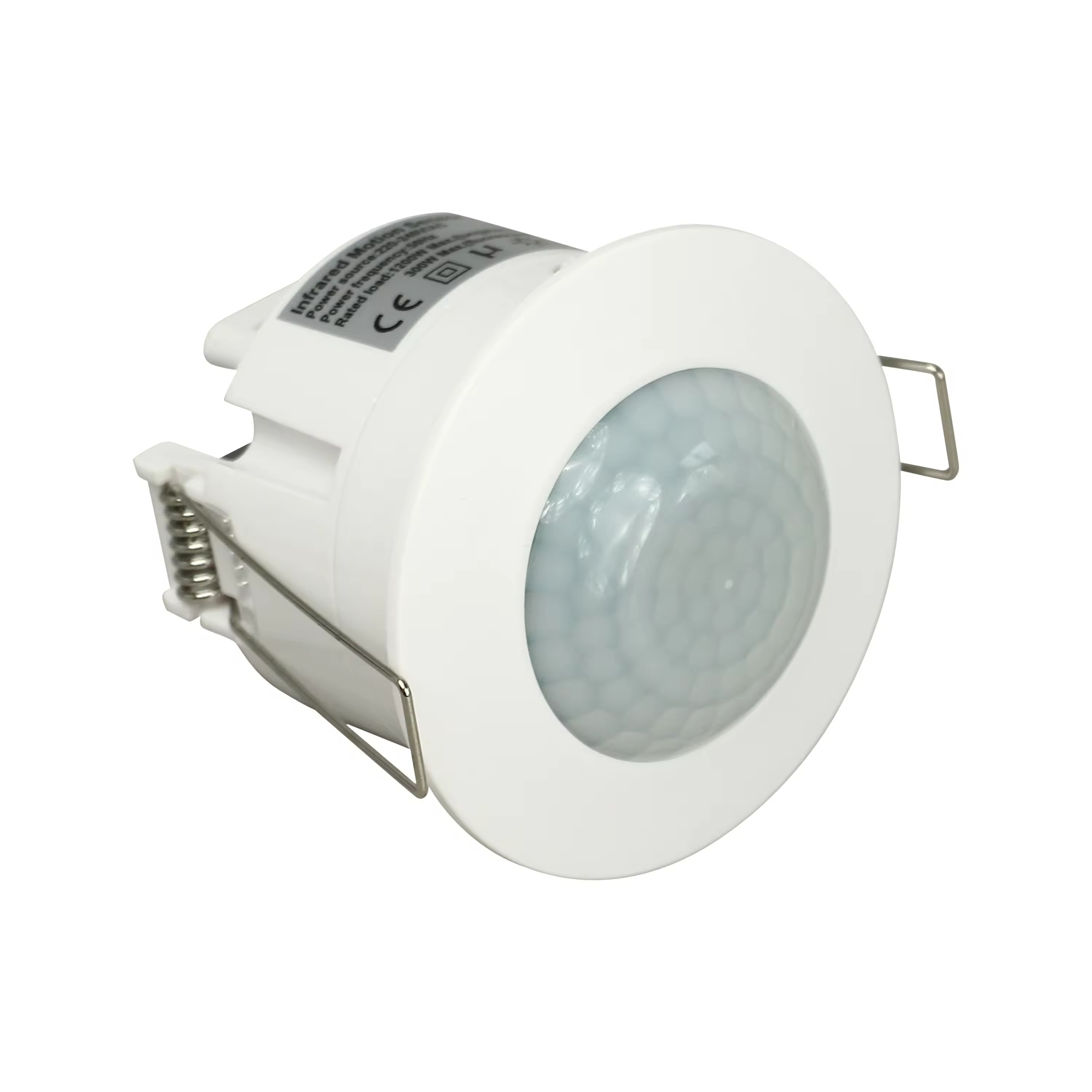

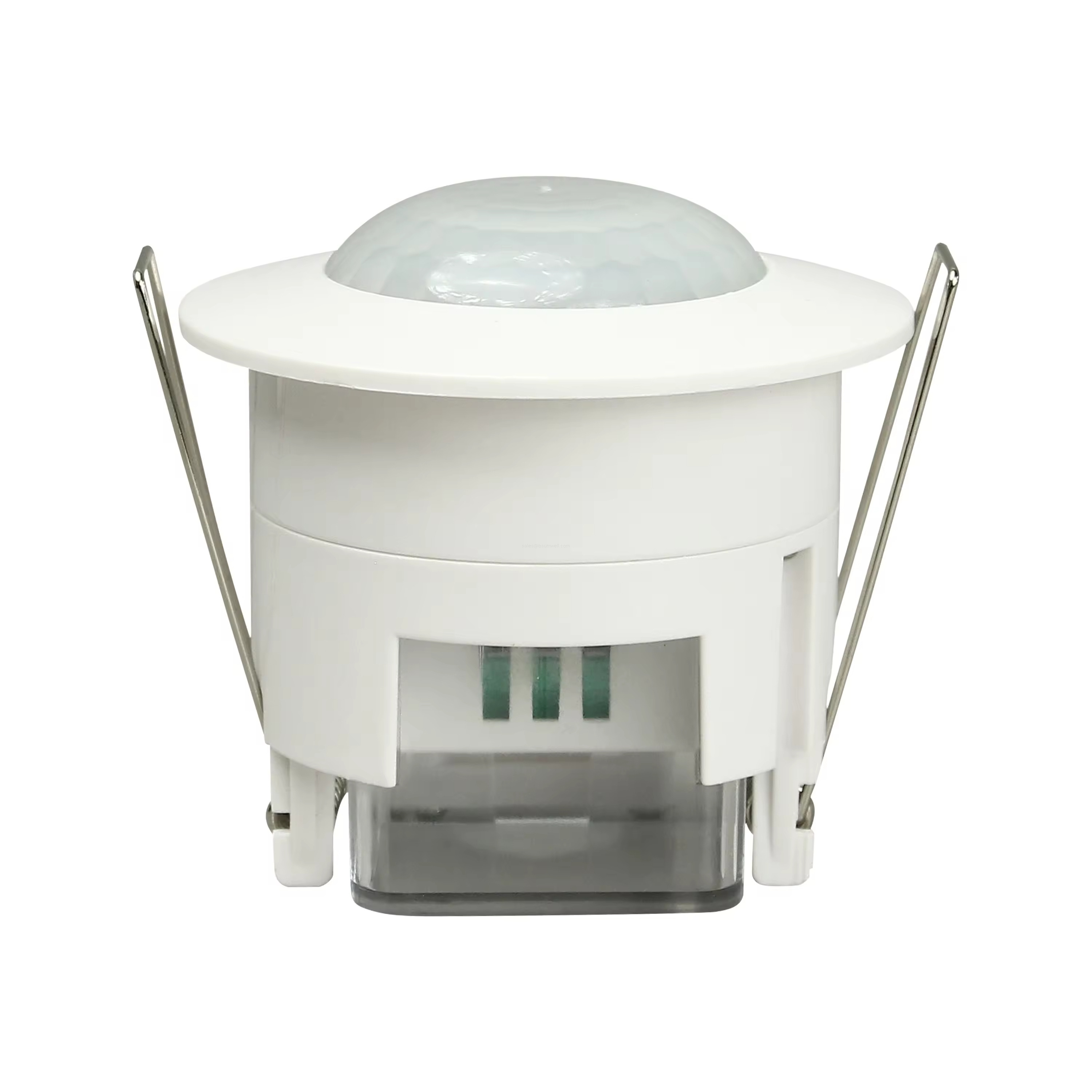

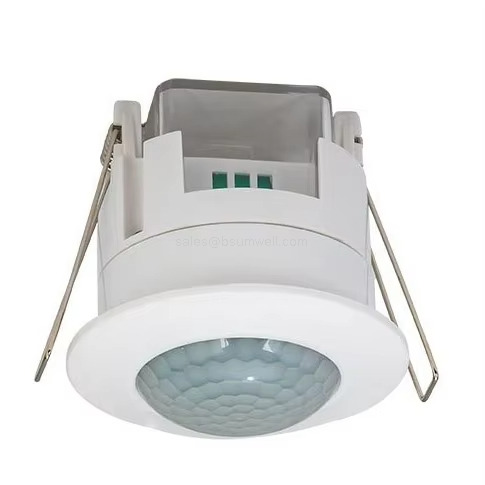

This product is a 360° Ceiling-Mounted PIR (Passive Infrared) Motion Sensor (Model: SP-S06), a dedicated device for automatic lighting control. With a sleek white design, it focuses on indoor application scenarios while supporting sheltered outdoor use. As a practical motion sensor detector, it integrates precise human motion recognition and intelligent light adjustment, helping to solve the troubles of "manual light switching" and "energy waste from long-on lights"—suitable for both residential and public areas.
It operates on 220-240V/AC power (50/60Hz) with an ultra-low working power of only 0.45W, and can handle a maximum load of 1200W for incandescent lamps. It also meets international safety and environmental standards, holding CE, RoHS, LVD, and EMC certifications to ensure safe and stable operation.
Equipped with a 3LUX-2000LUX wide light control range, it can flexibly adapt to different brightness environments. It automatically recognizes day and night—staying inactive in strong daylight (above 2000LUX) to avoid unnecessary triggers, while accurately activating in low-light conditions (below 3LUX, such as evenings or dark corridors) to ensure lighting is only on when needed.
With a 360° panoramic detection angle and a maximum detection distance of 6 meters, it covers the entire target space without blind spots—ideal for small to medium-sized indoor areas like garages or staircases. Its high-sensitivity PIR detector and integrated circuit design ensure quick response to human movement, reducing missed detections or false triggers caused by environmental interference.
The delay time can be freely set between 8±3 seconds and 7±2 minutes. For fast-pass areas (like staircases), a short delay saves energy; for areas where people stay longer (like garages), a longer delay improves convenience. With a working power of just 0.45W, it consumes minimal electricity even when used long-term, achieving both functionality and energy efficiency.
It works normally in a temperature range of -10℃ to 40℃, adapting to most indoor climate changes without performance degradation. Designed for ceiling mounting (suitable for 2.5-3.5m installation height), it adopts a "quick-install" structure—no complex tools are needed, and the installation process can be completed quickly, reducing construction time and labor costs.
Staircases & Corridors: Solves the problem of "fumbling for light switches in dark stairwells"—it turns on immediately when people walk up/down stairs or pass through corridors, and turns off automatically after a delay, ensuring safety for night trips (e.g., getting up at night) without wasting electricity.
Home Garages: Activates lighting when you enter the garage to park or pick up items, and shuts off when you leave—no need to manually turn lights on/off, avoiding the hassle of "forgetting to turn off garage lights for hours".
Office Corridors & Public Garages: Reduces the cost of manual lighting management for property management. It only turns on lights when employees or visitors pass by, avoiding energy waste from lights being on 24/7 in rarely used corridors.
Commercial Passageways & Community Duty Rooms: Ensures that lighting is available for people passing through or working in duty rooms during low-light hours, while preventing unnecessary energy consumption—balancing practicality and cost savings.
