connector
BSUMWELL/ OEM
$2.3 - $4.9
| Quantity: | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Engineered strictly in accordance with IEC 60309-1 and IEC 60309-2 (type 1231) manufacturing benchmarks, this single-phase 3-pin (2P+E) surface-mounted industrial socket is rated for continuous 32A current loads at 220V to 250V AC (6h ground contact position). Designed for heavy-duty commercial distribution, workshop installations, generator connections, and outdoor power infrastructure, the socket delivers steady voltage transfer with minimal thermal dissipation under full rated capacity. | |||||||||
Engineered strictly in accordance with IEC 60309-1 and IEC 60309-2 (type 1231) manufacturing benchmarks, this single-phase 3-pin (2P+E) surface-mounted industrial socket is rated for continuous 32A current loads at 220V to 250V AC (6h ground contact position). Designed for heavy-duty commercial distribution, workshop installations, generator connections, and outdoor power infrastructure, the socket delivers steady voltage transfer with minimal thermal dissipation under full rated capacity.
Solid Brass Contact Sleeves: High-grade brass contacts provide excellent electrical conductivity, low contact resistance, and long-term resistance to oxidation and arc wear under repeated insertion cycles.

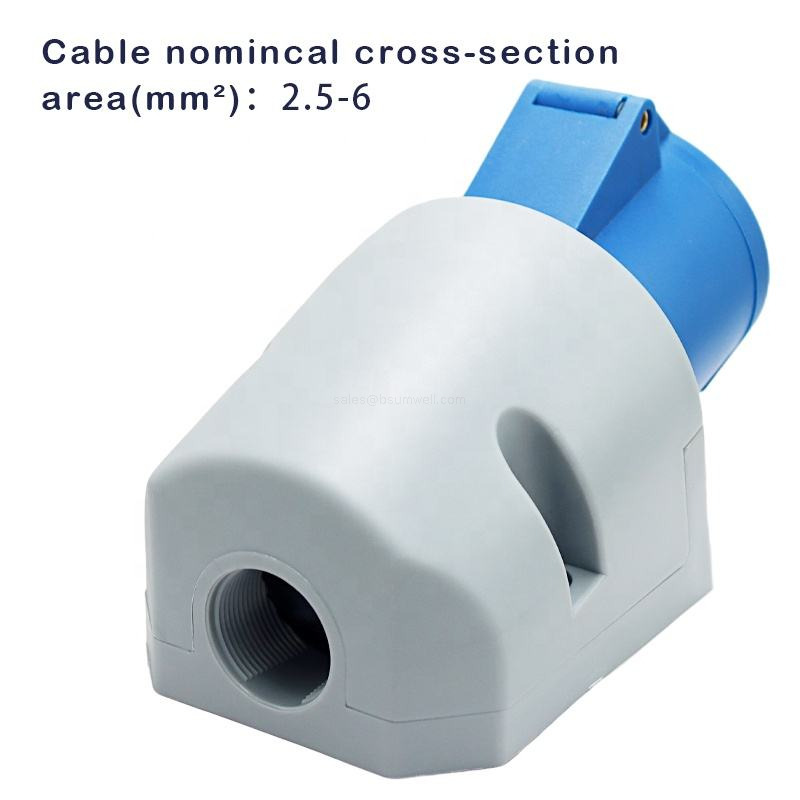

Wide Cable Compatibility: Designed to accept flexible stranded and solid wiring with nominal cross-sectional areas ranging from 2.5 mm² to 6 mm², ensuring tight conductor termination and mechanical stability.
Ergonomic 15-Degree Inclination Angle: Built with an angled wall-mounting housing (15-degree tilt angle) that reduces cable bend stress, prevents accidental cable snagging, and provides natural water shedding off the housing.

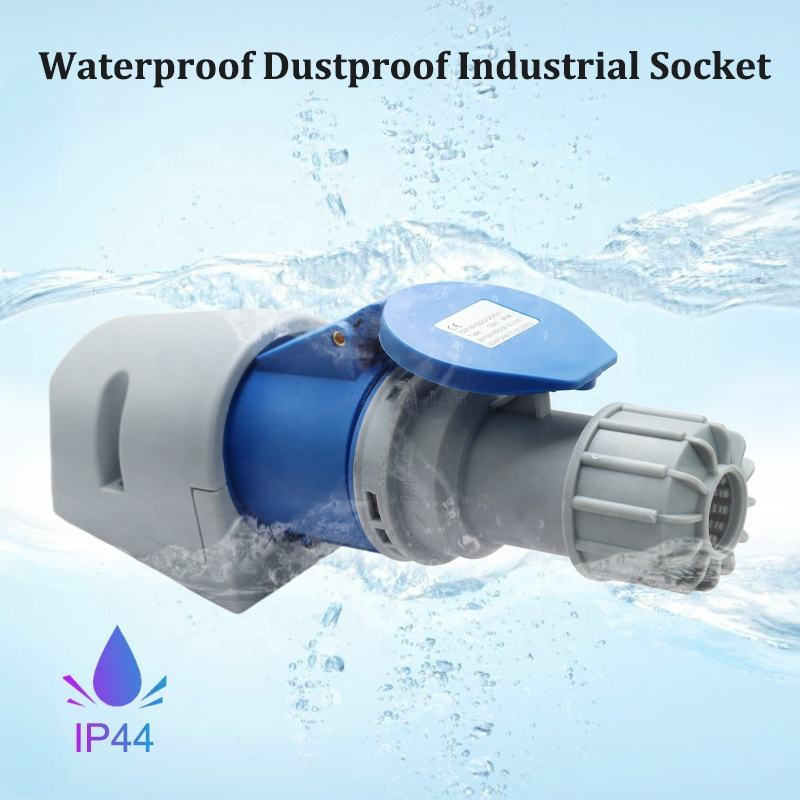

IP44 Weatherproof Rating: Integrated spring-loaded hinged protective cover forms a tight seal over the female receptacle, shielding the internal electrical contacts against solid object ingress (>1mm) and multi-directional water splashes.
Flame-Retardant Polymer Casing: Formulated from high-impact, UV-stabilized, and self-extinguishing thermoplastic material engineered to withstand mechanical drops, oil exposure, chemical splashing, and extreme ambient temperature shifts (-25°C to +40°C).

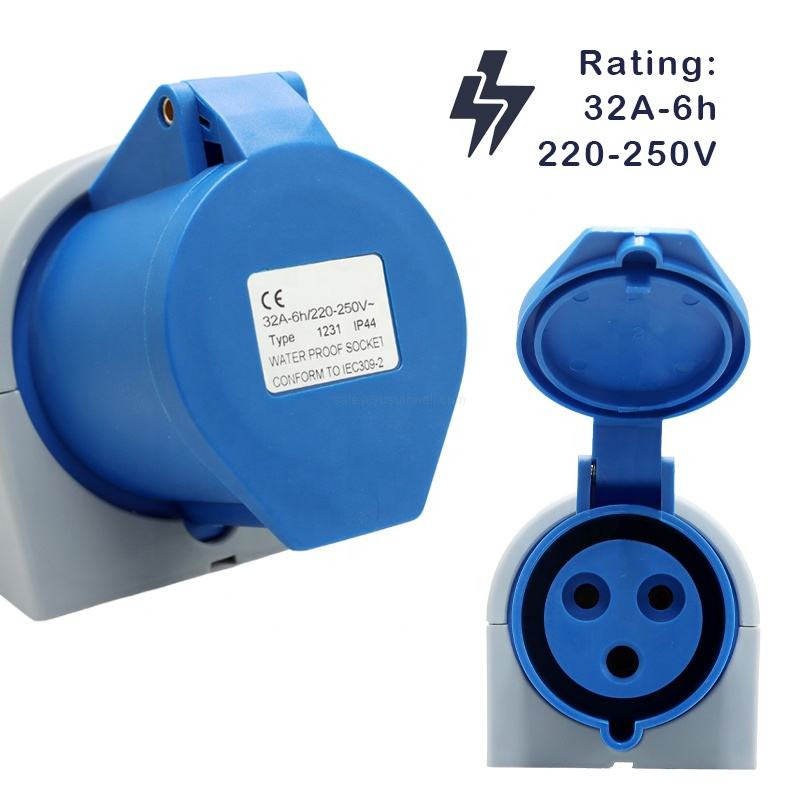

This socket is rated for 32 Amps and 220-250V AC, single-phase (2P+E, 3 pins). In compliance with IEC 60309-2 standards, the earth ground position is set at the 6h (6 o'clock) position, denoted by the blue color-coding standard for 200-250V industrial power systems.
The internal terminal screw blocks are engineered to securely clamp solid or stranded copper conductors with a nominal cross-sectional area between 2.5 mm² and 6 mm². Using wire within this specified cross-section guarantees proper electrical contact pressure and thermal stability.
Yes. The product carries an IP44 ingress protection rating and features an auto-closing spring flap. When mounted on a vertical wall or panel, the housing protects the live electrical components against splashing water from any angle as well as windborne dust and dirt particles.

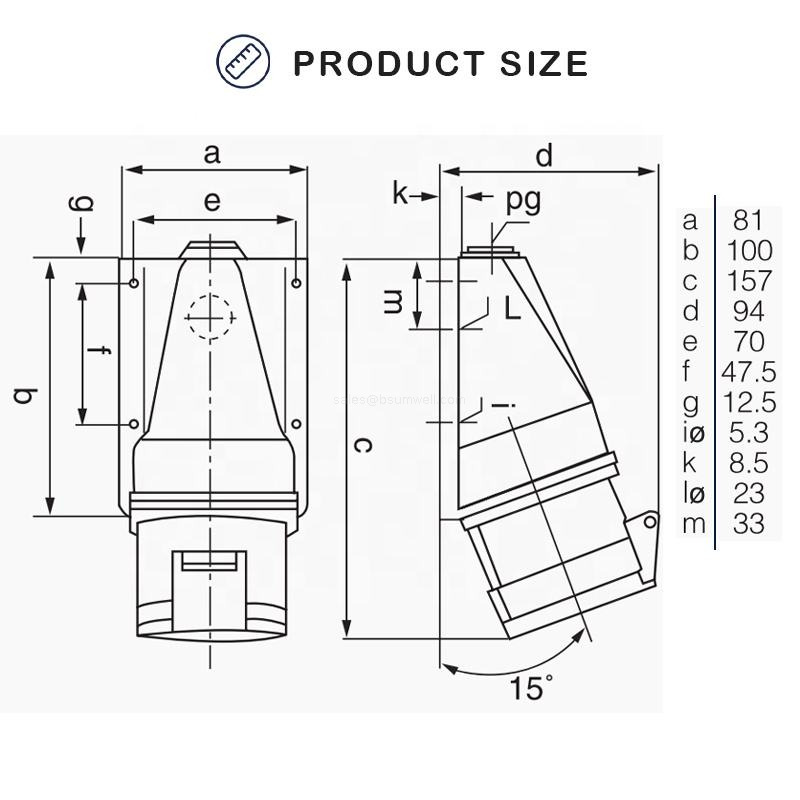

The base footprint measures 81 mm in total width (a) by 100 mm in height (b), with a total wall-to-front depth profile of 94 mm (d) and an overall assembly height of 157 mm (c). The mounting hole layout features a horizontal center spacing of 70 mm (e) and vertical center spacing of 47.5 mm (f).
