PS-RC06
BSUMWELL/ OEM
$0.18 - $0.35
| SKU: | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Availability: | |||||||||
| Quantity: | |||||||||

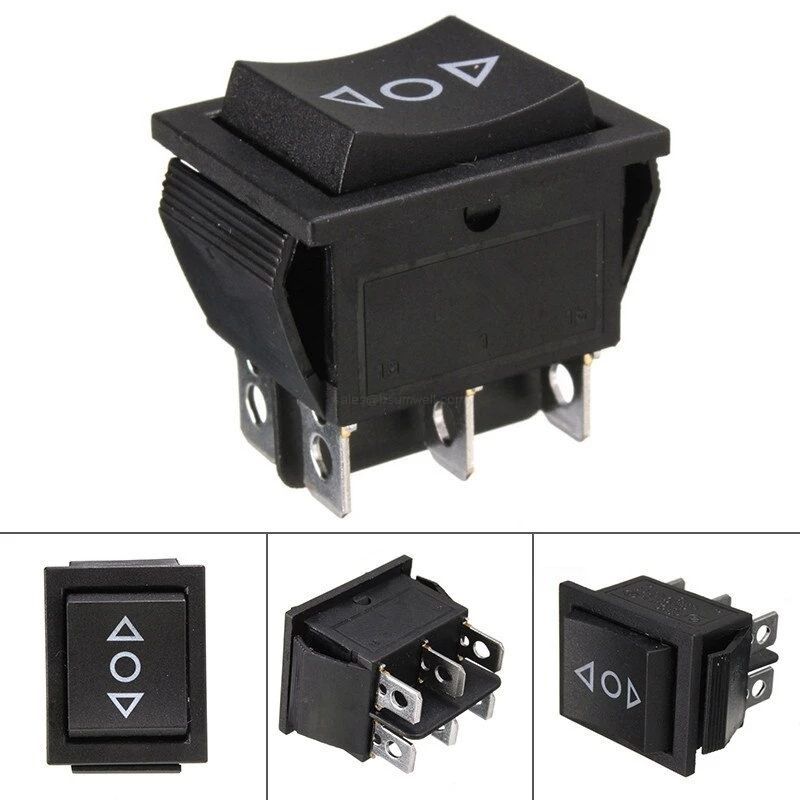

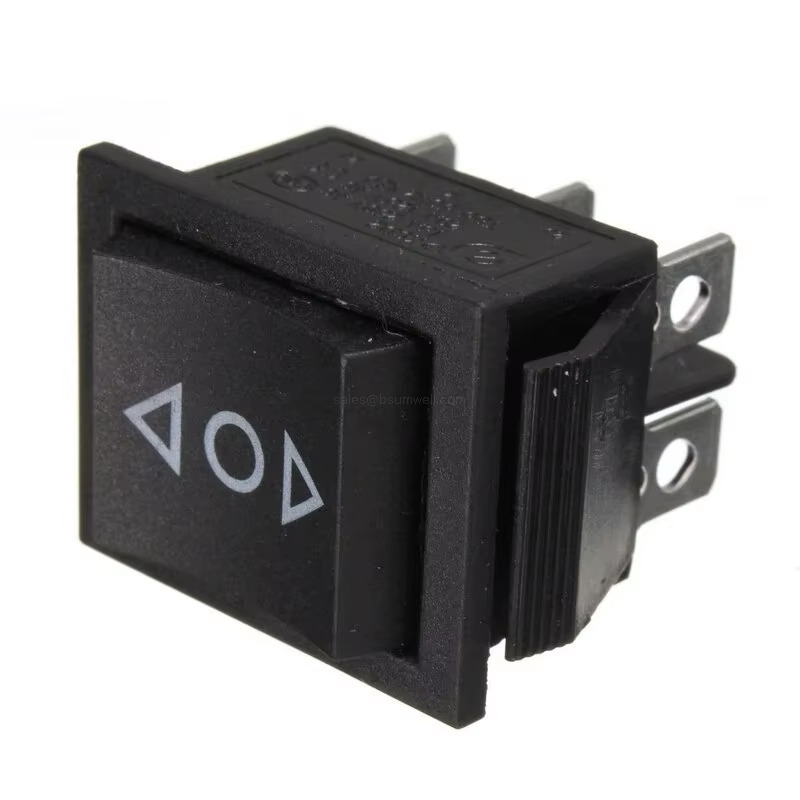

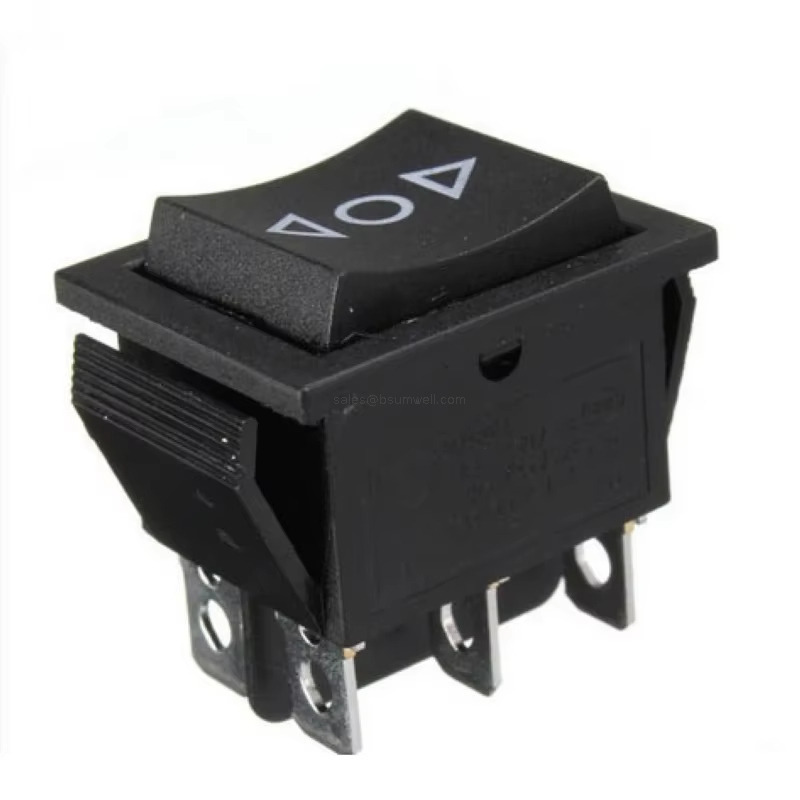

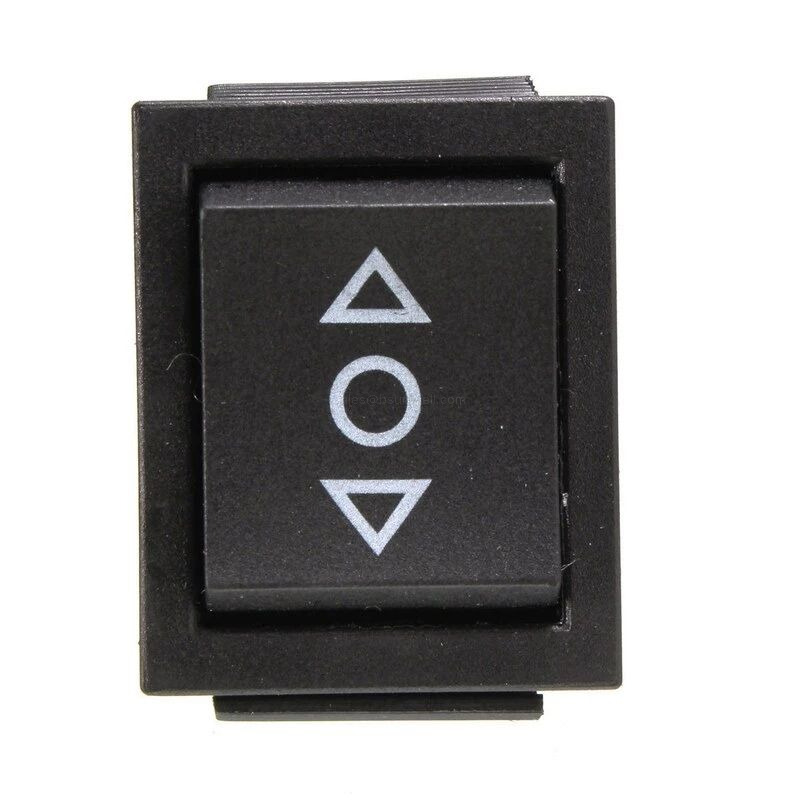

| Engineered specifically for heavy-duty industrial automotive and precision equipment applications this Double Pole Double Throw DPDT 6 pin rocker switch delivers robust double pole switching and polarity reversal functionality. It features a highly reliable 3 position toggle architecture with clear direction and stop laser etched markings providing precise Forward Stop Reverse or Up Off Down control for AC and DC motors power supply selection and dual circuit switching. Internally high grade conductive alloy contacts ensure consistent electrical throughput with exceptionally low contact resistance of ≤ 50 mΩ and minimal voltage drop even under continuous load. | |||||||||
Engineering Excellence and Core Capabilities
Engineered specifically for heavy-duty industrial automotive and precision equipment applications this Double Pole Double Throw DPDT 6 pin rocker switch delivers robust double pole switching and polarity reversal functionality. It features a highly reliable 3 position toggle architecture with clear direction and stop laser etched markings providing precise Forward Stop Reverse or Up Off Down control for AC and DC motors power supply selection and dual circuit switching. Internally high grade conductive alloy contacts ensure consistent electrical throughput with exceptionally low contact resistance of ≤ 50 mΩ and minimal voltage drop even under continuous load.
Precision Electrical Ratings and Thermal Resilience
The switch is rigorously engineered to meet demanding electrical standards providing a rated voltage and current of 16A 250VAC and 20A 125VAC. It offers strong dielectric strength of 1500VAC for 5 seconds between current carrying poles and insulation resistance of ≥ 100 MΩ at 500V DC testing. The component sustains an electrical life expectancy of ≥ 10 000 operating cycles under rated load. Rated up to T120 working temperature limits operating from -25°C to +120°C it guarantees thermal endurance in challenging environments.
Precision Panel Integration and Mechanical Specifications

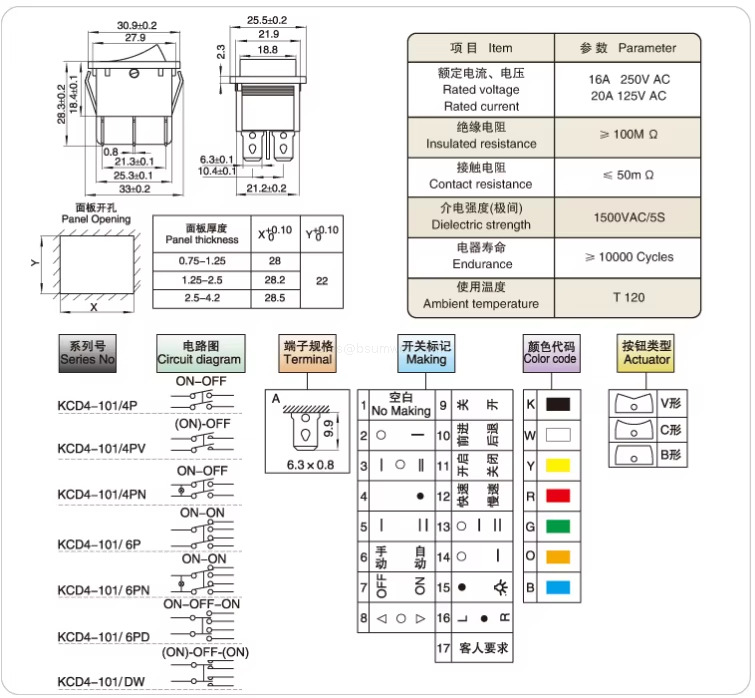

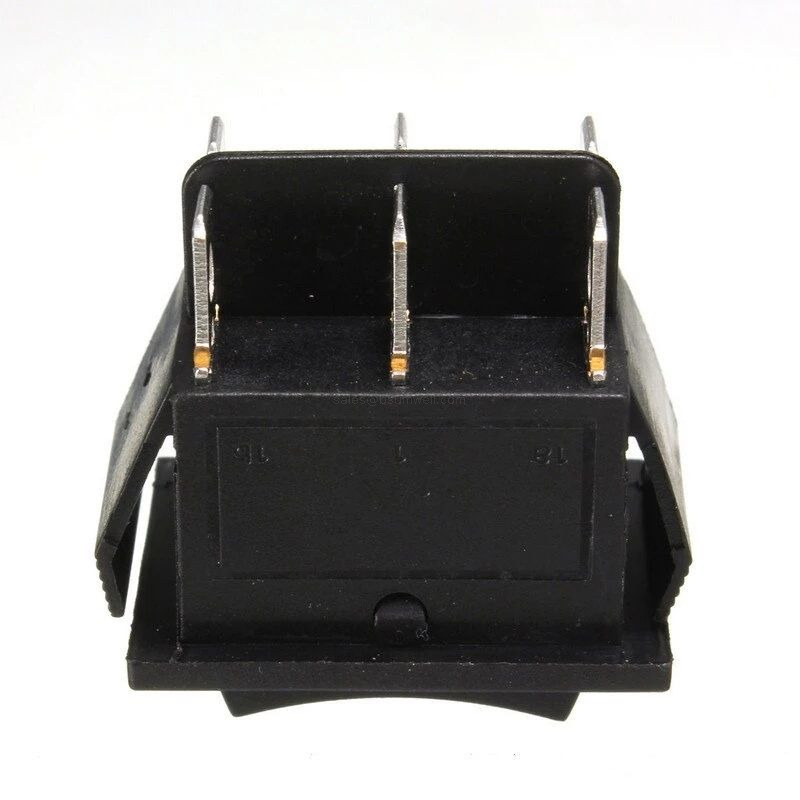

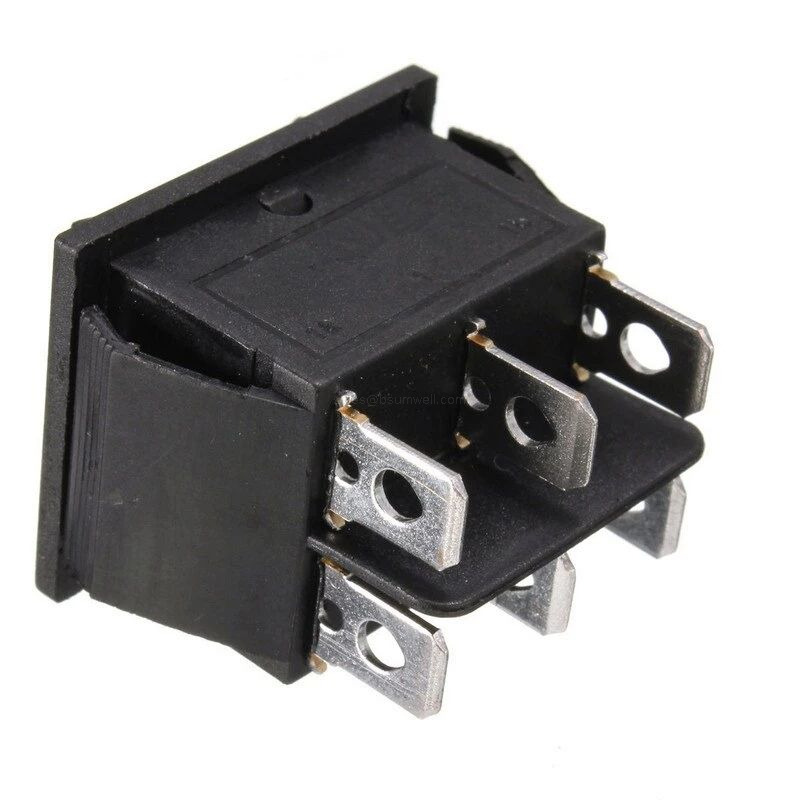

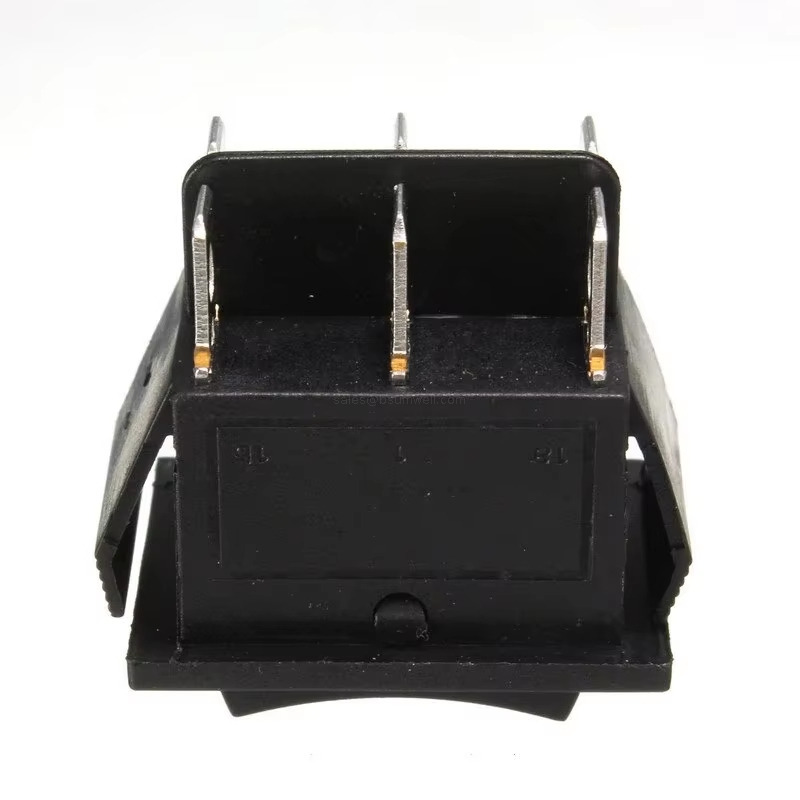

Designed for tool free snap in installation the housing incorporates dual retention side latches that ensure high retention force across multiple panel thicknesses. The standard panel cutout width Y axis is 22.0 mm. The required X axis cutout lengths are precisely adapted to the panel thickness 28.0 mm for 0.75 1.25 mm thickness 28.2 mm for 1.25 2.50 mm thickness and 28.5 mm for 2.50 4.20 mm thickness. Terminals utilize the standard 6 pin 6.3 mm x 0.8 mm 250 series quick connect spade design which is fully compatible with push on female crimp connectors or direct soldering.
Quality Assurance and Practical Application
Constructed with a flame retardant polyamide casing and heat resistant actuator body each switch undergoes strict mechanical fatigue testing and 100 percent dielectric voltage withstand checks to ensure consistent quality. These switches are widely applied across automotive power windows electric hoists winch control boxes linear actuators industrial machinery control panels and premium home appliances requiring reliable directional motor management.
FAQ Content
Q1 Can this switch be used for controlling motor direction
Yes this DPDT 6 pin switch features a 3 position toggle architecture that allows you to reverse the polarity of a DC motor allowing for Forward Stop Reverse or Up Off Down operation. It is also suitable for dual circuit switching in AC environments.
Q2 What are the panel cutout dimensions for different thicknesses
The standard width Y axis is 22.0 mm. For the length X axis the cutout size must match your panel thickness For 0.75 to 1.25 mm the required cutout is 28.0 mm For 1.25 to 2.50 mm it is 28.2 mm and for 2.50 to 4.20 mm the cutout should be 28.5 mm
Q3 What is the specific electrical and temperature rating
This switch is rated at 16A 250VAC and 20A 125VAC. It has a dielectric strength of 1500VAC for 5 seconds and insulation resistance of ≥ 100 MΩ at 500V DC. It offers a T120 thermal rating allowing operation between -25°C and +120°C
Q4 What type of terminals does this switch use
It uses standard 6 pin 6.3 mm x 0.8 mm 250 series quick connect spade terminals. These are designed for use with push on female crimp connectors and also support direct soldering for fixed installations
