connector
BSUMWELL/ OEM
$1.8 - $2.9
| Quantity: | |||||||||
|---|---|---|---|---|---|---|---|---|---|

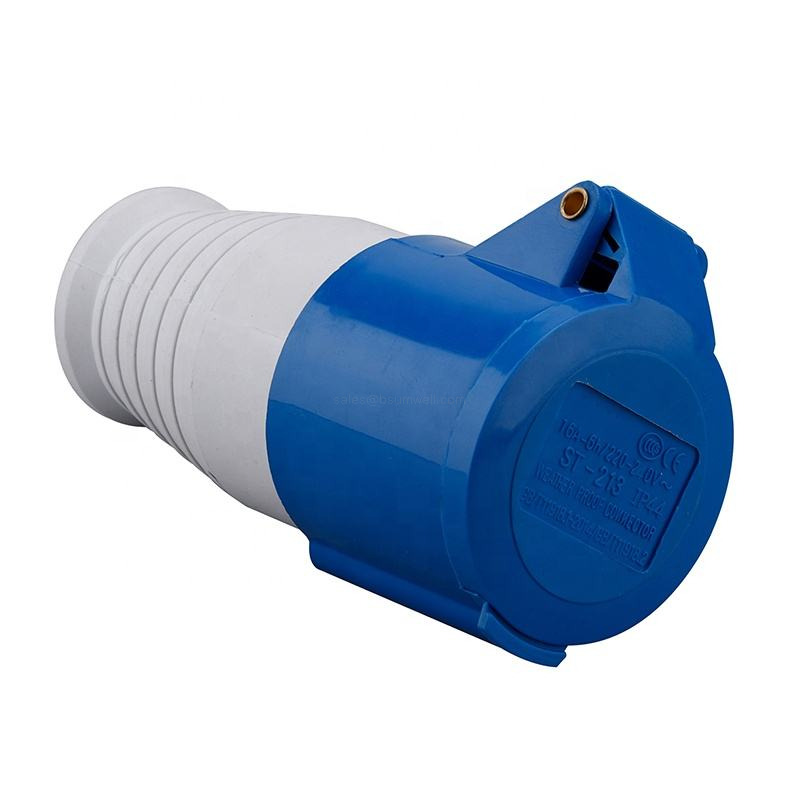

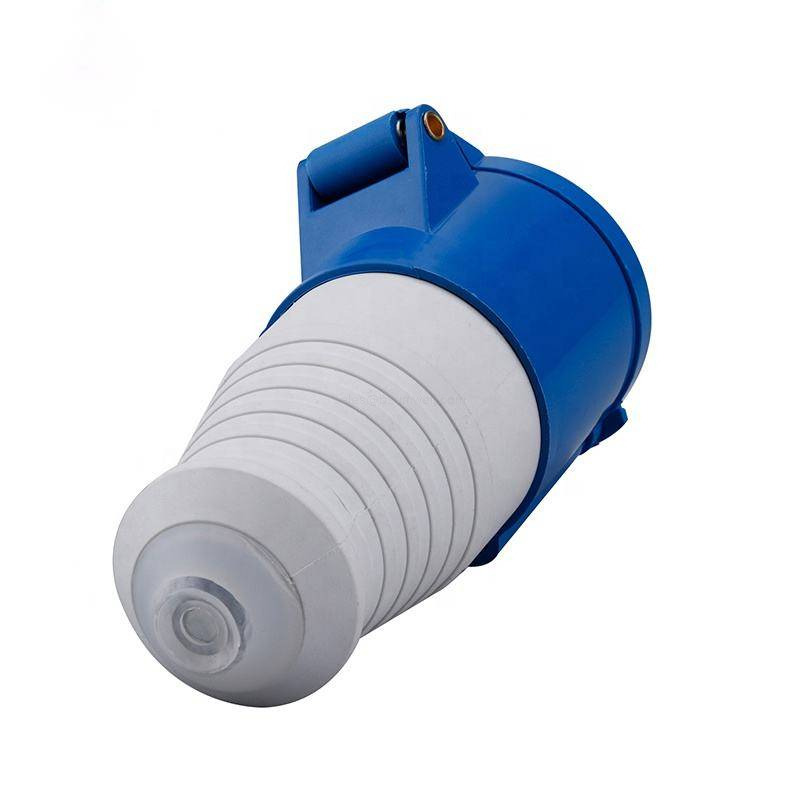

| Engineered in full compliance with IEC 60309-1 / IEC 60309-2 international standards, this heavy-duty industrial plug and socket series provides secure power distribution for single-phase (110V–230V) and three-phase (380V–500V) electrical systems. Available in 16A and 32A current configurations across 3-pin (2P+E), 4-pin (3P+E), and 5-pin (3P+N+E) pin layouts, these connectors ensure error-free mechanical keying to prevent improper voltage pairing across industrial installations. | |||||||||
Engineered in full compliance with IEC 60309-1 / IEC 60309-2 international standards, this heavy-duty industrial plug and socket series provides secure power distribution for single-phase (110V–230V) and three-phase (380V–500V) electrical systems. Available in 16A and 32A current configurations across 3-pin (2P+E), 4-pin (3P+E), and 5-pin (3P+N+E) pin layouts, these connectors ensure error-free mechanical keying to prevent improper voltage pairing across industrial installations.

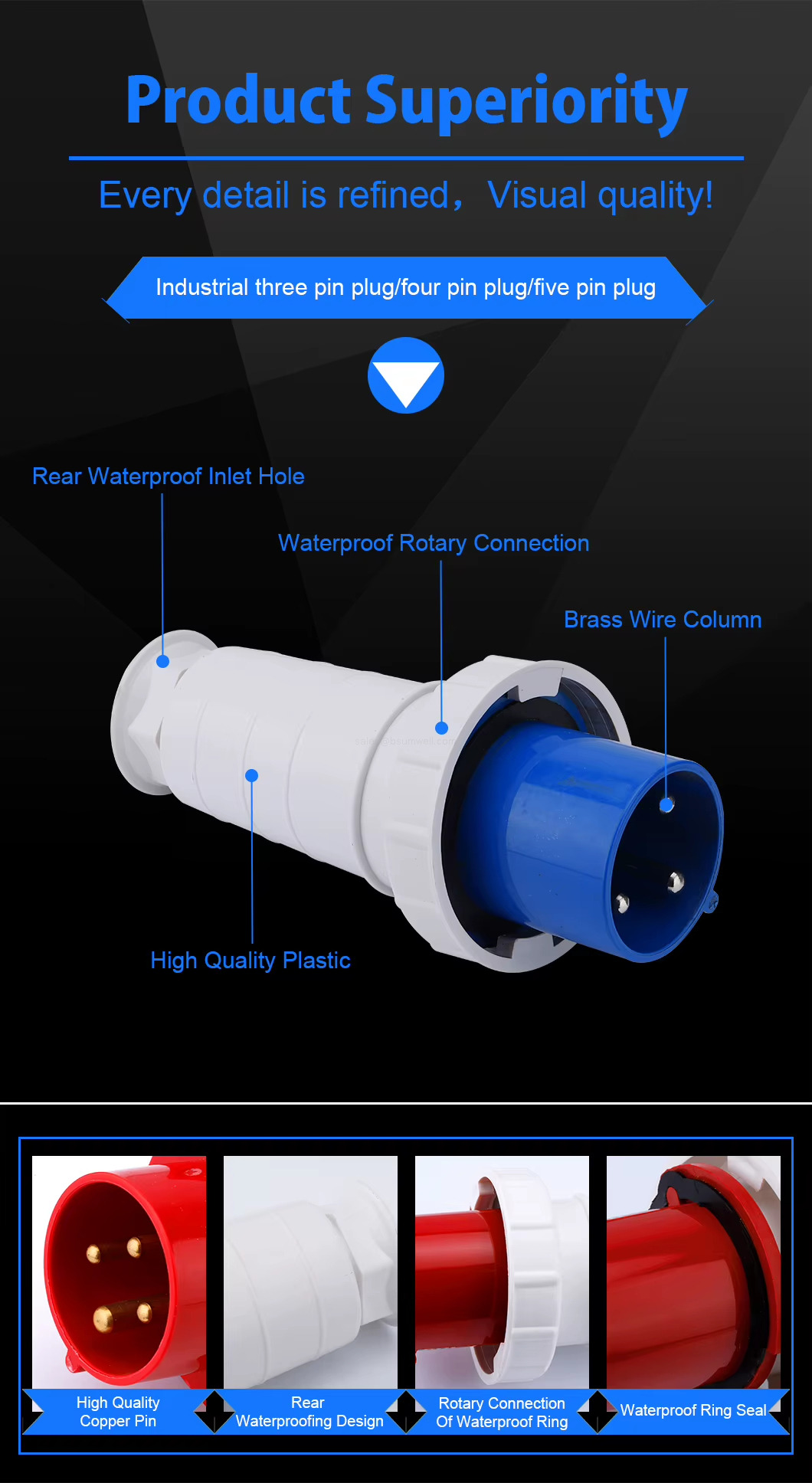

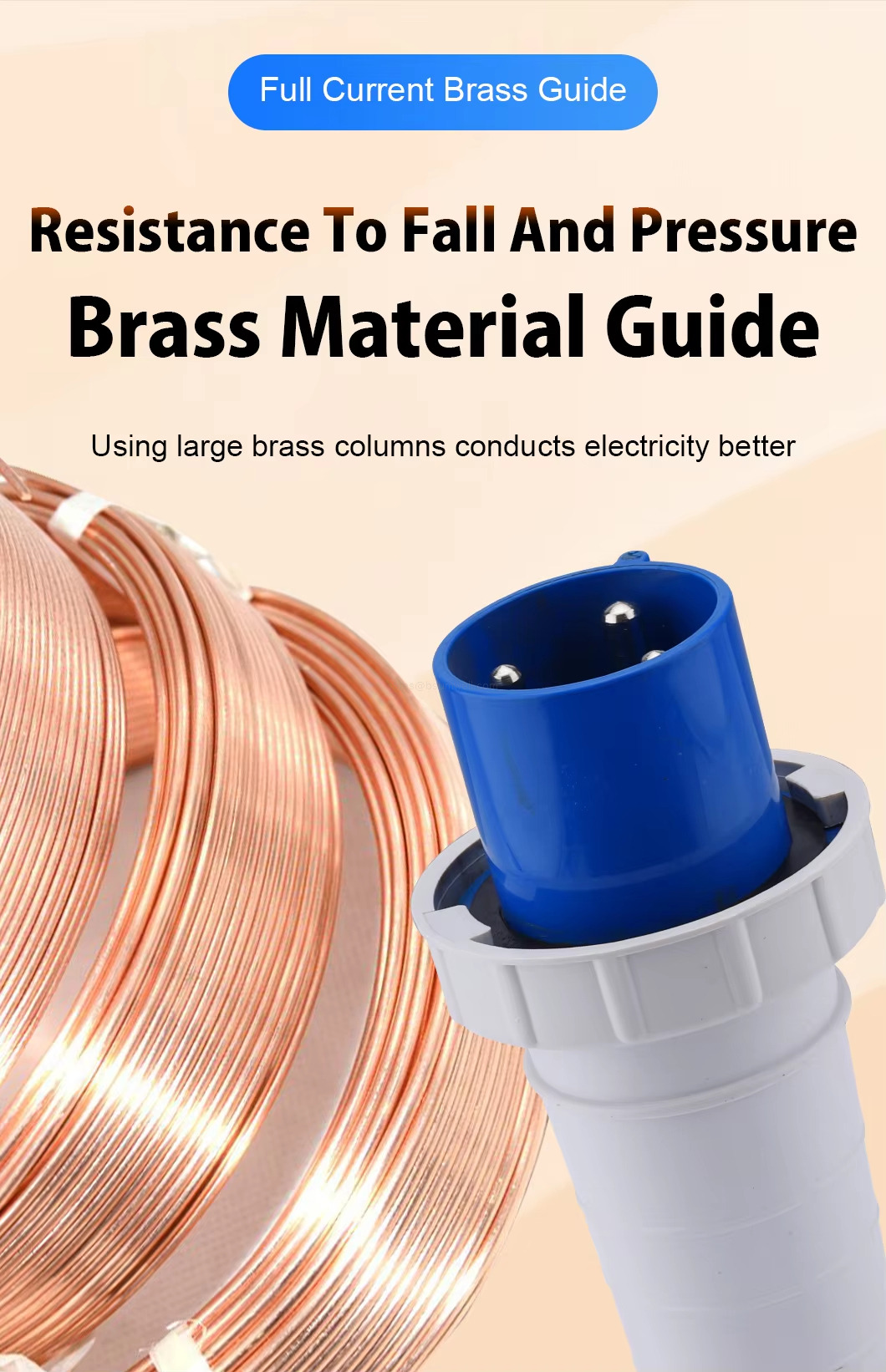

Solid Brass Contact Pins: Precision-machined solid brass contacts provide maximum electrical conductivity, minimal contact resistance, and thermal stability during continuous high-load operations.
Impact & Chemical Resistant Casing: Constructed from high-grade thermoplastic housing (PA66 / PC blend) offering superior flame retardancy (UL94-V0 rated), high dielectric strength, and resistance against oil, grease, weak acids, and mechanical impacts.
Dual-Action Waterproofing: Features a threaded locking ring mechanism with internal rubber gasket seals and a rear strain-relief cable gland to maintain consistent IP44 or IP67 ingress protection against heavy water jets, dust ingress, and outdoor environmental exposure.

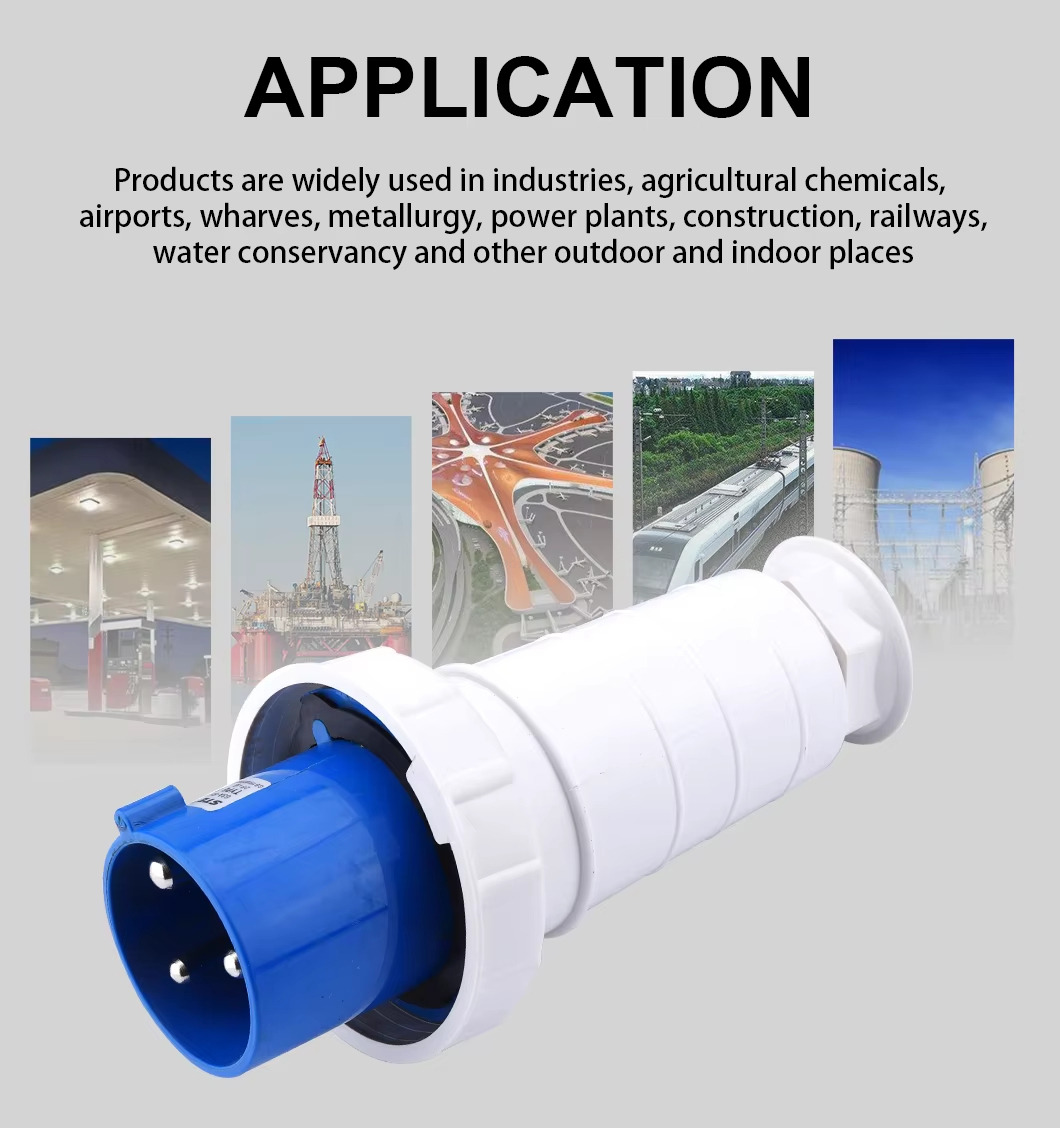

Manufactured under strict ISO 9001 quality management protocols. Fully tested and certified for CE, RoHS, and REACH compliance, making them suitable for heavy-duty deployment in construction sites, metallurgical plants, power generation facilities, agricultural equipment, outdoor venues, and marine docks.
These products adhere strictly to IEC 60309 standards, ensuring universal mechanical and electrical compatibility with standardized industrial power distribution equipment globally.

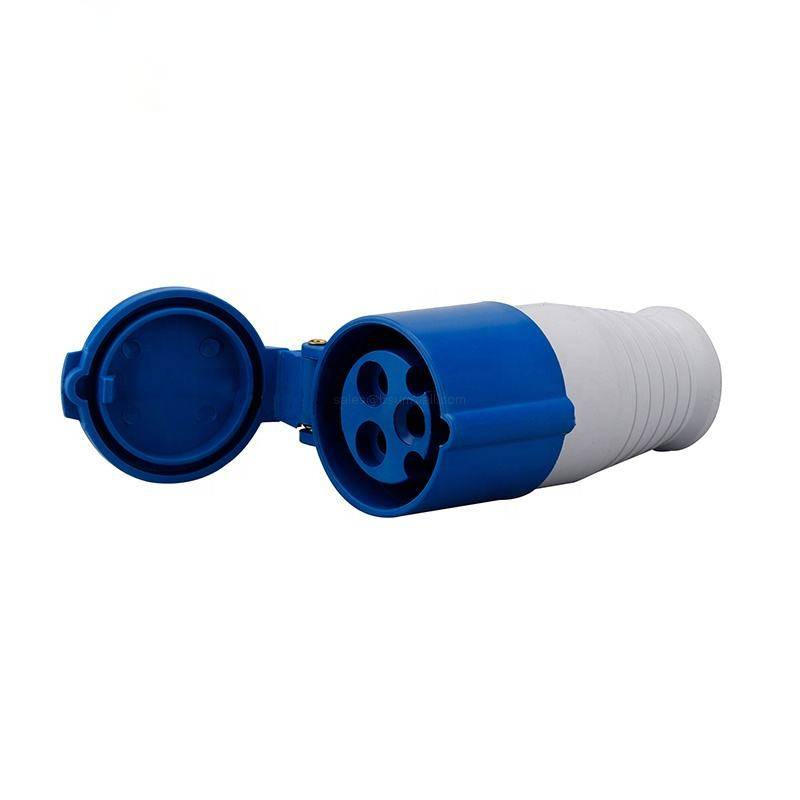

IP44 models feature a spring-loaded splash-proof cover suitable for indoor factories, sheltered construction zones, and general outdoor splash-prone environments. IP67 models use a threaded locking seal ring for dust-tight and temporary immersion protection in heavy rainfall or washdown conditions.

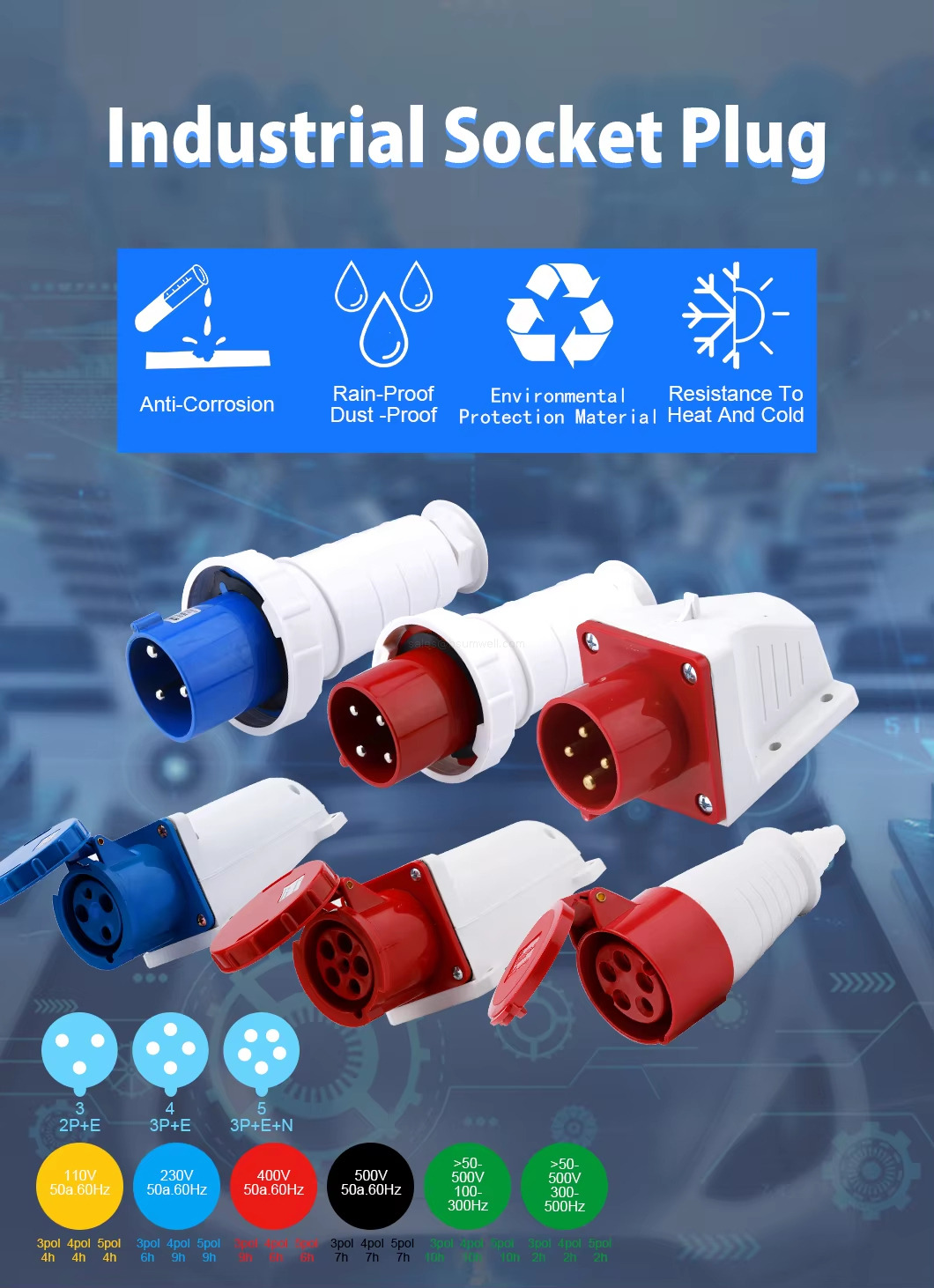

Standard IEC color coding is utilized: Yellow indicates 110V–130V (50/60Hz), Blue indicates 220V–250V single-phase systems, and Red indicates 380V–480V three-phase electrical connections.
Yes. The outer thermoplastic shell is formulated with UV stabilizers and high chemical resistance, preventing material degradation, cracking, or color fading when exposed to sunlight, motor oil, or industrial solvents over prolonged operational cycles.
