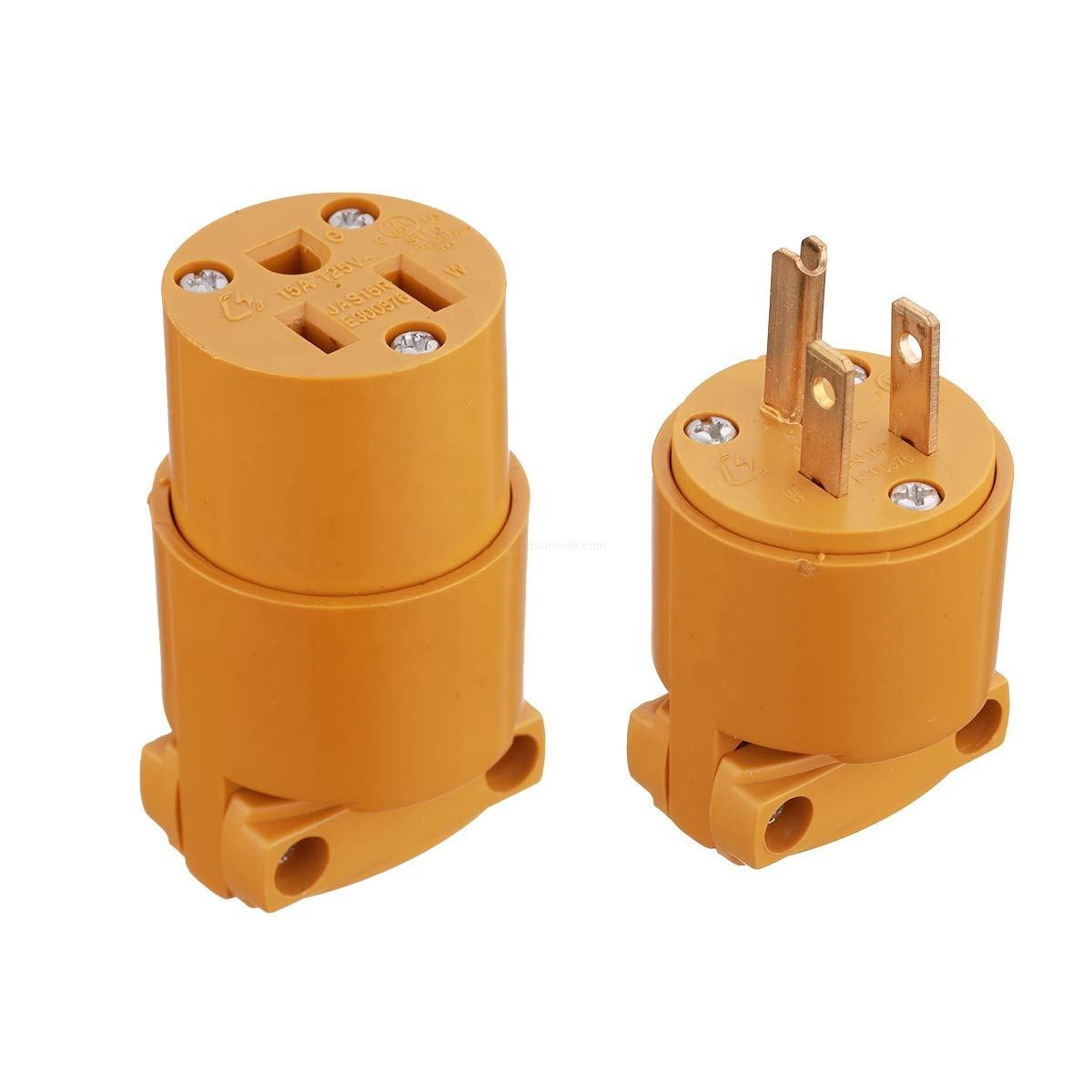

Heavy Duty 15A 125V NEMA 5 15P Male Plug Female Receptacle Set Grounded Replacement Electrical Extension Cord Ends

Key attributes

Product Description & Technical Overview

Electrical Conductivity and Heavy-Duty Material Architecture

Engineered for industrial, commercial, and heavy-duty residential applications, this male plug and female receptacle set conforms to the standard NEMA 5-15 configuration (2-pole, 3-wire grounding, rated for 15 Amps and 125 Volts). The terminal blades and internal contact clips are constructed from solid, high-conductivity brass, minimizing contact resistance, preventing voltage drop, and reducing thermal buildup under continuous current loads.

The external casing is molded from high-impact, flame-retardant polycarbonate/nylon housing designed to resist severe mechanical impacts, crushing force, and chemical exposure in demanding workshop and job site environments.

Ergonomic Strain Relief and Wiring Security

• Integrated Dual-Screw Cord Clamp: Features an adjustable rear strain-relief collar that firmly grips outer cable jackets ranging from standard SPT wiring up to thick 12/3 SJT/SJOOW round power cords. This mechanism prevents pull-out tension from damaging internal electrical connections.

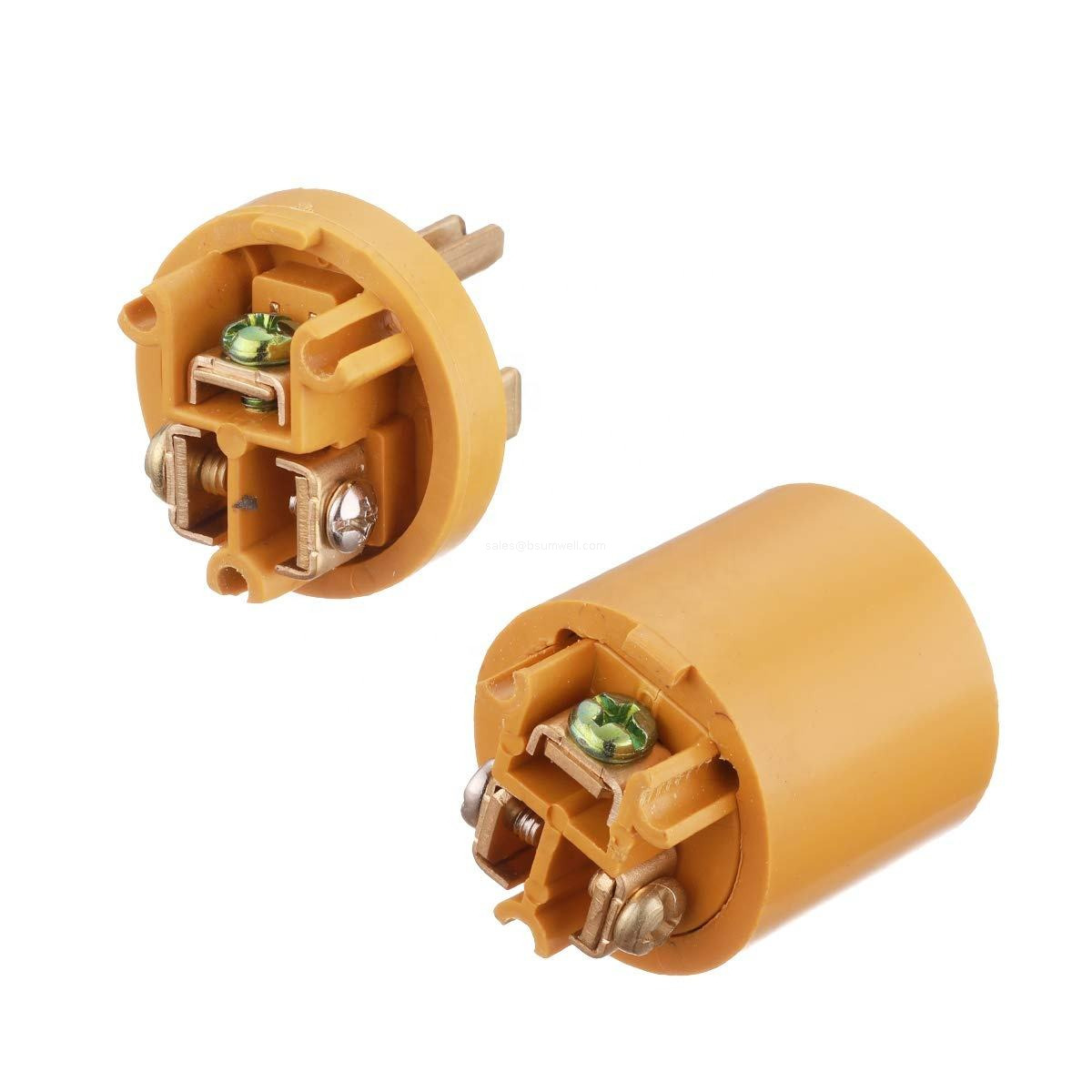

• Color-Coded Terminal Identification: The internal wiring module incorporates industry-standard color-coded terminal screws—green for grounding conductors, brass/dark for hot wires, and silver for neutral wires—ensuring error-free wiring alignment during maintenance or field repairs.

• Deep Wire-Well Design: Terminal clamps utilize pressure plates and deep conductor wells that firmly trap stranded wire ends without fraying or shear damage, maintaining long-term physical and electrical integrity.

Tool-Free Enclosure Alignment & Field Serviceability

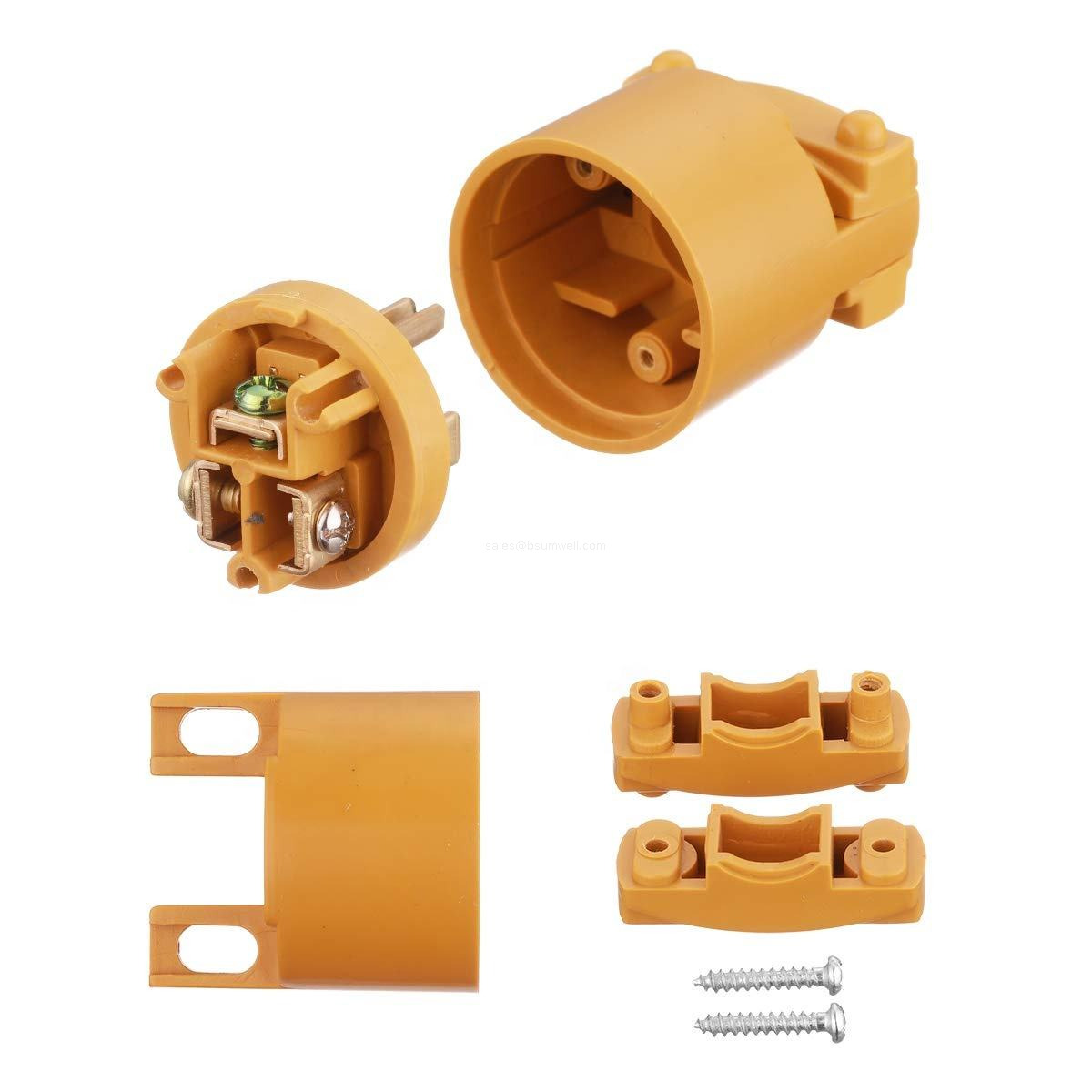

Designed for quick repair of damaged power cords, extension cables, and motorized equipment leads, the module utilizes a dual-piece split housing held by corrosion-resistant steel assembly screws. The modular plug insert keyway allows quick alignment and tool-assisted assembly using only a standard screwdriver.

Frequently Asked Questions (FAQ)

What wire gauges and cable types are compatible with these replacement plug ends?

This replacement set is designed to accommodate 3-wire grounded flexible cords ranging from 18 AWG to 12 AWG (such as SJT, SJTO, SJOOW, and standard extension cable jackets). The adjustable rear clamp ensures a tight mechanical fit on varying cable outer diameters up to approximately 0.45 inches.

How are the internal wiring terminals coded for correct electrical connection?

The internal module utilizes standard electrical terminal identification protocols. Connect the green (or bare copper) ground wire to the green terminal screw, the black (hot) wire to the brass terminal screw, and the white (neutral) wire to the silver terminal screw to ensure proper polarity and ground continuity.

Can this plug set be used outdoors or in wet environments?

While the heavy-duty thermoplastic body provides robust protection against mechanical impact, dust, and light moisture, these straight-blade connectors are non-gasketed and intended for dry or weather-protected indoor/outdoor job site conditions. They should not be submerged in water or used in direct rain without additional weatherproof protective covers.

Is specialized tooling required to assemble or rewire these connectors?

No. The entire assembly can be completed using a standard Phillips or flat-head screwdriver. Strip the outer cord jacket and wire conductors to the specified length, secure the wires under the terminal clamps, slide the outer shell over the module, and tighten the outer housing and strain-relief screws.
