| IP44 Waterproof ABS UV Resistance 16A 32A CEE Panel Mounted Socket with Magnet Cover Back Cover for Caravan Power Charging | |||||||||
Professional Grade RV Power Integration
Engineered for rigorous outdoor environments, this panel-mounted CEE power inlet delivers a secure electrical connection for caravans, campers, and specialized mobile facilities. Constructed from premium UV-resistant ABS plastic, the external housing resists structural degradation and brittleness caused by prolonged sun exposure. This heavy-duty material selection significantly extends the product lifecycle, prioritizing long-term durability and an optimized total cost of ownership for outdoor applications.
Technical Specifications and Industrial Standards

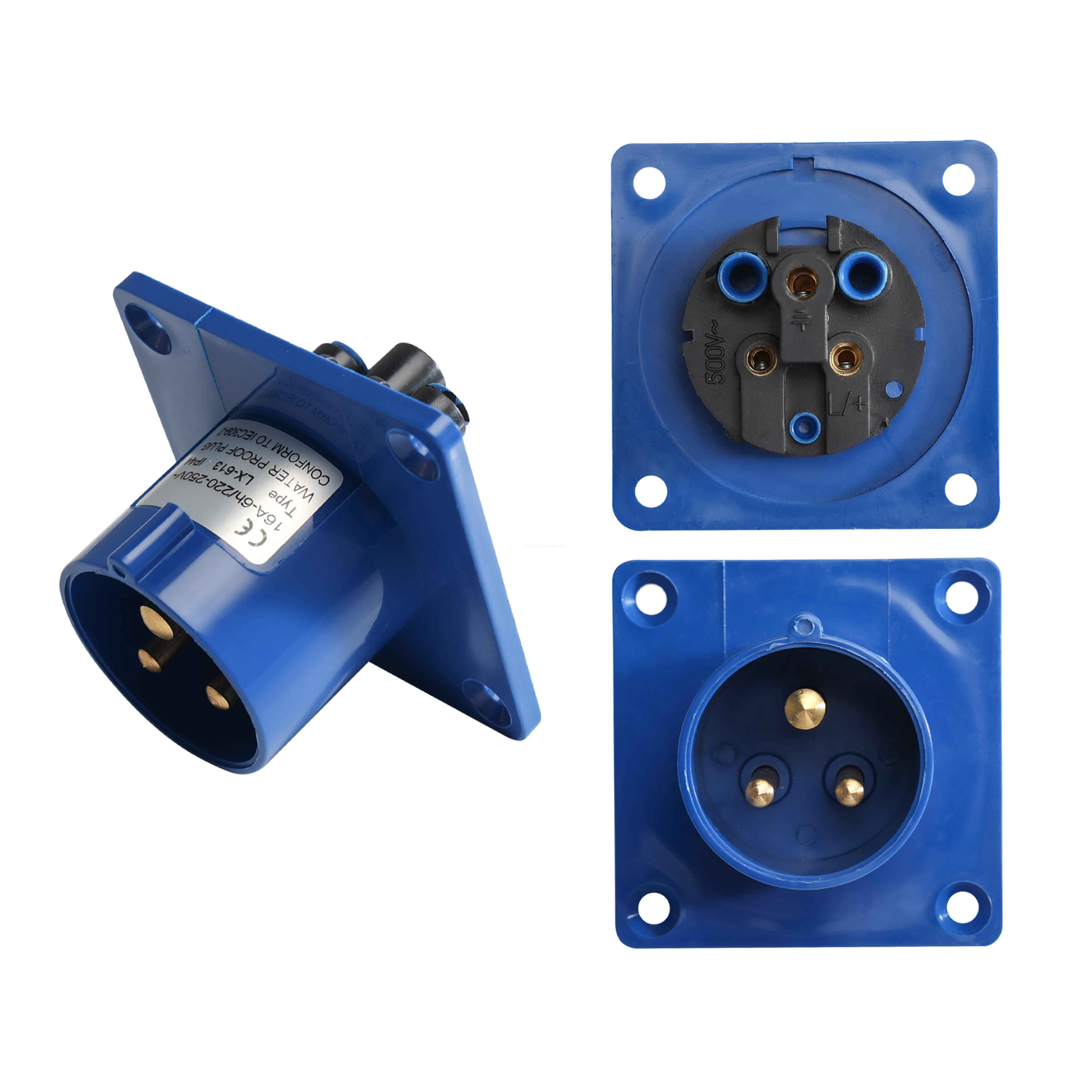

Electrical safety and compliance are foundational to this design. The internal electrical receptacle conforms strictly to IEC309-2 industrial standards. It operates with a rating of 16A-6h/220-250V~, ensuring stable, high-capacity power transmission under continuous loads. The complete unit carries a certified IP44 waterproof rating, effectively protecting the internal three-pin brass contacts from splashing water and environmental particulates.
Innovative Ergonomics and Structural Integrity

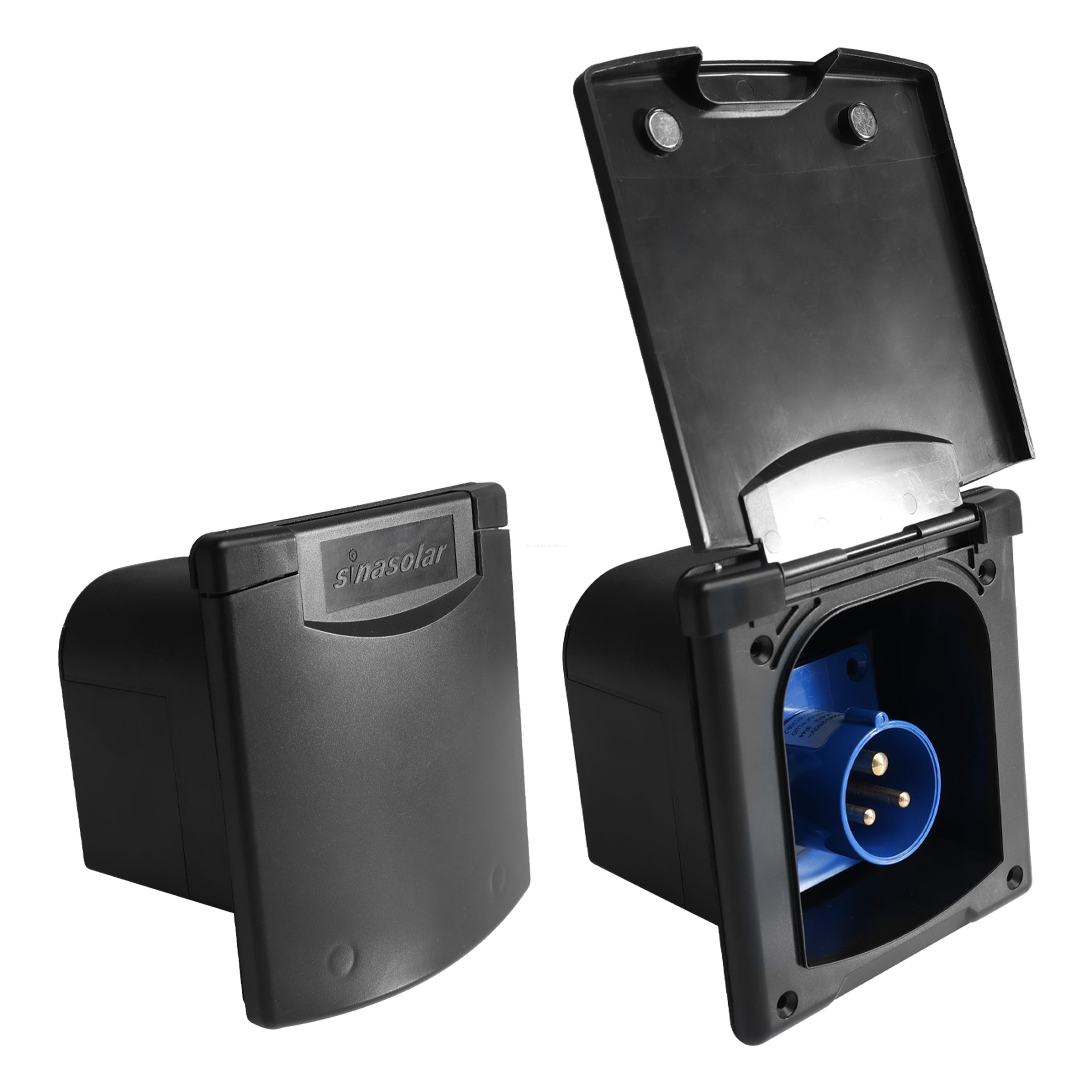

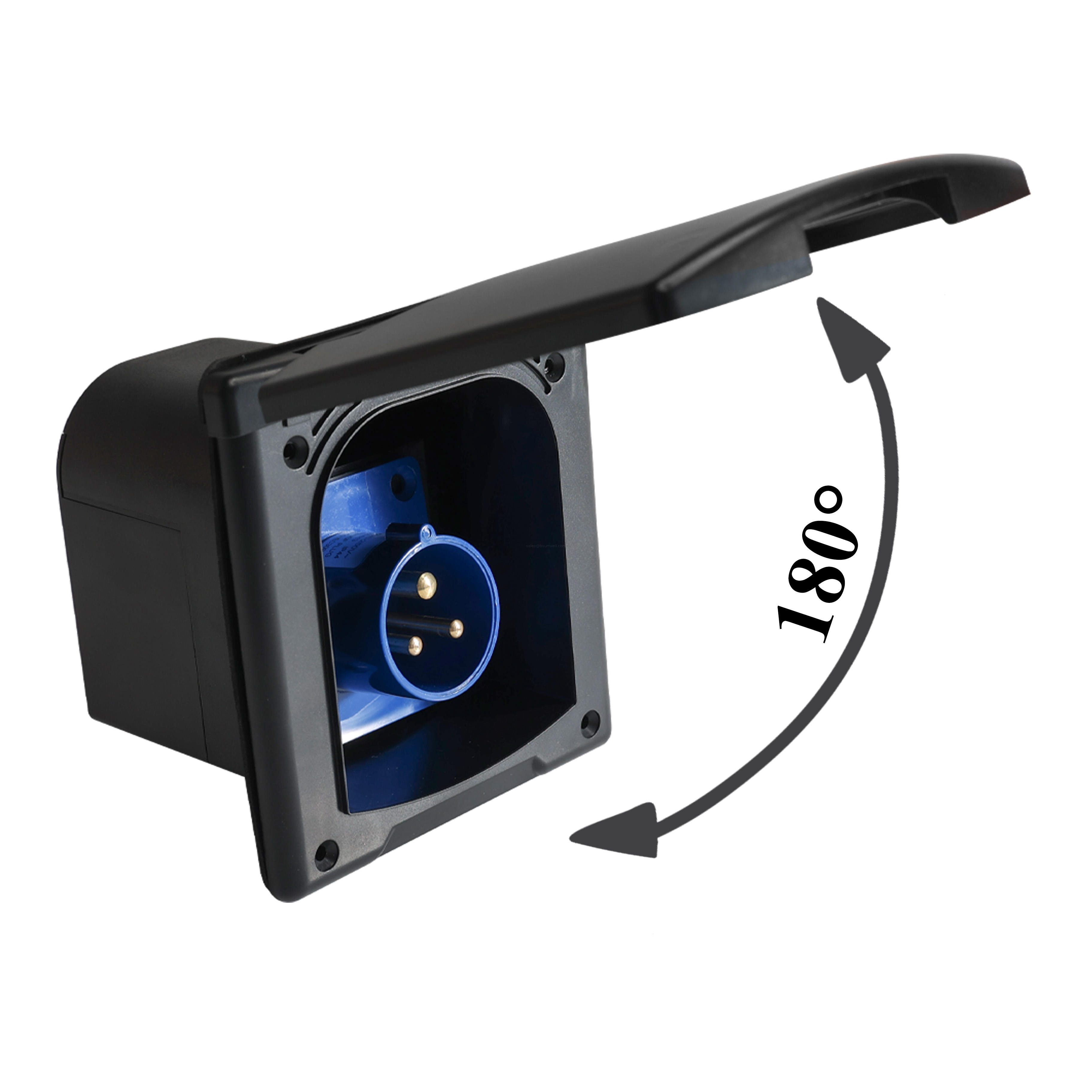

To accommodate heavy-duty industrial cables without physical interference, the protective front cover is equipped with a functional 180-degree wide-angle hinge. To guarantee the socket remains sealed against environmental ingress during highway transit or high winds, the cover integrates a dual magnetic locking mechanism firmly seated into the inner flap.
Optimized Installation Architecture

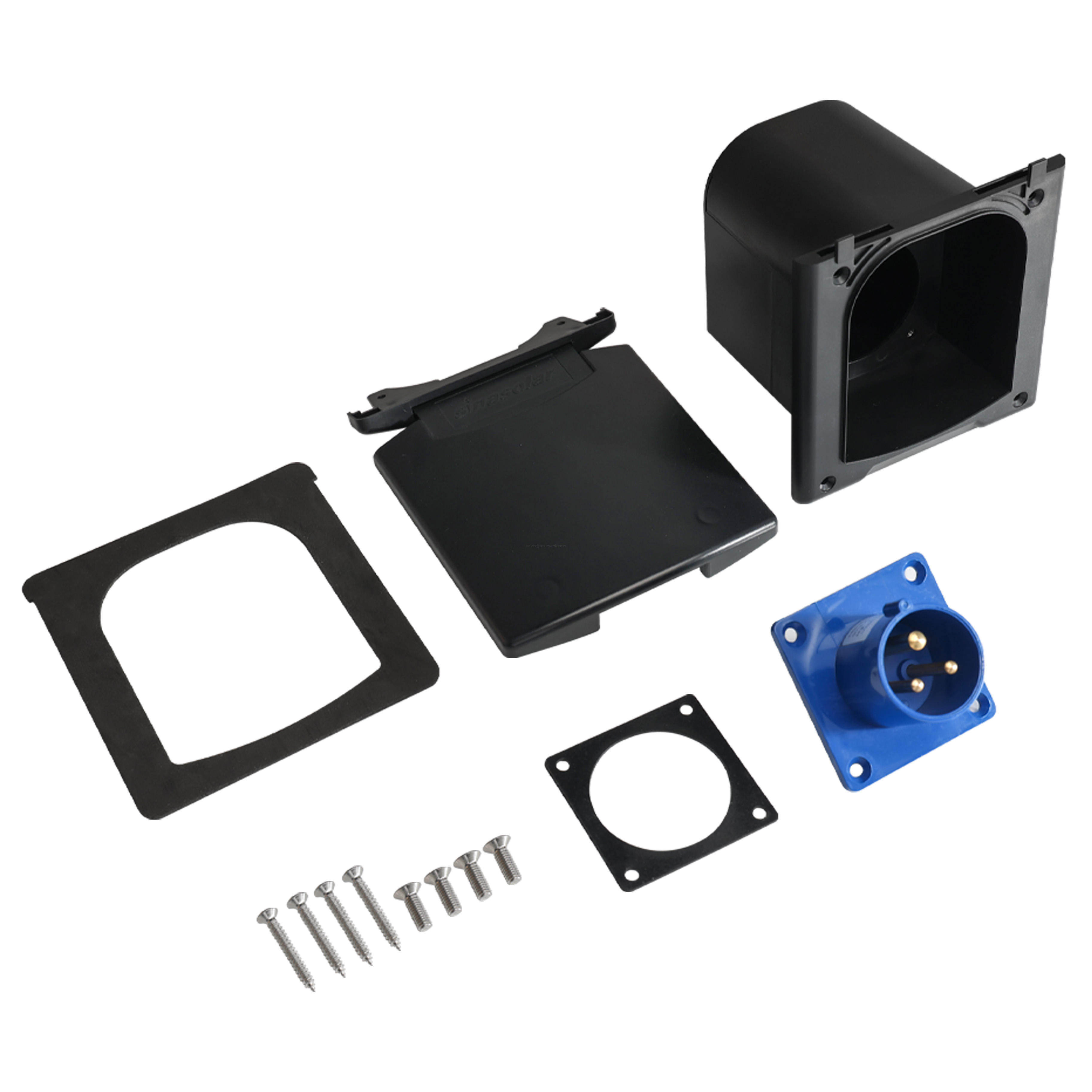

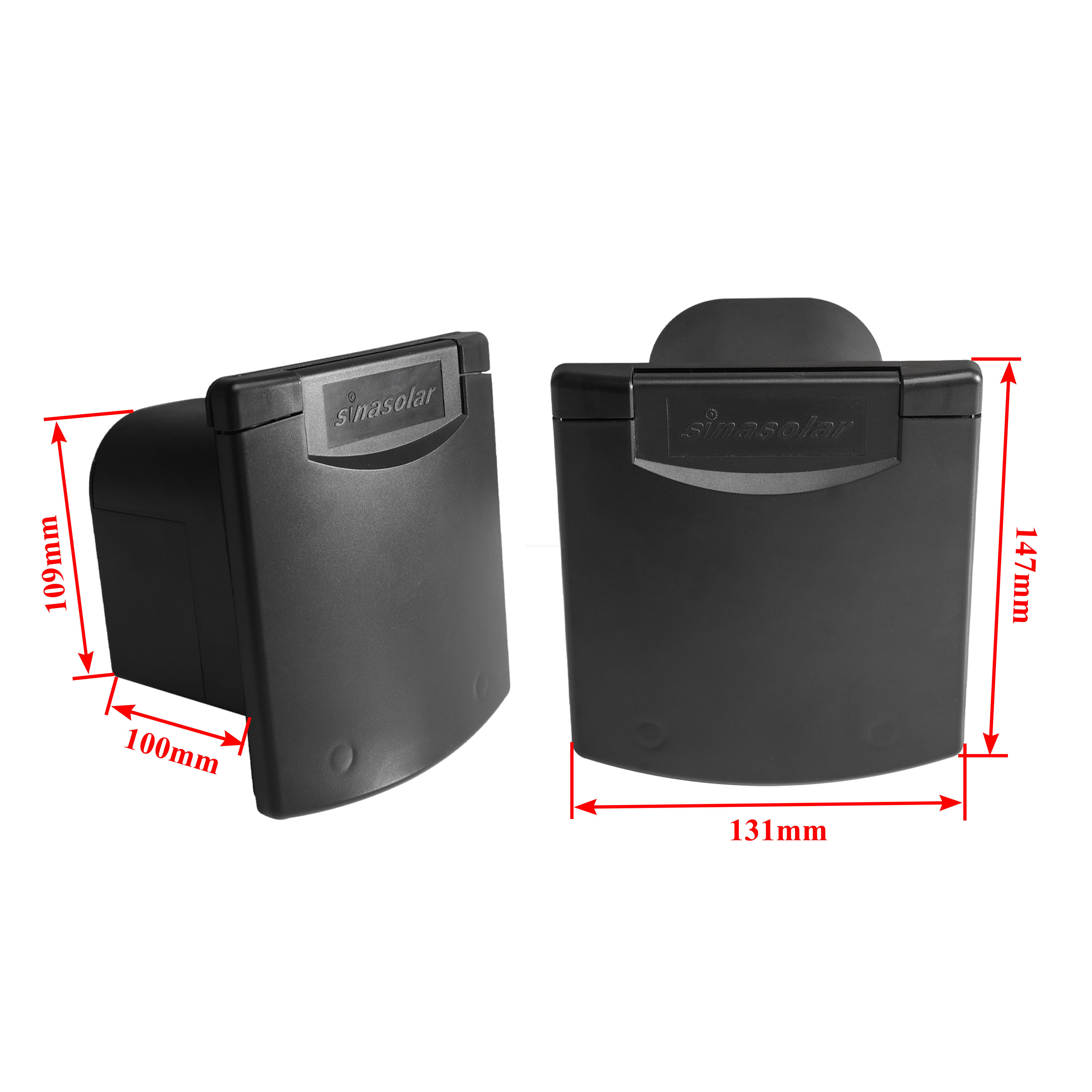

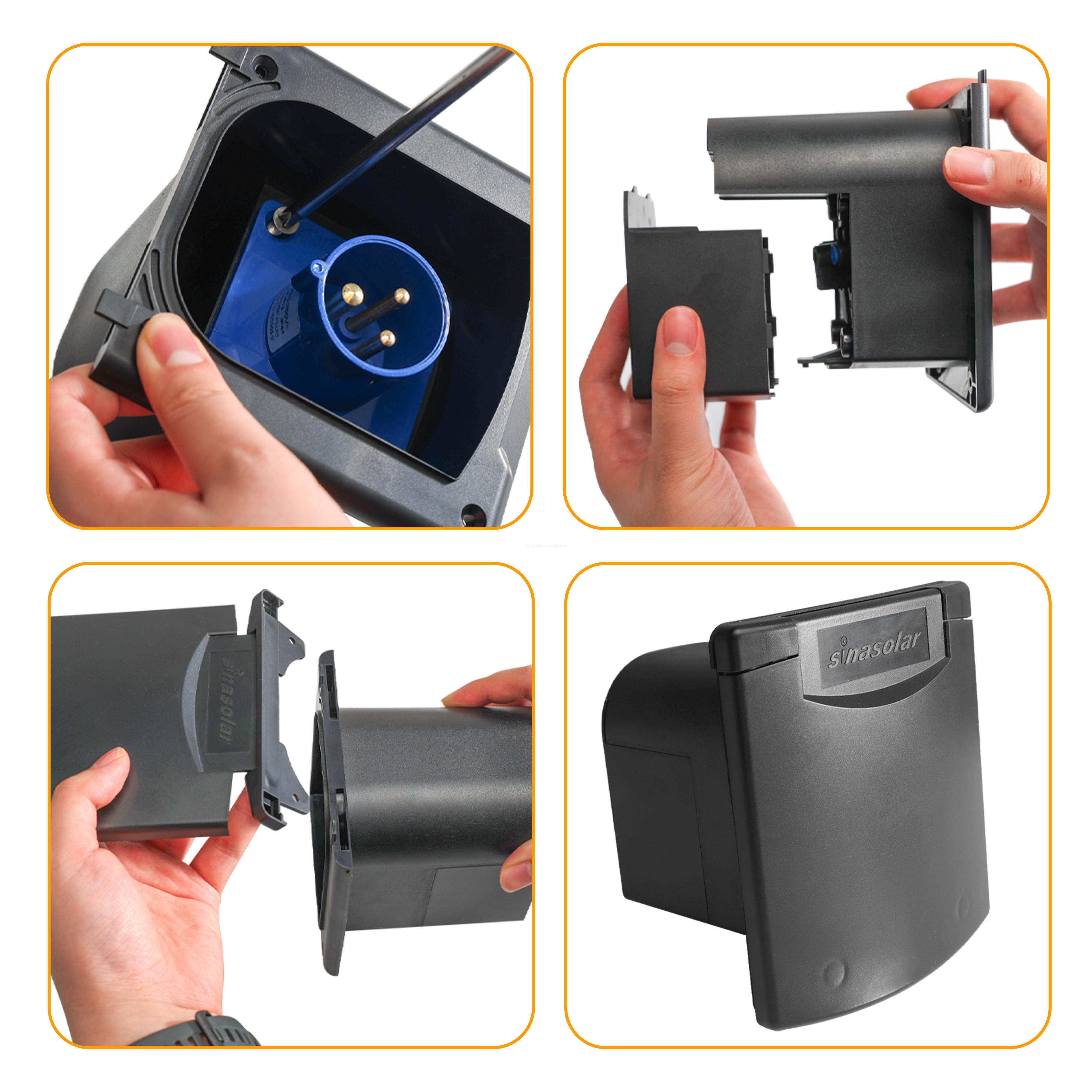

The exterior face plate provides a clean aesthetic with dimensions of 147mm in height and 131mm in width. The specialized rear housing requires an installation depth of 100mm and a cutout height of 109mm. The system features a fully modular assembly, allowing the internal socket to be wired and secured independently before the outer shell is fastened. The comprehensive installation kit includes the main housing components, two precision-cut rubber sealing gaskets to maintain the waterproof boundary, and six stainless steel mounting screws.
Frequently Asked Questions (FAQ)
Q: What is the maximum opening angle of the weatherproof cover?A: The front access cover utilizes a specialized hinge that opens up to 180 degrees, allowing completely unobstructed access when inserting large industrial plugs.
Q: How does the cover stay securely closed during vehicle transit?A: The unit features a dual magnetic locking system built directly into the inner flap of the cover, ensuring it snaps securely shut and maintains a tight seal against the base.
Q: What electrical safety standards does this receptacle meet?A: The internal plug module conforms to rigorous IEC309-2 standards and is explicitly rated for 16A-6h/220-250V~ power delivery.
Q: Are the necessary installation accessories included to maintain the waterproof rating?A: Yes, the complete assembly package provides the front and rear housings, the internal CEE socket, six securing screws, and two dedicated rubber weather gaskets to seal the installation points.
