connector
BSUMWELL/ OEM
$3.5 - $6.9
| Quantity: | |||||||||
|---|---|---|---|---|---|---|---|---|---|

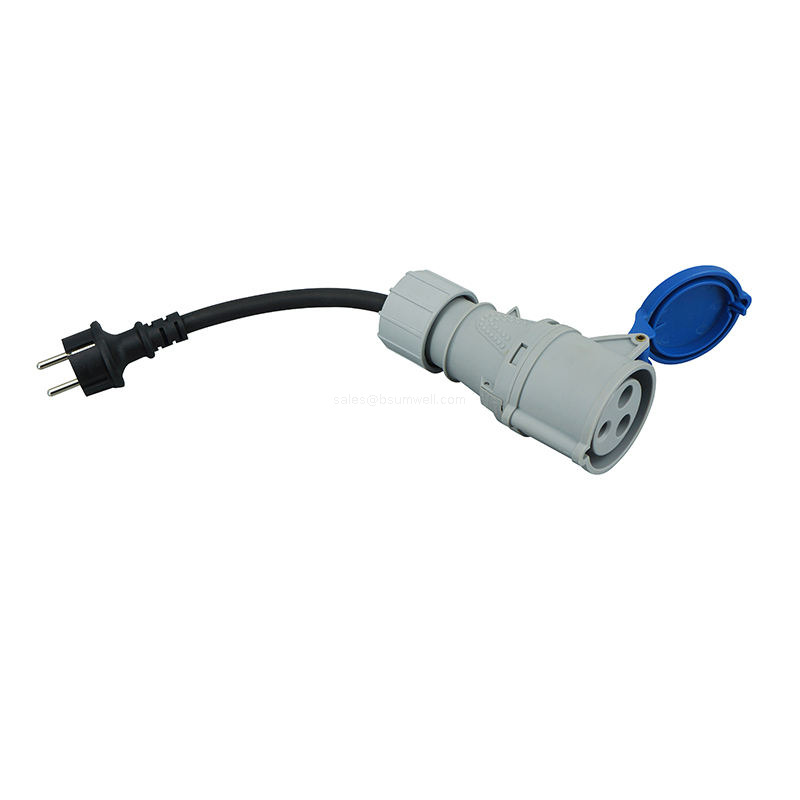

| Engineered to convert standard European Schuko male plugs (CEE 7/4 or CEE 7/7 type) into an industrial CEE 3-pin female receptacle (IEC 60309 2P+E blue connector), this short power cable adapter is rated for continuous 16A / 230V operational loads. Designed specifically for outdoor power bridging between standard grid outlets and industrial power connections, it supports generators, European campsite hookup posts, commercial vehicles, construction site distribution boxes, and industrial machinery. | |||||||||
Engineered to convert standard European Schuko male plugs (CEE 7/4 or CEE 7/7 type) into an industrial CEE 3-pin female receptacle (IEC 60309 2P+E blue connector), this short power cable adapter is rated for continuous 16A / 230V operational loads. Designed specifically for outdoor power bridging between standard grid outlets and industrial power connections, it supports generators, European campsite hookup posts, commercial vehicles, construction site distribution boxes, and industrial machinery.
Pure Copper Conductors: Constructed with heavy-duty stranded pure copper core conductors to minimize voltage drop, maintain low resistance, and reduce operational heating during high-wattage power transmission.
Oil- & Weather-Resistant Sheathing: Fitted with flexible, heavy-duty H07RN-F or H05RR-F rubber cabling designed to maintain elasticity without cracking under severe temperature variations (-20°C to +60°C), mechanical friction, or exposure to oils, grease, and direct UV radiation.
Integrated Molded Strain Relief: Overmolded plug boots protect conductor terminations from tensile stress and internal wire breakage caused by repeated flex cycles and heavy pulling.

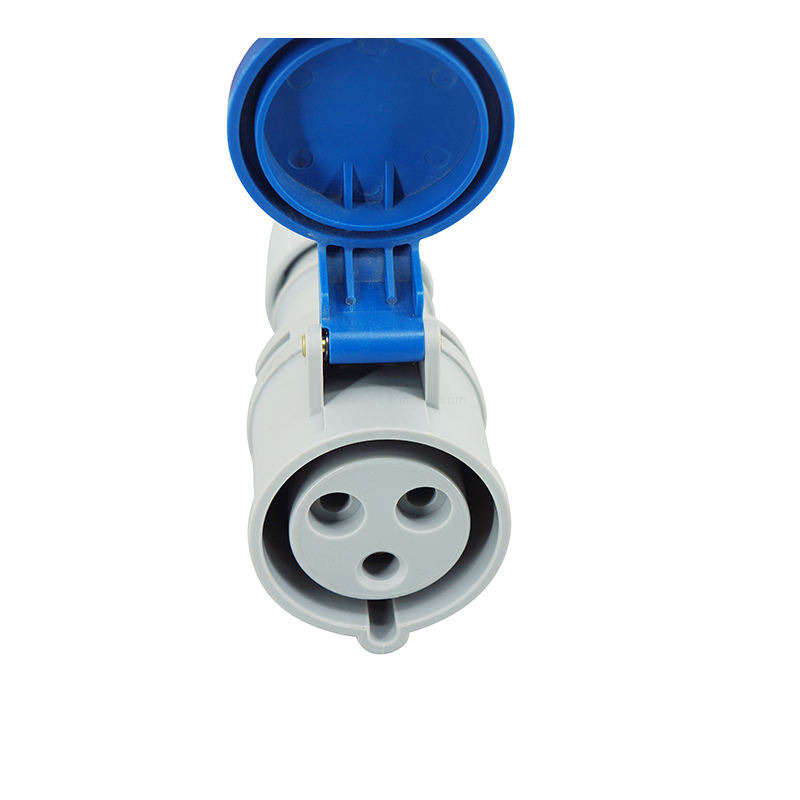

IP44 Ingress Protection: The CEE female socket features a spring-loaded protective flap lid and precision rubber seals, providing reliable defense against solid object intrusion and splash water from all directions.
International Certification Standards: Fabricated under ISO 9001 quality management protocols to fulfill European safety regulations, carrying CE, RoHS, and REACH certifications for industrial and outdoor applications.
This adapter cord connects standard European residential power outlets (Schuko CEE 7/4 or CEE 7/7) to 3-pin industrial power cords (CEE IEC 60309 2P+E). It is commonly used to power RVs, caravans, marine equipment, outdoor event systems, and industrial portable tools from standard household power supplies.
Yes. The female CEE socket is equipped with an IP44-rated spring lid cover that shields live contacts from rain splash and dust particles. The heavy-duty rubber cable sleeve resists UV deterioration, rain exposure, and surface abrasion.
The adapter is rated for single-phase alternating current at a maximum voltage of 230V and a continuous current load of up to 16 Amps (maximum continuous power draw up to 3680W).
Yes. Custom options include tailored cable lengths (ranging from 0.3m pigtails to extended lengths), specific wire gauge cross-sections, and alternative adapter configurations (such as UK 3-pin or multi-socket junction blocks) according to project requirements.
