Brazil Standard Wall Socket 20W Fast Charging Type C USB Ports Fireproof PC Panel 118*72mm Embedded Electrical Outlet Grey Black White Gold

Integrated 20W Power Delivery & Smart Thermal Regulation

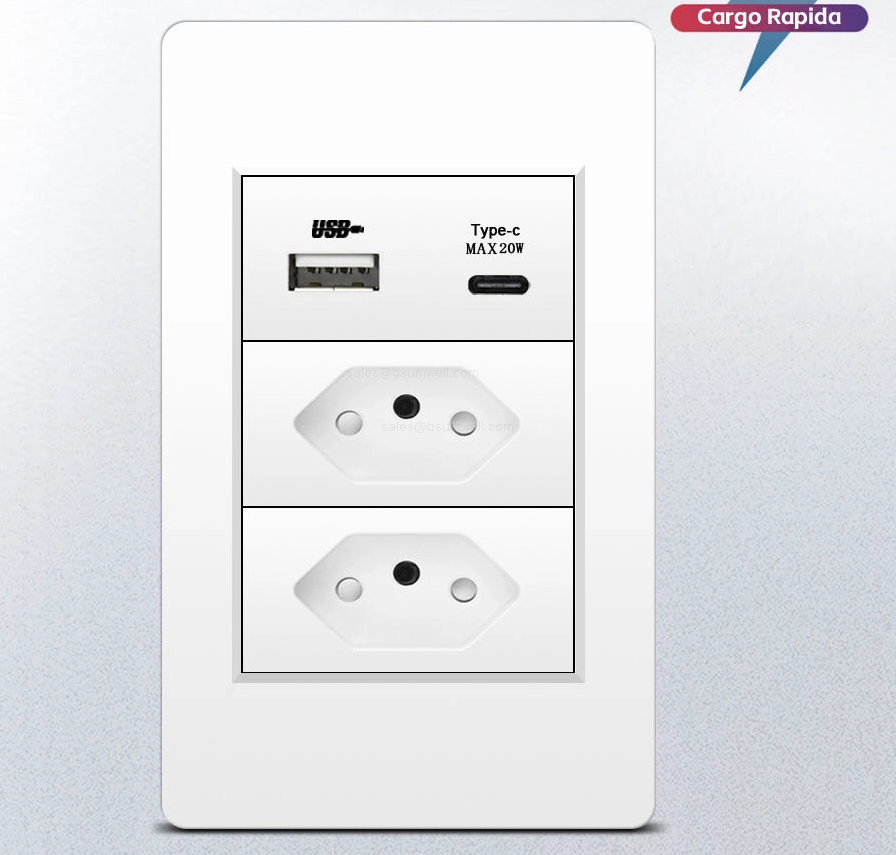

This premium electrical receptacle features an advanced low-voltage charging assembly equipped with dual smart ports, including a dedicated high-efficiency Type-C power node labeled clearly for a maximum 20W rapid charging output as shown in Main-01_5.jpg and Main-02_5.jpg. Engineered to optimize modern device deployment, the internal intelligent chipset dynamically senses the terminal requirements of connected smartphones, tablets, or notebooks. It regulates energy transmission automatically to prevent localized overcurrent, overvoltage, and thermal cascading, providing a stable, high-speed charging experience directly from the wall interface without bulky adapter blocks.

Structural Engineering & Multi-Color Fireproof Enclosures

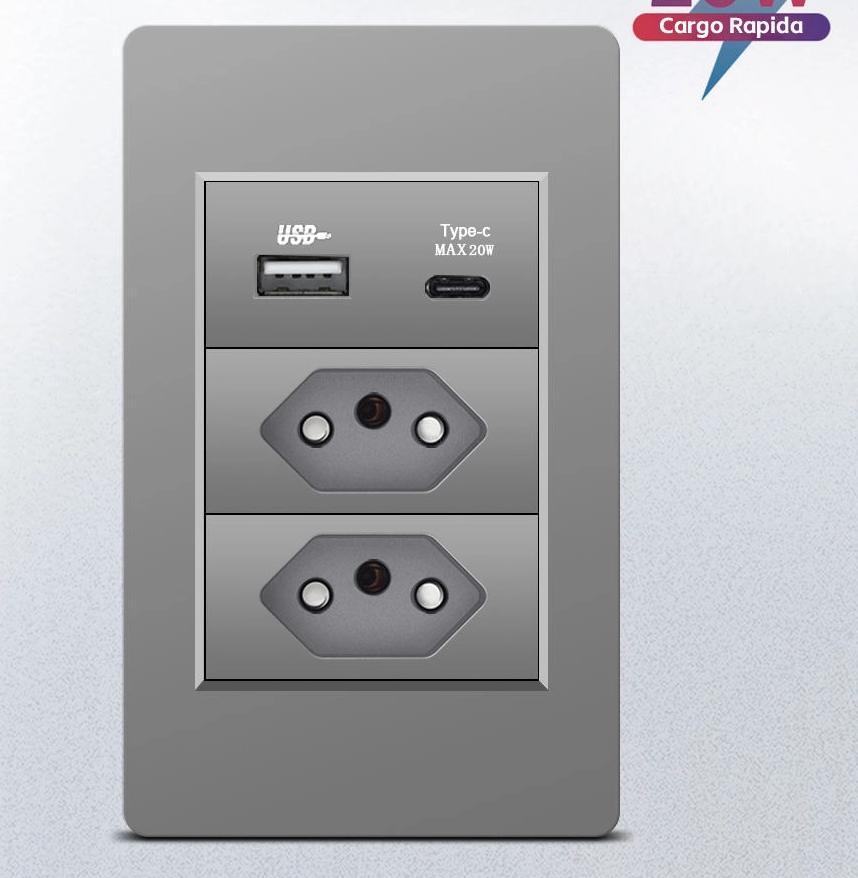

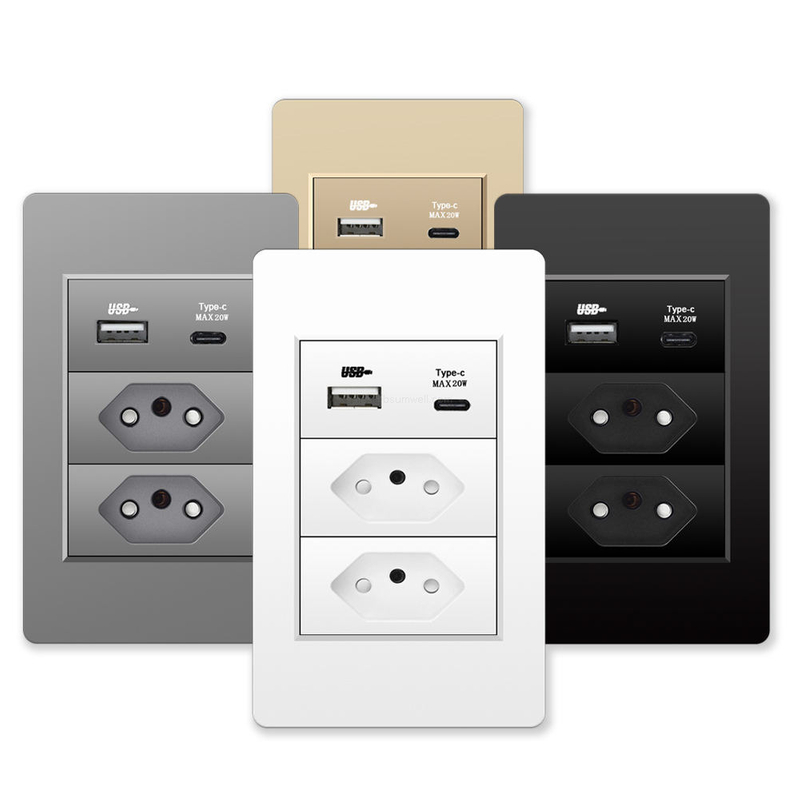

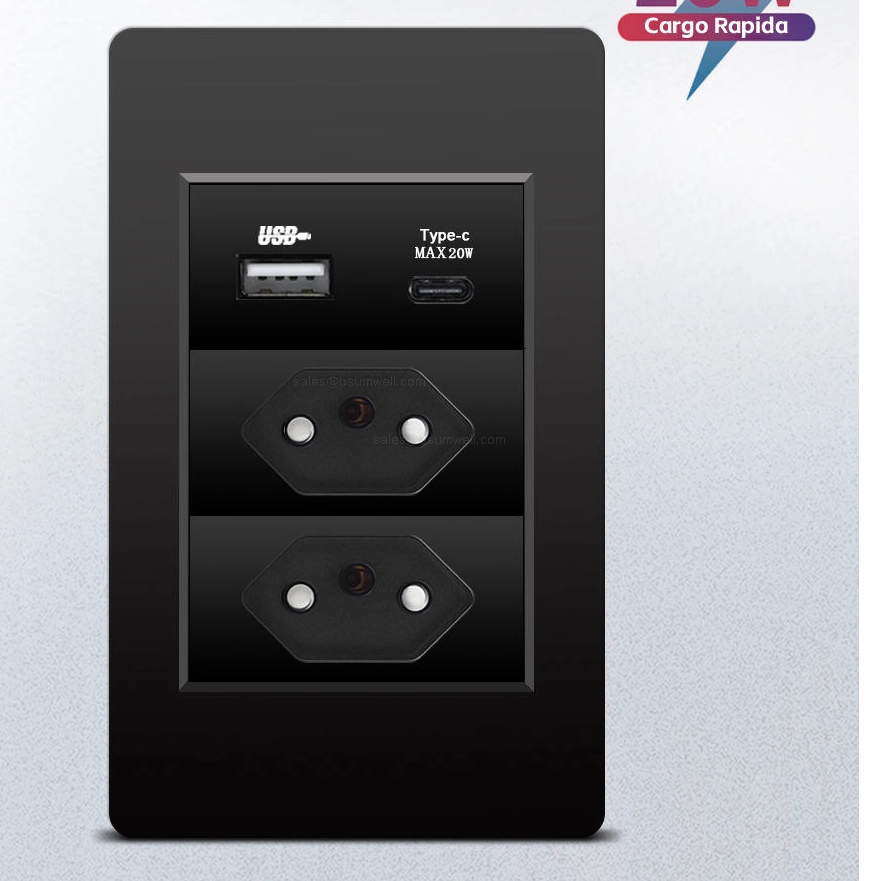

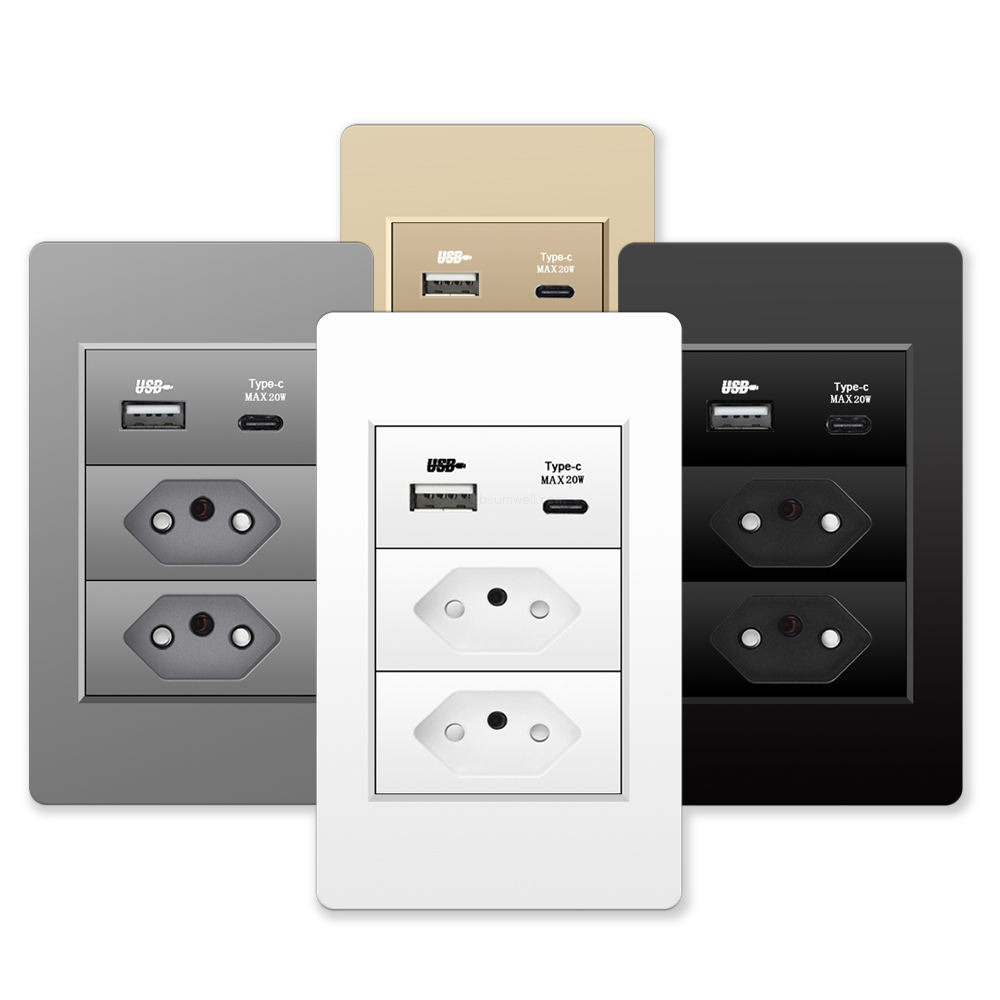

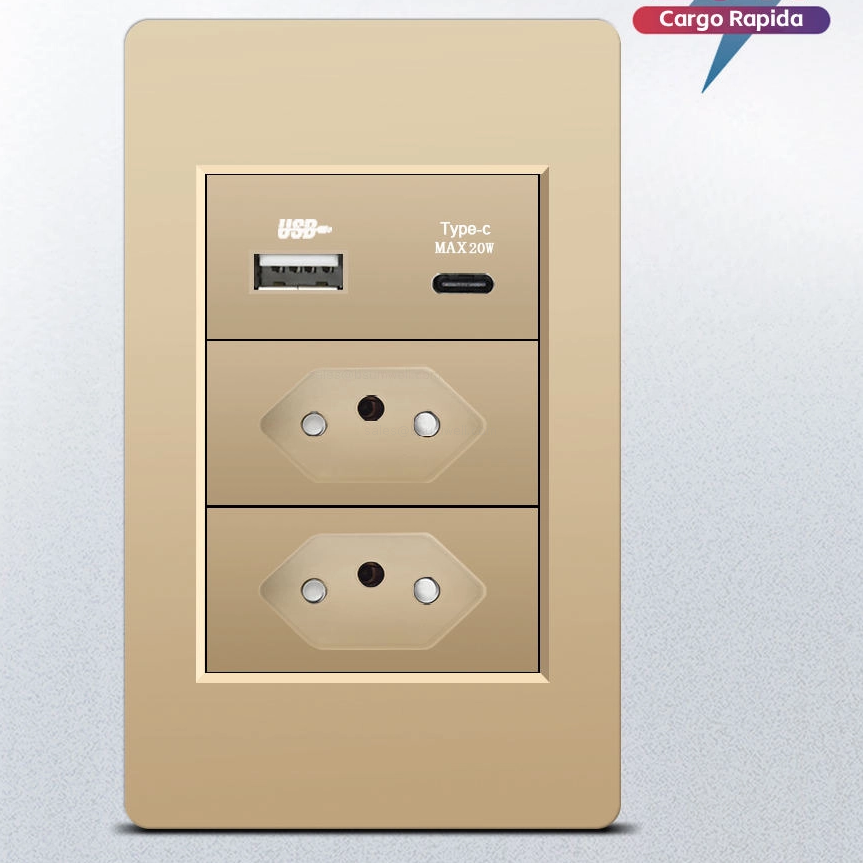

Built to satisfy strict international safety and architectural guidelines, the exterior faceplate utilizes engineering-grade, flame-retardant Polycarbonate (PC) material that offers superior impact resistance, UV stabilization, and self-extinguishing properties. The system relies on a standardized 118*72mm industrial frame layout that ensures precise fitment inside modern standard mounting configurations. To match diverse interior architectural styles, the sleek matte-finish panels are available in highly curated corporate and residential colorways, including structural Grey, absolute Black, pristine White, and metallic Gold as displayed across Main-02_5.jpg, Main-03_5.jpg, Main-04_6.jpg, and Main-05_6.jpg.

Heavy-Duty Conductive Elements & Child Protection Shutter

The high-voltage subsystem integrates individual dual Brazilian standard socket modules designed to support continuous electrical demands safely. Internally, precision-stamped phosphor bronze contacts deliver robust mechanical retention and low electrical contact resistance, drastically reducing micro-arcing tendencies during high-load power delivery. For enhanced residential and corporate facility safety, each plug aperture is equipped with heavy-duty internal safety protection doors. These childproof safety shutters remain firmly closed unless equal pressure is applied simultaneously by a proper two-prong standard plug, preventing the insertion of dangerous foreign objects.

Frequently Asked Questions (FAQs)

Q1: Does the USB Type-C port on this Brazilian standard outlet support independent fast charging?

A1: Yes. The built-in low-voltage charging module features an independent Type-C port engineered to deliver up to a 20W fast charging output as marked on Main-02_5.jpg. This allows users to charge compatible modern electronics at optimal speeds without needing a separate high-wattage desktop power adapter.

Q2: What are the material advantages of using a Polycarbonate (PC) panel over standard plastic faceplates?

A2: The premium Polycarbonate (PC) faceplate provides outstanding structural durability and advanced fire protection. It features excellent flame-retardant properties that suppress ignition, is highly resistant to impact cracking or warping under continuous plug insertions, and resists environmental aging and yellowing.

Q3: Is the 118*72mm sizing compatible with standard electrical mounting boxes?

A3: Yes. The 118*72mm form factor represents a standard sizing configuration widely used across the Brazilian market and related regional infrastructure layouts. The modular interior housing fits cleanly within corresponding wall boxes, simplifying installation for retrofits and new construction alike.

Q4: How do the built-in child safety shutters protect against accidental electrical shocks?

A4: Each socket chamber is equipped with an internal safety door mechanism that serves as a physical barrier. The shutters are engineered to open only when a standard dual-prong plug is introduced with balanced, simultaneous pressure, completely blocking keys, paperclips, or other narrow objects from touching live components inside.

Frequently Asked Questions (FAQs)

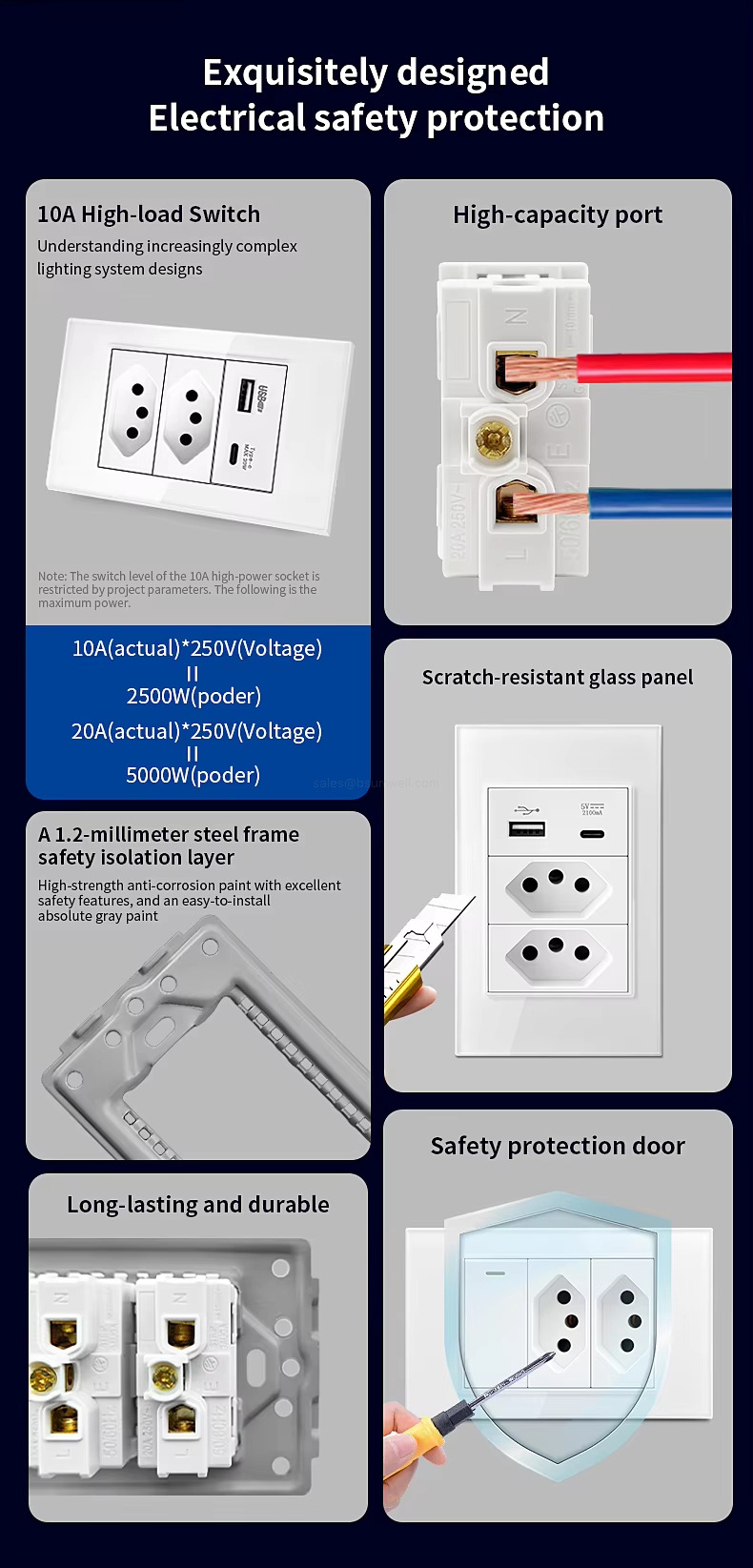

Q1: What is the benefit of the dual 10A and 20A rating structure on these Brazilian standard sockets?

A1: The system is structurally engineered with large-capacity terminals to support separate load requirements within a unified layout. The 10A module safely manages standard household electronics up to 2500W, while the heavy-duty 20A module utilizes reinforced phosphor bronze contacts to reliably supply high-capacity appliances up to 5000W without thermal deterioration.

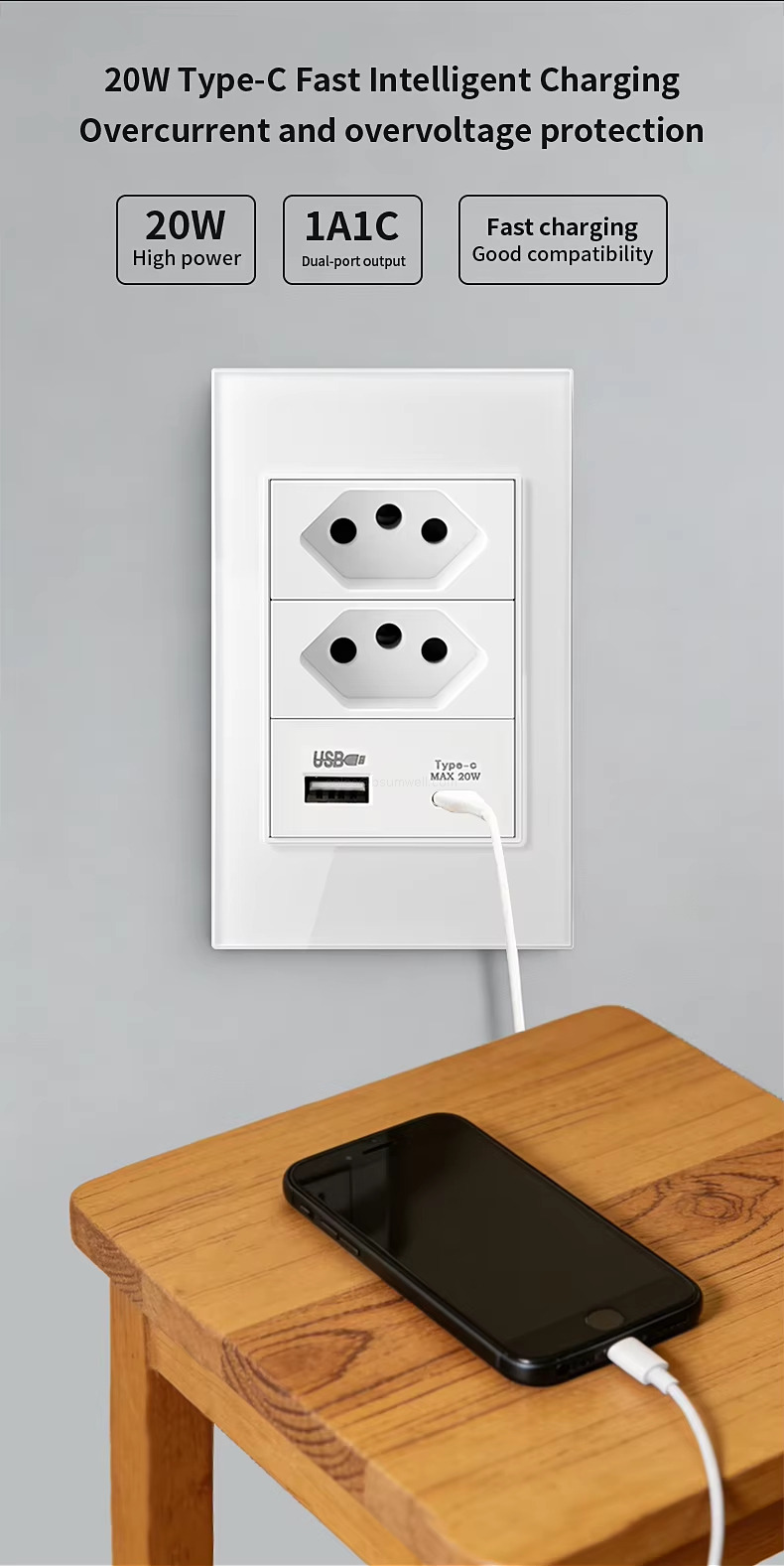

Q2: Does the USB Type-C module support fast charging protocols for modern electronics?

A2: Yes. The advanced 1A1C dual-port module delivers a dedicated 20W high-power smart output through its Type-C terminal. It contains integrated overcurrent and overvoltage protective circuitry to safely and efficiently quick-charge compatible smartphones, tablets, and mobile devices directly from the wall socket panel.

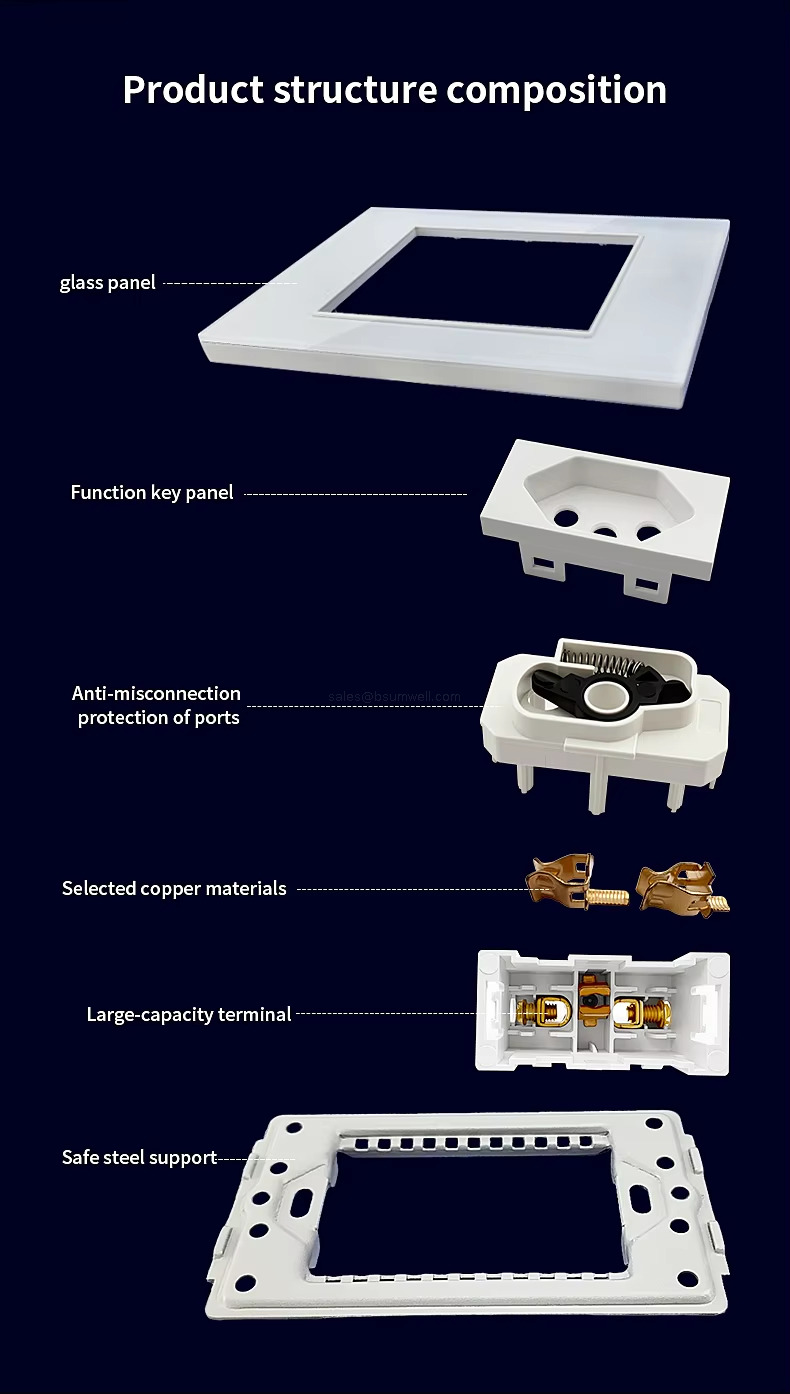

Q3: How does the internal 1.2mm steel framework improve long-term installation reliability?

A3: Unlike standard plastic mounting brackets that can crack or warp under stress, the 1.2-millimeter industrial steel frame provides rigid, long-lasting durability. Coated with a protective anti-corrosion paint, it reinforces the modular alignment, maintains a perfectly flat wall profile, and absorbs structural pressures during frequent plugging cycles.

Q4: Can the Cat6 network socket module be safely housed right next to high-voltage lines?

A4: Yes. The system employs a secure multi-layer isolation layer alongside individual module separation chambers. This internal safety division completely isolates low-voltage data cables (like Cat6 RJ45 and USB lines) from high-voltage 250V power connections, preventing signal interference and maintaining strict code compliance.
