BSUMWELL/ OEM
$2.3 - $4.9
| Quantity: | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Br Glass Panel Switch DIY Custom Combination10A/20A Power Supply Outlet USB Charging Port Brazil Standard Wall Socket | |||||||||

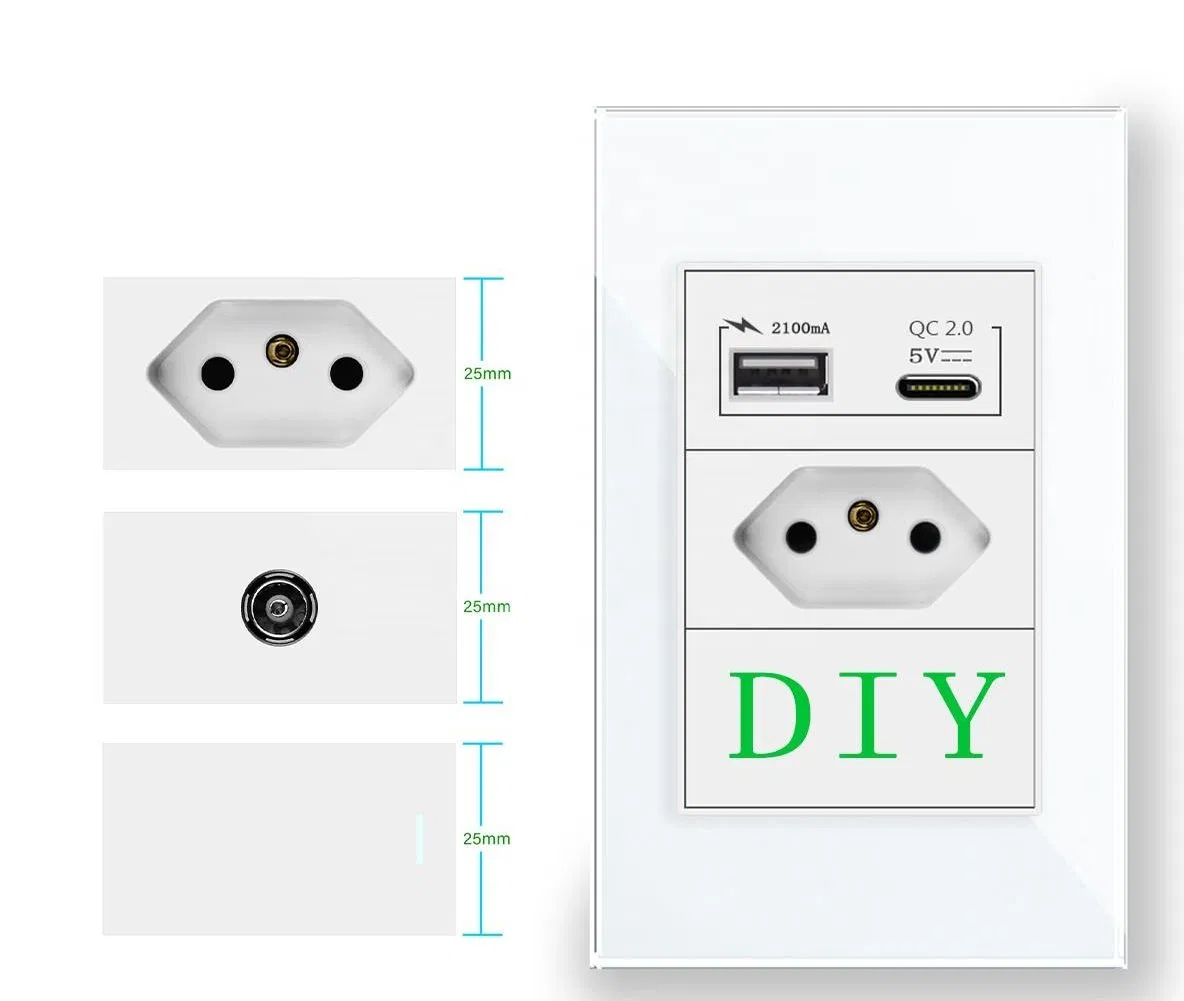

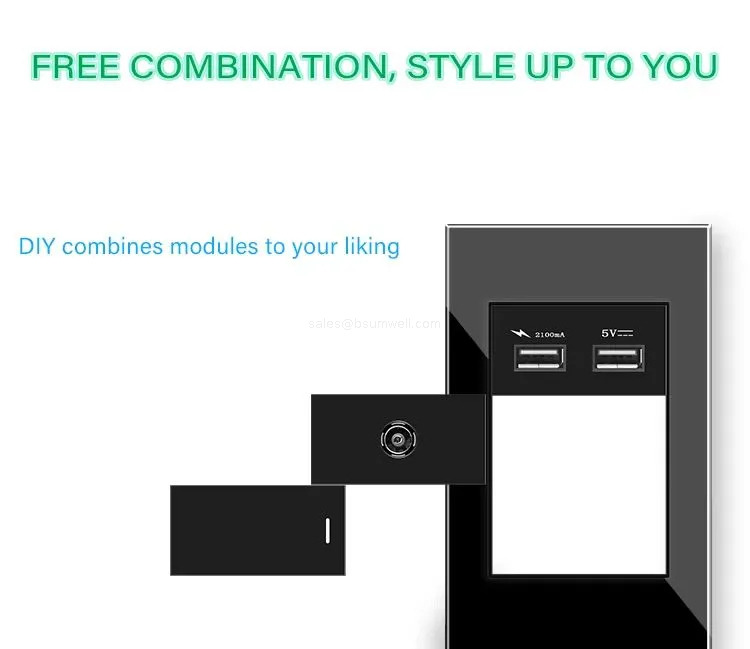

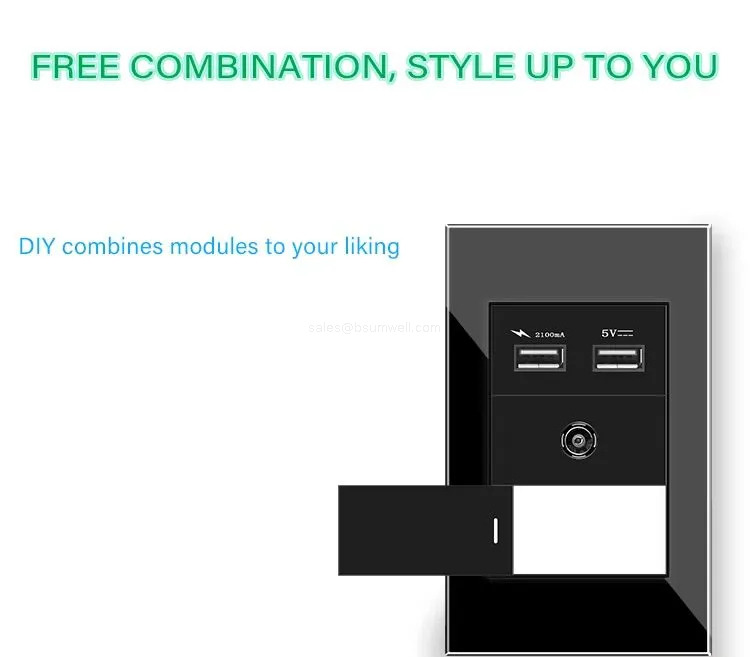

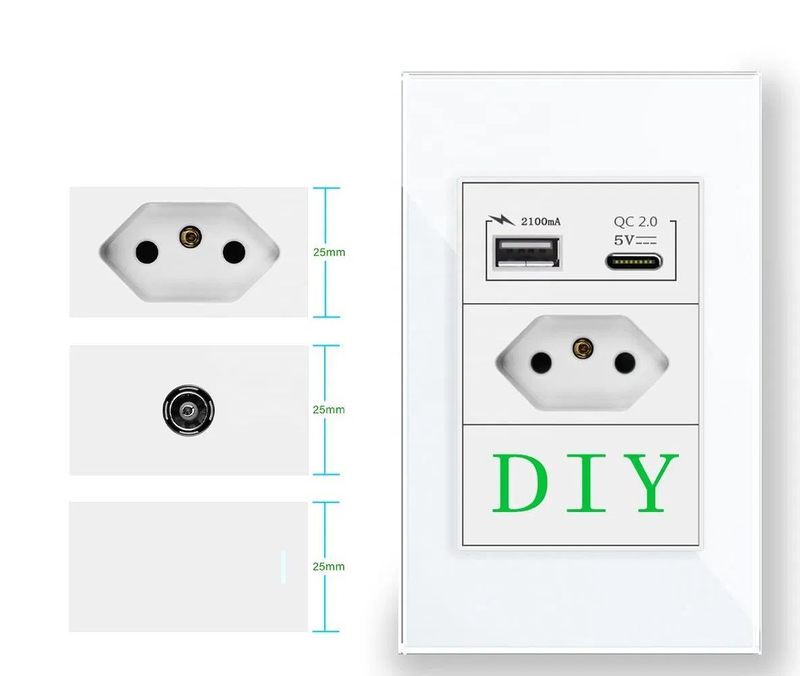

Engineered to deliver modern architectural adaptability, this premium electrical distribution system features a comprehensive DIY custom combination framework. Built on a standardized 75mm chassis configuration, the design accommodates exactly three independent 25mm structural modules within a single footprint. This specialized modular grid gives project layout designers absolute freedom to interchange vital electrical components, allowing them to install precise, purpose-driven configurations that balance line-voltage power distribution with low-voltage telecom data streams on the exact same wall box unit.
The system architecture supports an array of robust hardware inserts designed to satisfy demanding residential and commercial power requirements:

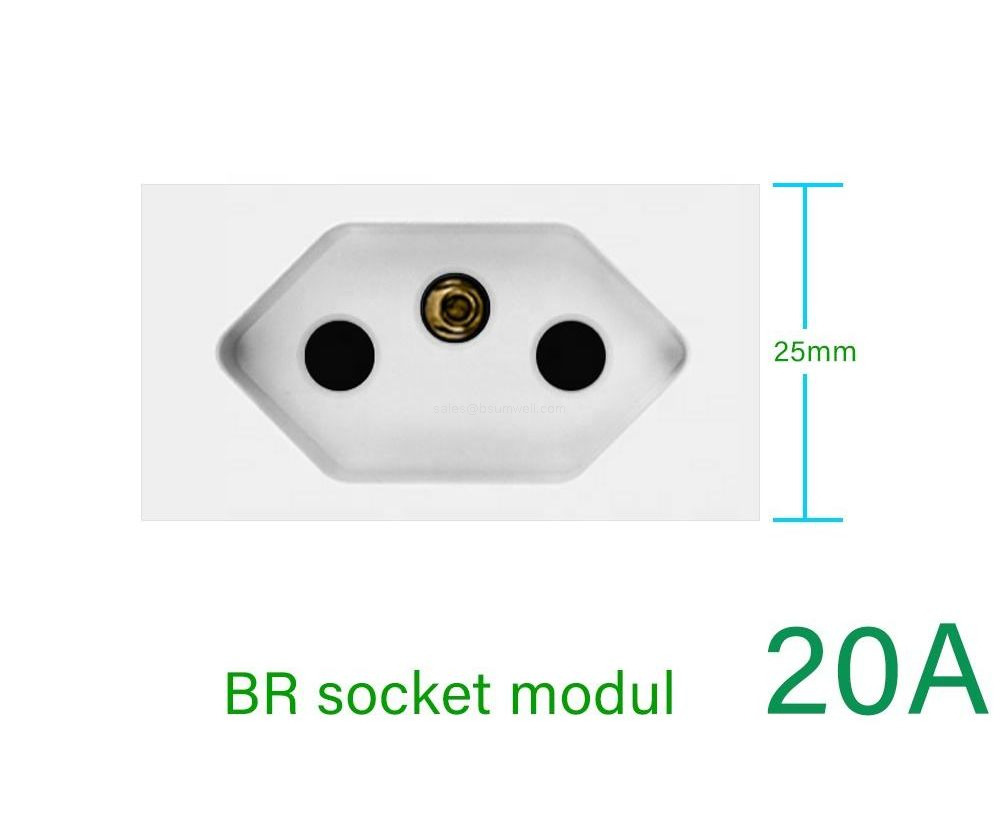

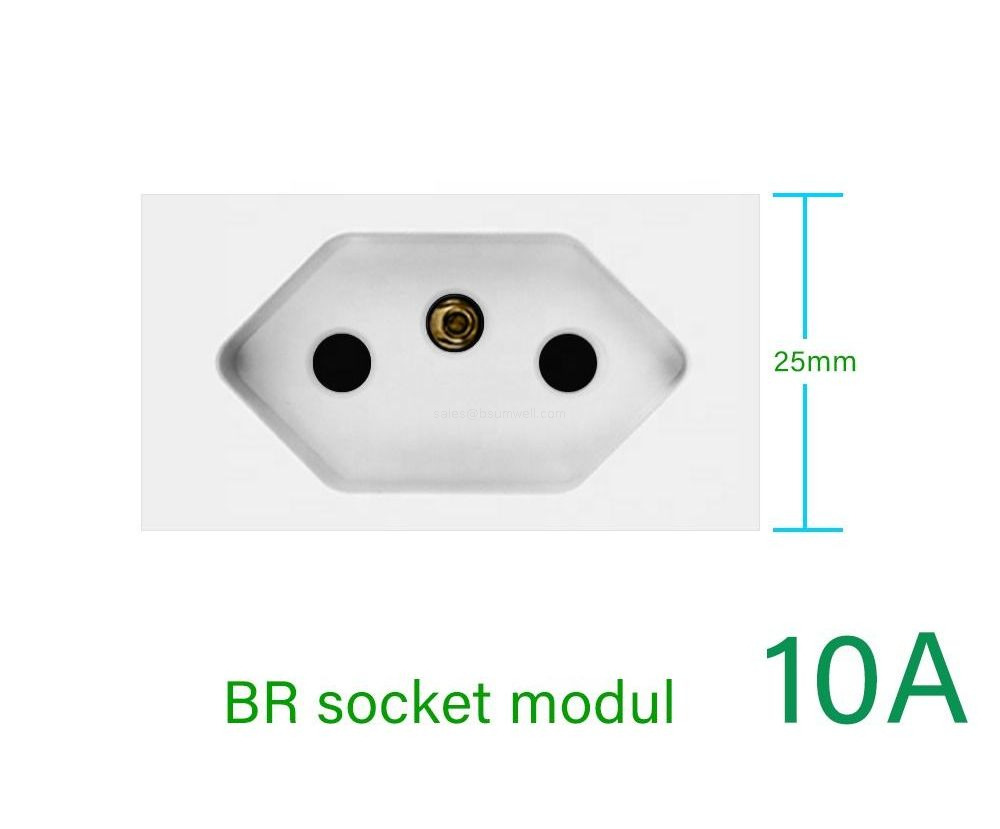

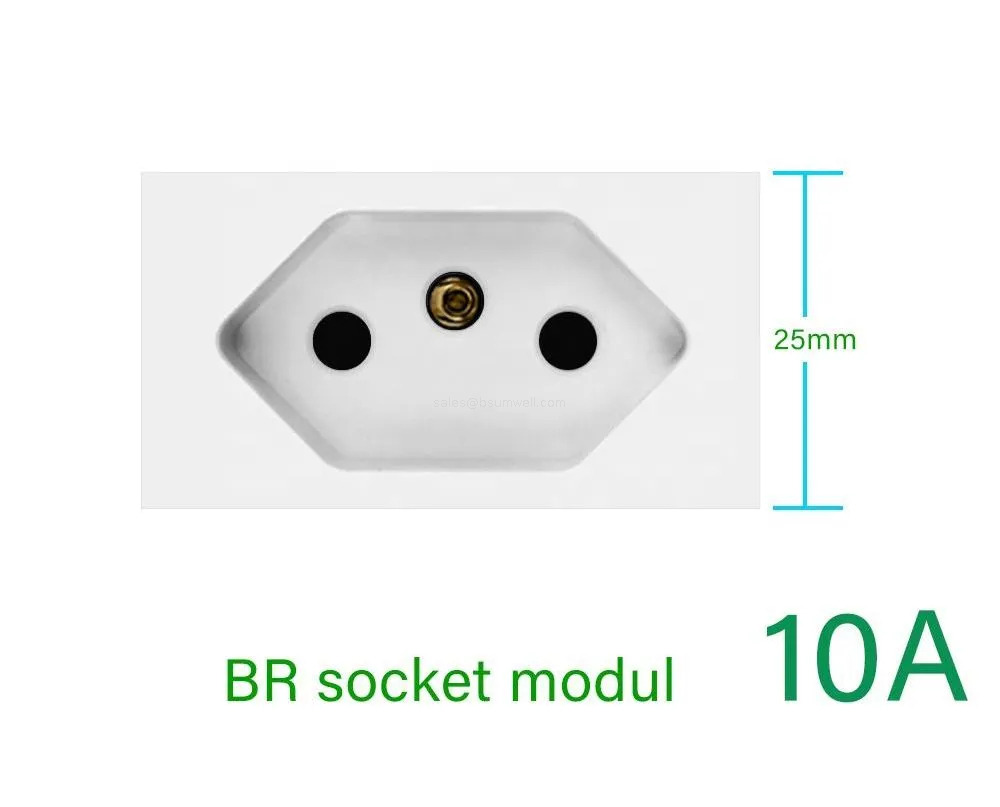

High-Current Outlets: Available in both standard 10A and high-capacity 20A configurations, fully compliant with the geometric parameters of the Brazilian domestic electrical installation standard.

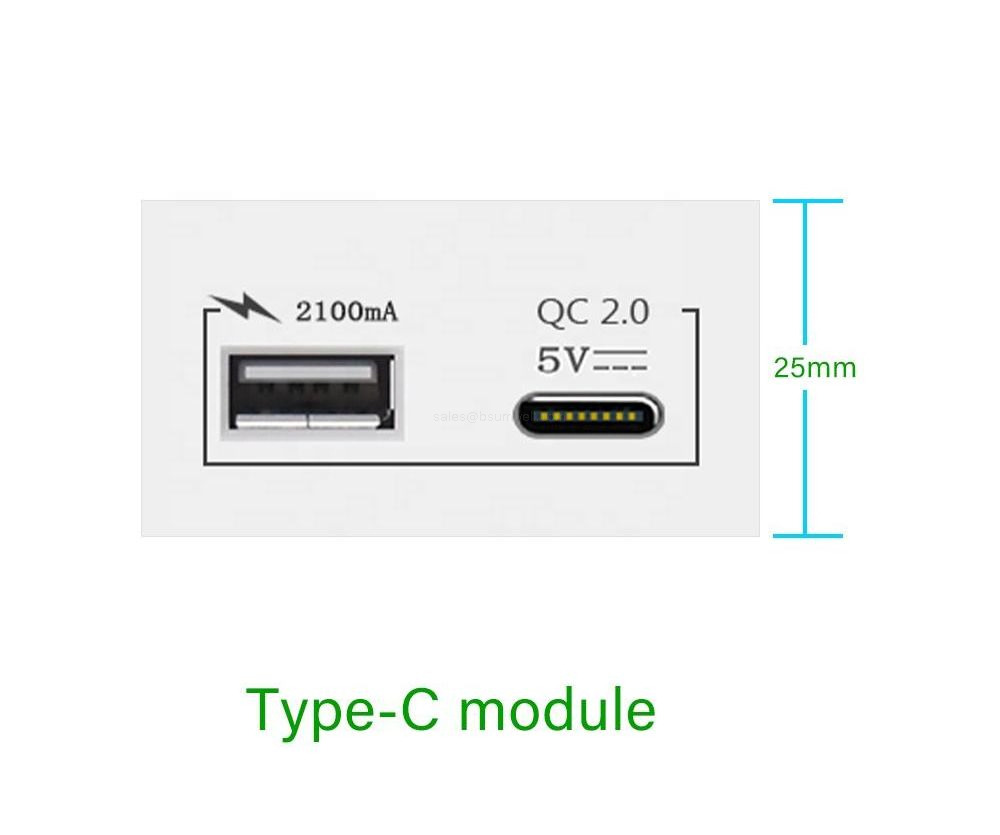

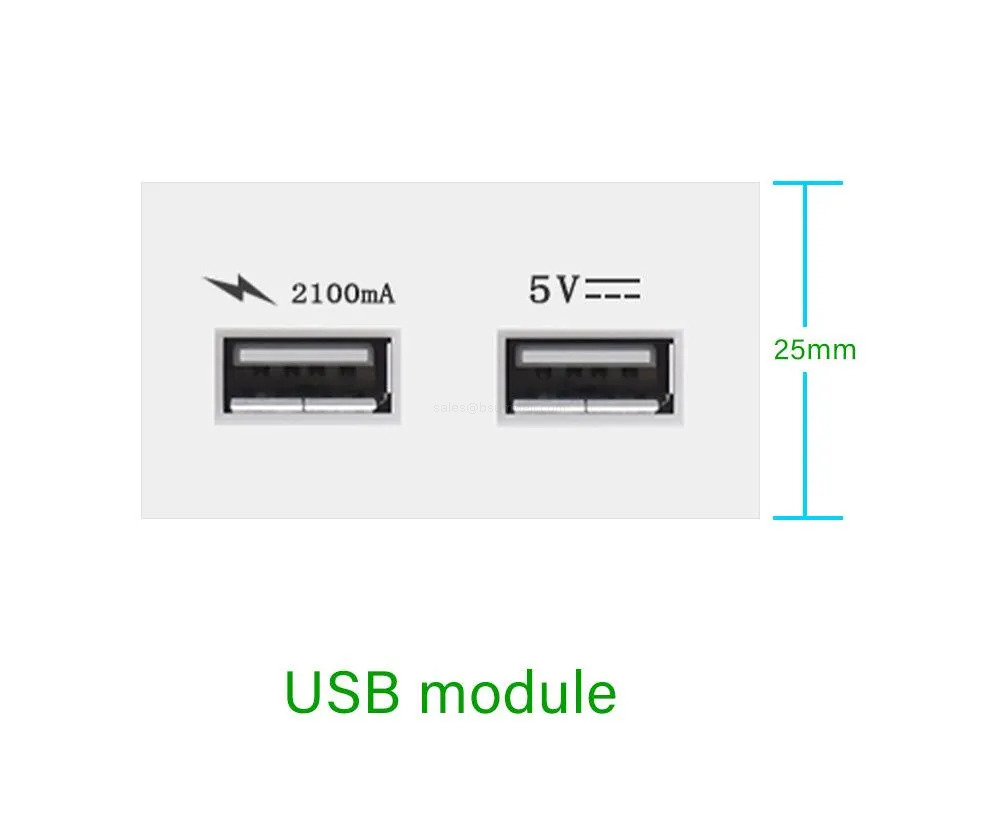

Dual-Port USB Charging: An integrated 5V 2100mA charging module featuring a high-speed Type-C charging port paired alongside a traditional USB interface to deliver optimized power delivery for contemporary mobile electronics.

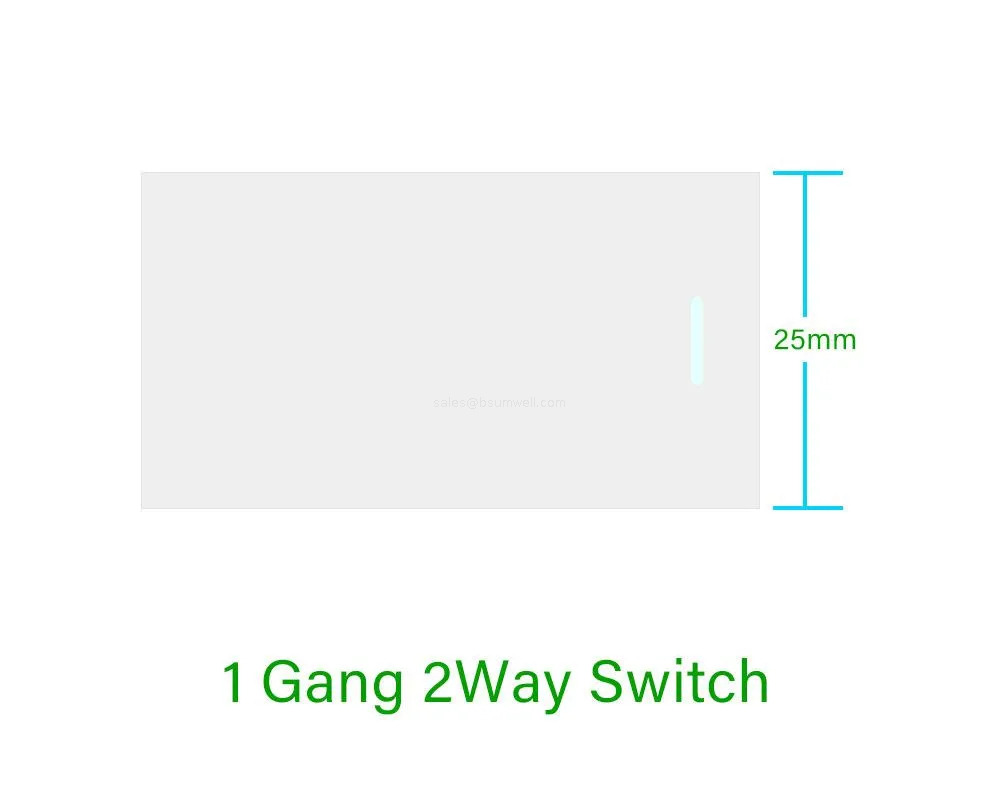

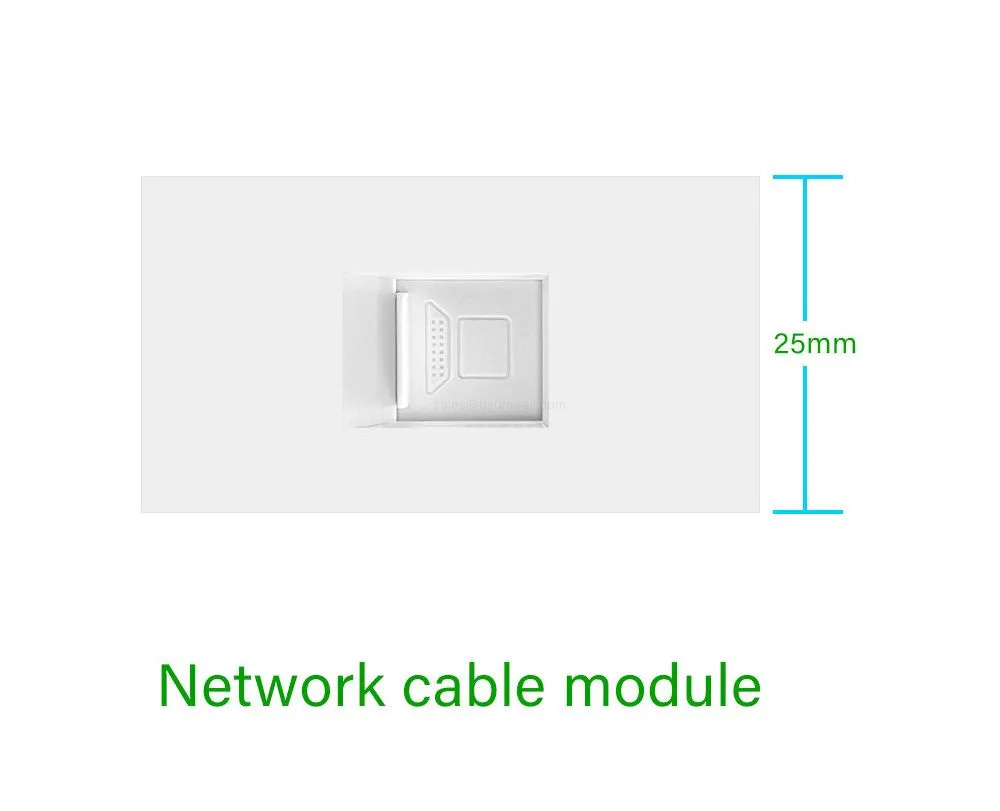

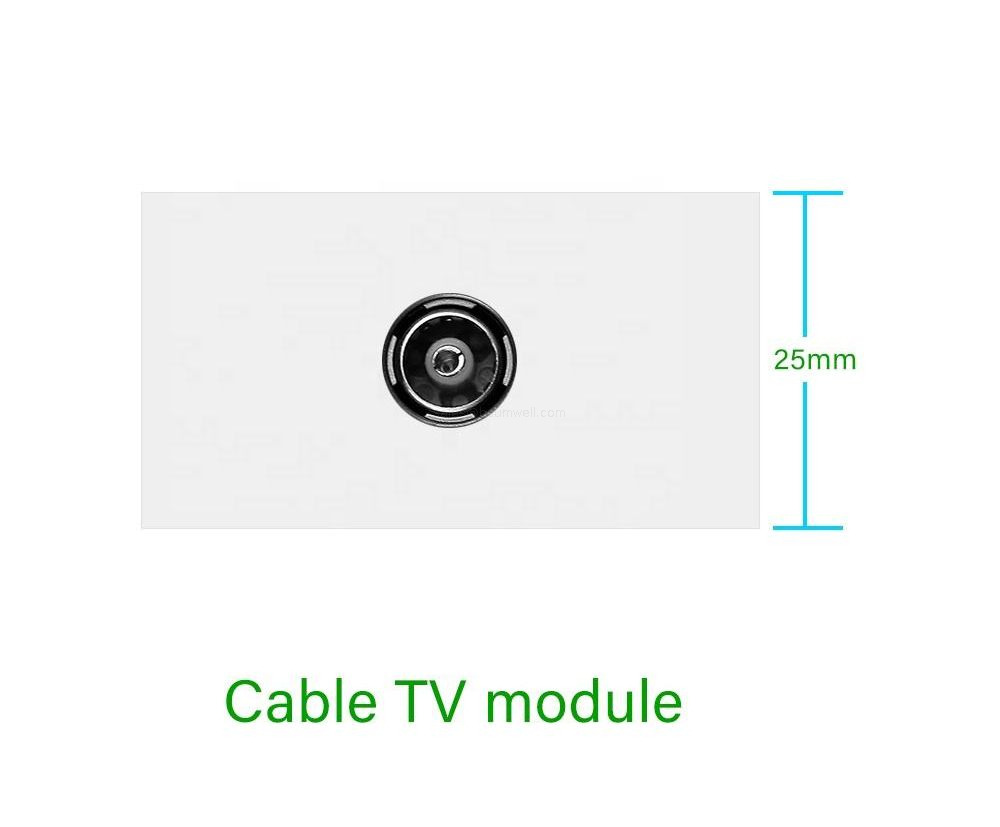

Control & Connectivity: Supplying tactile 1 Gang 2 Way light switch modules for dual-point illumination control, heavy-duty coaxial Cable TV terminal plates, and secure RJ45 network cable connection modules engineered for uninterrupted local area network links.
Constructed with safety and material endurance at its core, the exterior faceplate utilizes a non-conductive crystal glass panel that delivers exceptional impact resistance and an scratch-proof surface profile. The underlying mechanical structure features flame-retardant internal composite housings alongside reinforced grounding contacts designed to securely clamp line conductors. This robust physical construction minimizes electrical arcing risks, reduces localized thermal building during maximum continuous 20A operations, and ensures dependable engineering performance inside domestic and industrial wall boxes.
Q1: Can I mix high-voltage power outlets and low-voltage data lines within the same panel framework?
A1: Yes. The modular DIY system allows you to install 10A or 20A power modules directly alongside low-voltage components, such as the RJ45 network cable module, USB charging ports, or Cable TV modules, inside a single 3-slot glass panel layout.
Q2: What is the physical size constraint for configuring individual modules into the faceplate?

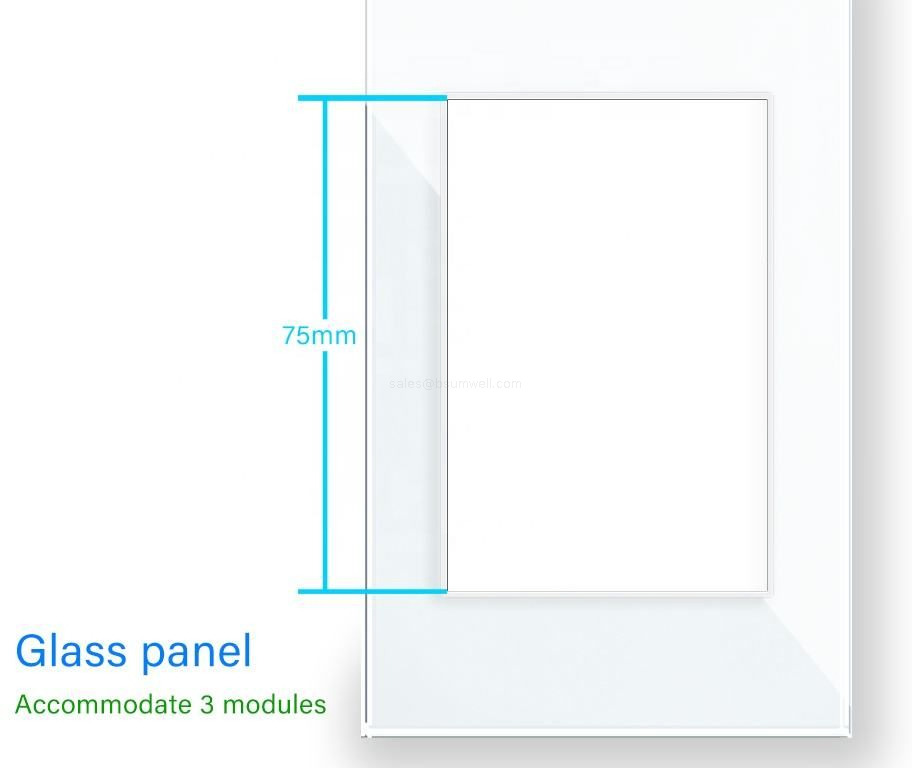

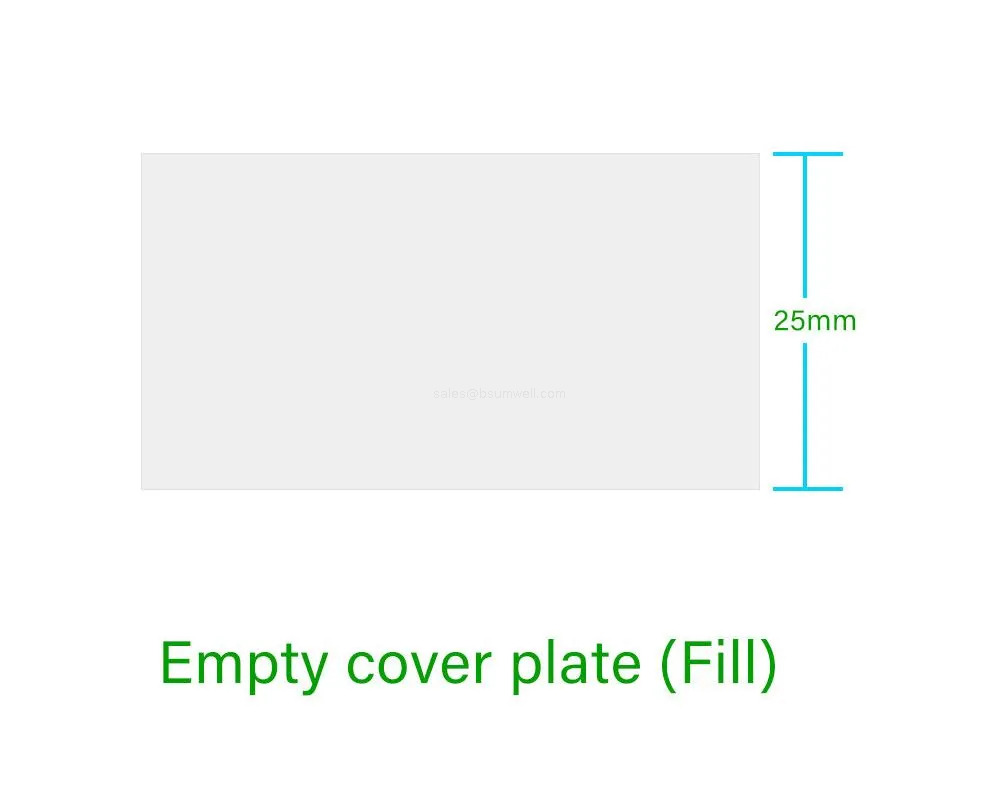

A2: The crystal glass panel features a standardized 75mm mounting aperture designed to accommodate up to three individual 25mm functional modules. You can configure any arrangement of 25mm switches, USB ports, or data inserts to meet your specific electrical blueprint.
Q3: Is the 20A power supply outlet compatible with standard 10A plugs used in Brazil?
A3: In accordance with Brazilian standard infrastructure, the 20A socket module features wider pin apertures designed to safely receive high-draw 20A appliance plugs, while still offering physical backwards compatibility with standard 10A electrical plugs.
Q4: Does the dual-port USB module support fast charging protocols across both available outputs?
A4: The integrated USB charging module provides a combined maximum output of 5V 2100mA. It features an optimized layout containing a standard USB slot alongside a high-density Type-C port, providing stable power management for connected electronics.
