IP65\ IP66\ IP67\ IP68
BSUMWELL/ OEM
$1 - $9
| Quantity: | |||||||||
|---|---|---|---|---|---|---|---|---|---|

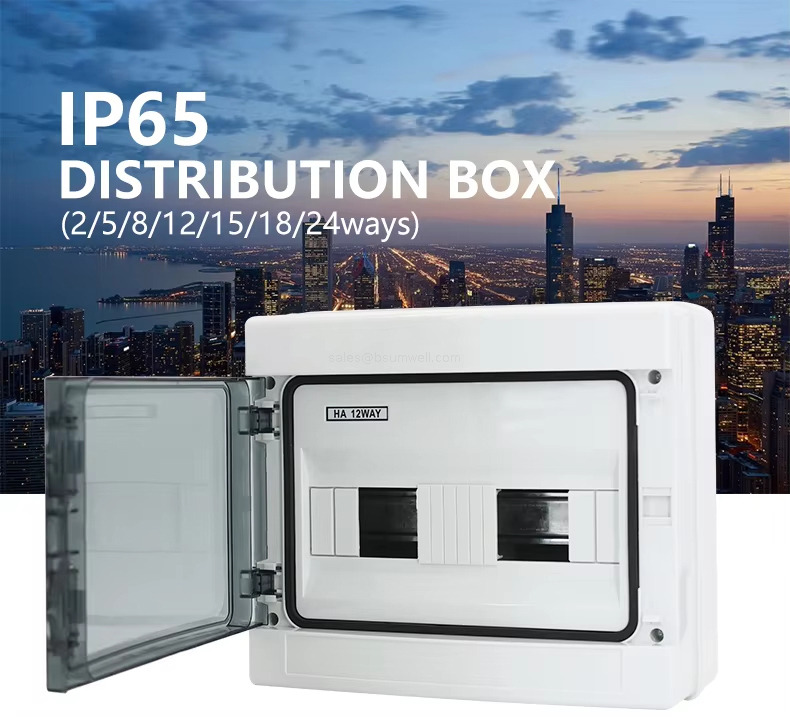

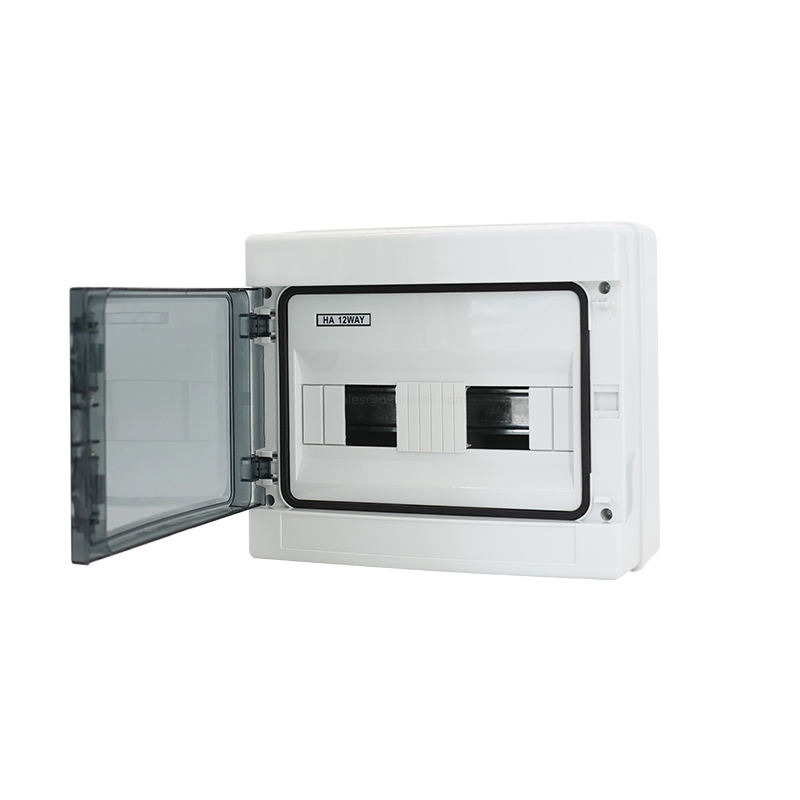

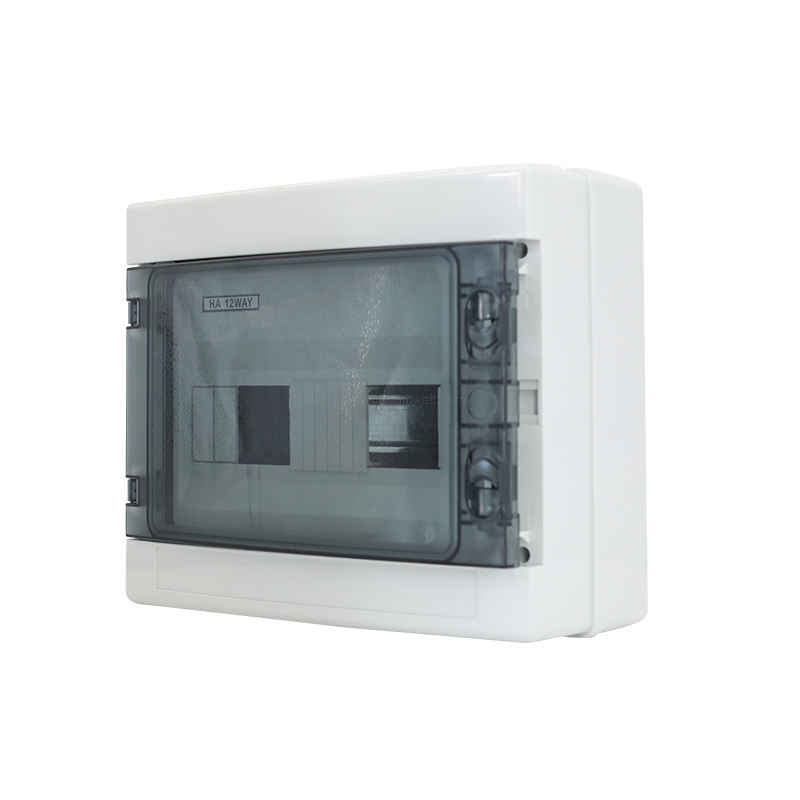

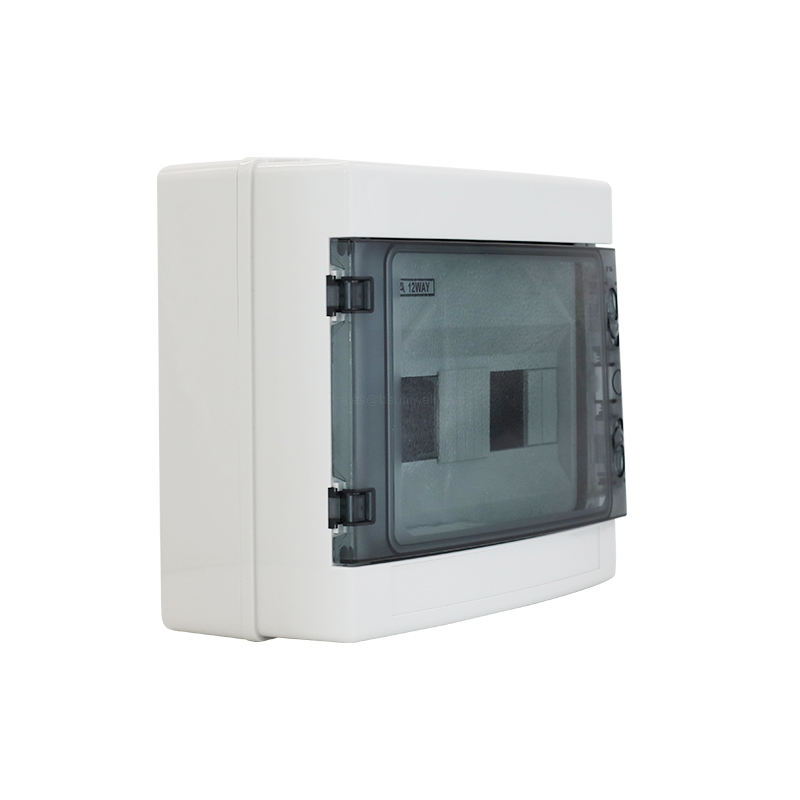

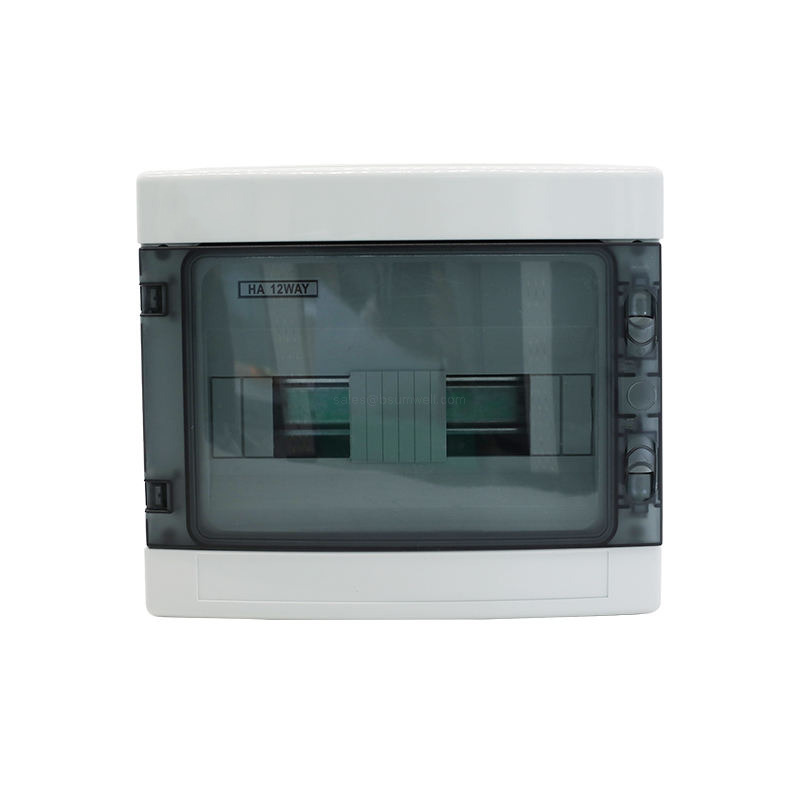

| HA-4 Industrial Outdoor Waterproof Dustproof PVC Junction Distribution Control Box for Photovoltaic Switch | |||||||||
Premium Weatherproof Polymer FormulationMeticulously molded from premium-grade, impact-resistant PVC and ABS plastics, this HA-4 distribution box offers superior structural integrity under harsh environmental stress. The material features advanced UV-stabilizers that prevent cracking, fading, and brittle degradation caused by prolonged solar exposure in open-air photovoltaic installations.

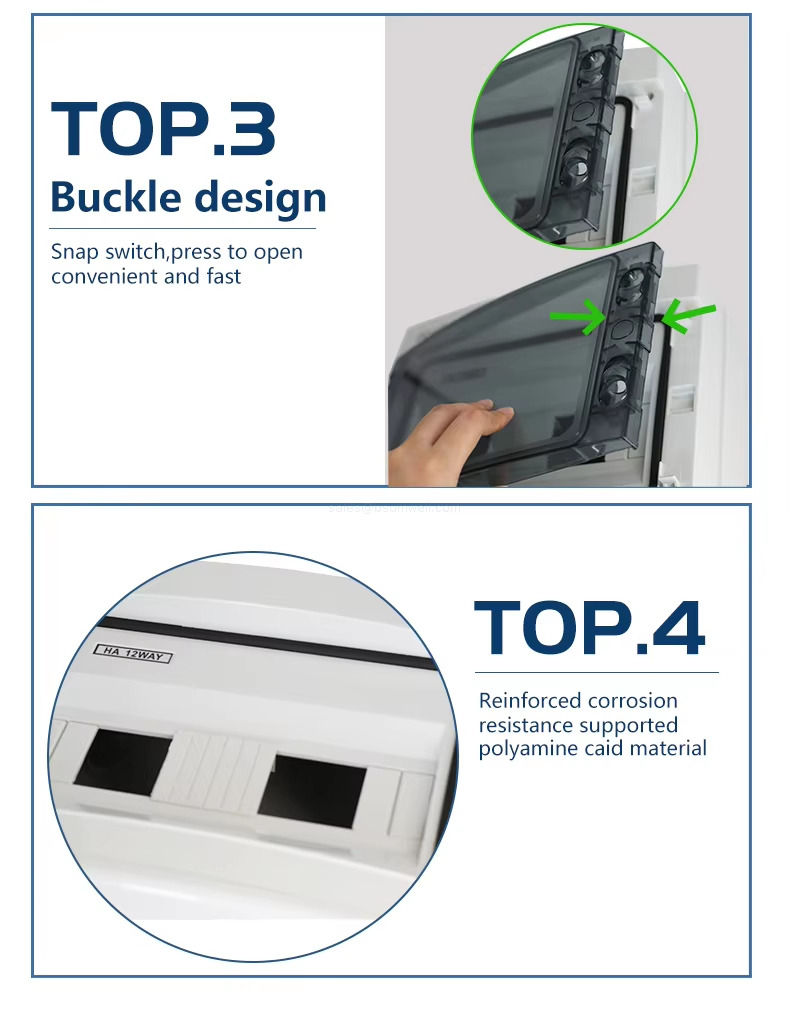

Advanced IP65 Water and Dust IsolationEngineered with a high-resilience, continuous polyurethane sealing gasket and a secure click-lock transparent cover, this control box achieves an authenticated IP65 protection rating. It provides an airtight seal that completely blocks high-pressure water splashes, heavy rainfall, humidity, and micro-particulate dust from damaging internal electrical components.
Designed for Solar Photovoltaic & Industrial SafetyThis 4-way enclosure is purpose-built to house miniature circuit breakers (MCBs), surge protective devices (SPDs), and solar PV isolation switches. It features an integrated 35mm DIN rail for swift component mounting, built-in neutral and ground terminal blocks, and excellent flame-retardant properties to mitigate fire hazards and electrical thermal runaways.

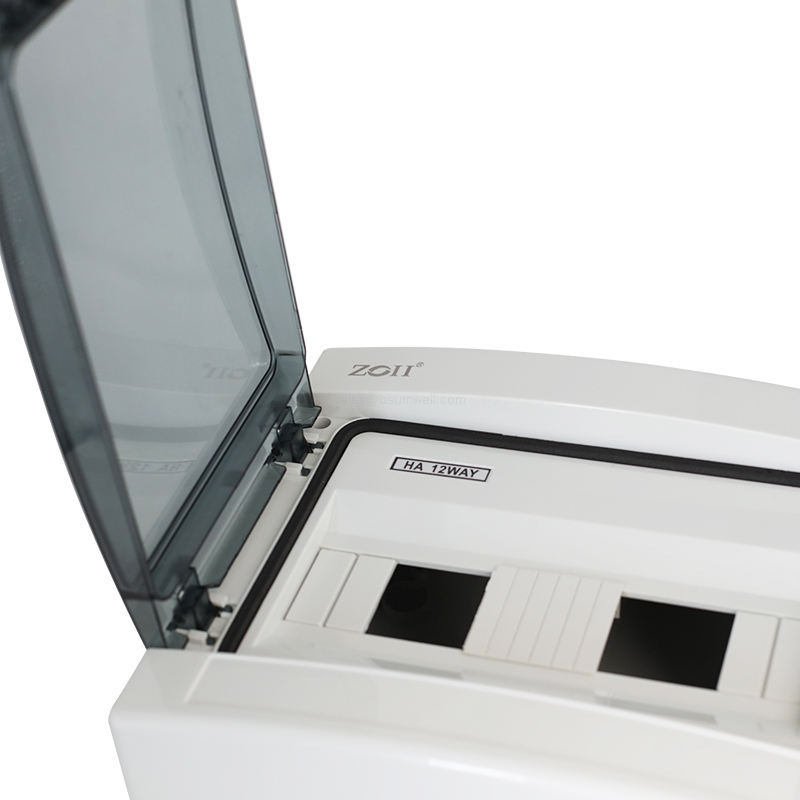

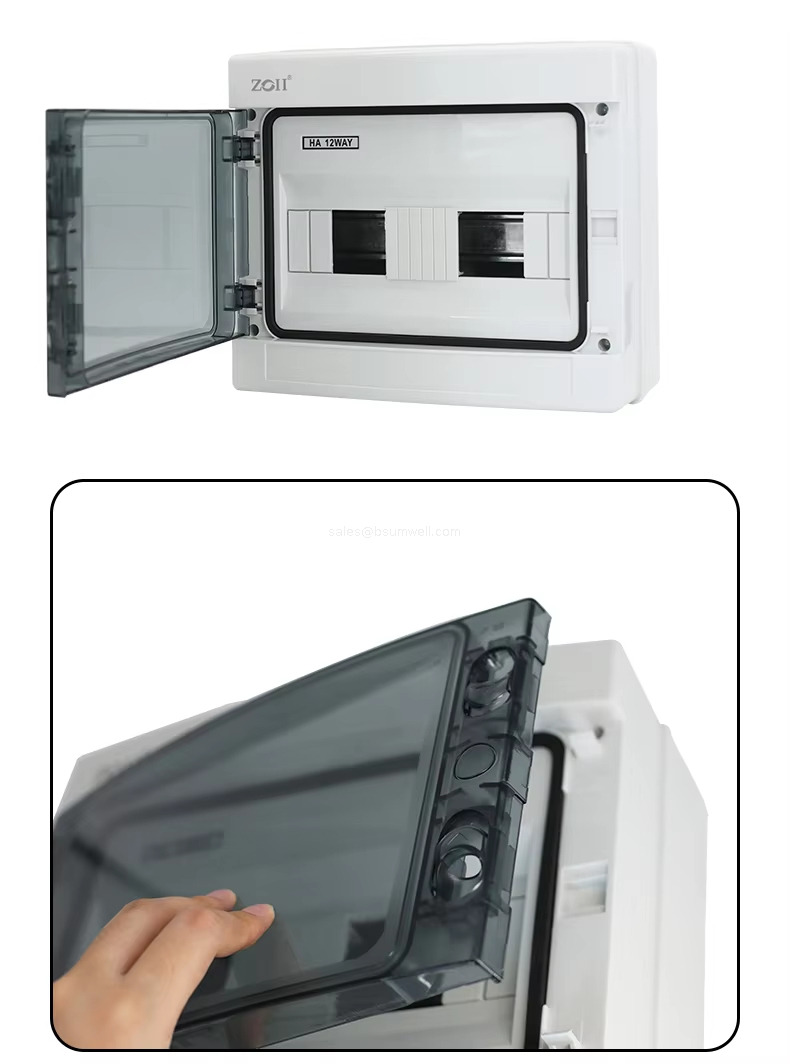

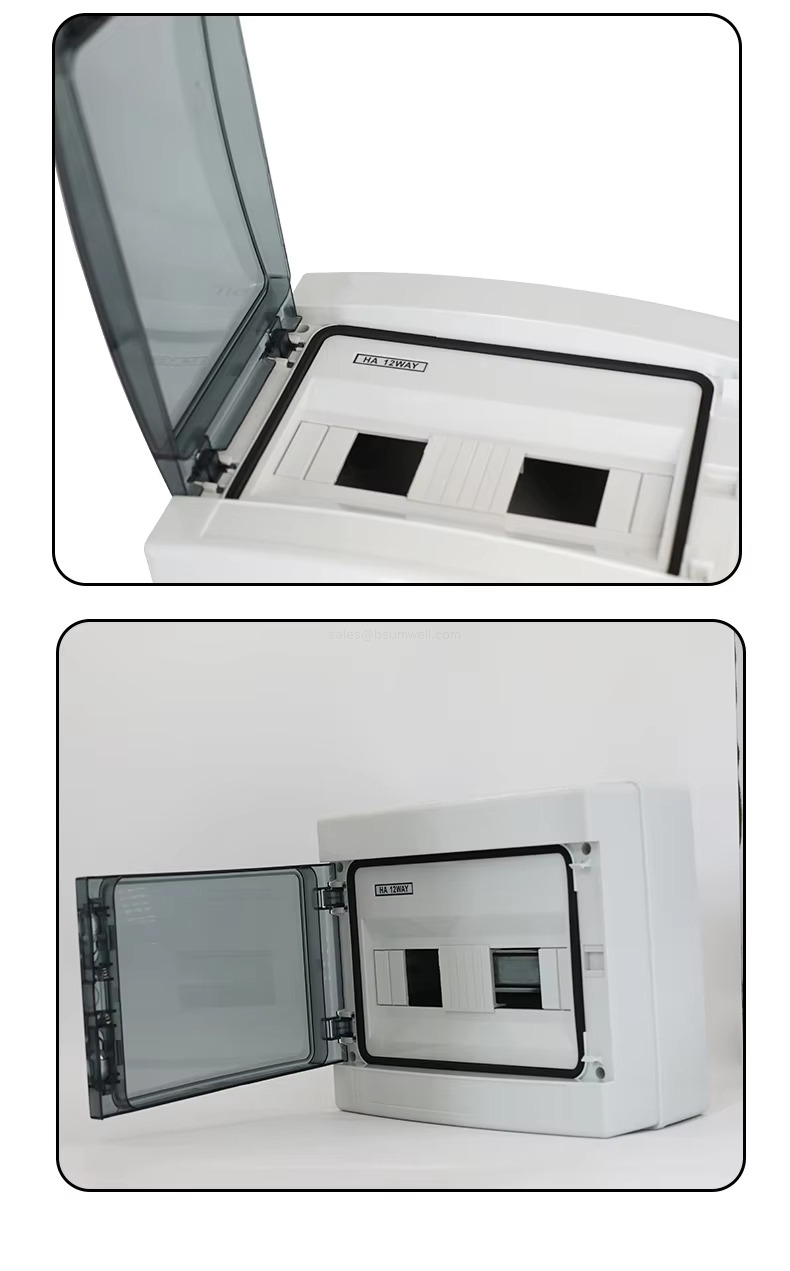

Ergonomic Transparent Window & Installation UtilityThe box is designed with a flip-up, transparent tinted PC window that permits operators to inspect switch positions and circuit breaker statuses safely without exposing the internal wiring to the outer atmosphere. Pre-molded, easy-to-knock-out cable entry ports ensure neat, damage-free wiring glands installation for quick field wiring.
Q1: Is this HA-4 distribution box specifically optimized for outdoor solar PV systems?A1: Yes. The HA-4 enclosure is engineered specifically to serve as a combiner or switch box for outdoor solar photovoltaic installations. Its high UV resistance prevents material degradation under direct sunlight, and its IP65 ingress protection safeguards solar DC circuit breakers or isolators against rain, dew, and ambient moisture.
Q2: What is the maximum capacity of circuit breakers this box can accommodate?A2: The HA-4 model features an integrated standard 35mm DIN rail that can comfortably accommodate up to 4 standard single-pole miniature circuit breakers (MCBs) or a combination of double-pole breakers, RCBOs, or surge protectors depending on your specific circuit configuration.
Q3: How does the PVC/ABS material compare to metal enclosures in coastal environments?A3: Unlike metal enclosures that are highly susceptible to rust and salt-spray oxidation over time, this high-grade PVC/ABS plastic box is 100% corrosion-proof. It offers absolute resistance to chemical vapors, salt-spray coastal air, and acidic rain, making it a much longer-lasting and cost-effective solution for maritime or highly corrosive industrial sites.
Q4: Does the enclosure come with pre-drilled cable entry holes?A4: The enclosure comes with precision-engineered, pre-molded knockouts on both the top and bottom surfaces. These allow technicians to easily remove the exact sized ports needed for PG or metric waterproof cable glands during installation, ensuring a tight, uncompromised seal without the need for manual drilling tools.
