BSUMWELL/ OEM
$0.45 - $1.9
| Quantity: | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Good Quality Electrical Equipment Supplies Knockout Box 3*3 Pvc Switch Socket MK Box Combination Cable Laying Box | |||||||||

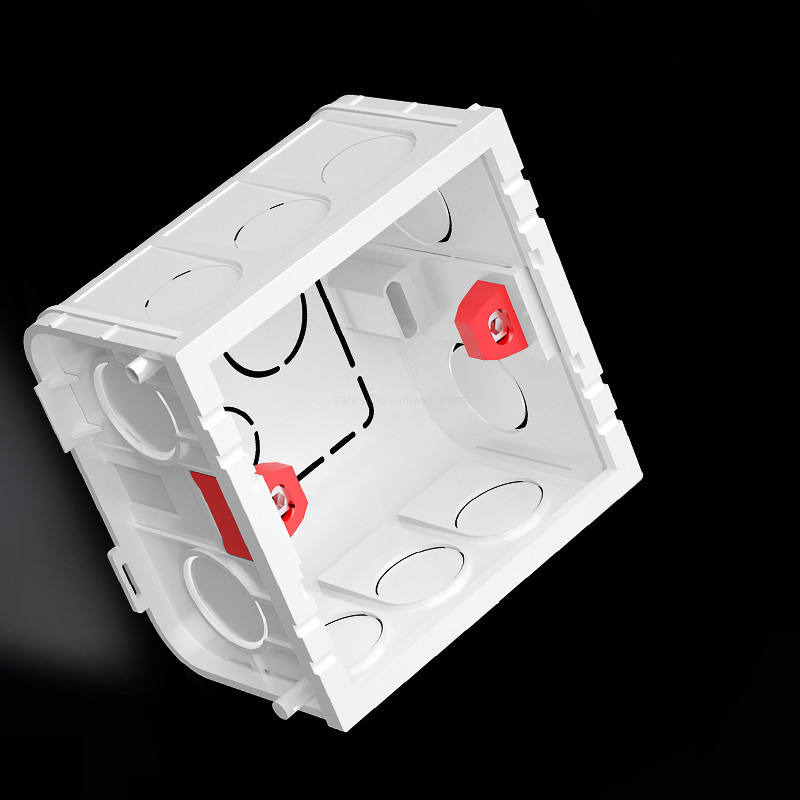

Engineered to establish a highly reliable foundation for architectural power networks, this architectural-grade electrical backing system offers exceptional versatility for modern surface or flush-mounted cable layouts. Built from heavy-duty, impact-resistant, and flame-retardant PVC compounds, these enclosures provide rigid mechanical protection for internal wiring connections. The structural designs showcase a series of clean, deep-set containment options designed to isolate high-voltage terminations effectively. Incorporating dynamic knockouts across the perimeter walls allows for smooth conduit insertion from multiple angles, protecting cables from high stress, friction, or compression during fast-paced commercial installations.

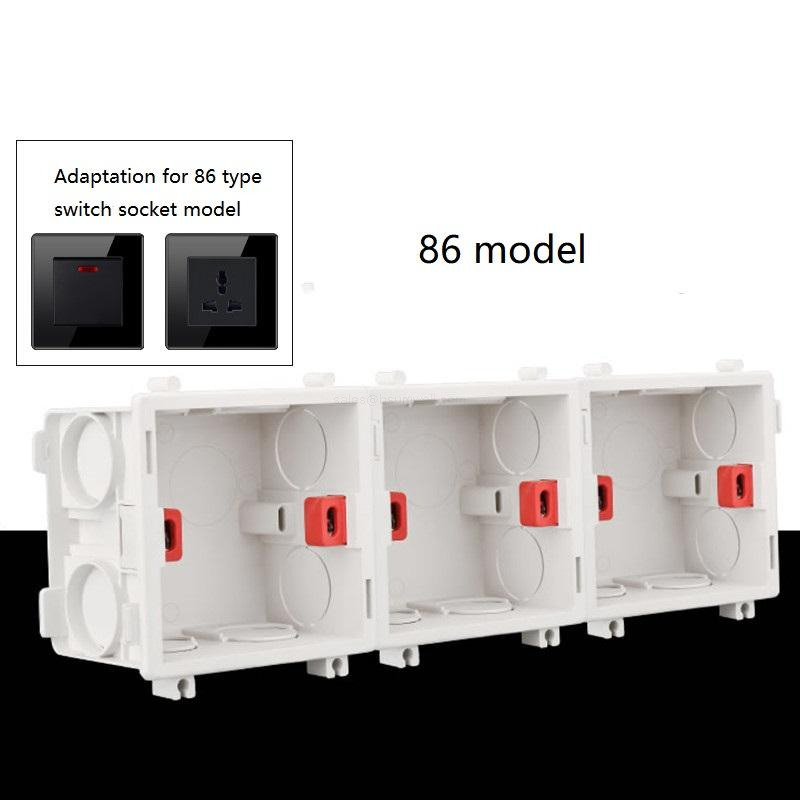

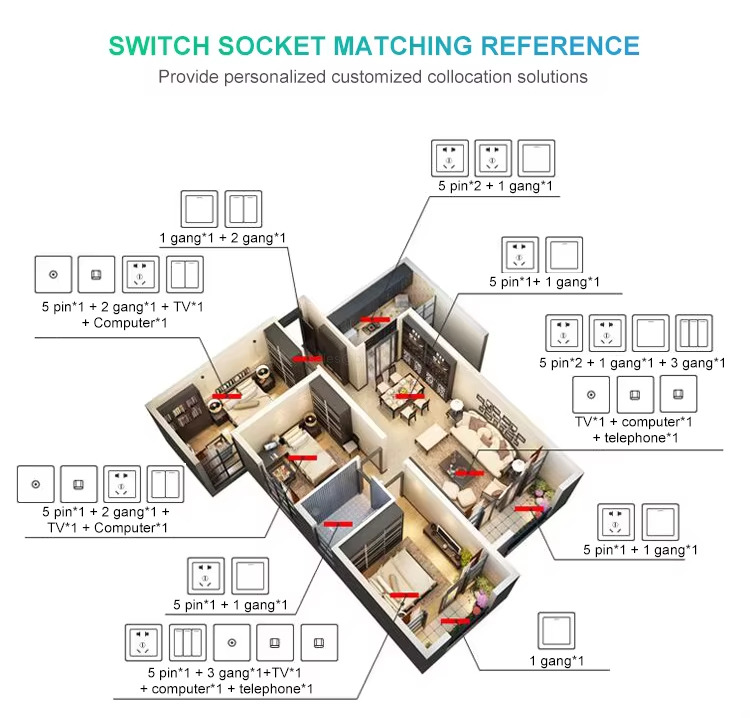

To simplify complex, multi-circuit layout demands in upscale commercial buildings, luxury hotels, and residential spaces, the product family uses a unique interlocking grid configuration. Individual units can lock together seamlessly to form a continuous multi-gang cluster. This modular structural design makes it easy to install comprehensive, multi-device combination plates. It cleanly accommodates extensive wall control arrays—such as multi-point light switches, heavy-duty 5-pin power receptacles, TV coaxial connectors, and dedicated RJ45 telecommunication ports—without needing custom backing molds or uneven manual spacing adjustments.

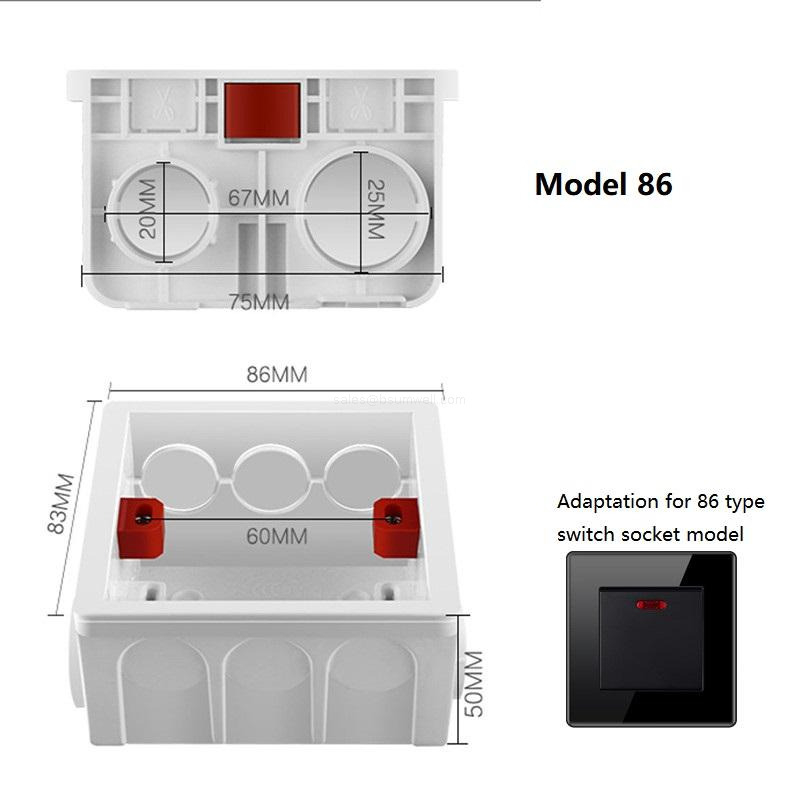

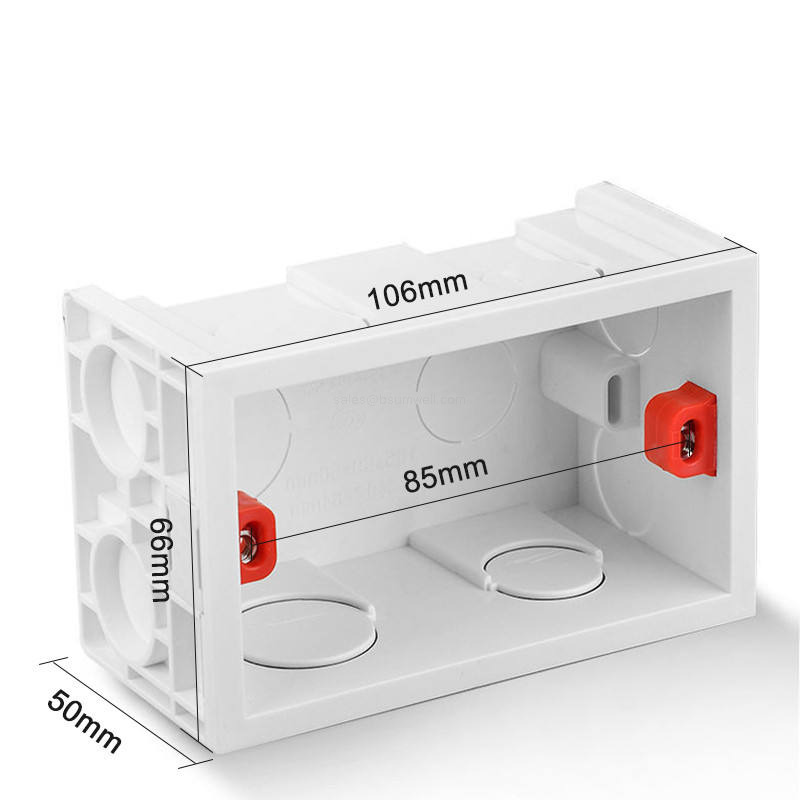

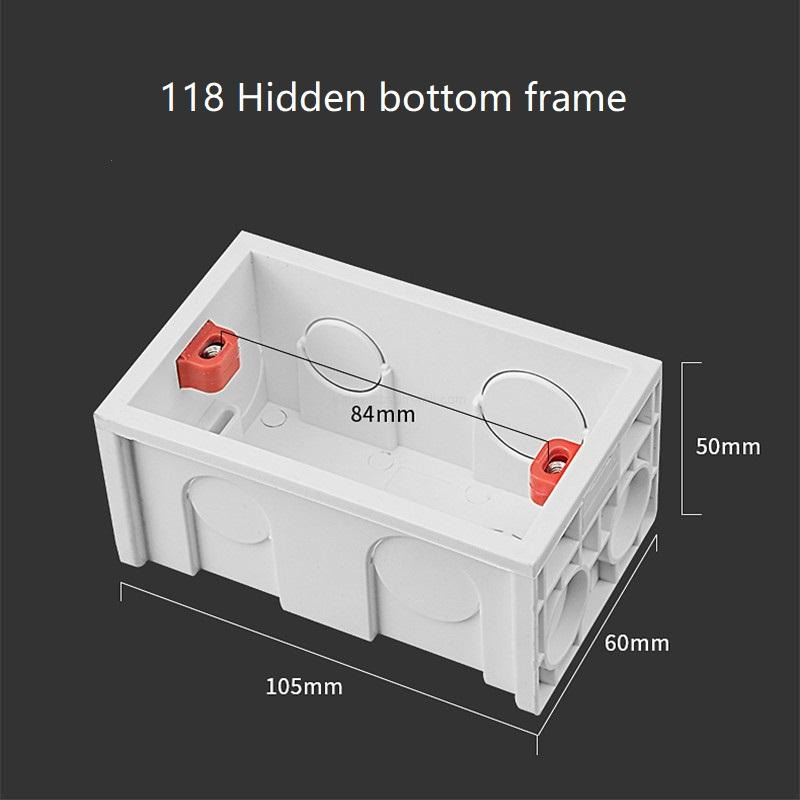

Precision manufacturing ensures that these junction boxes fit perfectly into a wide variety of globally accepted interior installation standards. The engineering layouts are tailored for specific localized wall-plate standards. These include dedicated square footprints for 86-type switch modules, extended rectangular footprints for 118-type modular installations, and standardized mounting screw center distances for secure device alignment. Every unit features reinforced, vibrant red brass-threaded screw insert pillars that resist stripped threads and prevent cross-threading, ensuring lasting device stability even under the repeated mechanical stress of plug insertion.
Q1: How does the interlocking multi-gang splicing system function for multi-switch installations?
A1: The outer side walls are engineered with integrated interlocking structural tabs. This enables multiple boxes to slide and lock firmly together side-by-side, creating a perfectly aligned multi-gang enclosure that ensures clean spacing for multi-lever switch plates or adjacent power outlets.
Q2: What localized wiring and wall plate standards are these junction boxes compatible with?
A2: The product family offers universal compatibility across primary installation sizes. The line includes targeted patterns matching standard 86-type square wall plates, standard 118-type rectangular profiles, and deep flush-mounting dimensions to accommodate different international wiring setups.
Q3: Are the knockout openings easy to remove during installation without fracturing the main box body?
A3: Yes. The perimeter wall surfaces feature precision-molded, thin-walled circular knockouts that can be cleanly punched out with a screwdriver or pliers. This design ensures crisp, smooth entry ports for electrical conduit lines while preserving the structural rigidity of the surrounding enclosure frame.
