IP65\ IP66\ IP67\ IP68
BSUMWELL/ OEM
$6.3 - $9.8
| Quantity: | |||||||||
|---|---|---|---|---|---|---|---|---|---|

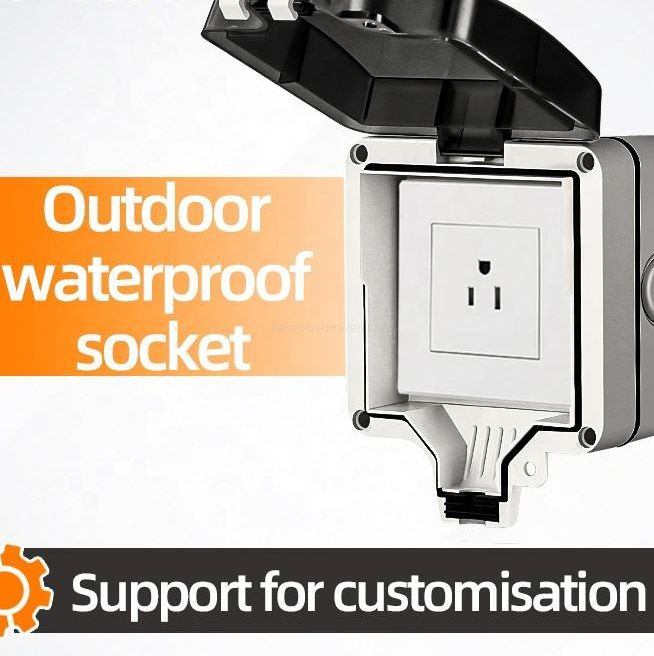

| Customized Wall-Mounted Waterproof Socket Box IP66 ABS Plastic Material 10A Modern Style Replaceable Panel | |||||||||
Engineered for industrial-grade resilience, this premium protective enclosure is manufactured using raw, high-hardness ABS primary material. The specialized chemical structure provides superior mechanical parameters, including exceptional impact resistance, high temperature resistance, and low temperature resistance. This heavy-duty polymer chassis preserves its physical profile and avoids structural failure under harsh mechanical loads or volatile ambient shifts, making it a reliable choice for long-term installation in demanding outdoor environments.

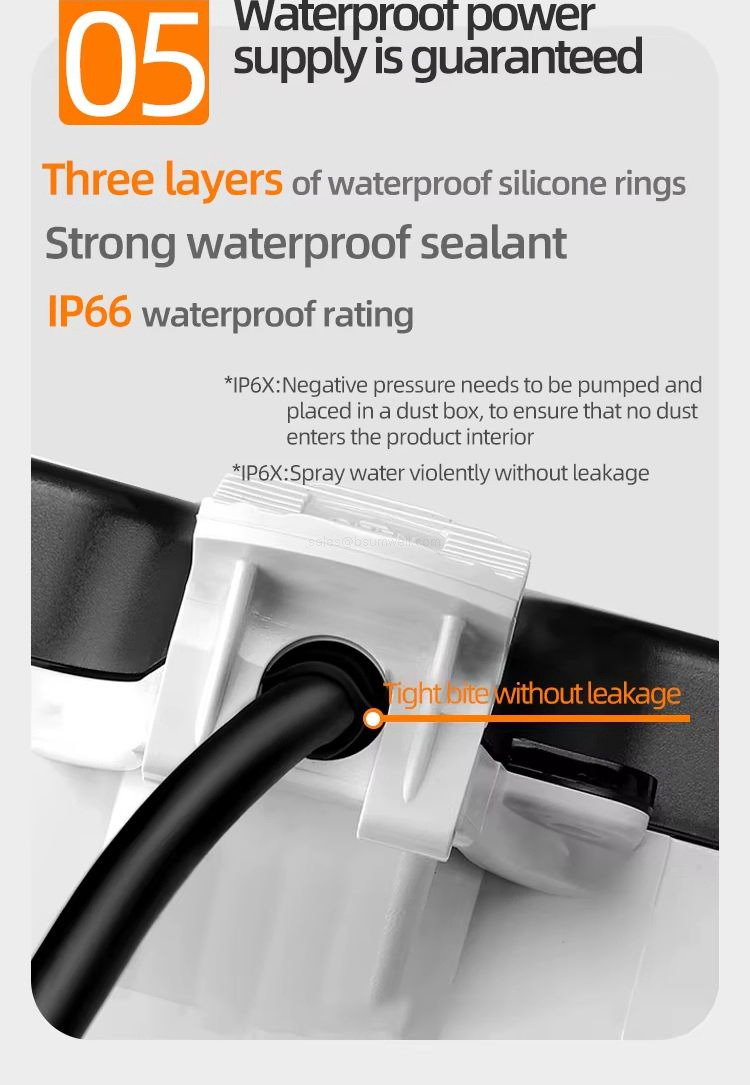

Designed to ensure an uninterrupted power supply during severe downpours, the housing features an absolute all-round waterproofing framework. The internal boundary utilizes an advanced triple-layer sealing system, incorporating three layers of a high-performance waterproof silicone rubber ring alongside a strong waterproof sealant. This sealing technology achieves a certified IP66 protective index, guaranteeing that water sprayed violently against the exterior will not cause internal leakage. Additionally, the bottom cable exit provides a tight bite force that seals around the cord jacket seamlessly to prevent capillary water entry during active use.

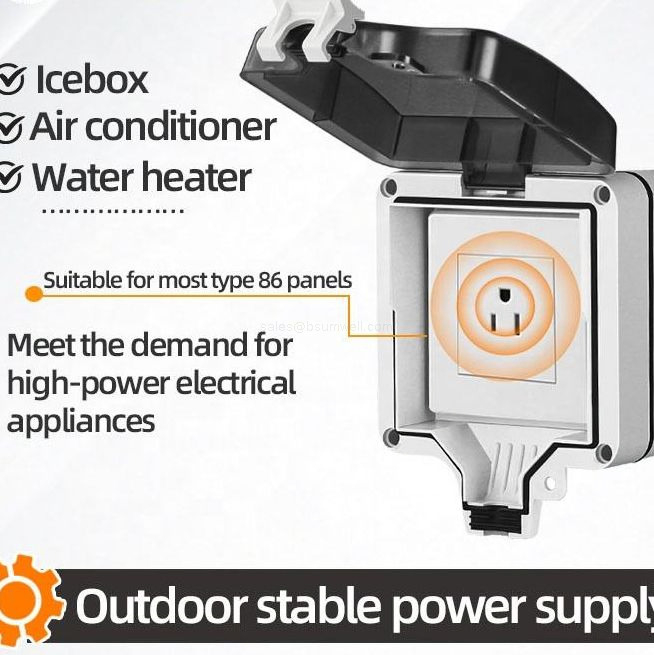

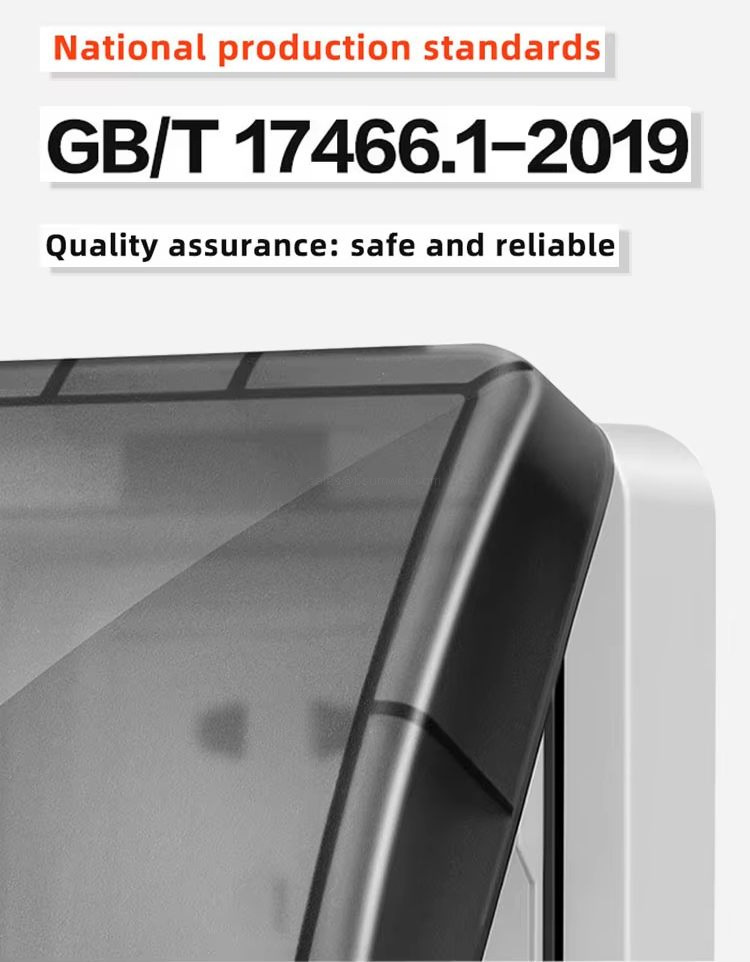

Built to comply with strict national production safety standards under GB/T 17466.1-2019, this protective installation box delivers verified quality assurance. The internal sizing is perfectly configured to fit most standard type 86 electrical panels, making it widely adaptable for upgrading existing switches or outlets. The deep clearance design allows the protective cover to remain completely closed when powering heavy-duty machinery, meeting the intense power delivery demands of high-current applications such as air conditioners, water heaters, iceboxes, and outdoor electric vehicle (EV) charging sheds.
This versatile surface-mounted box is highly recommended by electricians for installations across a diverse range of extreme settings. Its robust construction and sun protection parameters make it fully competent for various production workshops, automated breeding sites, commercial charging stations, and residential patios, balconies, or gardens. Each configuration comes complete with essential professional waterproof installation accessories, including matching cable glands, wall-mounting anchors, and hardware to ensure code-compliant, secure placement.
Q1: What are the primary material advantages of using ABS primary material for this socket box?
A1: This box is injection-molded from high-hardness ABS primary material, which provides high impact resistance compared to recycled or low-tier plastics. It is engineered to maintain structural stability under both low-temperature freezing conditions and high-temperature summer exposure, preventing warping or cracking.
Q2: What type of plugs can safely fit inside the box while keeping the outer cover completely closed?

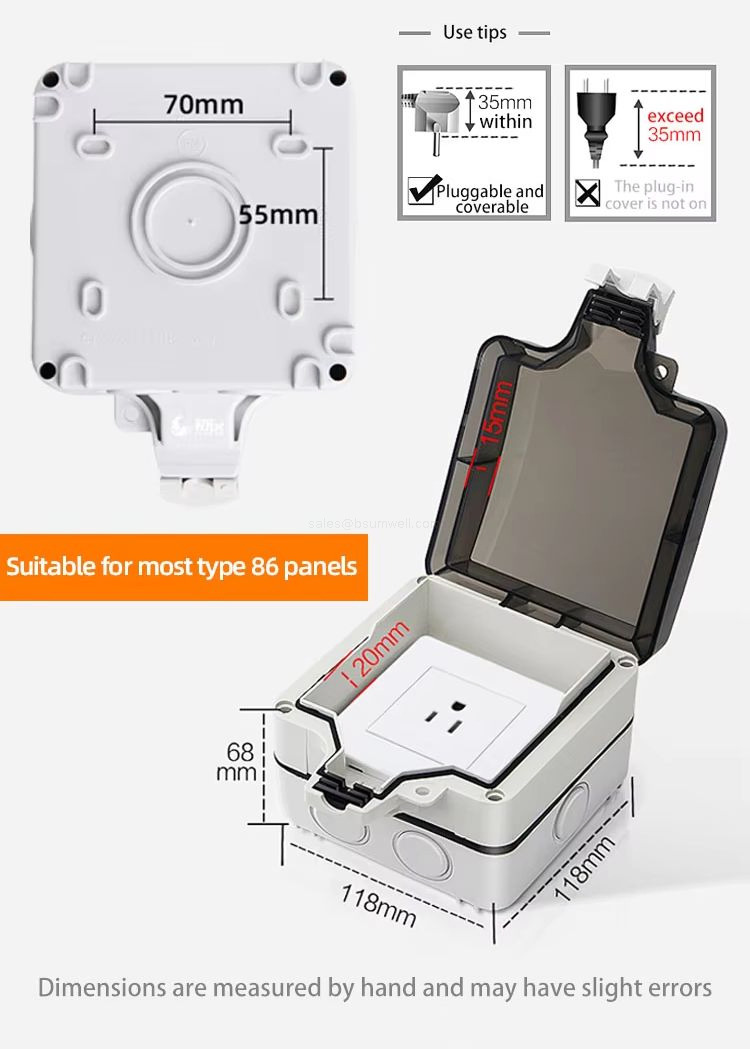

A2: The inner chamber features an extended depth profile with a 20mm internal socket recess and a 15mm clearance inside the swinging cover, providing a 35mm space threshold. Standard power cords and molded appliance plugs with a thickness within 35mm can be cleanly plugged in while keeping the outer waterproof lid fully latched. Plugs exceeding 35mm will prevent the lid from closing completely.
Q3: How does the triple-layer sealing ring prevent water leakage from high-pressure water jets?
A3: The enclosure integrates an advanced triple-layer silicone rubber ring configuration combined with a high-strength waterproof sealant boundary. This multi-layer compression barrier achieves a certified IP66 rating, meaning the box can withstand high-pressure water spray from any direction without allowing moisture to penetrate the interior electrical terminal area.
Q4: Can this waterproof box be used for high-power demanding outdoor applications like EV charging?
A4: Yes. The enclosure complies with safety production standard GB/T 17466.1-2019 and accommodates most standard type 86 switch socket panels. It is designed to handle continuous heavy loads and is commonly utilized to protect the power lines of heavy-duty appliances like air conditioners, industrial refrigeration units, and outdoor vehicle charging sheds.
